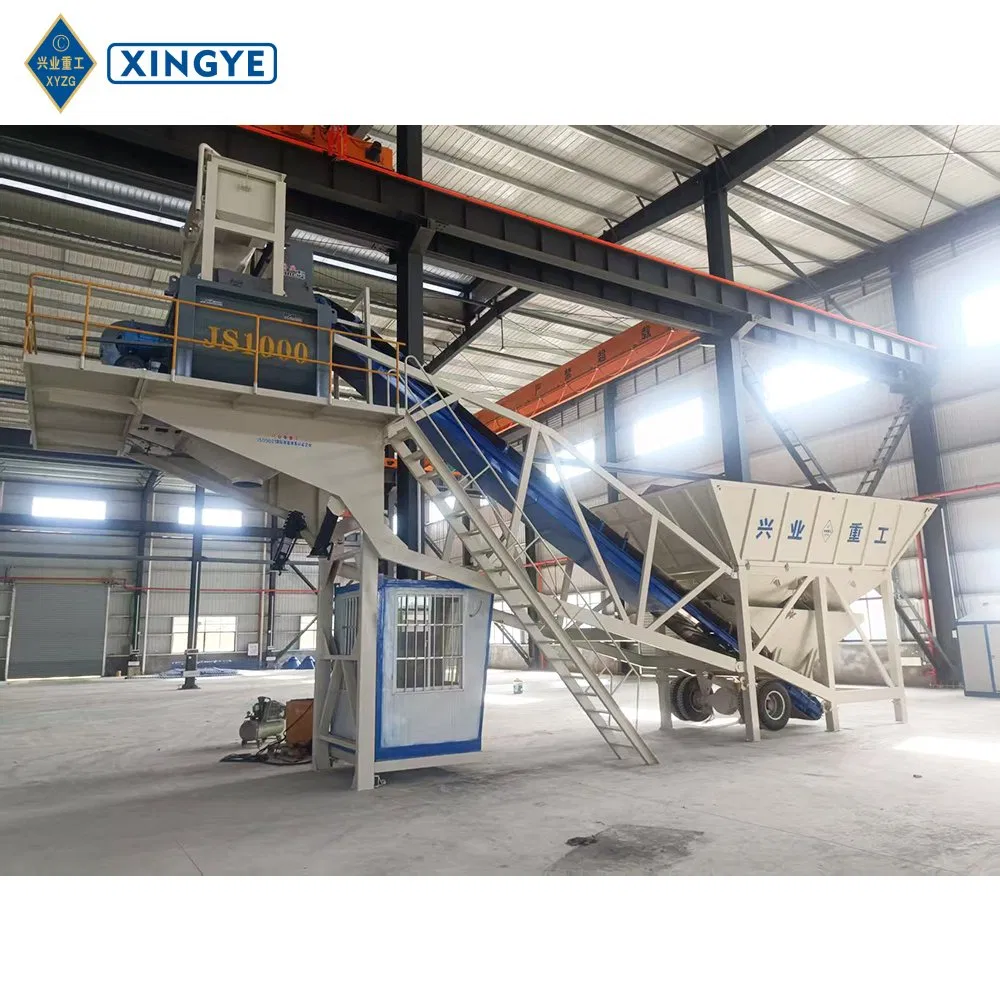

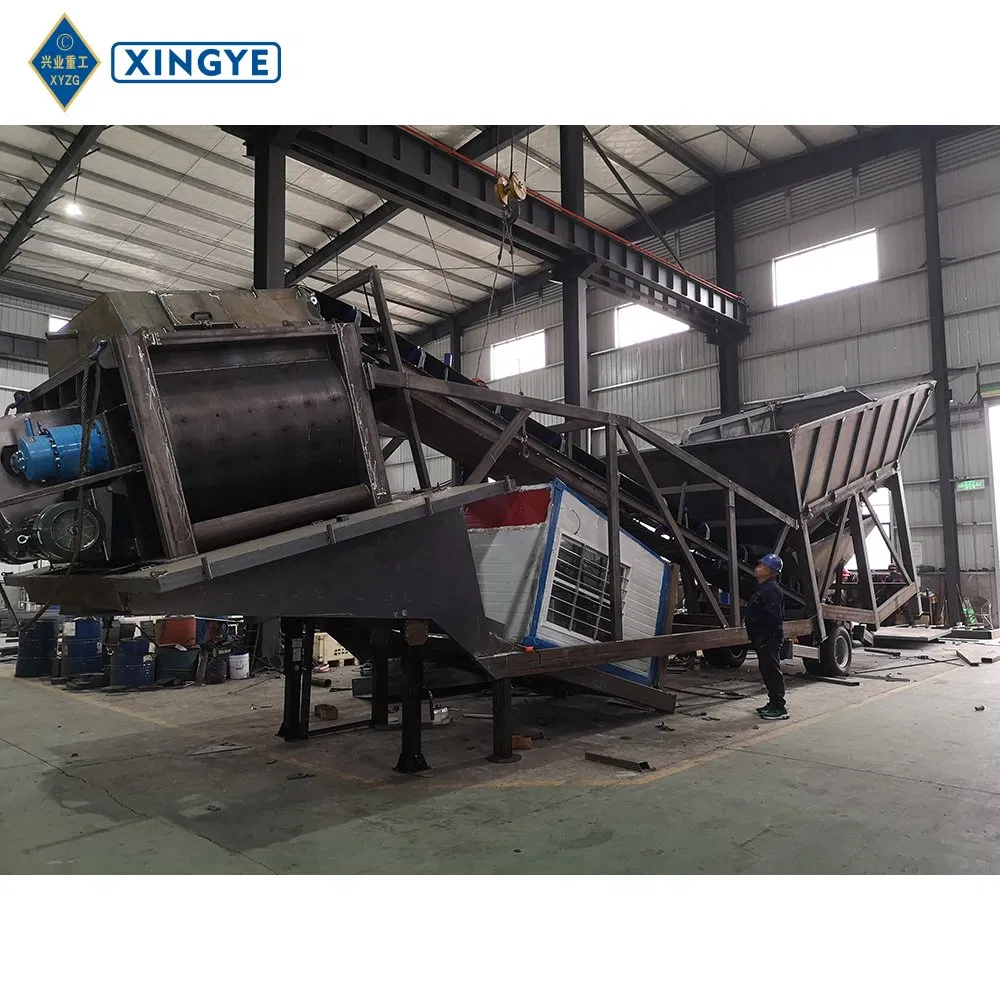

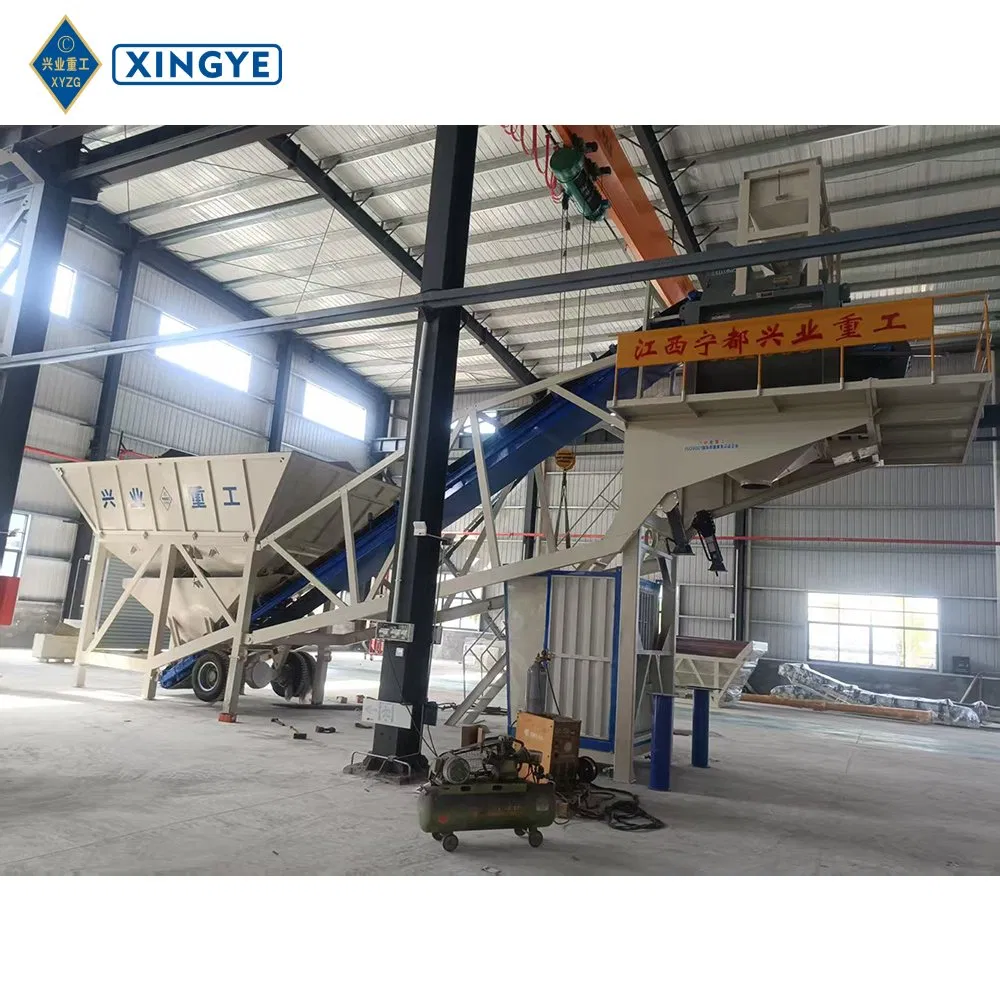

Mobile Concrete Mixing Plant 60m3 Portable Concrete Batching Plant
The YHZS60 concrete mixing plant adopts a forced twin-shaft mixer, capable of mixing a variety of concrete types. Aggregate measurement is handled by an automated batching machine with computer control, ensuring simple operation, easy adjustment, and high reliability.

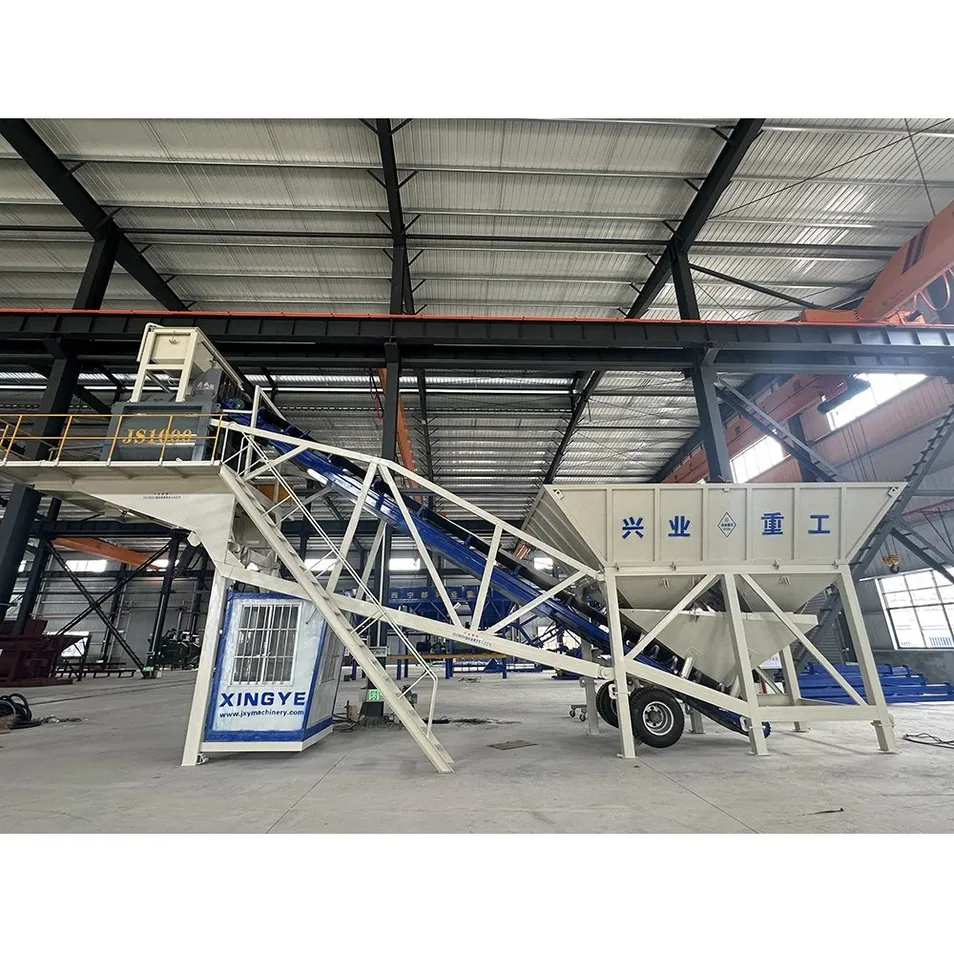

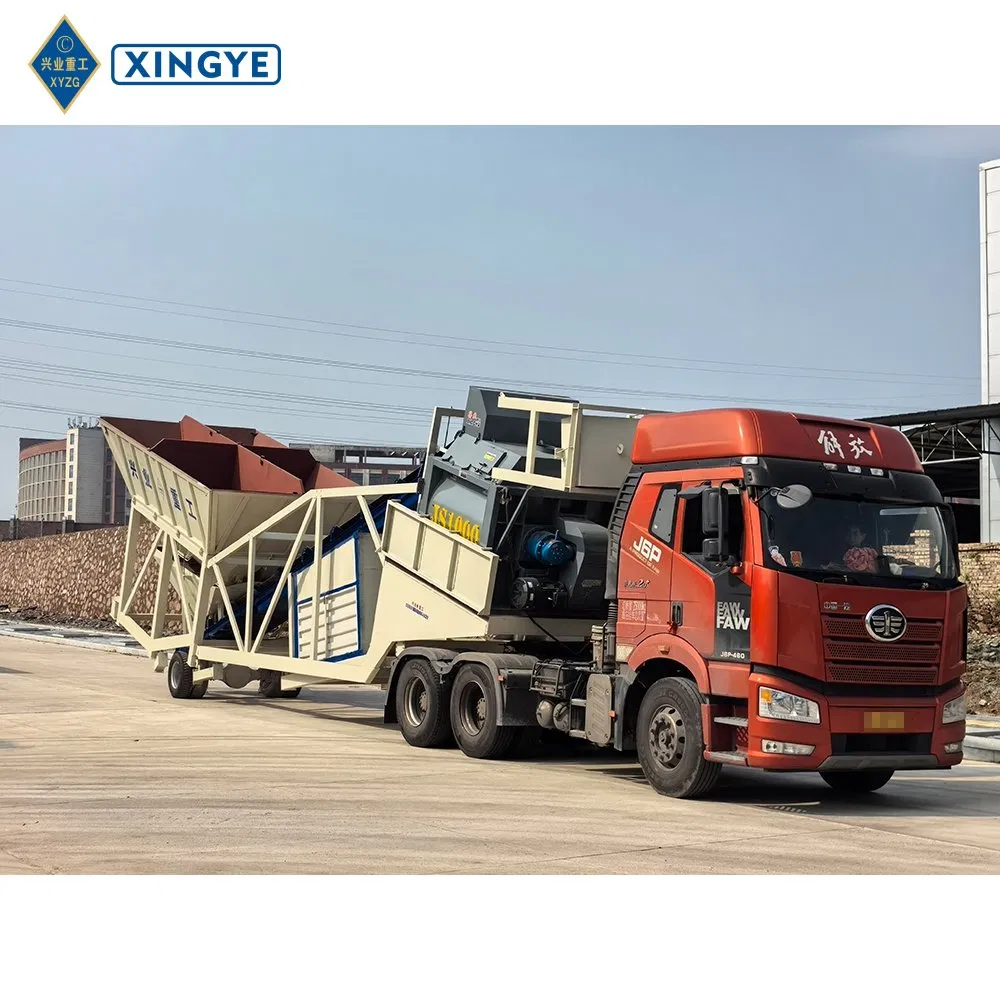

This mobile batching plant is a towable unit that integrates aggregate storage, weighing, mixing, and transportation into one centralized system. It is specifically designed for mobile construction projects like roads, bridges, and ports that require efficient, on-site concrete production.

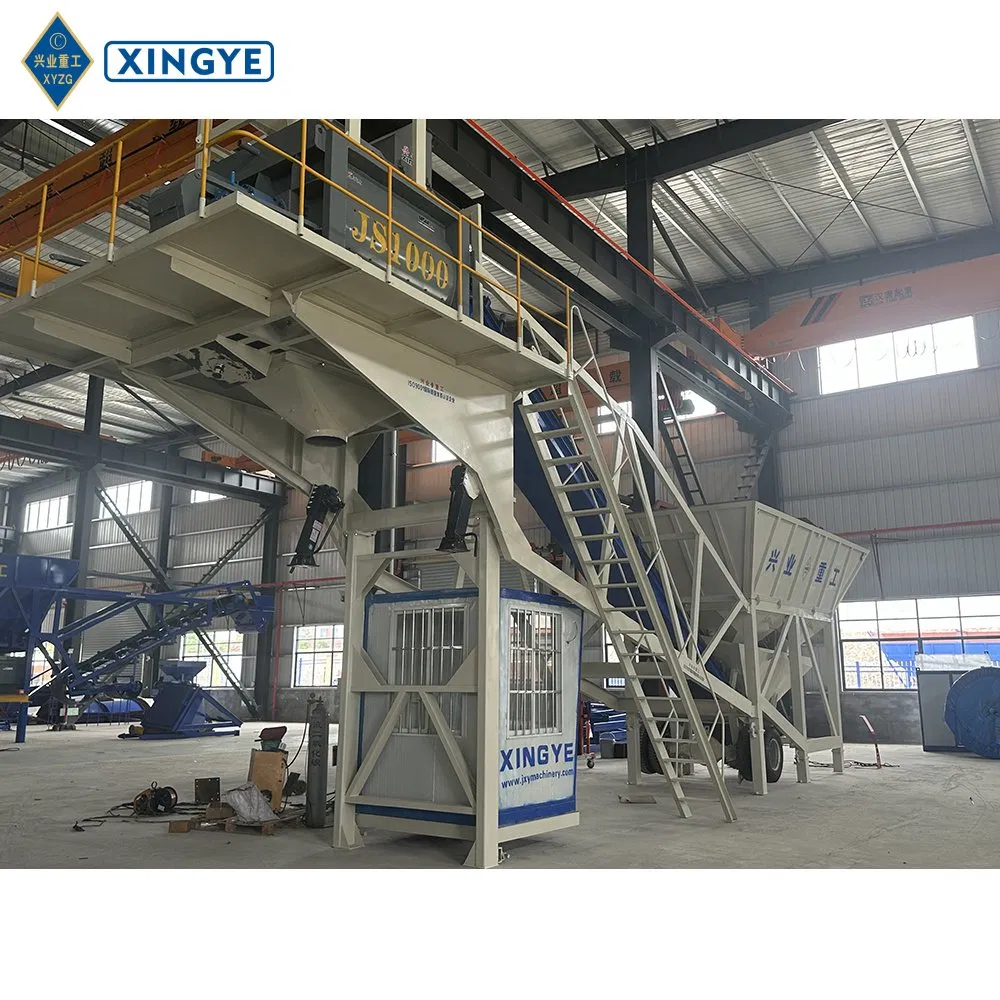

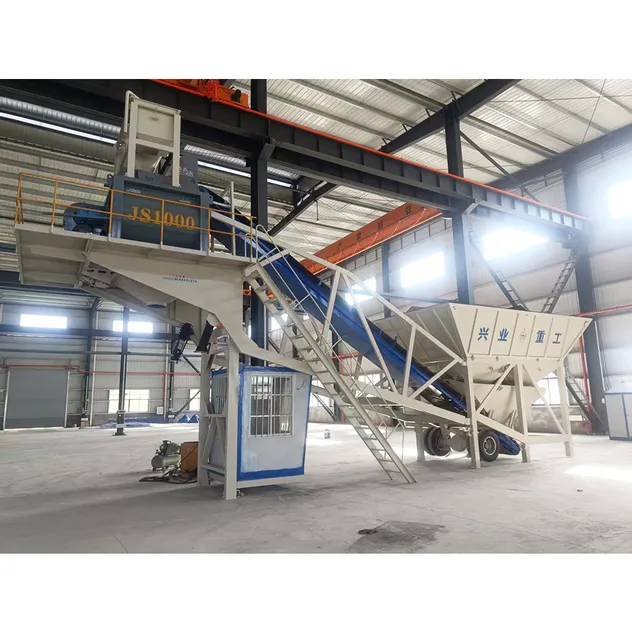

1. Mixing System: Features a JS1000 twin-shaft compulsory mixer for rapid, uniform mixing of fluid and dry hard concrete.
2. Material Supply System: Includes aggregate batching with pneumatic door operation and a robust belt conveyor frame.
3. Measuring System: High-precision load cells for cement, water, and liquid admixtures ensure accurate proportions.
4. Control System: Fully automatic PLC + industrial computer control room located on the main chassis.
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS60 |
|---|---|---|---|---|
| Productivity (m³/h) | 25 | 35 | 50 | 60 |
| Discharger Capacity (L) | 500 | 750 | 1000 | 1000 |
| Discharger Height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Aggregate Measure Range (kg) | 0-1500 | 0-2300 | 0-3000 | 0-3000 |
| Powder Measure Precision | ±1% | ±1% | ±1% | ±1% |

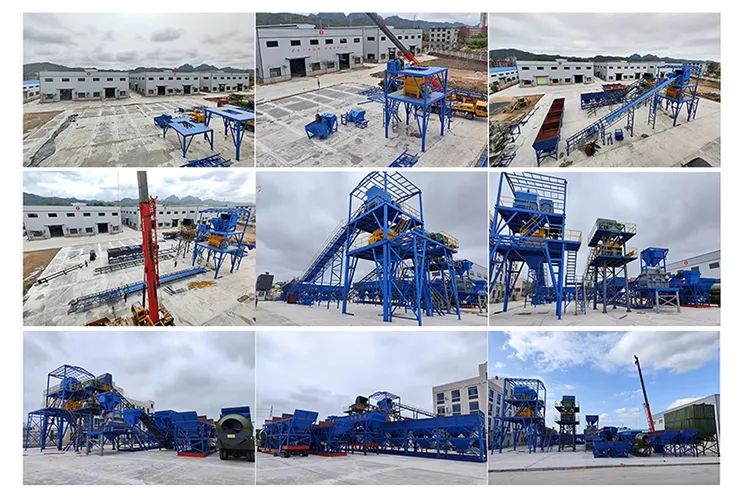

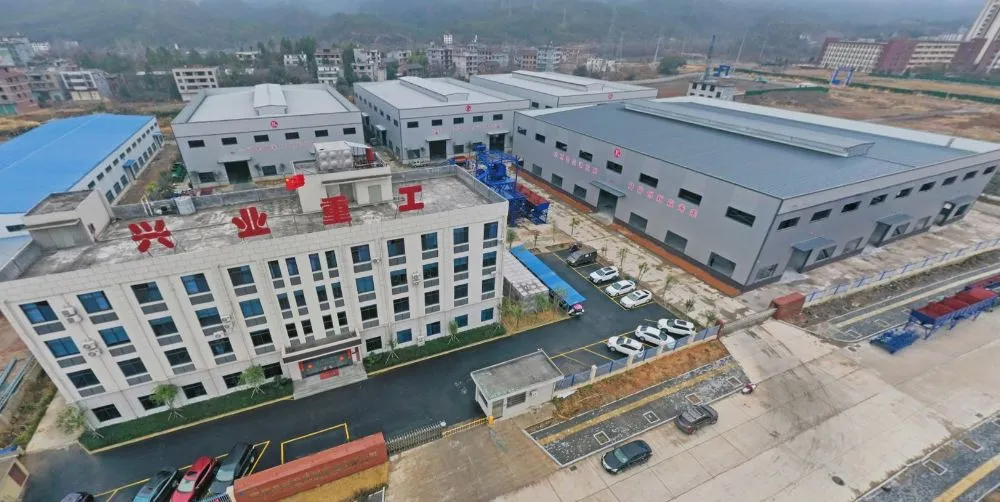

With 25 years of professional production experience, we operate from a modern 20,000 square meter facility. Our professional design and strict quality inspection teams ensure that every piece of equipment meets global standards.
