50m³/h Ready Mix Concrete Mixing Solution

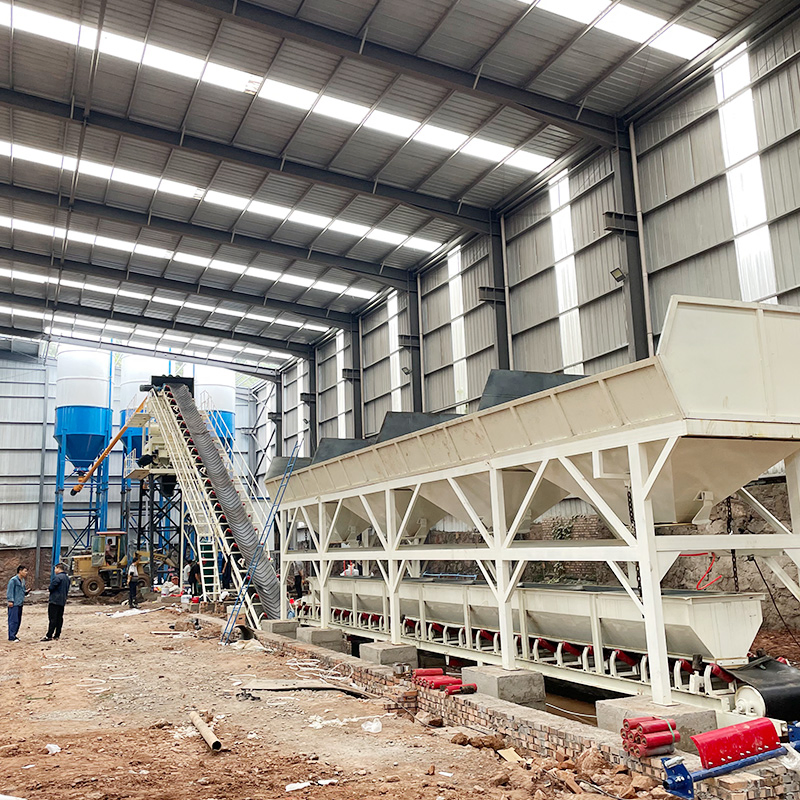

The YG50 concrete batching plant is a medium-capacity, fully automatic concrete mixing solution, widely used for commercial concrete production, infrastructure projects, road construction, and precast plants. With a JS1000 twin-shaft concrete mixer, accurate weighing systems, and modular design, it delivers stable output, precise batching, and easy installation.
| Model | YG-100 / YG50 | Type | Concrete Mixing Plant |
|---|---|---|---|
| Shotcrete Type | Wet | Machining Process | Hydraulic |
| Structure | Spiral Type | Productivity | 50 - 60m³/h |
| Automation | Fully Automatic | Color | Blue / Customizable |
| Certification | ISO9001: 2000, CE | Condition | New |

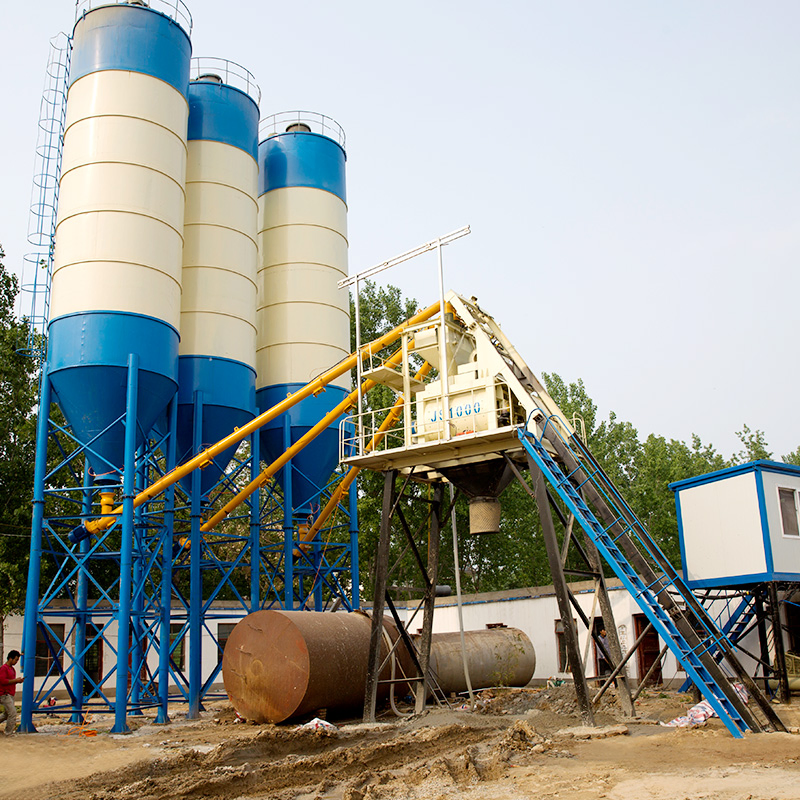

JS1000 Twin-shaft compulsory mixer

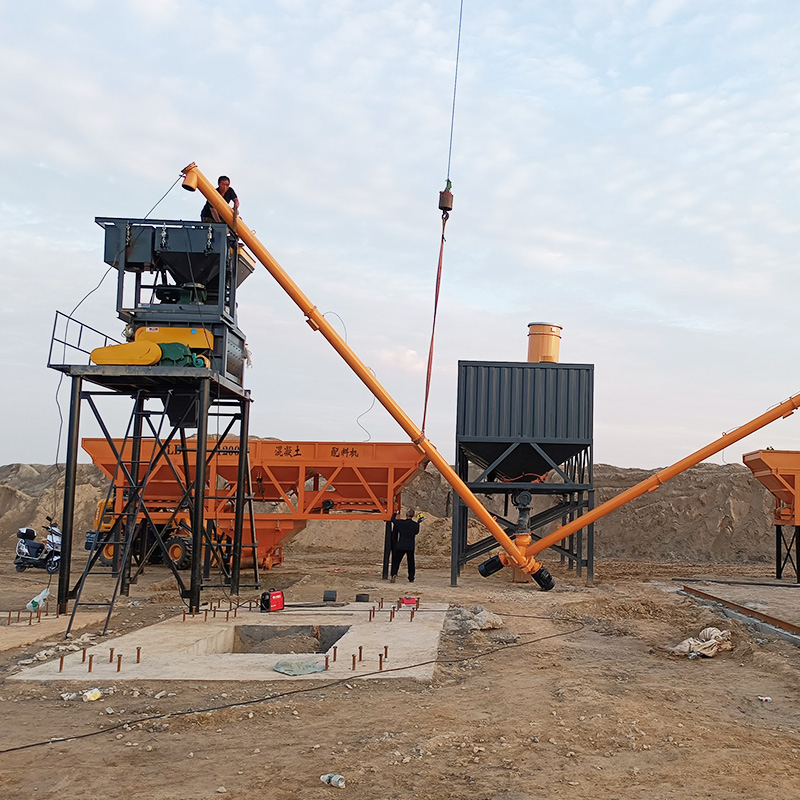

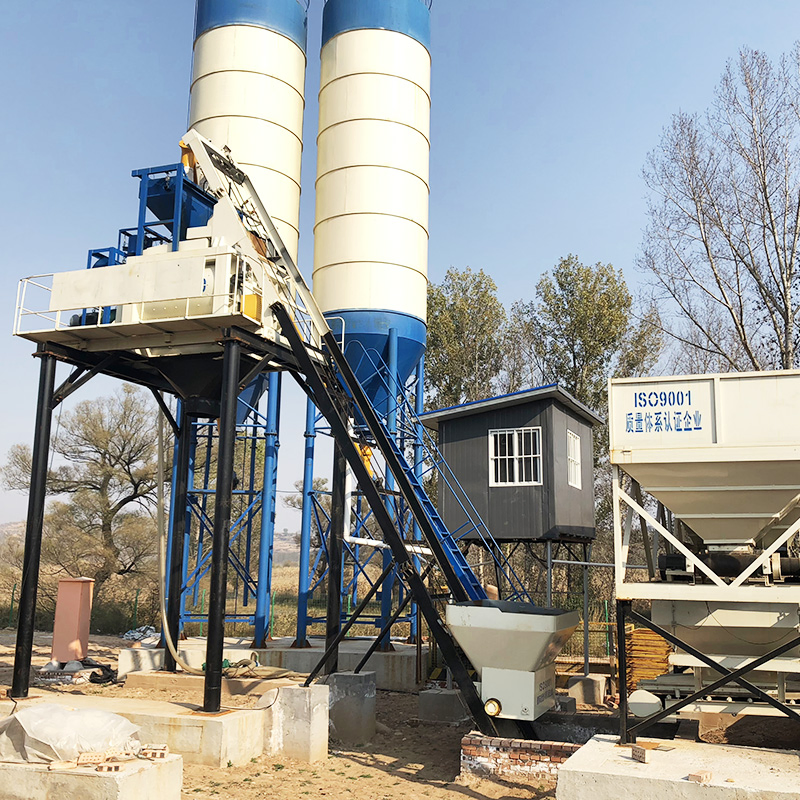

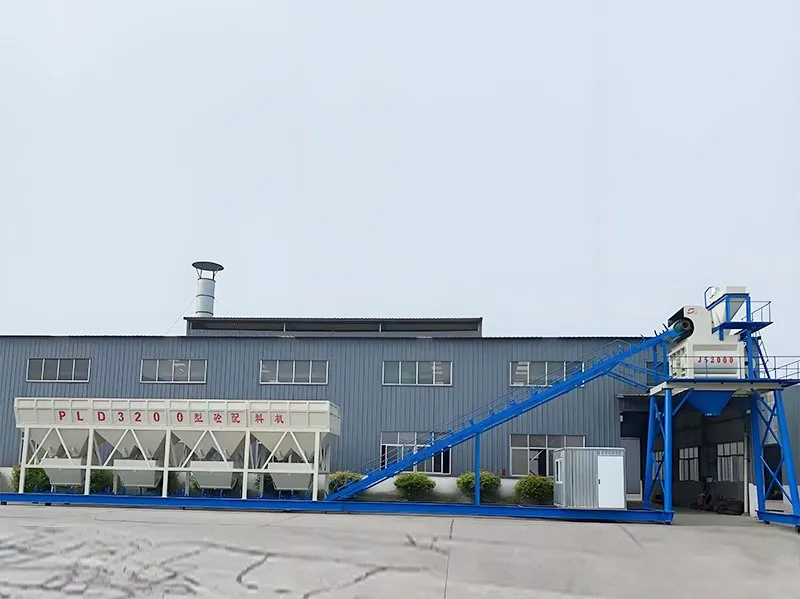

Modular Plant Design
| Parameter | Details |
|---|---|
| Theoretical Productivity | 50 m³/h |
| Mixer Model | JS1000 (37 kW) |
| Aggregate Max Size | 60 mm |
| Discharge Height | 3.8 m |
| Aggregate Weighing Accuracy | ±2% |
| Cement/Water/Additive Accuracy | ±1% |
| Control System | PLC + Industrial Computer |
| Batching Machine | PLD1600 (3 or 4 bins optional) |
| Item | YG50 Plant | Traditional Small Plant |
| Productivity | 50 m³/h | 20–30 m³/h |
| Mixing Quality | High uniformity | Uneven |
| Automation | Fully automatic | Semi/manual |
| Labor Cost | Low | High |
| Material Accuracy | High | Low |

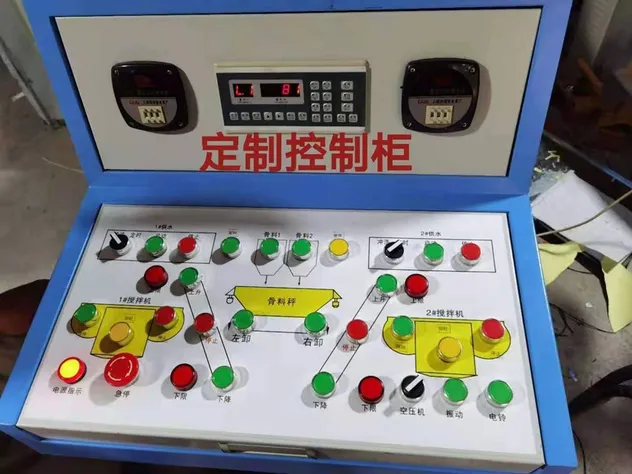

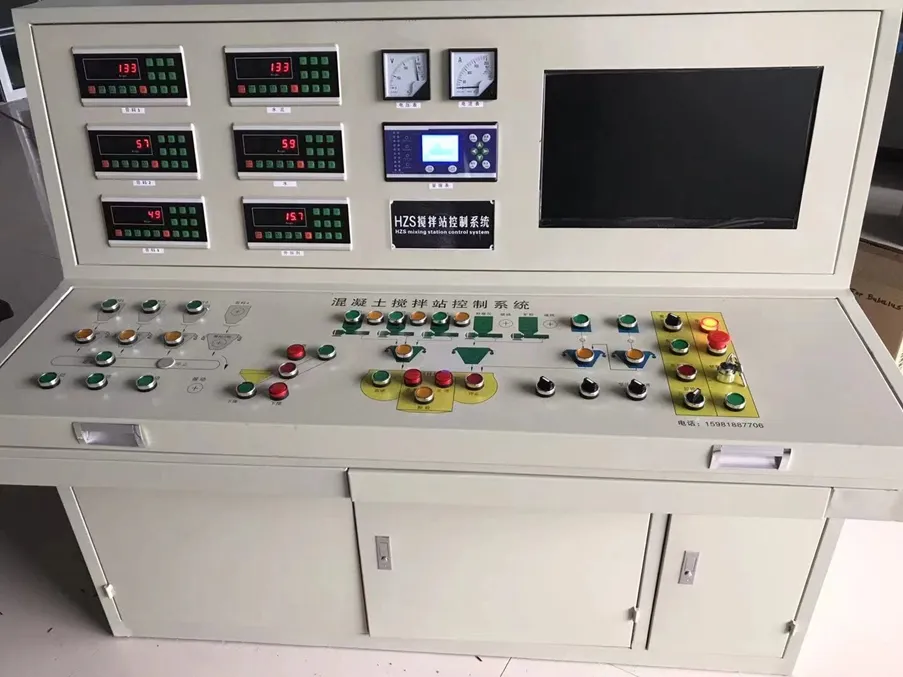

Customizable control cabinet

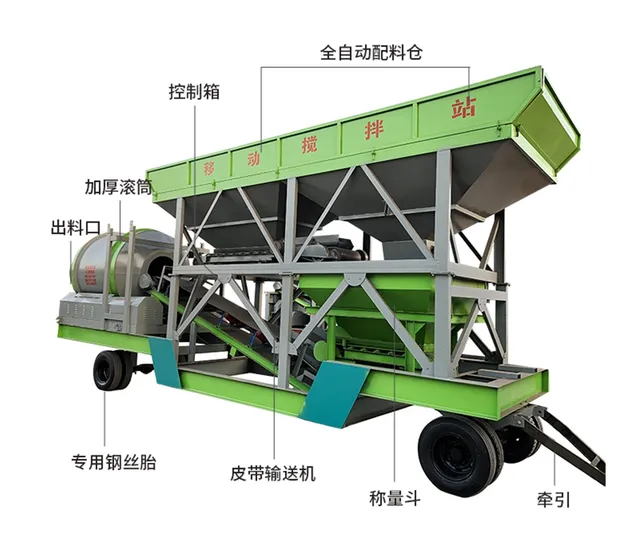

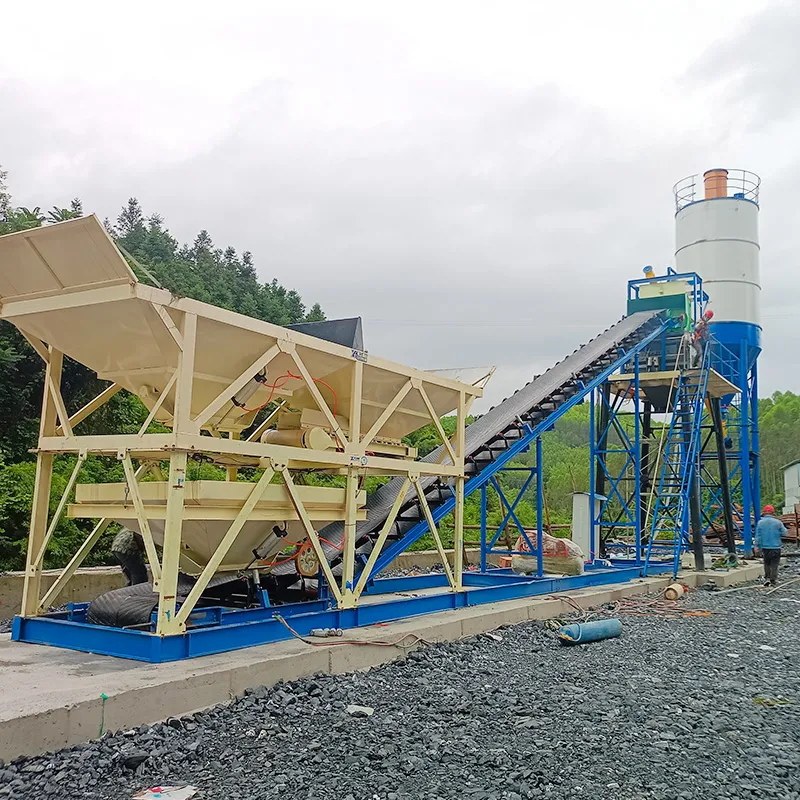

3-bin aggregate system

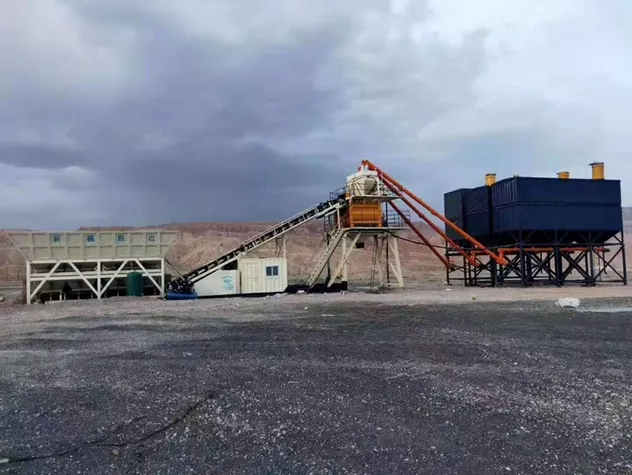

Tailor-made solutions
Standard Warranty: 12 months or 2,000 operating hours. Extended warranty options available up to 36 months.
Technical Support: 24/7 global assistance and spare parts supply.
Comprehensive Training: We offer training at our factory or on-site during installation covering operation, maintenance, and troubleshooting.
Installation: Qualified engineers can be dispatched for installation and commissioning (advance scheduling required).
