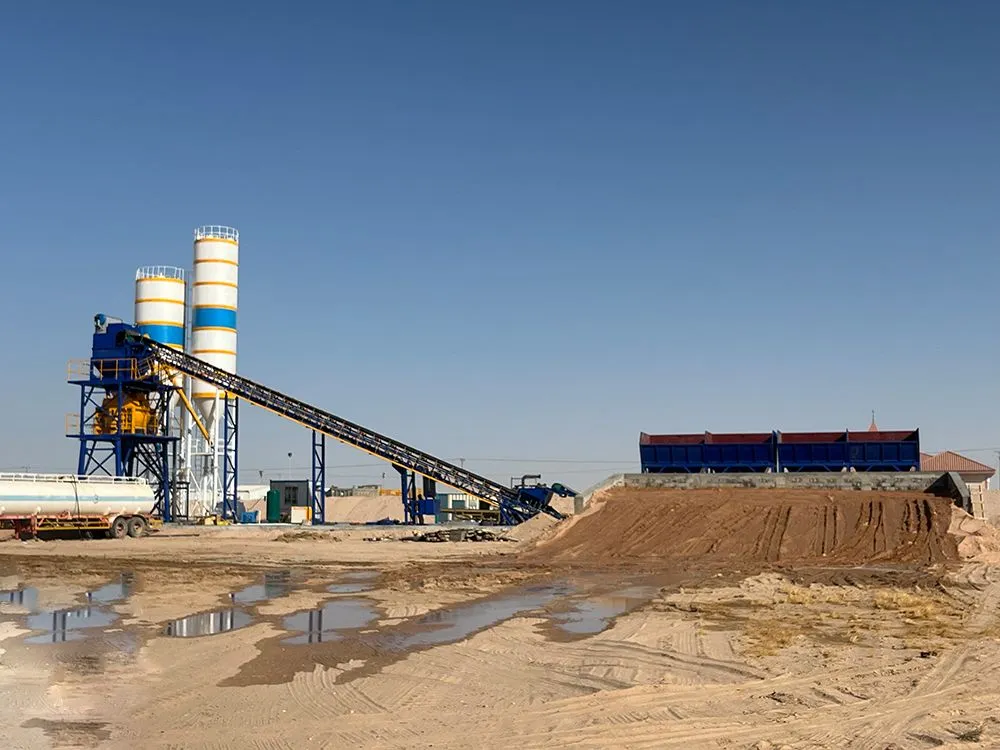

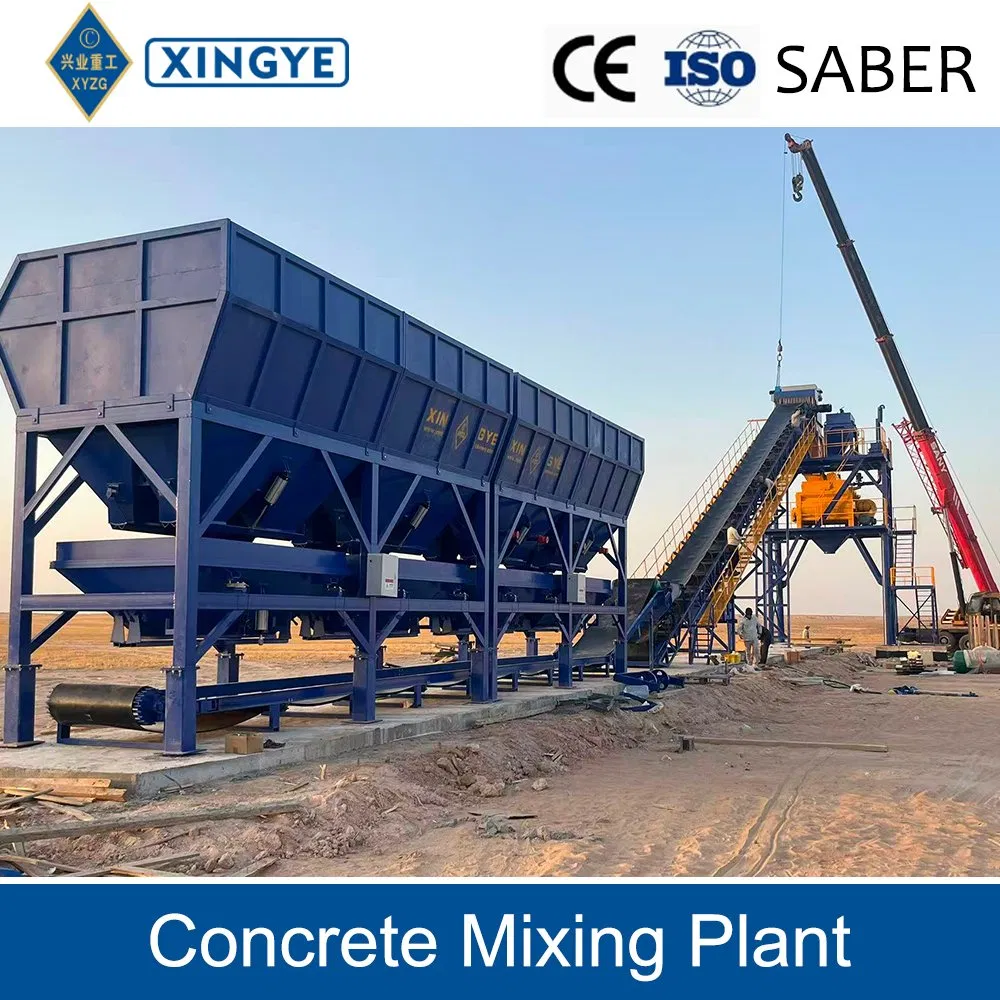

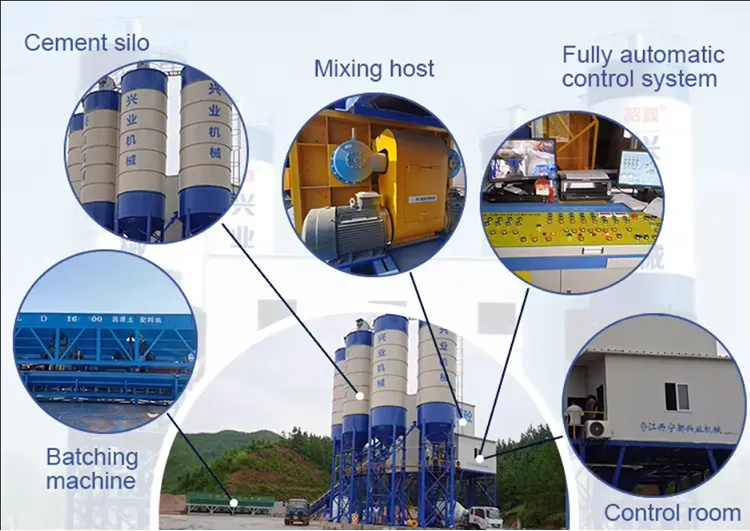

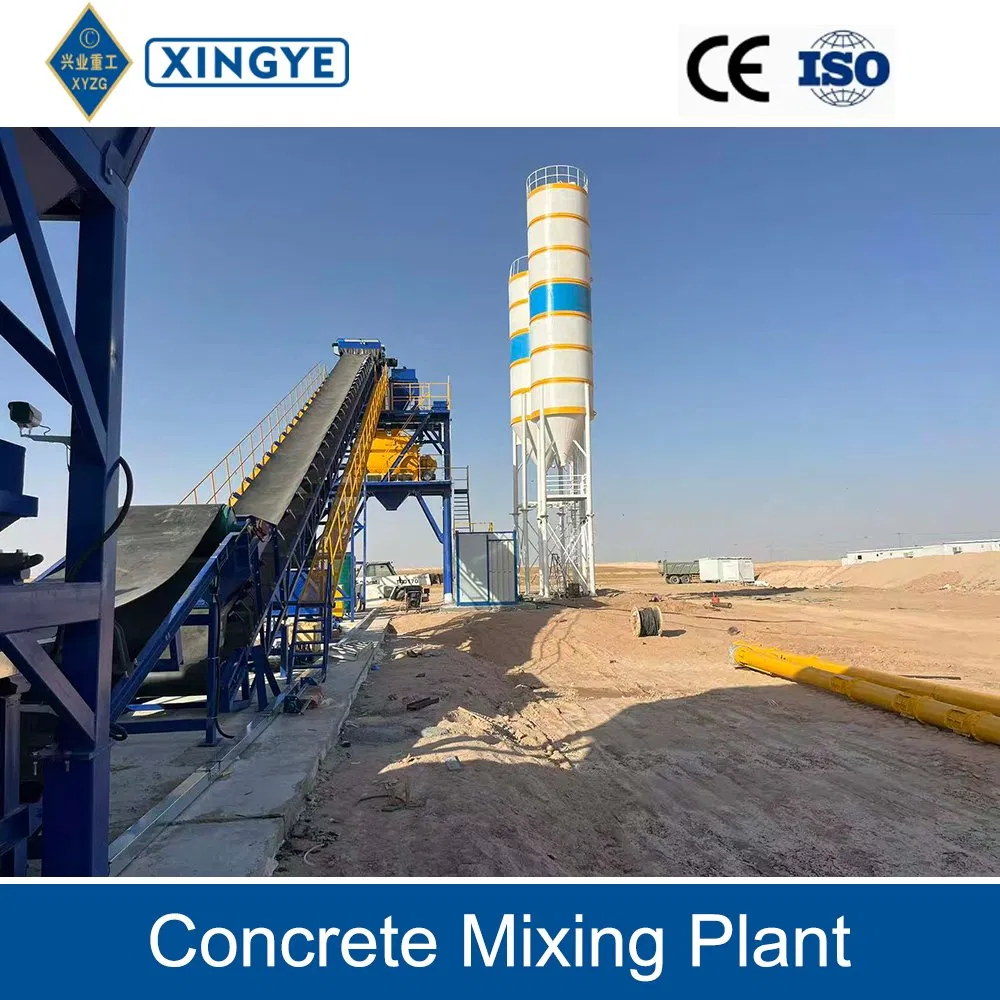

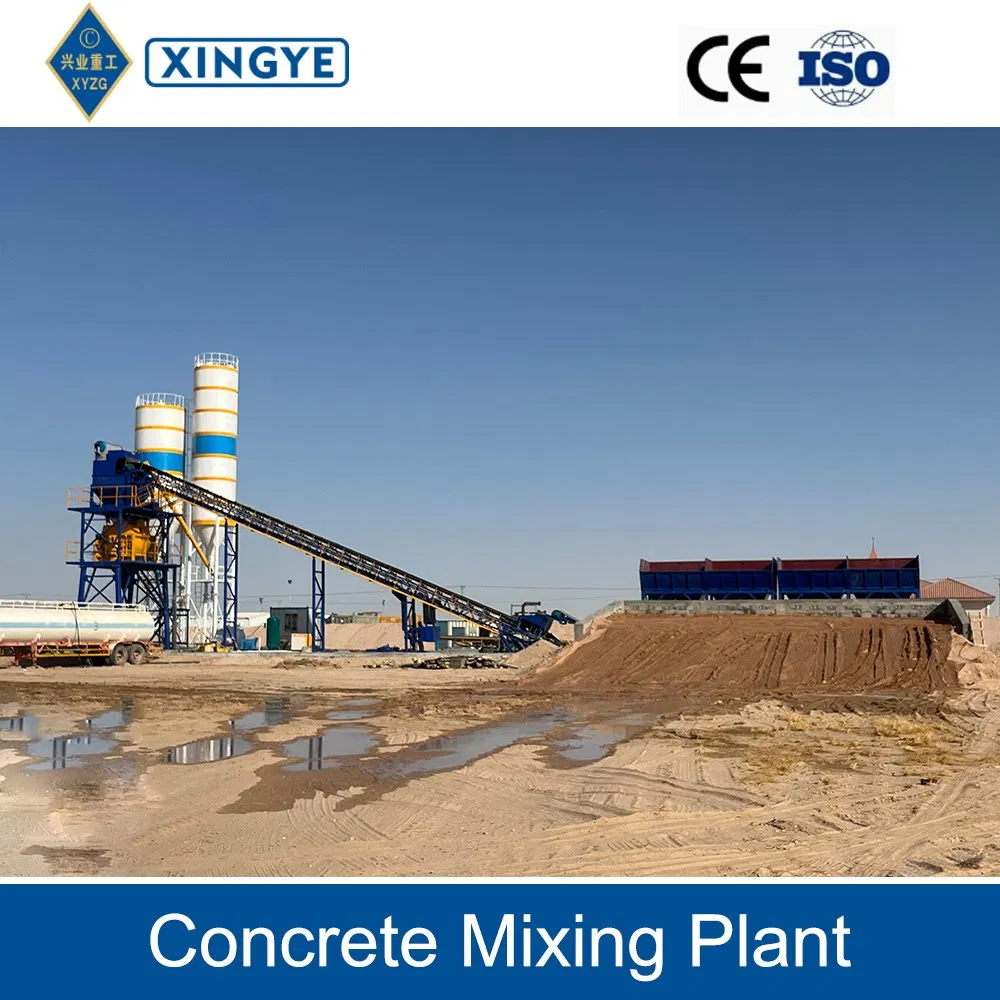

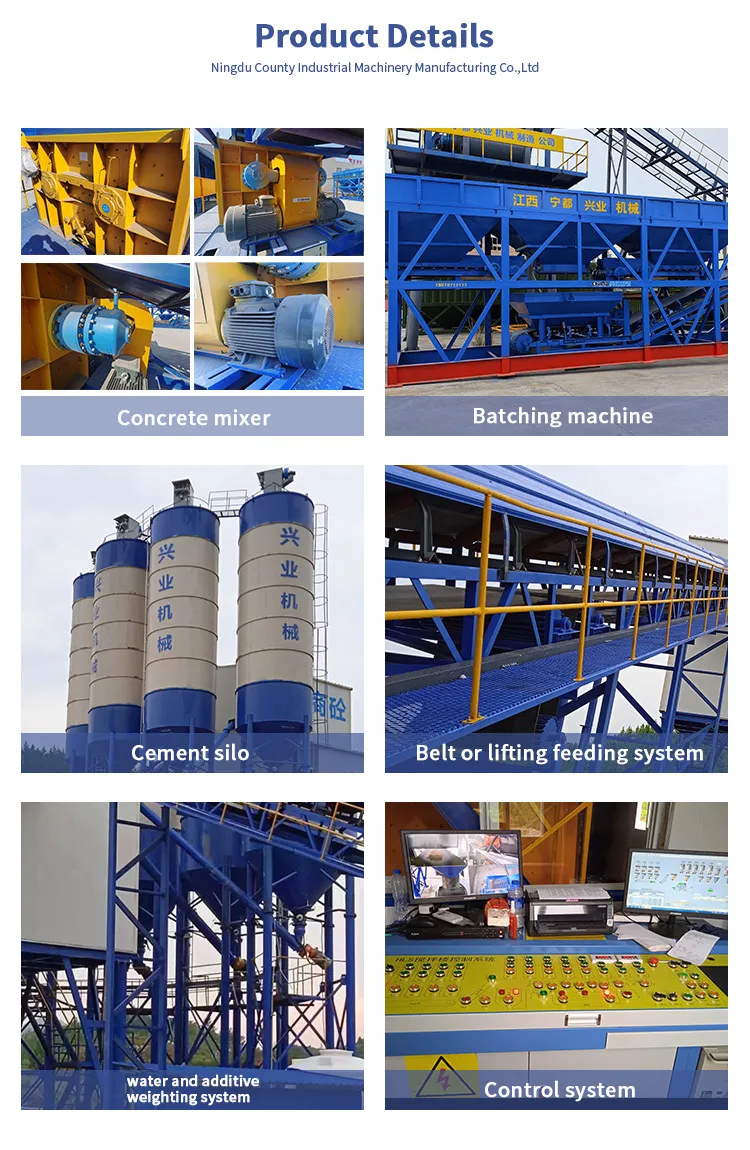

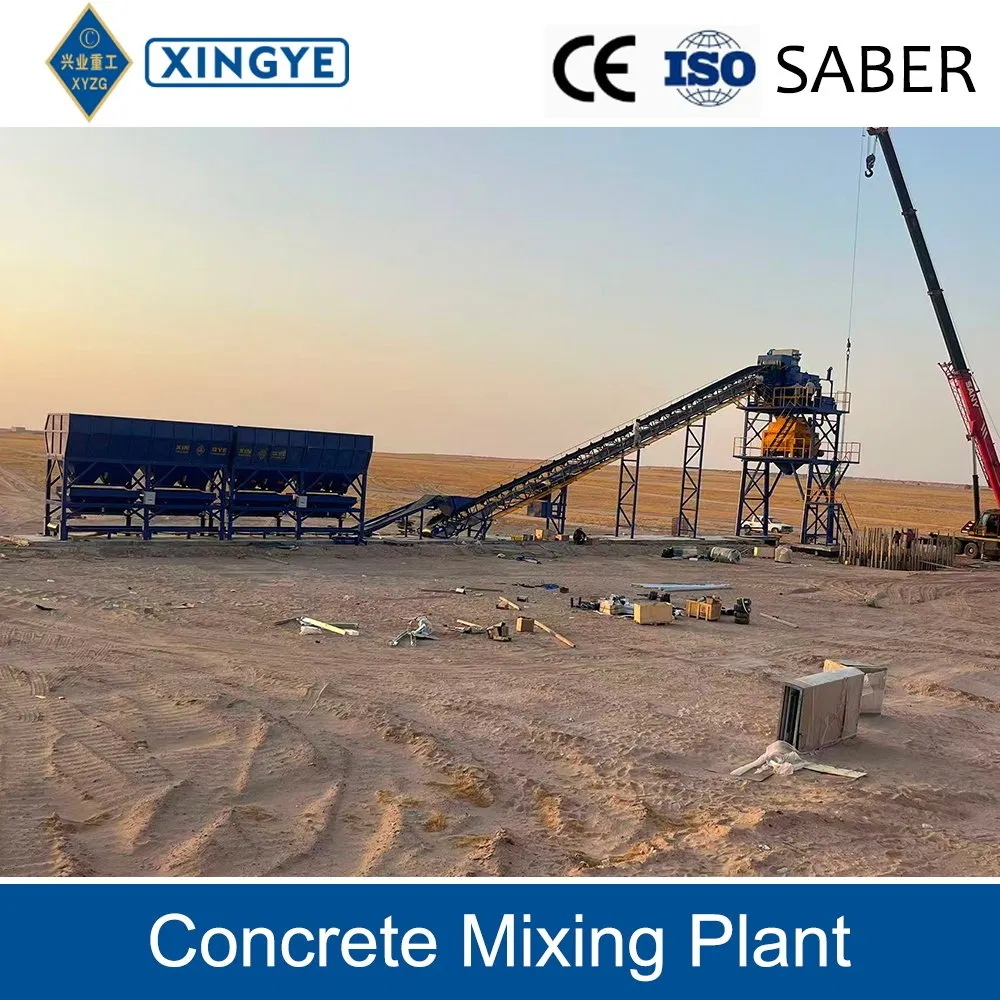

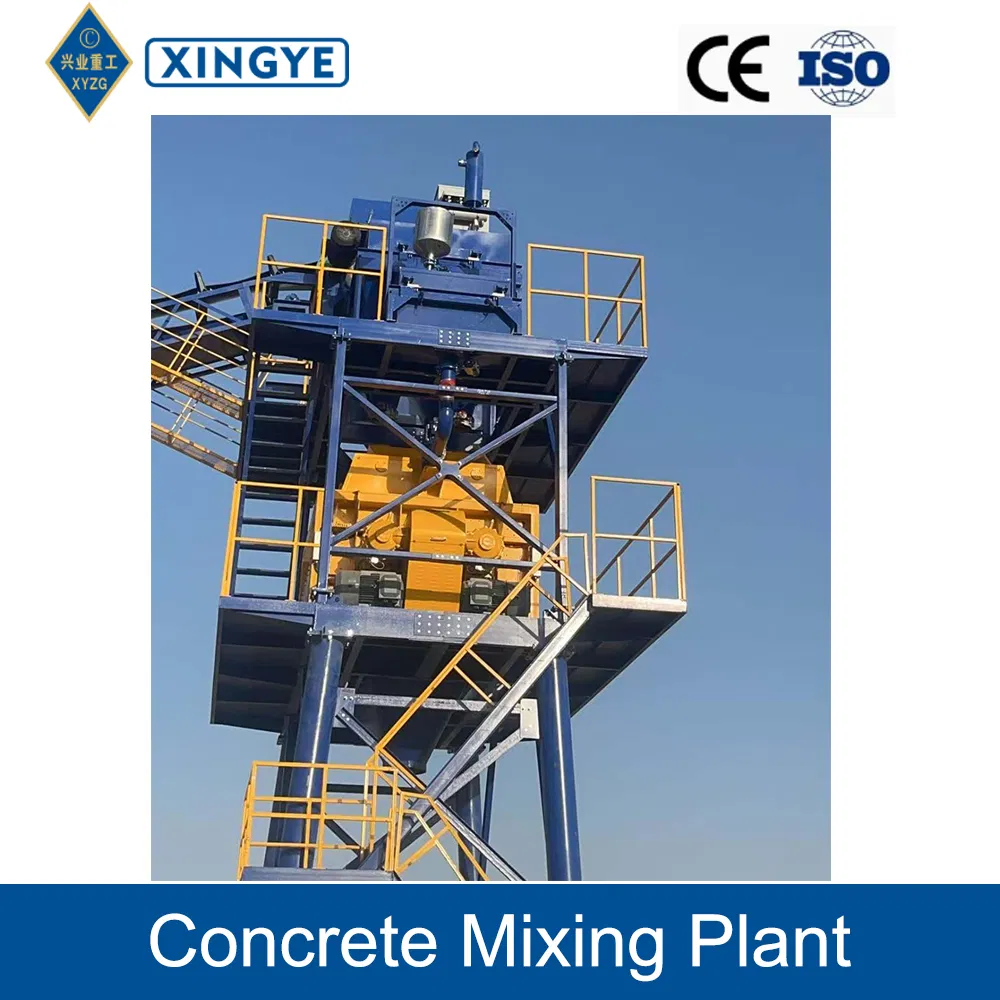

HZS series is a new kind of compulsory volumetric concrete mixing equipment. It includes JS concrete mixer, PLD matching machine, cement silo, conveying system and control system, accumulative system and weighing system. It offers high efficiency mixing with productivity reaching 50m³/h to 180m³/h and higher capacity as required.
The system features a unique control room, making all operations highly automated, flexible, convenient, and stable. It is widely used in construction projects like buildings, roads, bridges, highways, docks, airports, and water projects.
| Model | HZS60 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|
| Discharging Capacity (L) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Max Productivity (m³/h) | 60 | 90 | 120 | 150 | 180 |
| Charging Model | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor |
| Max Aggregate Size (mm) | ≤80 | ≤80 | ≤120 | ≤150 | ≤180 |
| Mixing Cycle Time (s) | 60 | 60 | 60 | 30 | 30 |
| Total Power (kw) | 145 | 198.06 | 210 | 230 | 288 |

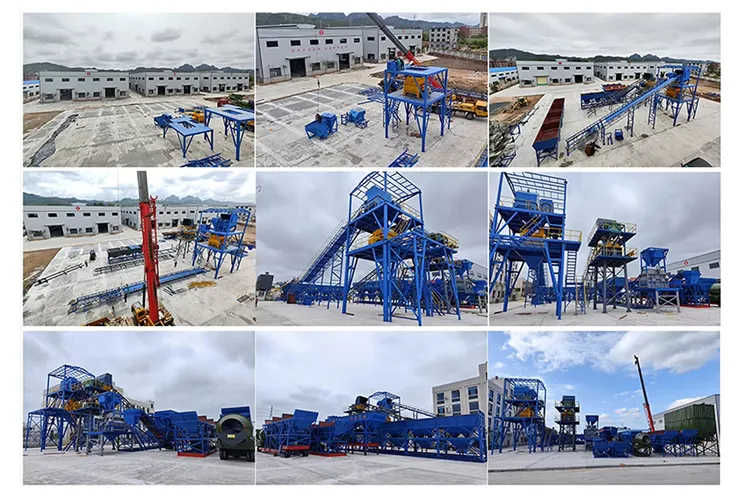

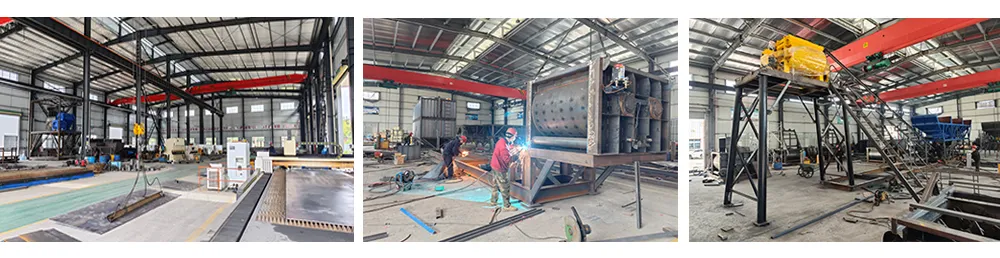

We are a professional concrete batching plant manufacturer with 15 years of production experience. Our facility covers over 20,000 square meters and is equipped with a specialized design team capable of customizing equipment for various customer requirements.
Our quality inspection team ensures rigorous standards, and our products are exported globally. We hold over 20 national invention patents and independent intellectual property rights, maintaining a leading position in industry innovation.
