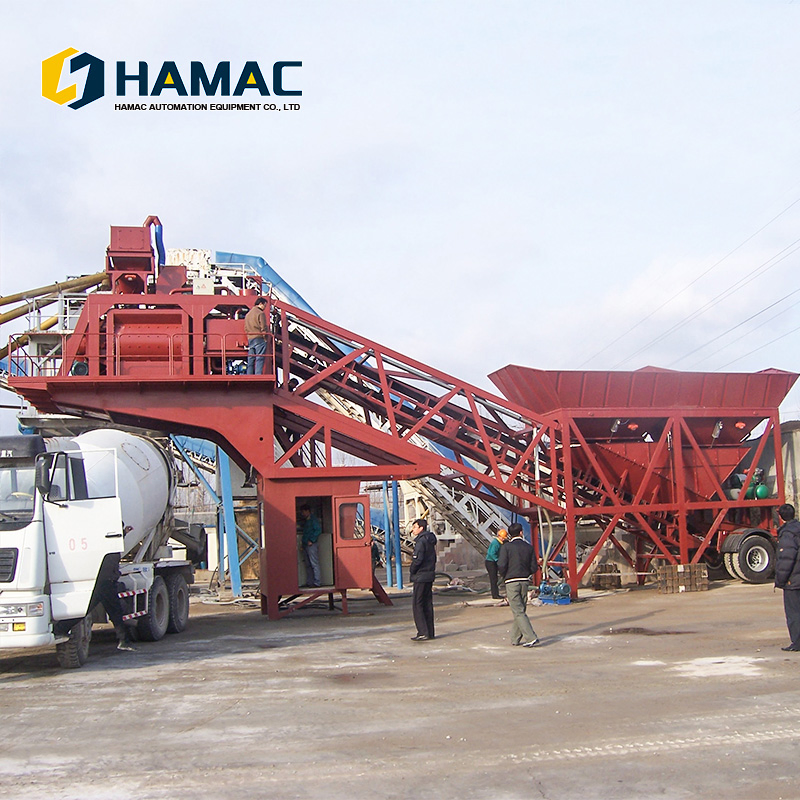

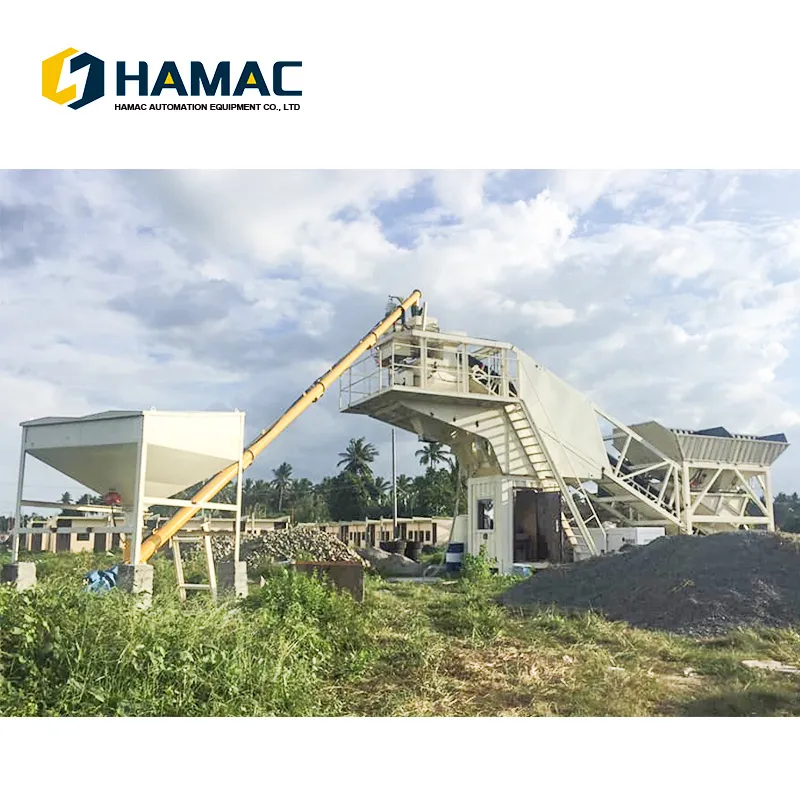

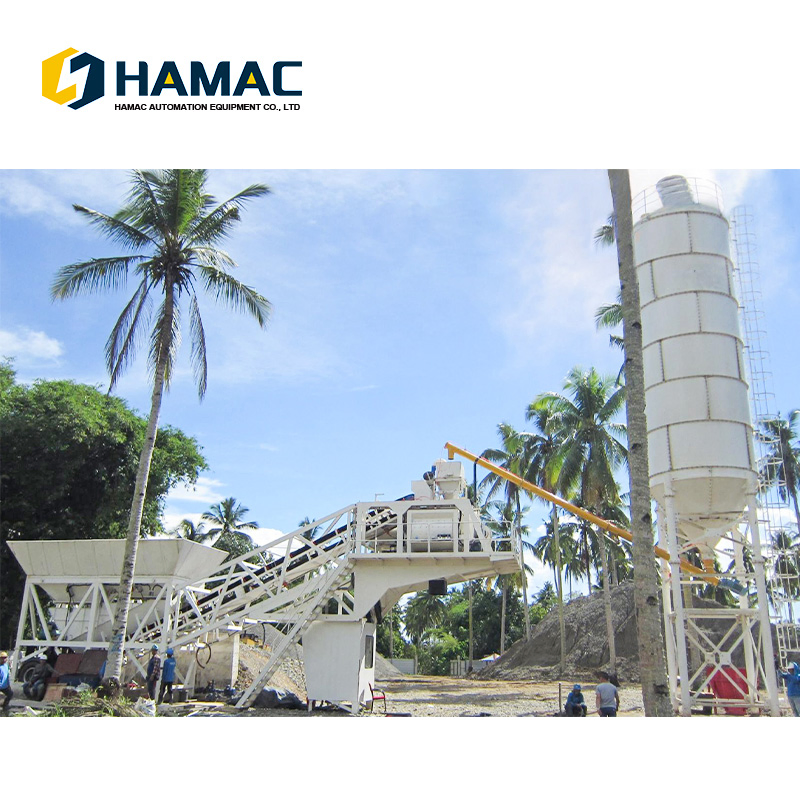

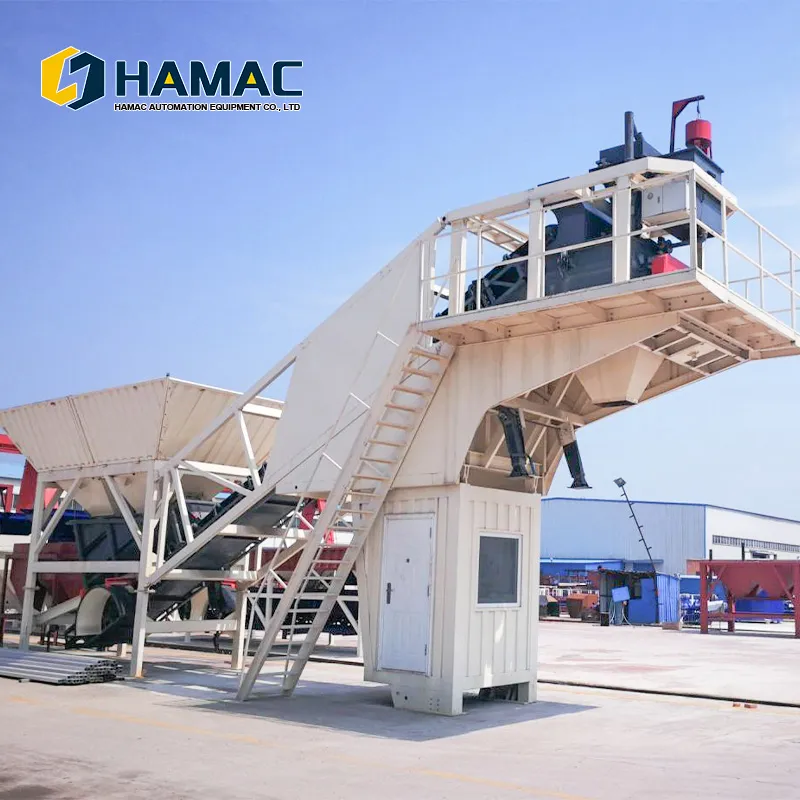

Hamac Mini Mobile Self-Loading Yhzs60 Hydraulic Portable Cement Concrete Mixer Plant

1 / 5

Hamac Mini Mobile Self-Loading Yhzs60 Hydraulic Portable Cement Concrete Mixer Plant

Customization:	Available
Warranty:	1 Year
Type:	Concrete Mixing Plant

Send Inquiry

Product Description

Basic Specifications

Model NO.YHZS60

Shotcrete TypeSemi-Dry

Machining ProcessHydraulic

StructureSpiral Type

Productivity35m³/h

Feeding Height3800mm

CertificationISO9001: 2000, CE

ConditionNew

ColorCustomizable Colors

OriginChina

HS Code84743100

Production Capacity10 Pieces/Month

✓

Product Overview

Mobile Concrete Batching Plant for Sale

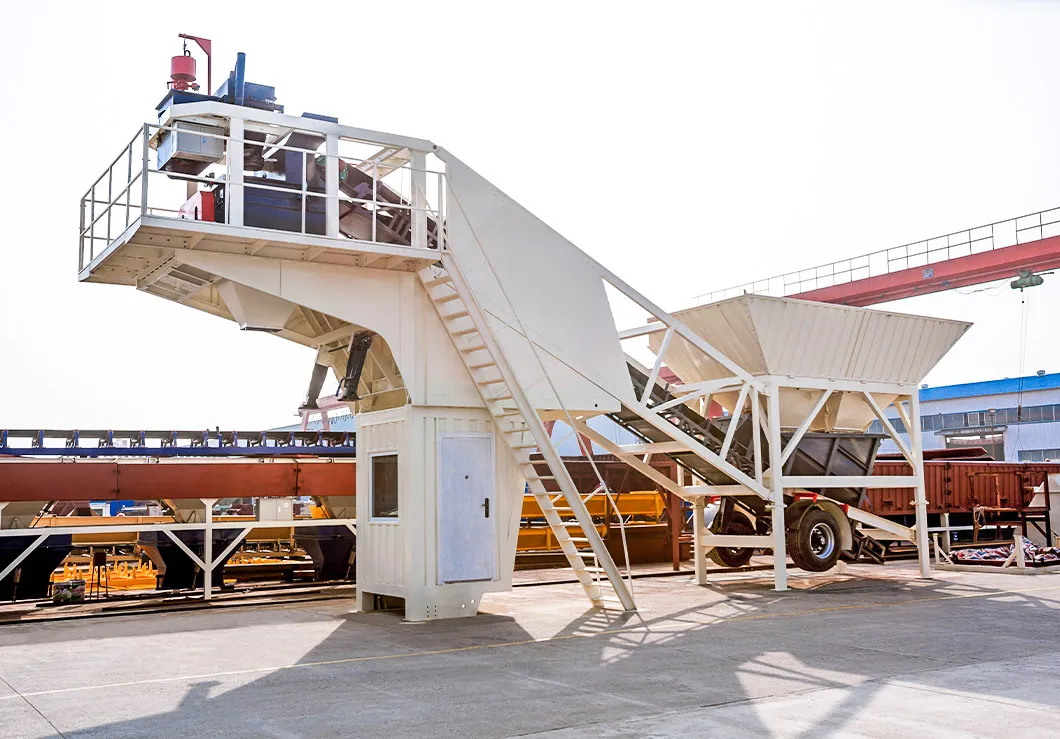

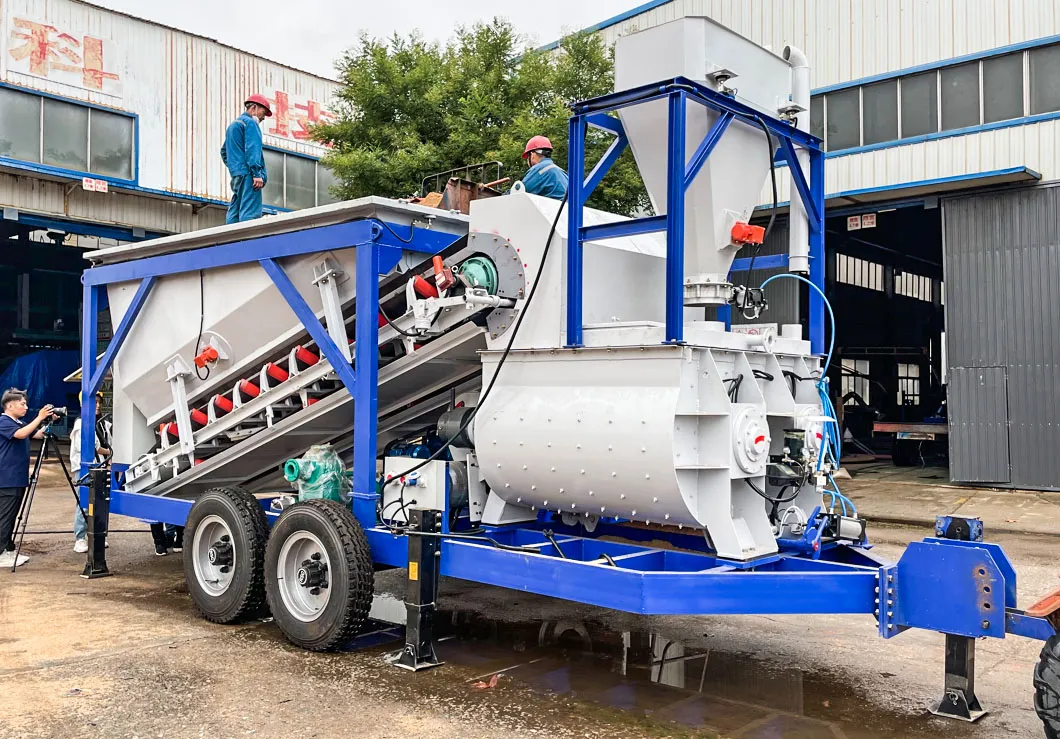

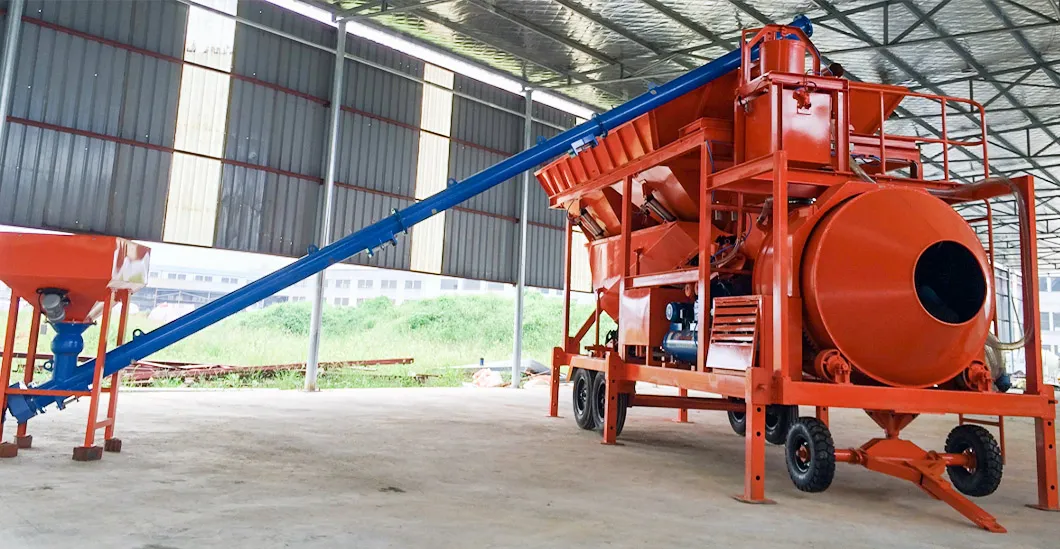

A mobile concrete batching plant is a mixing equipment that integrates material storage, weighing, conveying, mixing, discharging, and automatic control systems into a single trailer unit. It offers the same efficiency and functionality as a stationary automatic concrete batching plant but with the advantage of portability.

We provide three different types of portable concrete batching plants designed for various project requirements. We offer customized solutions to meet your specific construction needs.

Technical Parameters

Parameter	YHZS25	YHZS35	YHZS50/60	YHZS75/90	YHZS100
Productivity (M³/H)	25	35	50/60	75	100
Central Mixer	0.5m³ / batch	0.75m³ / batch	1.0m³ / batch	1.5m³ / batch	2.0m³ / batch
Aggregate Batching	4 hoppers	4 hoppers	4 hoppers	4 hoppers	4 hoppers
Discharging Height	3800mm	3800mm	3800mm	4000mm	4000mm

Frequently Asked Questions

1. How does a mobile concrete plant work?

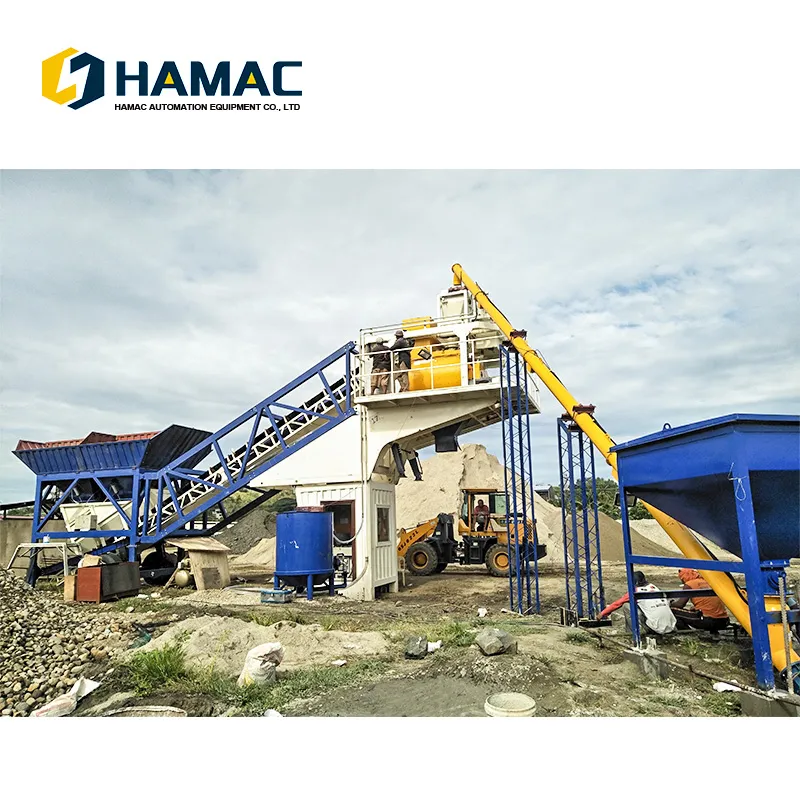

A wheel loader feeds 4 different hoppers with various aggregate sizes. Sand and aggregates are weighed by load cells, while cement is delivered from the silo via a screw conveyor. Water is supplied by a pump and also weighed. All materials are then fed into the mixer, and the final concrete is discharged into a mixer truck. The entire process is automatically controlled by software.

2. What production capacities are available?

We offer a wide range of models including 25m³/h, 35m³/h, 50m³/h, 60m³/h, 75m³/h, 90m³/h, and 120m³/h to suit different project scales.

3. What is the typical price range for a mobile batching plant?

Prices vary depending on the model and configuration. Generally, the price range falls between 50,000 USD and 100,000 USD. For an exact quote, please contact our experts with your specific requirements.

4. What factors should be considered when choosing a plant?

Key factors include your total budget, the available land area (width and length) for installation, and the intended use—whether for a private project (smaller plant) or for commercial concrete sales (larger plant with high demand capacity).

5. Does the plant save space compared to stationary units?

Yes, mobile plants are designed for a compact footprint. If your site land is limited, a small mobile batching plant is an ideal solution to save space while maintaining efficiency.

6. Is the equipment color customizable?

Yes, we provide customizable colors for our concrete batching plants to match your company's branding or specific preferences.
