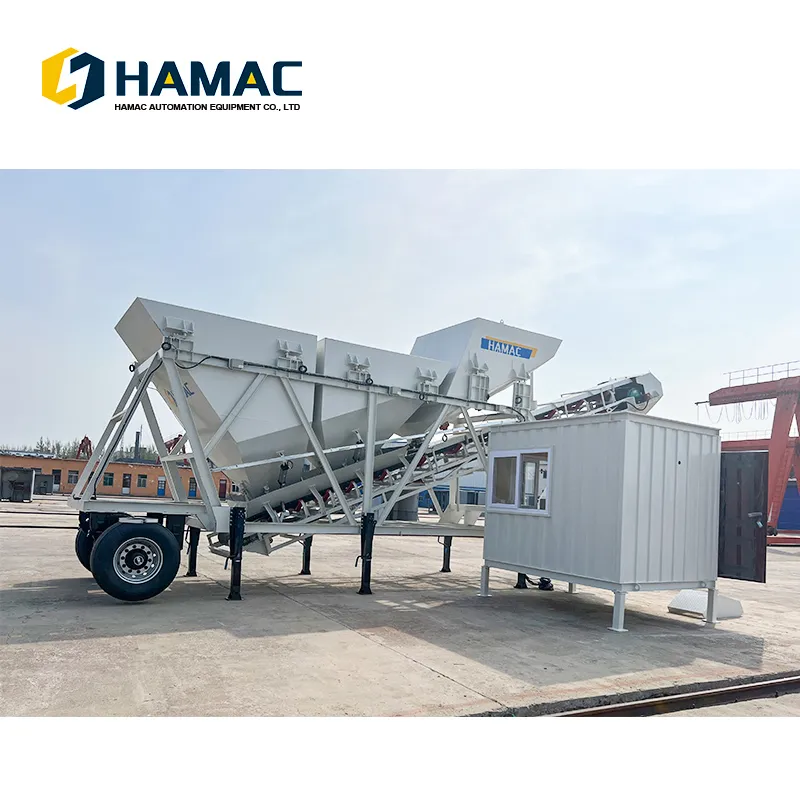

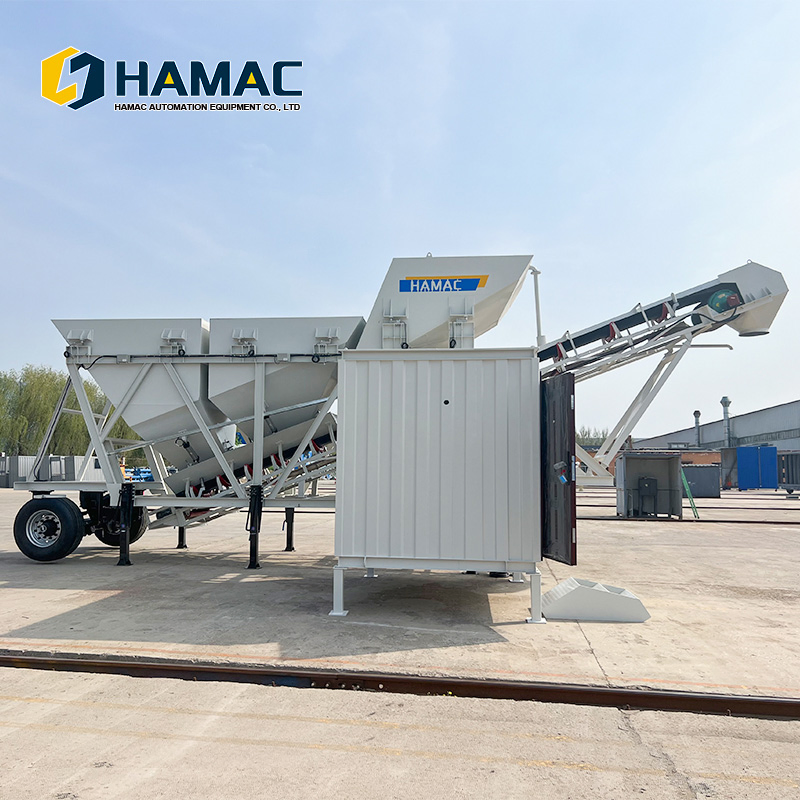

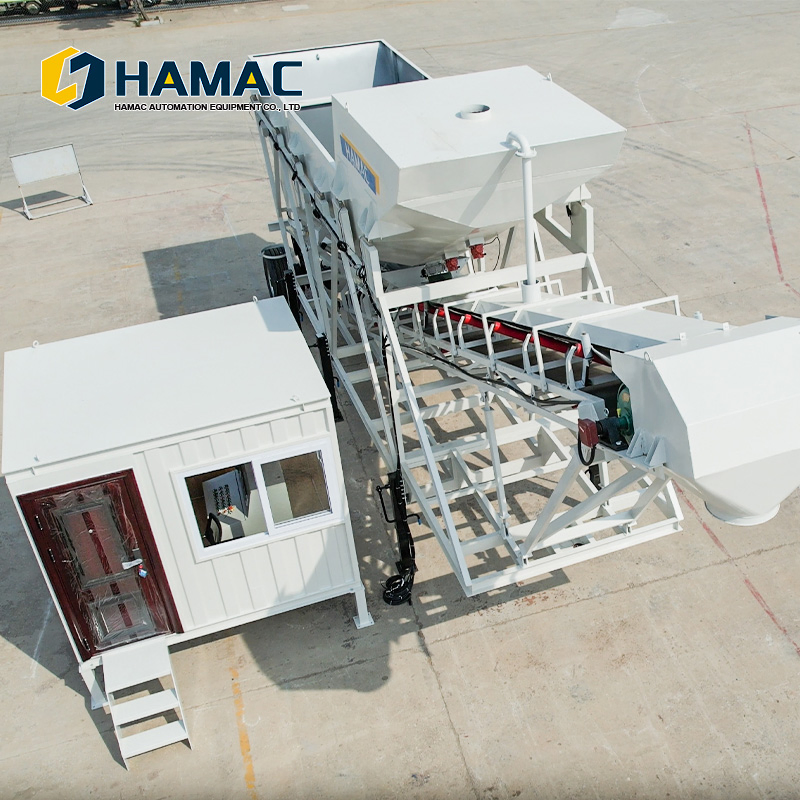

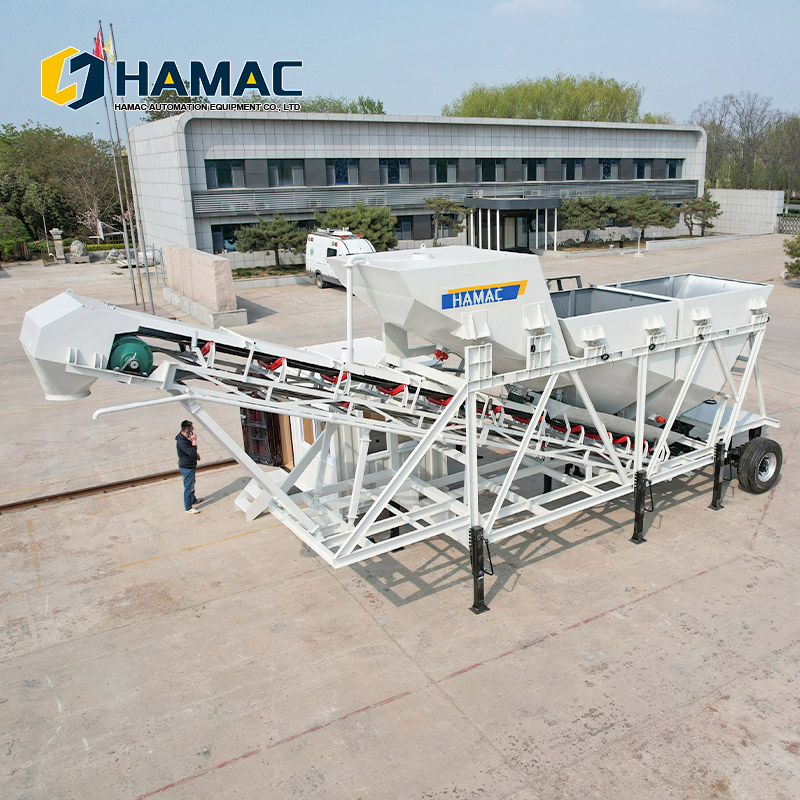

Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
1 / 5
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo
Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo

Hamac Hzm35 Customized 25-35m3 60m3 75m3 90m3 120m3 180m3 240m3 Mobile Dry Cocnrete Batching Plant with Fly Ash Silo

Customization: Available
Warranty: 1 Year
Type: Concrete Mixing Plant
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HZM35
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
50-240m³/H
Feeding Height
4100mm
Certification
ISO9001: 2000, CE
Condition
New
Theoretical Capacity
25 M³/H
Batching System
PLD1200
Discharging Height
3800mm
Max Aggregate Size
60(80)mm
📦

Packaging & Delivery

Package Size
760.00cm * 210.00cm * 418.00cm
Gross Weight
6200.000kg
Transport Package
Nude Packed in Container
✓

Product Description

Dry Batching Plant 1

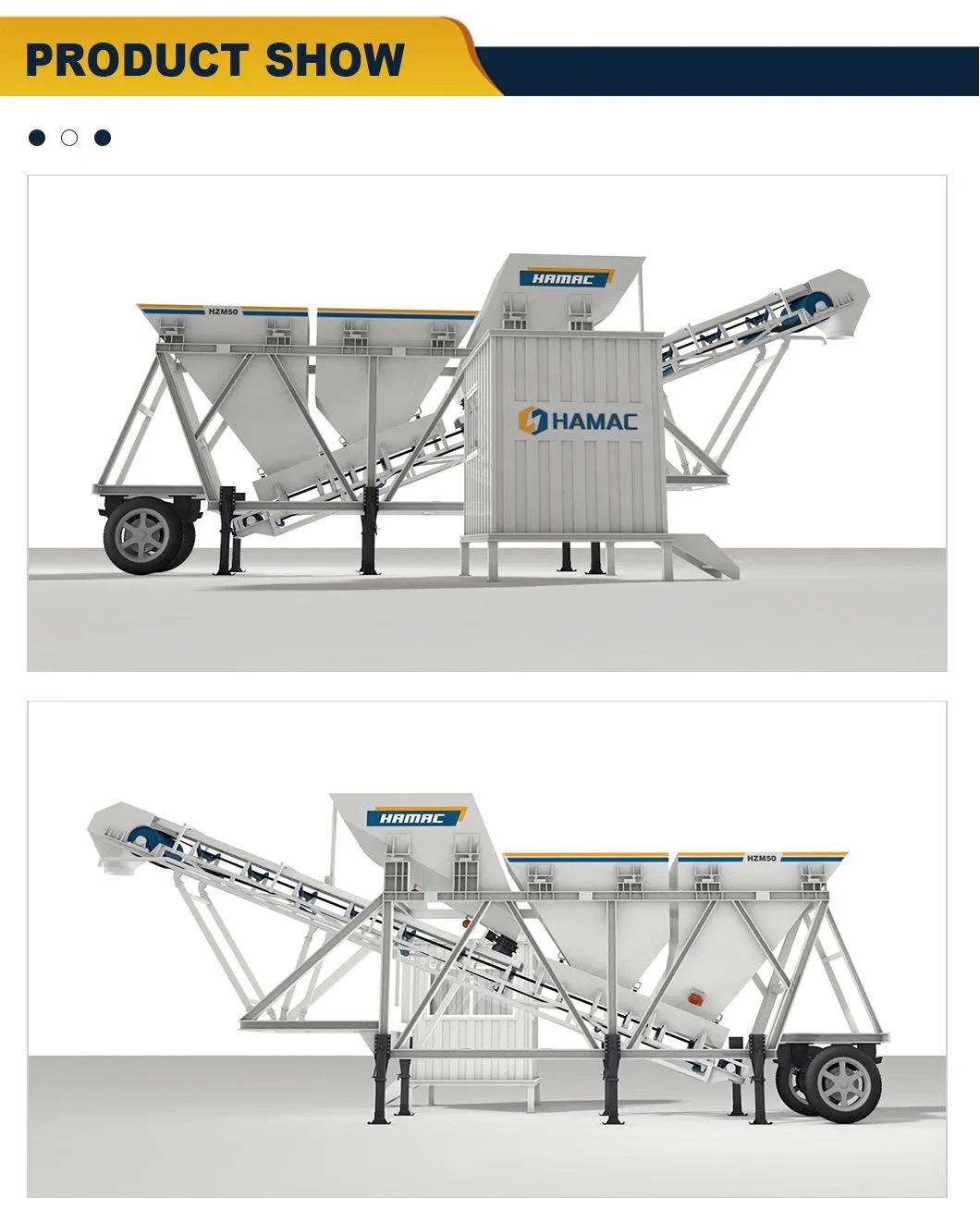

Dry Batching Plant 2

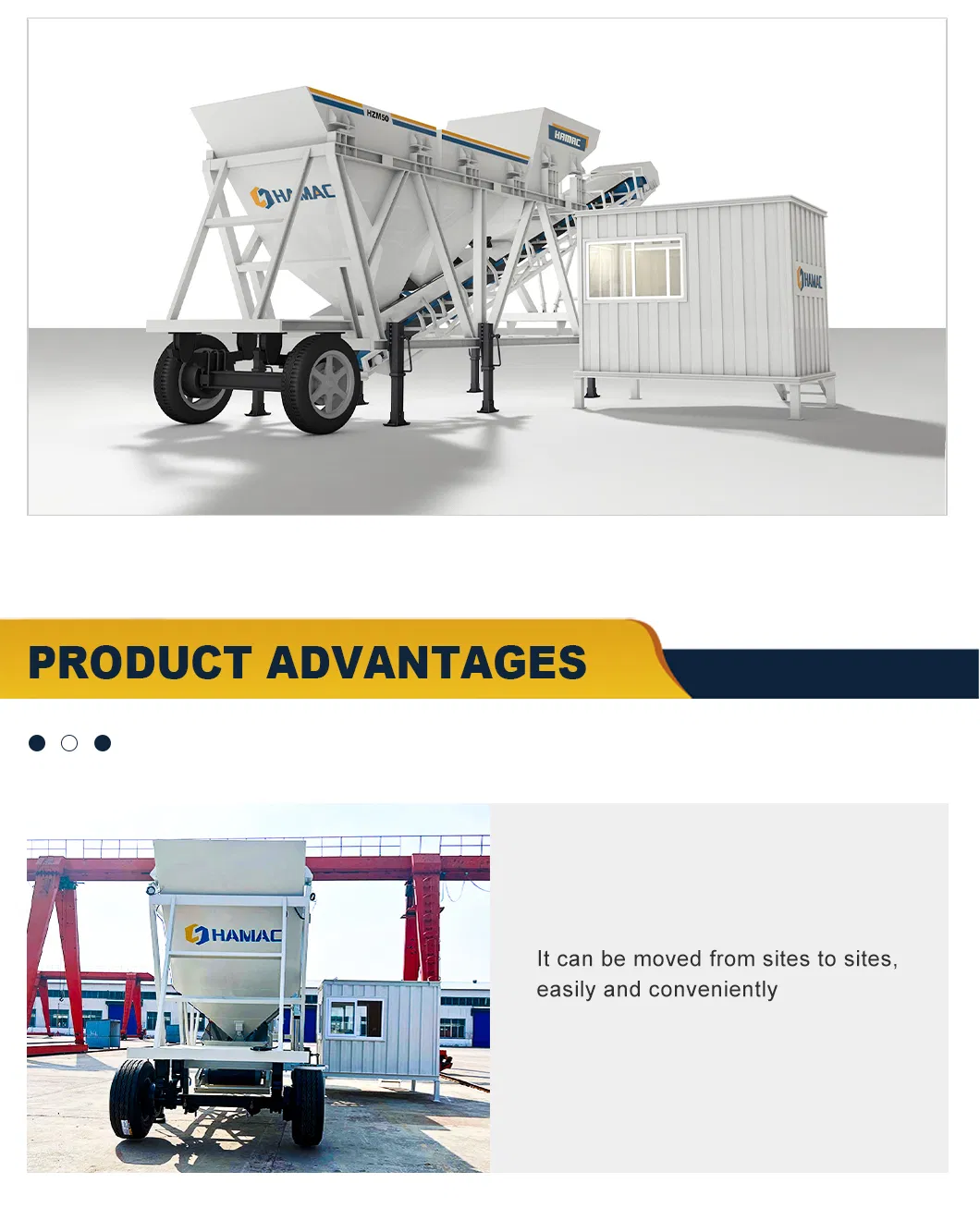

Dry Batching Plant 3
◈
Belt Conveyor: Used to transport the aggregate and sand into the truck concrete mixer efficiently.
◈
Weighing System: Equipped with load cells for aggregate, sand, and cement to ensure precise measurement before feeding into the mixer truck.
◈
Water Supplying System: Water is supplied via a pump controlled by a time-relay, ensuring accurate water quantity by managing working time.
◈
Aggregate Pre-feeding System: An alternative solution to loading ramps, removing the need for ramps when charging hoppers by wheel loaders.
◈
Control System: Features a high-tech automation system with top-class SIEMENS/SCHNEIDER electronic components and PLC. Sophisticated software provides a user-friendly interface.
◈
Cement Silo/Hopper: Used for cement storage. Can be equipped with silos from 50 to 500 tons capacity. Big bag opening and charging systems are available for bagged cement.

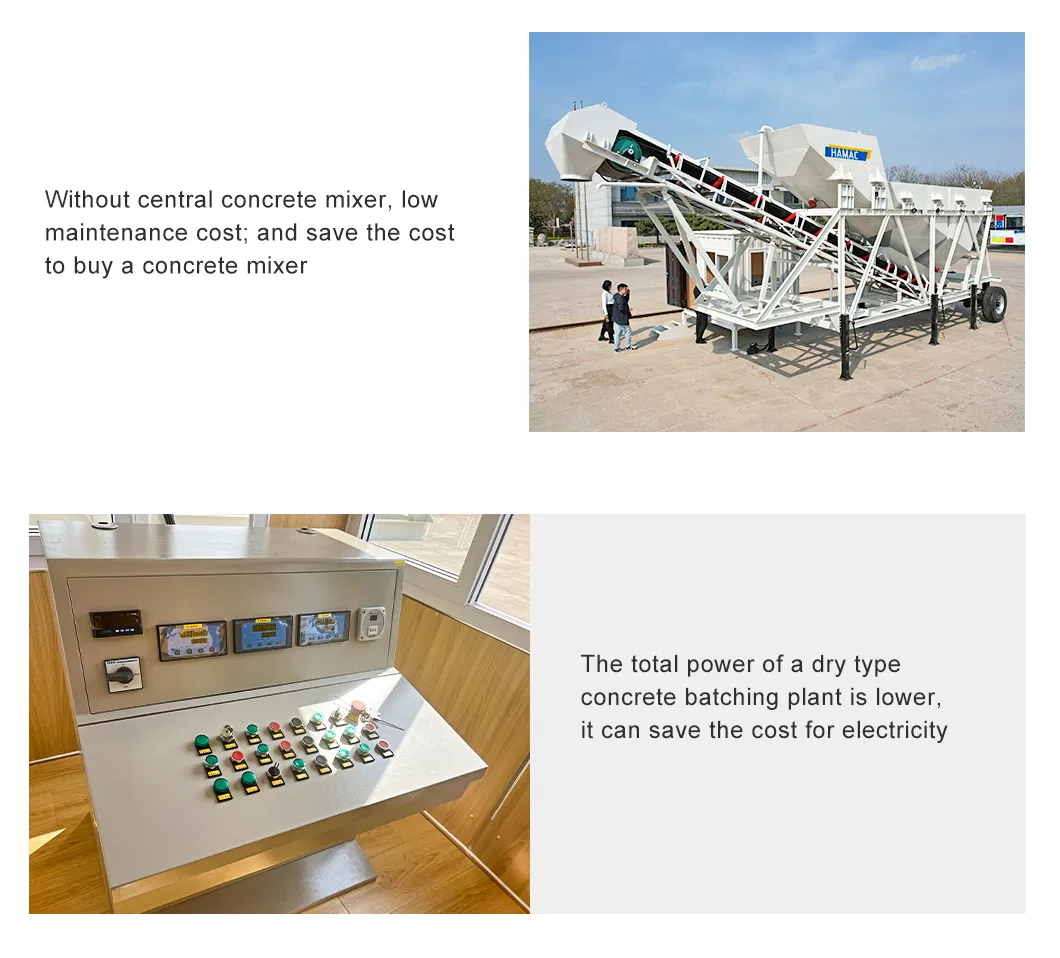

Product Detail 1

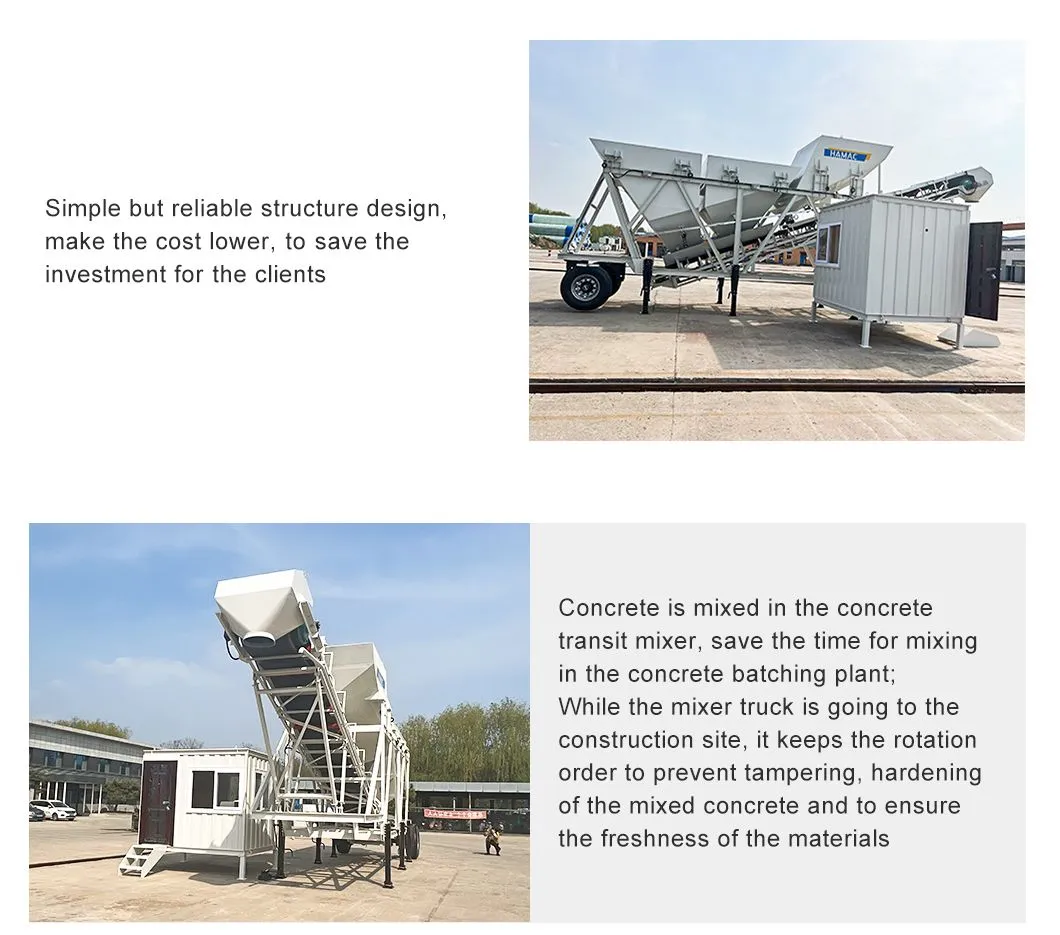

Product Detail 2

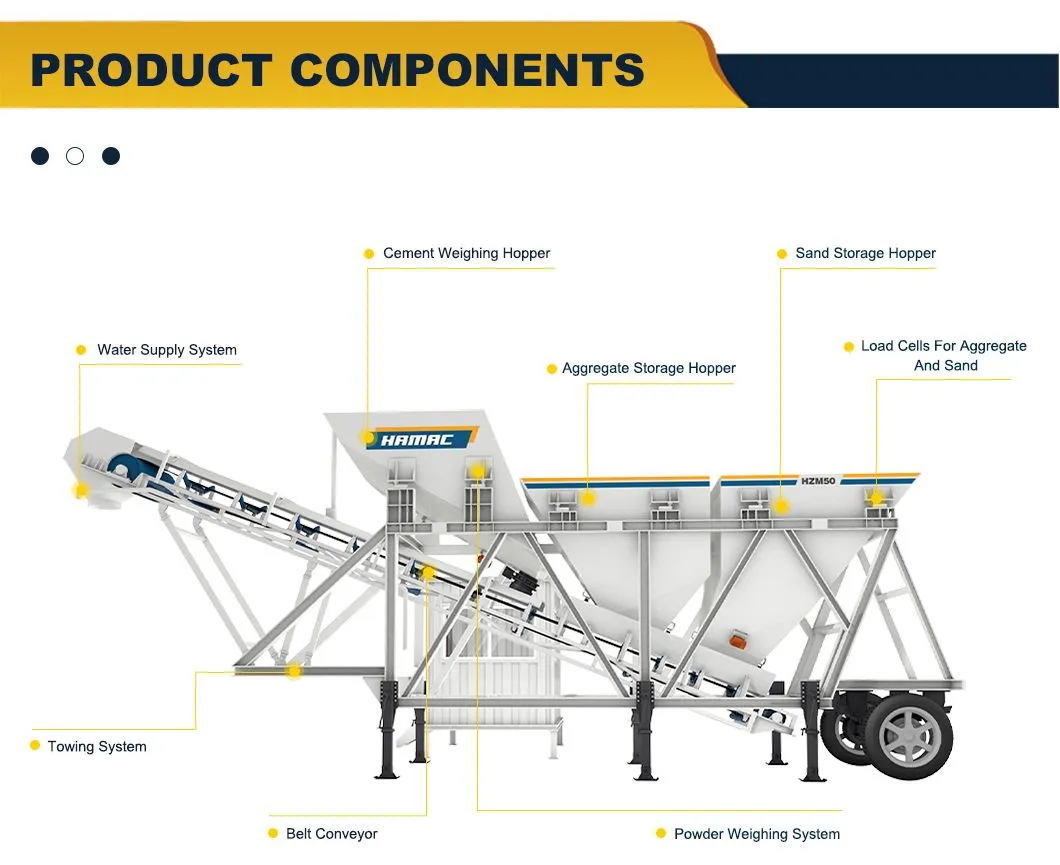

Product Detail 3
Technical Data Models
HZM25 HZM35 HZM50
Theoretical capacity (m³/h)253550
Batching systemPLD1200PLD1200PLD1600
Discharging height (mm)380038003800
Maximum aggregates size (mm)60(80)60(80)60(80)
Automatic Cycle time (s)727272

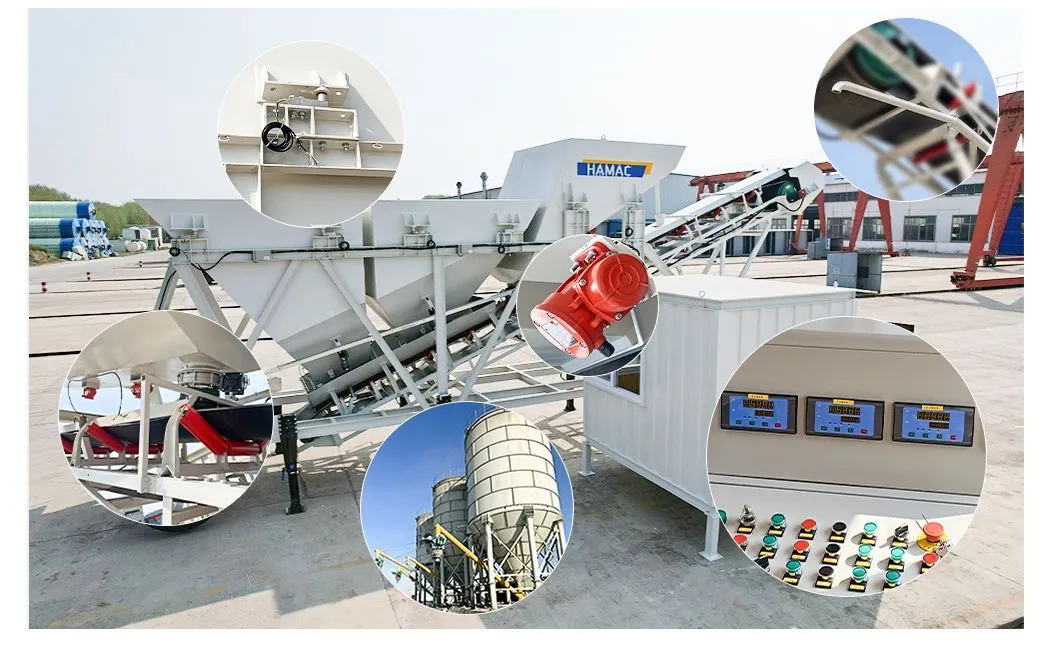

Working Scene

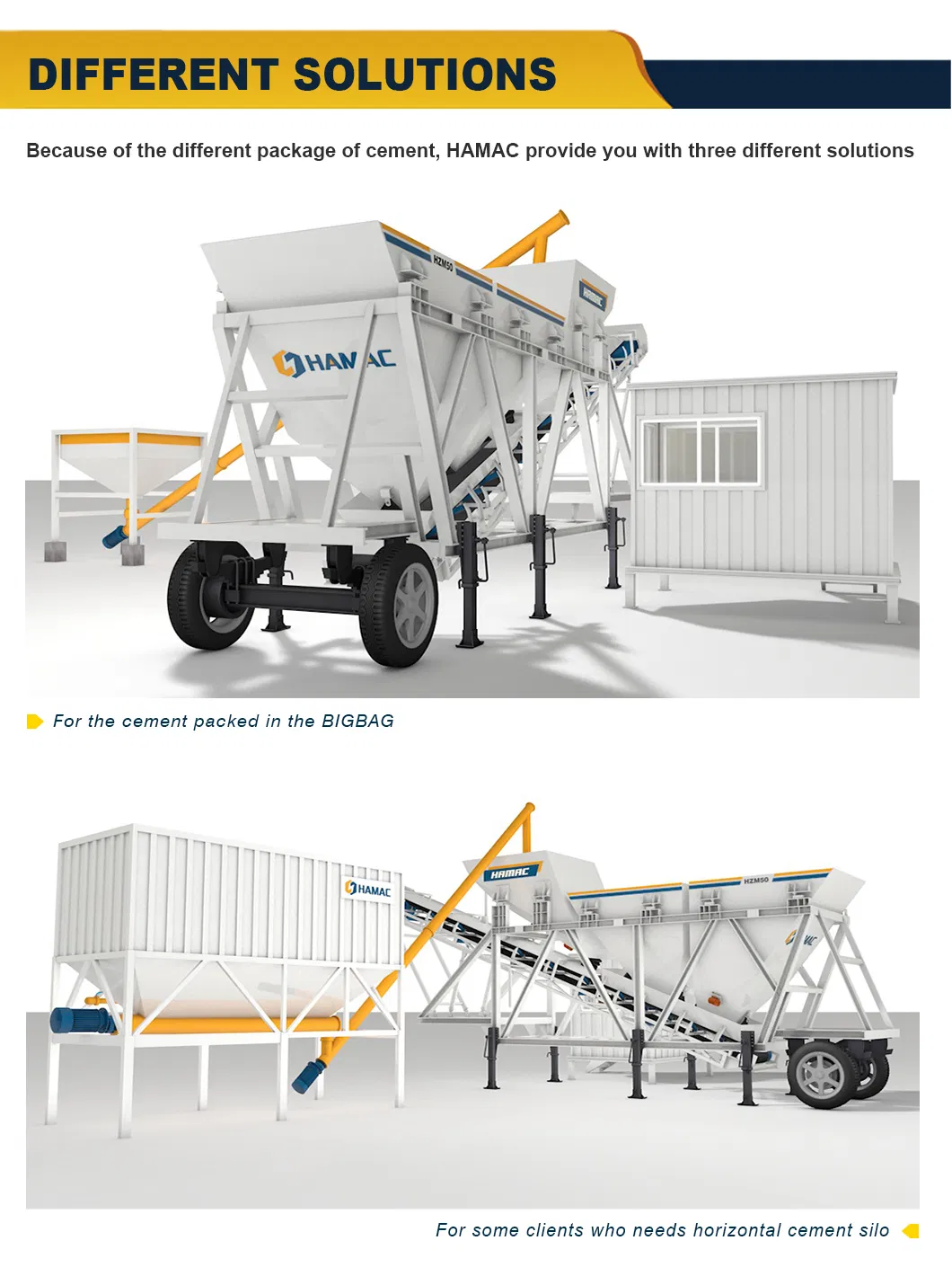

System View

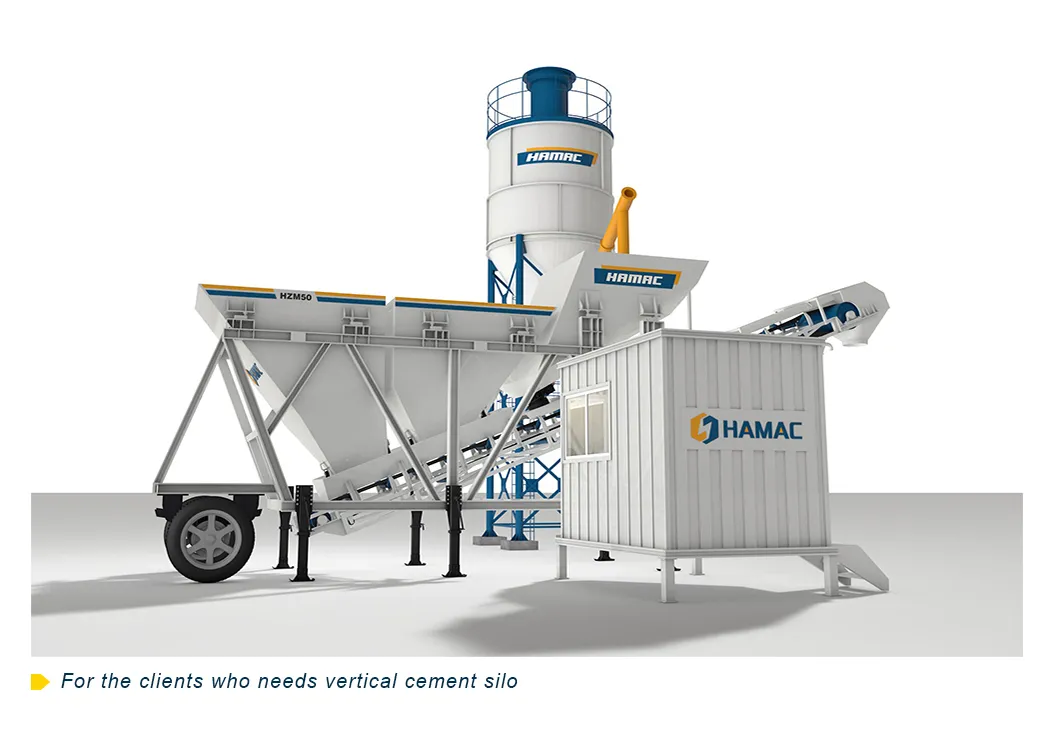

Control Panel
Dimension Layout

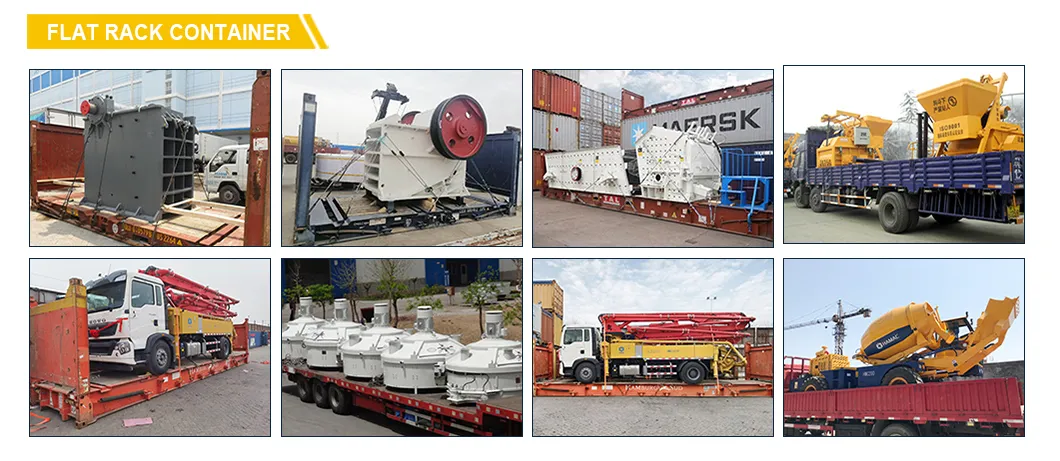

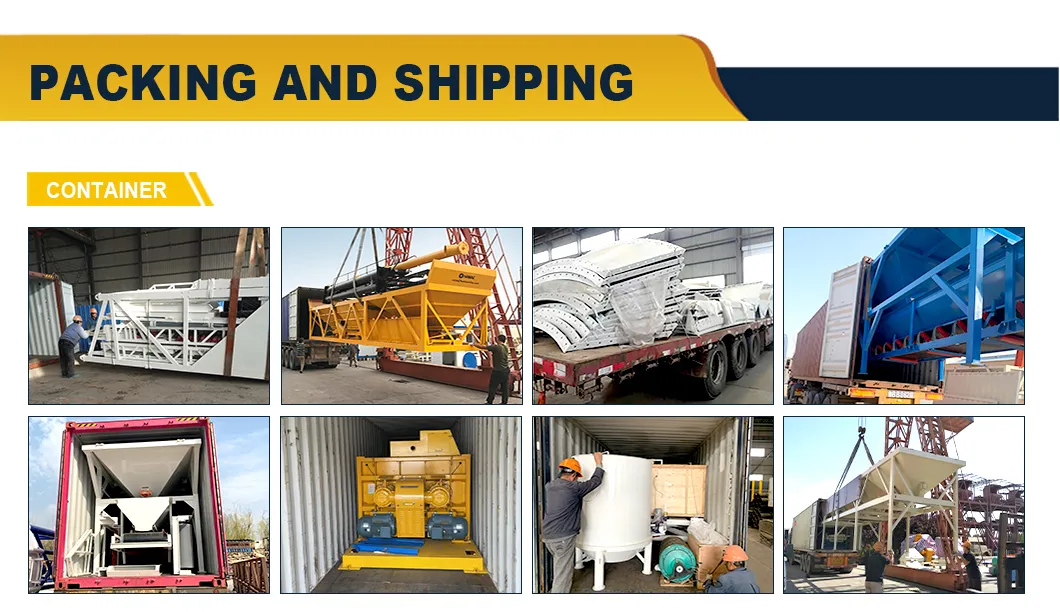

Transport Detail

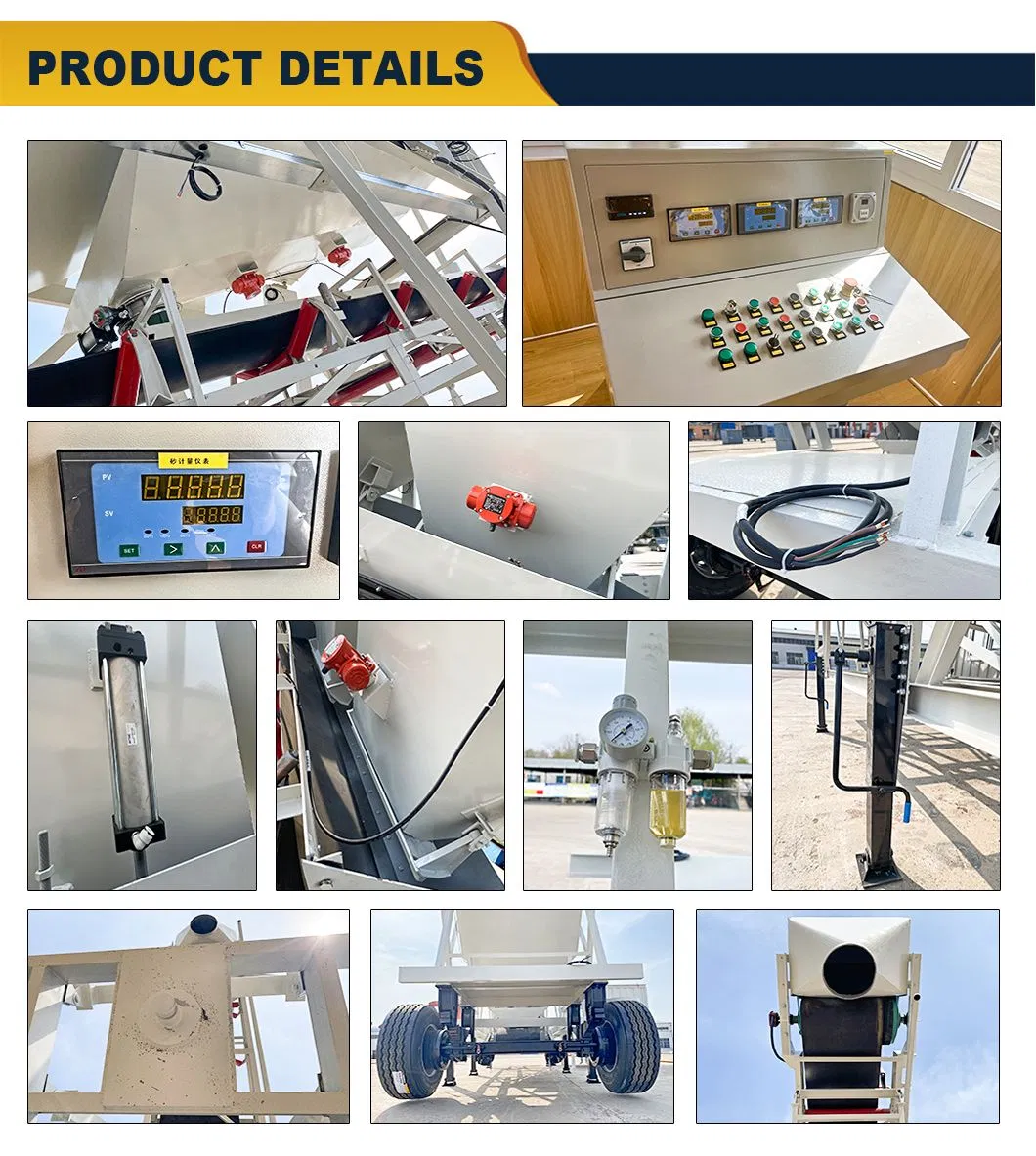

Structure Detail
Full Configuration
?

Frequently Asked Questions

What is the productivity range of these dry concrete batching plants?
The productivity ranges from 50 to 240 m³/H depending on the specific model and project requirements.
What control systems are integrated into the plant?
The plants are equipped with high-tech automation systems using world-class SIEMENS and SCHNEIDER electronic components and PLC controllers.
How is water measurement managed in the dry batching process?
Water is supplied to the mixer truck via a high-precision pump controlled by a time-relay, which regulates the quantity based on the pump's working duration.
Can the plant handle different cement storage methods?
Yes, it can be equipped with cement silos ranging from 50 to 500 tons. If cement is supplied in bags, a big bag opening system can be integrated for easy charging.
What is the maximum aggregate size supported?
The maximum aggregate size supported is 60mm, with capabilities up to 80mm depending on the model configuration.
Is a loading ramp necessary for this equipment?
While ramps can be used, we offer an aggregate pre-feeding system solution that removes the requirement for a loading ramp entirely.
