| Model NO. | YHZS | Type | Concrete Mixing Plant |
| Productivity | 90m³/h | Certification | ISO9001: 2000, CE |
| Discharge Volume | 1500L | Control | Central Computer Control |
| Unloading Height | 3.8m | Condition | New |

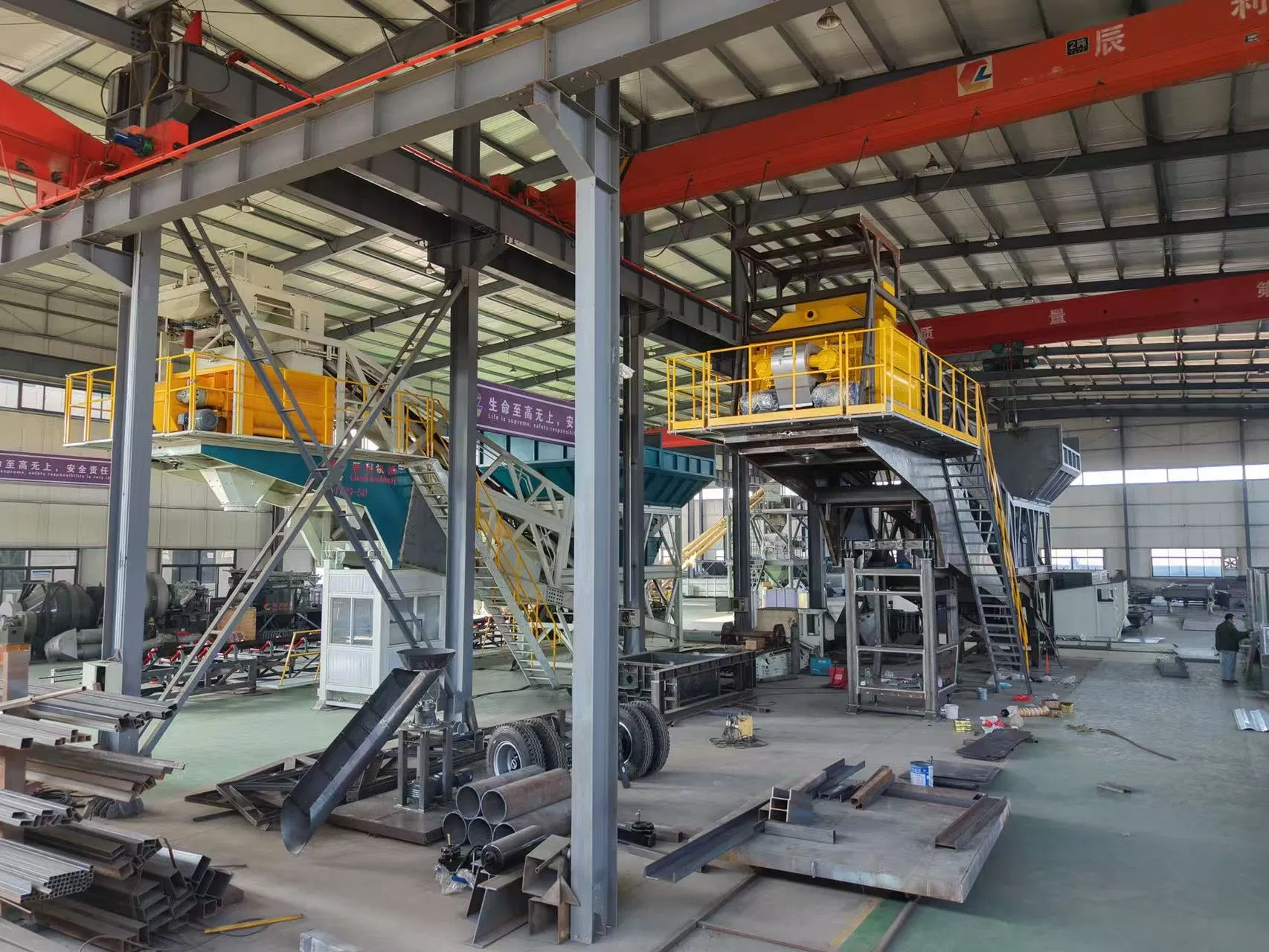

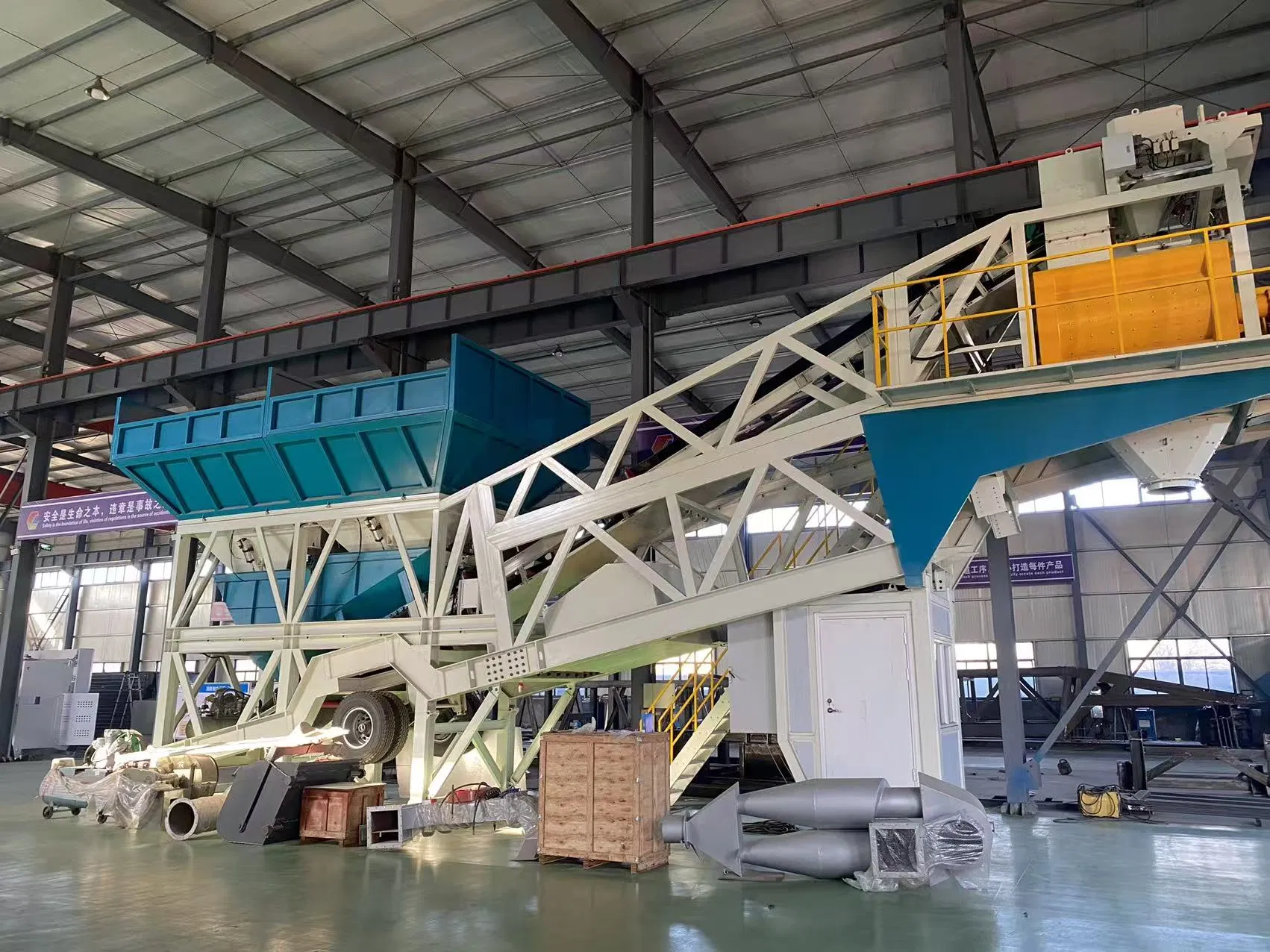

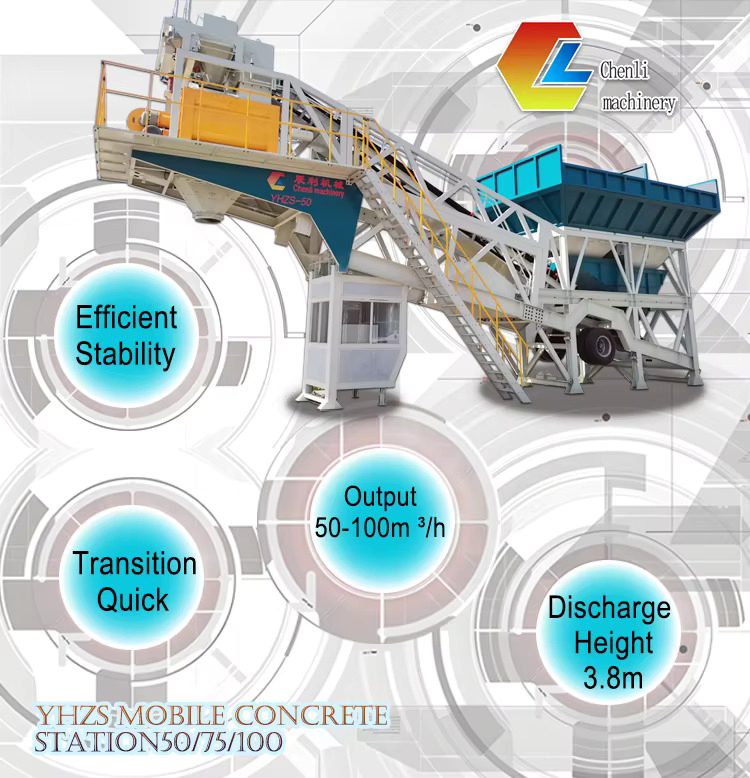

Mobile Concrete Batching Plant

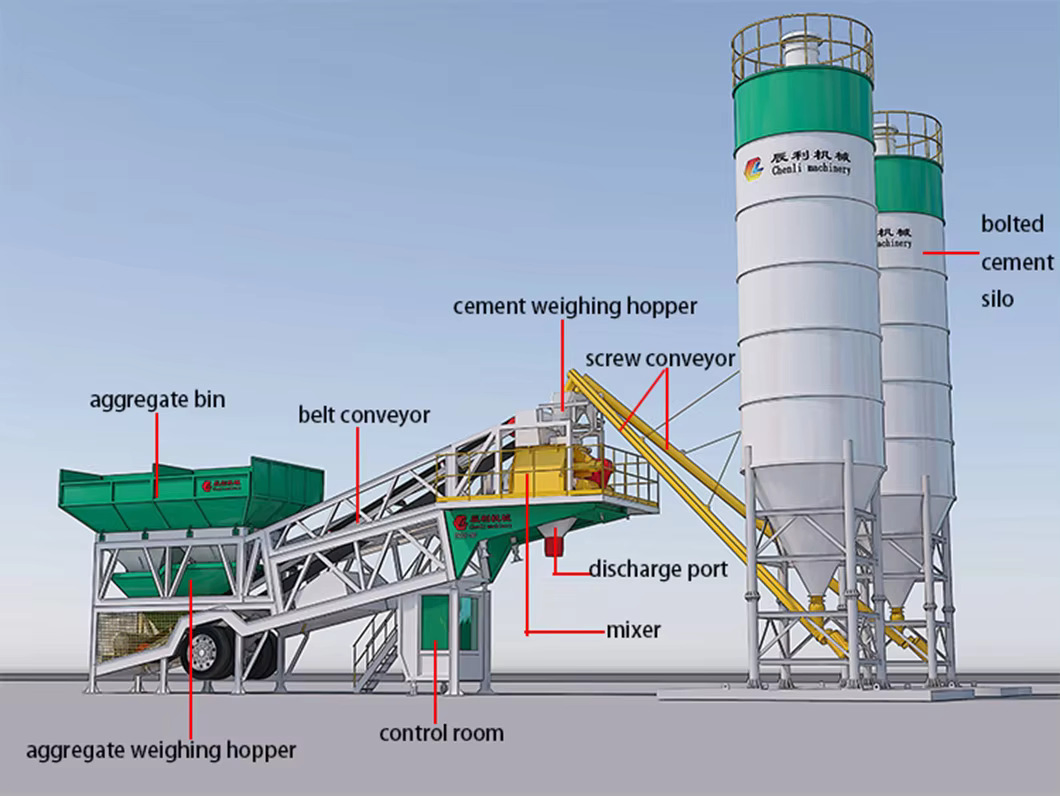

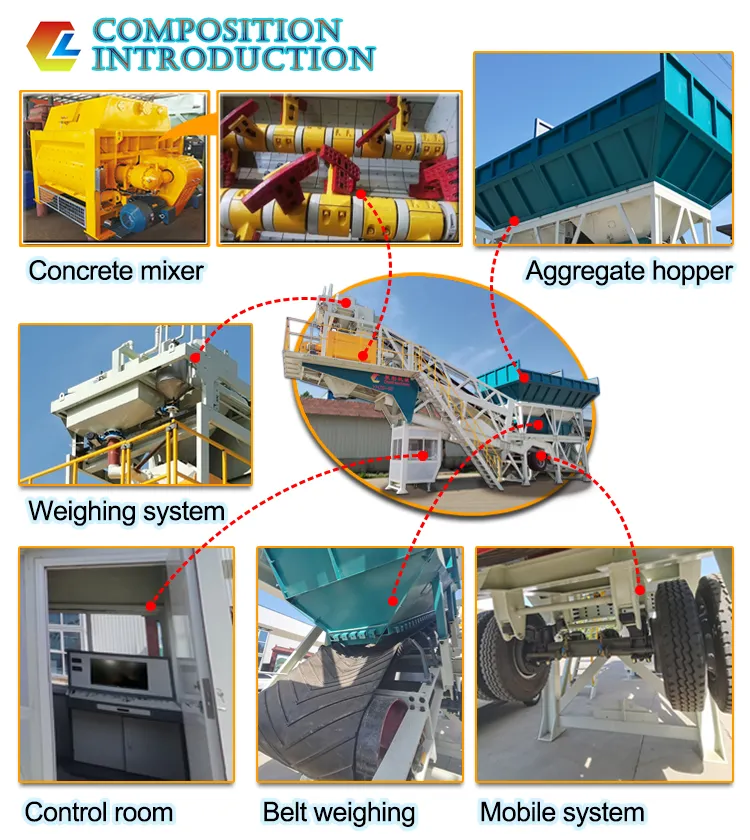

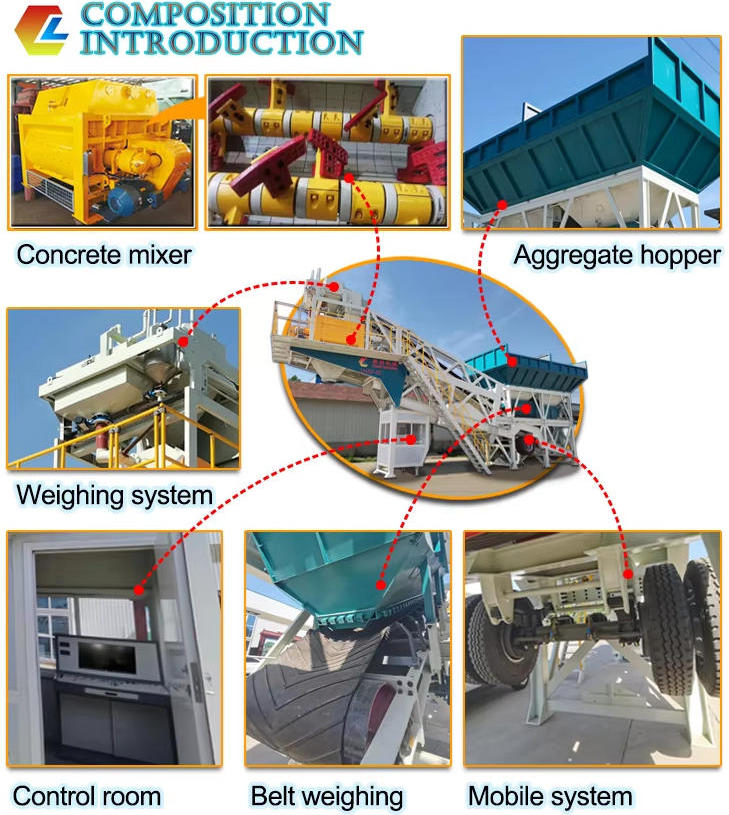

The YHZS series mobile concrete mixing plant is a new type of mobile concrete mixing plant designed by applying advanced technology and scientific research achievements. It is an ideal mobile mixing model with a compact and reasonable design, completing most functions on a trailer chassis. It integrates material collection, electronic weighing, lifting, and mixing. It can be used as soon as it is pulled and stopped, making it convenient to move and easy to install. It is highly suitable for mobile construction sites such as roads, bridges, dams, and airports.
Can be conveniently transferred to different construction sites and quickly respond to project demands.
Compact structure with a simple installation process, requiring no complex infrastructure.
Adopts a high-precision measurement system to ensure accurate concrete proportioning and stable quality.
| Model | YHZS50 | YHZS75 | YHZS100 | |
|---|---|---|---|---|
| Output | 50m³/h | 75m³/h | 100m³/h | |
| Mixer | JS1000 | JS1500 | JS2000 | |
| Mixer Power | 2*18.5kW | 2*30kW | 2*37kW | |
| Mixer Discharge Capacity | 1000L | 1500L | 2000L | |
| Discharge Height | 3.8m | 3.8m | 3.8m | |
| Weighing Range | Aggregate | 0-2400kg ±2% | 0-3600kg ±2% | 0-3600kg ±2% |
| Cement | 0-700kg ±1% | 0-700kg ±1% | 0-1000kg ±1% | |
| Water | 0-300kg ±1% | 0-400kg ±1% | 0-500kg ±1% | |
| Additive | 0-30kg ±1% | 0-40kg ±1% | 0-50kg ±1% | |
Package Size: 1209.00cm * 235.00cm * 239.00cm
Gross Weight: 20000.000kg
