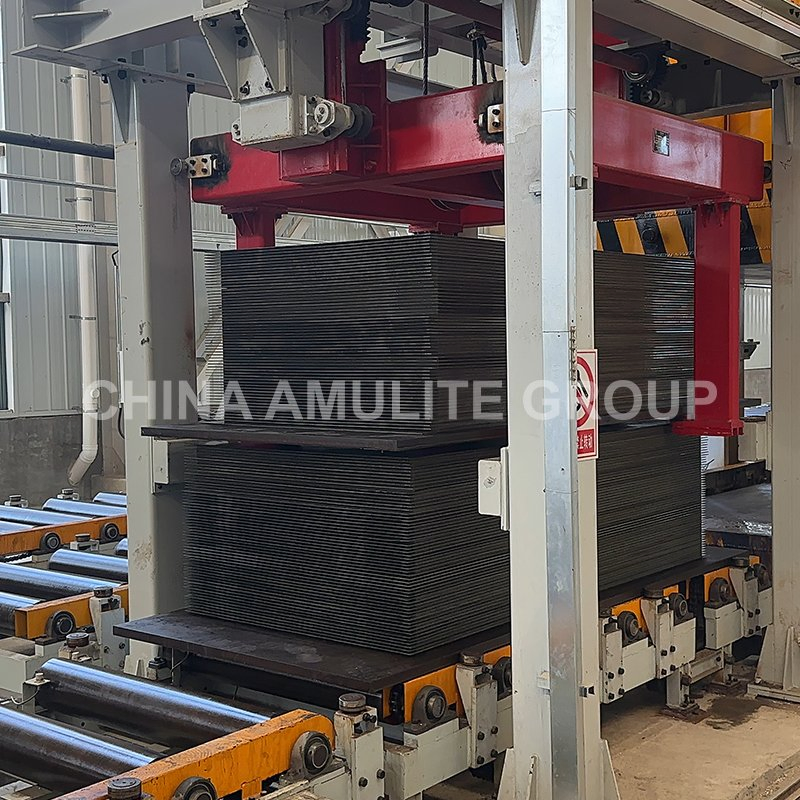

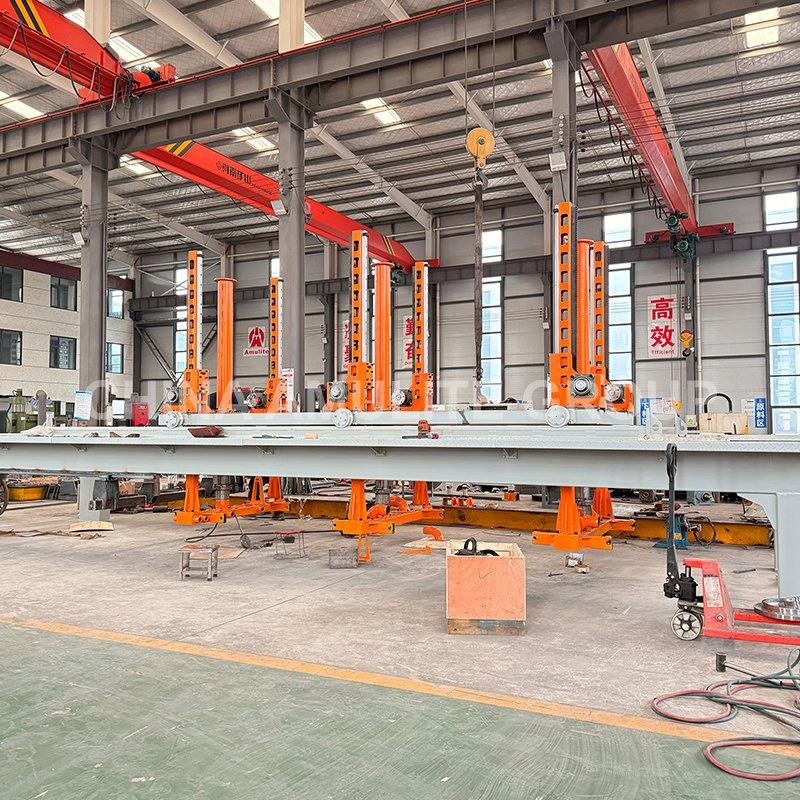

Integrated Fiber Cement Board Production Plant

1 / 5

Integrated Fiber Cement Board Production Plant

Customization:	Available
After-sales Service:	Long-Term After-Sales Service
Warranty:	3 Years

Send Inquiry

Product Description

📋

Basic Information

Model NO.

AMFC001

Product Type

Fiber Cement Board Production Line

Automatic Grade

Automatic

Power Source

Electric

Screw Design

Double-Screw

Certification

CE, ISO

Condition

New

Forming Board Style

Hatchek Style and Flow-on Slurry Style

Asbestos

No Asbestos

Drying Style

Autoclave or Pressing Machine

Production Capacity

150 Sets Per Year

Specification

1220X2440X4MM-30MM

🏗️

Product Description

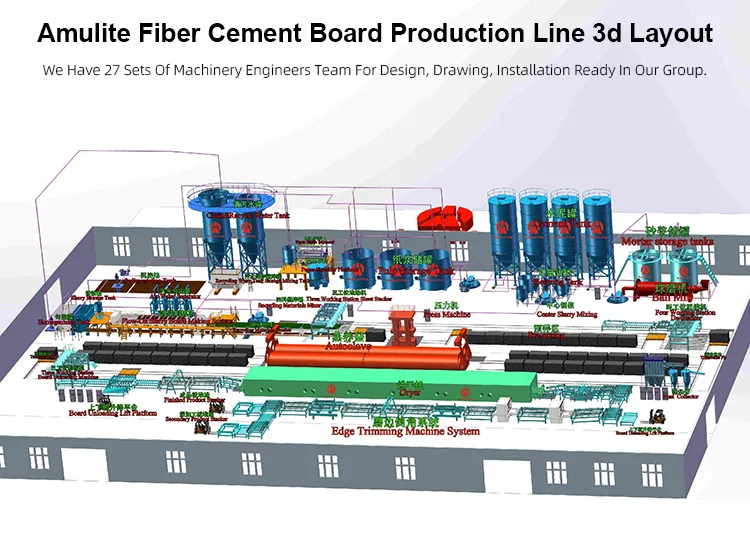

Main Production Line Specifications: LXWXT: 2440X1220X4-30mm (Custom specifications available per requirement).

📊

Technical Performance Index

Item	Unit	Fiber Cement Board Value
Density	g/cm³	0.75-1.8
Flexibility	mpa	>9
Thermal Conductivity	w/m.k	<0.29
Impact Strength	kJ/mm2	>3.0
Screw Extraction Force	n/mm	<0.2
Moisture Content	%	<10
Vertical Flexural Strength	mpa	16-22
Horizontal Flexural Strength	mpa	12-18
Average Flexural Strength	mpa	14-22
Delamination	-	Non-Delamination
Moisture Movement	%	0.06
Shrinkage Rate	%	<0.09
Wet Expansion Rate	%	<0.19
Non-Combustibility	-	Comply With Gb8624A Class Non-Combustible

⚙️

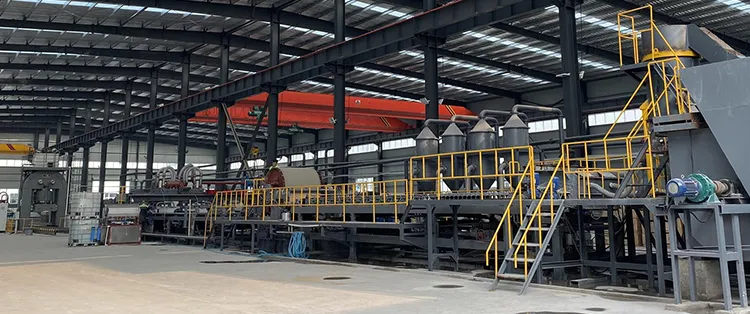

Operational Specifications

Theoretical Capacity: 3,000,000-10,000,000 Sq.M Per Year (Based on 6mm thickness)

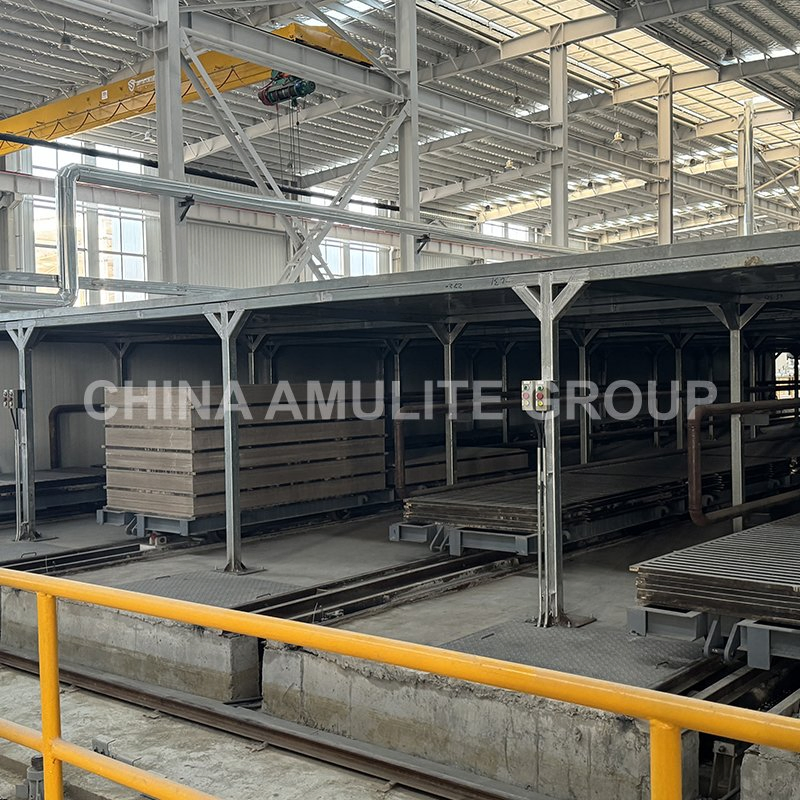

Pre-Curing Time: 8 Hours

Daily Production Time: 22 Hours

Autoclave System: 3 units (Φ2X26.5m), 24h continuous operation

Maintenance Cycle: 16 Hours on average

Raw Material Reserves: Fibers (7 days), Powder materials (3 days)

❓

Frequently Asked Questions

1. Are you a manufacturer or a trading company?

We are a manufacturer with 36 years of experience and an international trade team. We operate a 50,000 square meter manufacturing facility with approximately 150 workers.

2. Which loading ports do you use?

We can ship from major ports including Tianjin, Qingdao, Shanghai, Lianyuan Port, Shenzhen, and Guangzhou.

3. Can you provide customized equipment?

Yes, customized equipment can be provided according to specific customer requirements, including custom branding on machinery or packaging.

4. What are the standard payment terms?

Our typical terms are 30% advance payment, 65% payment before loading, and 5% payment within 30 days after installation.

5. What is the delivery time for the production line?

The delivery time is generally between 120 and 150 days.

6. Do you provide installation and commissioning services?

Yes, we have a global team of 50 engineers responsible for installation and commissioning, which typically takes about 90-120 days.
