Basic Information
Model NO.
HZS75 Concrete Batching Plant
Machining Process
Hydraulic
Certification

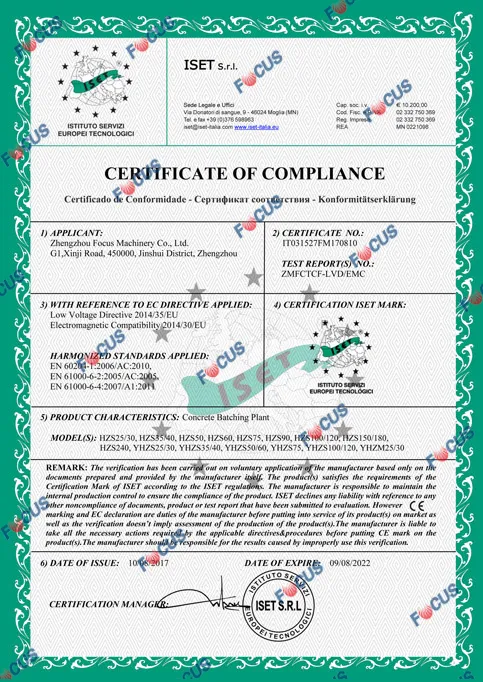

ISO9001: 2000, CE
Matched Mixer
JS1500 Twin Shaft
Control System
Full Automatic Computer Control
Electrical System
Schneider Brand
Product Description

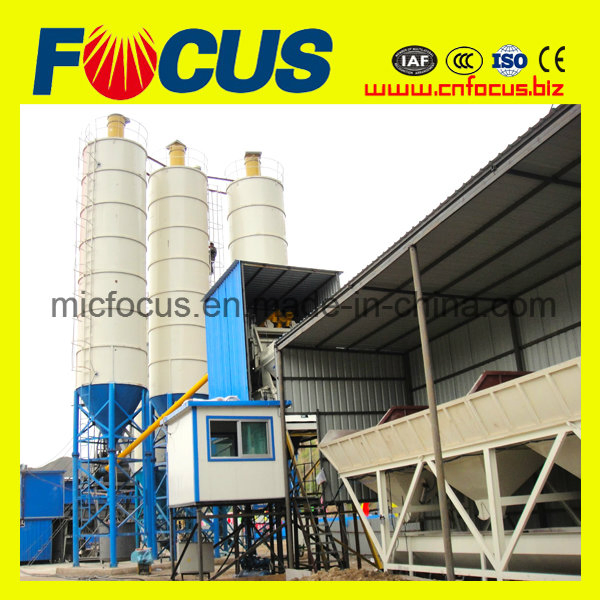

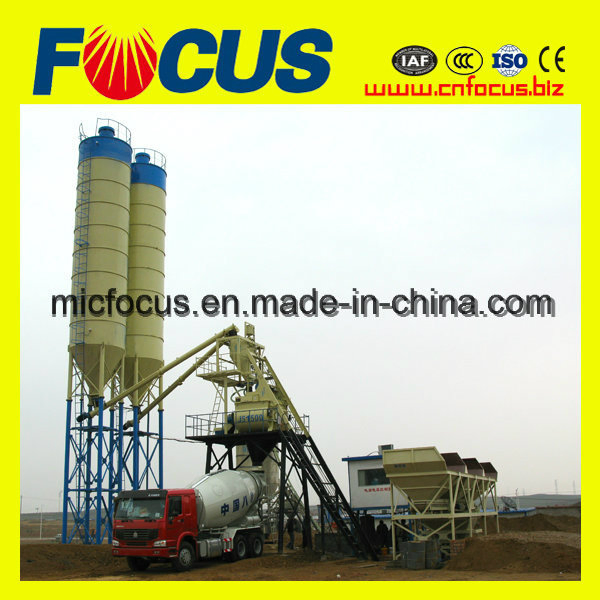

HZS75 Modular Precast Quick Concrete Batching Plant is a complete set of automatic concrete mixing equipment consisting of ingredients, mixing, and an electric control system. It is equipped with separate manual control, gap automatic compensation, and compensation of sand moisture content to ensure high-quality output.

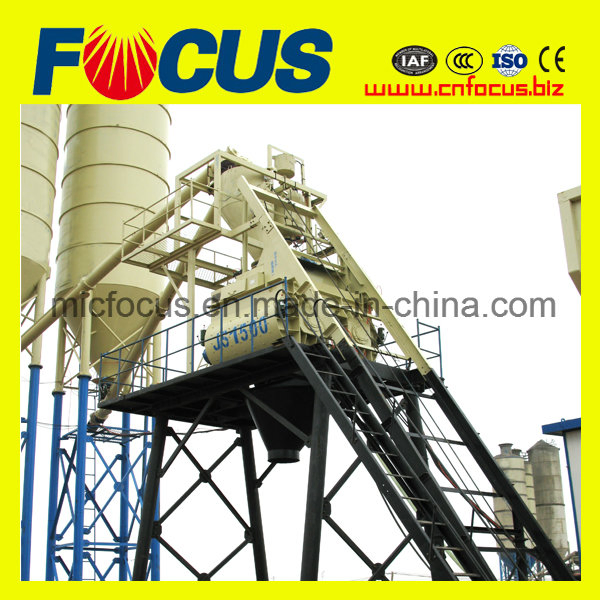

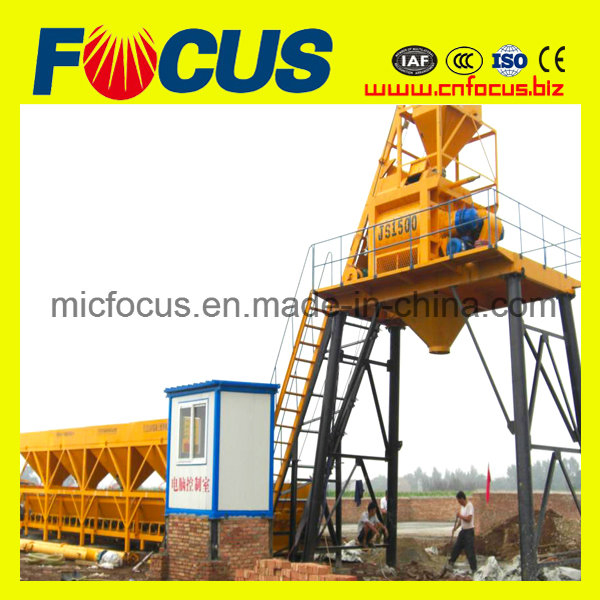

The HZS series offers a theoretical productivity of 75m³/h with a discharging height of 3.8 meters. The storage hopper volume supports 8 cubic meters across 3 or 4 bins. The core unit is the powerful JS1500 type twin horizontal shafts forced mixer.
Technical Parameters
| Model |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
| Theoretical output(m³/h) |
25 |
35 |
50 |
75 |
| Mixer model |
JS500 |
JS750 |
JS1000 |
JS1500 |
| Output per batch(m³) |
0.5 |
0.75 |
1 |
1.5 |
| Aggregate batcher |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
| Total power(KW) |
27 |
35 |
80 |
110 |
| Discharge height(m) |
3.8 - 4.1 |
| Max. aggregate dia.(mm) |
60 |
60 |
80 |
80 |
Main Features
- Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.

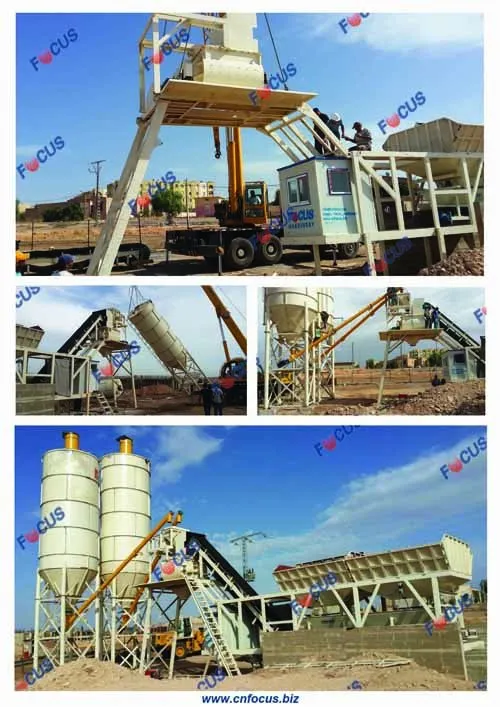

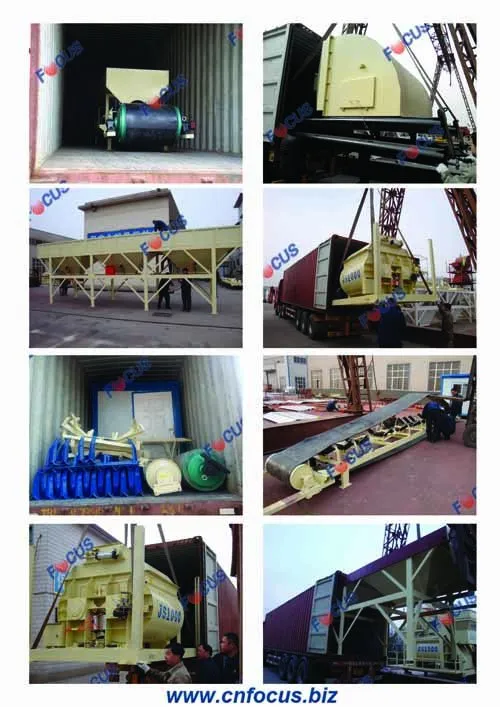

- Modularization structure for easy transport, fast installation, and debugging.
- Spiral mixing system with high efficiency; blades adopt high-rigidity case alloy steel for prolonged life.
- Aggregate lifting appliance adopts frequency control for smooth and reliable operation.
- Advanced centralized oil lubricating system with overvoltage and low oil level warnings.
- PC+PLC control system ensures high reliability and precise computation for high-performance concrete.
- Human-based intelligent control facilitates easier operation.
Frequently Asked Questions
What is the theoretical productivity of the HZS75 model?
The HZS75 concrete batching plant has a theoretical productivity of 75m³/h.
What type of mixer is integrated into this plant?
The plant uses the JS1500 twin horizontal shafts forced mixer, which provides an output of 1.5m³ per batch.
Is the control system fully automatic?
Yes, it features a full automatic PC+PLC control system (Omron or Siemens) with manual override capabilities.
What are the advantages of the modular structure?
The modularization allows for easier transportation, rapid installation on-site, and quicker debugging.
What is the maximum aggregate diameter supported?
The system can handle a maximum aggregate diameter of up to 80mm.
Does the plant include a weighing system for additives?
Yes, the plant includes separate accurate scales for water, cement, fly ash, and additives with high weighing accuracy.
