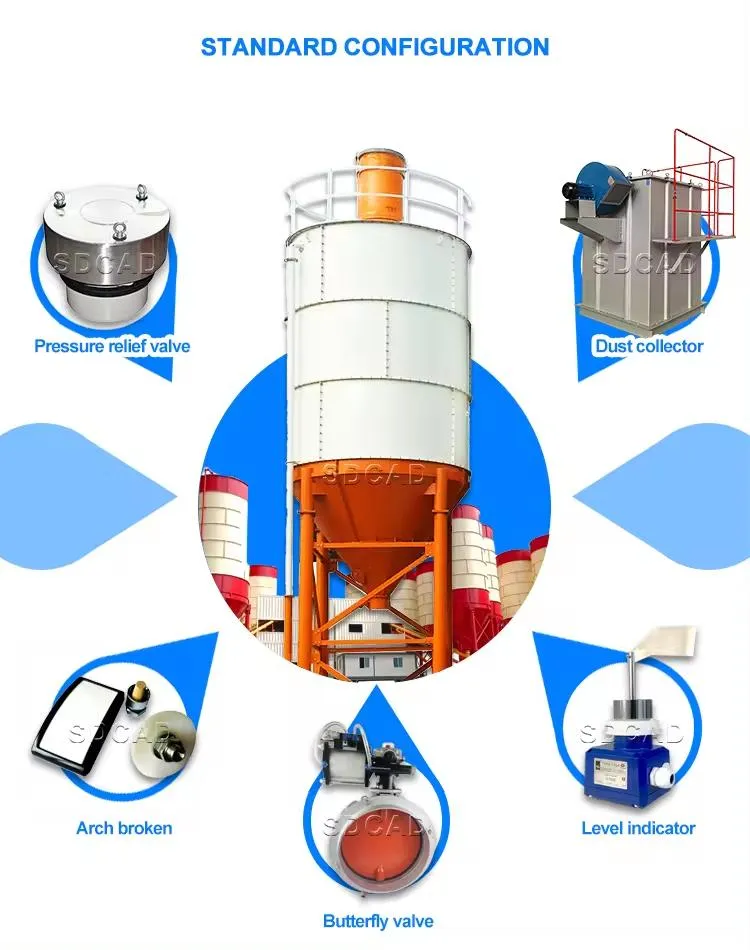

Storage Silo is a closed system designed for bulk material storage, including grain, cement, and fly ash. Equipped with a sophisticated material level system, it provides real-time data on material location and quantity. Integrated hole-breaking devices prevent material firmness caused by long-term deposition, ensuring smooth operation when used with screw pumps for material transfer.
| Volume | Diameter | Silo Body Height | Discharge Height | Pieces per Layer | Weight |
|---|---|---|---|---|---|
| 50t | 3160mm | 4260mm | Customizable | 4 | 4.5T |
| 100t | 3160mm | 8700mm | Customizable | 4 | 6T |
| 150t | 3600mm | 13000mm | Customizable | 4 | 9T |
| 200t | 4000mm | 11360mm | Customizable | 5 | 12T |
| 300t | 5300mm | 8700mm | Customizable | 8 | 17T |
| 500t | 6800mm | 7300mm | Customizable | 8 | 21T |
| 1000t-2000t | 8000mm | 13200mm | Customizable | 10 | 56T |
Consultation available 24/7; Detailed design drawings provided; Photographed production process for transparency.
On-site installation instructions; Machinery maintenance guidance; Regular tracking and problem-solving support.
