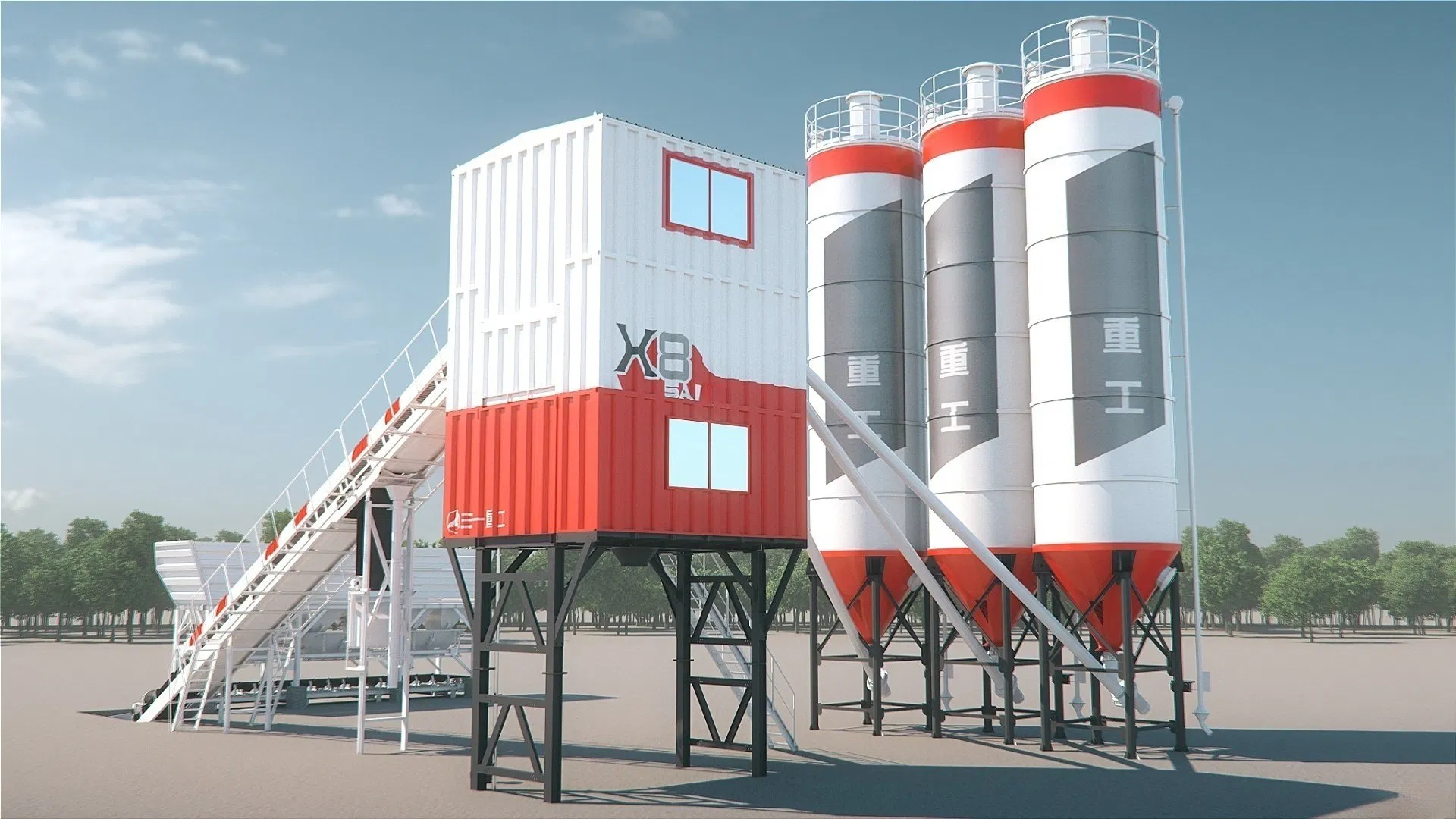

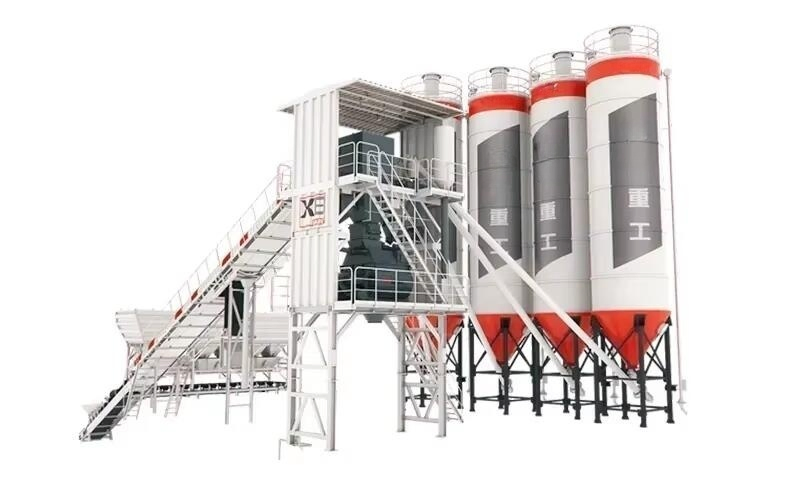

Evangel Official Factory Concrete Construction Hzs90g Batching Plant 90m3/H Output Concrete Mixing Plant Modular Design Easy to Transport
1 / 5

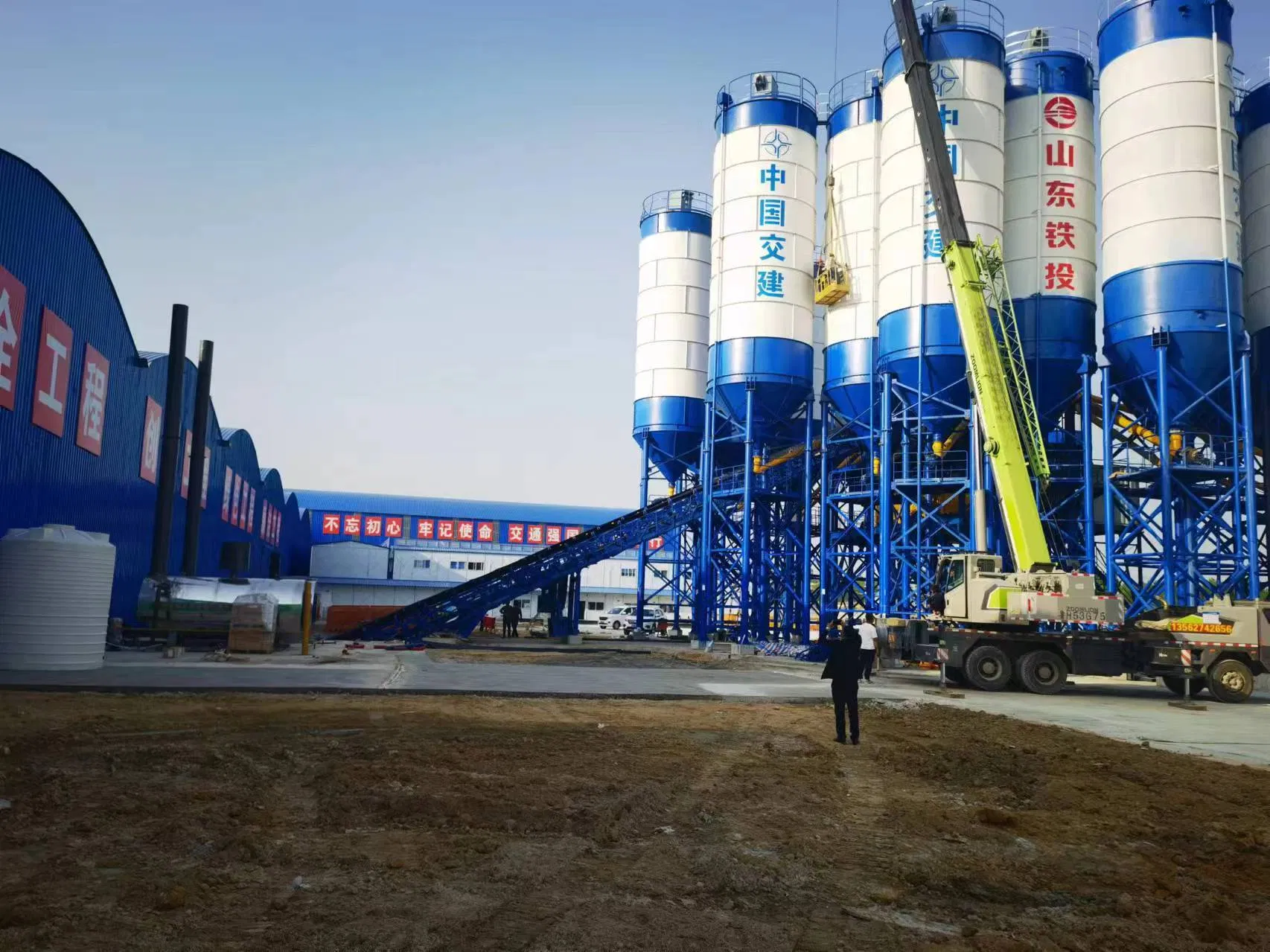

Evangel Official Factory Concrete Construction Hzs90g Batching Plant 90m3/H Output Concrete Mixing Plant Modular Design Easy to Transport
Stationary concrete batching plant is more suitable for those projects that need to long construction period and don't need to move machine frequently. Therefore, if you have a project that require the production of a lots of concrete at the construction site, our stationary concrete batching plant is a good choice for you. lt can help you produce a large amount of concrete in a very short time. Moreover, because the concrete that it produces has features of high quality, stationary concrete batching plant is mostly used to produce commercial concrete. In general, stationary concrete batching plant is used to mix all kinds of ingredients that make up concrete. lt usually can be used for the construction of roads, airports, high buildings, bridges, railway, highway and so on.
Key Advantages
Combined structure and unitized module for quick installation and demolition.
Increased unloading angle of the aggregate bin to solve rain-related unloading difficulties.
Convenient cylinder discharge or electric push rod systems.
High-quality steel structure ensuring high overall strength and stability.
Twin-shaft forced mixing system for uniform results and high productivity.
Excellent pneumatic and electrical components for accurate metering performance.
Spacious maintenance platforms and check ladders for easy repair access.
Pulse dust removal and wastewater recycling for energy saving and environmental protection.
Technical Parameters
Parts
Model
HZS60
HZS75
HZS90
HZS120
HZS180
Productivity
m³/h
60
75
90
120
180
Discharge Height
m
3.8
2.7-3.8
3.8
4
4
Cycle Time
s
60
72
60
60
60
Total Power
kw
105
120
145
210
280
Mixer Model
-
JS1000
JS1500
JS1500
JS2000
JS3000
Batching Model
-
PLD1600
PLD2400
PLD2400
PLD3200
PLD3200

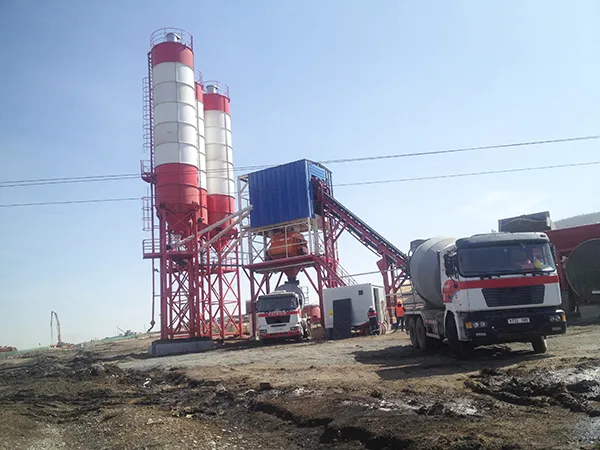

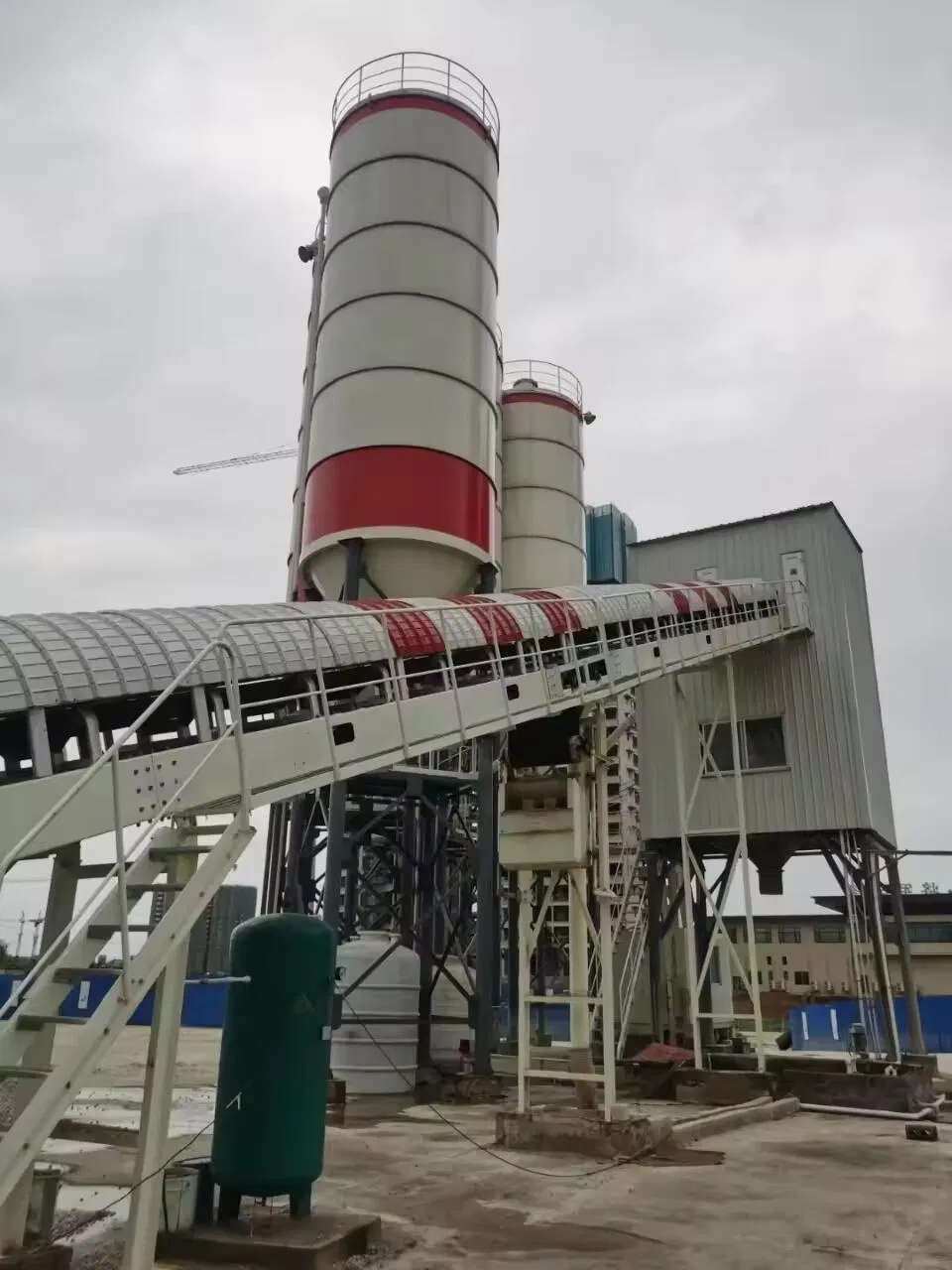

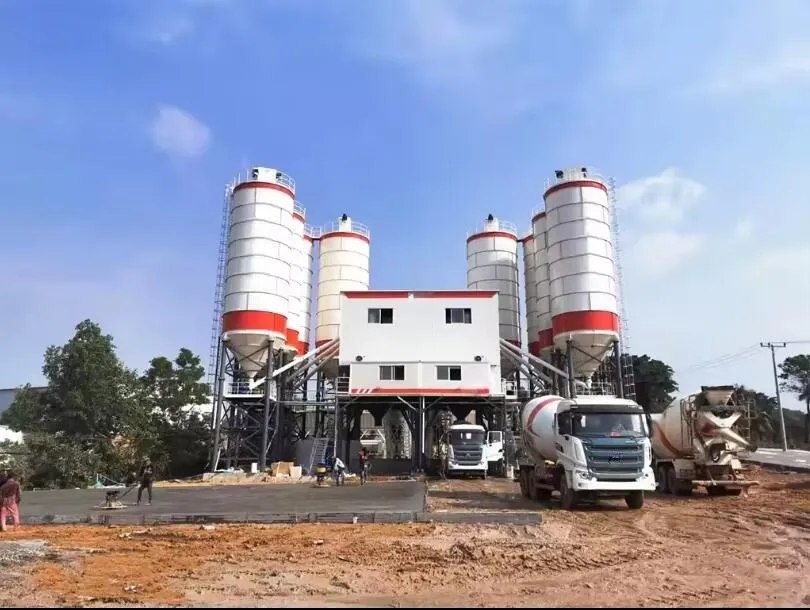

Detailed Photos
Frequently Asked Questions
What projects are stationary concrete batching plants best suited for?
They are ideal for long-term construction projects like highways, bridges, airports, and high-rise buildings where the equipment does not need to be moved frequently and high-volume production is required.
How does the modular design benefit the installation process?
The unitized module design allows for a much shorter and more convenient installation and demolition period, facilitating faster project setup and potential relocation if needed.
What type of mixing technology is used in these plants?
These plants utilize a twin-shaft forced mixing main machine, which ensures strong mixing performance, uniform concrete consistency, and high overall productivity.
What measures are taken for environmental protection?
The plants incorporate pulse dust removal systems to control air pollution and feature wastewater recycling systems to reduce environmental impact and save energy.
Is the metering system accurate for high-quality concrete production?
Yes, the system utilizes high-quality electrical and pneumatic components to ensure accurate metering for sand, gravel (+/-2%), cement (+/-1%), and water (+/-1%), meeting commercial concrete standards.
