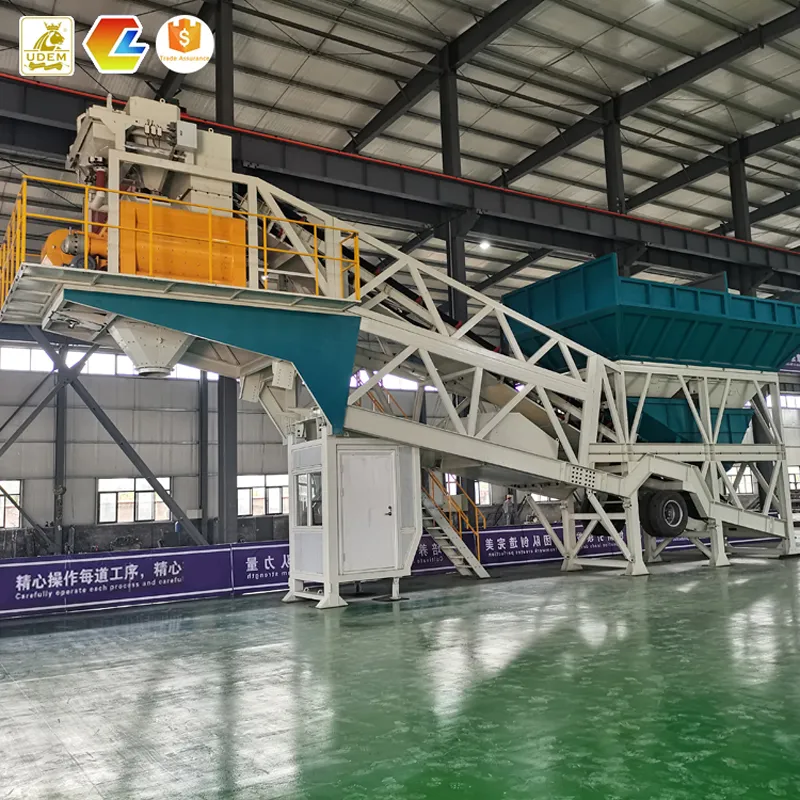

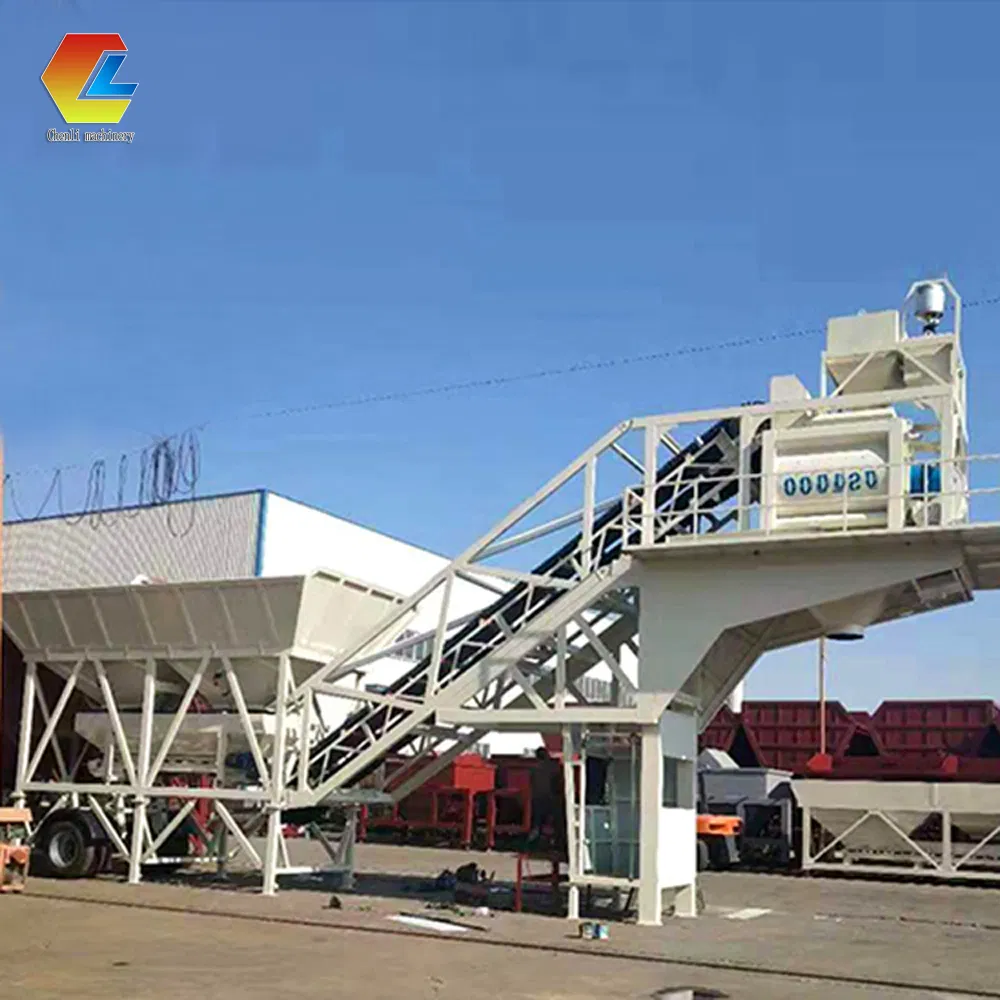

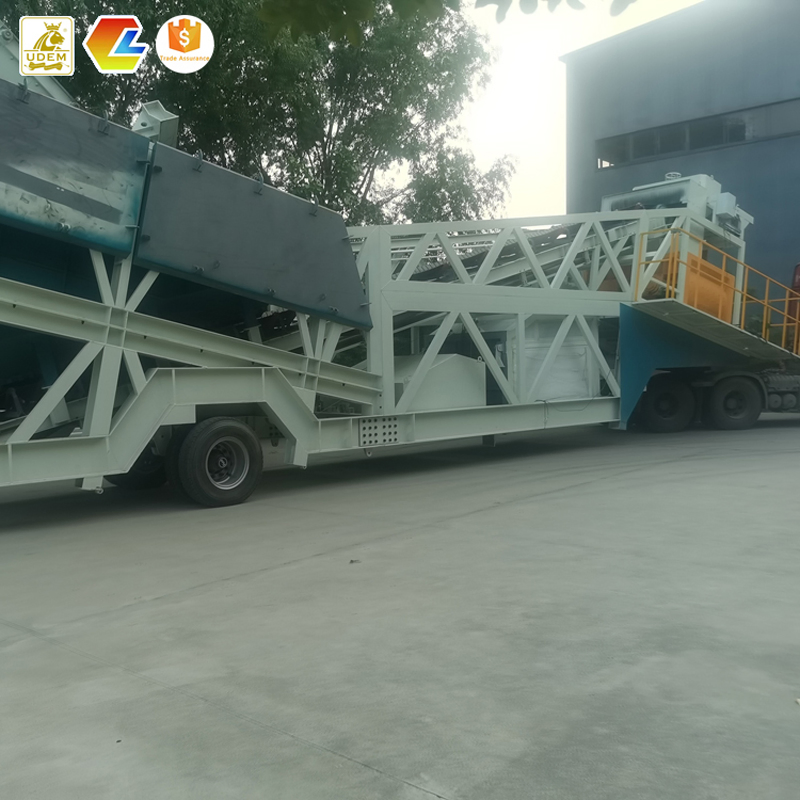

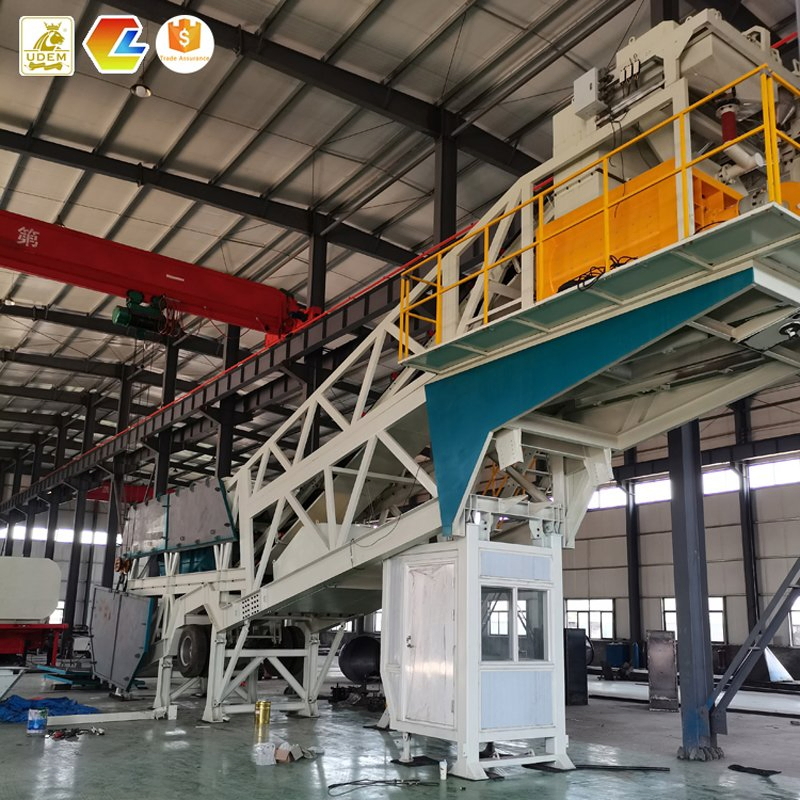

YHZS series mobile concrete mixing plant is a new type of mobile concrete mixing plant designed by applying advanced technology and scientific research achievements at home and abroad and combining with our experience in producing concrete mixing plant for many years. It is a more ideal mobile mixing model, with a compact and reasonable design, it completes most of the functions of the mixing plant on a trailer chassis; it integrates material collection, electronic weighing, lifting, and mixing. It can be used as soon as it is pulled and stopped, which is convenient to move and easy to install. It is very suitable for all kinds of mobile construction sites such as roads, bridges, dams, airports, and other production bases for building construction.

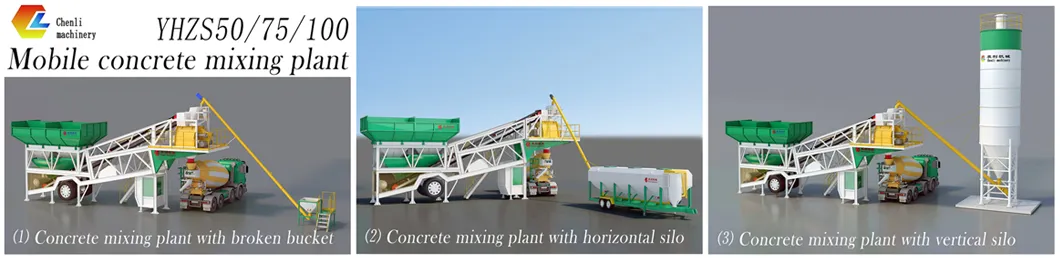

Product Configuration

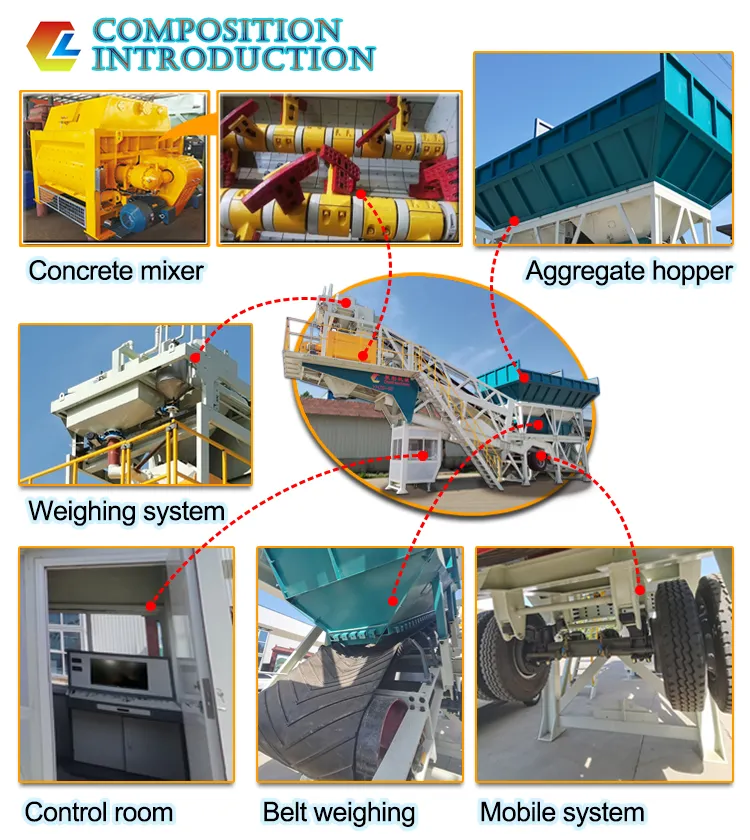

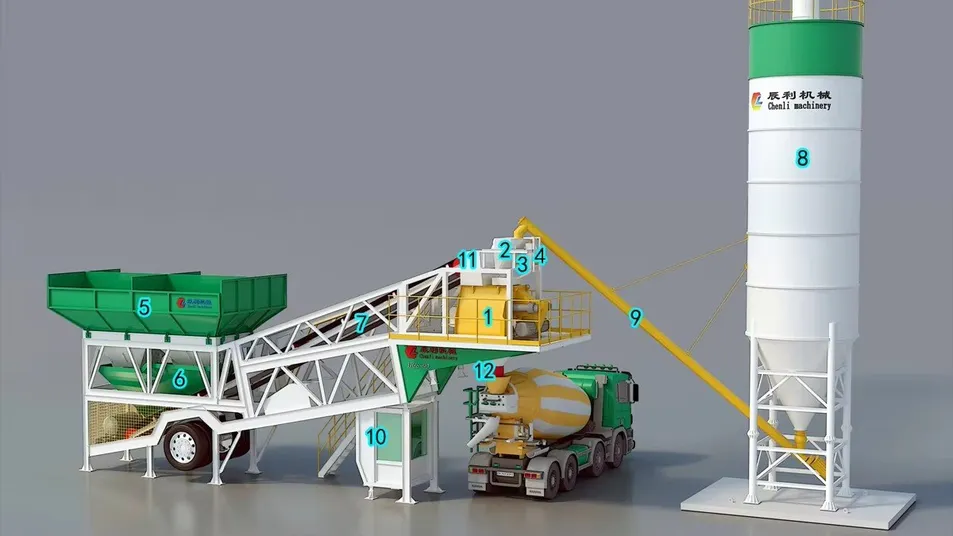

Main Components
Mixing machine
Powder weighing scale
Additive weighing scale
Water weighing scale
Batching bin
Aggregate weighing scale

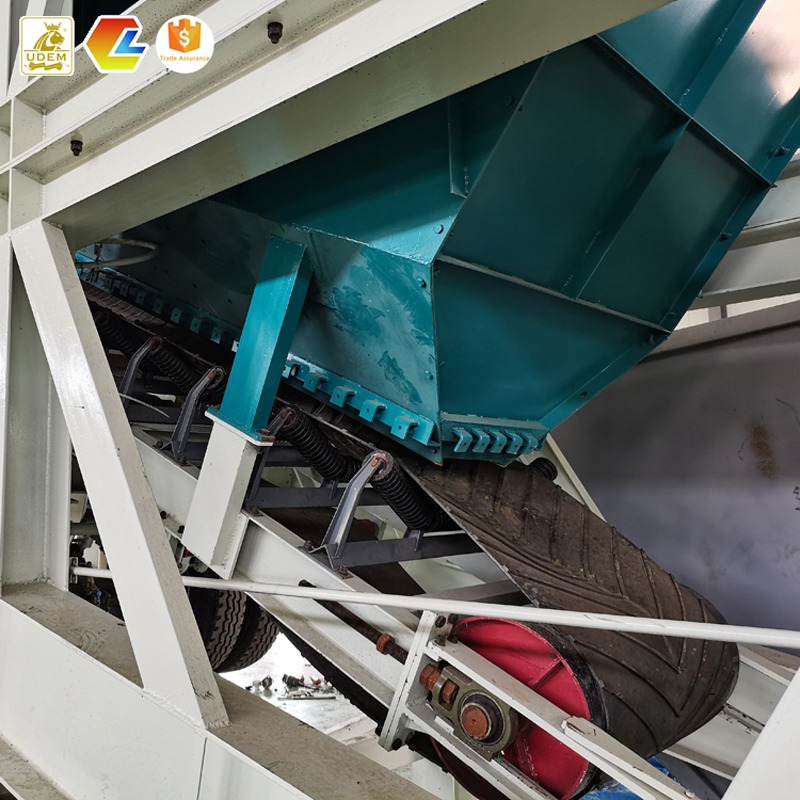

Belt conveyor
Cement silo
Screw conveyor

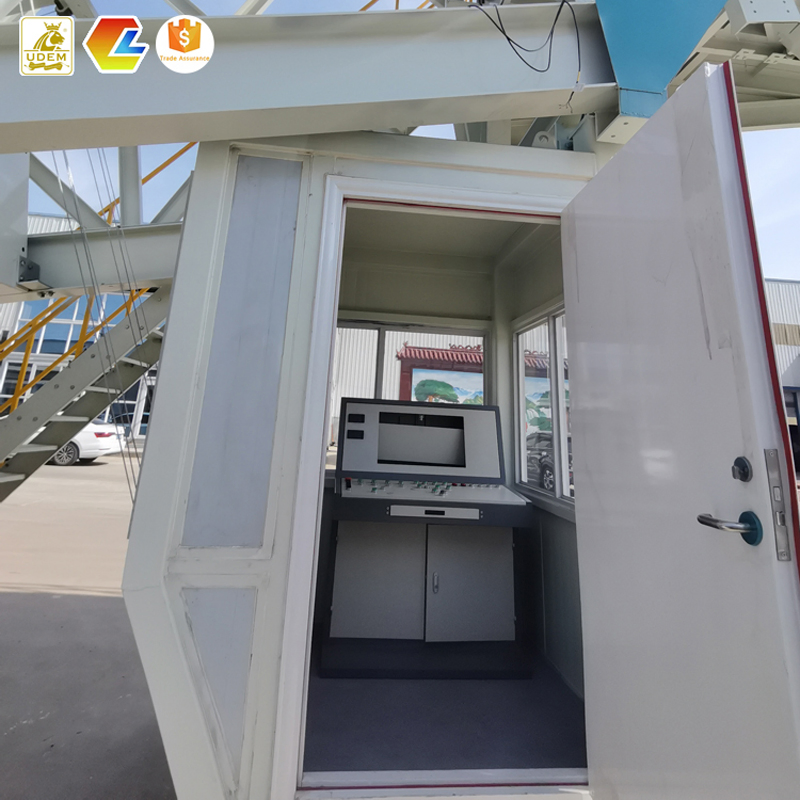

Control room
Feeding bin
Discharge port

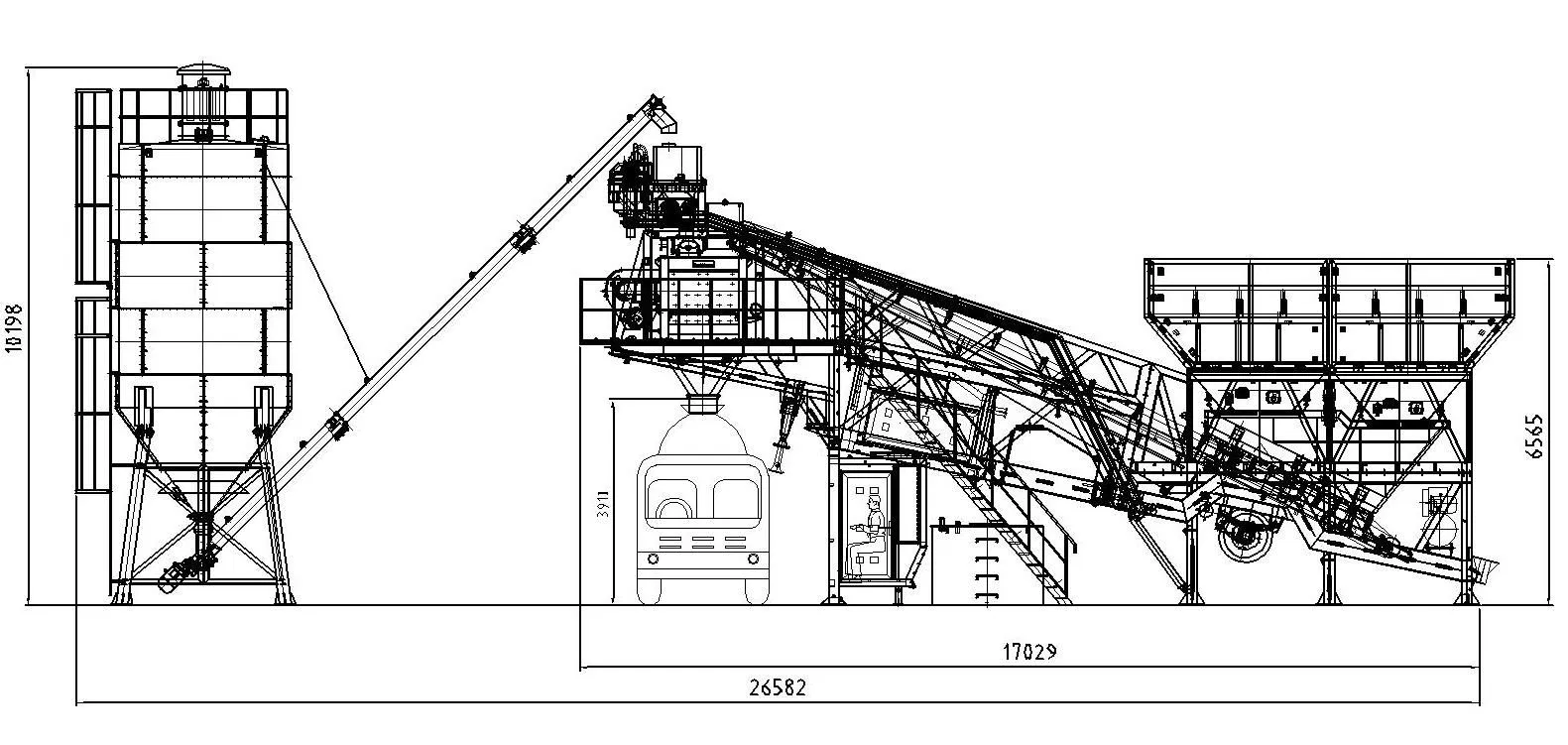

Product Specification
Model
YHZS50
YHZS75
YHZS100
Output
50m³/h
75m³/h
100m³/h
Mixer
JS1000
JS1500
JS2000
Mixer Power
2*18.5kW
2*30kW
2*37kW
Aggregate Max Particle
60/40 mm
60/40 mm
60/40 mm
Mixer Feed Capacity
1500L
2250L
3000L
Mixer Discharge Capacity
1000L
1500L
2000L
Aggregate Bin Capacity
4*6m³
4*6m³
4*6m³
Discharge Height
3.8m
3.8m
3.8m
Screw Conveyor Capacity
40 t/h
40 t/h
70 t/h
Installed Capacity
66 kw
98 kw
115 kw
Weighing Range
Aggregate
0-2400kg ±2%
0-3600kg ±2%
0-3600kg ±2%
Cement
0-700kg ±1%
0-700kg ±1%
0-1000kg ±1%
Water
0-300kg ±1%
0-400kg ±7%
0-500kg ±1%
Additive
0-30kg ±1%
0-40kg ±1%
0-50kg ±1%
Packaging & Shipping
Frequently Asked Questions
Are you a factory or a trading company?
We are a factory and welcome visitors to our facility and city.
What is the main advantage of the YHZS series?
The YHZS series is highly mobile and easy to install. It integrates material collection, weighing, and mixing on a single trailer chassis, making it perfect for rapid deployment.
Do you offer a warranty on your equipment?
Yes, we offer a full warranty and one-year service on all new equipment purchases, supported by specialized after-sales staff.
How do you ensure product quality?
We operate our own factory with dedicated quality assurance. Our critical electronic components and equipment utilize advanced domestic and international brands.
What types of projects are best suited for this plant?
It is ideal for mobile construction sites such as roads, bridges, dams, airports, and other temporary production bases.
What are the available productivity options?
We offer different models with productivities ranging from 50m³/h (YHZS50) to 100m³/h (YHZS100) to meet various project requirements.
