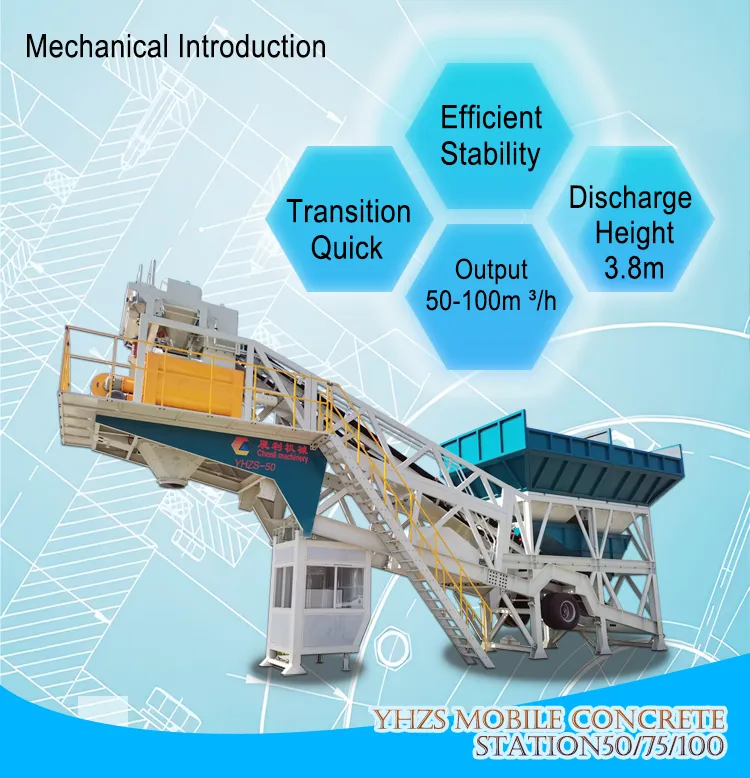

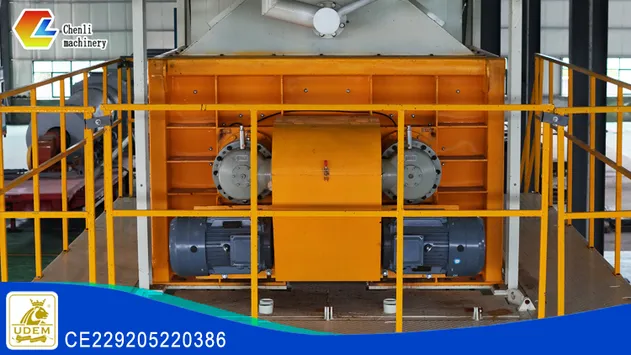

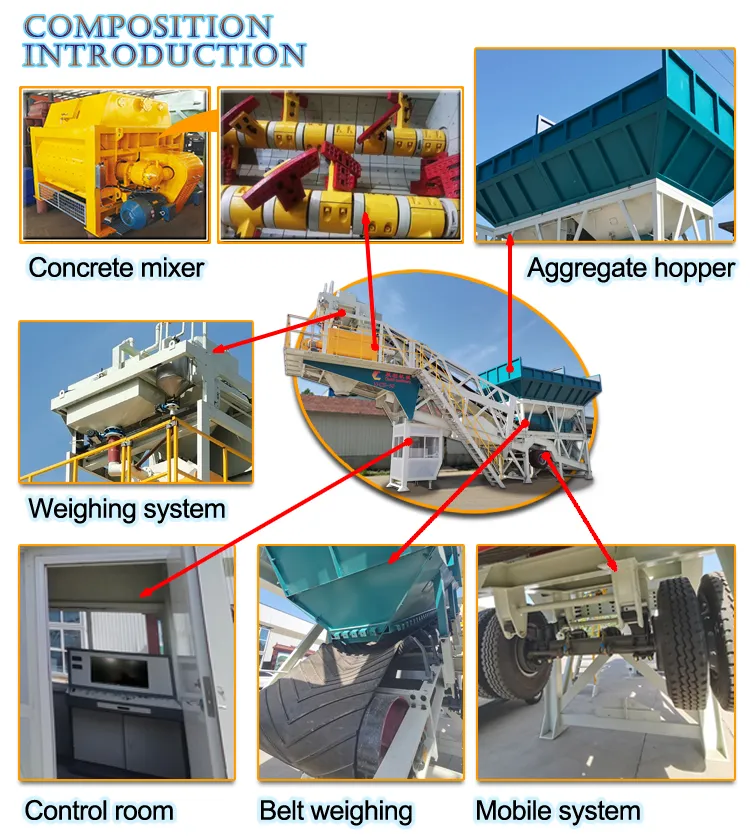

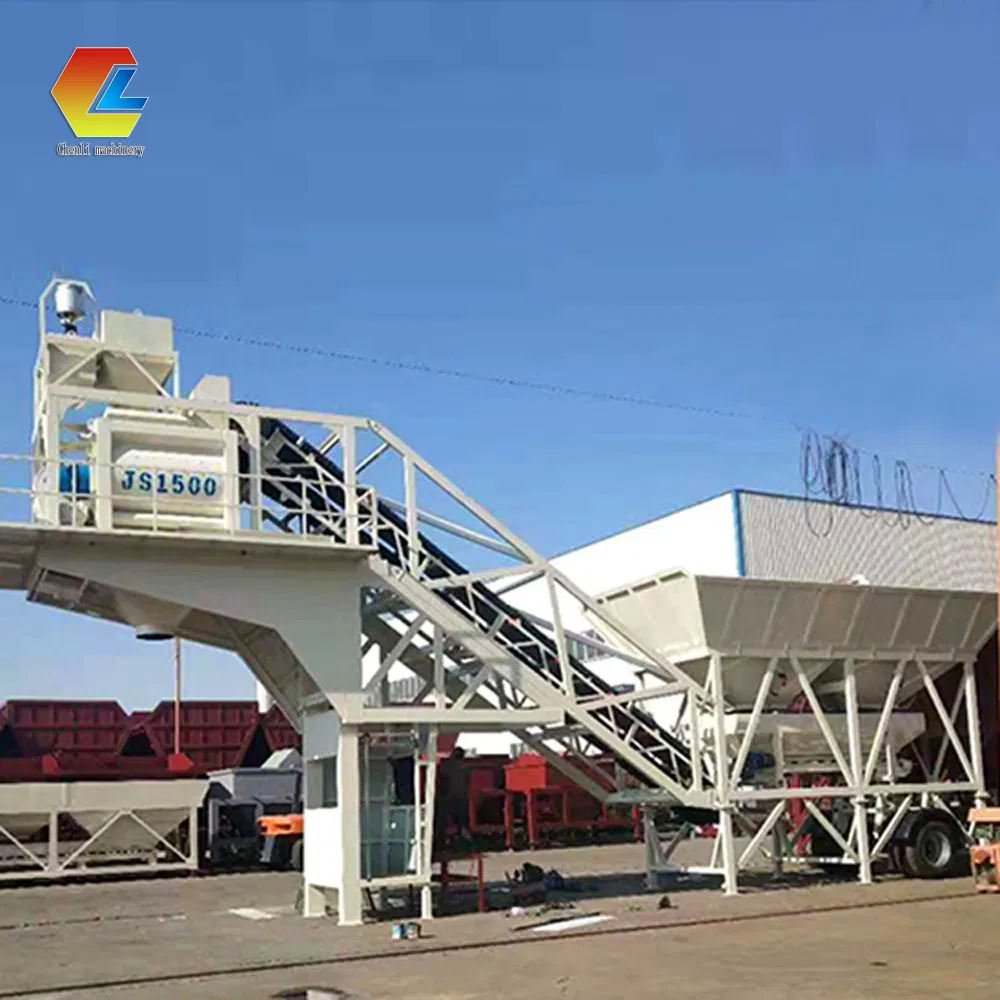

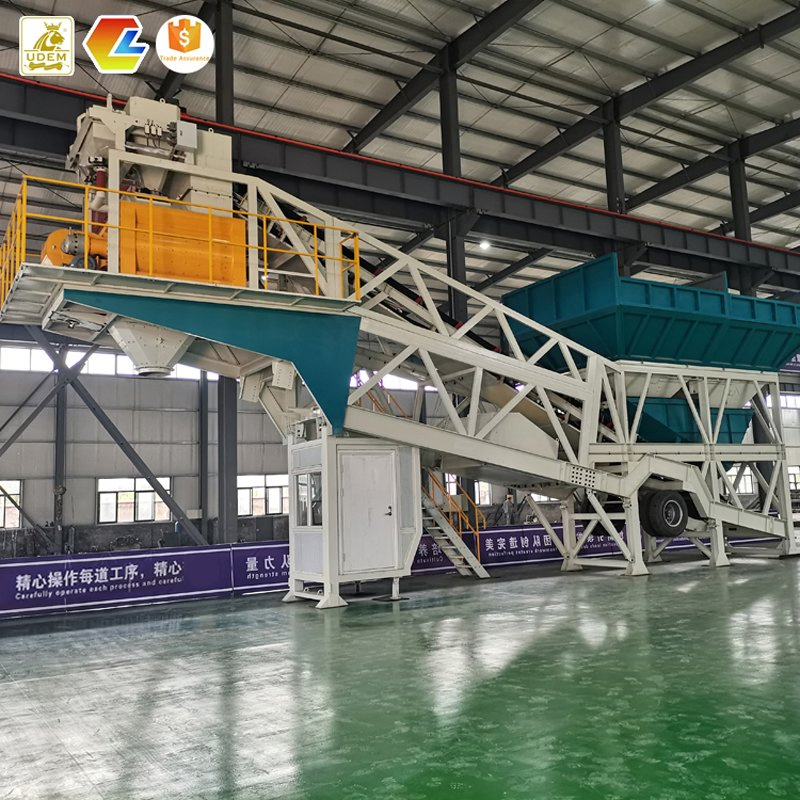

The mobile cement concrete mixing batch plant features a compact structure, integrating nearly all concrete production processes onto a trailer unit. The user-friendly human-machine interface ensures reliable performance and stable operation even in harsh environments. Equipped with a double horizontal shaft forced mixer, it provides strong continuous operation capabilities with a comprehensive mixing trajectory for fast and uniform results.

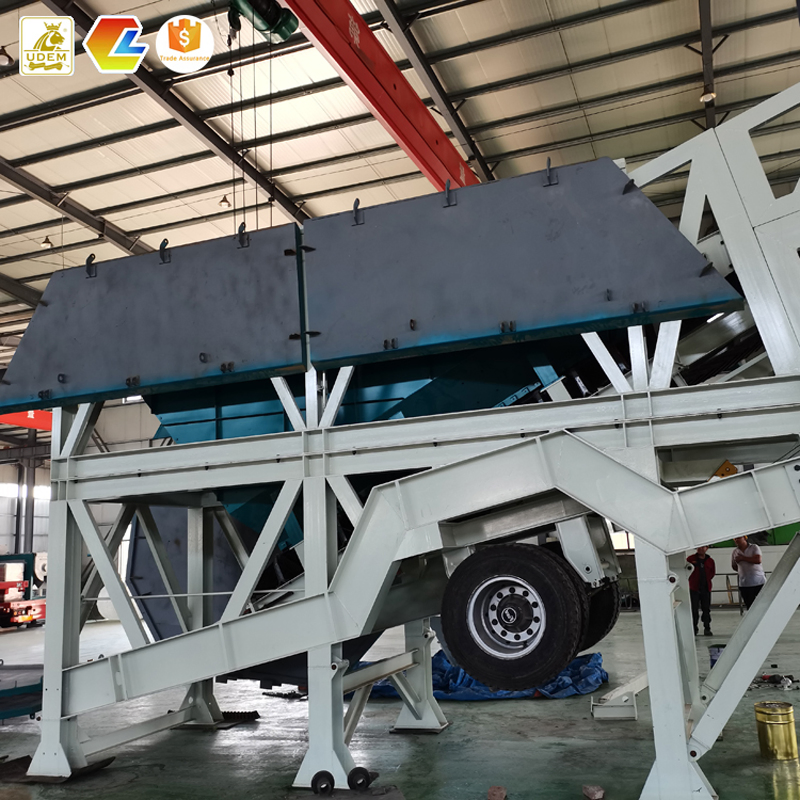

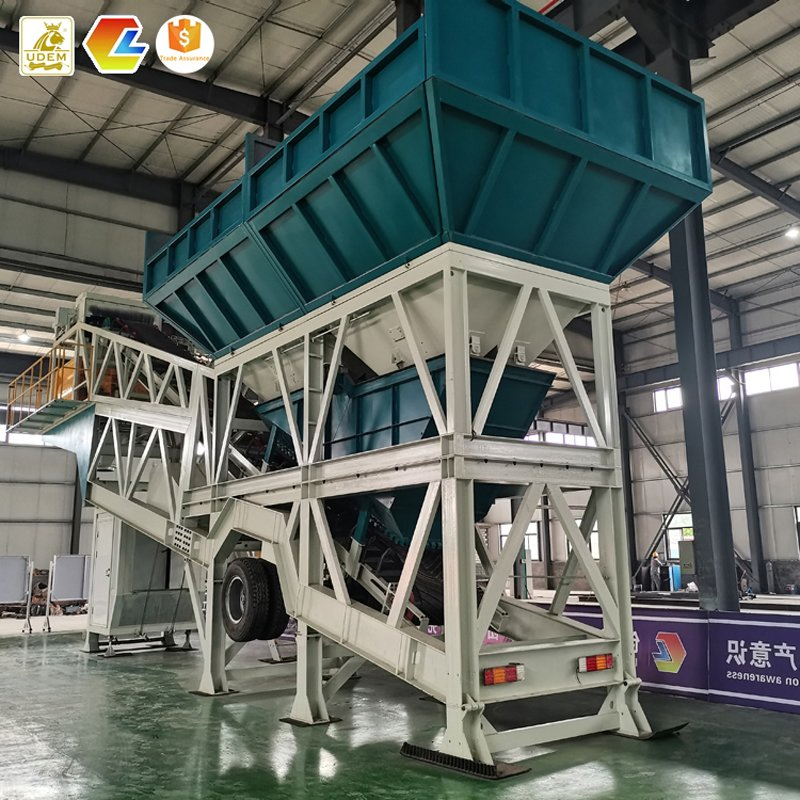

This mobile plant can be rapidly transported to construction sites and assembled quickly without extensive debugging. It boasts high automation, excellent maneuverability, and stability. Its reasonable spatial layout ensures both flexibility and production capacity while occupying less land and facilitating easy transfer, which significantly reduces basic engineering requirements. A unique design without front supports allows mixer trucks to enter from three directions, ideal for sites with limited space.

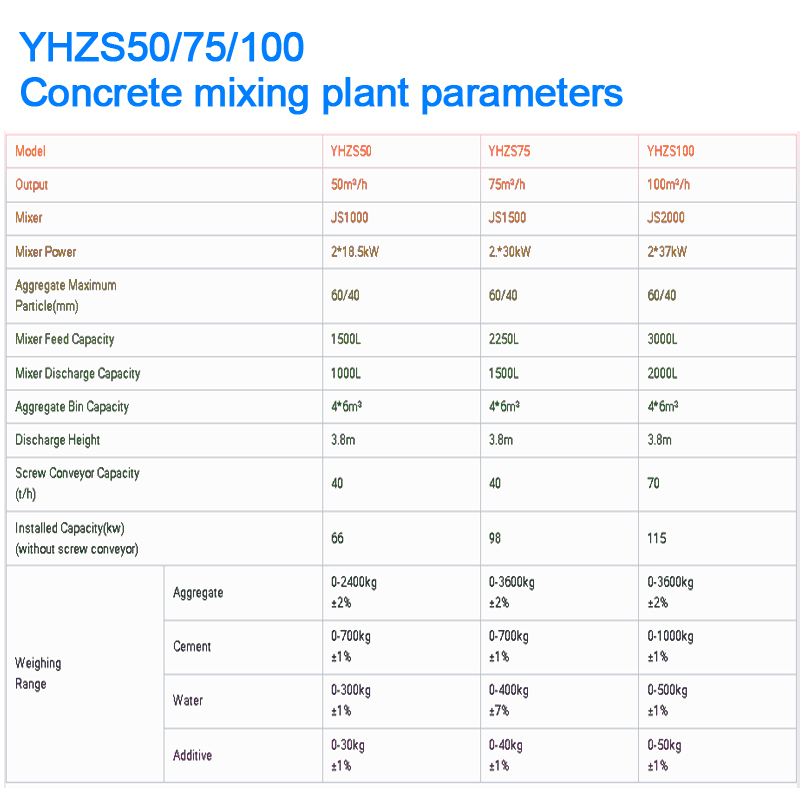

| Model | YHZS50 | YHZS75 | YHZS100 | |
|---|---|---|---|---|
| Output | 50m³/h | 75m³/h | 100m³/h | |
| Mixer | JS1000 | JS1500 | JS2000 | |
| Mixer Power | 2*18.5kW | 2*30kW | 2*37kW | |
| Aggregate Max Particle | 60/40 mm | 60/40 mm | 60/40 mm | |
| Discharge Capacity | 1000L | 1500L | 2000L | |

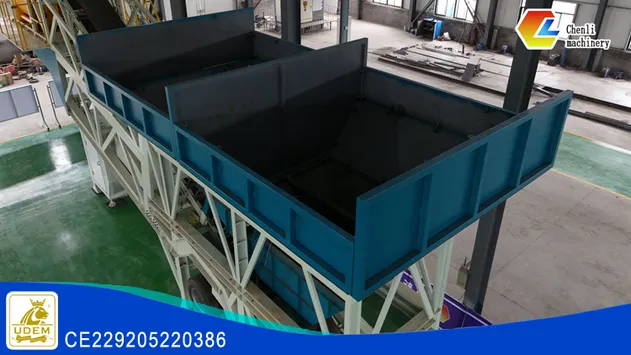

| Aggregate Bin Capacity | 4*6m³ | 4*6m³ | 4*6m³ | |
| Discharge Height | 3.8m | 3.8m | 3.8m | |
