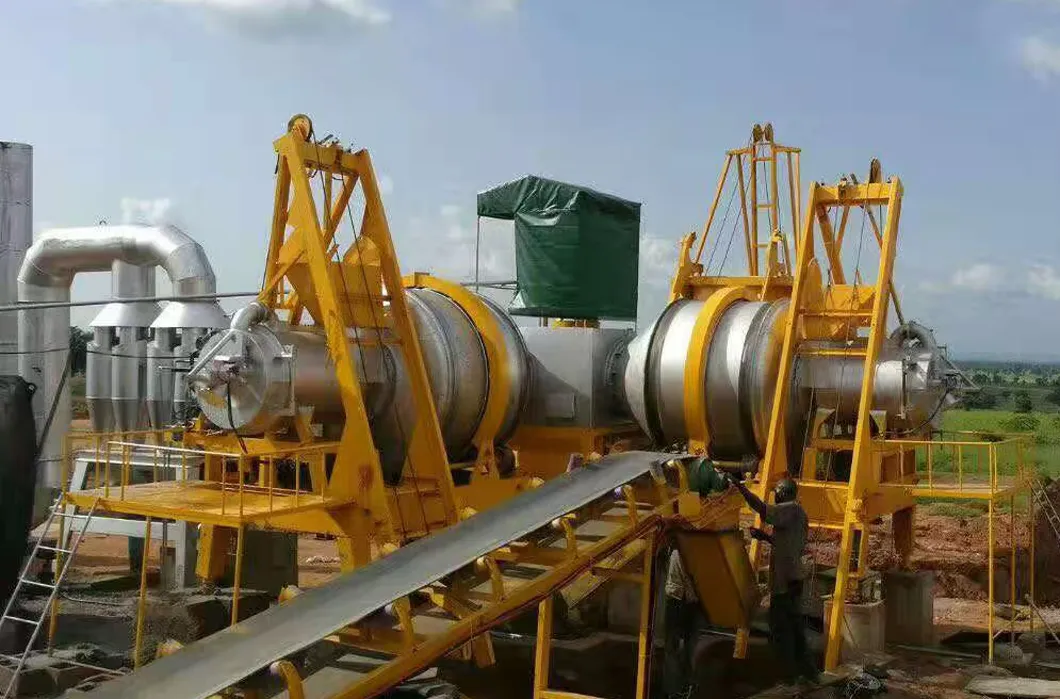

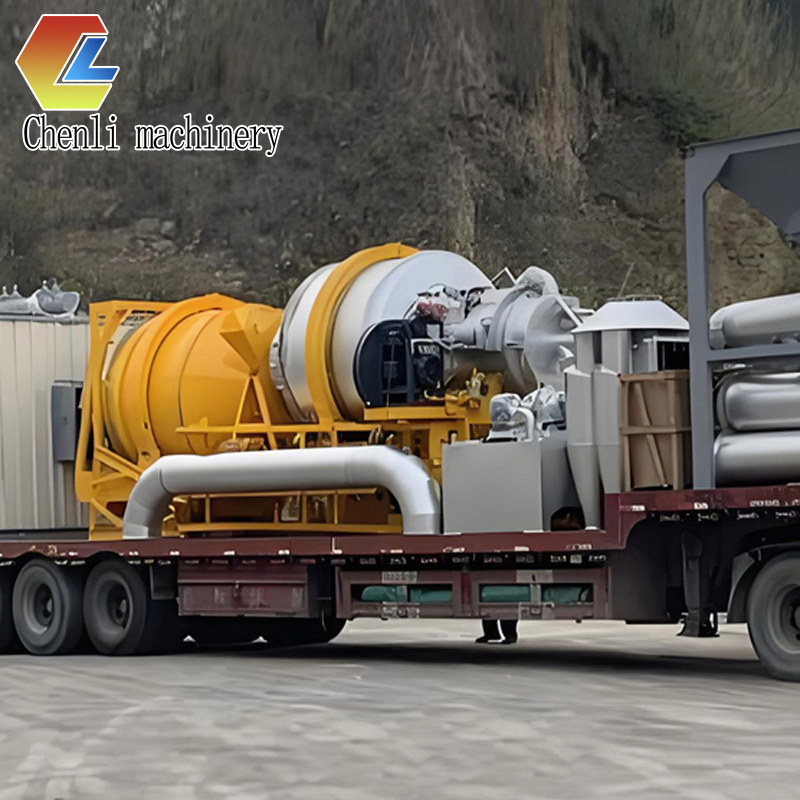

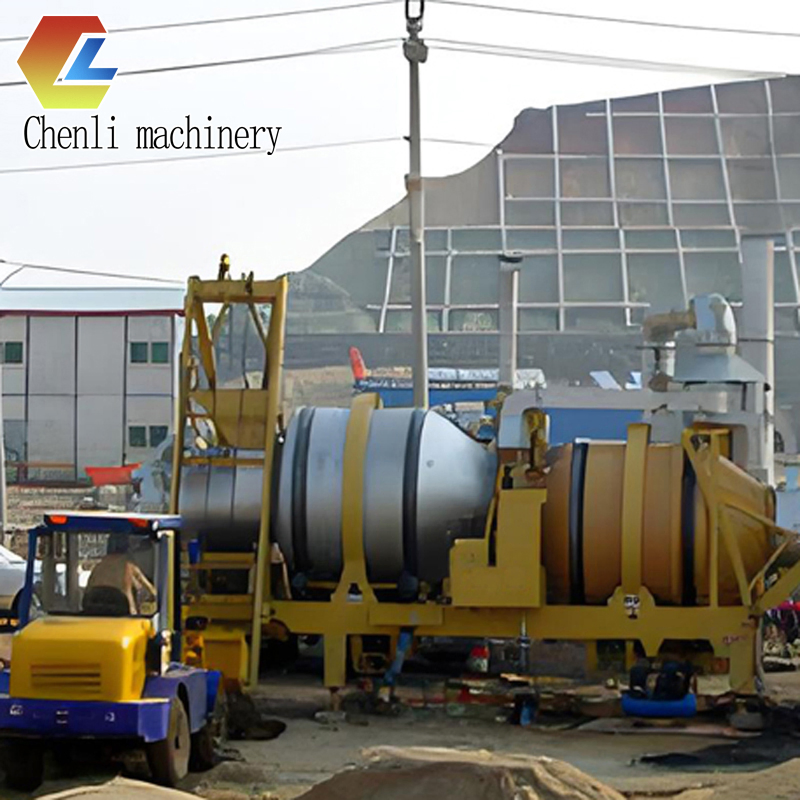

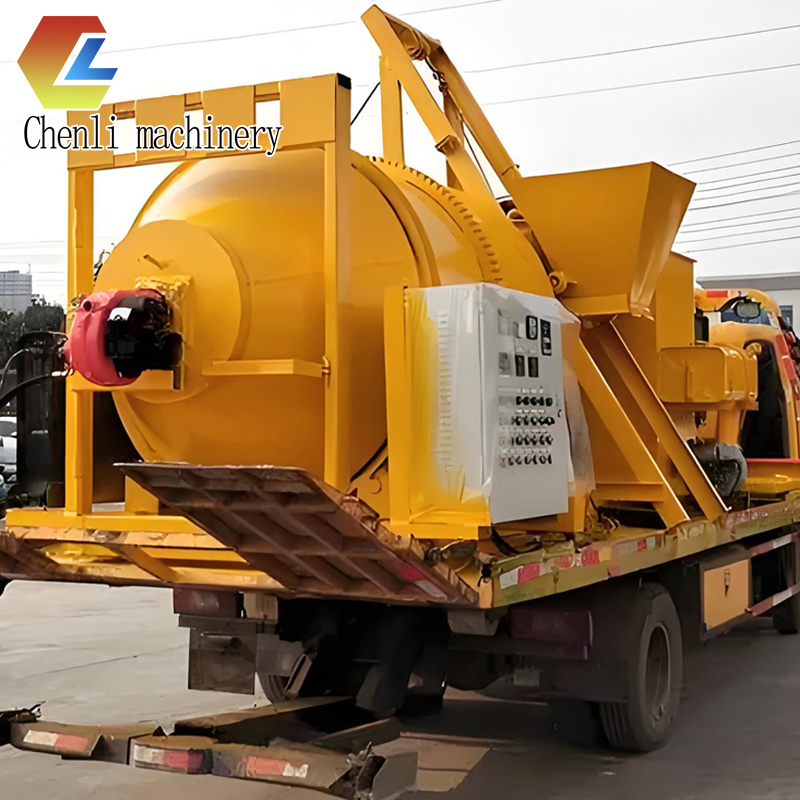

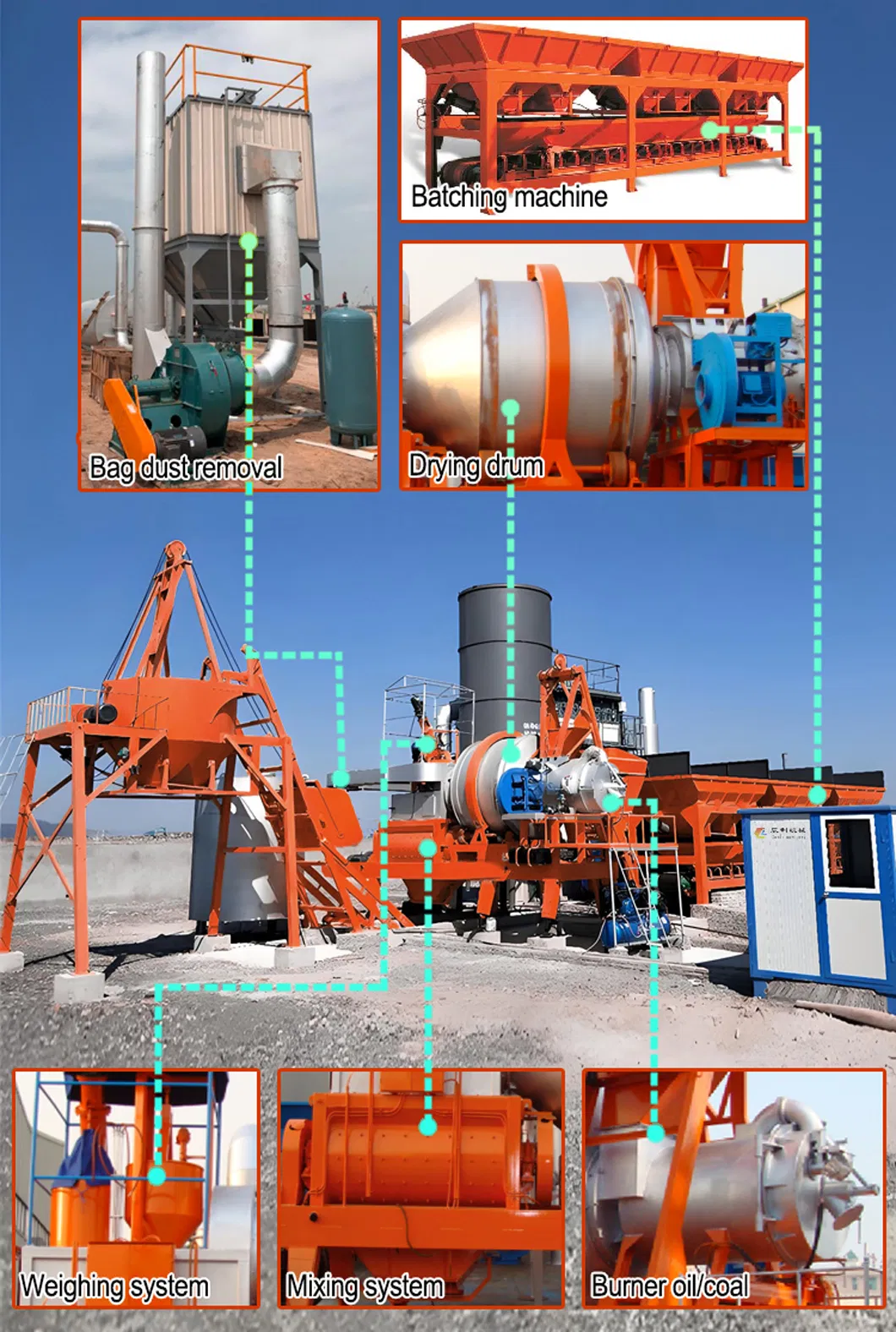

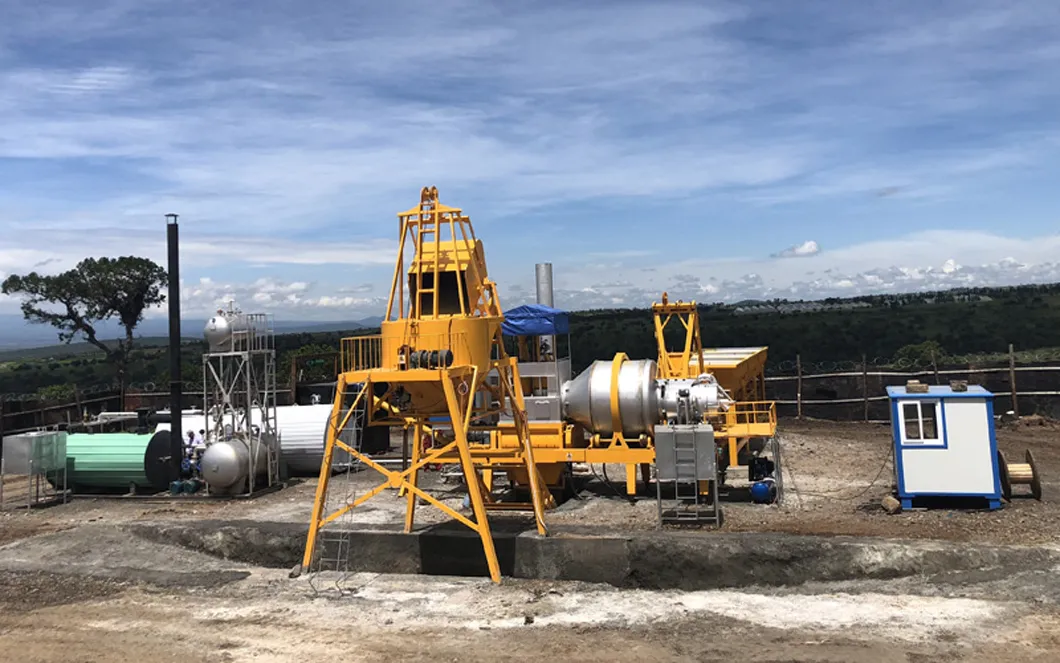

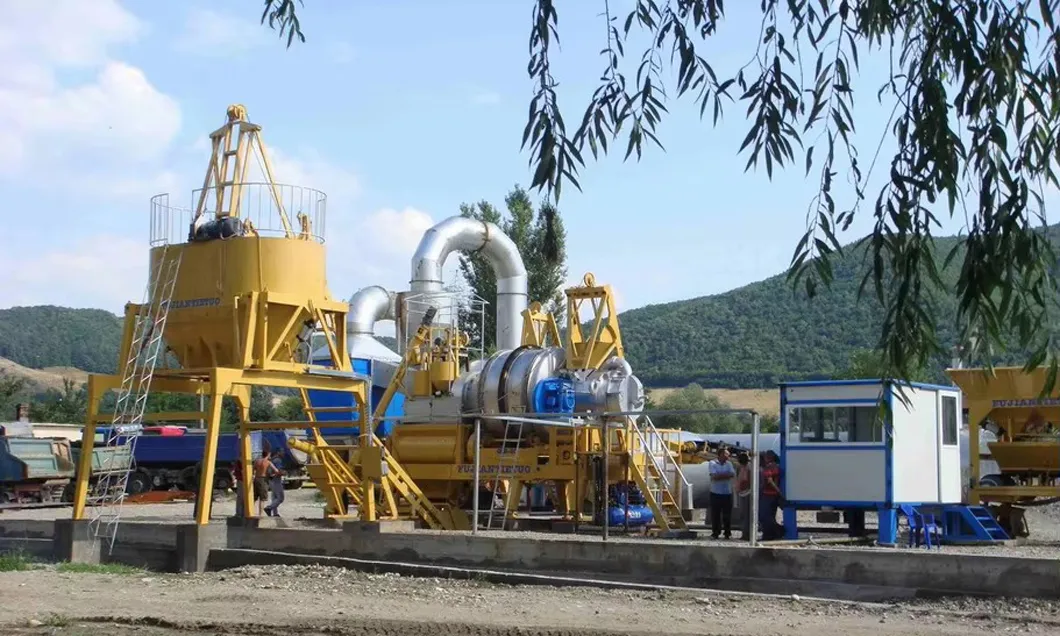

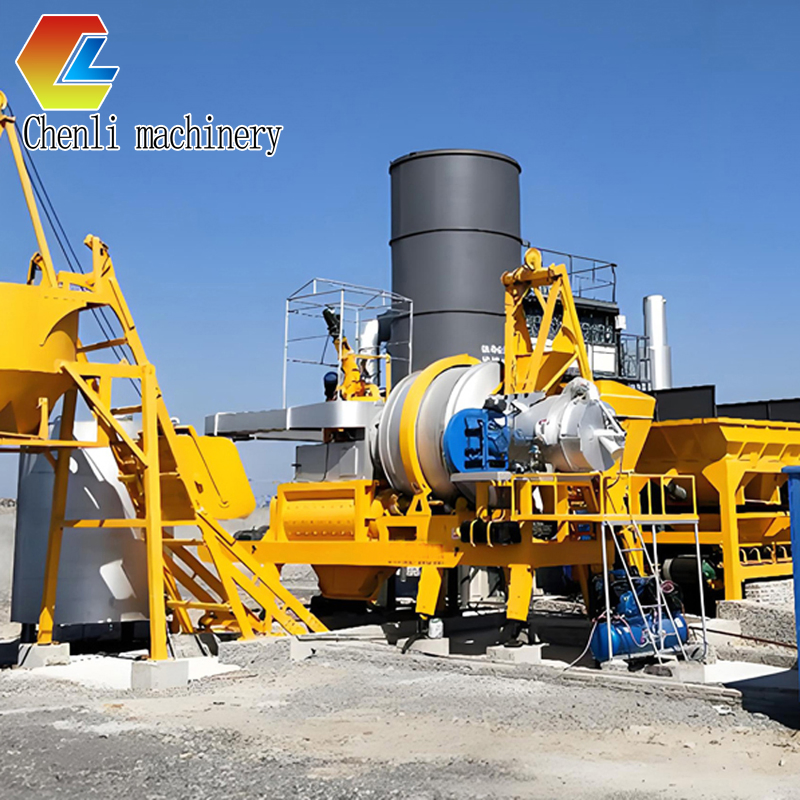

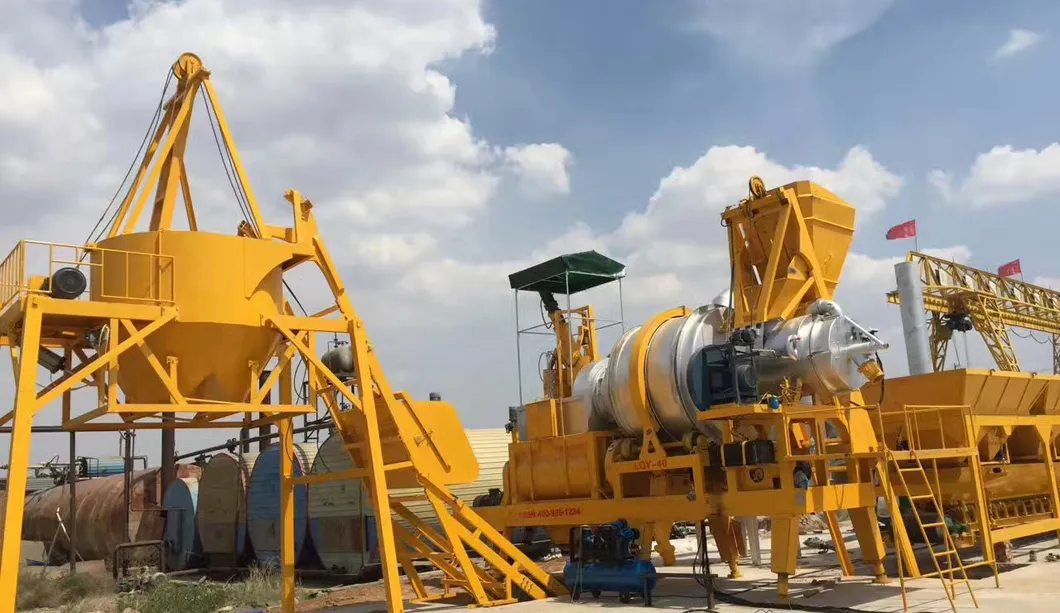

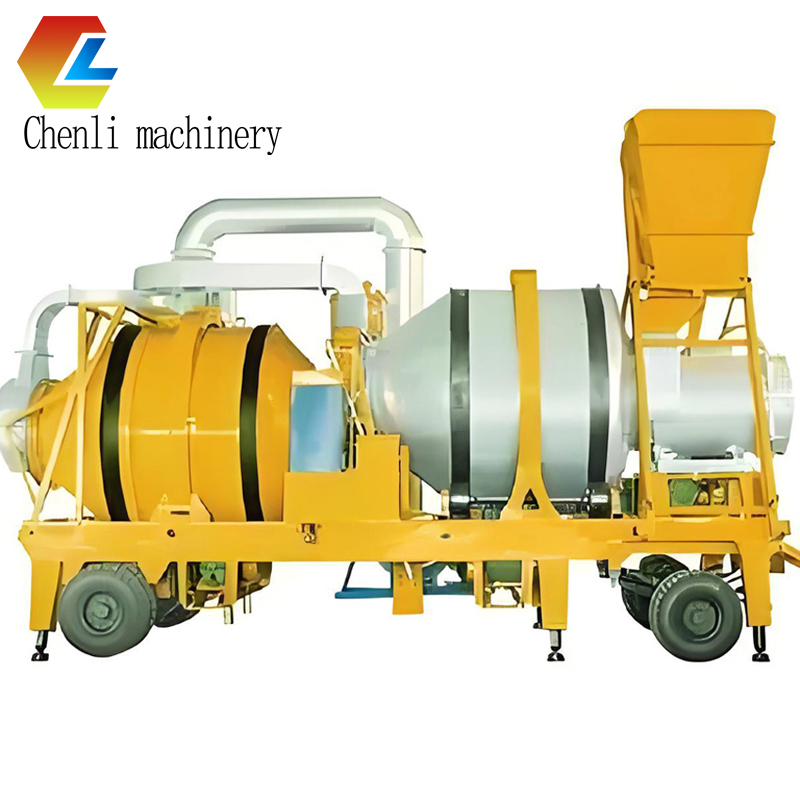

Eco-friendly mobile Small asphalt concrete plant is a kind of equipment that mixes stone, asphalt and mineral powder according to a certain proportion to produce asphalt mixture. Compared with the stationary asphalt mixing plant, the unique walking system makes the transition more convenient. The components and workflow are basically the same as those of a stationary asphalt mixing plant.
| Model | LQY10 | LQY15 | LQY20 | LQY30 | LQY40 | |
|---|---|---|---|---|---|---|
| Production | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | |
| Total Power (kw) | Diesel | 41.5 | 54 | 63.5 | 104.5 | 125 |
| Coal | 57.5 | 75 | 86.5 | 127.5 | 169 | |
| Aggregate Batching Hopper | 3m³ x 3 | 3m³ x 3 | 3m³ x 3 | 5m³ x 3 | 5m³ x 3 | |
| Finished Product Storage | 3t | 5t | 5t | 9t | 9t | |
| Feeding Material Hopper | 500kg | 750kg | 1000kg | 1500kg | 1800kg | |
| Finished Temp (ºC) | 120-180 (Adjustable) | |||||
