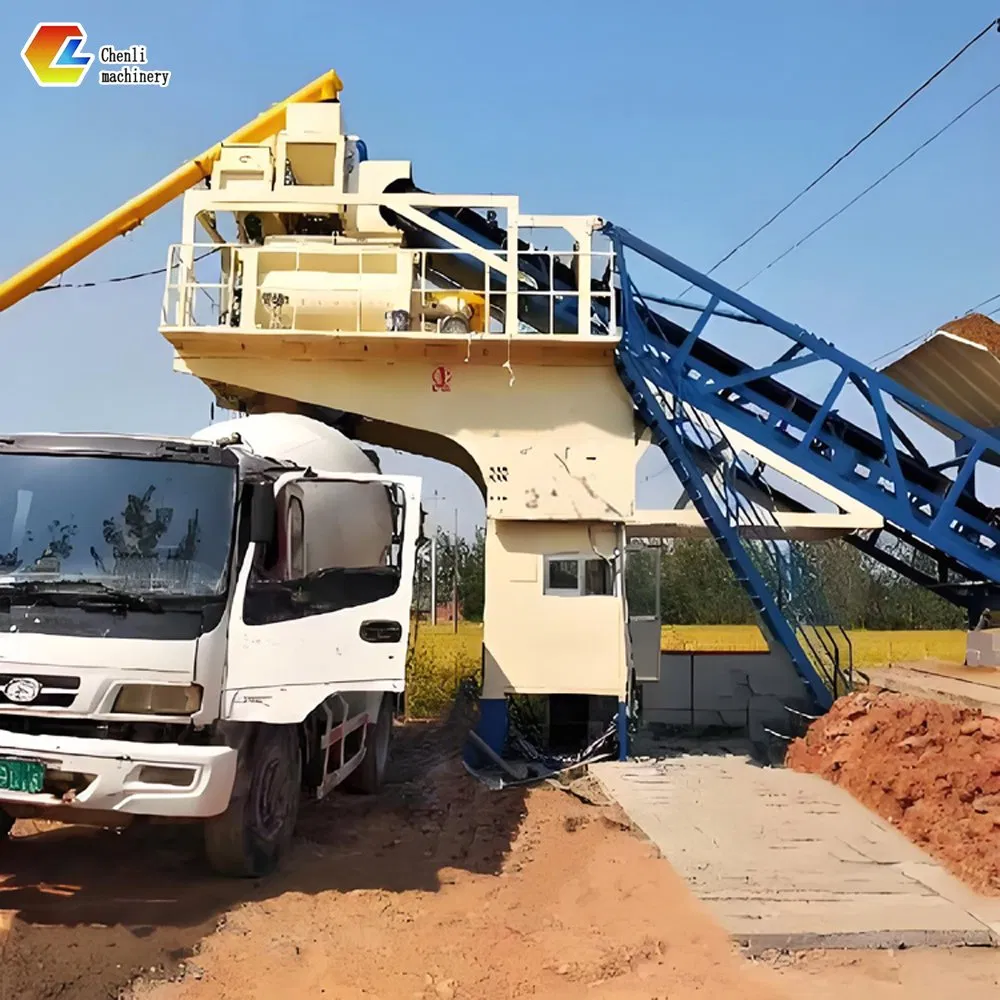

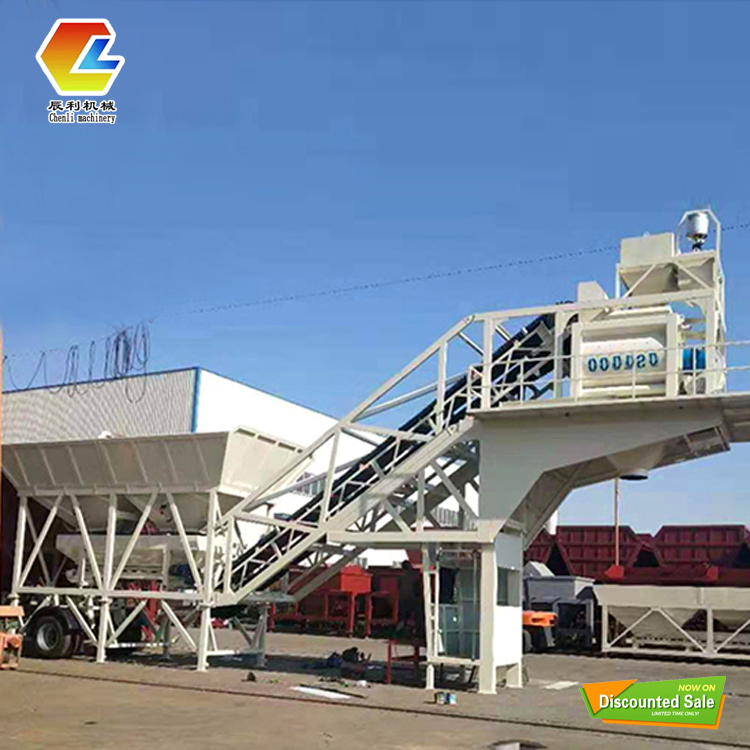

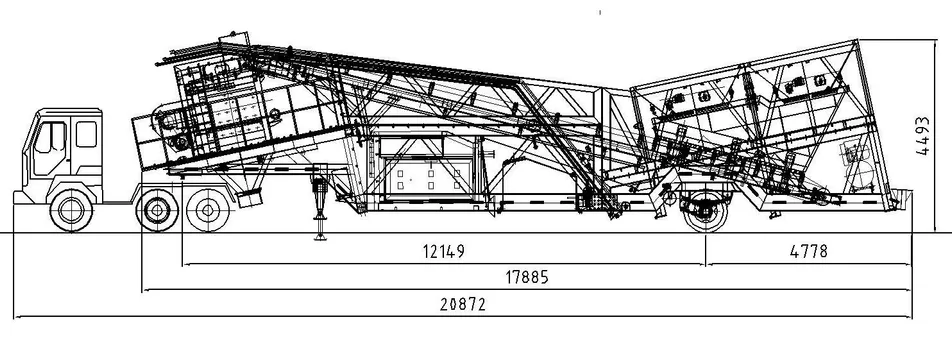

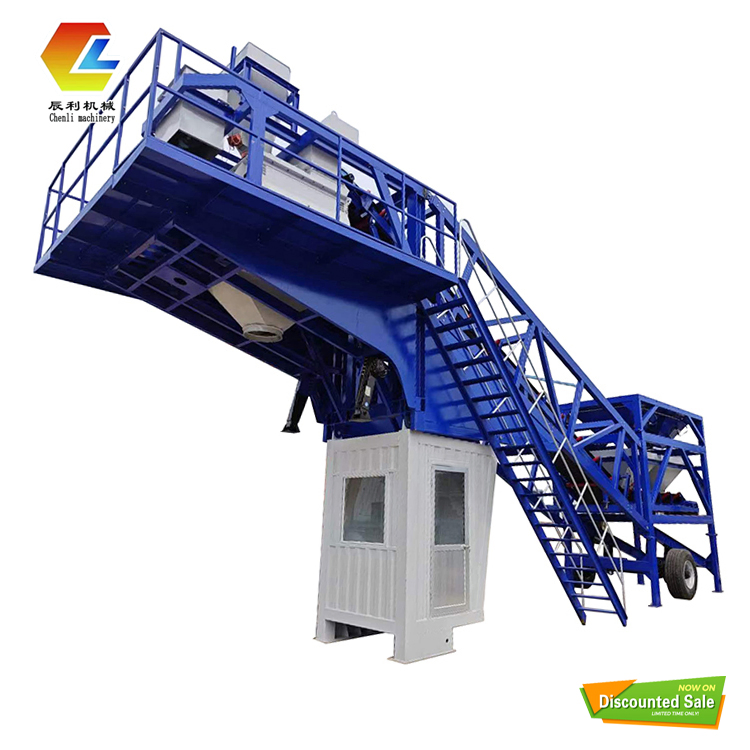

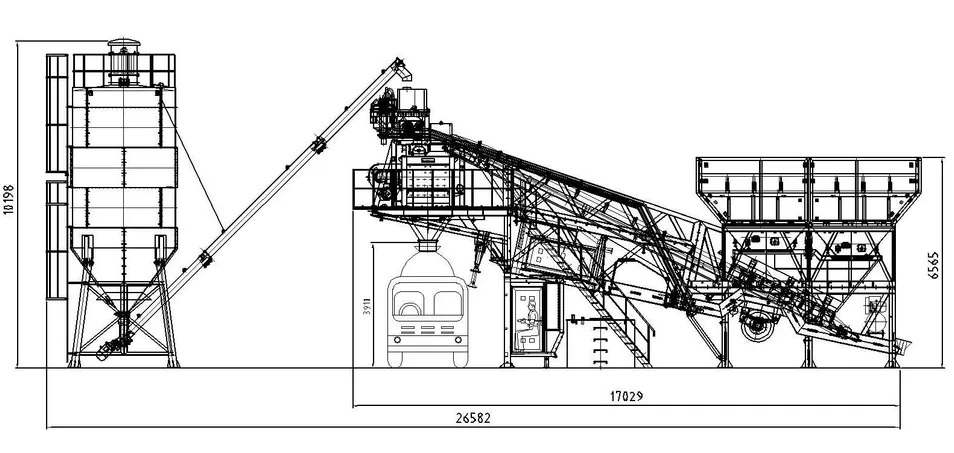

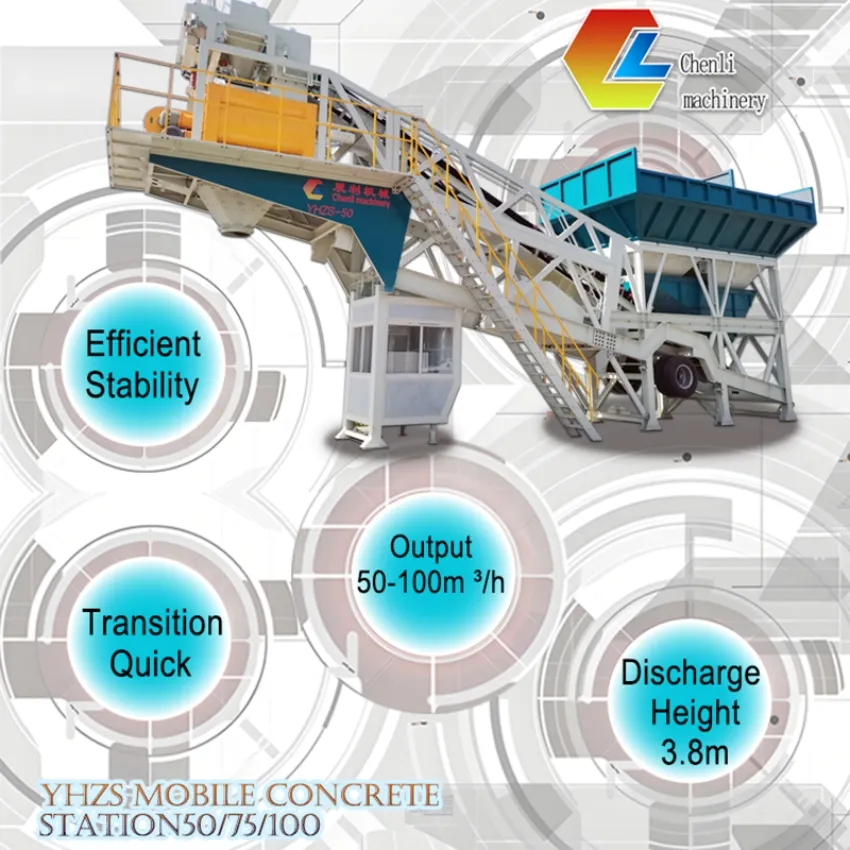

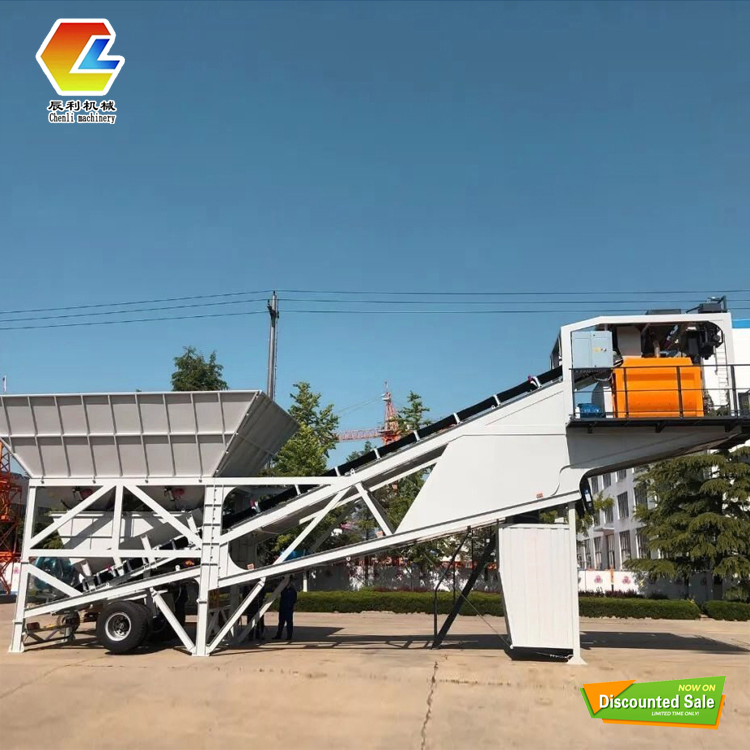

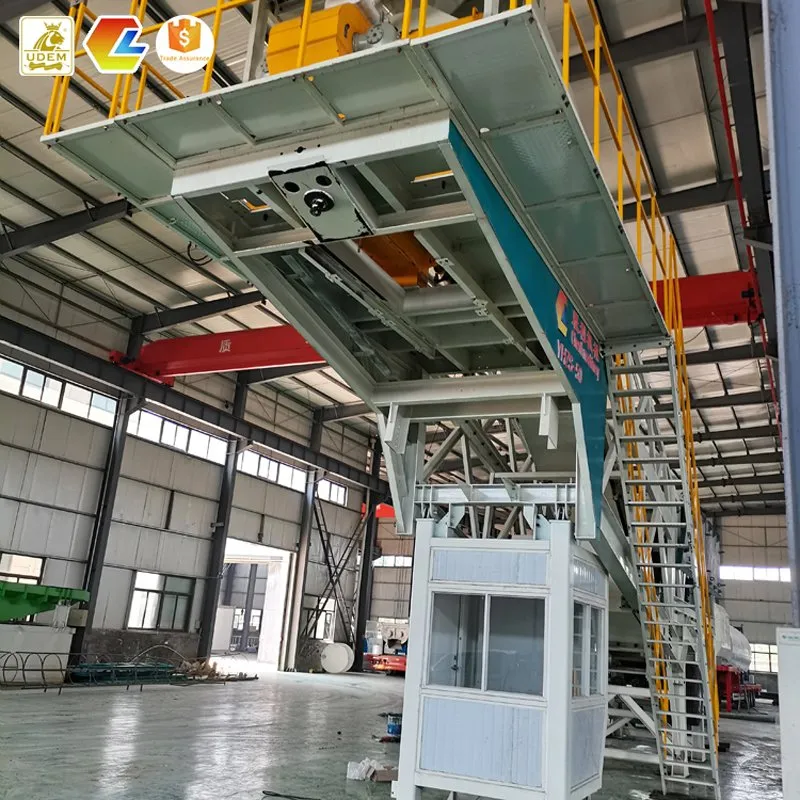

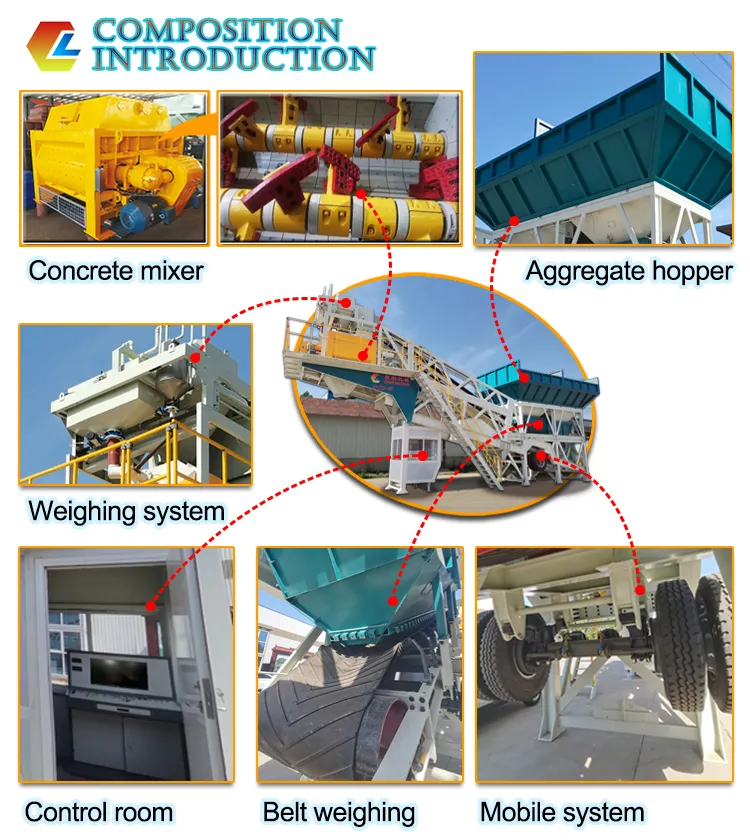

The YHZS series mobile concrete mixing plant is a new type of mobile equipment designed by applying advanced technology and scientific research achievements. It is an ideal mobile mixing model with a compact and reasonable design, integrating most functions onto a trailer chassis. It includes material collection, electronic weighing, lifting, and mixing. It is ready for use immediately upon arrival at the site, making it highly convenient for roads, bridges, dams, and airports construction projects.
• Strong Mobility: Easily transferred between different construction sites for rapid response.
• Convenient Installation: Simple process without complex infrastructure requirements.
• Accurate Measurement: High-precision weighing system for stable concrete quality.
Key Configurations:
| Model | YHZS50 | YHZS75 | YHZS100 |
|---|---|---|---|
| Output | 50m³/h | 75m³/h | 100m³/h |
| Mixer Model | JS1000 | JS1500 | JS2000 |
| Mixer Power | 2*18.5kW | 2*30kW | 2*37kW |
| Discharge Height | 3.8m | 3.8m | 3.8m |
| Aggregate Bin Capacity | 4*6m³ | 4*6m³ | 4*6m³ |
| Installed Capacity (kW) | 66 | 98 | 115 |
