| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | 2500 | 3000 |
| Charging Capacity (L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 3200 | 4000 | 4800 |
| Max Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |

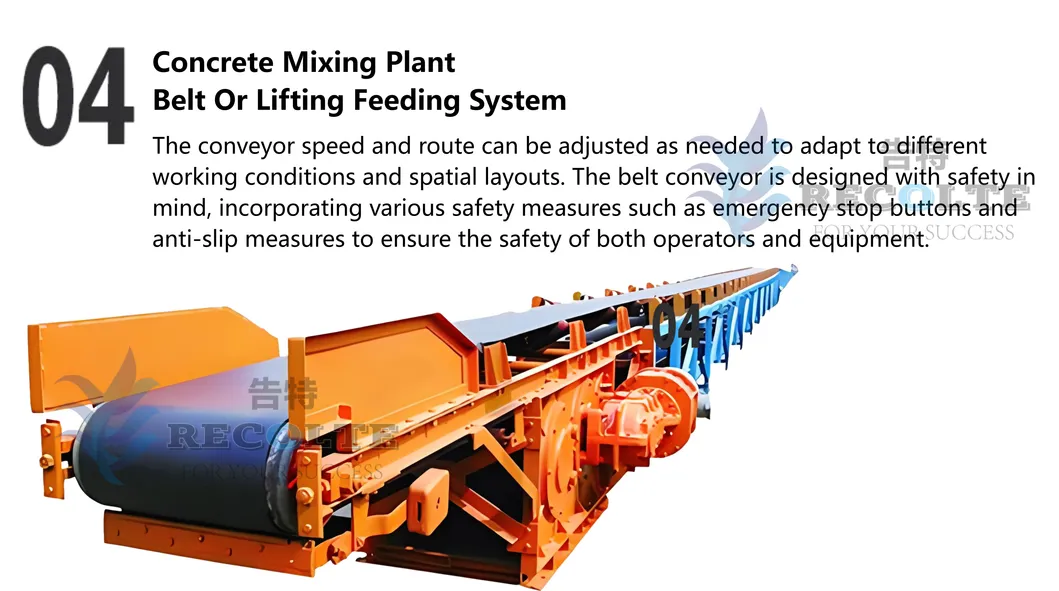

| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | Belt | Skip Hopper | Belt | Belt | Belt | Skip Hopper | Belt |
| Discharging Height (m) | 1.5-3.8 | 2-4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8-4.5 | 3.8-4.5 | 4.5 | 4.5 |
| Max Aggregate Size (mm) | ≤60 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤120 | ≤120 | ≤150 | ≤180 |
| Mixing Cycle Time (s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Capacity (kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 188 | 210 | 230 | 288 |

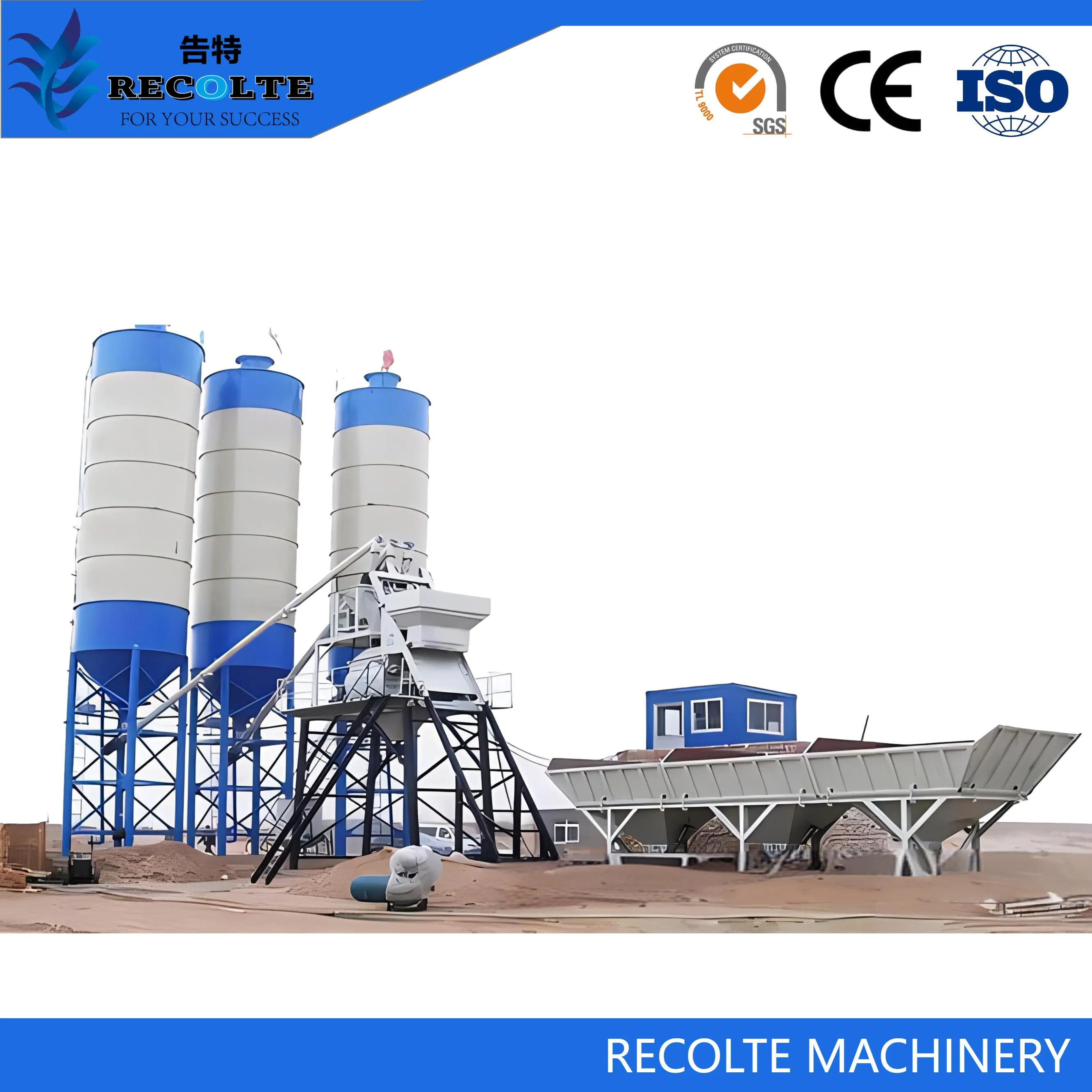

Trend Of Future Concrete Mixing Plants
Leveraging decades of profound understanding of concrete mixing technology, the new R series electric concrete mixing stations are specifically designed for high-performance mixing. Based on comprehensive studies of advanced global technologies, these stations optimize performance in industrial environments through synthesized foundational design principles.
