Eco-Friendly Full Closed Structure Concrete Batching Plant

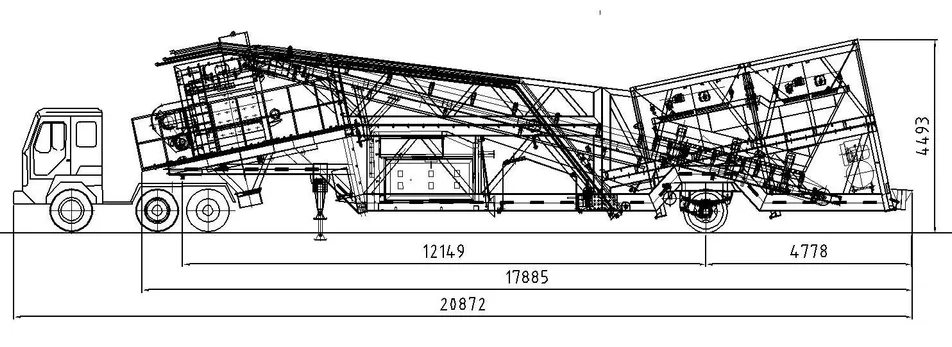

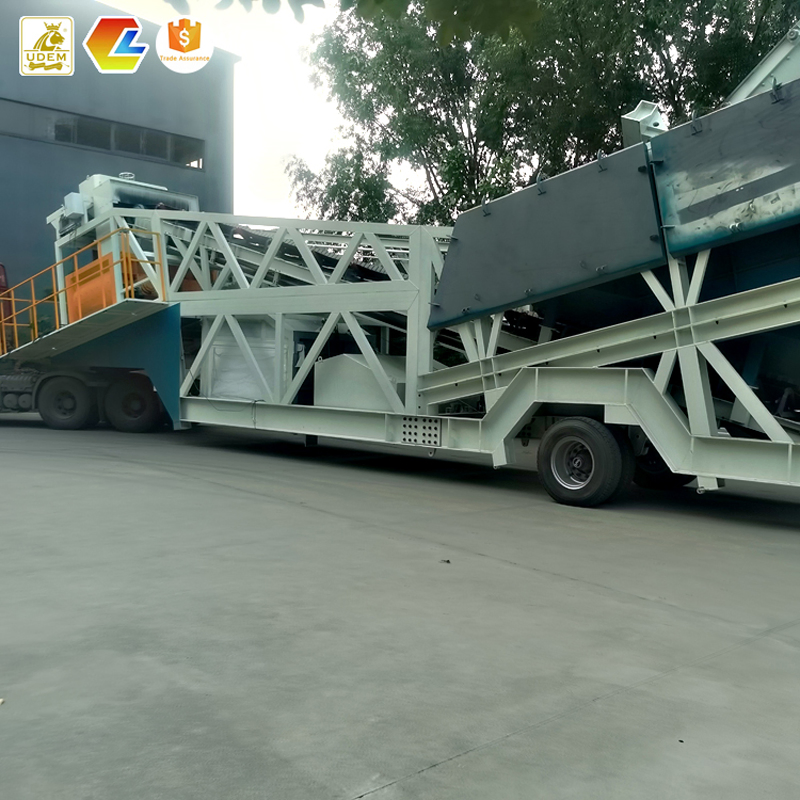

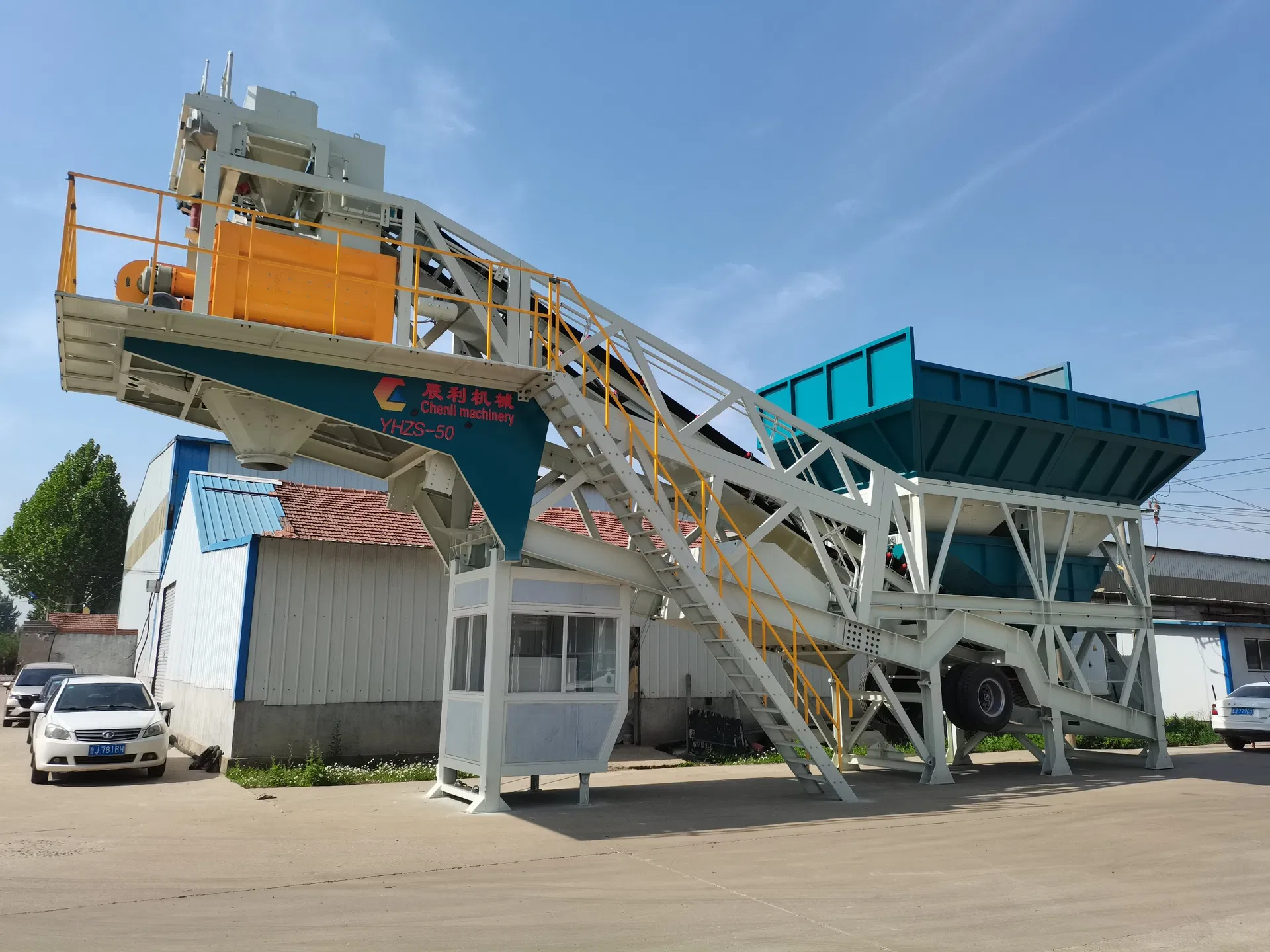

YHZS series mobile concrete mixing plant is a new type of mobile concrete mixing plant designed by applying advanced technology and scientific research achievements. It is a more ideal mobile mixing model with a compact and reasonable design. It completes most of the functions of the mixing plant on a trailer chassis; it integrates material collection, electronic weighing, lifting, and mixing. It can be used as soon as it is pulled and stopped, which is convenient to move and easy to install. It is very suitable for construction sites such as roads, bridges, dams, and airports.

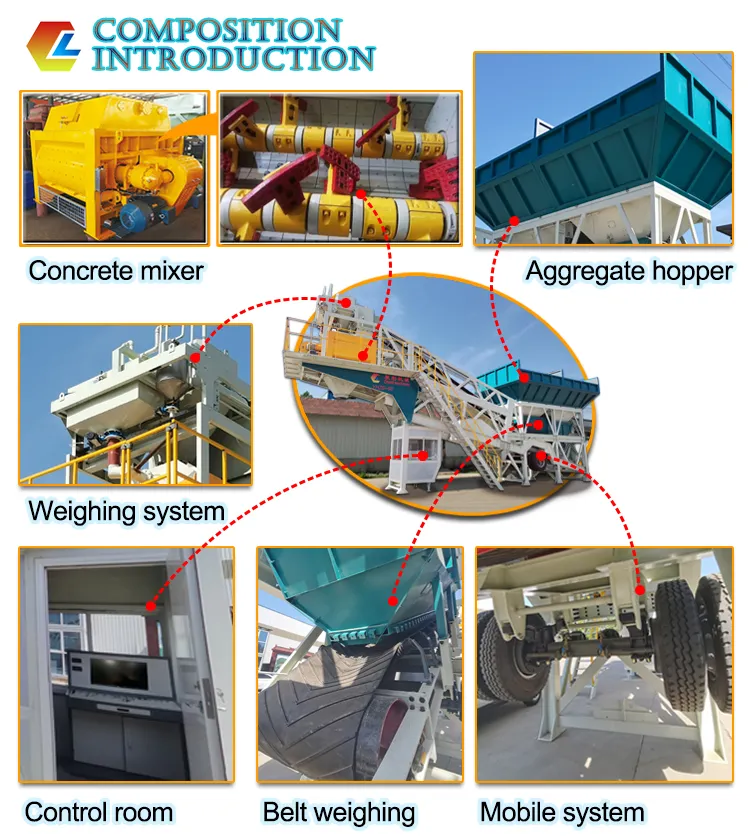

Key Configurations: Mixer, Aggregate batching hopper, Weighing system, Control room, Belt weighing, Mobile system.
| Model | YHZS50 | YHZS75 | YHZS100 |
|---|---|---|---|
| Output | 50m³/h | 75m³/h | 100m³/h |
| Mixer | JS1000 | JS1500 | JS2000 |
| Mixer Power | 2*18.5kW | 2*30kW | 2*37kW |
| Max Aggregate Particle | 60/40mm | 60/40mm | 60/40mm |
| Discharge Capacity | 1000L | 1500L | 2000L |
| Discharge Height | 3.8m | 3.8m | 3.8m |
| Cement Weighing | ±1% | ±1% | ±1% |
| Water Weighing | ±1% | ±1% | ±1% |
