Eco-Friendly Asphalt Batching Plant with 1-Year Core Components Warranty

After-sales Service:	Full Life Cycle Industrial Services
Warranty:	1 Year
Type:	Asphalt Mixing Plant

Send Inquiry

Product Description

Basic Info.

Model NO.

LBG1500 LBG2000 LBG3000 LBG4000 LBG5000

Object

Asphalt Concrete Pavement

Moving Type

Fixed

Mixing Method

Continuous Drum

Automatic Grade

Automatic

Product Capacity

120-400t/H

Certification

ISO9001: 2000, CE

Condition

New

Recycling Cold Material Bin

5 * 15m³

Unique Selling Point

Energy Saving

Warranty

1 Year

Dust Remover

Gravity + Bag Filter

Product Description

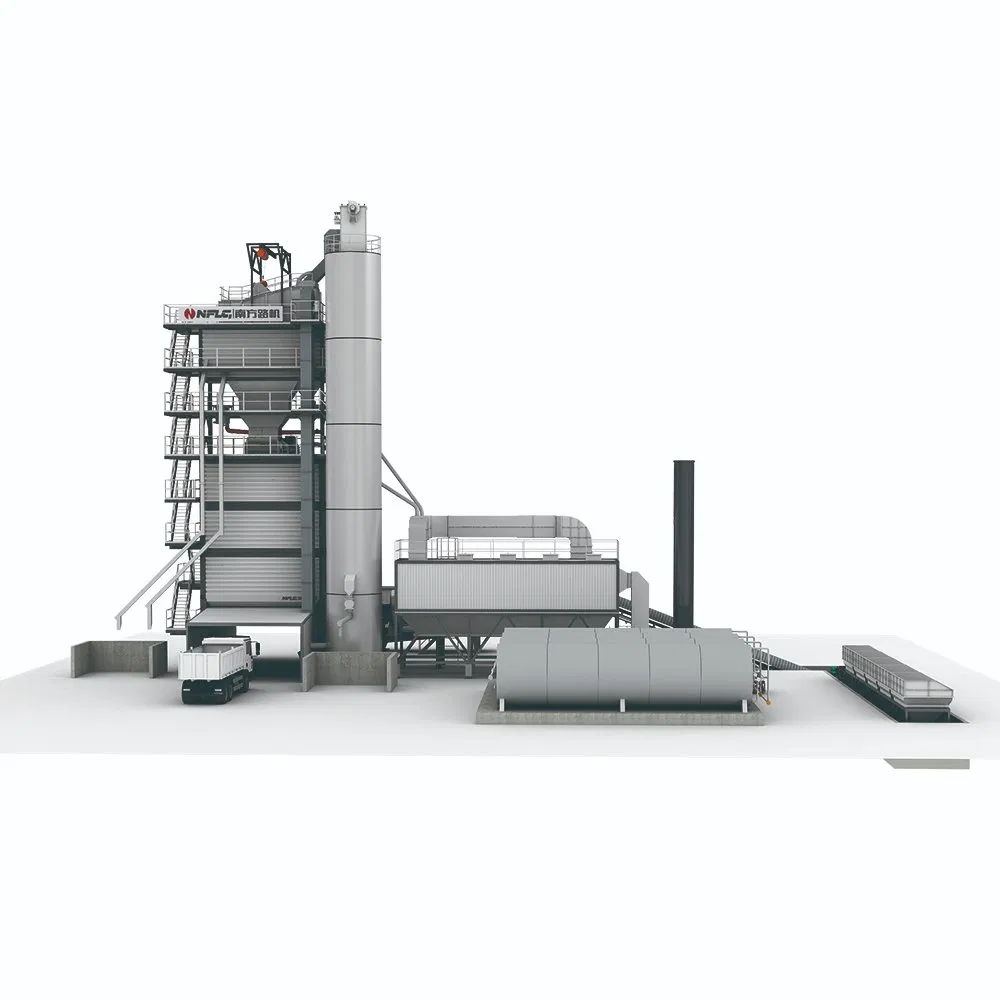

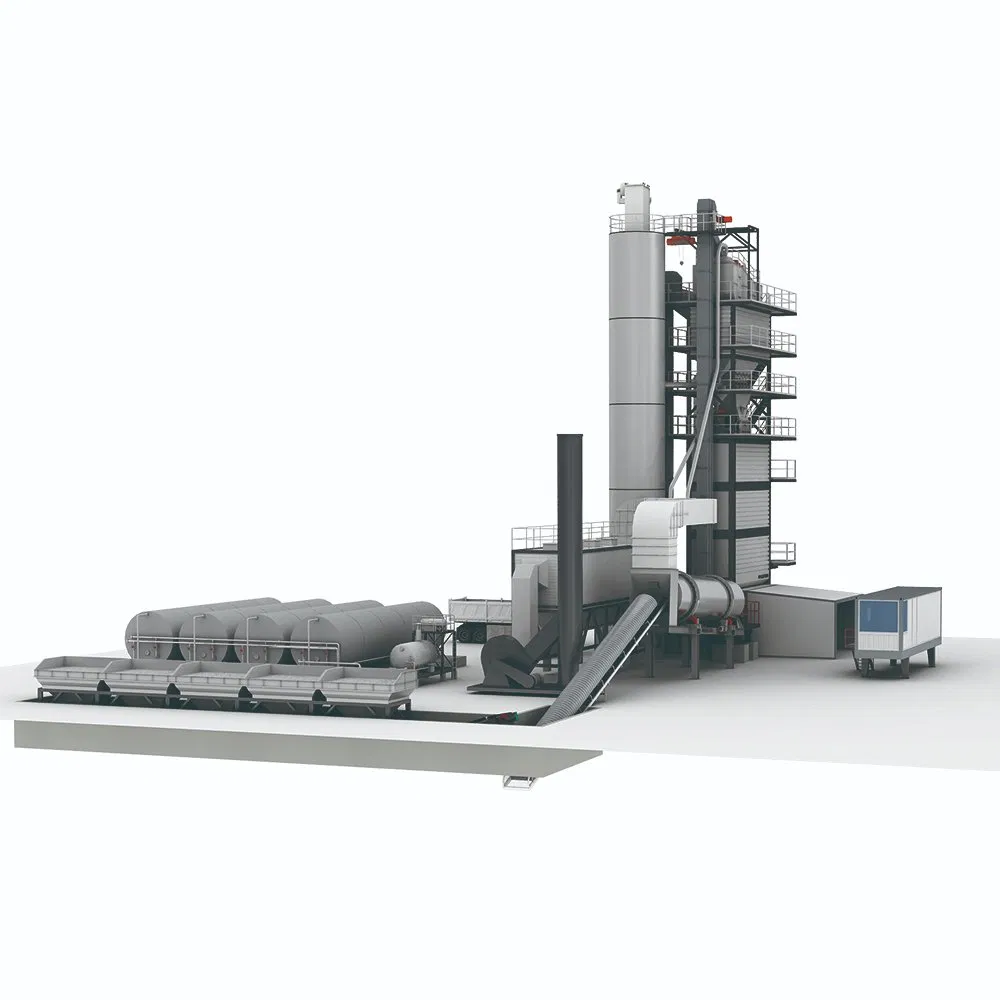

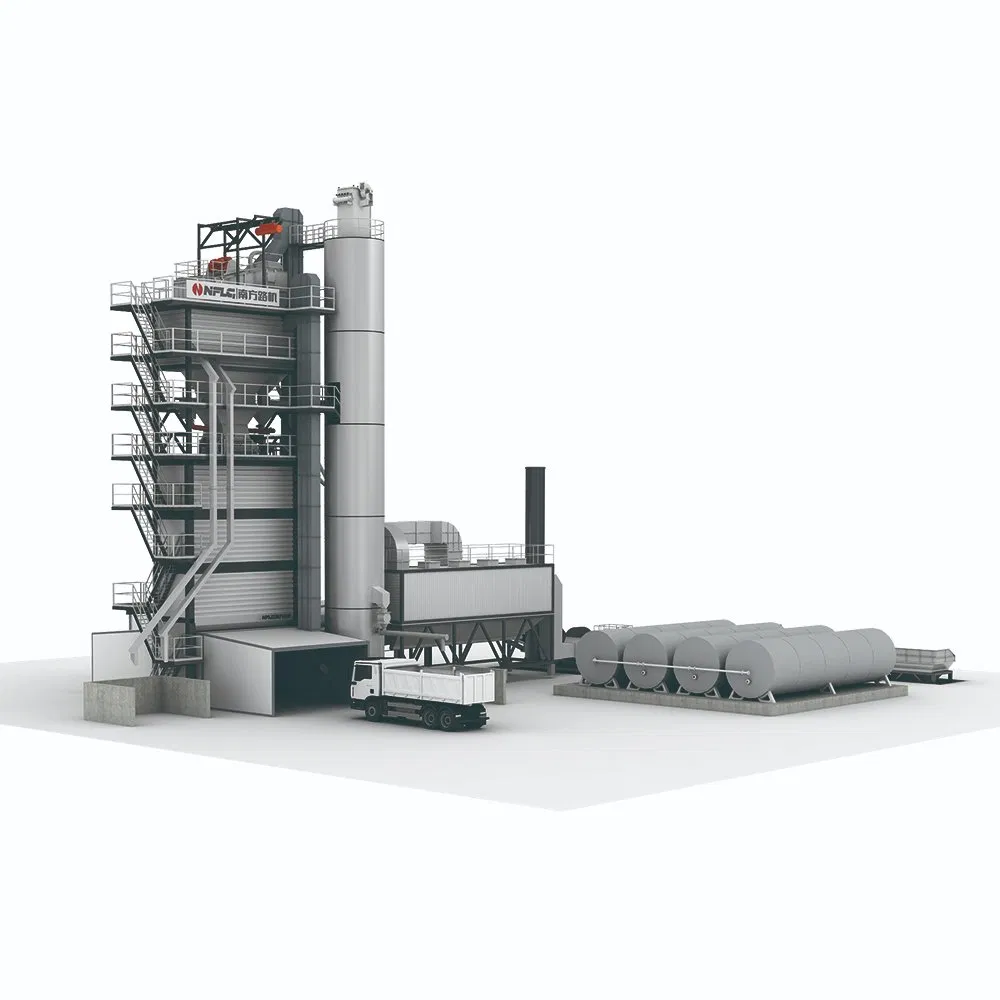

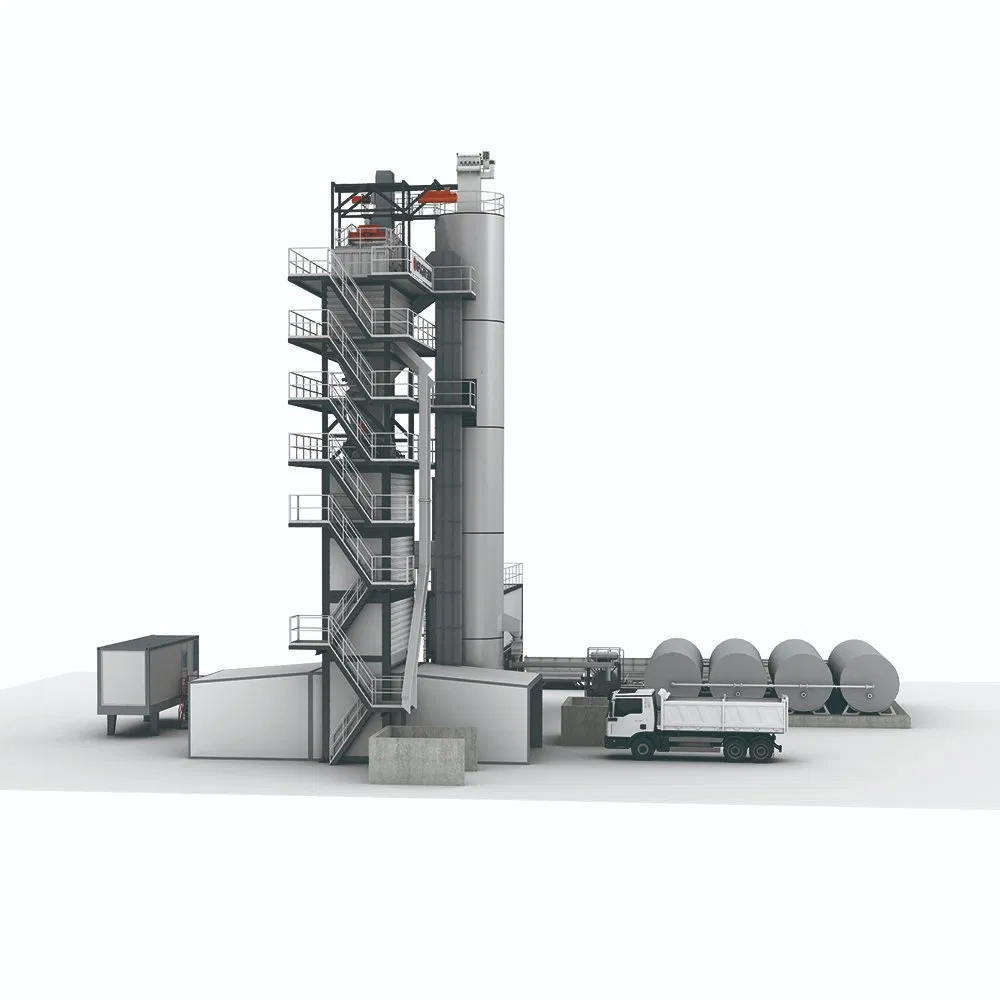

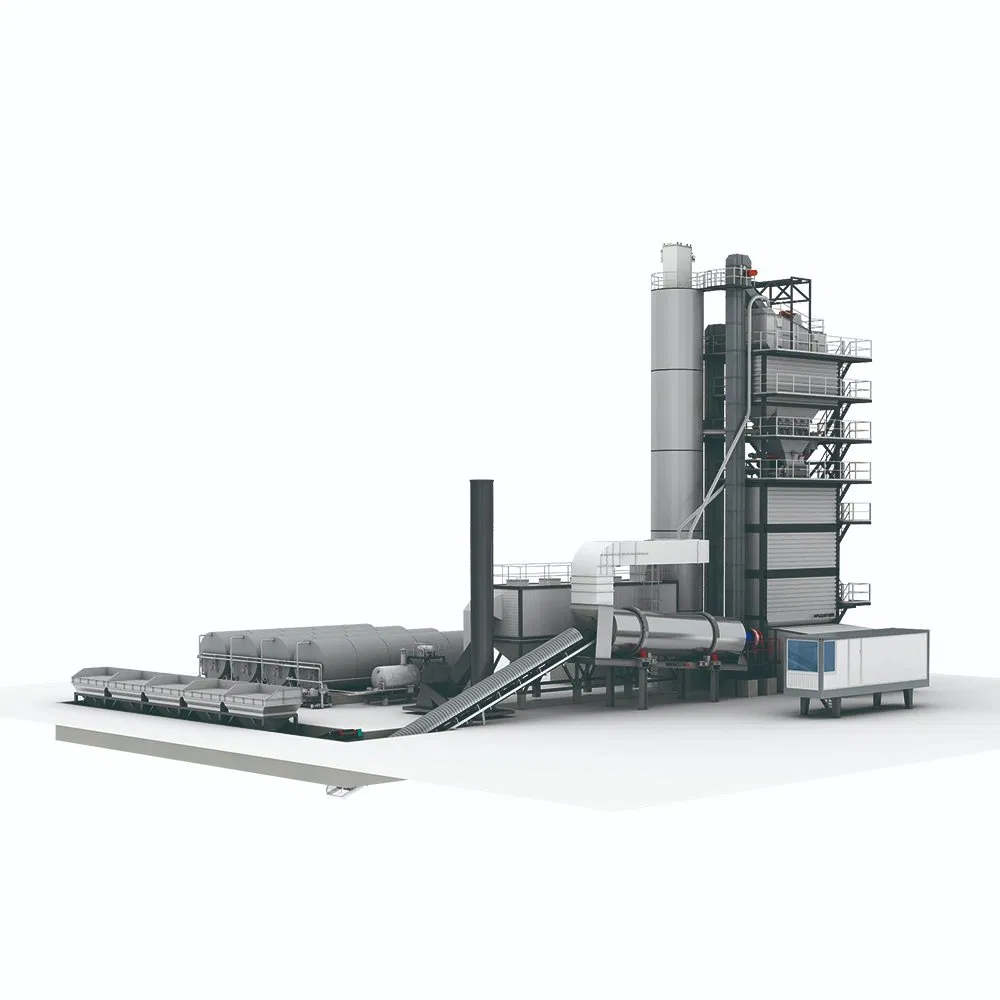

LBG Asphalt Mixing Plant with Built-in Storage Bin

Experience the convenience of our modular design, engineered for effortless installation and quick relocation. This equipment boasts a compact footprint, offering exceptional adaptability to various site conditions. Enjoy superior environmental protection with our equipment, featuring excellent sealing performance to minimize emissions.

Product Parameters

Model	LBG1500	LBG2000	LBG3000	LBG4000	LBG5000
Cold material bin (qty x vol)	4 * 10m³	5 * 15m³	5 * 20m³	6 * 20m³	6 * 20m³
Dryer dimension (D x L)	1.8m * 7.5m	2.25m * 9m	2.5m * 10m	2.8m * 11m	2.9m * 12.5m
Max Dryer Capacity	120t/h	160t/h	240t/h	320t/h	400t/h
Fuel	Light oil / Heavy oil / Gas (Optional)
Mixer capacity	1.5t	2t	3t	4t	5t
Mixing method	Horizontal twin shaft forced mixing
Control system	Cloud interconnection, dual-computer synchronous control
Standard area	35m * 35m	40m * 40m	40m * 45m	43m * 47m	50m * 50m

Detailed Photos & System Features

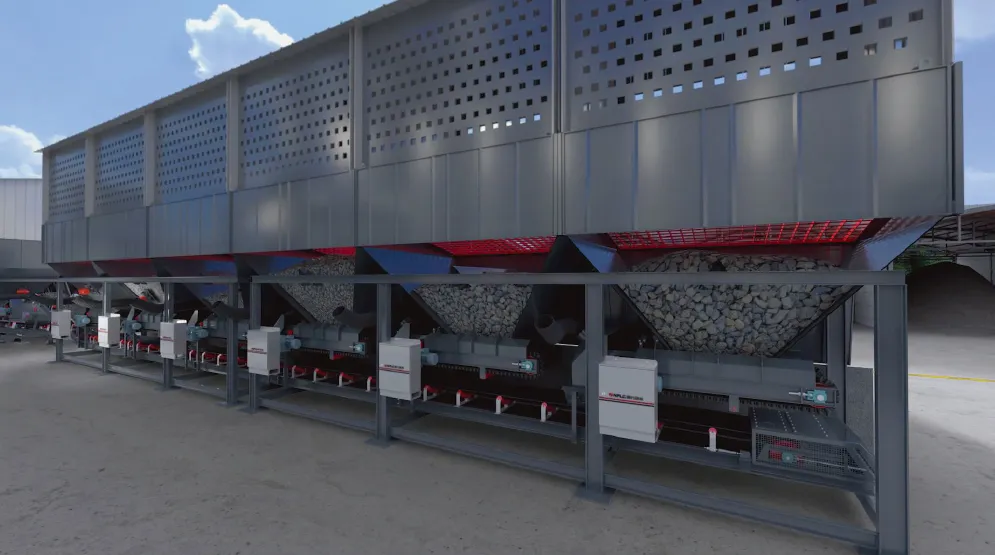

Cold Aggregate Bin - Precision Redefined

Belt feeder with frequency conversion control for seamless speed regulation.
Sand bin features internal vibration and gas cannon arch-breaking devices.
Advanced sound and light alarm for material shortages.
Top fitted with robust grid to prevent oversized debris entry.

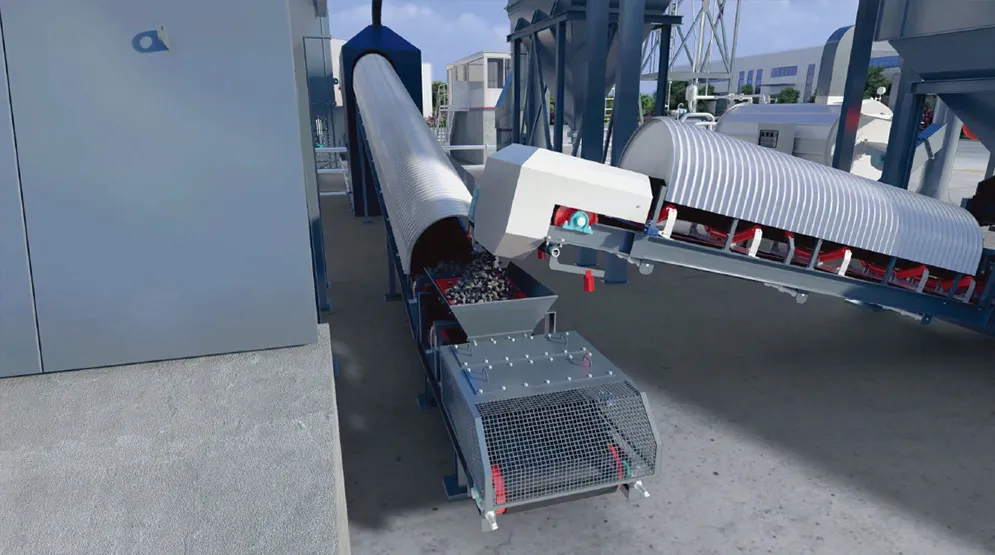

Belt Conveyors - Reliable Backbone

Patented interchangeable friction plate rubber-coated drum.
Polyurethane wear-resistant belt cleaner with modular design.
Manual emergency pull switch and alarm device for safety.
Inclined conveyor with protective screen for oversized materials.

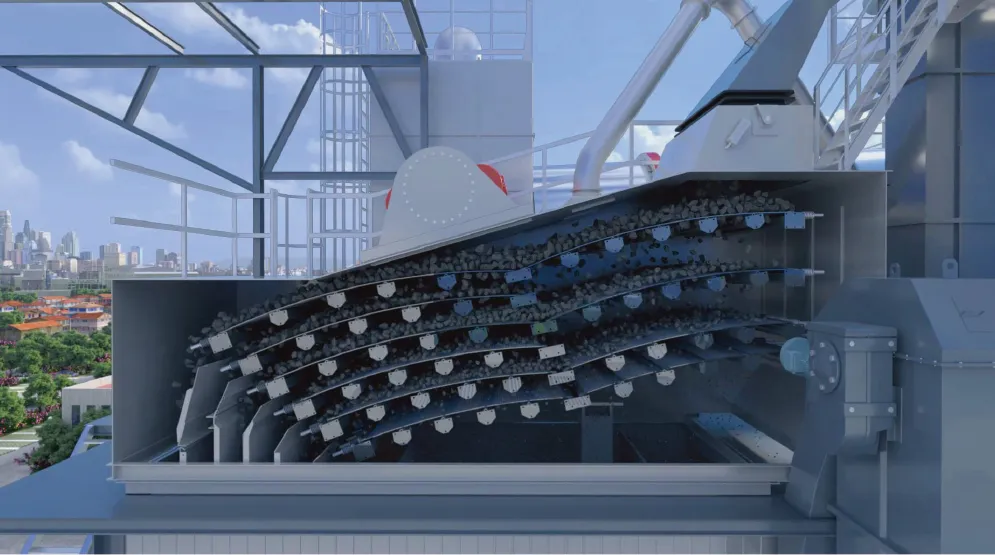

Vibrating Screen - High Performance

Insulated rock wool shell to minimize noise and heat loss.
Direct drive vibration motor for high efficiency.
Screening efficiency ≥95% with easy-to-identify mesh tension.

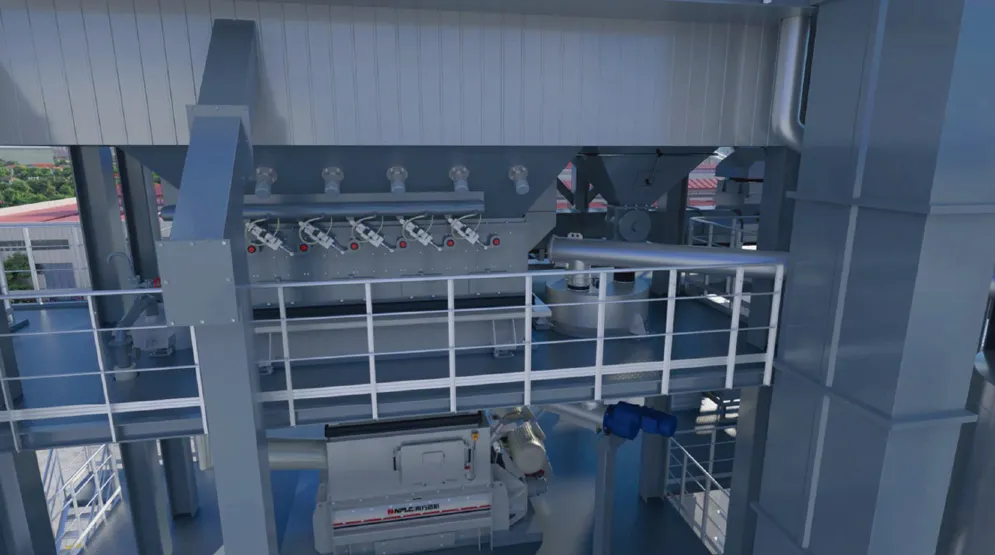

Hot Aggregate Bin - Efficient Storage

Anti-wear structure with continuous material level meters.
Sand bin temperature sensors with real-time computer display.
Long and short double-door discharge system for precise feeding.

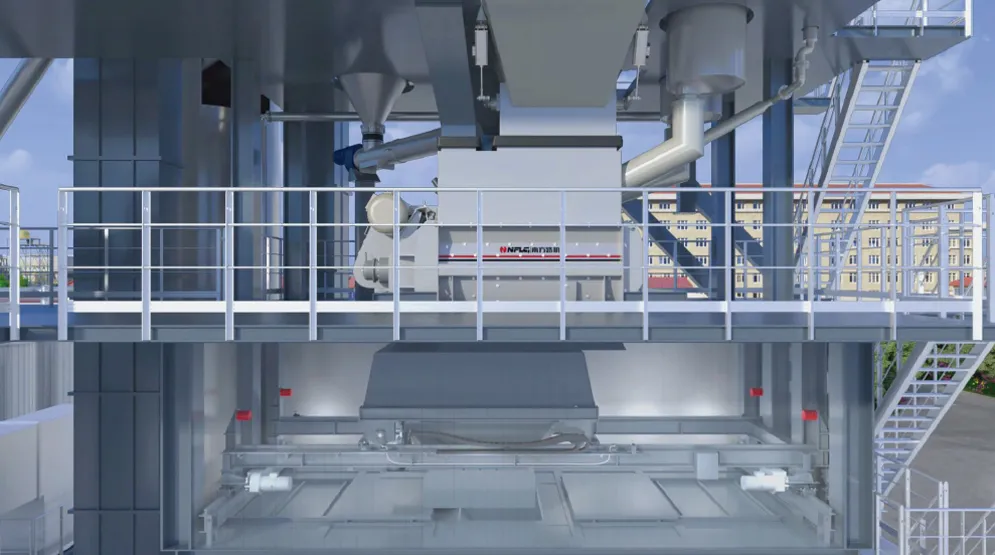

High Performance Mixer

High-speed flexible synchronous drive system.
Three-dimensional mixing with Swedish wear-resistant paddles.
Supports addition of RAP, wood fiber, and foamed bitumen.

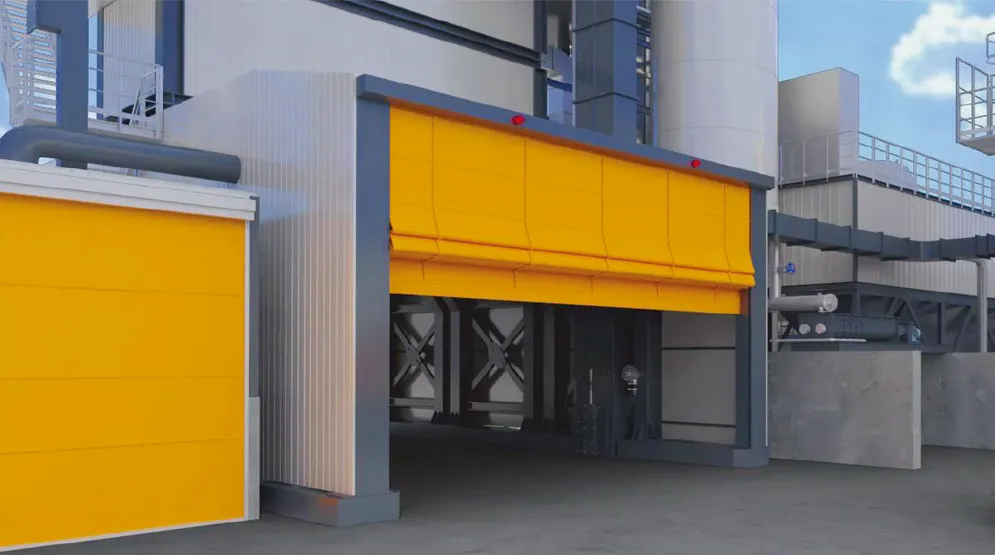

Finished Product Bin

Bottom-mounted and side-mounted options available.
Fully sealed design to reduce blue smoke and dust.
Electrically heated discharge door to prevent material sticking.

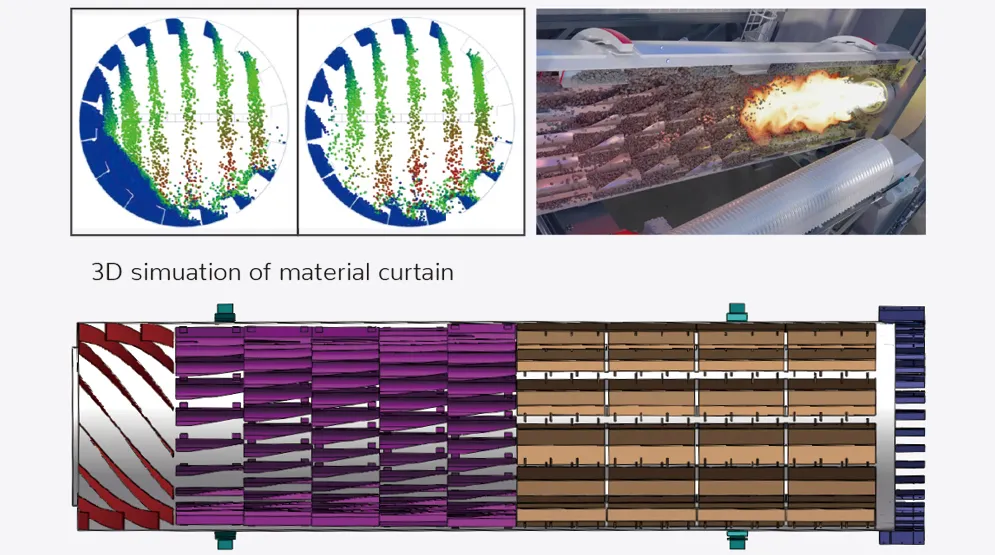

Advanced Dryer Technology

Driven by four shaft-mounted motor reducers.
Patented design reducing energy consumption by 10%.
Stainless steel cladding and insulation to prevent heat loss.

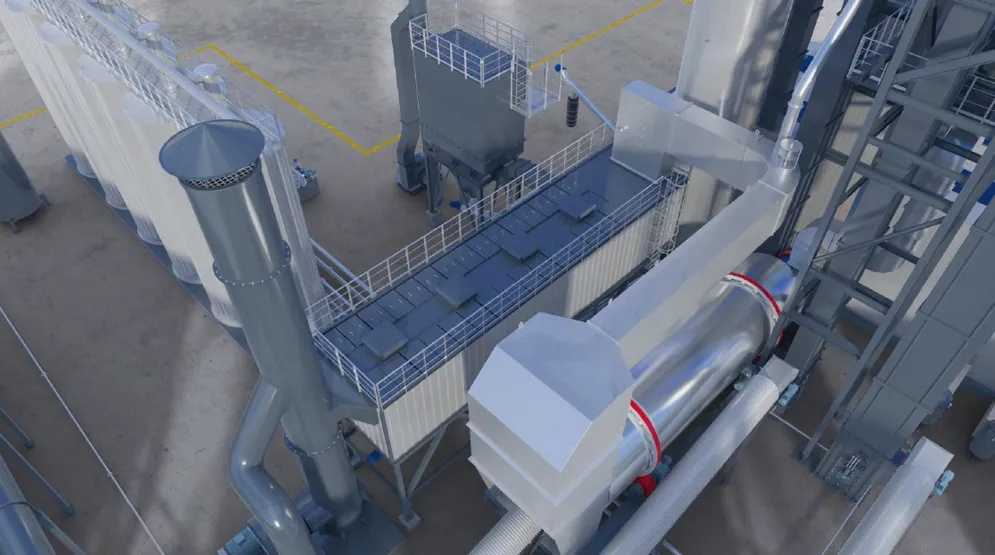

Eco-Friendly Dust Collector

Two-stage system meeting rigorous European standards.
Energy-efficient rotary air blowing system.
Intelligent safety inspection and interlocking mechanisms.

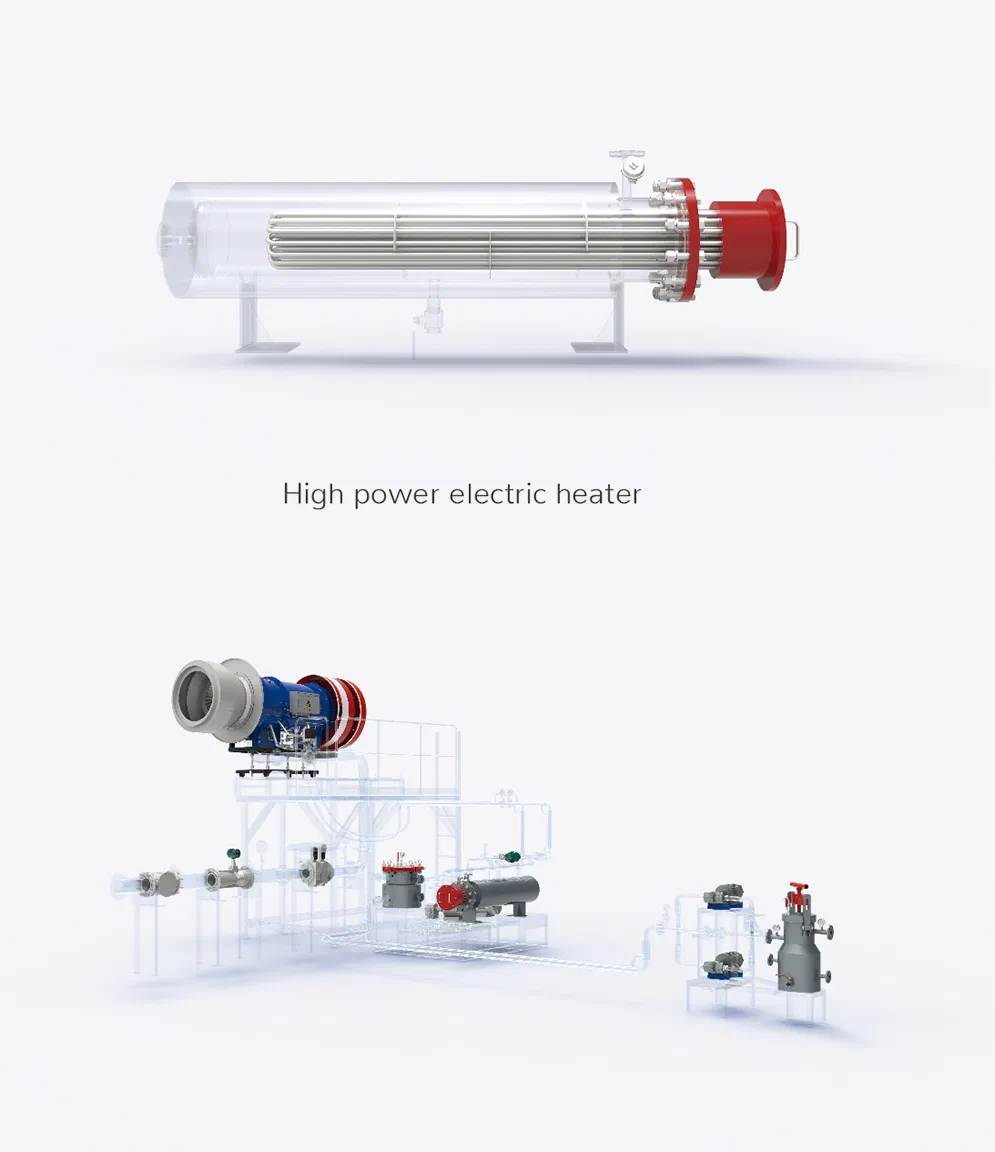

Intelligent CNC Burner

Adaptive to various combustion modes and oil types.
One-button aggregate temperature measurement technology.
Multi-closed-loop intelligent control for stable combustion.

Global Presence & Service

Frequently Asked Questions

Are you the original manufacturer?

Yes. We are an official leading manufacturer of construction machinery, specializing in Asphalt, Concrete, and Dry Mortar mixing, as well as material processing and recycling solutions.

What payment methods do you accept?

Normally we can work on T/T (Telegraphic Transfer) or L/C (Letter of Credit) terms.

Do you provide equipment operation training?

Yes. We send professional engineers to the working site for installation, adjustment, and comprehensive operation training.

What is the standard delivery time?

The delivery time is typically around 45 days after receiving the initial deposit.

What is the warranty period for the machinery?

We provide a 12-month warranty period starting from the date of shipment.

What is the Minimum Order Quantity (MOQ)?

The Minimum Order Quantity is 1 set/piece.
