Cloverdyn Plant
1 / 5

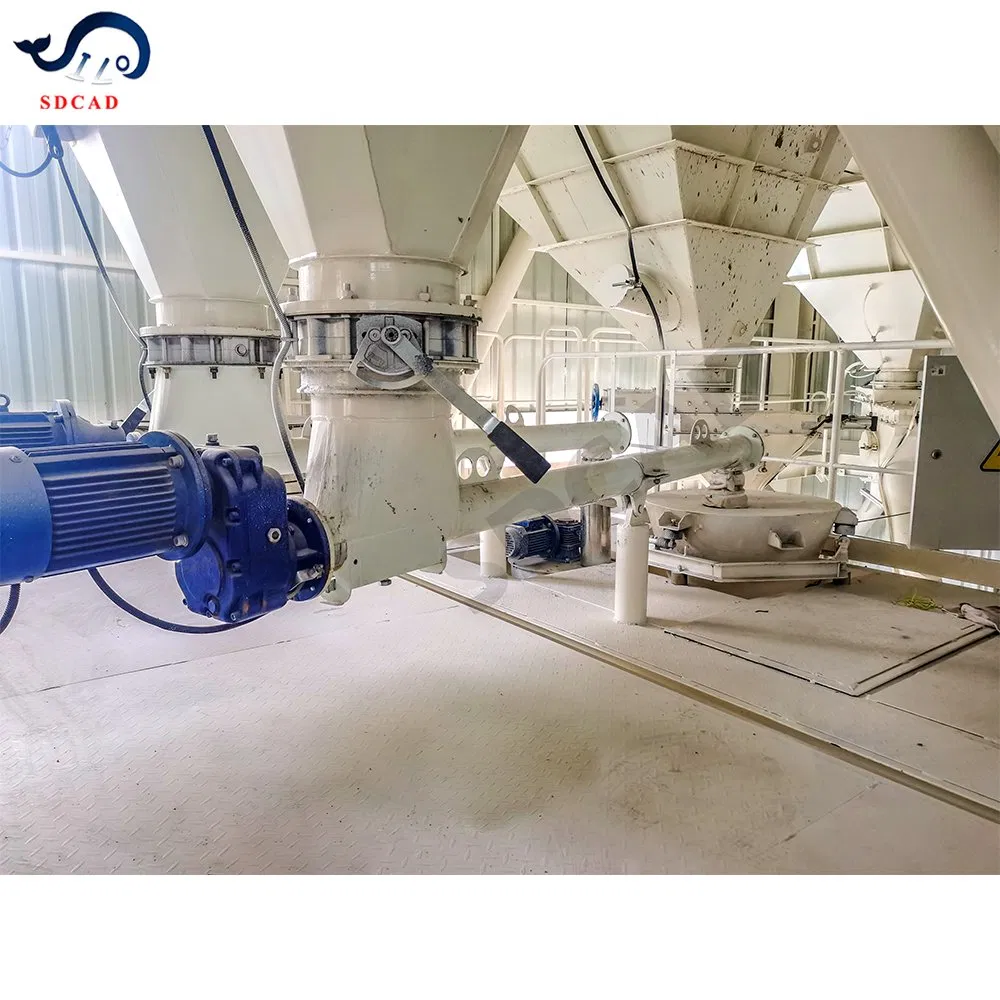

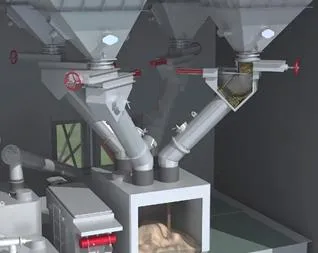

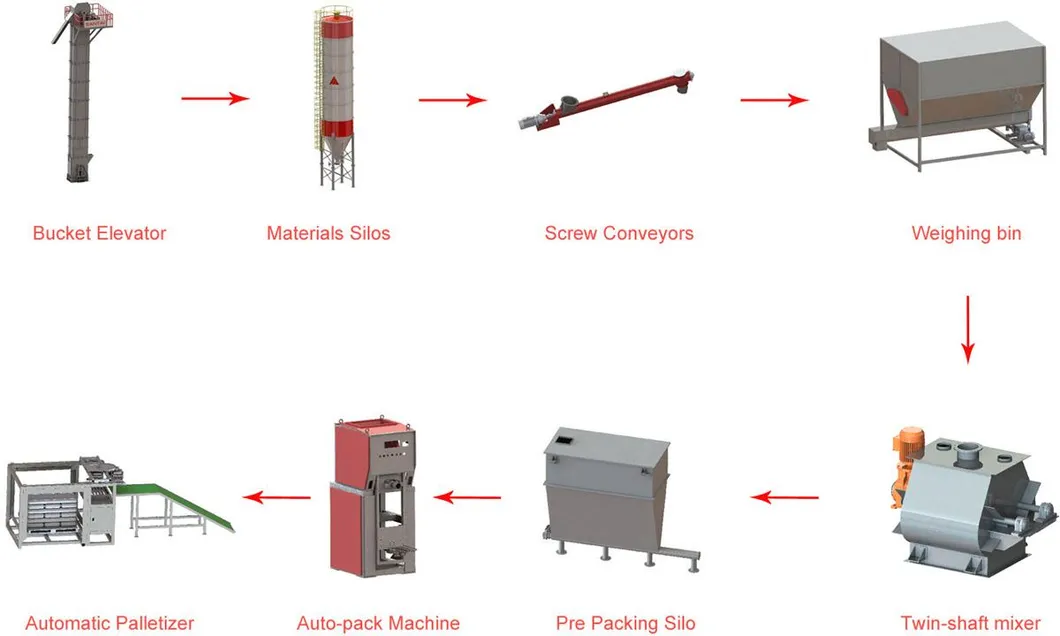

Accurate Batching System: Screw conveyors are ideal for all powder materials. Featuring convertible control and wear-resistant materials, they offer long service life and high precision.

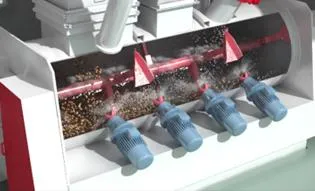

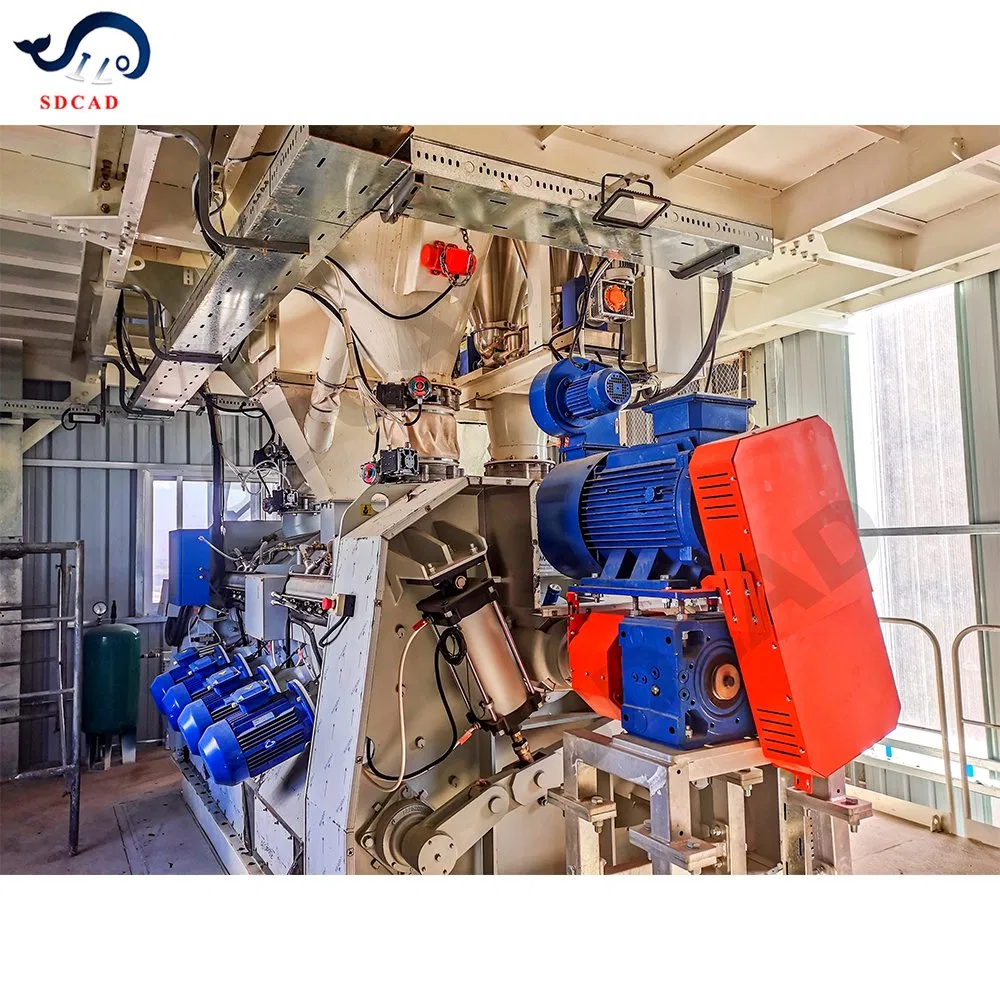

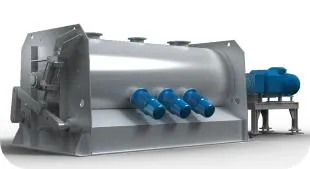

Highly Efficient Mixing System: The mixer is the core of the plant. Key features include:
1. Mixing uniformity above 99% within 1-3 minutes.
2. Energy-efficient design with high-quality output.
3. High-speed flying cutters for efficient fiber dispersion.

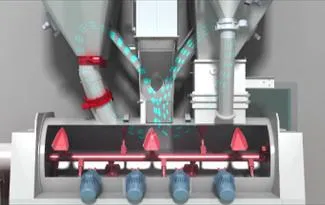

4. Air seals and pneumatic doors for stable performance and easy maintenance.

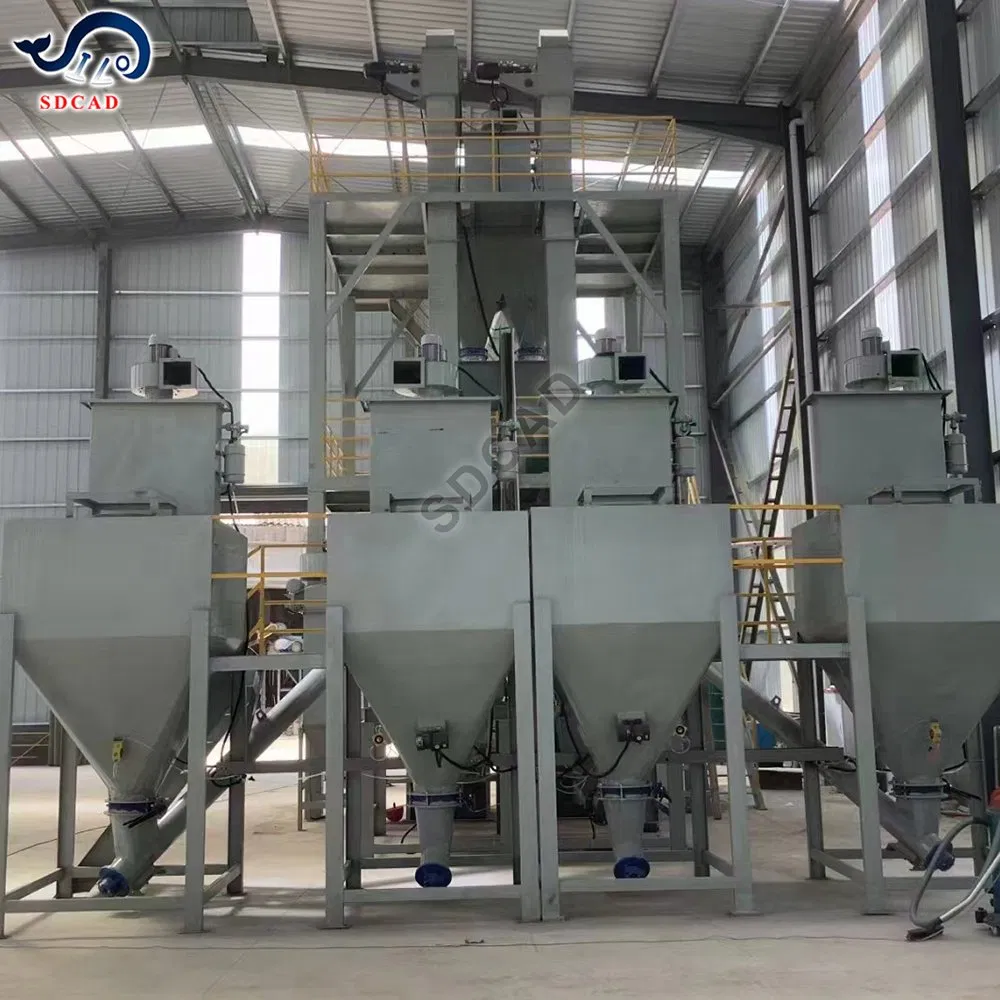

Environmentally Friendly Packing: Options include valve packet, open packet, or vane type machines (10-100kg range). Automated operation ensures efficiency from filling to stacking.
| Model | DC600 | DC1200 | DC2000 | DC3000 |
|---|---|---|---|---|
| Capacity (t/h) | 5~10 | 10~20 | 20~40 | 40~60 |
| Main Machine | MD600 | MD1200 | MD2000 | MD3000 |
| Power (kW) | 15 | 30 | 37 | 55 |
| Mixer Volume | 75% | 75% | 75% | 75% |
| Aggregate Size (mm) | 0~1.18 | 0~1.18 | 0~1.18 | 0~1.18 |

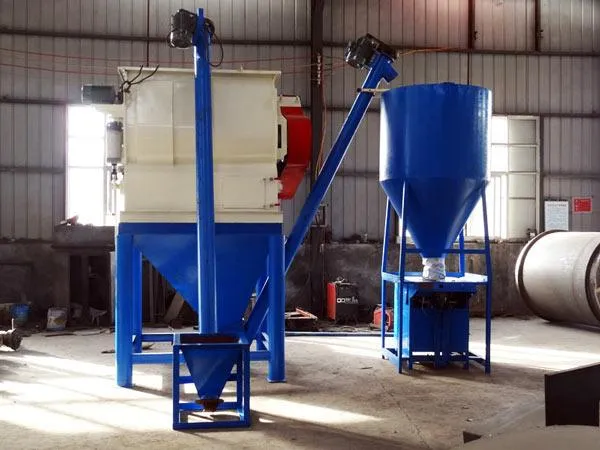

Simple Plant: Low investment, quick benefits, but higher manpower. Ideal for initial investments.

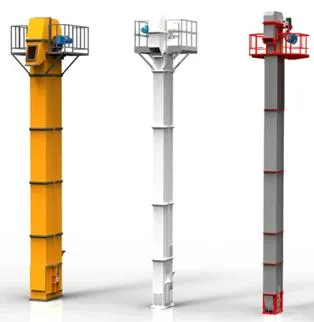

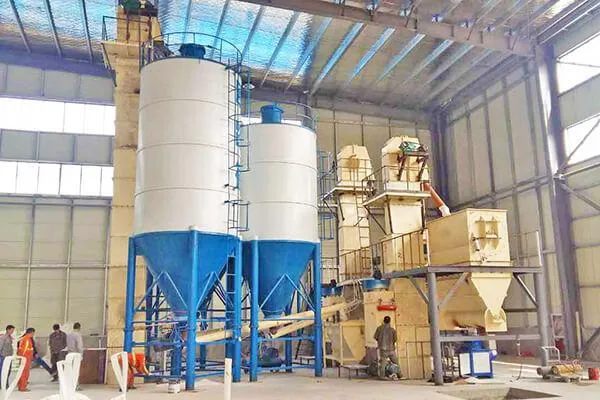

Semi-automatic Plant: Features finished product bins and bucket elevators. Offers high yield and a better working environment.

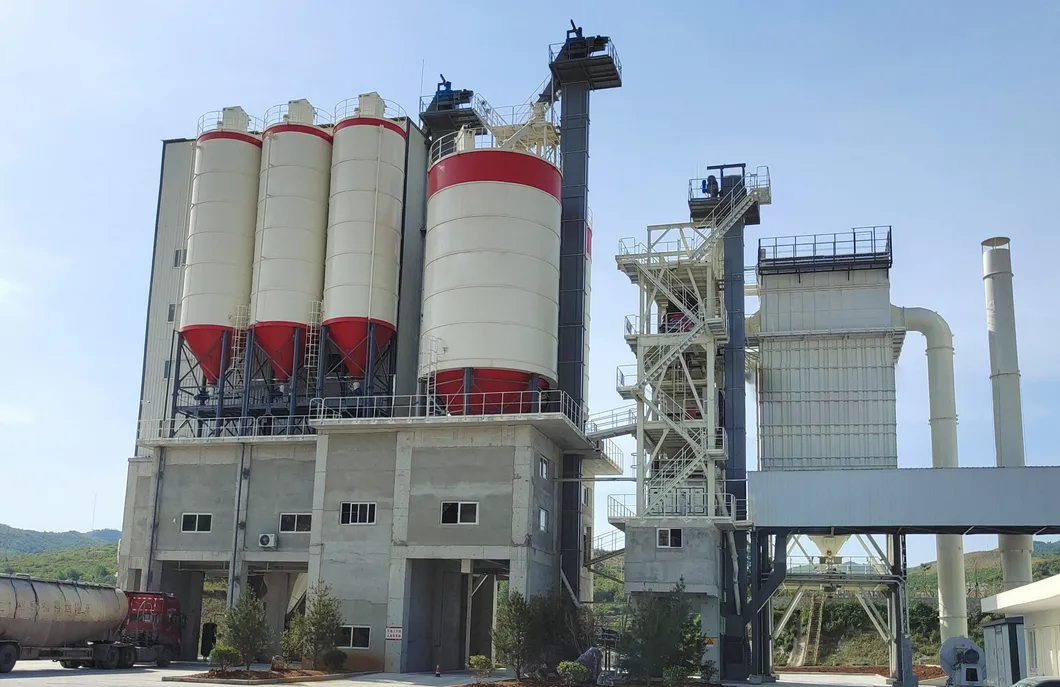

Full Automatic Plant: Comprehensive system including weighting, conveying, and alarm systems. High return on investment for medium to large-scale projects.
