We are a leading provider of HVAC/R solutions, specializing in concrete cooling systems. Our concrete cooling ice plants are designed to optimize the temperature control processes essential for large-scale concrete projects. These systems utilize advanced ice-making technologies, such as flake ice machines, to ensure consistent and efficient cooling, enhancing the quality and durability of the concrete.

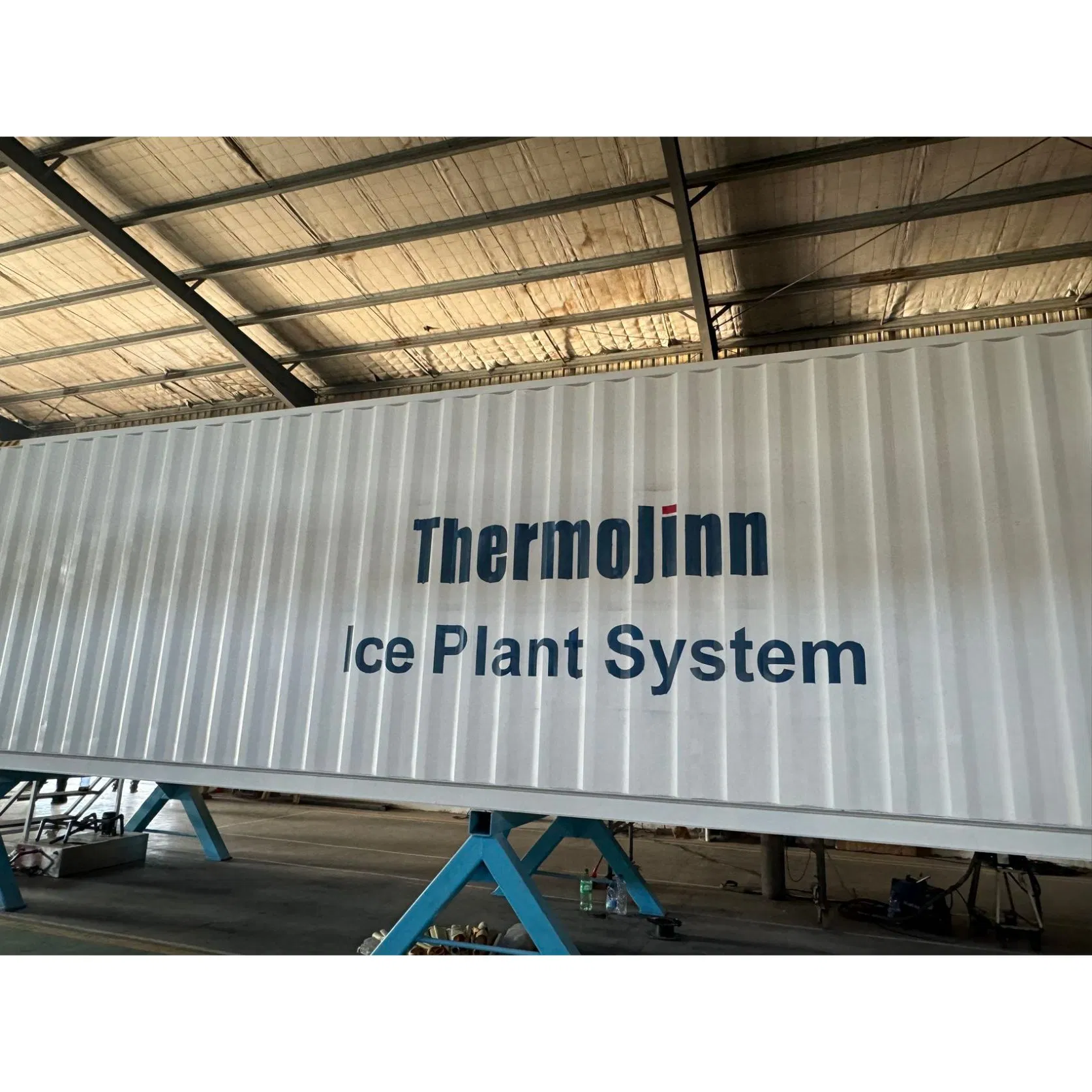

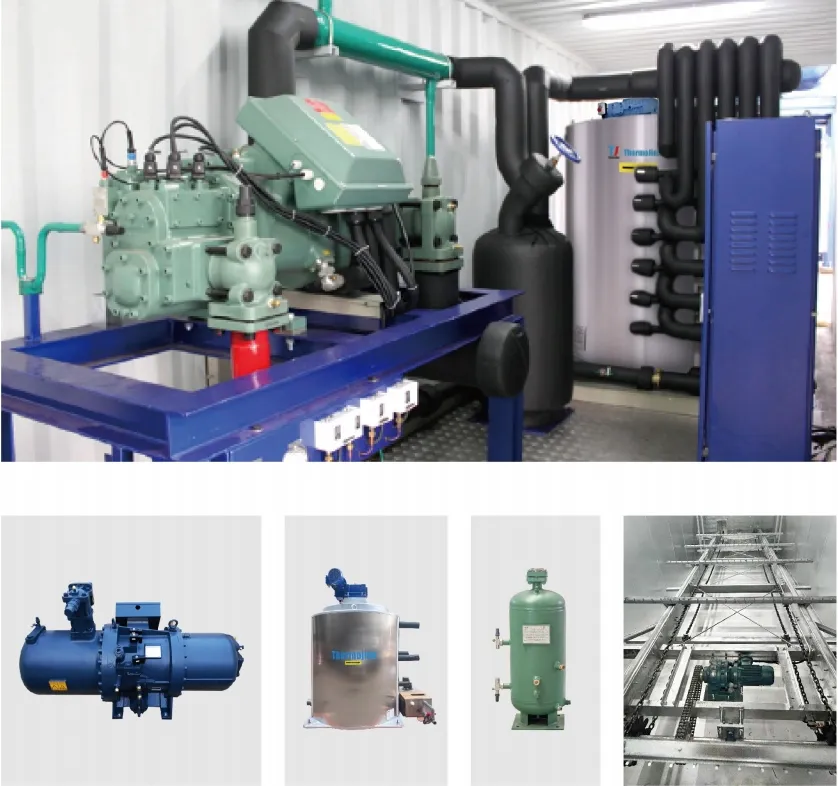

Our containerized flake ice plant offers an all-in-one solution featuring automated ice storage, delivery, and weighing systems. Designed for optimal efficiency, this plant includes a remote control function, allowing for seamless operation and monitoring from any location. The flake ice plant ensures consistent ice production and distribution.

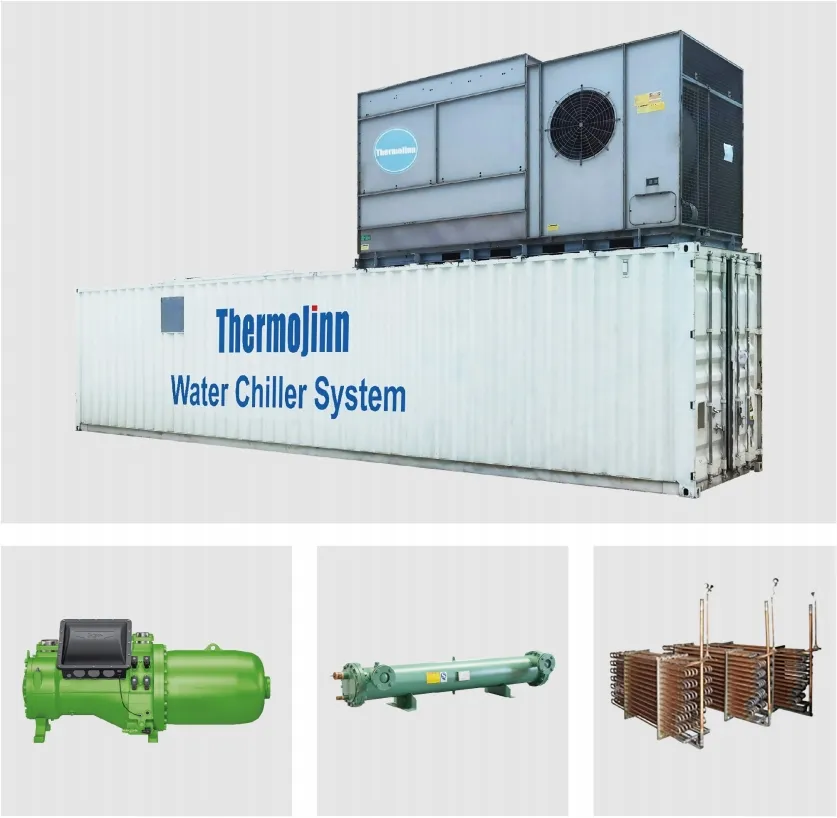

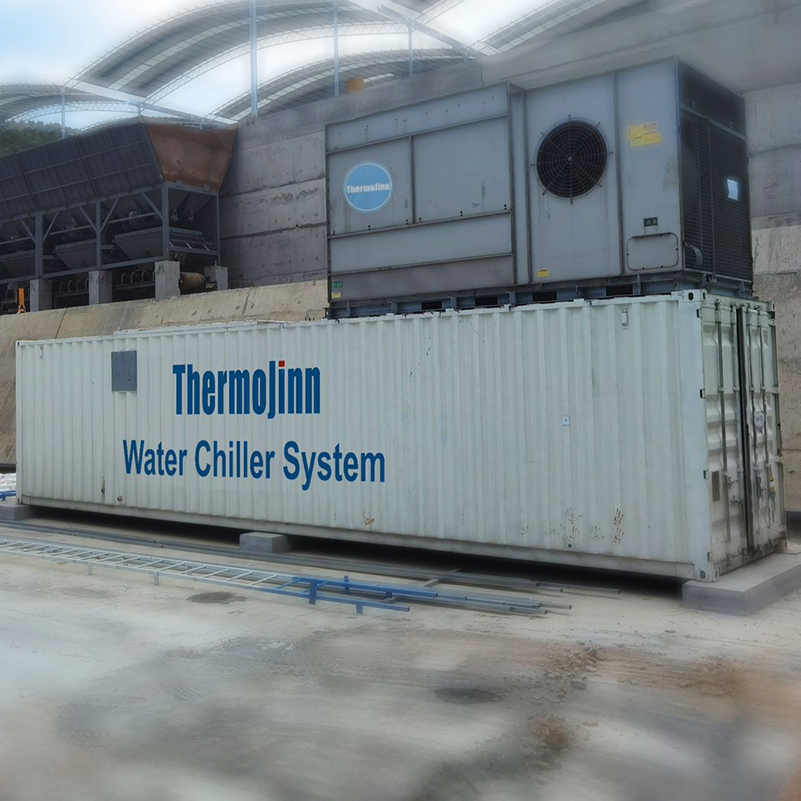

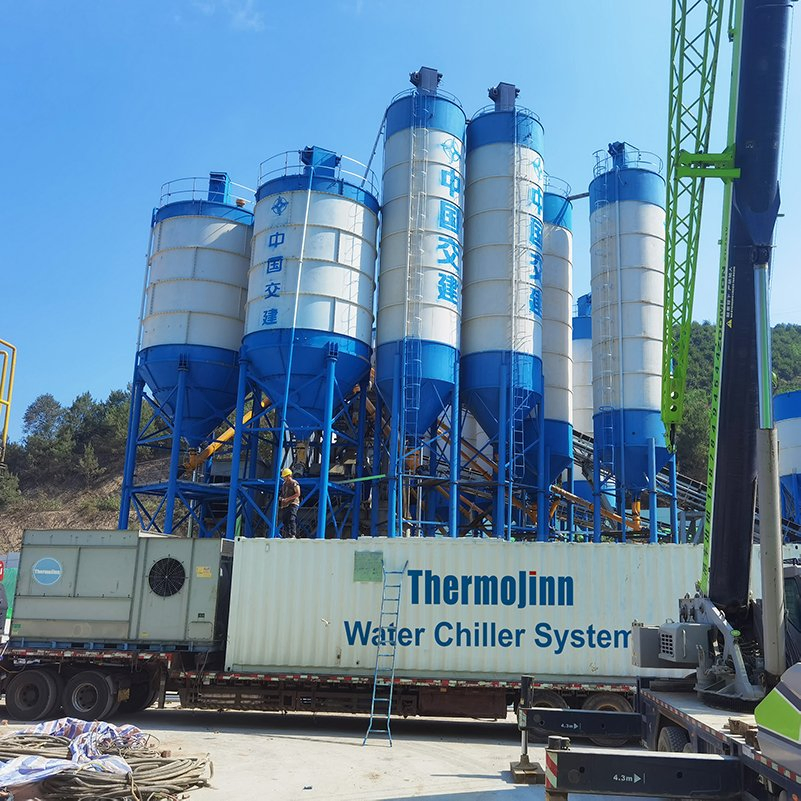

Advanced containerized water chillers capable of reducing water outlet temperatures to as low as 1°C. These systems utilize a three-stage cooling process, efficiently cooling water from 40°C down to 1°C directly. Designed for high-performance cooling in various industrial applications.

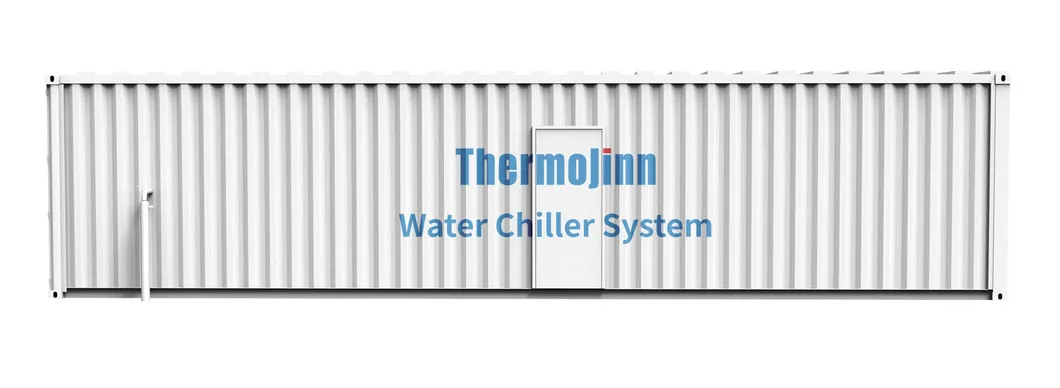

Ice makers/ Chiller units are assembled inside 20' or 40' HQ containers. Maximum capacity of ice plant in a single container can reach up to 86 ton/day; chiller units can reach up to 360 ton/day.
TLC series high-efficiency solution designed with a full coil configuration which maximizes heat transfer. This design choice enhances efficiency and reliability, ensuring consistent performance even under extreme working conditions.

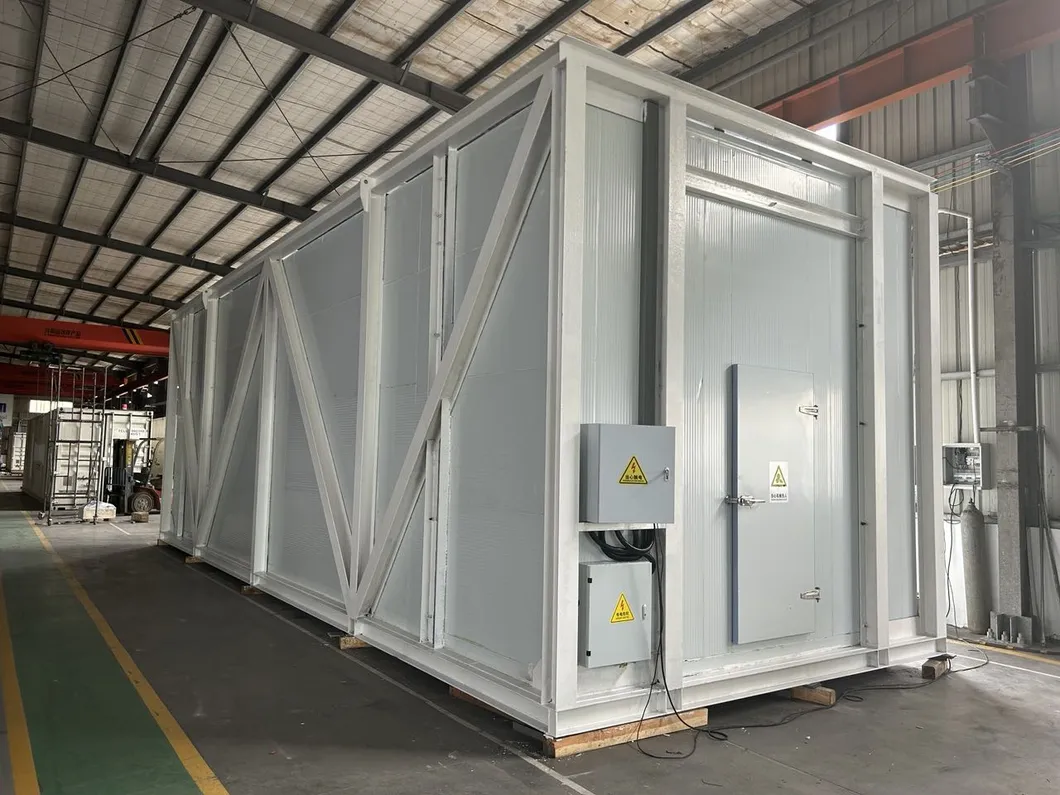

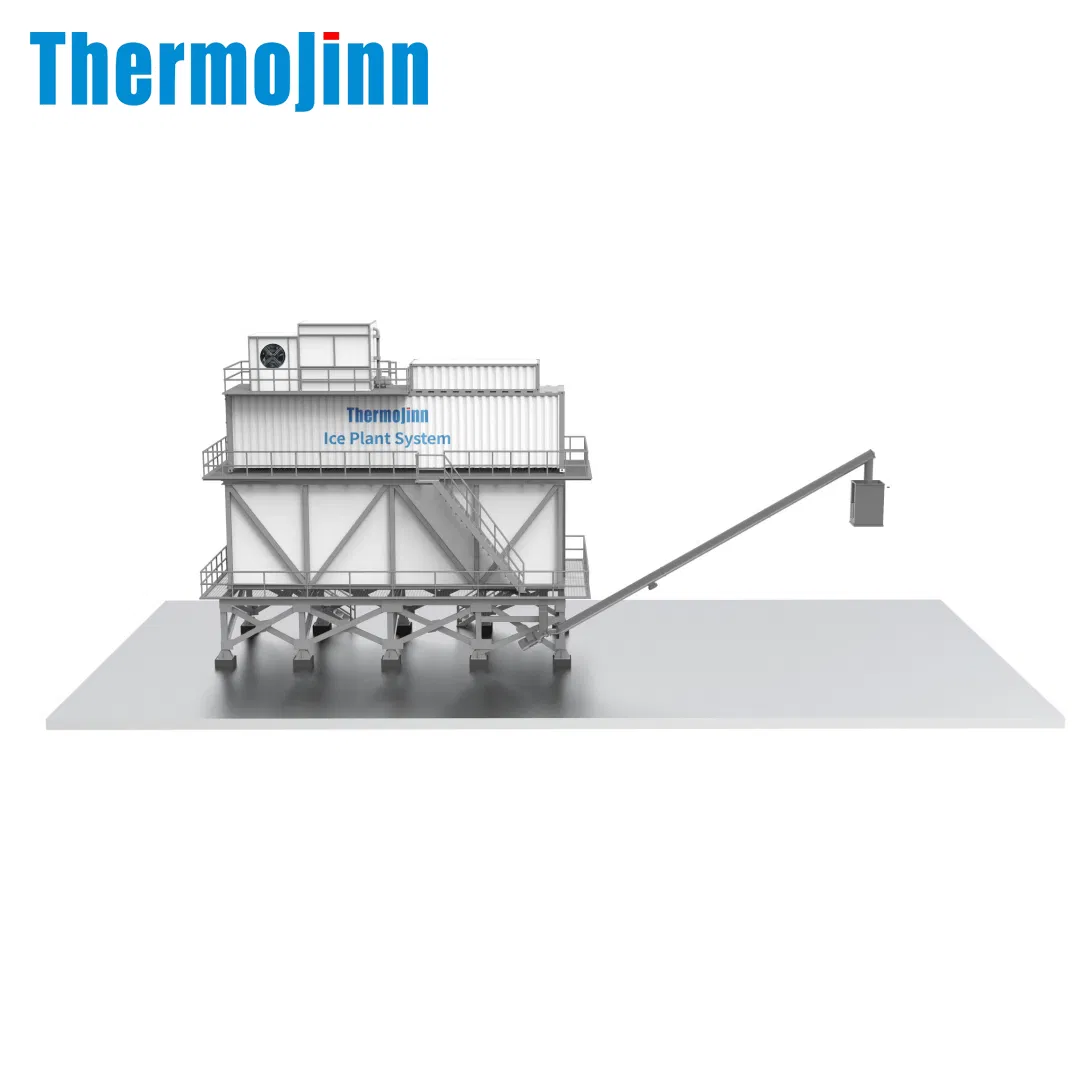

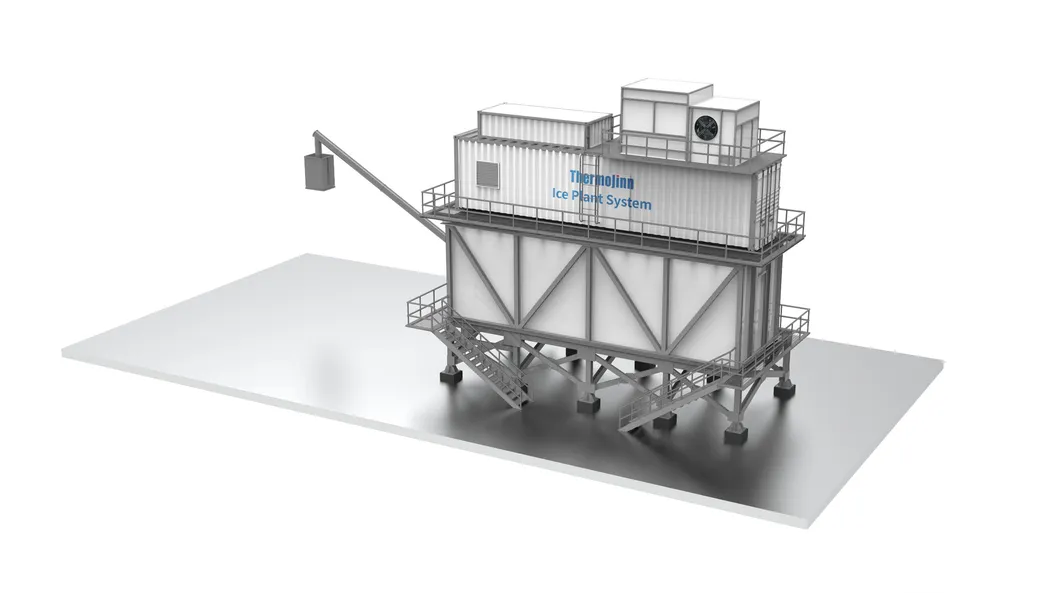

Automates the process of storing and distributing ice, ensuring a continuous supply without manual intervention. Equipped with a robust ice rake mechanism to prevent clumping and bridging.
| Model | Cap. (t) | Ref. Cap. (kw) | Ins. Power (kw) | Cons. Power (kw) | Cons. Water (l/hr) | Weight (ton) |
|---|---|---|---|---|---|---|
| TJ-FIP20 | 20 | 100 | 83 | 67.23 | 1200 | 14.1 |
| TJ-FIP40 | 40 | 200 | 152 | 123.12 | 2700 | 25.1 |
| TJ-FIP60 | 60 | 300 | 227 | 183.87 | 4010 | 31.2 |
| TJ-FIP100 | 100 | 500 | 427 | 350.14 | 7400 | 42.1 |
| Model | Capacity (Ton) | Type | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| AIS 18 | 18 | Containerized | 12192 | 2438 | 2591 |
| AIS 35 | 35 | Combined | 12192 | 3550 | 3720 |
| AIS 60 | 60 | Combined | 12192 | 5195 | 3970 |
| AIS 100 | 100 | Combined | 15000 | 5195 | 4970 |
Our systems are widely used in concrete batching plants, large-scale construction projects, and aquatic fishery industries.
