Customizable Water Chiller Ice Maker Perfect for Concrete Ready Mix Maker and Precast Batching Companies

1 / 5

Customizable Water Chiller Ice Maker Perfect for Concrete Ready Mix Maker and Precast Batching Companies

Customization:	Available
After-sales Service:	24 Hours Service
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Basic Info.

Ice Making

Flowing

Automation

Machine Size

Large

Ice Temperature

-15℃~-20℃

Ice Shape

Flake Ice

Application Fields

Aquatic Fishery

Certification

ISO, CCC

Condition

New

Refrigerant

Freon

Ice Delivery

Automatic

Ice Weight

20kg/50kg

Condensor

Air Cooled / Easy Cold

Compressor

Semi Hermetic

Origin

China

Packaging & Delivery

Package Size

1300.00cm * 400.00cm * 900.00cm

Gross Weight

10000.000kg

Transport Package

Wooden Pallet

Product Description

Industrial Water Chiller Ice Cooling System Solution & Concrete Cooling System: We are a leading provider of HVAC/R solutions, specializing in concrete cooling systems. Our concrete cooling ice plants are designed to optimize the temperature control processes essential for large-scale concrete projects. These systems utilize advanced ice-making technologies, such as flake ice machines, to ensure consistent and efficient cooling, enhancing the quality and durability of the concrete.

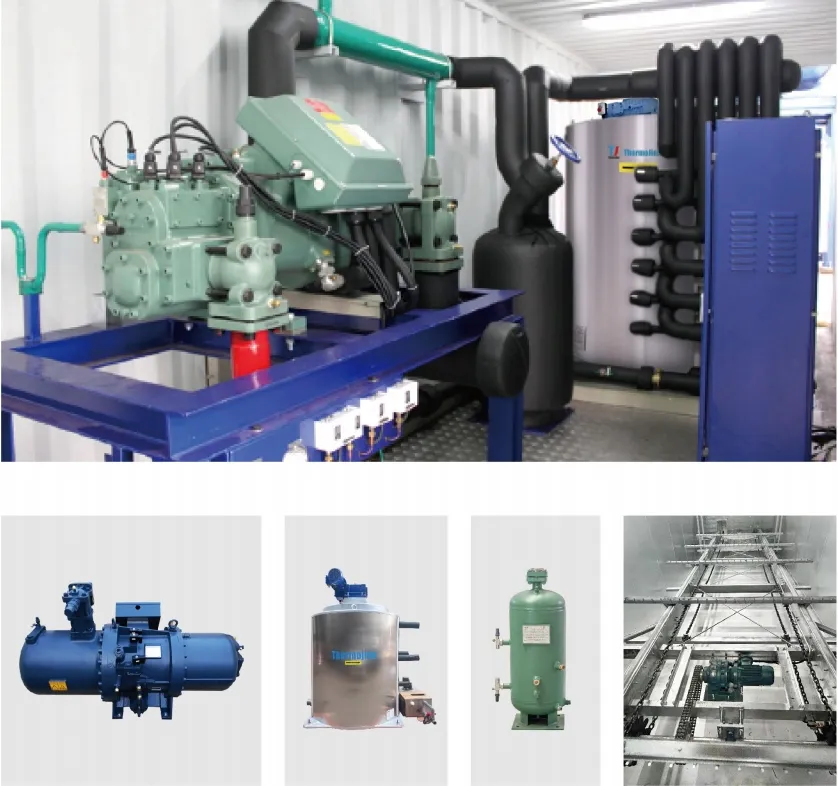

🧊 Ice Plant

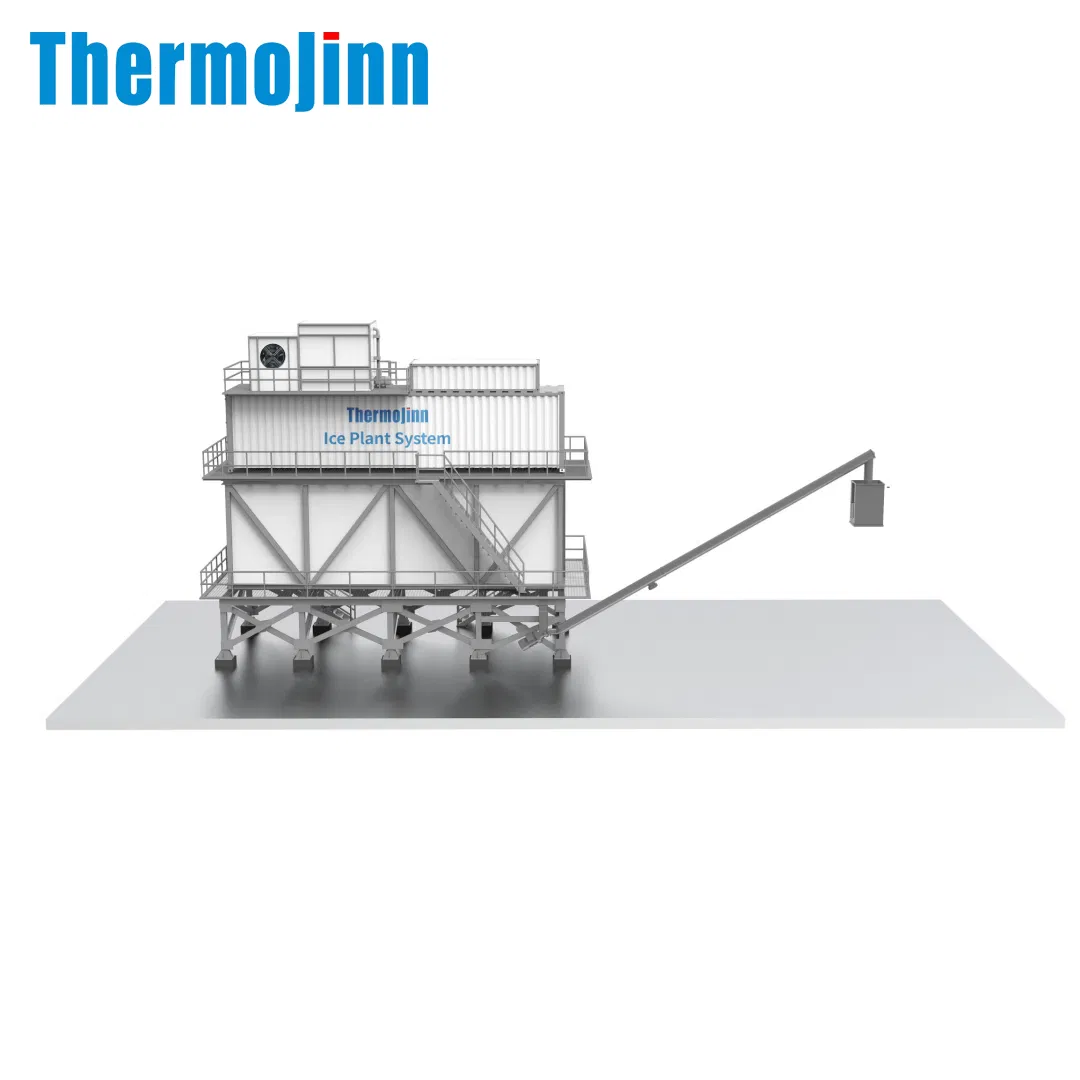

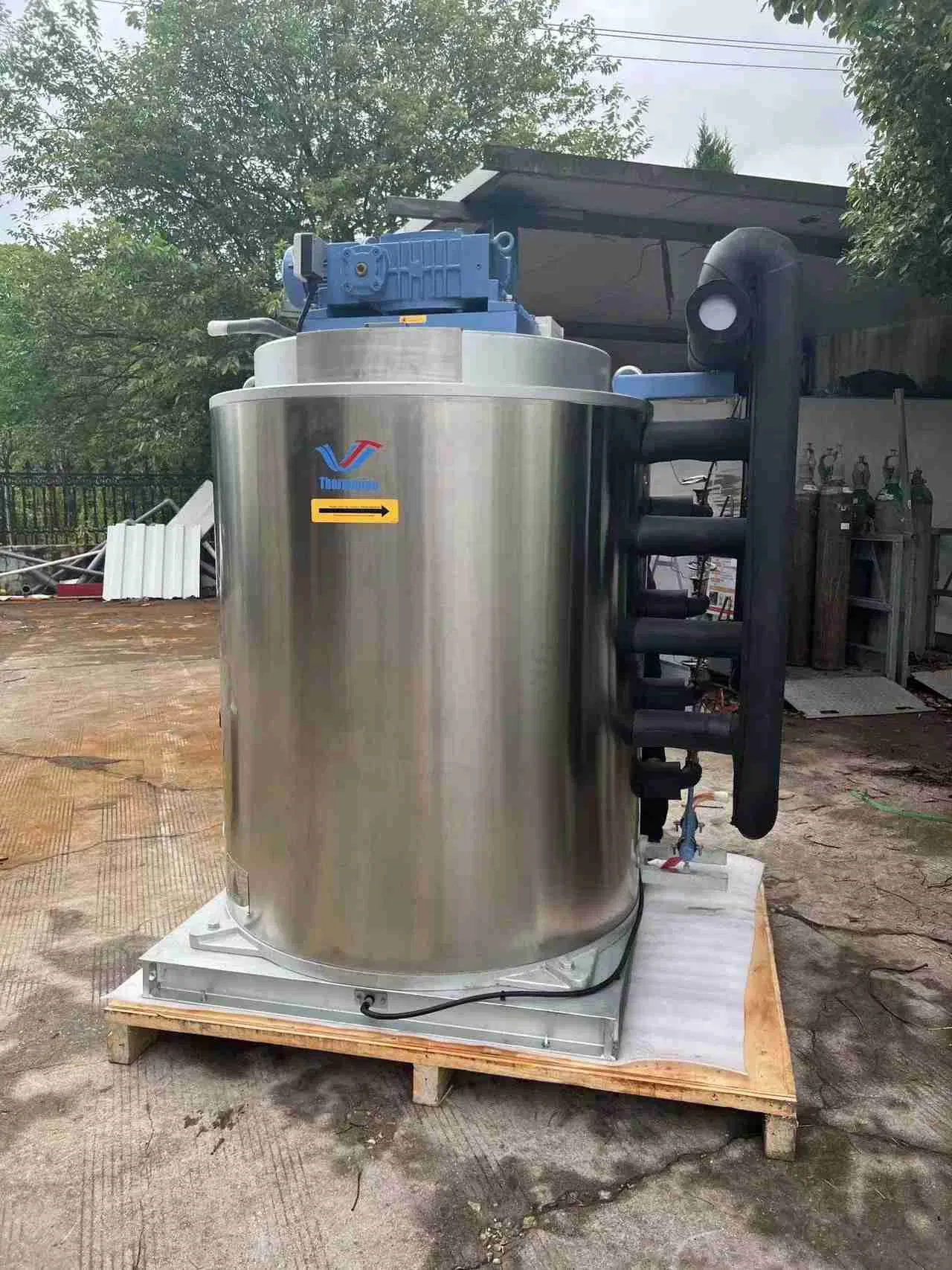

The containerized flake ice plant offers an all-in-one solution featuring automated ice storage, delivery, and weighing systems. Designed for optimal efficiency, this plant includes a remote control function, allowing for seamless operation and monitoring from any location. The flake ice plant ensures consistent ice production and distribution, making it ideal for various industrial applications that require precise ice management.

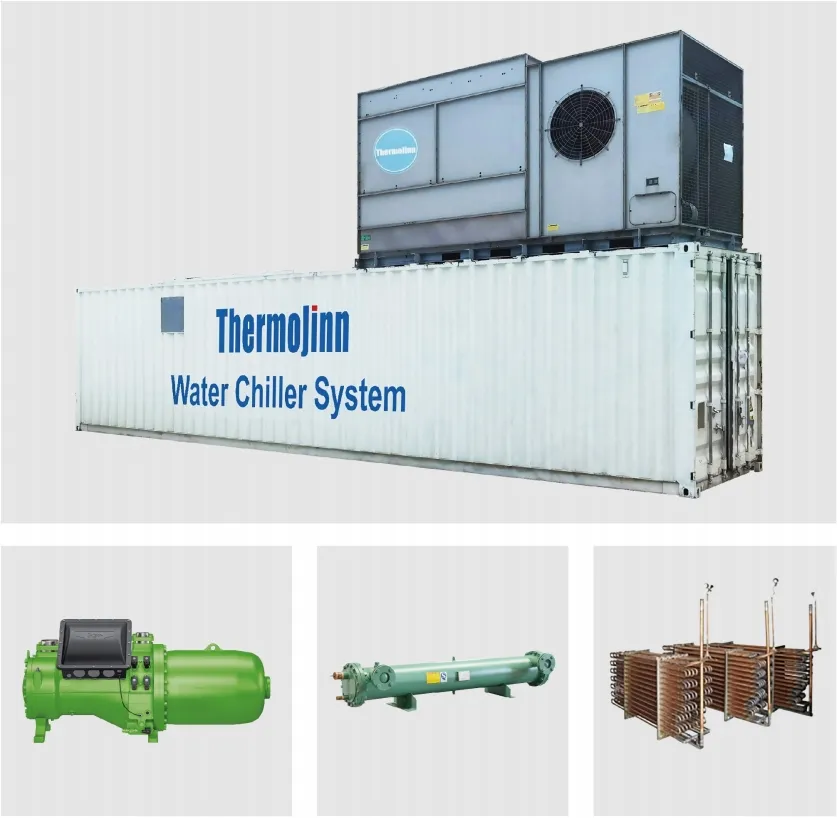

💧 Water Chiller

Advanced containerized water chillers capable of reducing water outlet temperatures to as low as 1°C. These systems utilize a three-stage cooling process, efficiently cooling water from 40°C down to 1°C directly. The chillers are designed for high-performance cooling in various industrial applications, ensuring reliable and consistent temperature control.

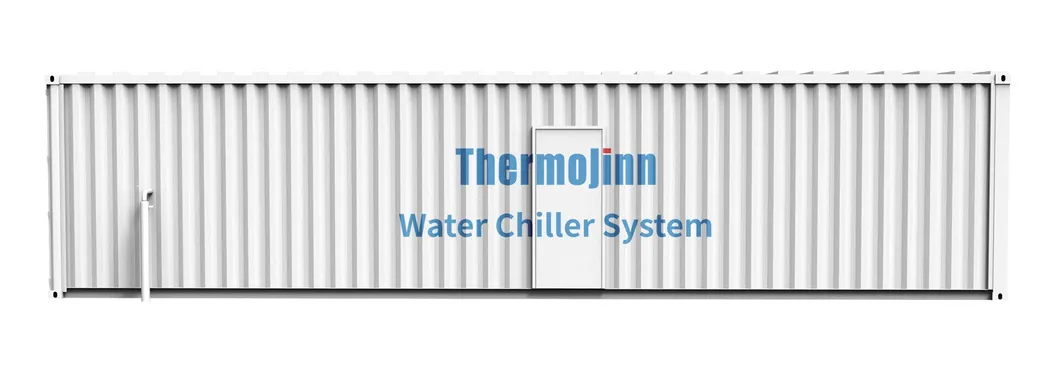

Containers: Ice makers/ Chiller units are assembled inside 20' or 40' HQ containers. Max capacity up to 86ton/day for ice plants and 360ton/day for chiller units.

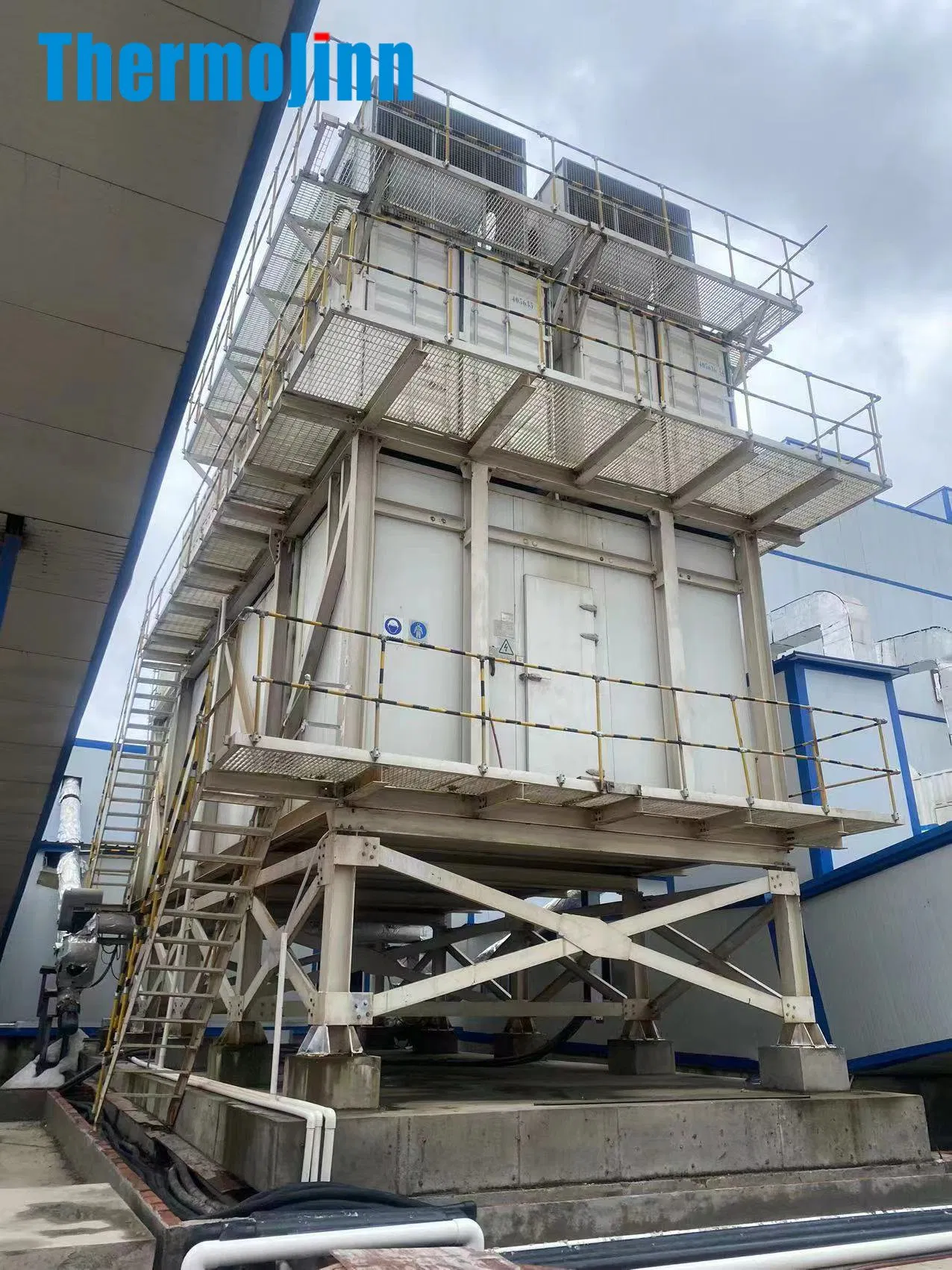

Evaporative Condensers: TLC series high-efficiency solution with full coil configuration maximizing heat transfer and reliability under extreme conditions.

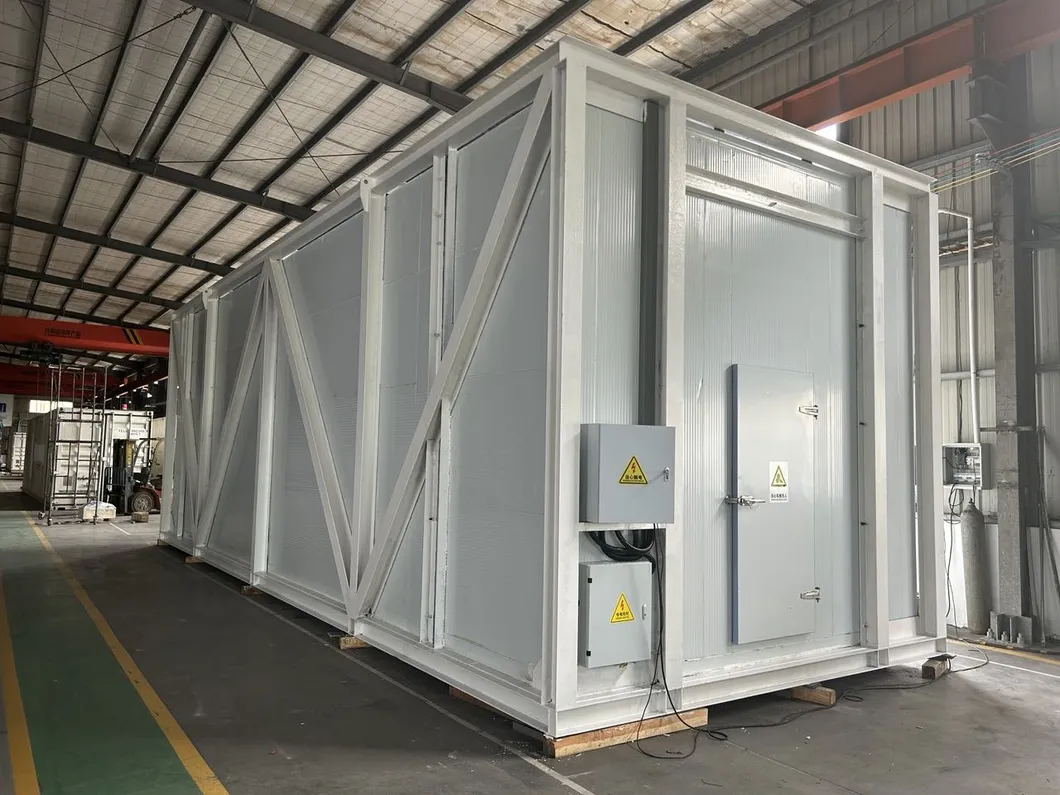

Auto Raking Ice Storage: Automates ice distribution with a robust rake mechanism, ensuring continuous supply without manual intervention.

Product Parameters

📊 Flake Ice Plant Specifications

Model	Cap. (t)	Ref. Cap. (kw)	Ins. Power (kw)	Cons. Power (kw)	Cons. Water (l/hr)	Running Weight (ton)
TJ-FIP20	20	100	83	67.23	1200	14.1
TJ-FIP40	40	200	152	123.12	2700	25.1
TJ-FIP60	60	300	227	183.87	4010	31.2
TJ-FIP80	80	400	296	239.76	5900	36.1
TJ-FIP100	100	500	427	350.14	7400	42.1

📦 Auto Ice Storage

Model	Capacity (Ton)	Type	Length (mm)	Width (mm)	Height (mm)	Weight (Ton)
AIS 18	18	Containerized	12192	2438	2591	12.5
AIS 35	35	Combined	12192	3550	3720	20.5
AIS 60	60	Combined	12192	5195	3970	26.0
AIS 100	100	Combined	15000	5195	4970	42.0

⚙️ Ice Delivery System - Screw Type

Model	Delivery Cap. (Ton/h)	Length (m)	Power (kw)
TJS-10	10	15	5.5
TJS-15	15	15	7.5
TJS-20	20	12	7.5

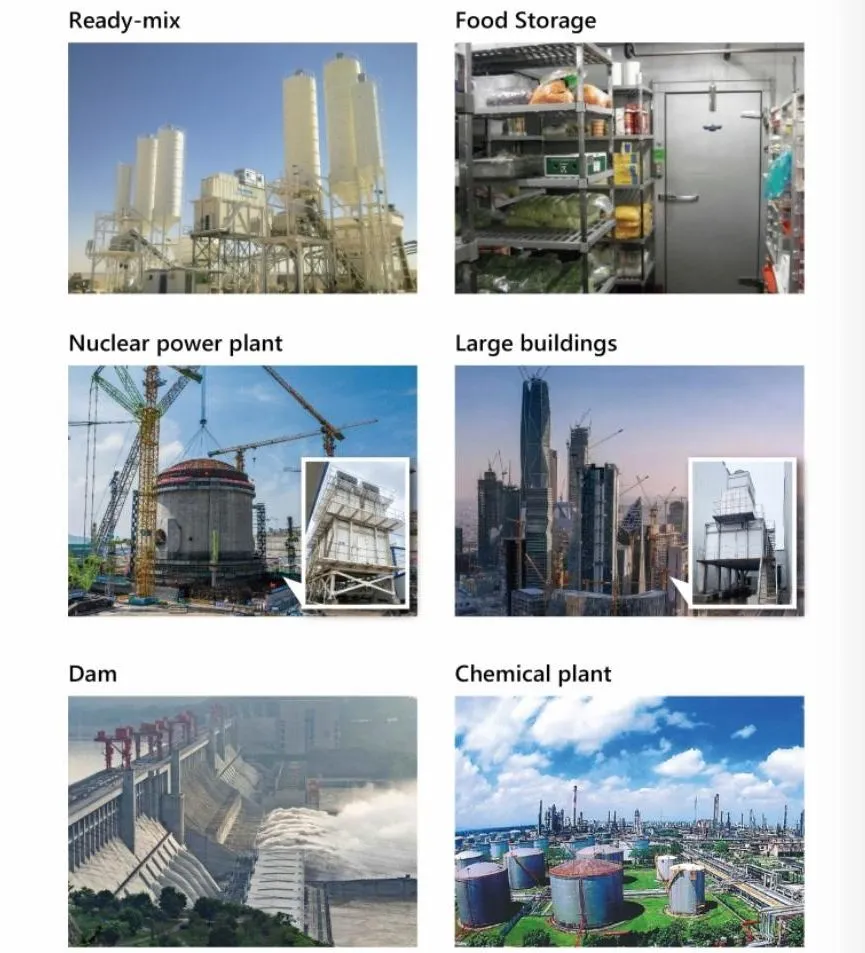

Product Application & Logistics

Certificates & Exhibition

Frequently Asked Questions

How long is the delivery time?

It typically takes within 1 month from the receipt of the deposit to the preparation of the goods.

How long is the quality guarantee period?

The warranty period is 1 year, and after-sales service is available 24 hours a day to ensure continuous operation.

What are your pricing terms?

Our FOB price is based on the quantity, material, and size required. We also offer competitive CIF and CNF pricing. Bulk orders are eligible for further discounts.

Can the products be customized?

Yes, all materials and sizes are available for customization. We can tailor the cooling systems to meet your specific project requirements.

What is the maximum capacity for containerized units?

A single containerized ice plant can reach a capacity of up to 86 tons per day, while a single containerized chiller unit can reach up to 360 tons per day.

What cooling technology is used in the chillers?

Our chillers utilize a high-performance three-stage cooling process that can reduce water temperature from 40°C directly down to 1°C.
