| Model NO. | PLD | Type | Concrete Mixing Plant |
| Shotcrete Type | Wet | Structure | Rotor Type |
| Productivity | 25m³/h | Feeding Height | 1400mm |
| Vibrating Amplitude | 1.2mm | Certification | ISO9001: 2000, CE |
| Application | Roads, Railways, Bridges Construction | Control System | Full-Automatic |
| Advantage | High Production Efficiency | Storage Materials | Sand and Stone |
| Automatic Grade | Automatic | Concrete State | Flowing Concrete |
| Production Capacity | 100 Sets/Month | Package Gross Weight | 4000.000kg |

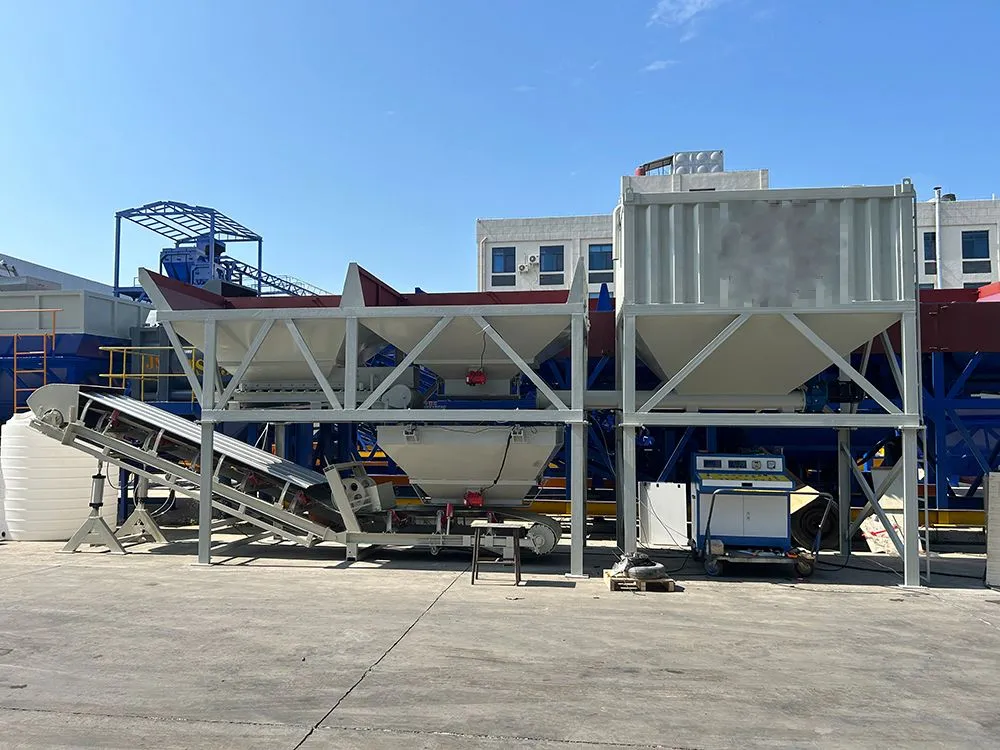

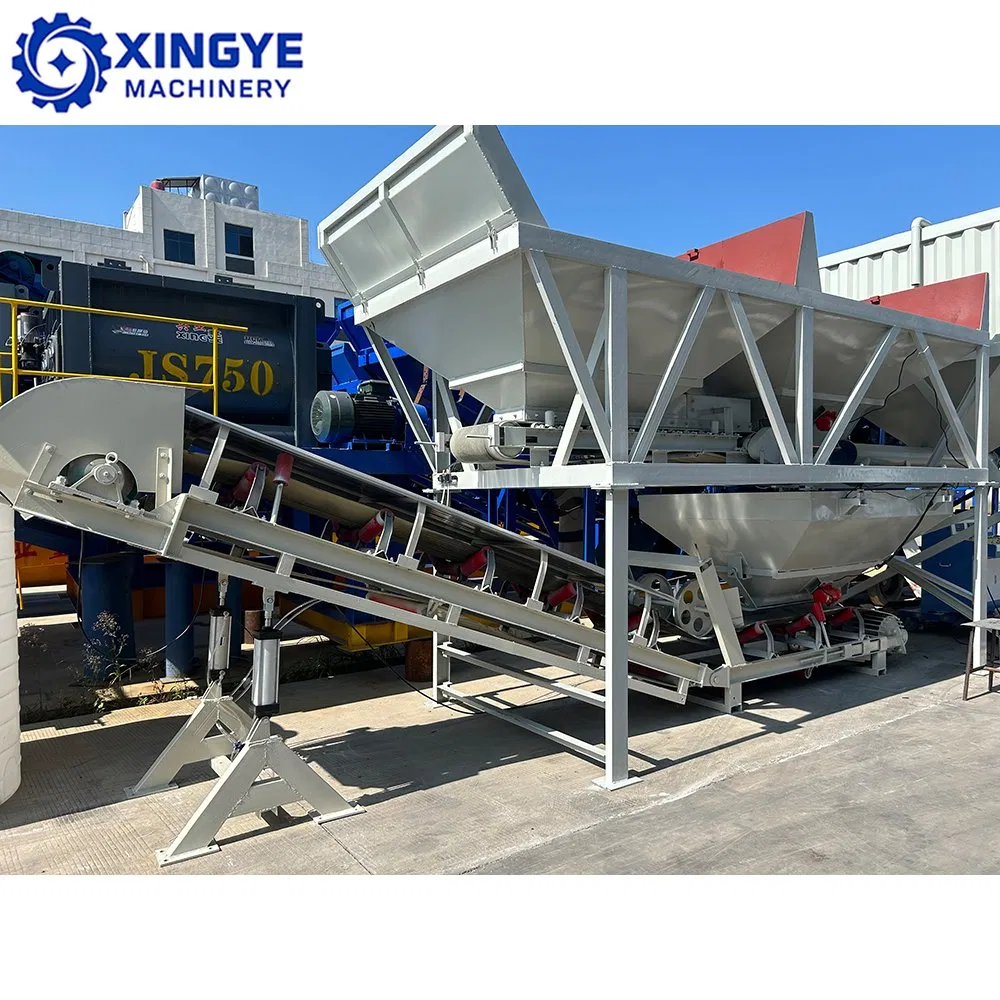

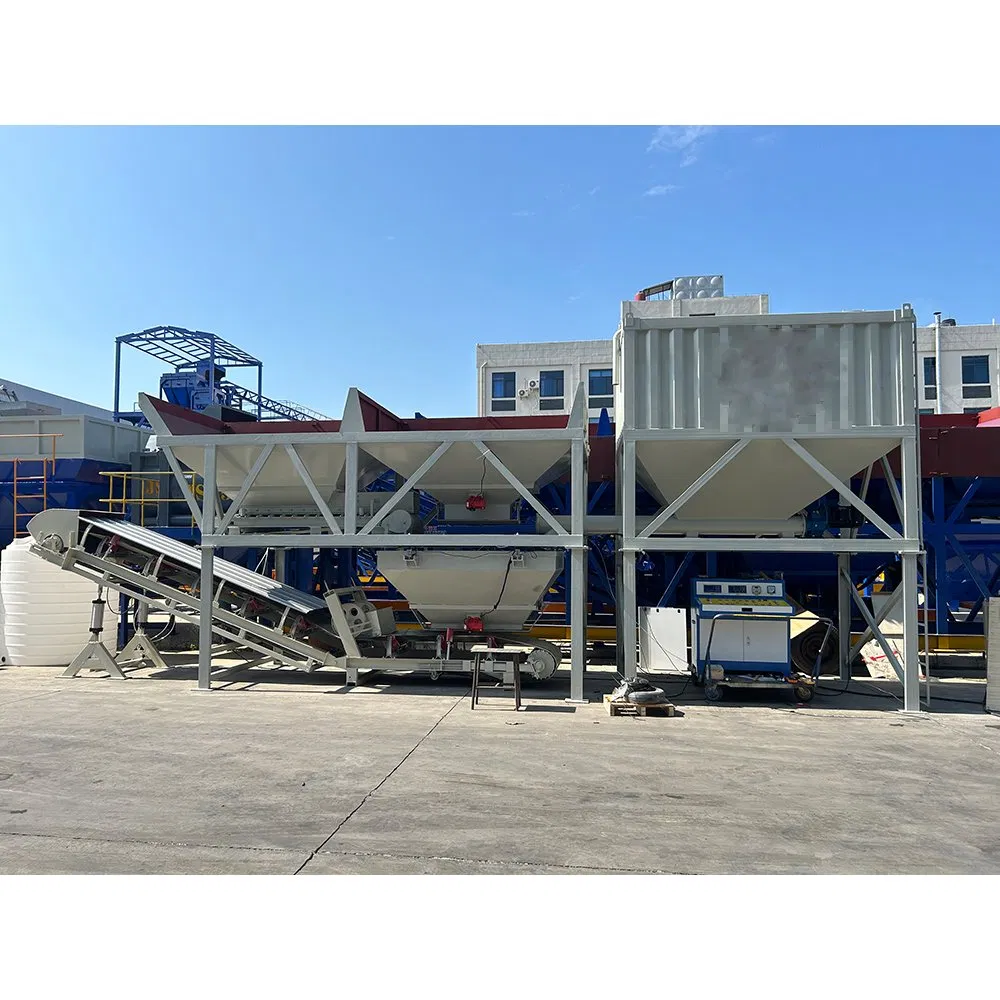

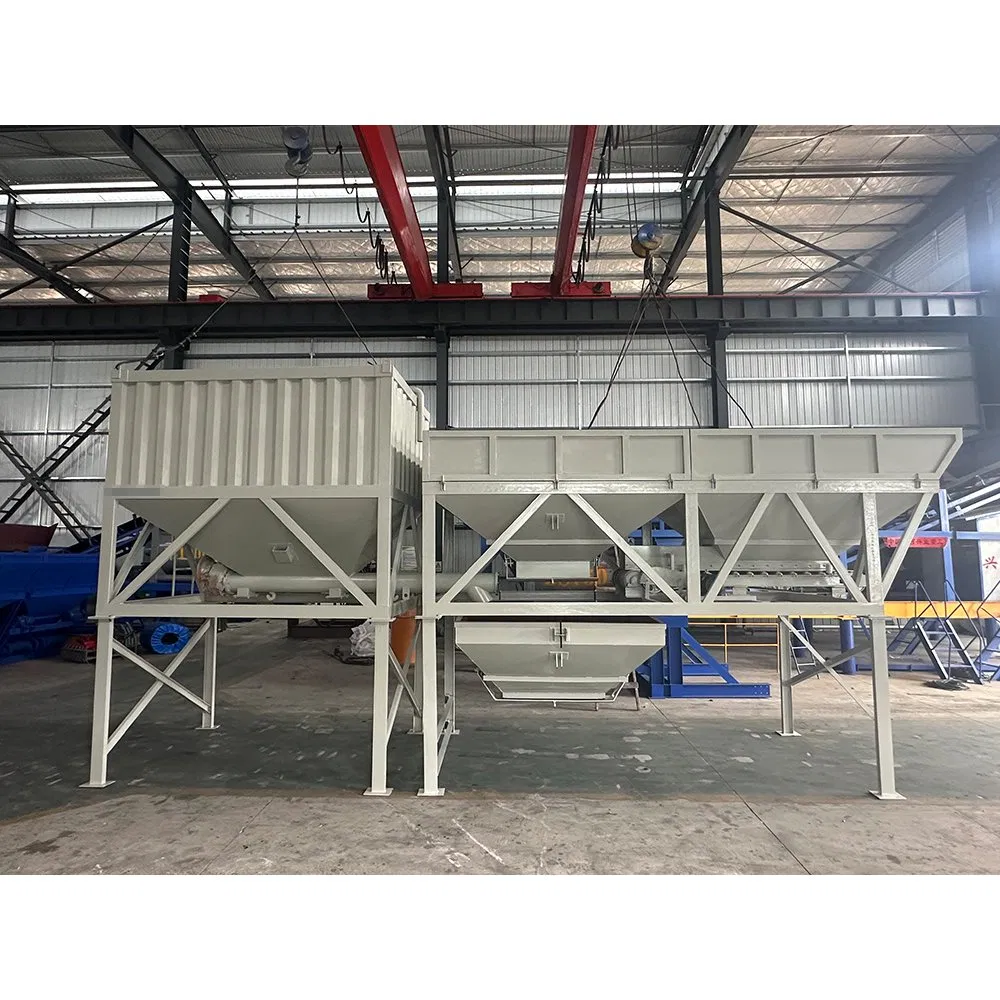

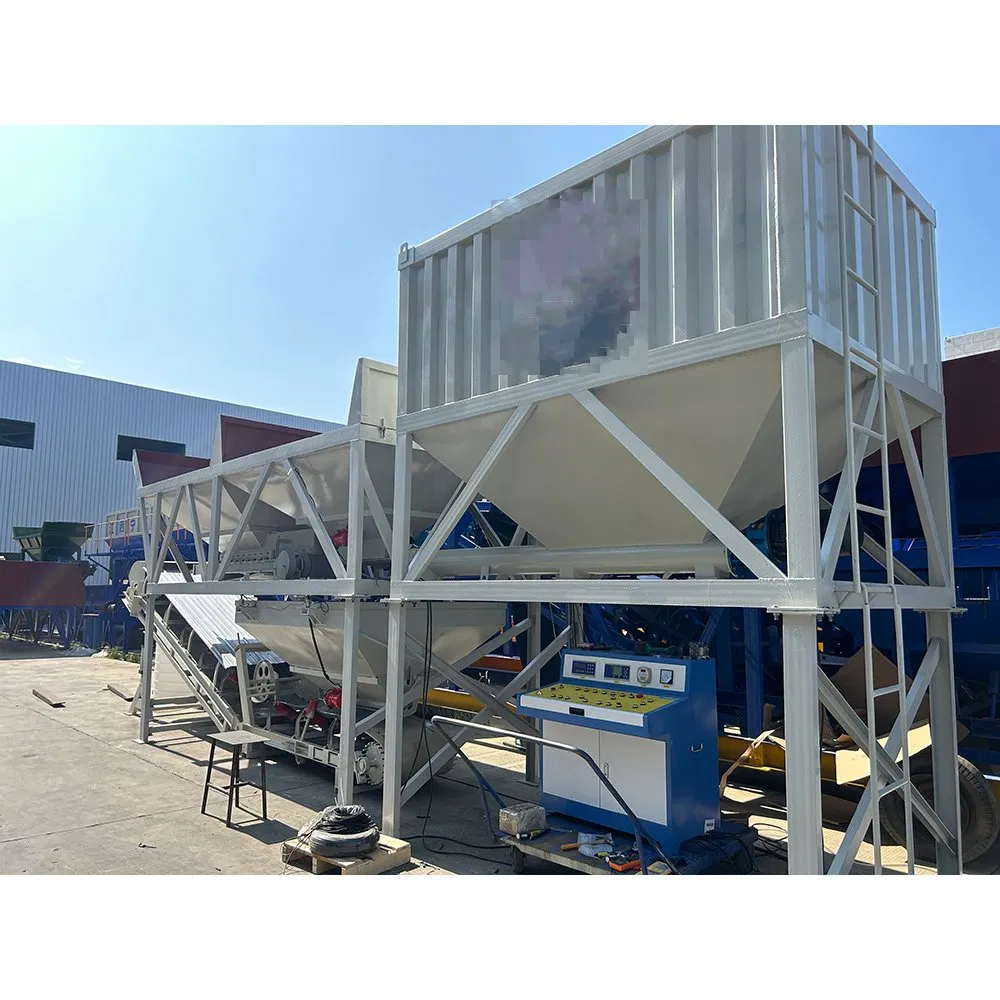

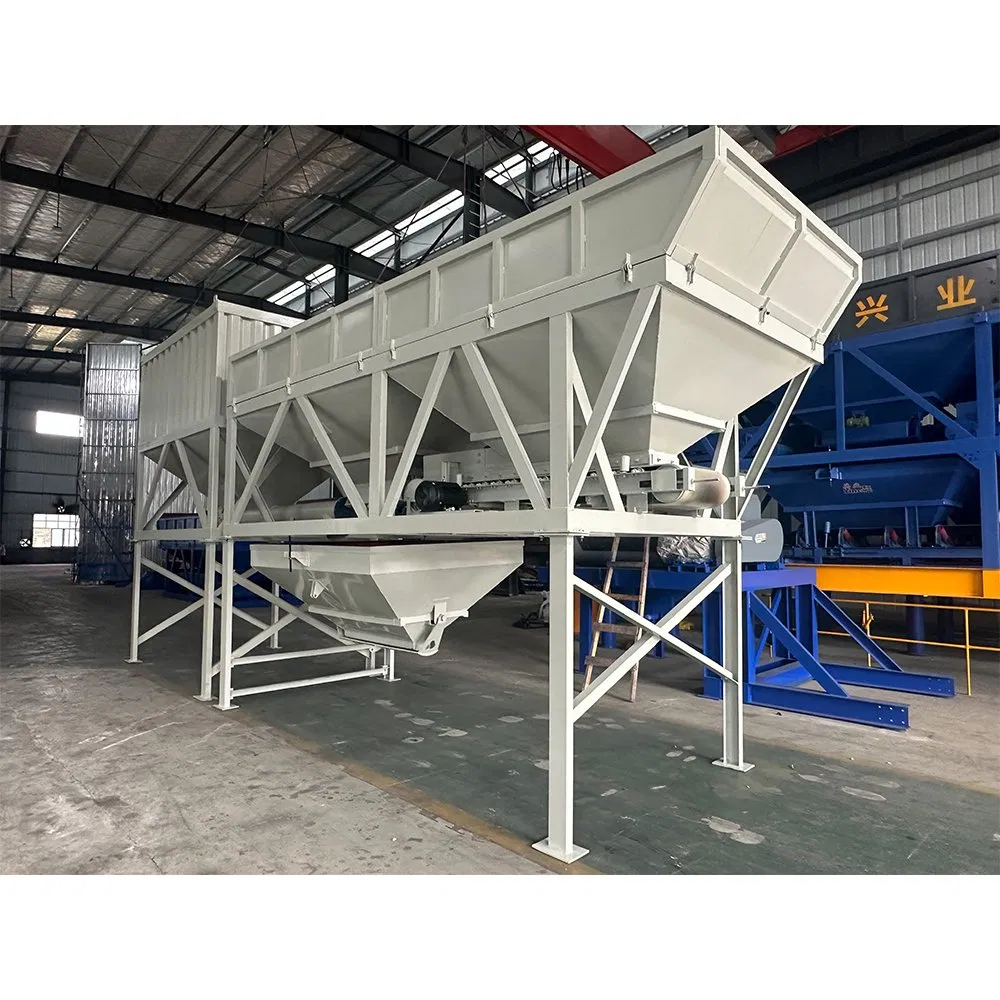

Customized Multifunction Mobile Concrete Batching Plant Dry Mix Belt Loaders Conveyor

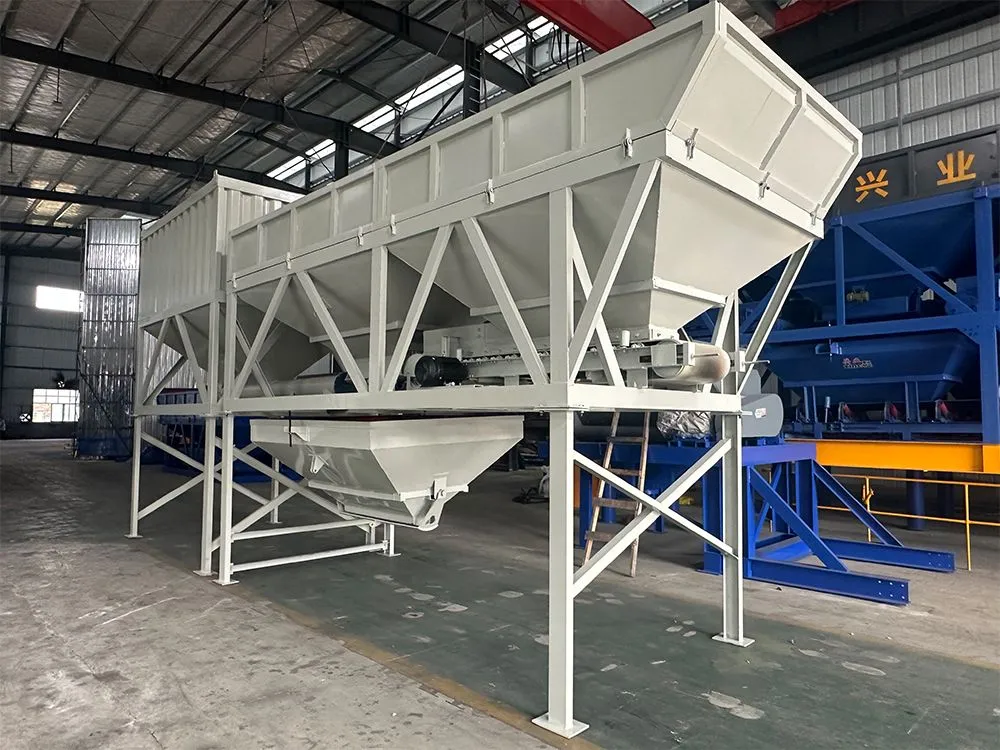

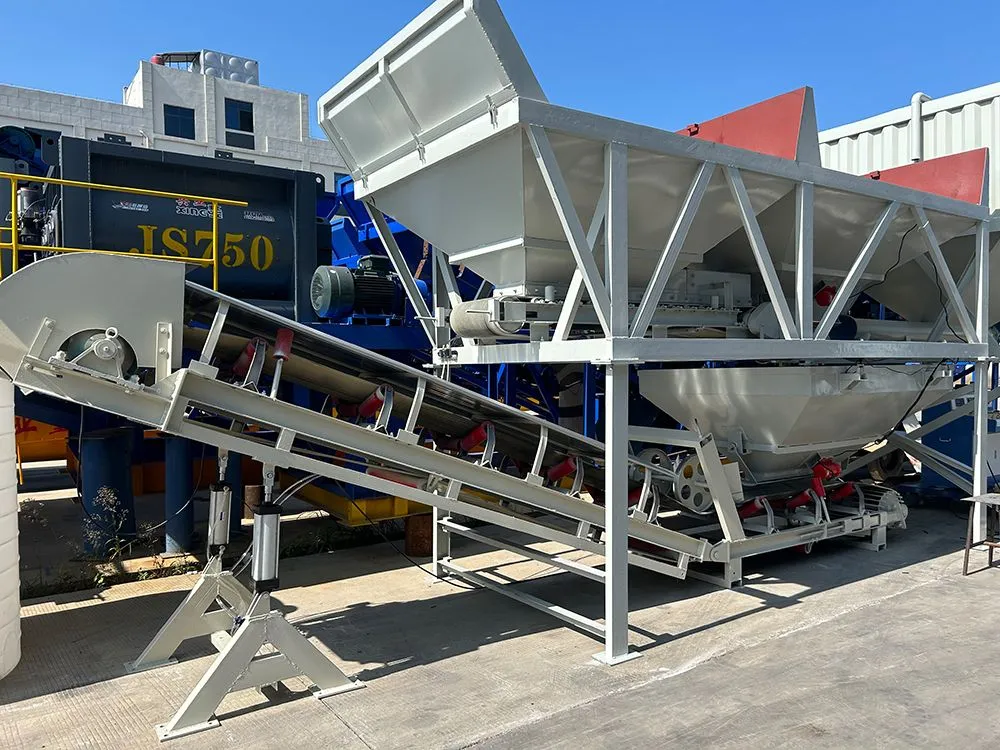

Automated Material Loading Solutions: An advanced material loading system built for the trailer-based concrete industry. These systems efficiently load 1-yard portable concrete mixer trailers in just 2 minutes. Our batching systems are scaled to a size that makes loading portable concrete mixers convenient and efficient. Stationary batching plants use a swinging load conveyor that is easily positioned so that multiple trailers can be serviced rapidly by a single operator. Automated batching systems are designed to batch up to 30 yards per hour and are calibrated for cement, sand, and gravel batching accuracy.
Our batching systems are scaled for efficiency and can be customized to load smaller transit mix trucks along with concrete mixing trailer fleets.
Key Features of Automated Loaders:
| Item Model | Weighing Hopper (m³) | Storage Hopper (m³) | Max Weighing (kg) | Total Power (kw) | Total Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|
| PL800 (2 bins) | 0.8 | 3 | 1500 | 6.6 | 2350 | 5600*1560*2760 |
| PL800 (3 bins) | 0.8 | 3 | 1500 | 4 | 3600 | 8400*1560*2810 |
| PL1200 (3 bins) | 1.2 | 4 | 2000 | 4 | 4200 | 9270*2060*2900 |
| PL1200 (4 bins) | 1.2 | 4 | 2000 | 5.5 | 5700 | 11200*2000*2800 |
| PL1600 (3 bins) | 1.6 | 6 | 3000 | 4 | 5500 | 9700*2115*5360 |
| PL2400 (4 bins) | 2.4 | 8 | 4000 | 7.5 | 8100 | 12900*2115*3360 |
| PL3200 (4 bins) | 3.2 | 16 | 5000 | 11 | 10500 | 14000*2325*3800 |

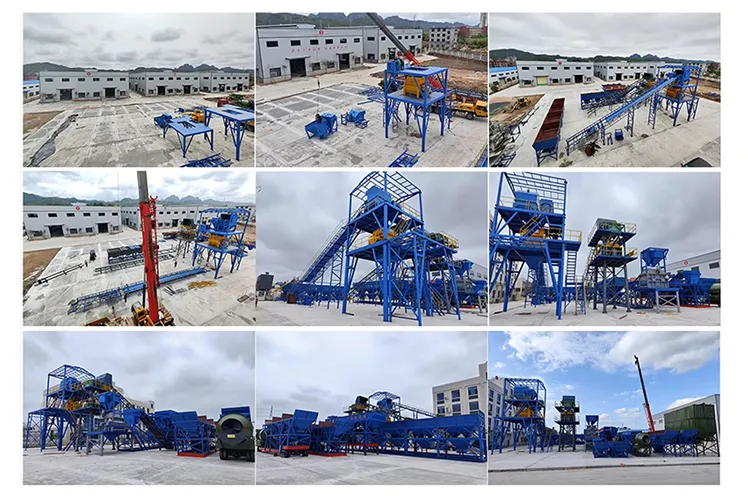

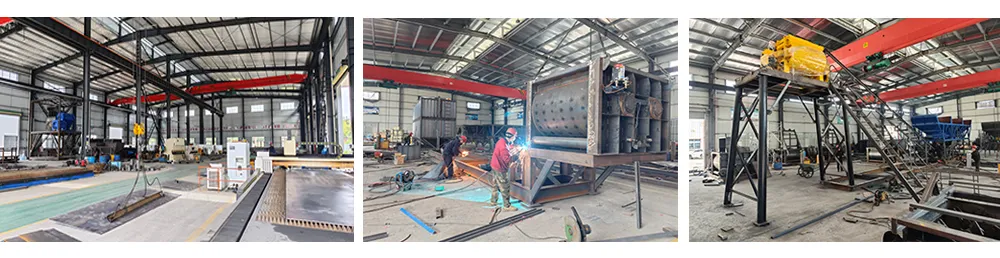

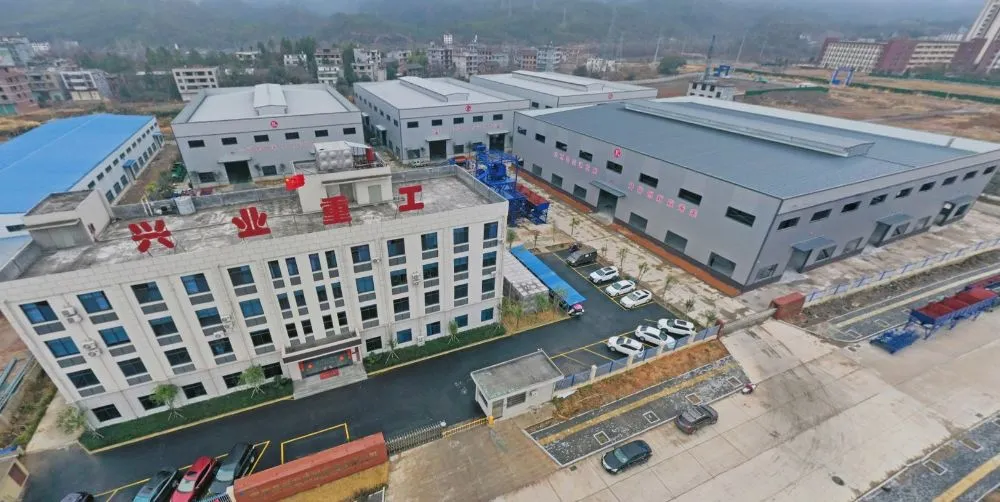

We are a specialized concrete batching plant manufacturer with 15 years of professional production experience. With a new production facility completed in 2023 totaling 20,000 square meters, we stand as one of the leading manufacturers in the industry.
Our professional design team creates customized mixing equipment for various global clients, supported by a strict quality inspection process and expert after-sales installation teams.
