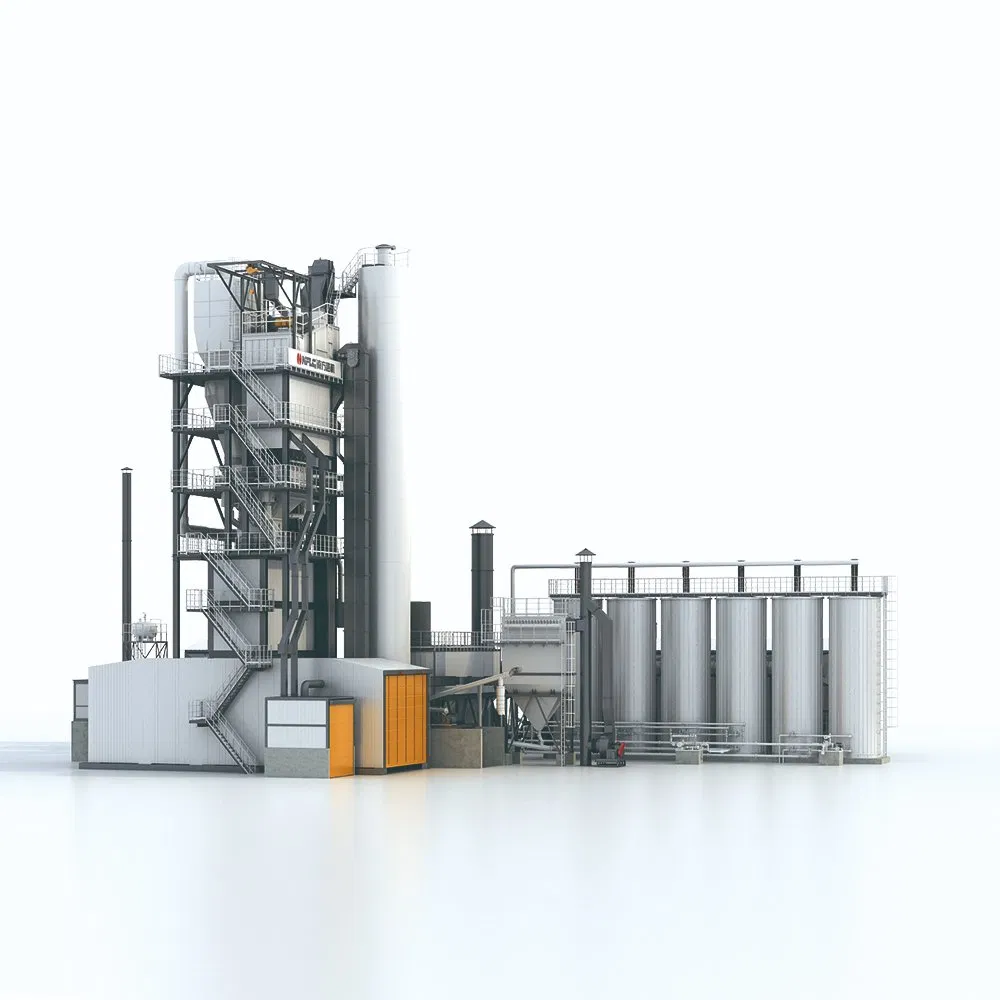

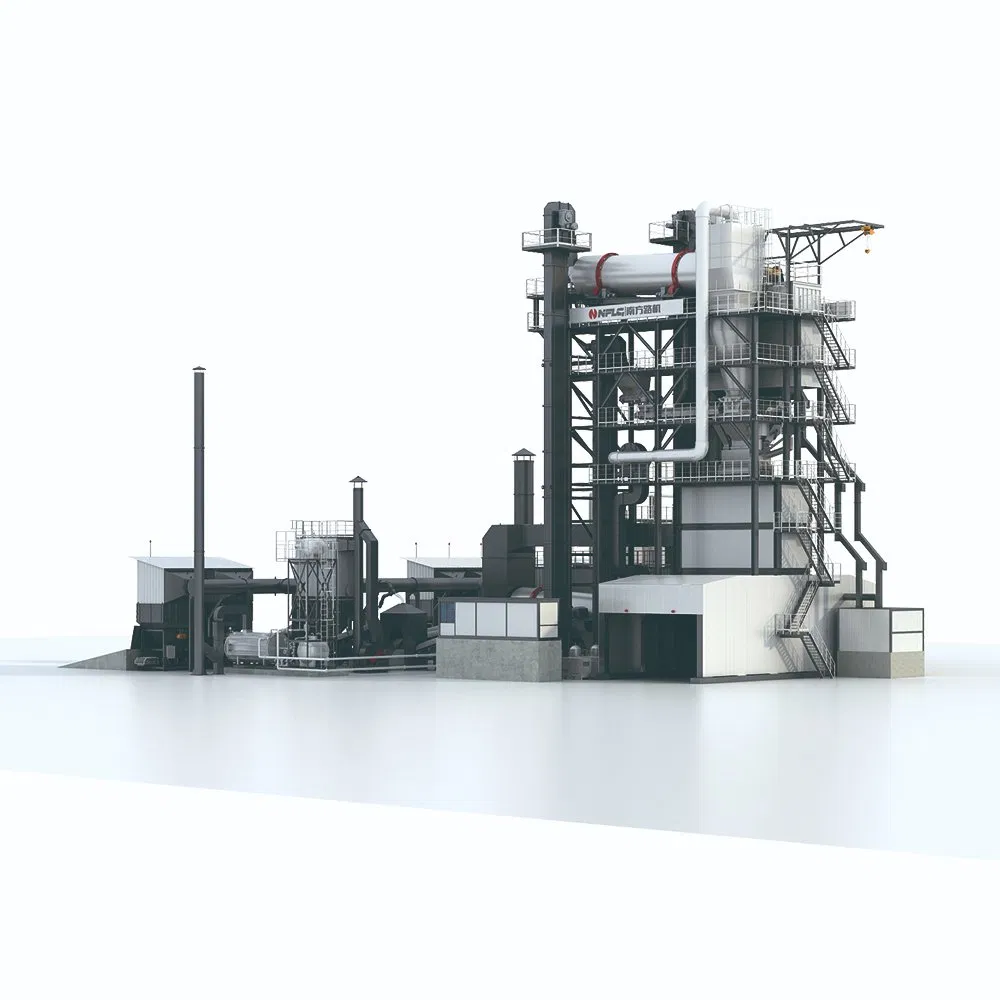

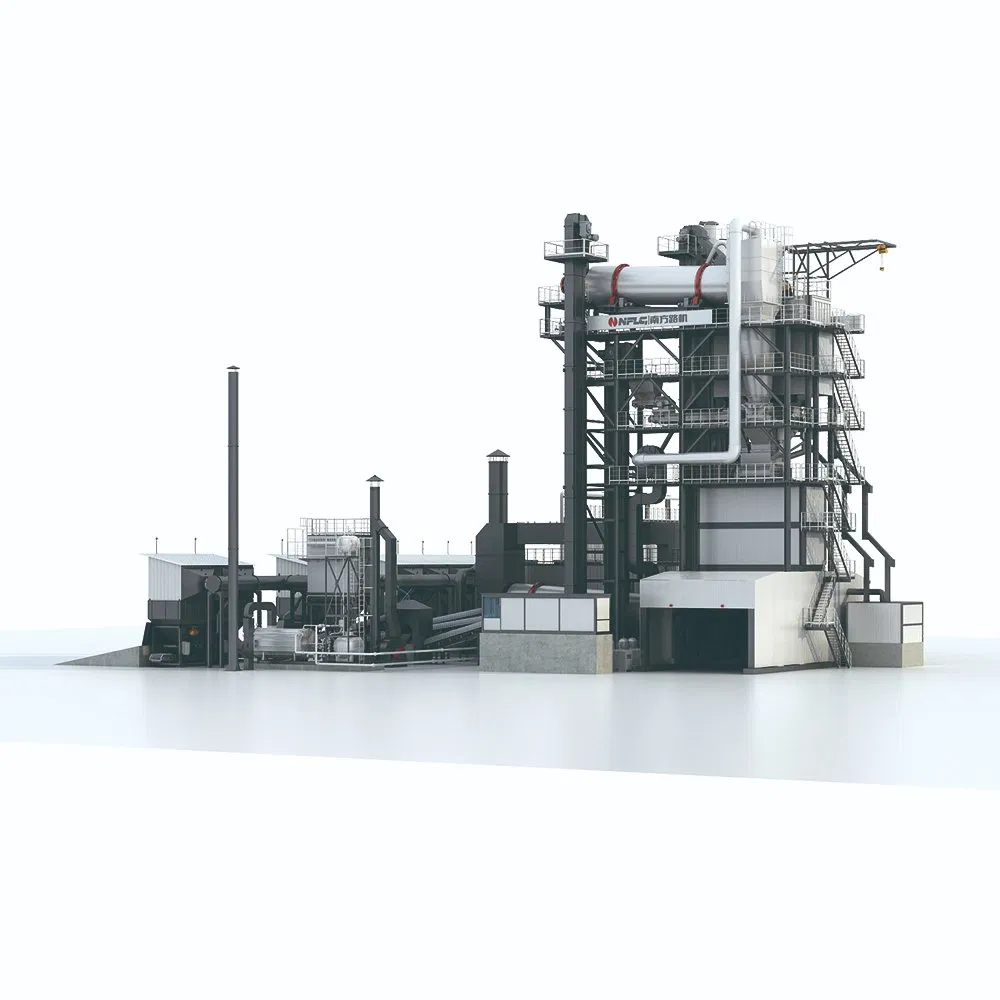

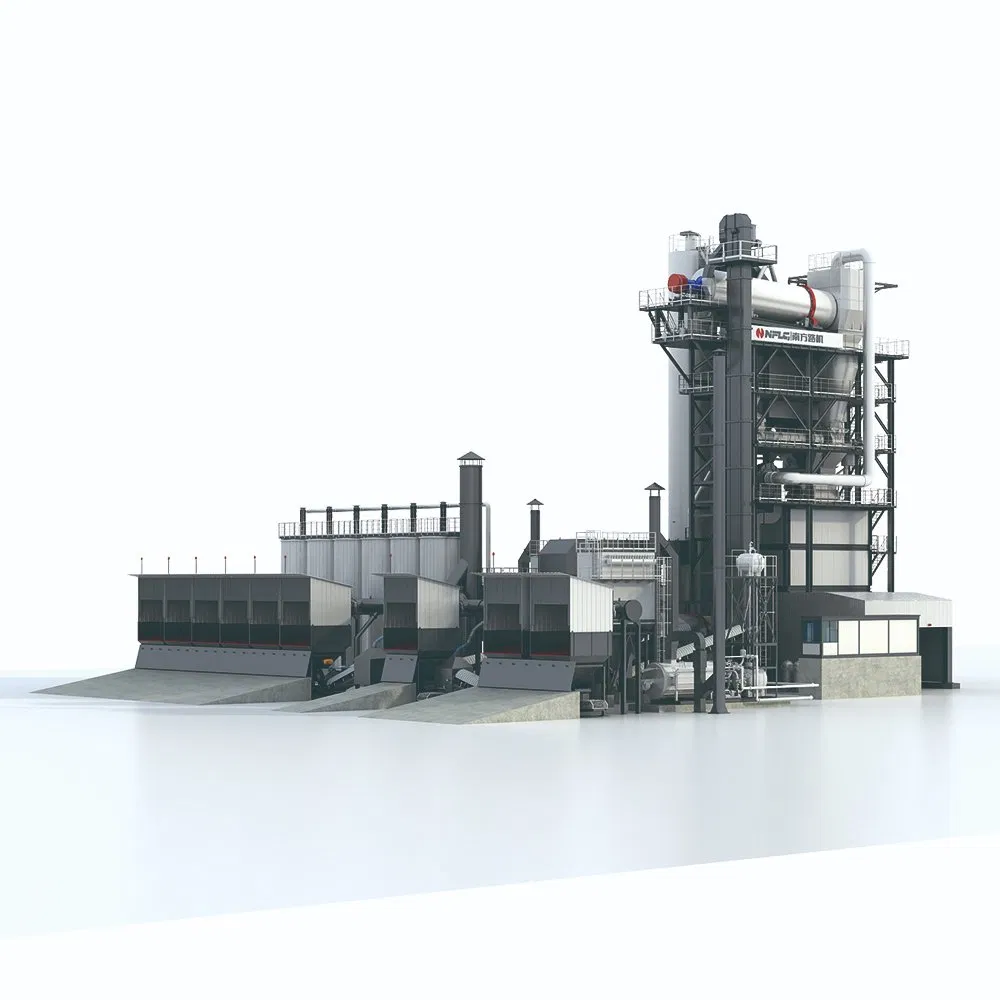

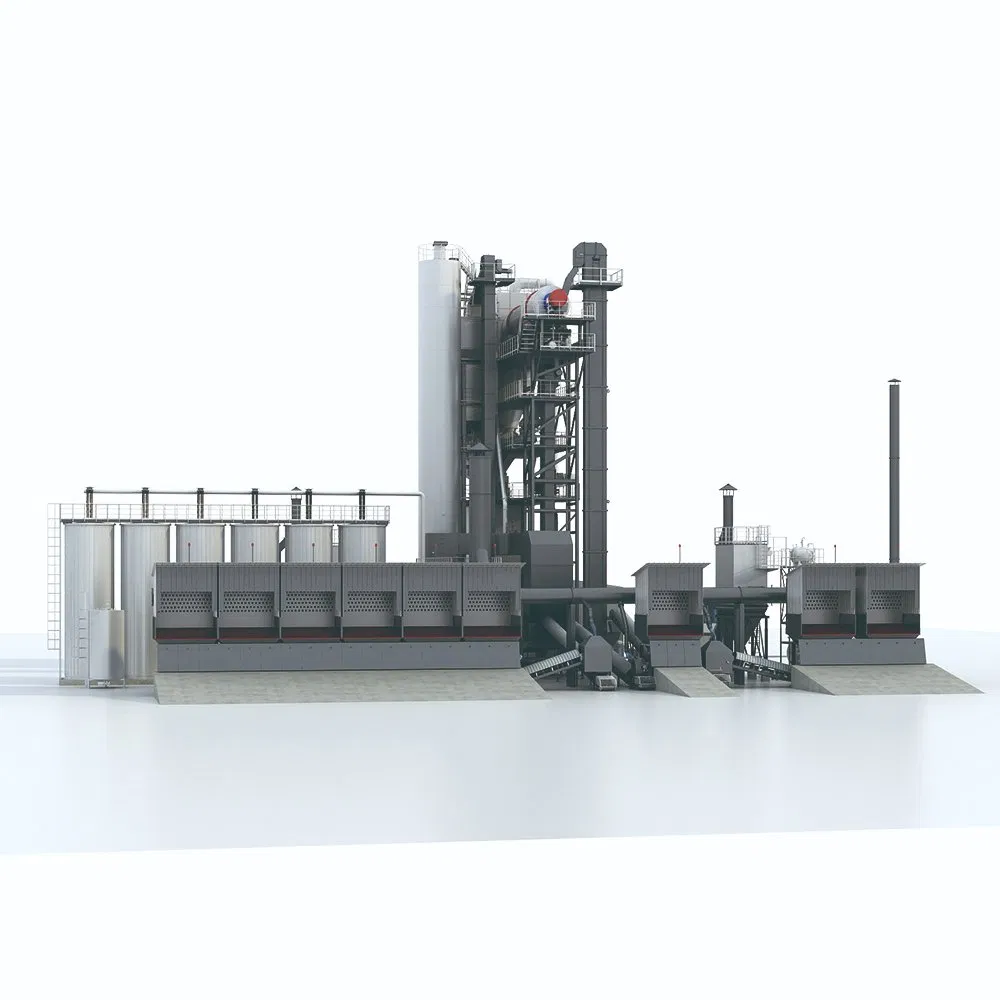

LBGZ integrated asphalt mixture mixing plant is a new type of asphalt mixing that uses hot mixing and regeneration as the main part. The equipment has an advanced structure and can achieve superior asphalt concrete regeneration functions.
Compared with the traditional structure, this new design can easily carry more admixtures, such as: regeneration cold additive production, anti-rutting agent, wood fiber, and colored asphalt, realizing a multi-function machine for urban commercial asphalt needs.
| Model | LBGZ2000 | LBGZ3000 | LBGZ4000 | LBGZ5000 |
|---|---|---|---|---|
| Cold material bin | 5 * 15m³ | 5 * 20m³ | 6 * 20m³ | 6 * 20m³ |
| Recycling cold bin | 2 * 9m³ | 2 * 9m³ | 2 * 9m³ | 2 * 9m³ |
| Dryer dimension | 2.25m * 9m | 2.5m * 10m | 2.8m * 11m | 2.9m * 12.5m |
| Max Capacity (5%) | 160t/h | 240t/h | 320t/h | 400t/h |
| Mixer capacity | 3t | 4t | 5t | 6.5t |
| Standard area | 40m * 36m | 46m * 44m | 49m * 47m | 50m * 47m |
| Control system | Cloud interconnection, dual-computer synchronous control system | |||
