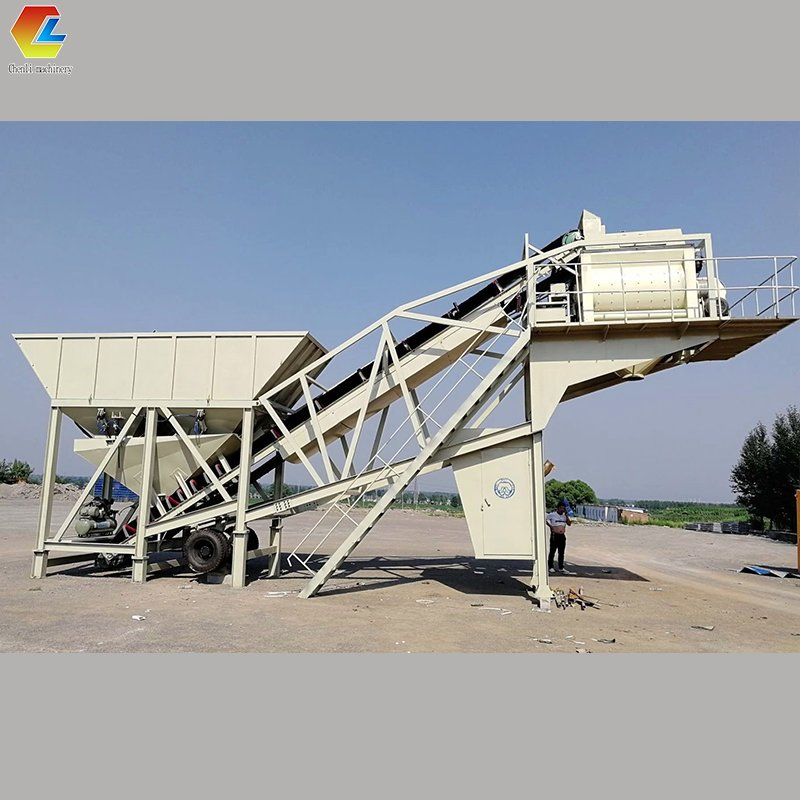

Wheel Type Concrete Mini Batching Plant Ready Mix Batch Plant for Sale

1 / 5

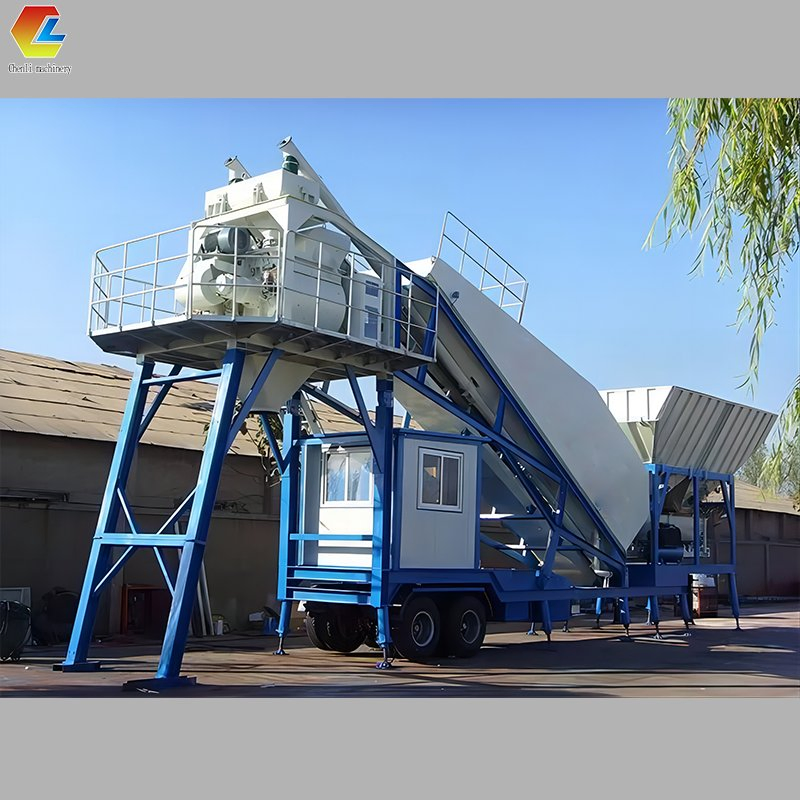

Wheel Type Concrete Mini Batching Plant Ready Mix Batch Plant for Sale

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

YHZS25/YHZS35/YHZS50/YHZS75/YHZS100

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Condition

New

Product Name

Mobile Concrete Plant

Concrete Mixer

Twin Shaft Horizontal Mixer/Vertical Planetary Mix

Control System

Automatic Computer Control

Power Type

Electric

Discharge Height

3.8m or Customized

Aggregate Hopper

4 Cbm * 2

🏗️

Product Description

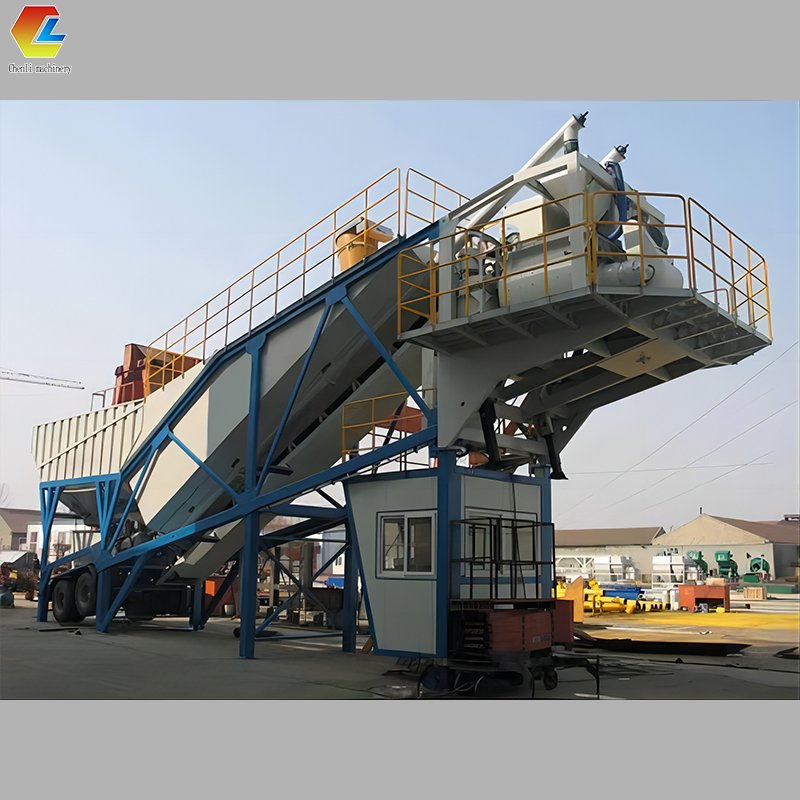

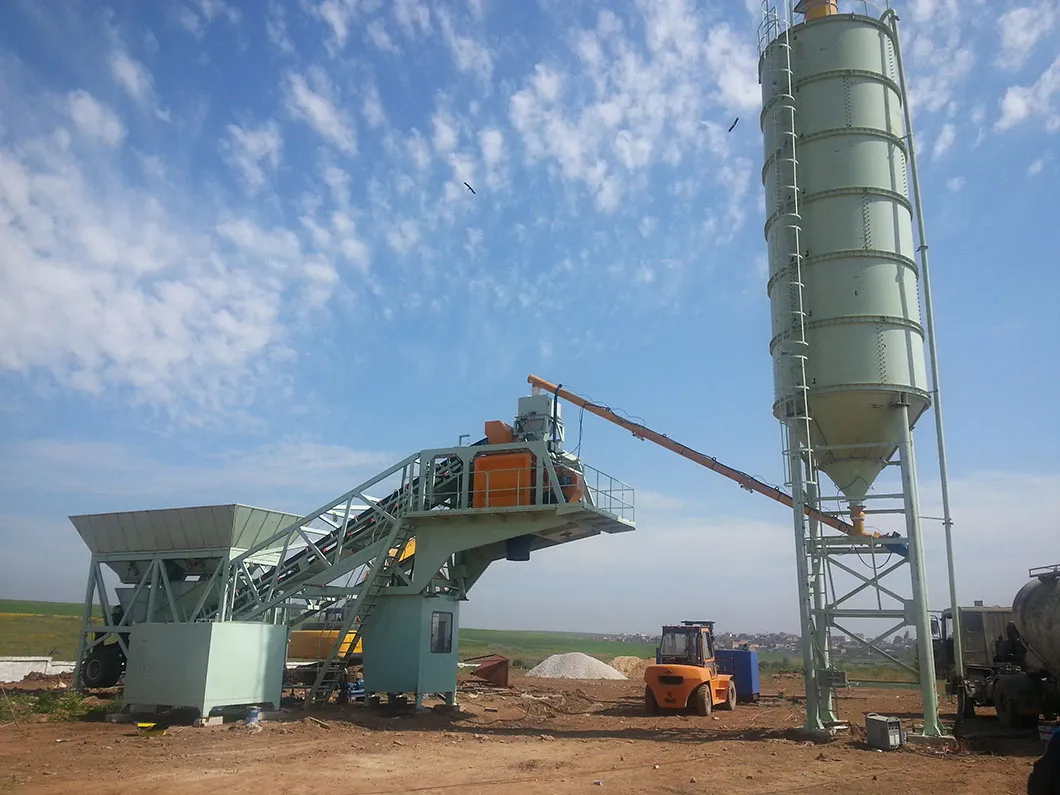

Concrete mini batching plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system into a trailer unit. It functions exactly the same as a stationary concrete batching plant in action processes, operation methods, and maintenance.

At the same time, the mobile concrete mini batching plant offers unique characteristics such as flexible movement, quick disassembly and assembly, and simplified storage management.

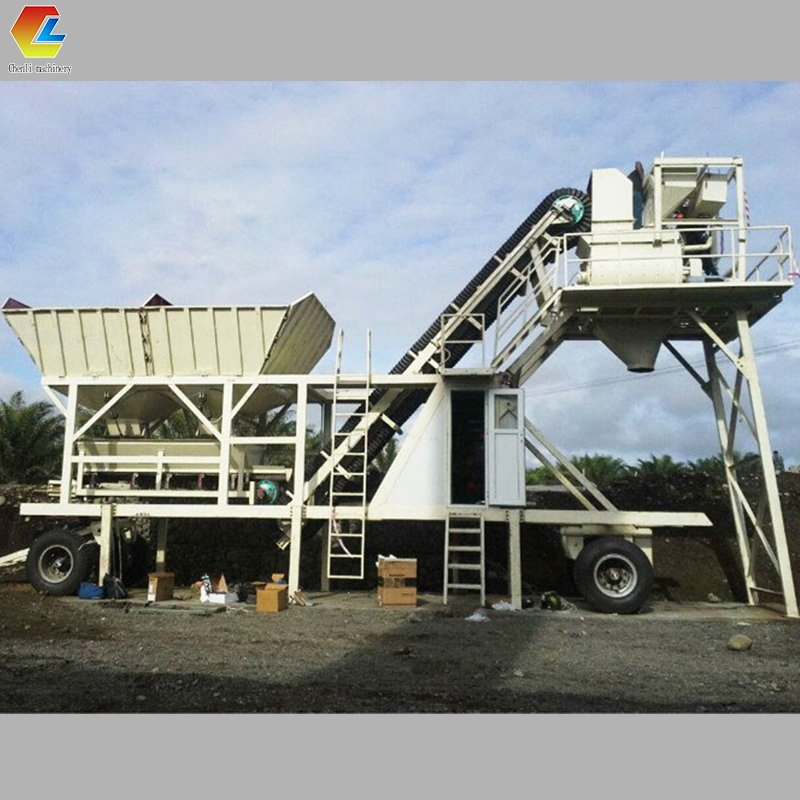

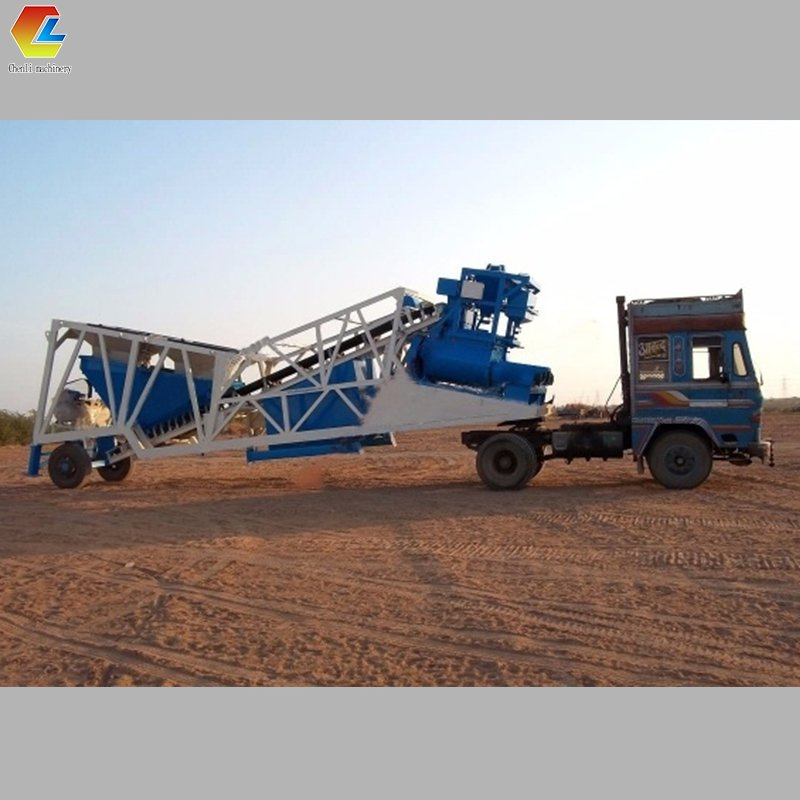

Currently divided into two types: Tractor type (complete front and rear axles) and Trailer type (rear axle only, front end on the tractor saddle).

⚙️

Core Components

Key Systems Included:

Package breaking machine
High-efficiency Screw conveyor
Precision Cement weighing Hopper
Large capacity Aggregate bin
Industrial Mixer (Twin Shaft)
Finished product belt conveyor
Centralized Control cabinet

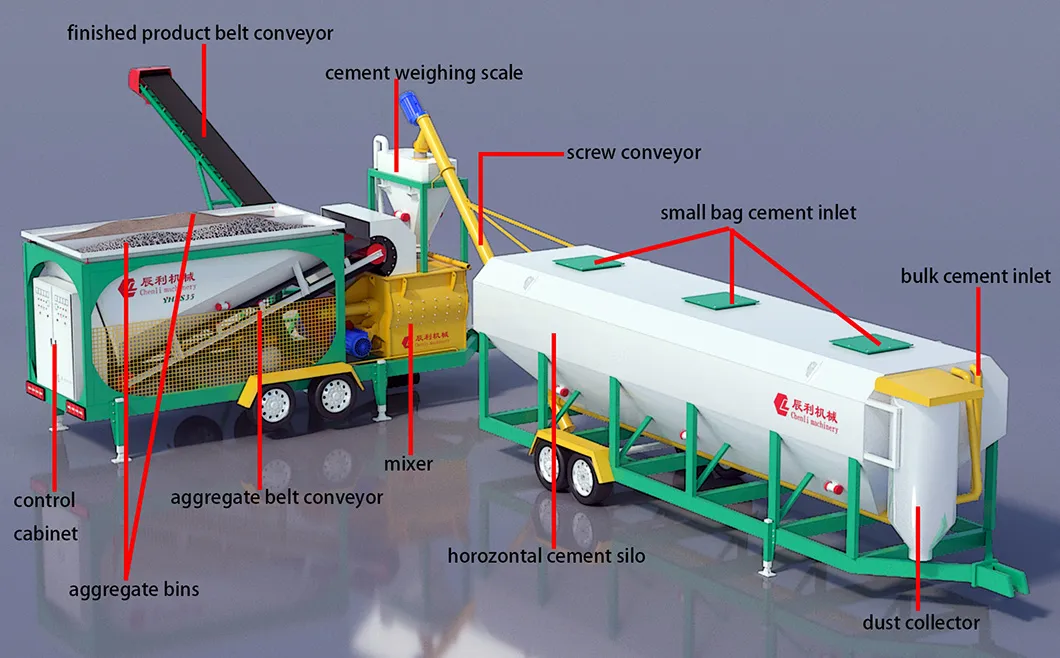

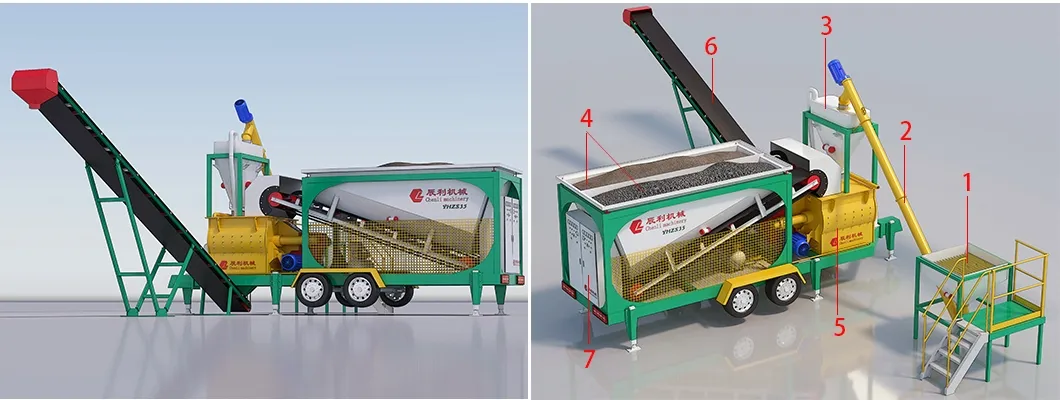

Solution 1 & 2 Overview:

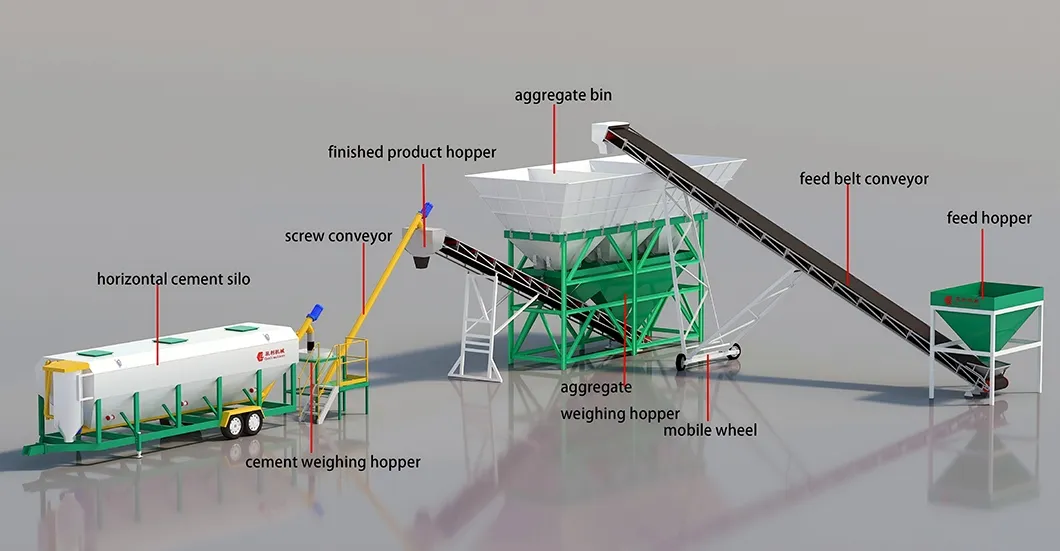

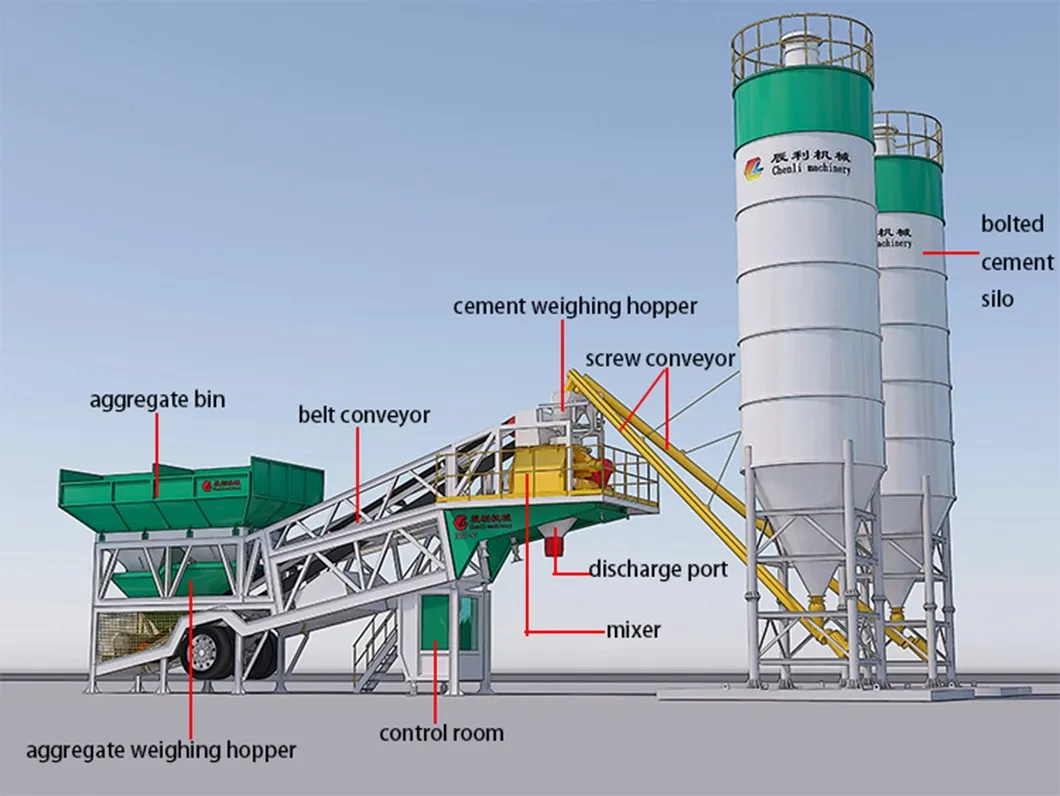

Solution 3 & 4 (Dry Mix):

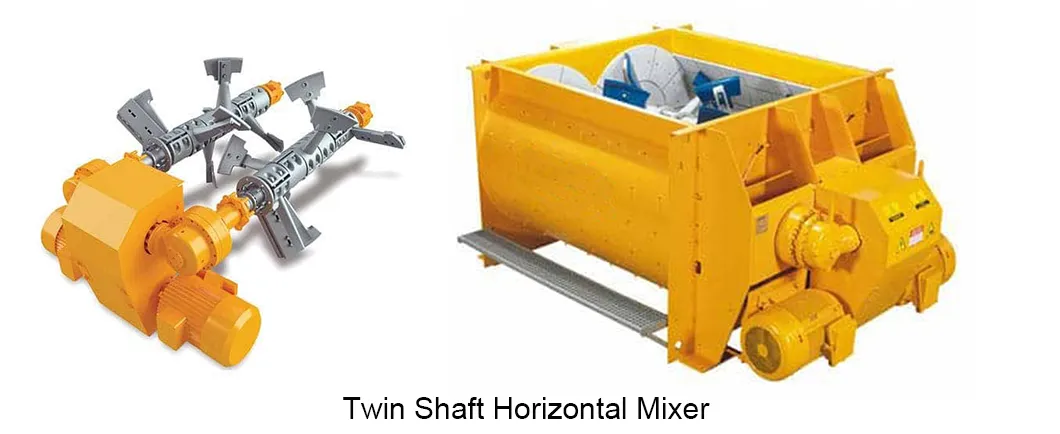

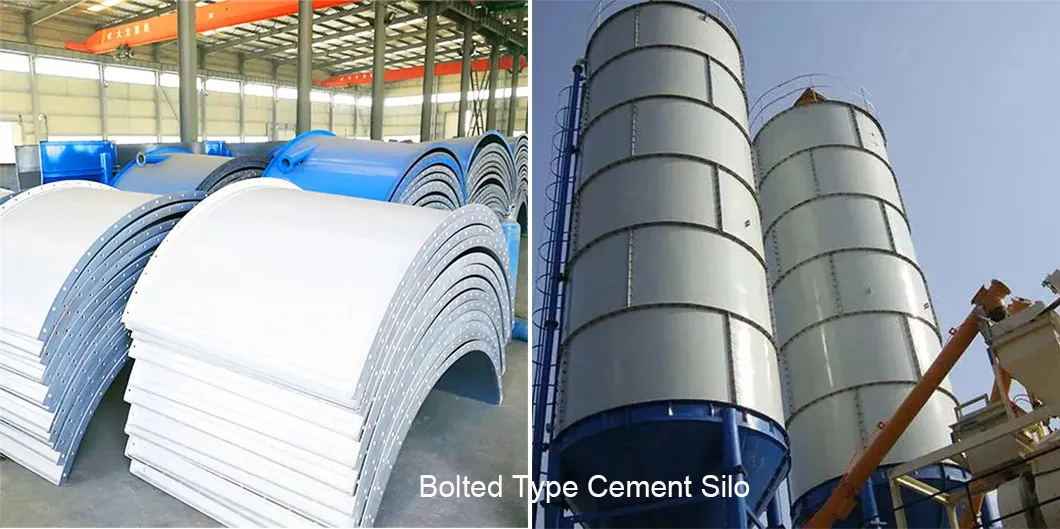

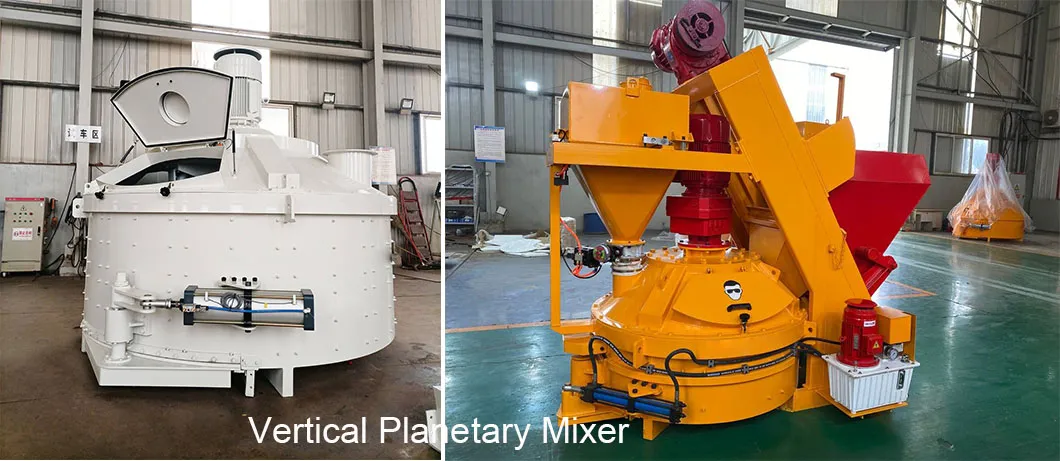

Related Equipment:

📋

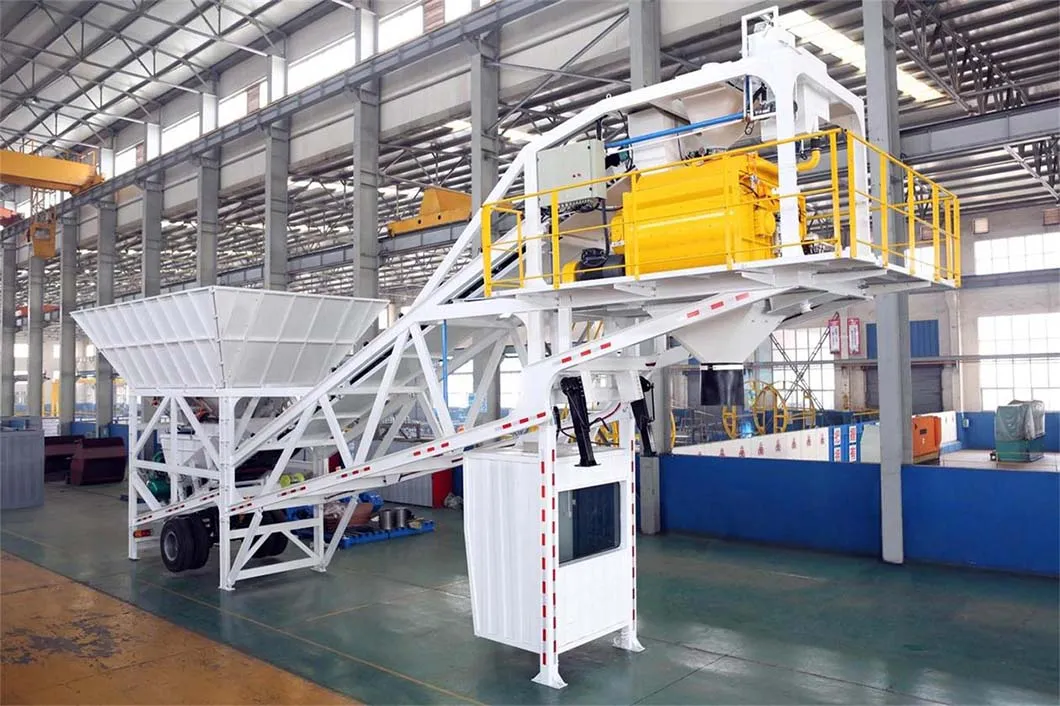

Technical Configuration

Model	YHZS35	YHZS50	YHZS75	YHZS100
Theoretical Productivity (m³/h)	35	50	75	100
Mixer Model	JS750	JS1000	JS1500	JS2000
Batching System	PLD1200	PLD1600	PLD2400	PLD3200
Discharge Height	3.8m	3.8m	3.8m	3.8m

Simple Series Configuration:

Model	JYHZS25	JYHZS35	JYHZS50
Main Units	PL800-1, JS500	PL1200-2, JS750	PL1600-3, JS1000
Measurement	Cumulative measurement for cement and fly ash
Control	Simple control system with time control for water

🛣️

Applications

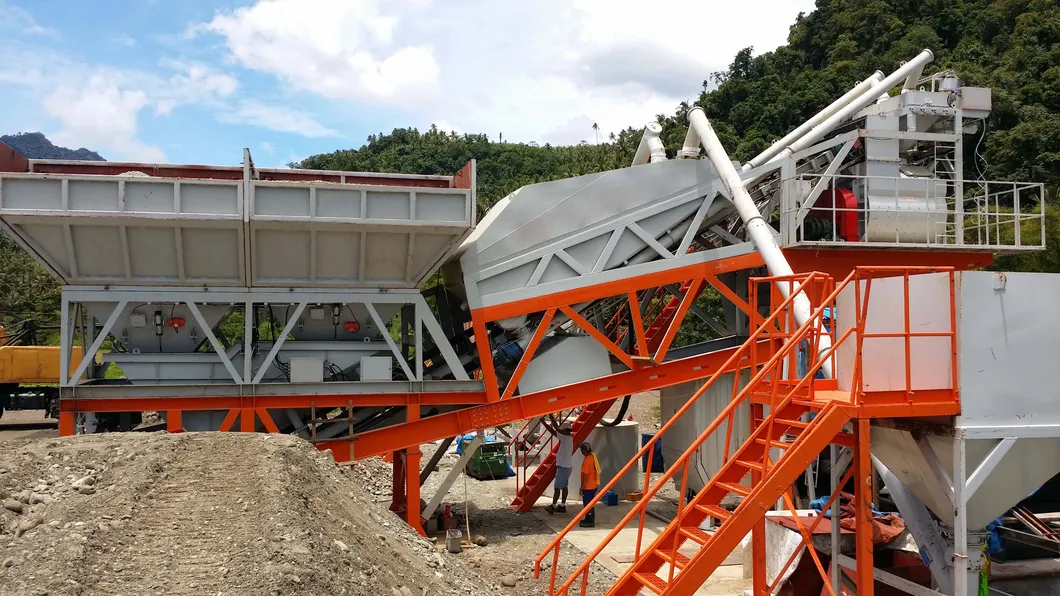

The mobile plant is suitable for construction projects that require frequent relocation, such as:

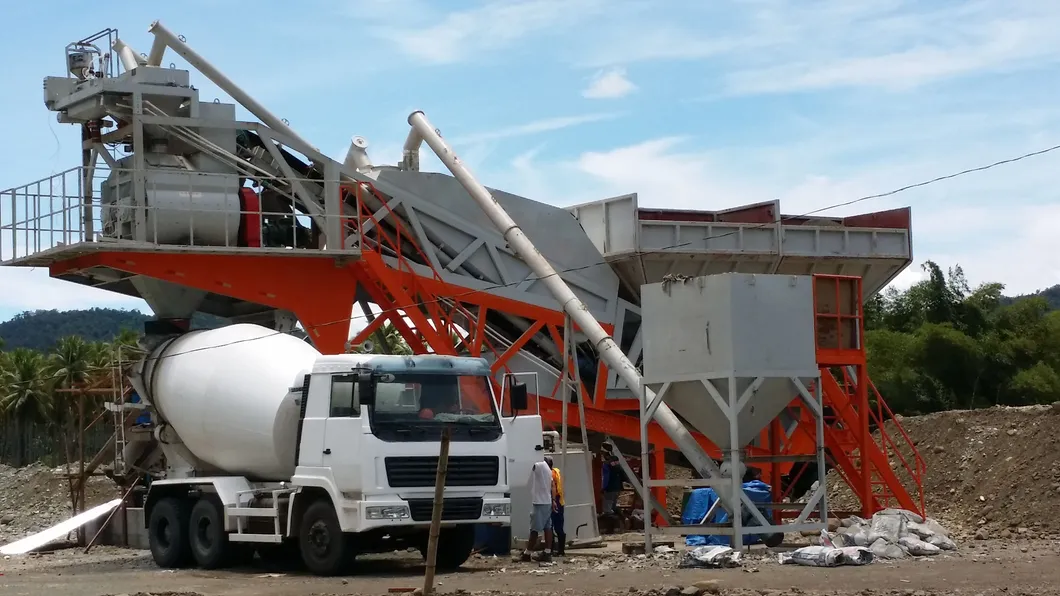

Highways and Expressways
Railway Foundations

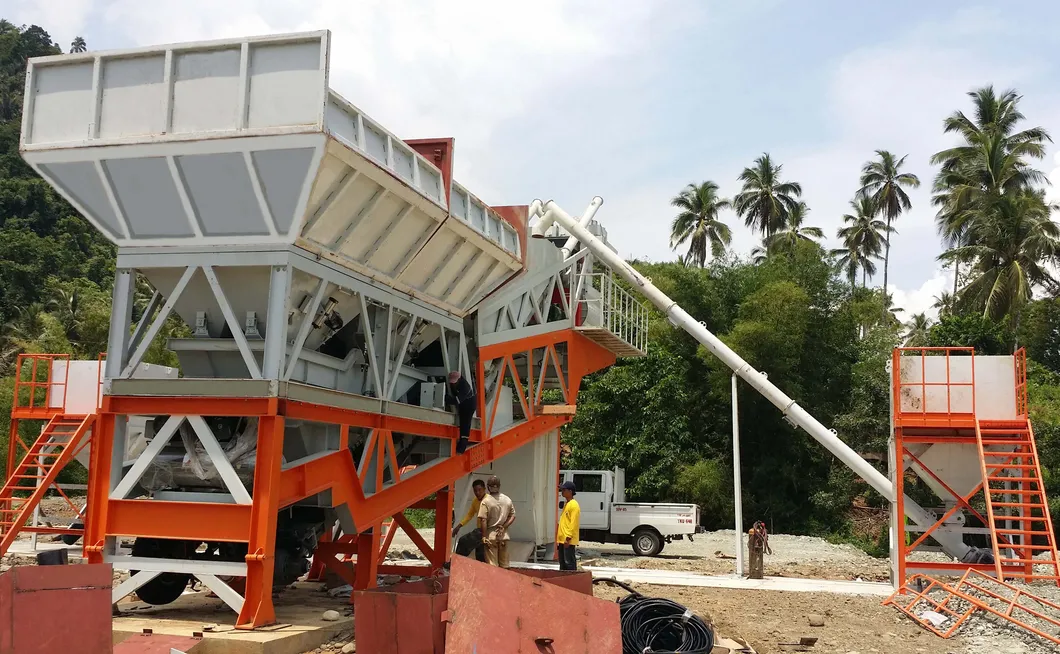

Bridge Construction
Port and Wharf Development
Water and Electricity Projects

🚢

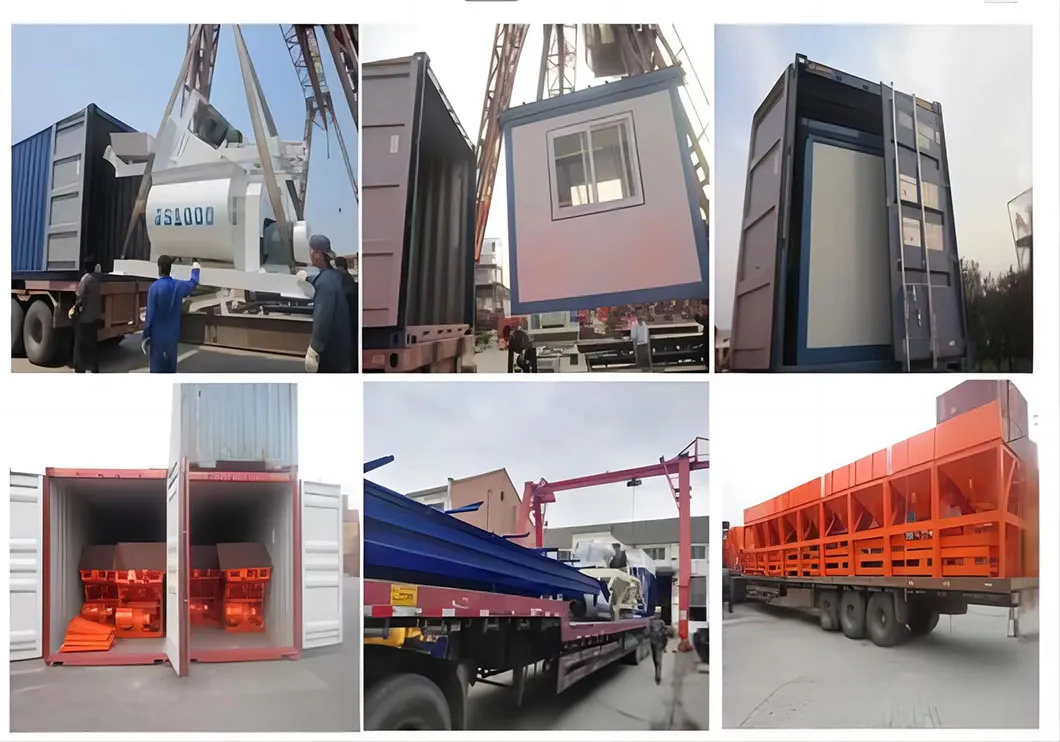

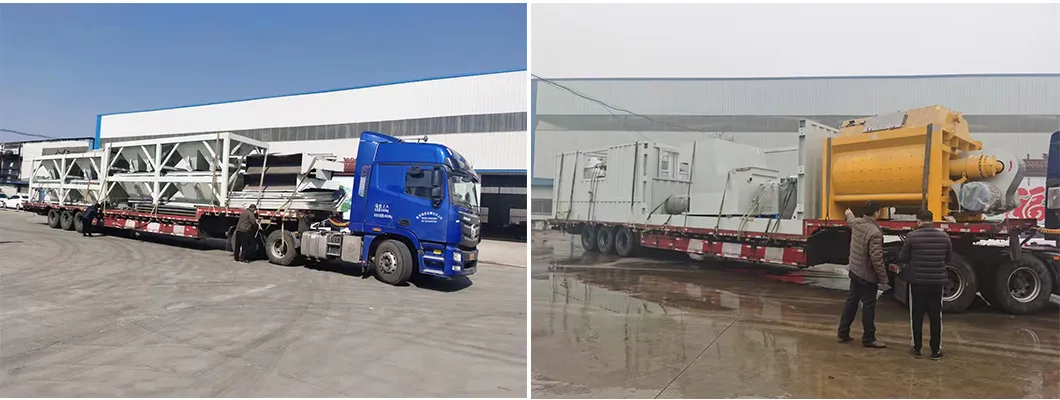

Packaging & Shipping

Designed with an overall modular concept, the structure is simple and compact, making it perfectly suitable for standard container transportation.

🏭

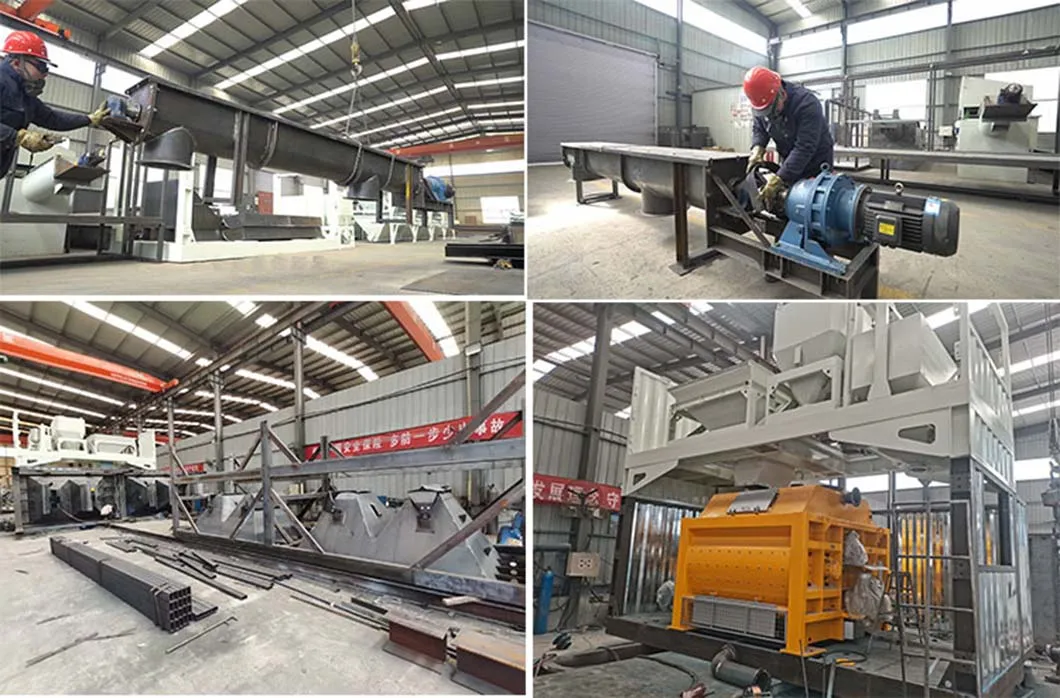

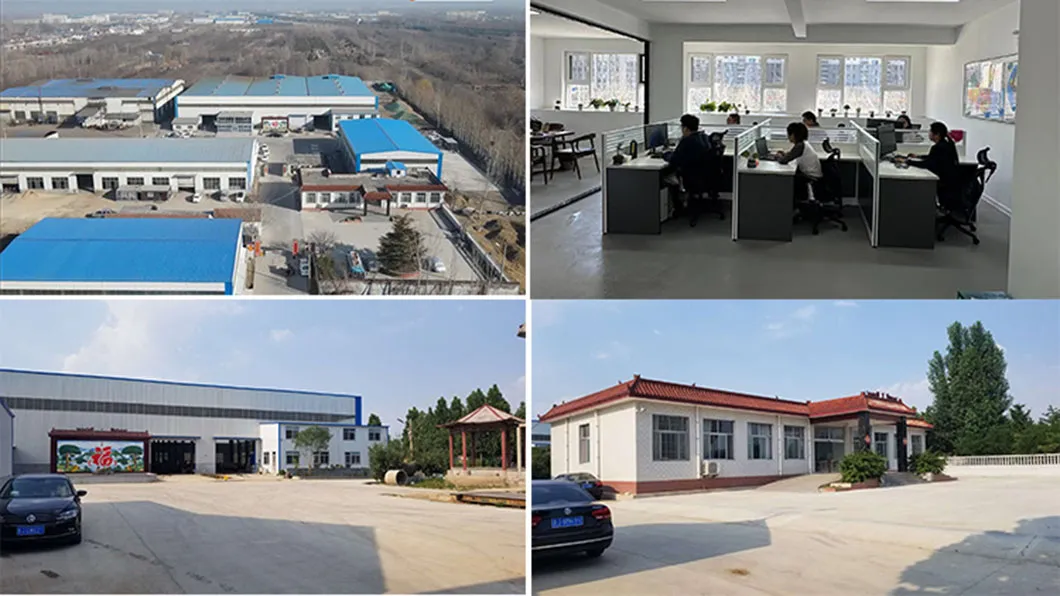

Workshop & Quality Control

We focus on the development and manufacturing of intelligent equipment for building materials. Committed to providing "practical, efficient, low-carbon, and environmentally friendly" products, our leading equipment includes small concrete batching plants, mortar production lines, and sand making machines.

🤝

Customer Trust

❓

Frequently Asked Questions

What is a mobile concrete batching plant?

It is a concrete production unit that integrates storage, weighing, mixing, and control systems into a trailer chassis, allowing for easy movement between construction sites.

What are the main types of mobile plants available?

Mainly divided into tractor type (with front and rear axles) and trailer type (rear axle only, front end rests on a tractor saddle).

What productivity options can I choose from?

Theoretical productivity ranges from 25m³/h for simple models up to 100m³/h for high-capacity YHZS series.

How is the equipment transported?

The modular design is specifically optimized for compact shipping, making it easy to fit into standard sea containers.

Which projects benefit most from this equipment?

Projects that require mobility, such as highway repair, railway construction, bridge building, and remote water conservancy projects.

Does it perform the same as a stationary plant?

Yes, all action processes, operation methods, and maintenance requirements are identical to those of a stationary batching plant.
