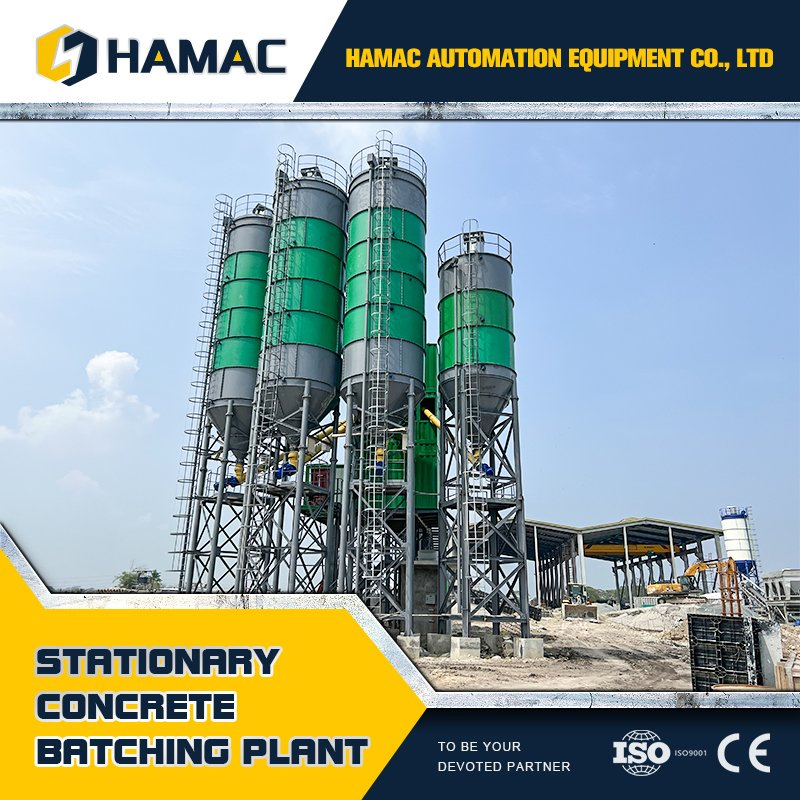

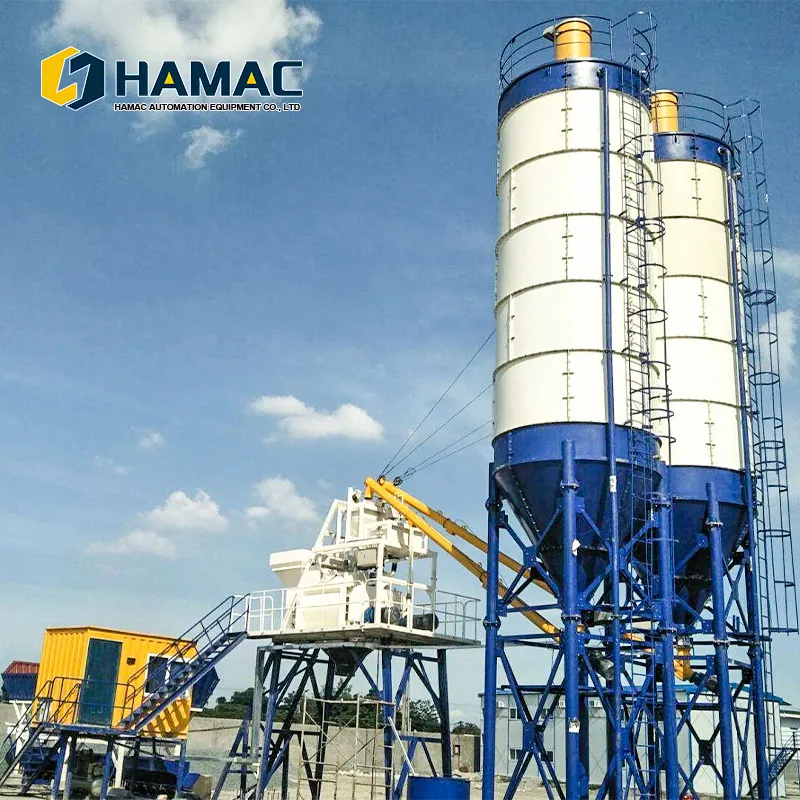

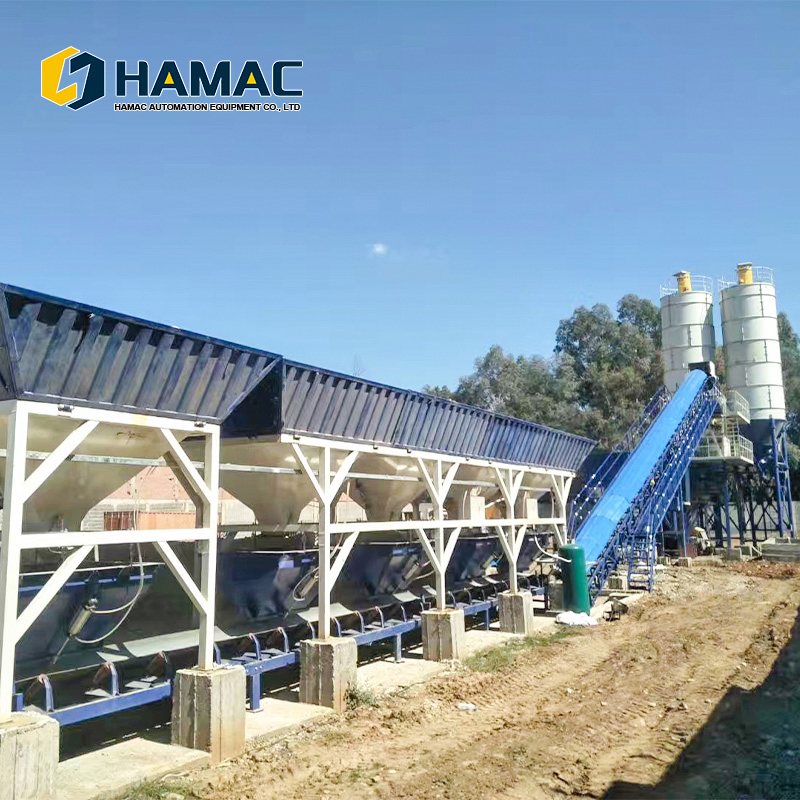

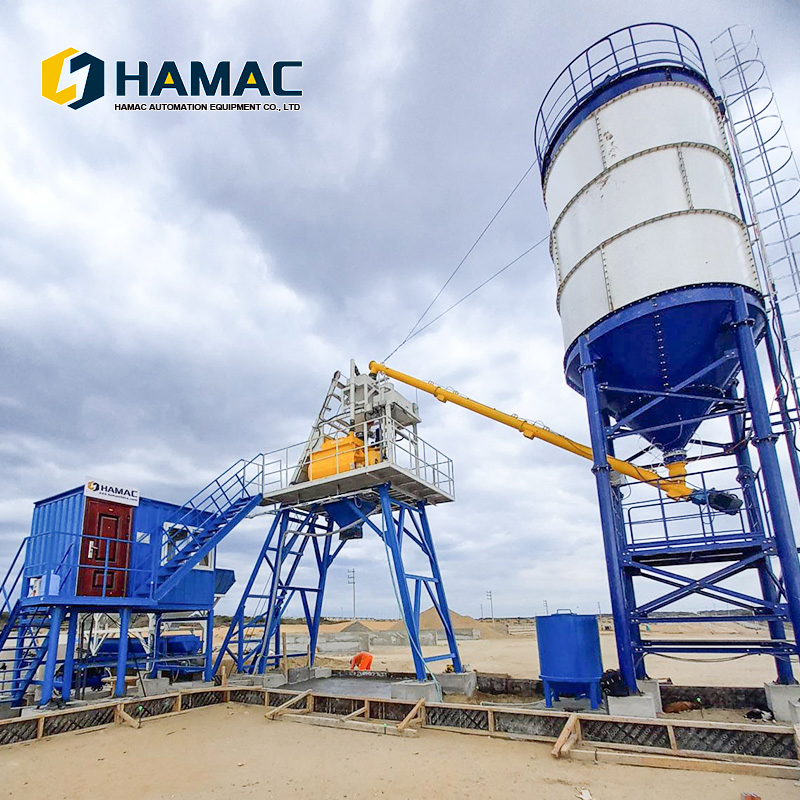

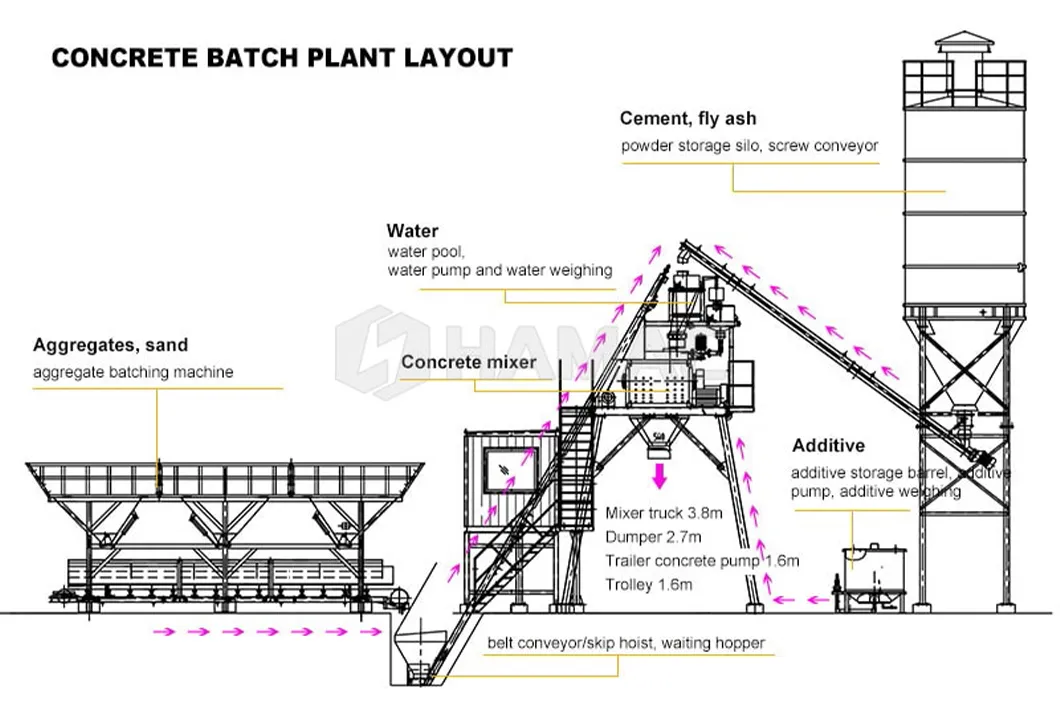

Concrete batching plant is a complete production line designed to produce high-quality ready-mixed concrete. The process involves precise weighing of aggregates, sand, cement, fly ash, additives, and water-reducing admixtures. Once weighed, these materials are fed into the concrete mixer for thorough blending. The entire procedure is managed via advanced computer software, ensuring consistency and efficiency. The finished concrete is typically transported to job sites using transit mixer trucks or discharged directly into concrete pumps for high-rise construction.

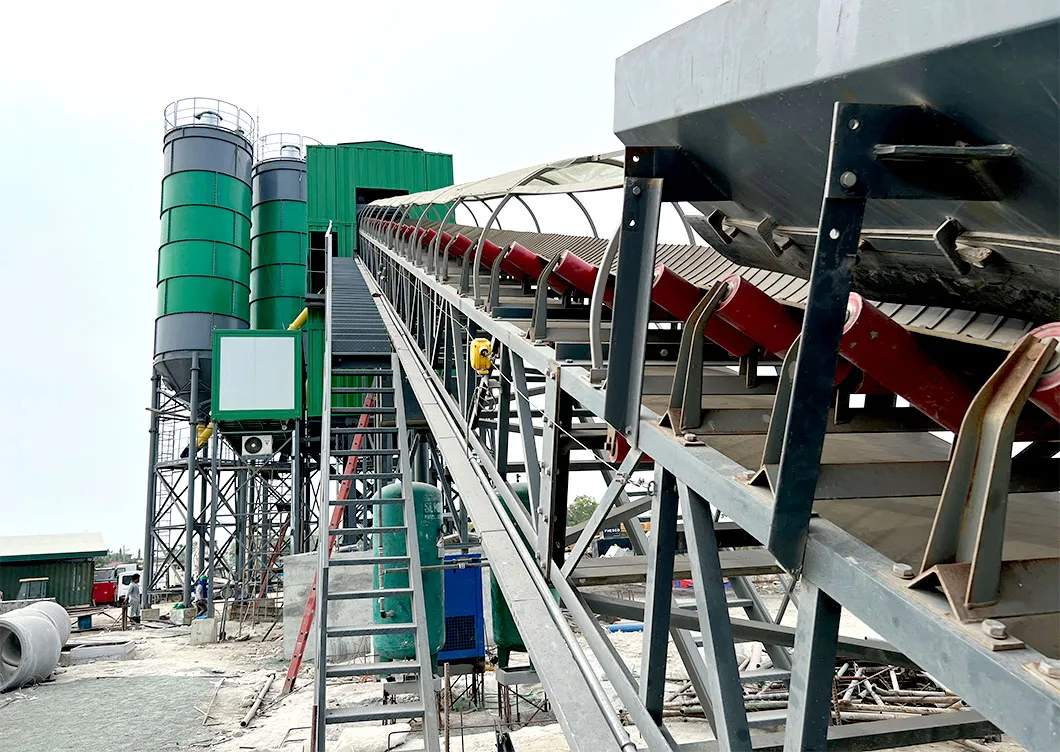

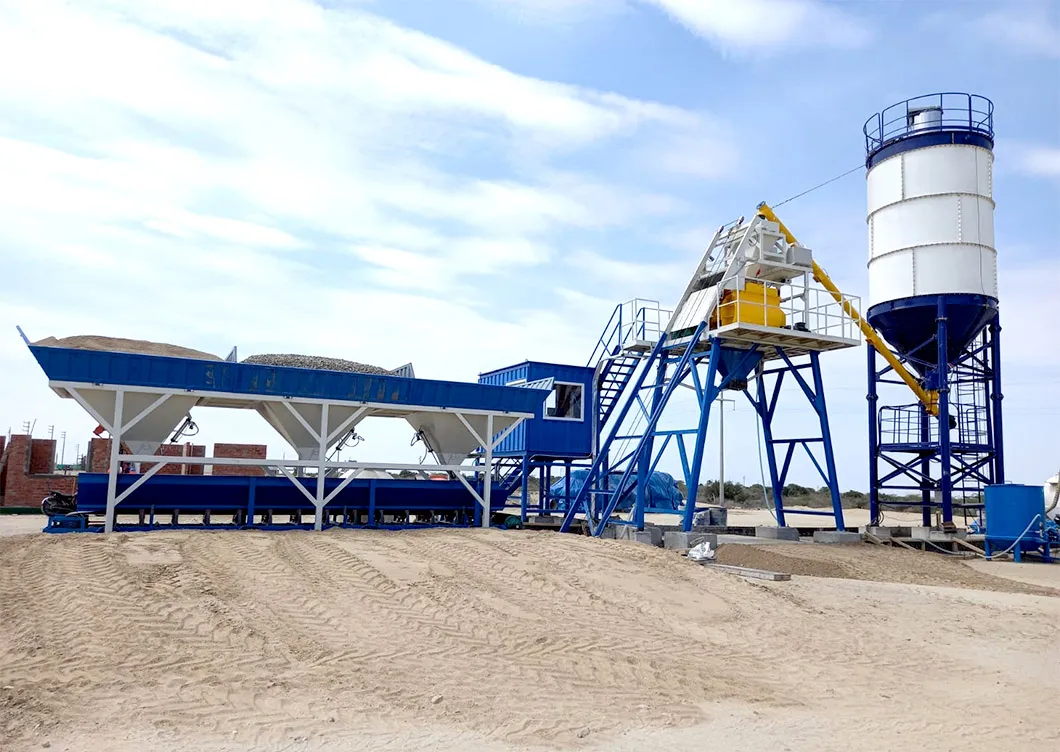

Left: Belt Conveyor Type Batching Plant | Right: Skip Hoist Type Batching Plant
| Technical Data | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
|---|---|---|---|---|---|---|---|---|
| Theoretical capacity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer model (m3) | 0.5 | 0.75 | 1.0 | 1.0 | 1.5 | 1.5 | 2.0 | 3.0 |
| Batching system | PLD1600 | PLD1600 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 |
| Max aggregate size(mm) | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 |
| Aggregate Precision | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cement/Water Precision | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
