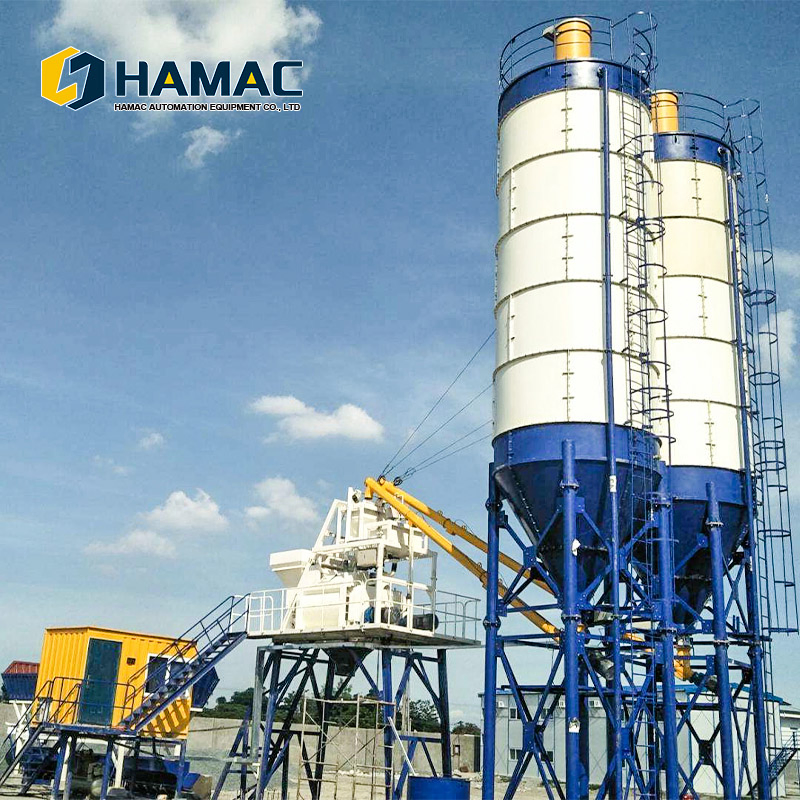

3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
1 / 5
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System
3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System

3 Bin Batch Type Concrete Batching Plant Stationary Automated Batching Systems Aggregate Dosing System

Customization: Available
Warranty: 1 Year
Type: Concrete Mixing Plant
Send Inquiry

Product Description

Basic Information
Model NO.
HZS75
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
50-240m³/H
Feeding Height
4100mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Customizable
Mixer Model(M3)
0.5-4.0
Discharging Height
4100mm
Max Aggregates Size
60(80)mm
Product Description
Concrete Batching Plant System

A concrete batching plant is a complete production line designed to produce high-quality ready-mixed concrete. The process involves precise weighing of aggregates, sand, cement, fly ash, additives, and water. Once weighed by the automated system, these materials are fed into the concrete mixer for thorough blending.

The entire procedure is managed via sophisticated computer software, ensuring consistency and quality. The finished concrete is then discharged into transit mixer trucks or directly into concrete pumps for site delivery.

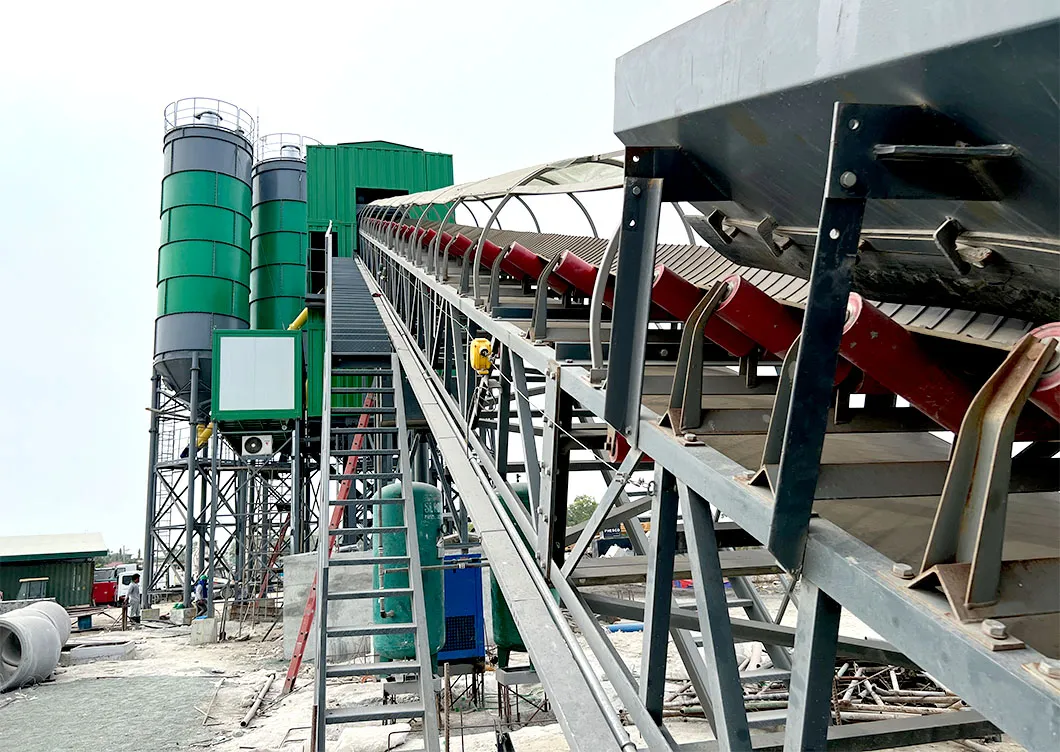

Belt Conveyor Type

Belt Conveyor Type

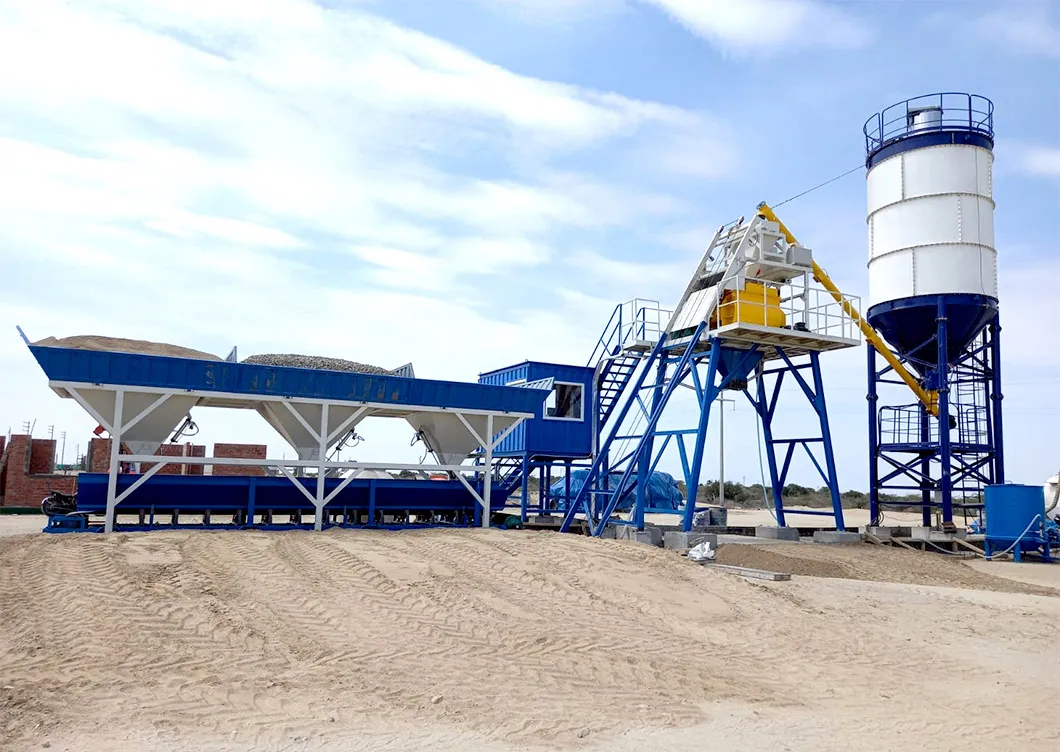

Skip Hoist Type

Skip Hoist Type

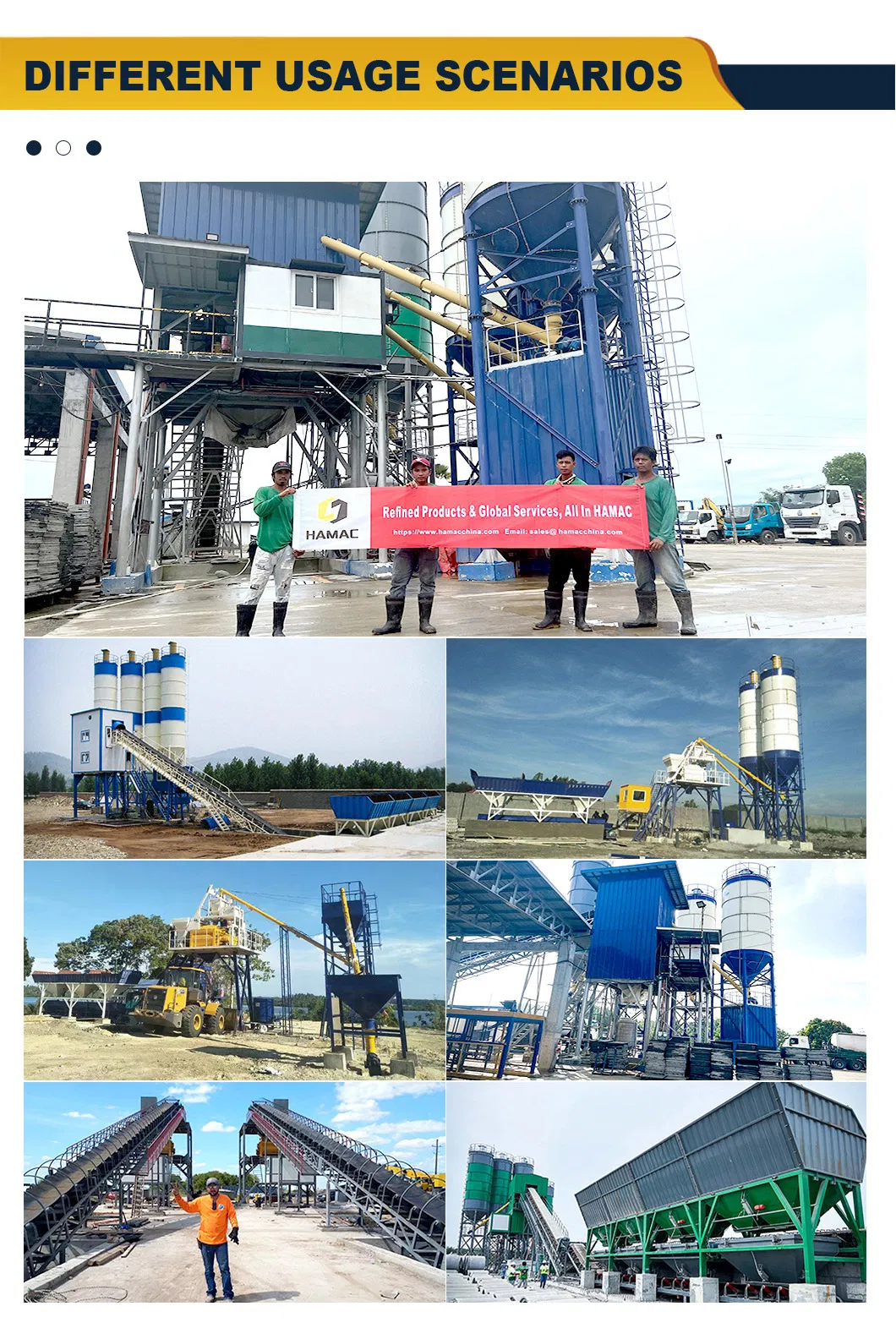

Batching Plant Details

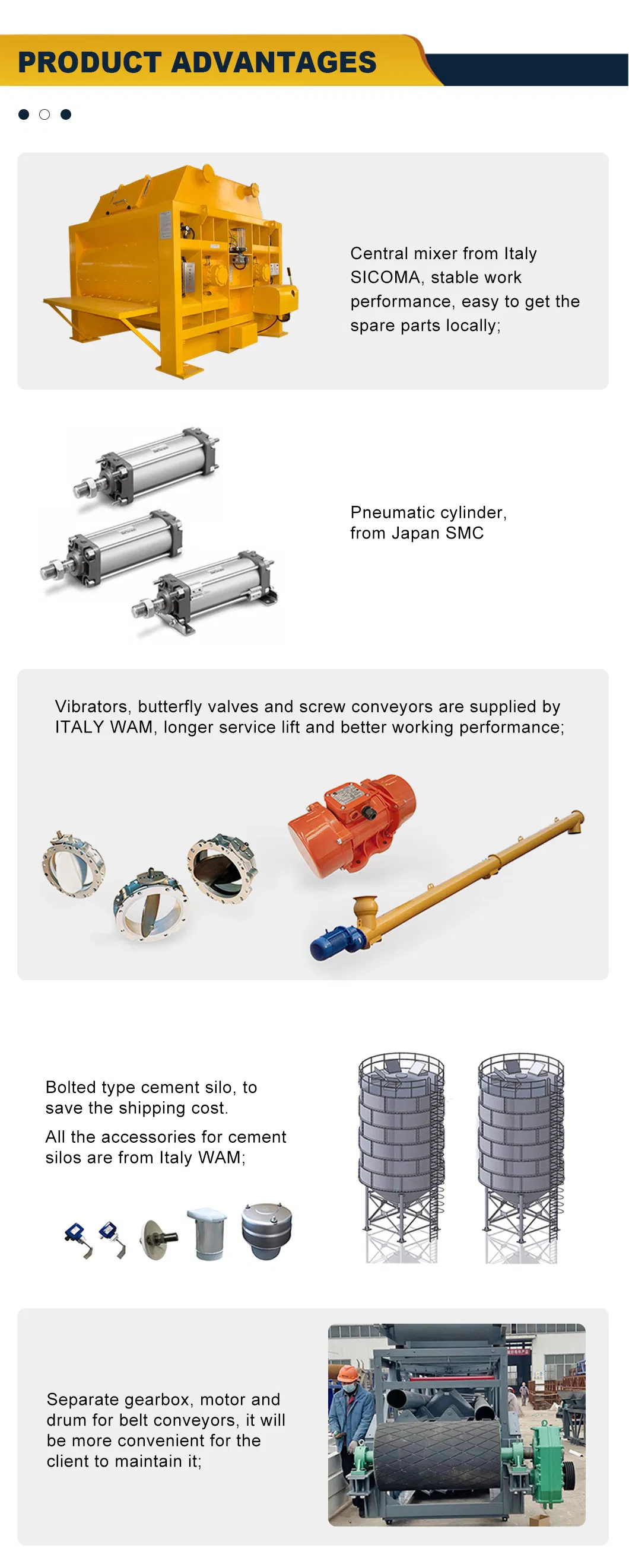

System Components
Technical Specifications
Technical Data HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS180 HZS240
Theoretical Capacity (m³/h) 25 35 50 60 75 90 120 180 240
Mixer Model (m³) 0.5 0.75 1.0 1.0 1.5 1.5 2.0 3.0 4.0
Batching System PLD800 PLD1200 PLD1600 PLD1600 PLD2400 PLD2400 PLD3200 PLD4800 PLD6400
Discharging Height (mm) 4100 4100 4100 4100 4100 4100 4100 4100 4100
Aggregate Precision ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Cement/Water Precision ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%

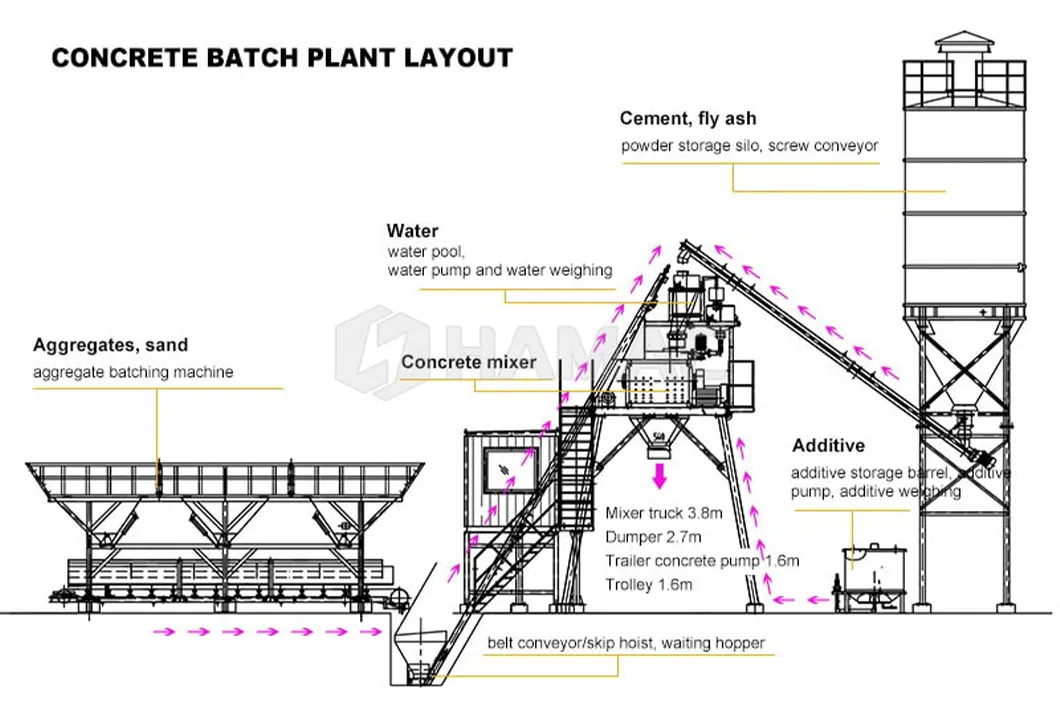

Operational Layout
Frequently Asked Questions
How does a concrete batching plant work?
The plant operates by weighing aggregates, cement, and water separately using an automated weighing system. These materials are then transferred to a central mixer where they are blended into a uniform concrete mixture controlled by integrated software.
What are the main components of the plant?
Key parts include the aggregate batching machine, belt conveyor or skip hoist, central concrete mixer, weighing systems for various materials, pneumatic system, cement silos, screw conveyors, and the automatic control room.
What types of batching plants are available?
Generally, there are three types: Stationary plants for long-term projects, Mobile plants for easy relocation, and Dry batch plants which do not utilize a central mixer.
What is the production capacity range?
Our systems offer a wide range of productivity, from small-scale units producing 25m³/h to large industrial setups capable of 240m³/h.
Are the plants certified for international standards?
Yes, the equipment is manufactured to meet high-quality standards and carries ISO9001:2000 and CE certifications.
Can the color and discharging height be customized?
The exterior color is fully customizable to meet client preferences. While the standard discharging height is 4100mm, it can often be adjusted based on specific project requirements.
