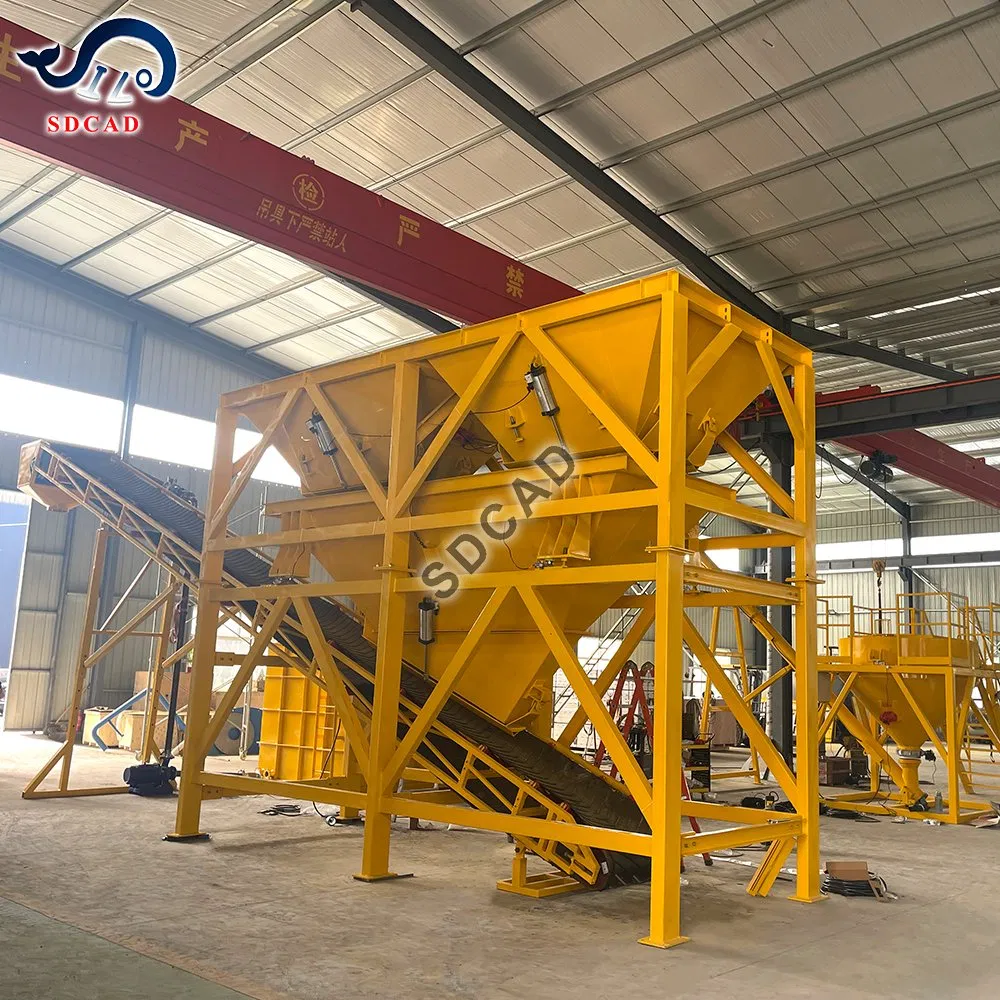

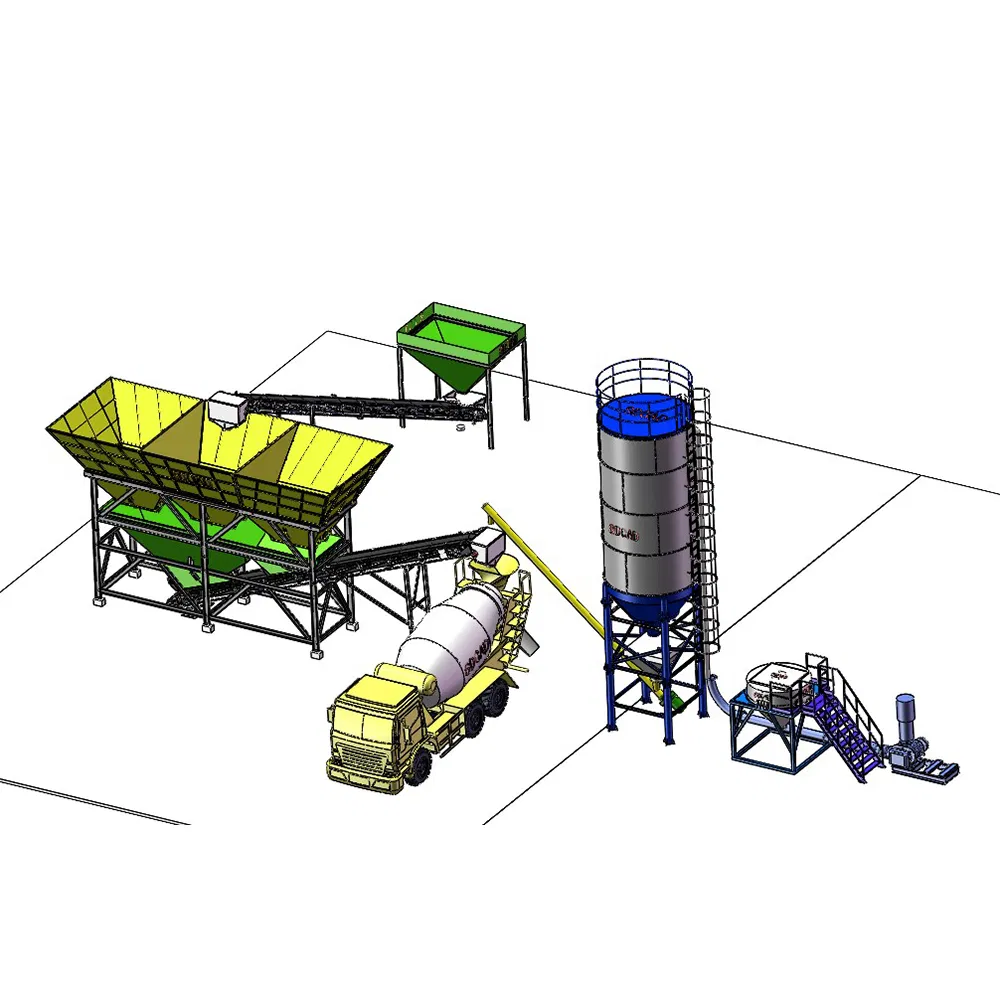

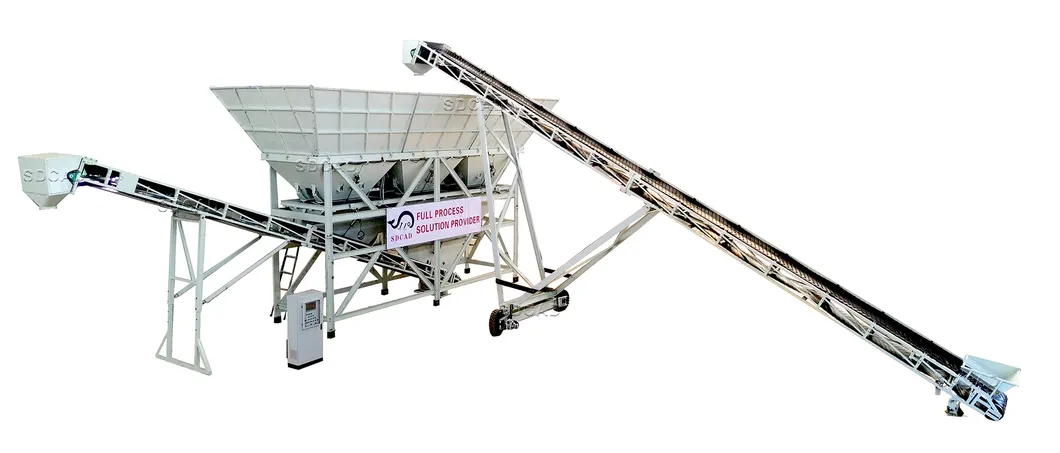

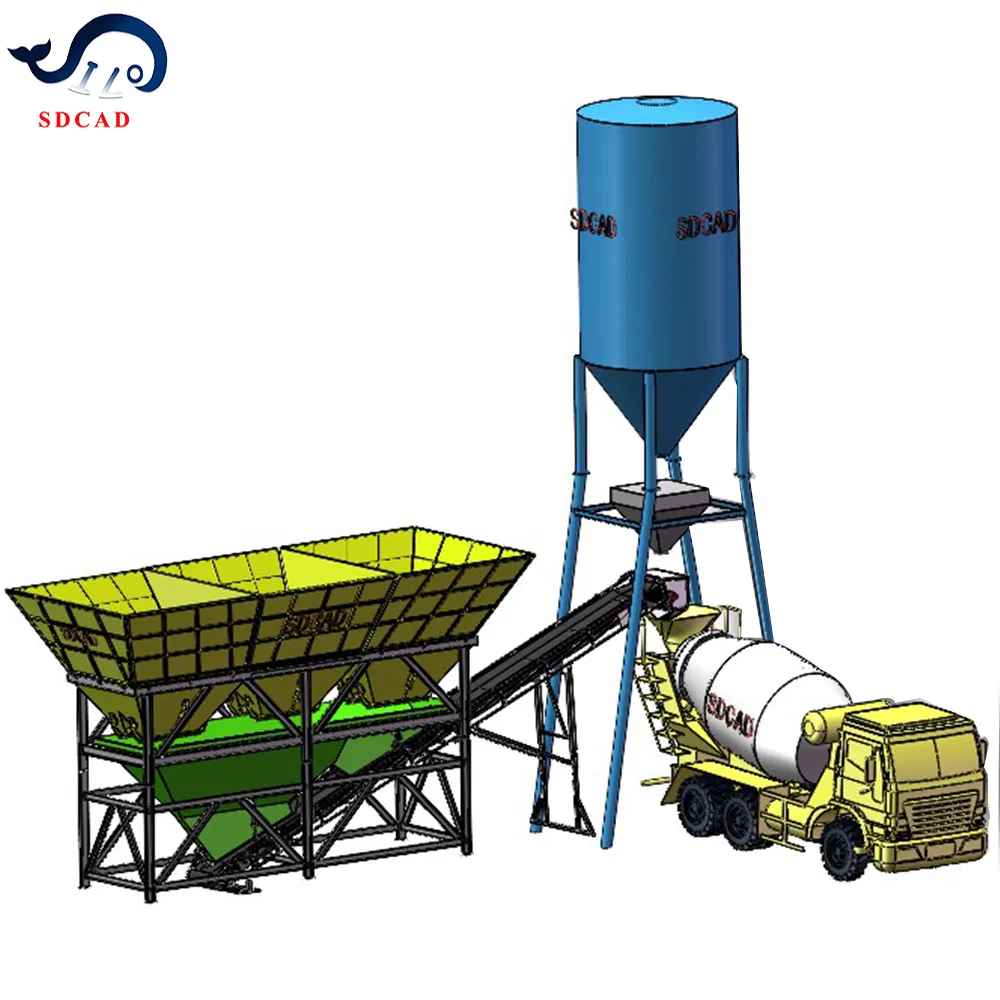

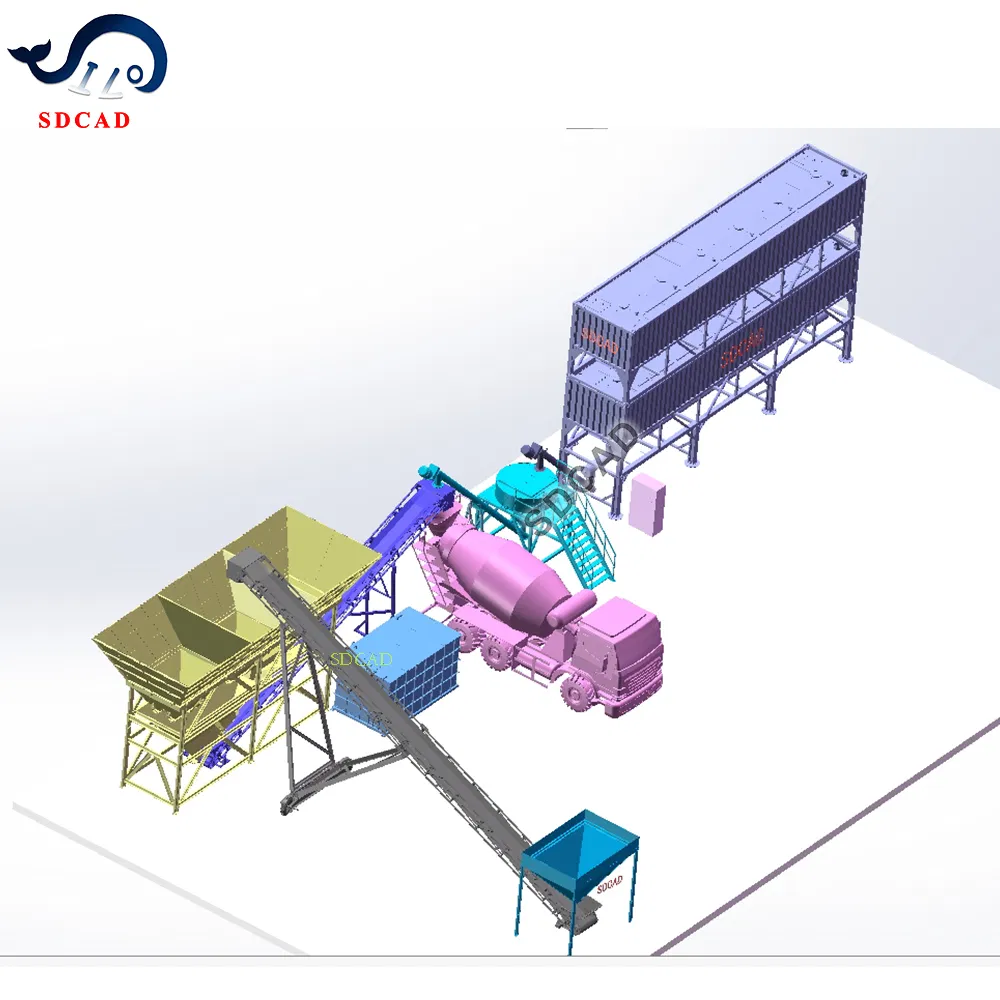

The Dry Mixing Station is specialized equipment that combines various ingredients to form concrete. These inputs include water, air, admixtures, sand, aggregate, fly ash, silica fume, slag, and cement.

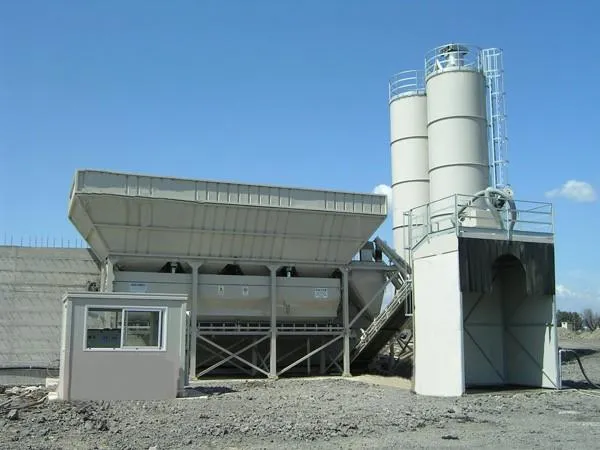

This dry mixing plant is widely utilized in small and medium construction projects, including roads, bridge projects, and concrete prefabrication factories.

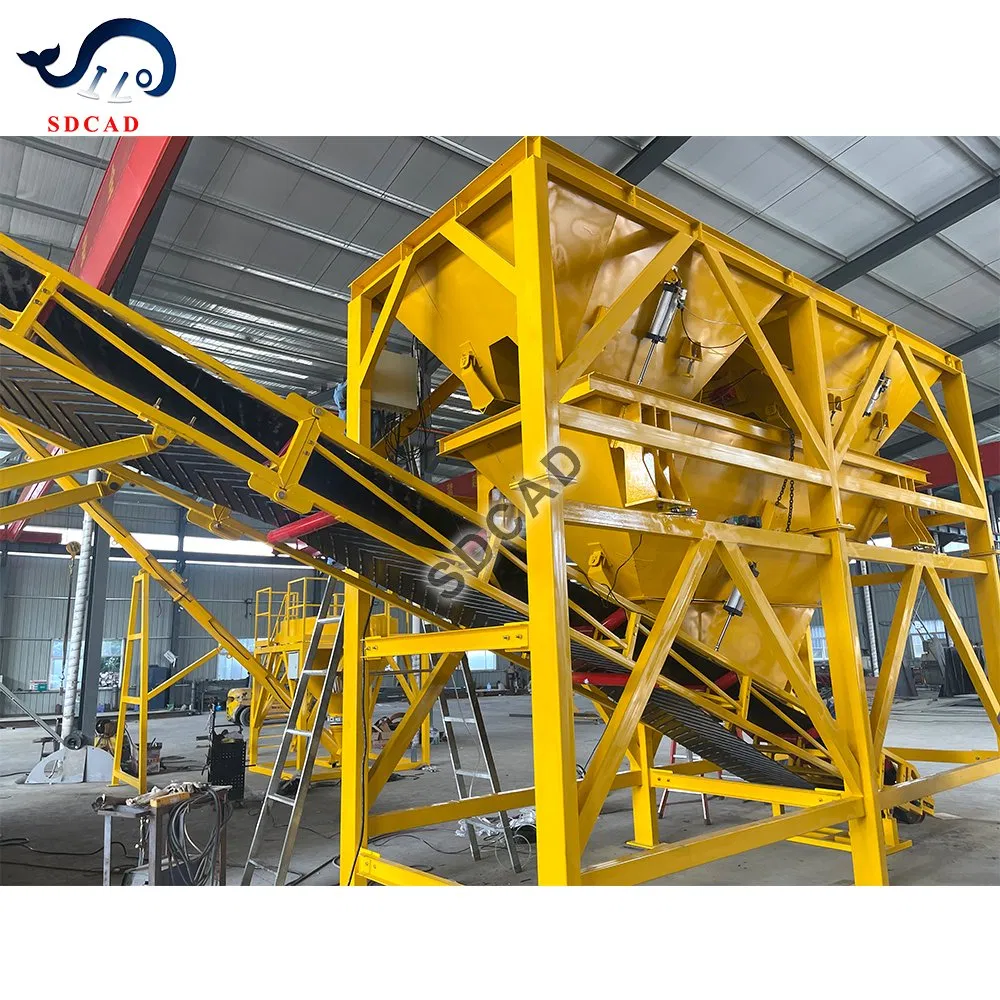

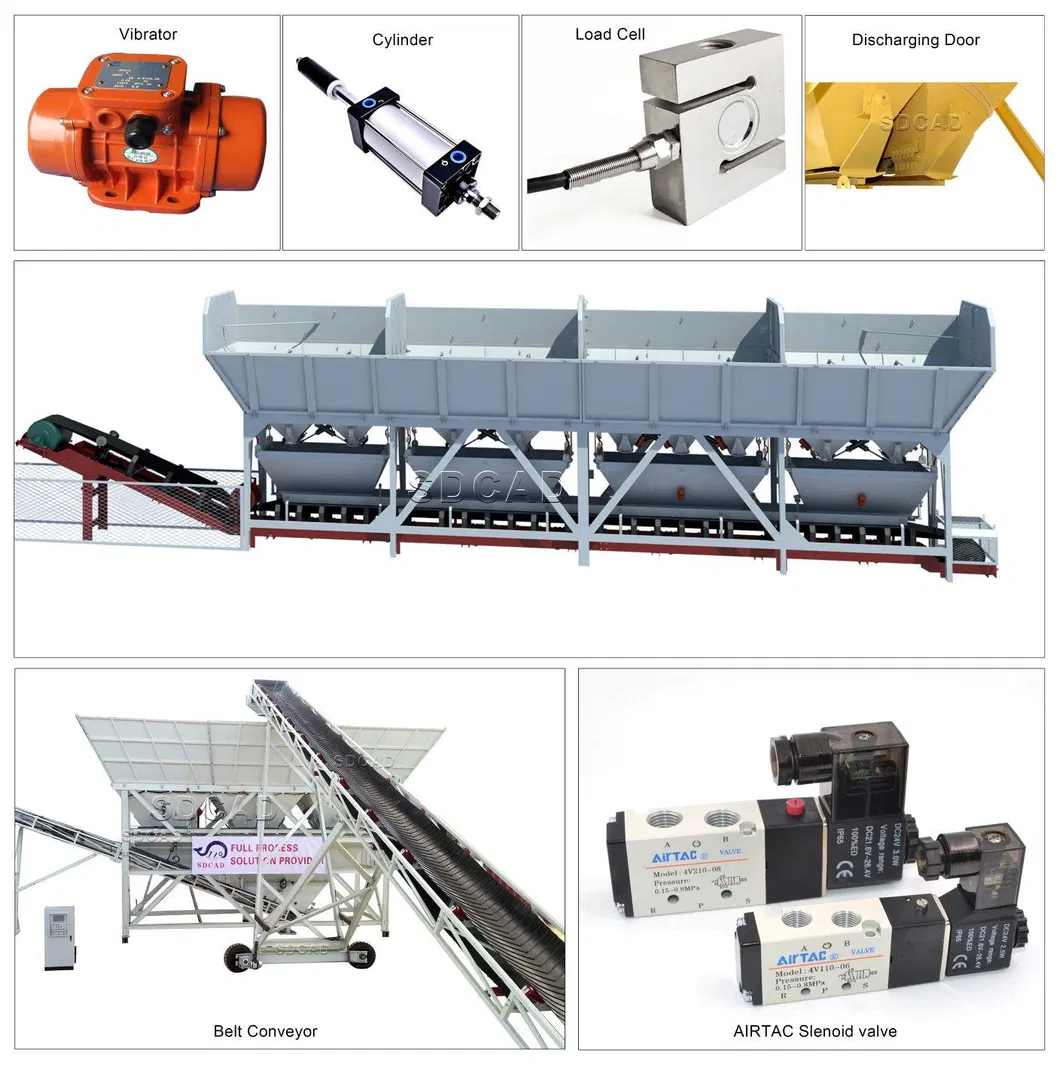

| Model Parameter | Aggregate Batching Machine Details |
|---|---|
| Delivery capacity | 100m³/h |
| Volume | 3*20m³ |
| Weighing way | Accumulation weighing |

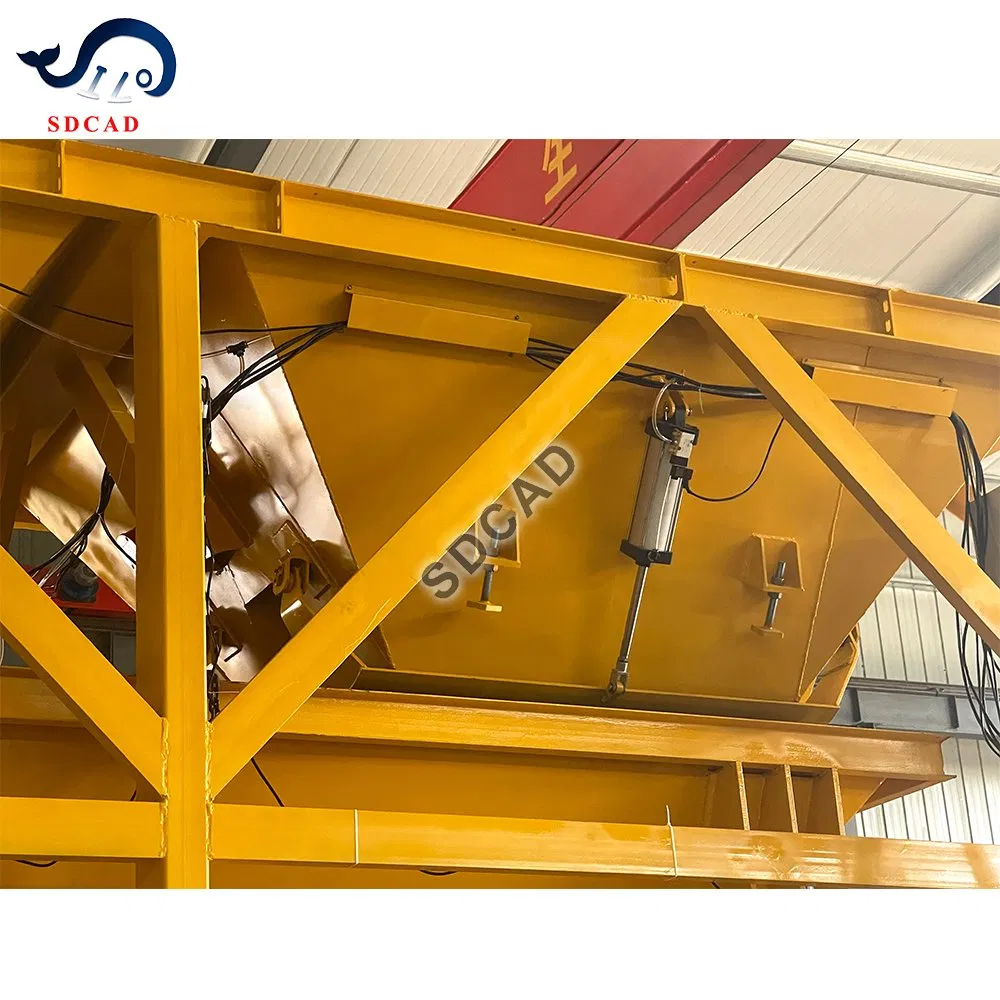

| Weighing hopper | 15m³ (±2% accuracy) |
| Air compressor | 5.5KW |
| Belt conveyor | Herringbone belt, Width 800mm, Power 5.5kw |
| Control system | PLC with touch screen |

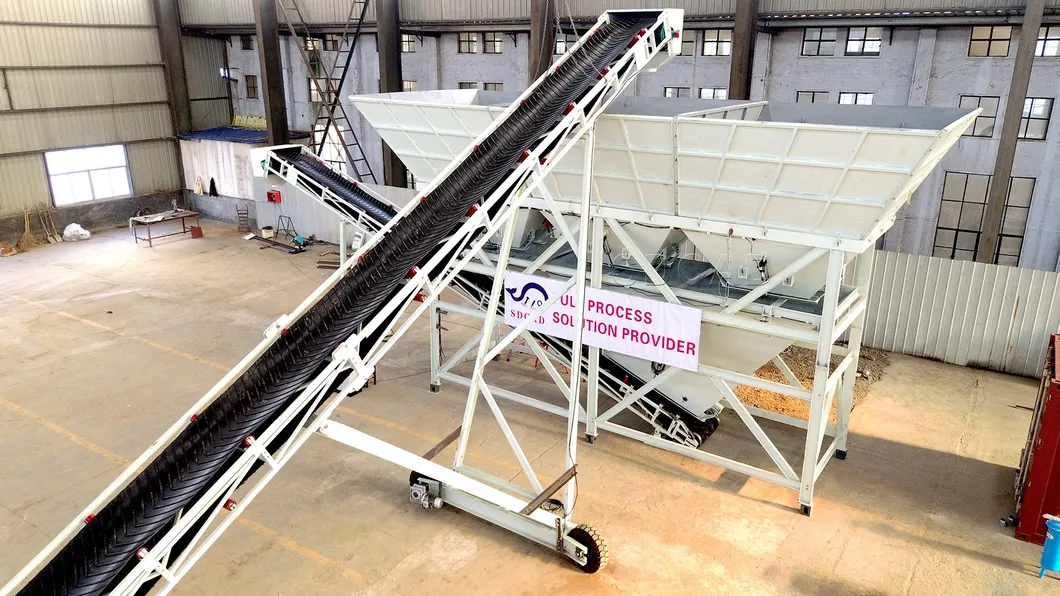

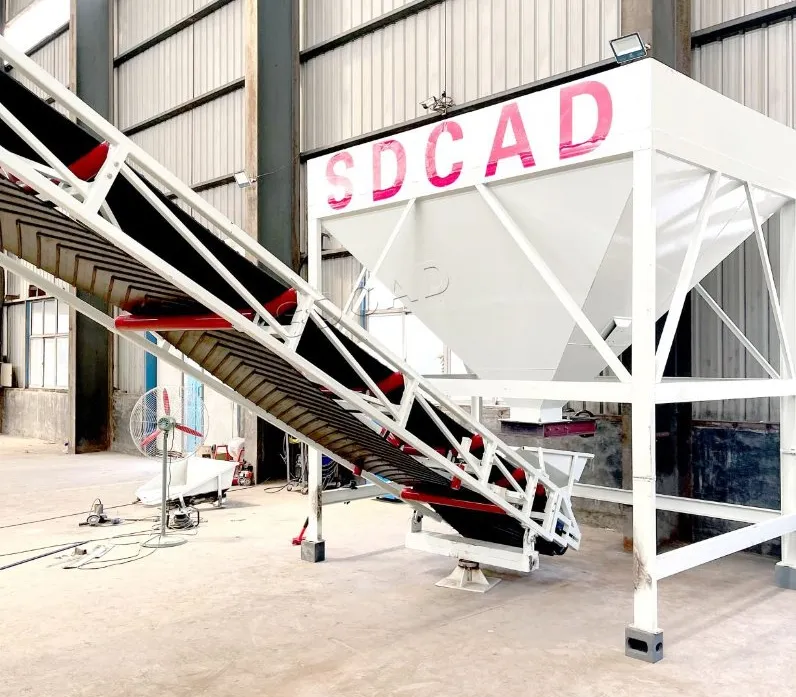

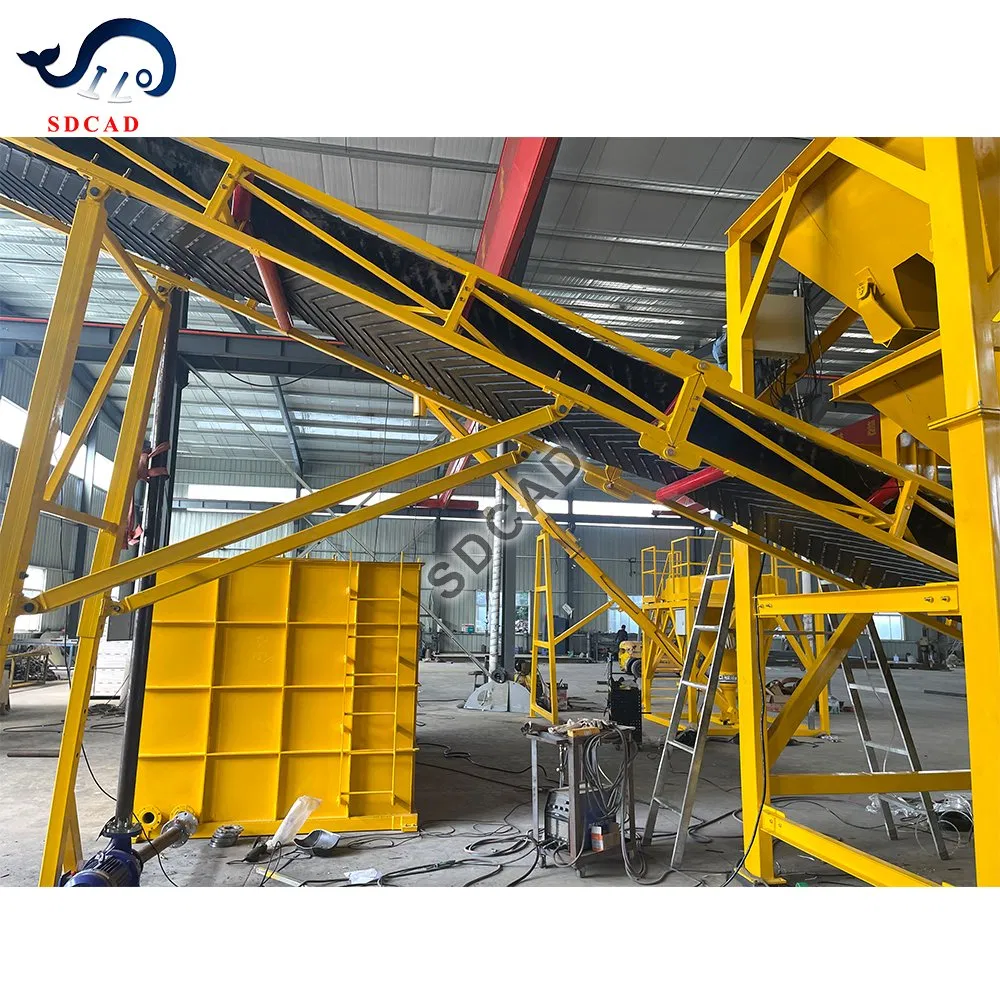

| Model | CS-800 Herringbone belt conveyor with wheels |
| Width / Length | 800mm / 16.5m |
| Discharging Height | 6.7m |
| Belt Layers | 4 layers |
| Hopper volume | Around 5m³ |
| Angle | 27 degree |
| Motor Power | 7.5 KW |
✓ Quality Assurance: One-year period after installation or 20 months after dispatch.
✓ Support: 24/7 service with technical issue resolution within 8 hours.
✓ Overseas Service: Installation services provided by experienced engineers.
✓ Full Support: Assistance with customs clearance, sea freight, and documentation.
