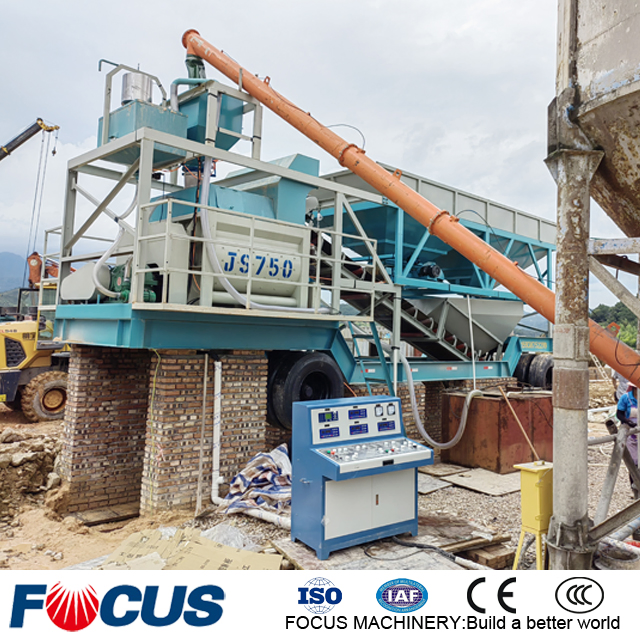

35m3/H Compact Mini Concrete Batching Plant for Small-Scale Contractors

1 / 5

35m3/H Compact Mini Concrete Batching Plant for Small-Scale Contractors

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

35 Mini Concrete Batching Plant

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Machining Process

Automatic Controlled Production Line

Structure

Spiral Type

Productivity

35m³/h

Feeding Height

1380mm

Vibrating Amplitude

1.6mm

Certification

CE, ISO9001: 2008

Condition

New

Output Capacity

35 Cbm/H

Mixer Power

30kw

Mixer Volume

750L

Controlled Method

Full Automatic Computer Control

Electrical

Schneider

Aggregate Feeder

Belt Conveyor

Power Source

380V, 50Hz, 3 Phase

Total Weight

28t

Total Power

75kw

Production Capacity

20 Sets Per Month

Product Description

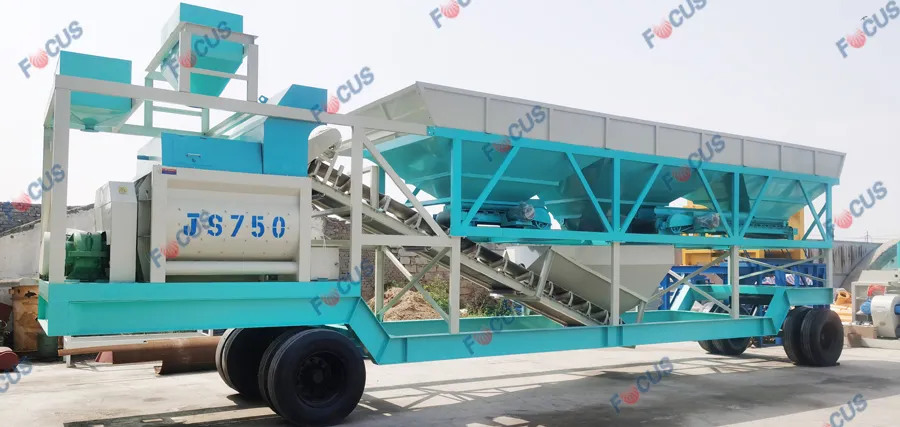

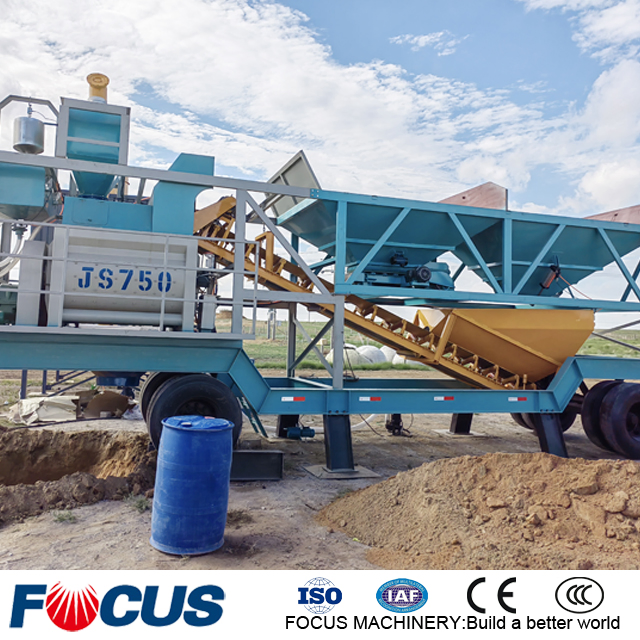

35m3/h Compact Mini Concrete Batching Plant for Small-Scale Contractors

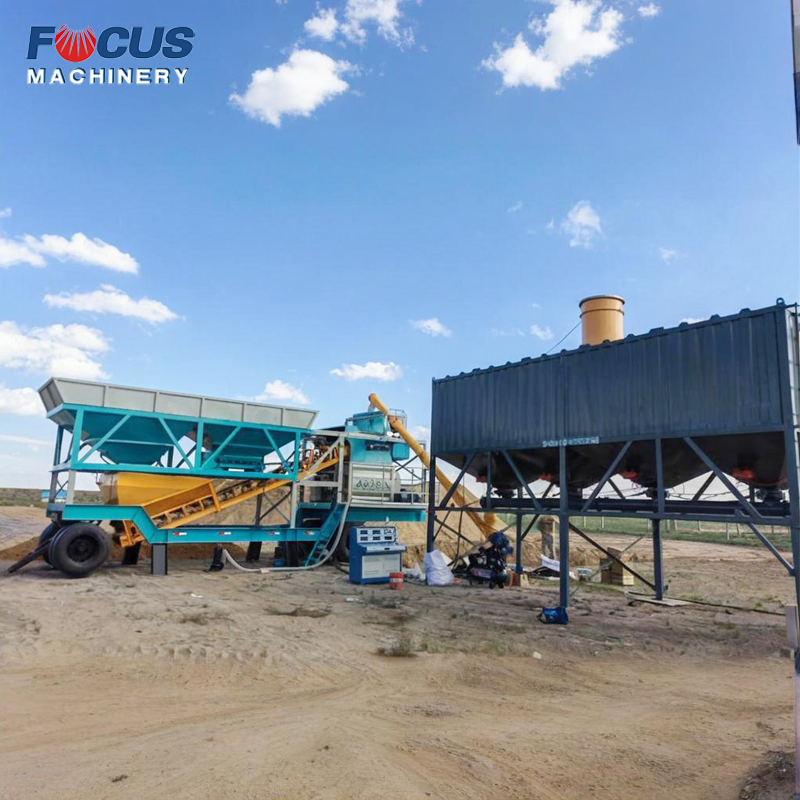

Portable mobile concrete mixing plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.

Detailed Photos

Our plants adopt double shaft concrete mixers where the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.

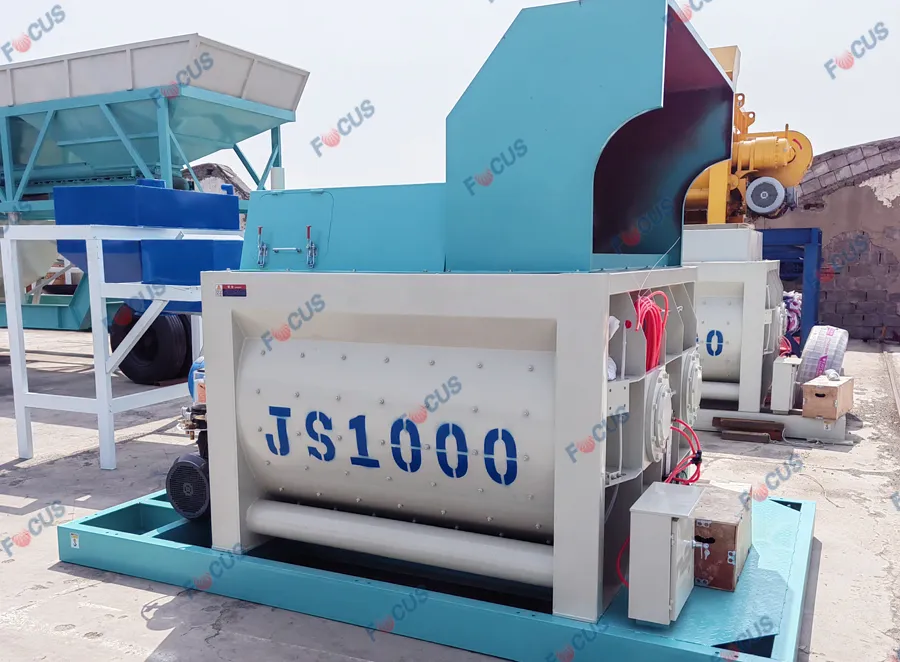

Double shaft concrete mixer with high wear resistance.

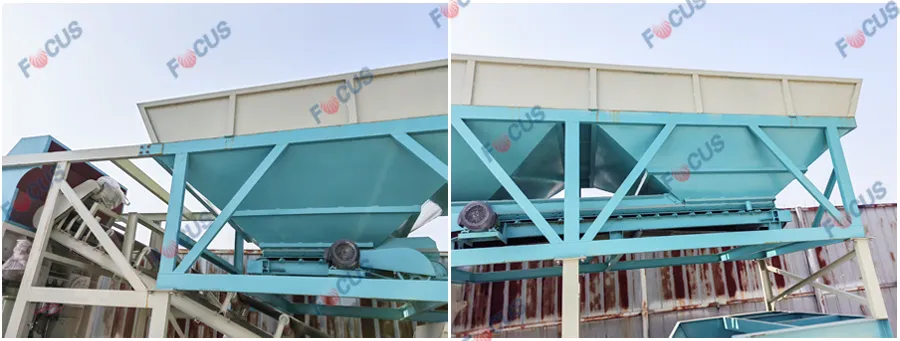

PLD series dosing machine with electronic weighing.

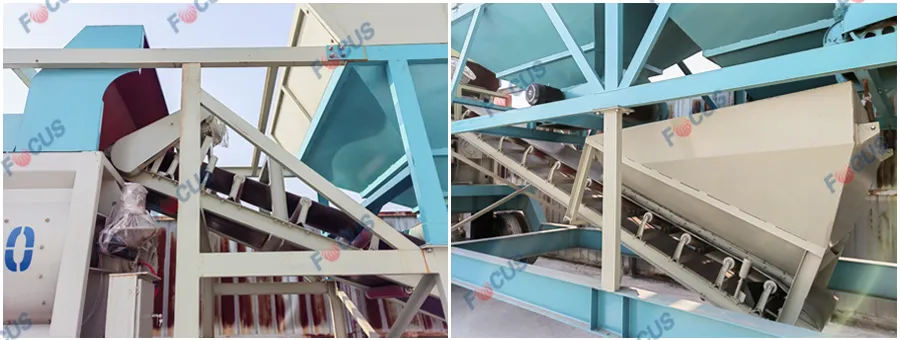

Efficient herringbone belt for continuous transportation.

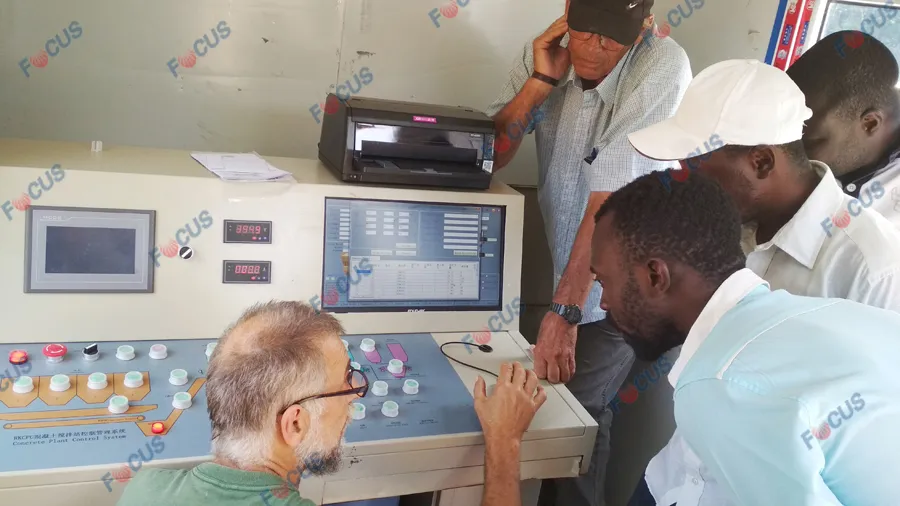

Intelligent control with remote management functions.

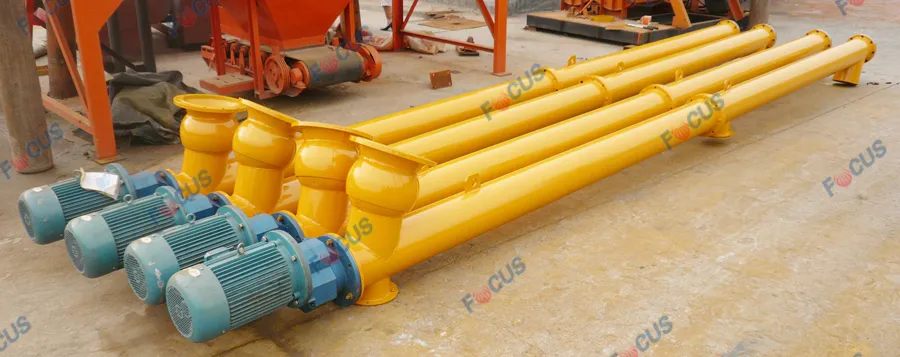

Screw conveyors customizable to site needs.

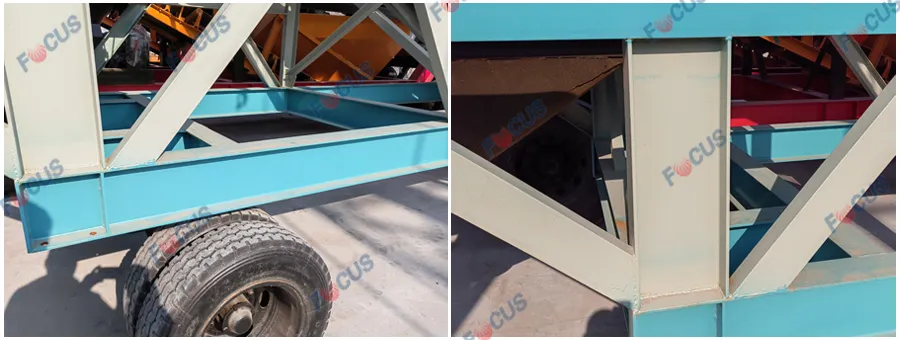

High-quality carbon steel main structure.

Technical Parameters

Model	YHZS25	YHZS35	YHZS50	YHZS75
Capacity	25m³/h	35m³/h	50m³/h	75m³/h
Mixer Model	JS500	JS750	JS1000	JS1500
Mixer Power	18.5Kw	30Kw	37Kw	2*30Kw
Discharge Height	1500-3800mm
Discharge Volume	500L	750L	1000L	1500L
Charging Volume	800L	1200L	1600L	2400L
Mixing Cycle	60S
Max. Agg. Size	80/60mm
Loading Way	Belt conveyor
Total Power	51KW	75KW	105KW	145KW
Total Weight	22t	28t	32t	35t

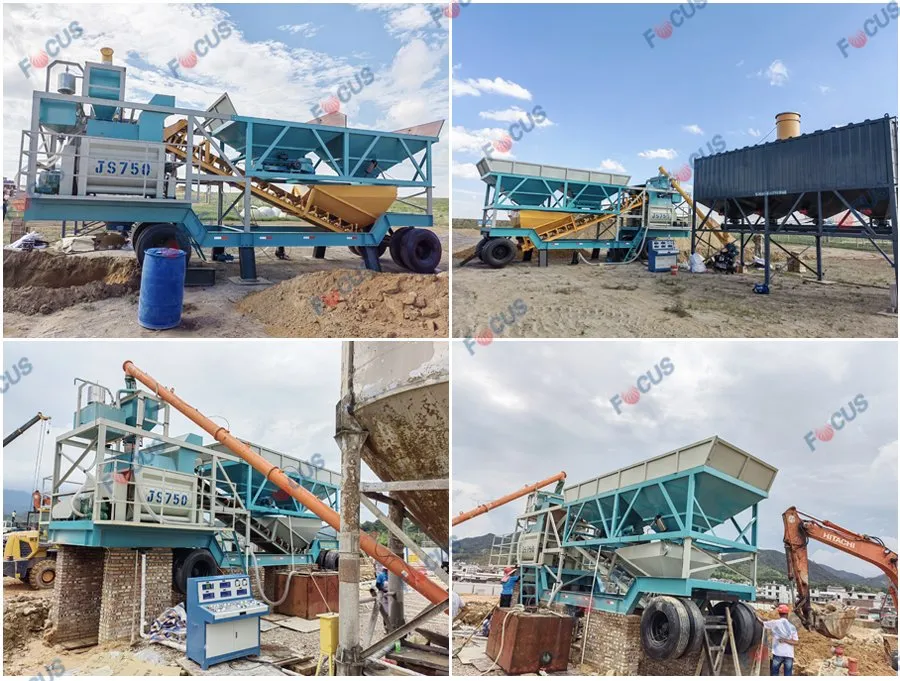

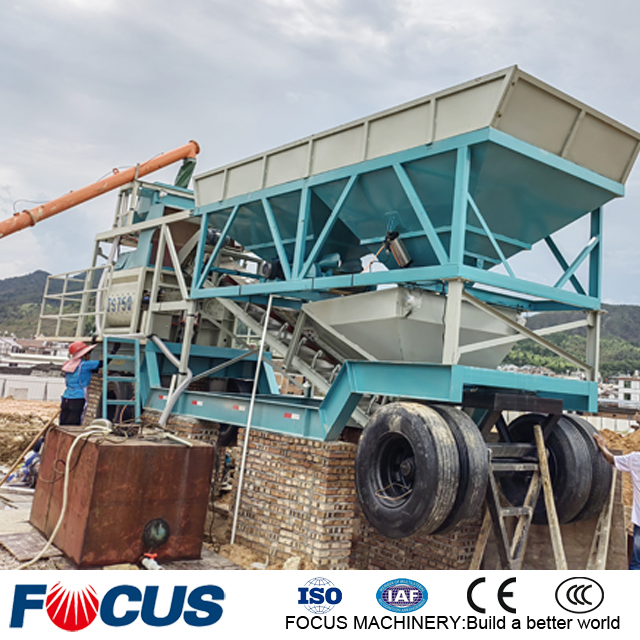

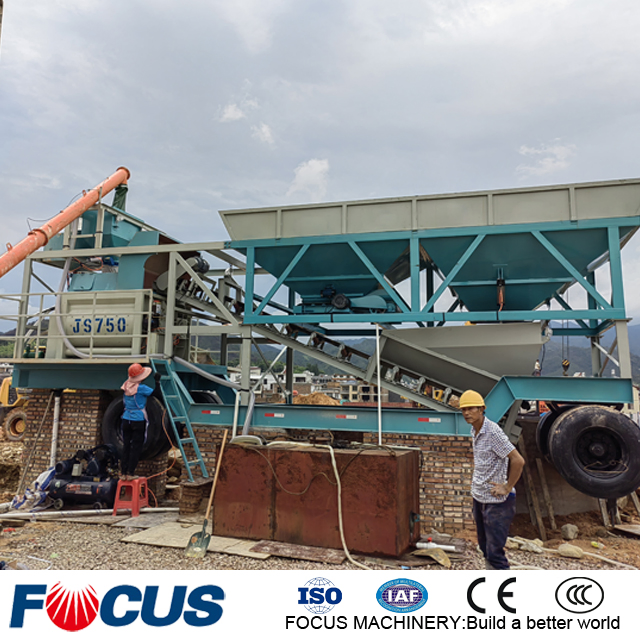

Install and Run

Frequently Asked Questions

What is the productivity of the 35 Mini Batching Plant?

The plant offers a productivity of 35m³/h, making it ideal for medium to small-scale construction projects.

Is the control system fully automated?

Yes, the plant utilizes a full automatic computer control system, which can also be operated manually if required.

What type of mixer is used in this plant?

It uses a high-efficiency double shaft concrete mixer (Model JS750) with a 750L discharge volume.

How is the aggregate fed into the system?

The aggregate is transported via a professional belt conveyor system for continuous and stable feeding.

What are the mobility features of this plant?

This is a portable mobile mixing plant designed for easy transfer between job sites, featuring a 360-degree bayonet dragging way.

What power source is required for operation?

The plant requires a 380V, 50Hz, 3-phase power source to operate its 75kw total power components.
