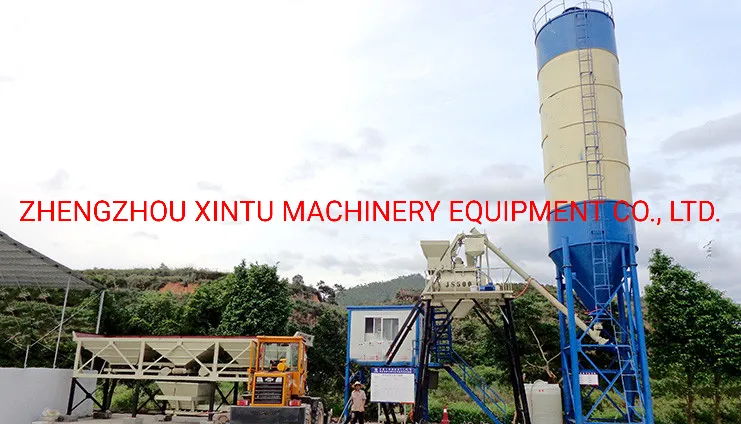

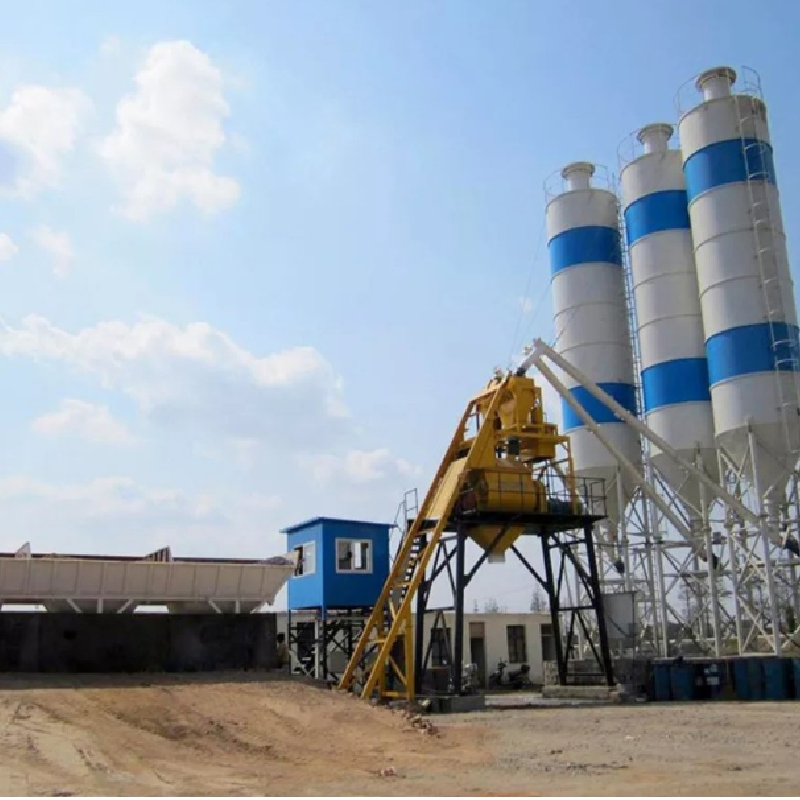

CONCRETE BATCHING PLANT READY MIX CONCRETE MIXING PLANT

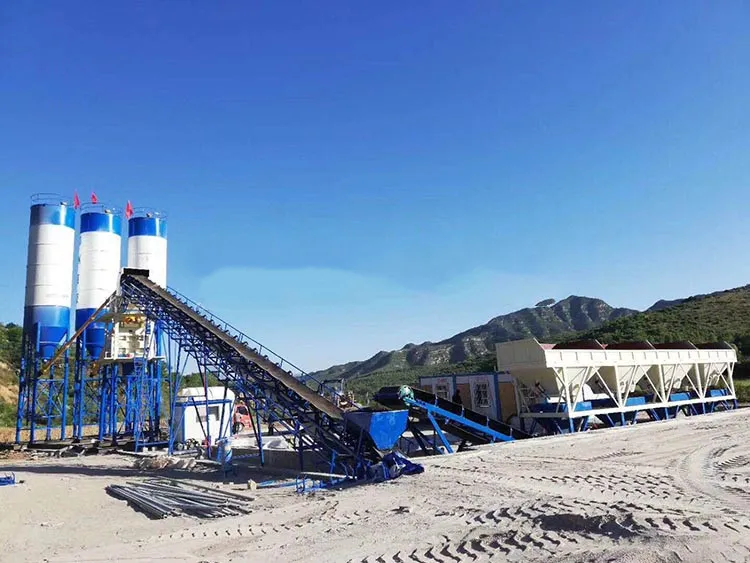

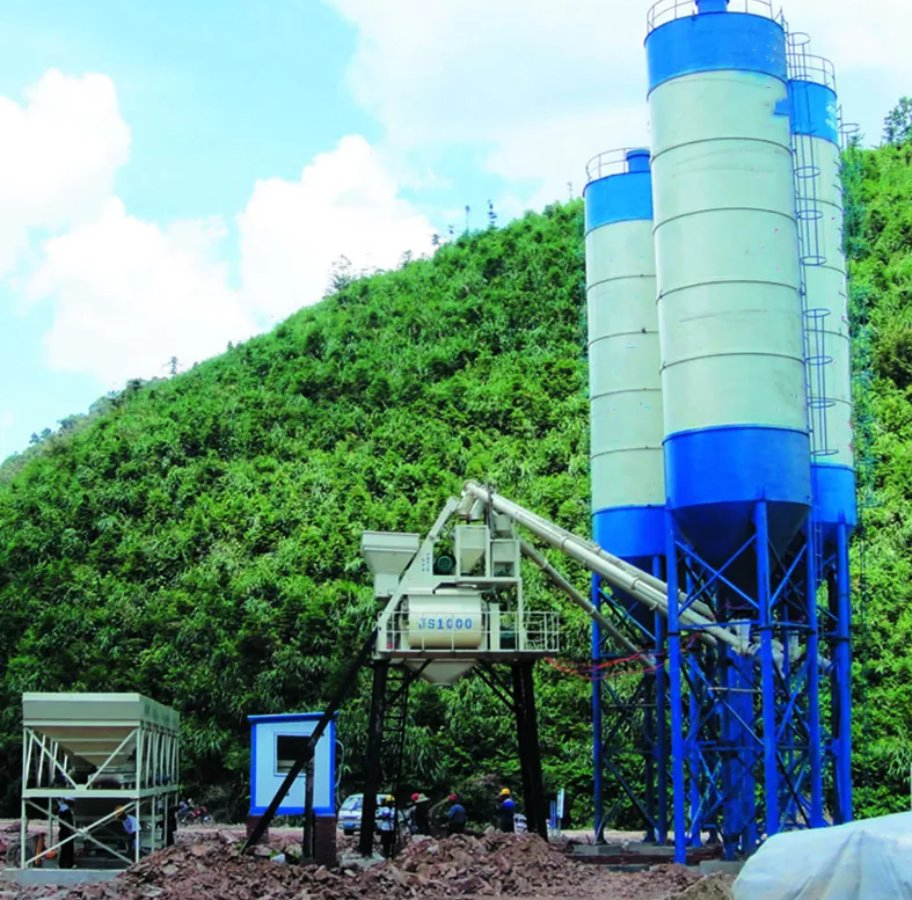

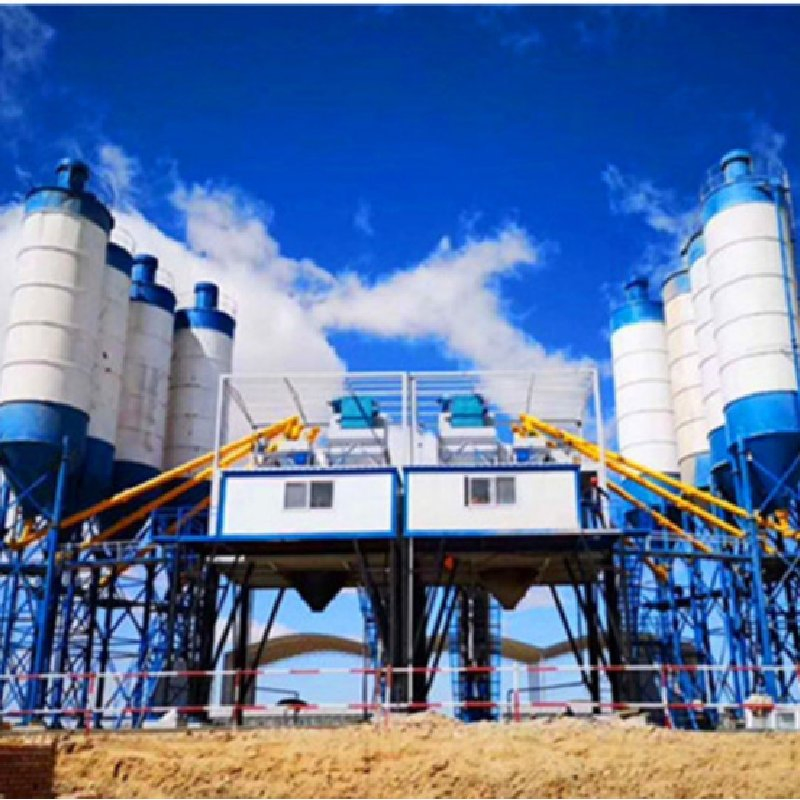

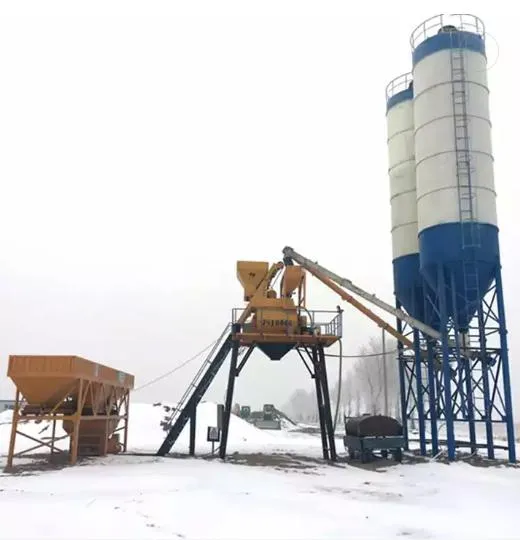

Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
|---|---|---|---|---|
| Capacity (m³/h) | 25 | 35 | 50 | 75 |

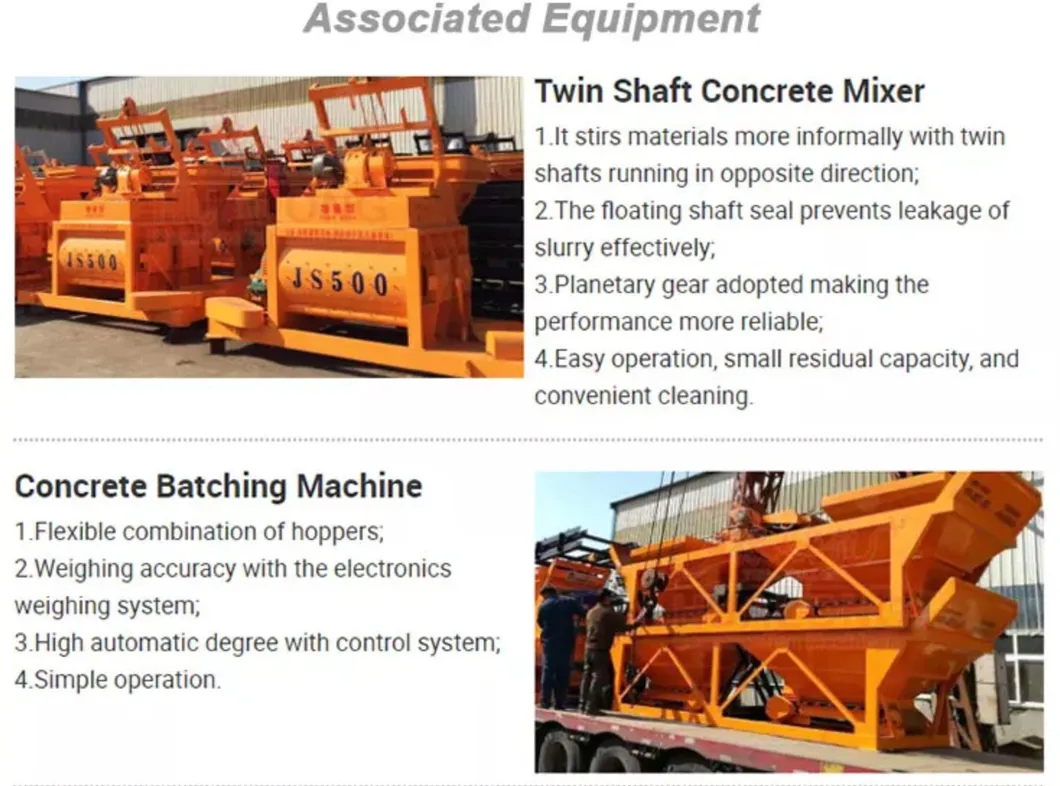

| Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate Bin | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Discharge Height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Cycle Time (s) | 72 | 72 | 72 | 72 |

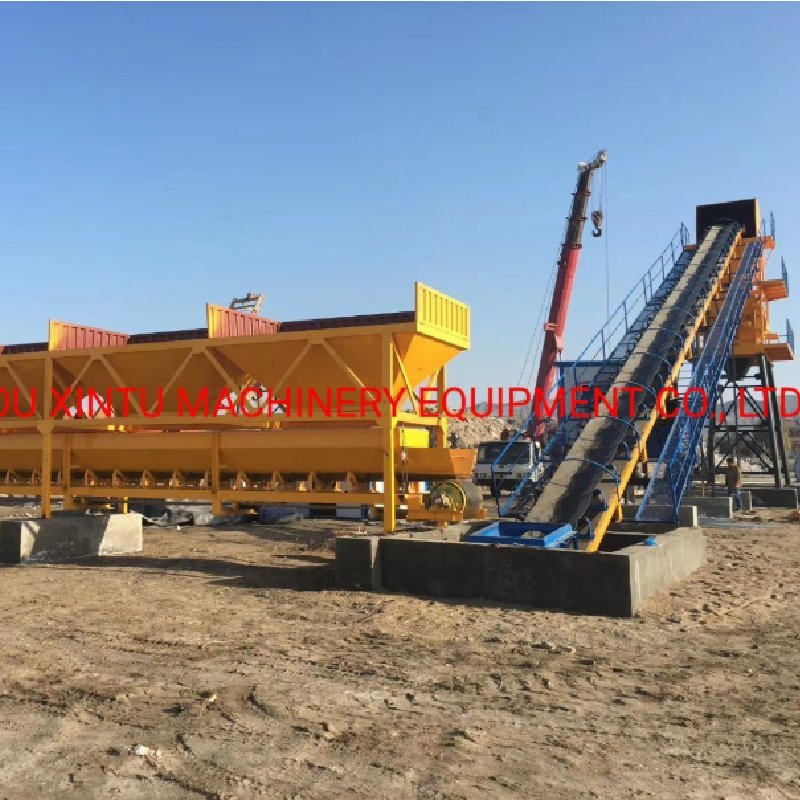

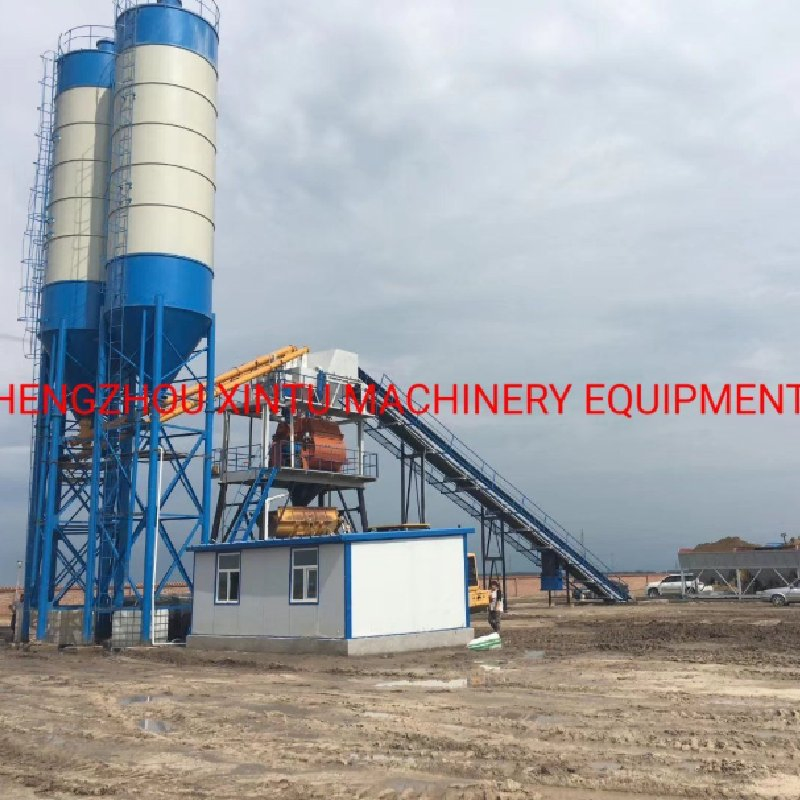

| Theory Productivity | HZS60 | HZS90 | HZS120 | HZS180 |
|---|---|---|---|---|
| Capacity (m³/h) | 60 | 90 | 120 | 180 |
| Standard Discharging Height (m) | 4.0 | 4.0 | 4.2 | 4.2 |
| Mix Cycle Time (s) | 60 | 60 | 60 | 60 |
| Total Power (KW) | 115 | 195 | 220 | 275 |
| Mixer Model | JS1000 | JS1500 | JS2000 | JS3000 |

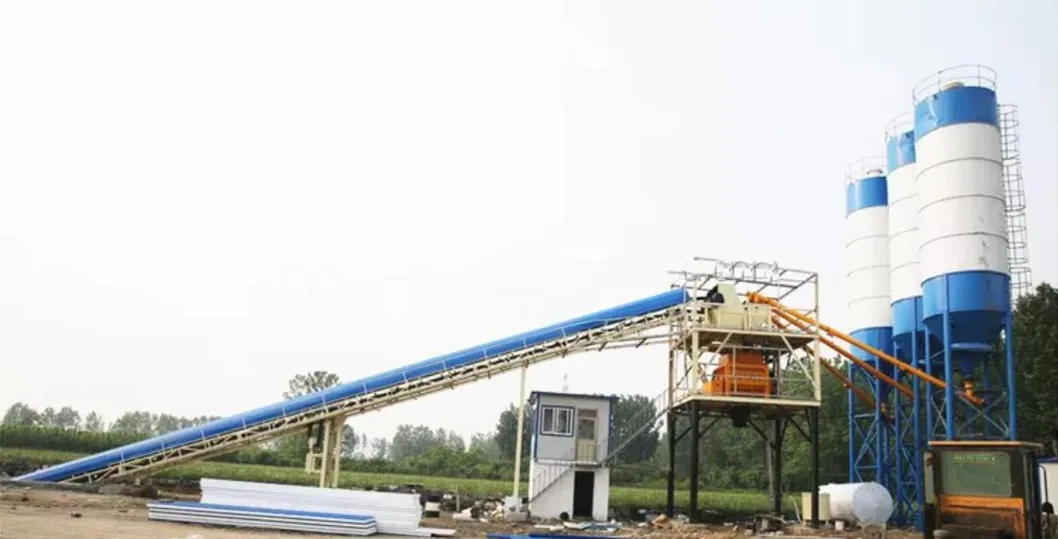

| Feeding Method | Belt | Belt | Belt | Belt |
