China Manufacturer and Supplier for Concrete Batching Plant with High Efficiency

1 / 5

China Manufacturer and Supplier for Concrete Batching Plant with High Efficiency

Customization:	Available
After-sales Service:	15 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

concrete batching plant

Type

Concrete Mixing Plant

Shotcrete Type

Dry

Machining Process

Hydraulic

Structure

Stationary Mixing Plant

Productivity

25m3-240m3

Discharge Height

3.8m

Main Mixer

Js500-Js2000

Batching Machine

PLD800-3200

Certification

ISO9001: 2000, CE

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Gross Weight

20000.000kg

Product Description

CONCRETE BATCHING PLANT READY MIX CONCRETE MIXING PLANT

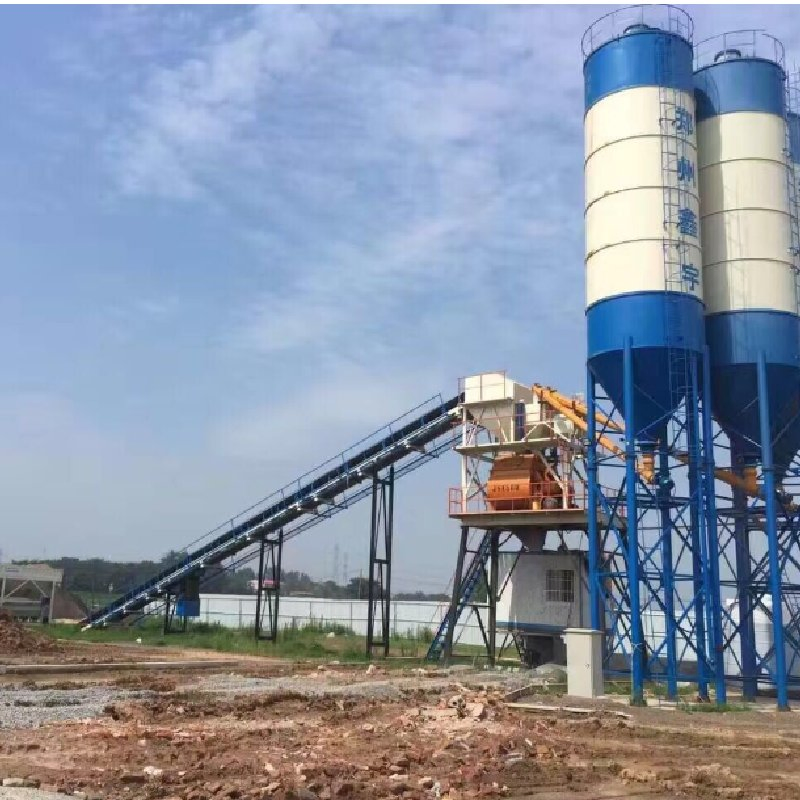

Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.

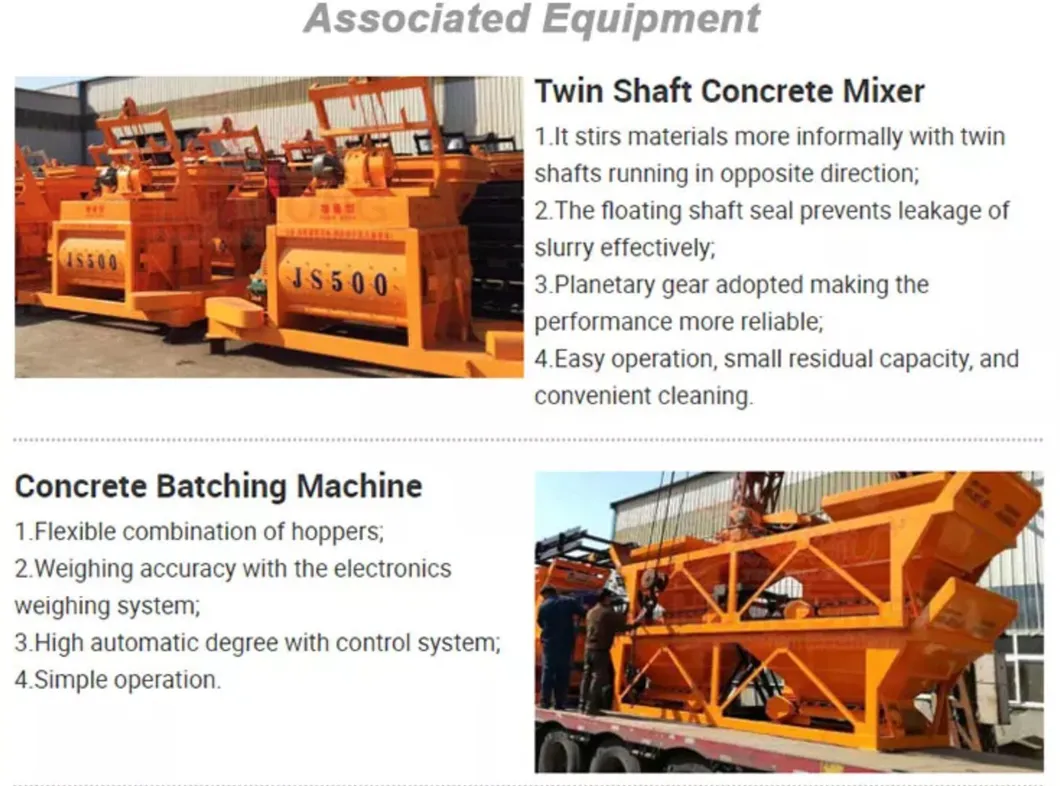

High Efficiency Adopts twin shaft concrete mixer with strong mixing power, high evenness, and high productivity.

Durable Components Mixing blades and liners are made of high wear-resistance chromium-manganese alloy for long life span.

Flexible Batching PLD series aggregates batching machine offers accumulated or pneumatic independent weighing options.

Precision Control Electronic weighting system with buffer device and automatic volume compensation for high accuracy.

Smart Operation Full auto control by computer/PLC (Siemens) or manual control systems available.

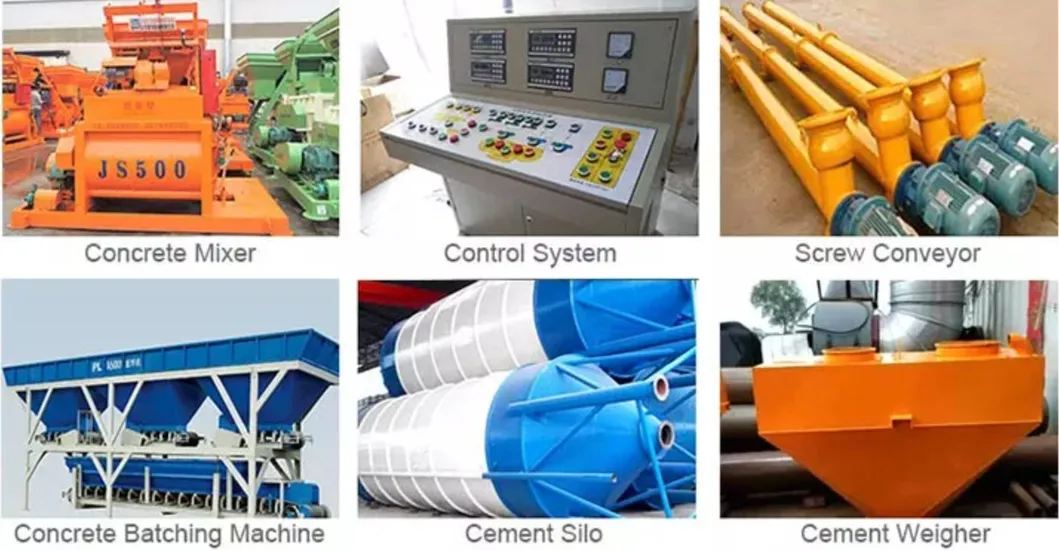

Detailed Photos

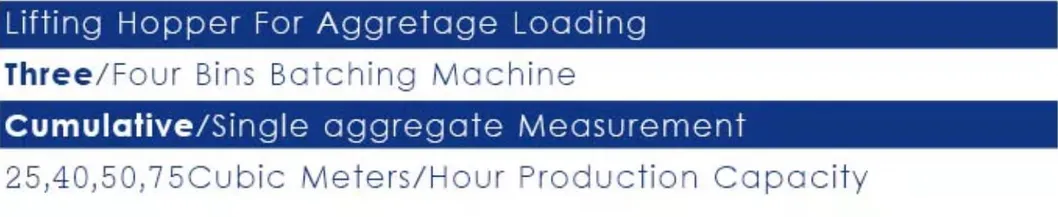

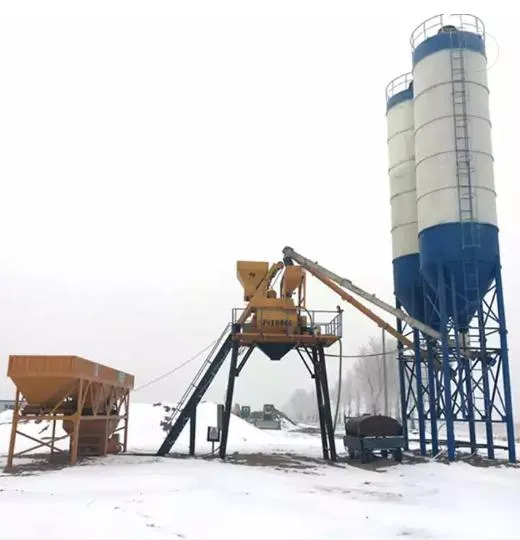

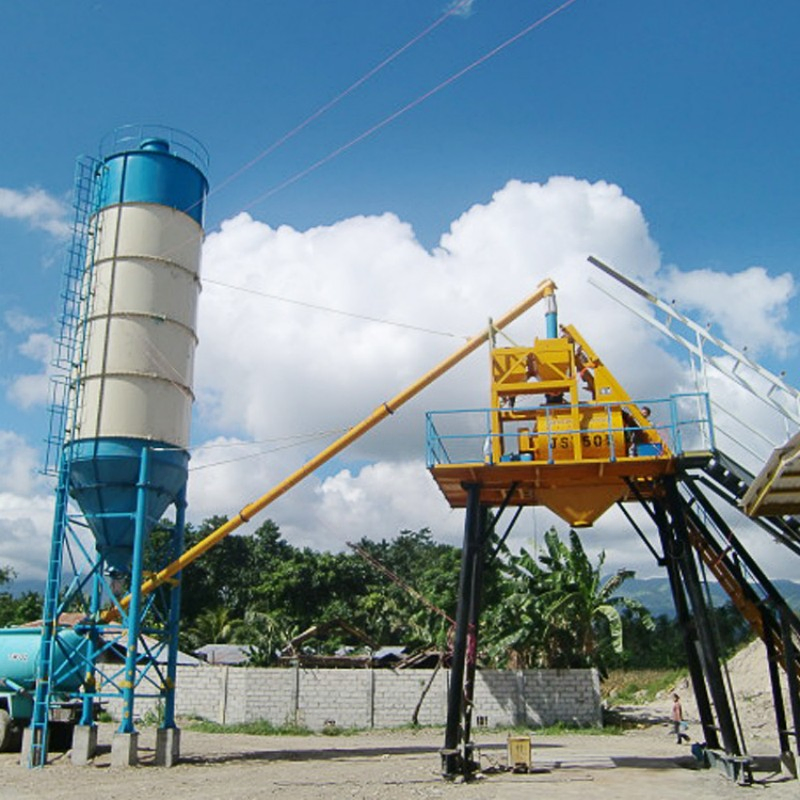

1. HZS BUCKET TYPE STATIONARY CONCRETE BATCHING PLANT

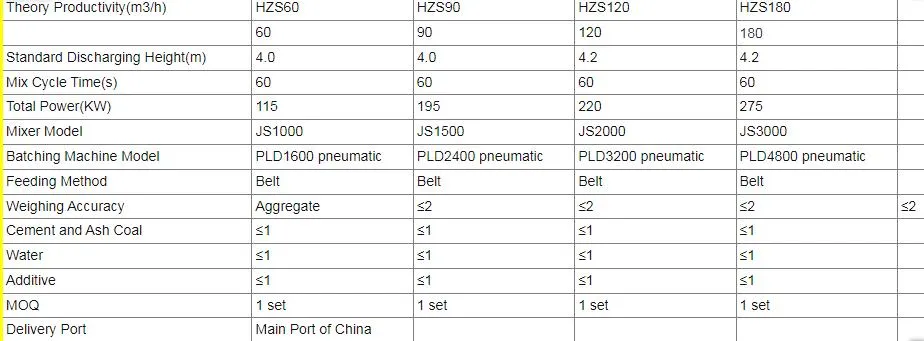

Model	Capacity (m³/h)	Mixer	Aggregate Bin	Discharge Height (m)	Cycle Time (s)
HZS25	25	JS500	PLD800	3.8	72
HZS35	35	JS750	PLD1200	3.8	72
HZS50	50	JS1000	PLD1600	3.8	72
HZS75	75	JS1500	PLD2400	3.8	72

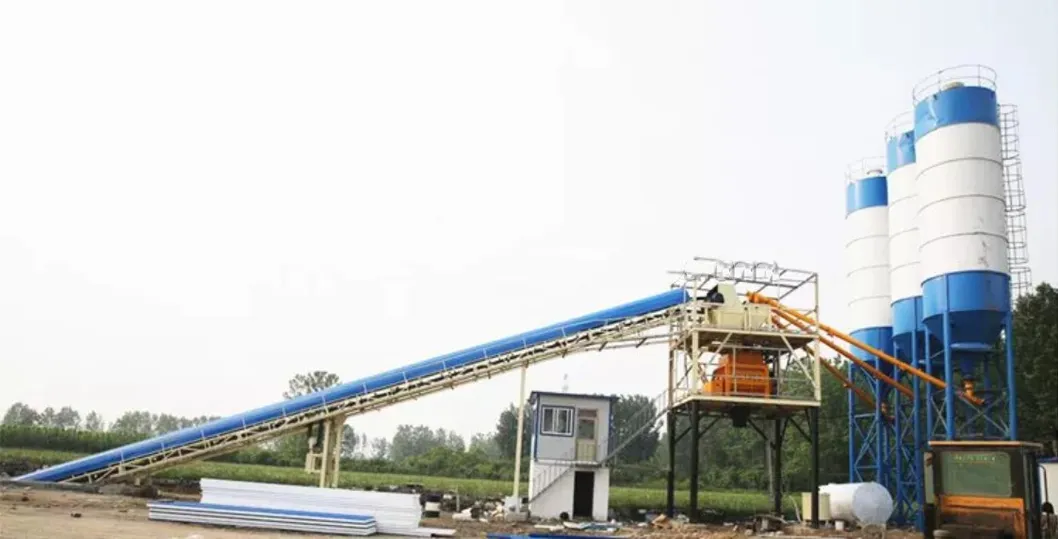

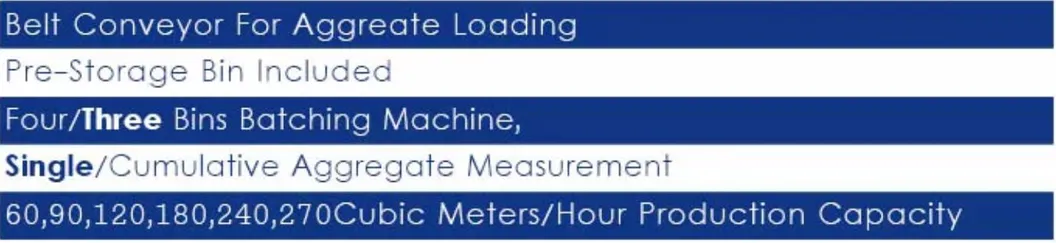

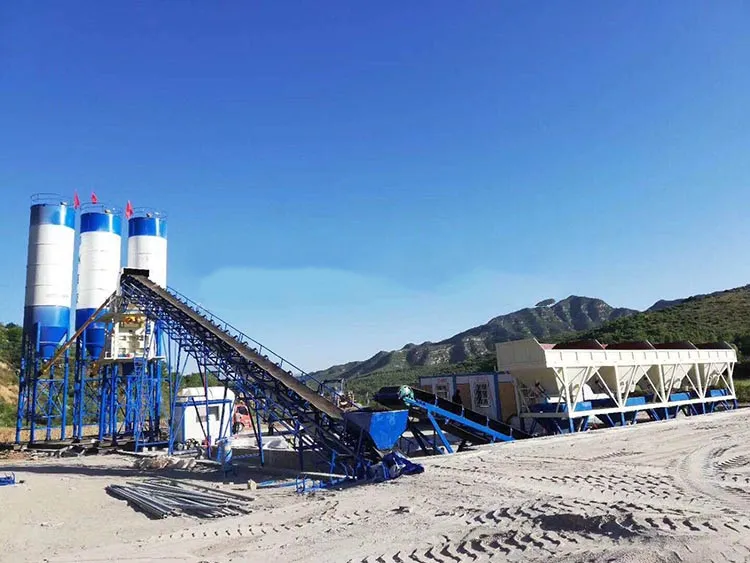

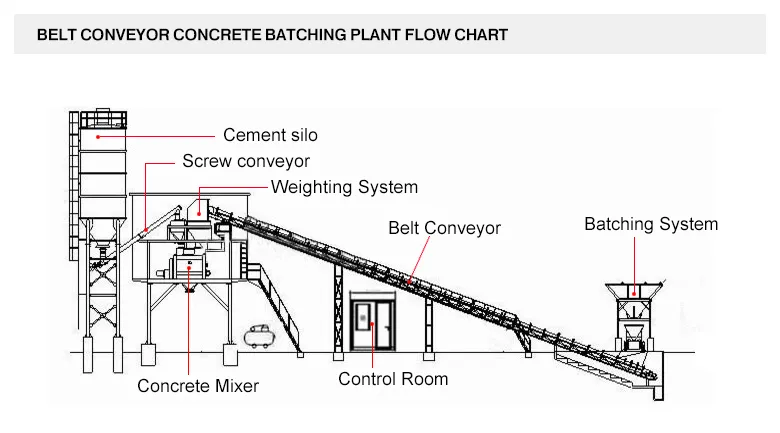

2. HZS BELT TYPE STATIONARY CONCRETE BATCHING PLANT

Frequently Asked Questions

What is the production capacity range of these plants?

The productivity ranges from 25m³ to 240m³ per hour, depending on the specific model and configuration chosen.

What type of concrete mixer is used in the plant?

The plants utilize high-efficiency twin shaft concrete mixers (JS series), known for their strong mixing power and evenness.

Is the control system automated?

Yes, we offer full automatic control models using computers or Siemens PLC systems, as well as semi-automatic and manual options.

What are the main applications for this batching plant?

It is ideal for small to medium-scale building construction, bridge and road projects, and the prefabrication of concrete products.

How accurate is the weighing system?

The electronic weighing system is highly accurate, with a precision of ±1% for cement and water, and ±2% for aggregates and additives.

What is the standard discharge height?

The standard discharge height is 3.8 meters, though customization options may be available based on specific requirements.
