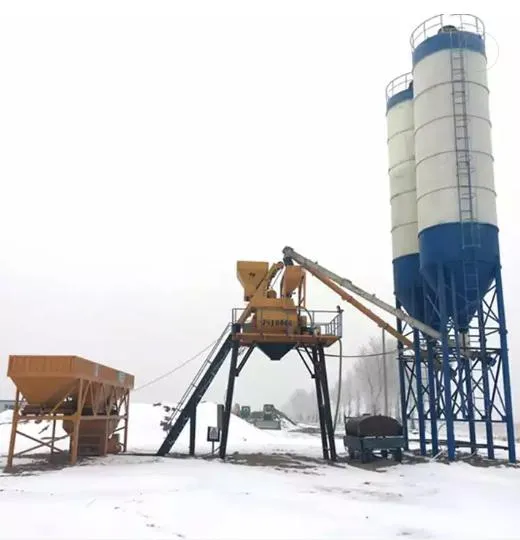

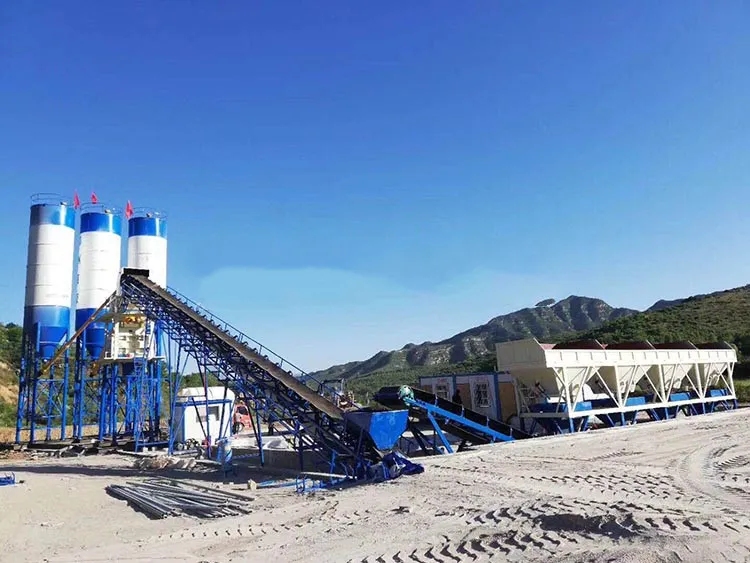

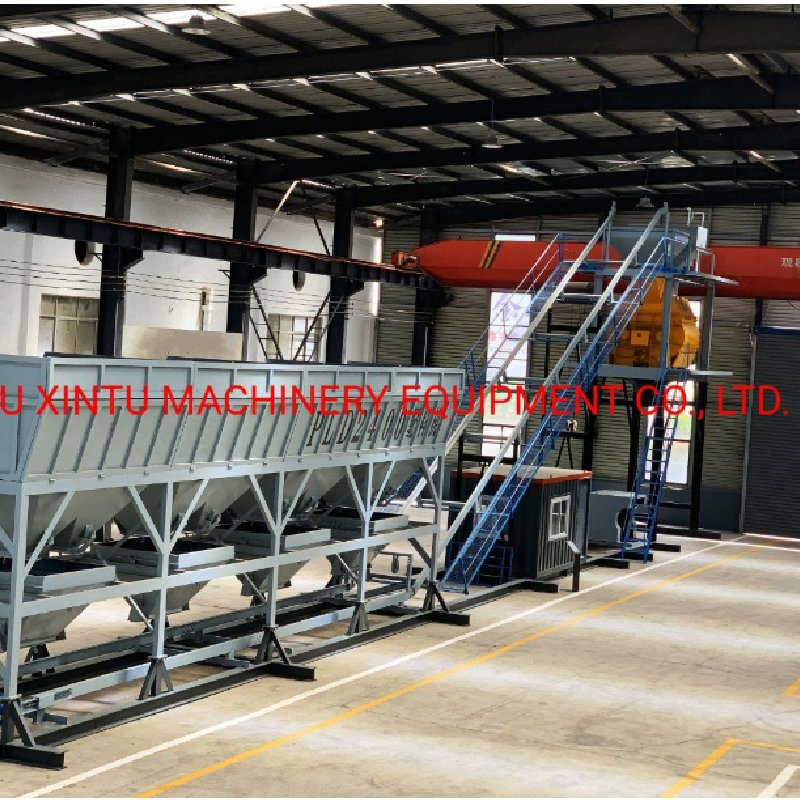

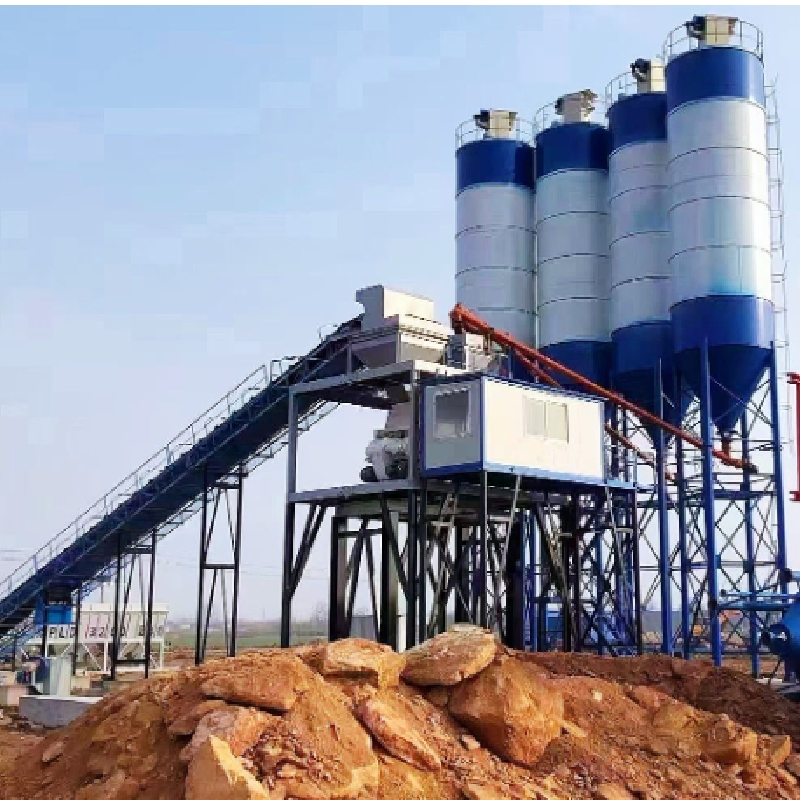

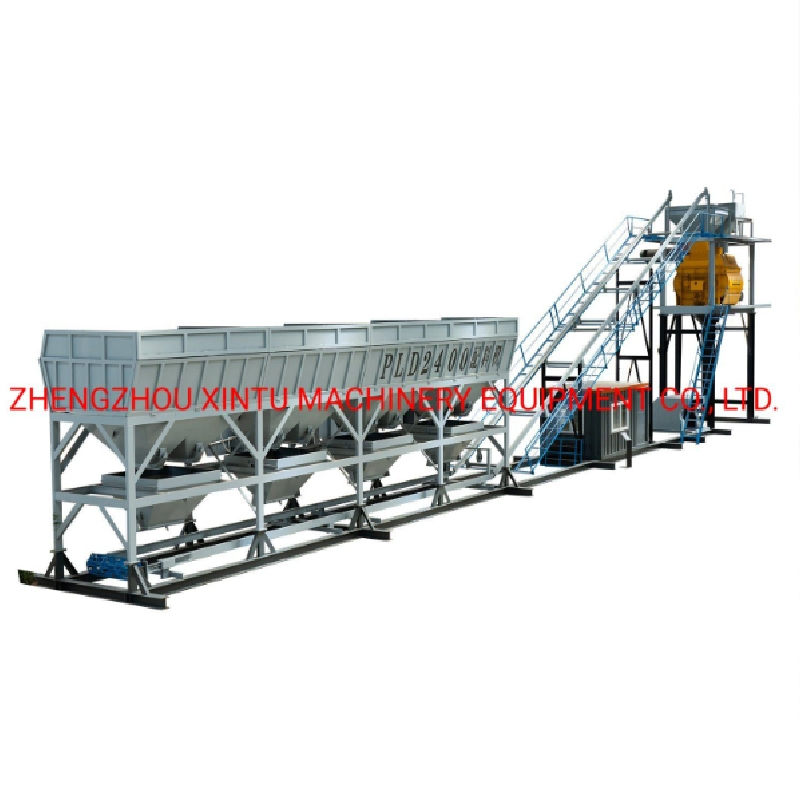

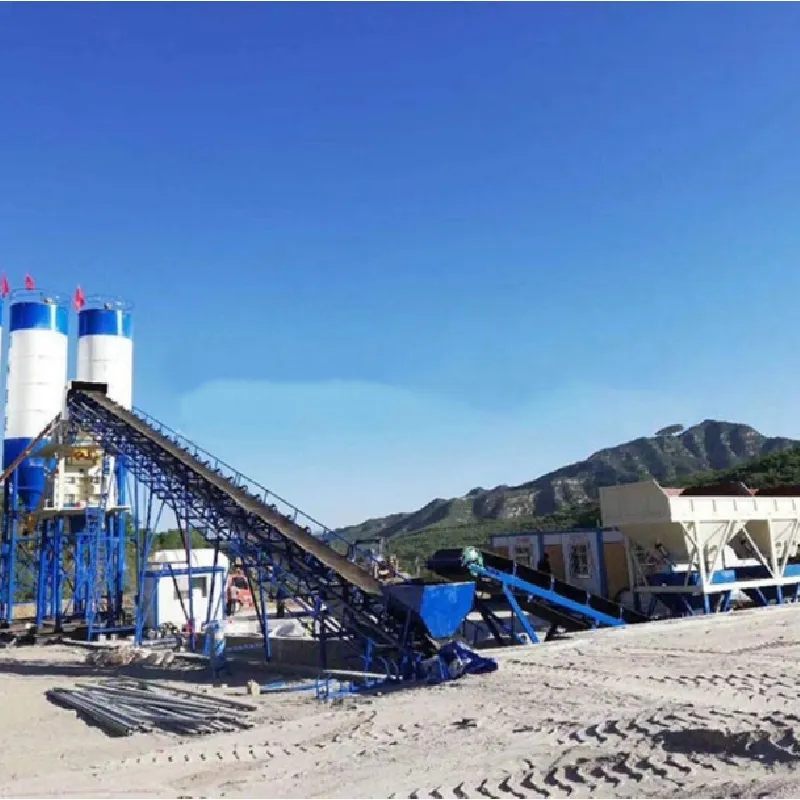

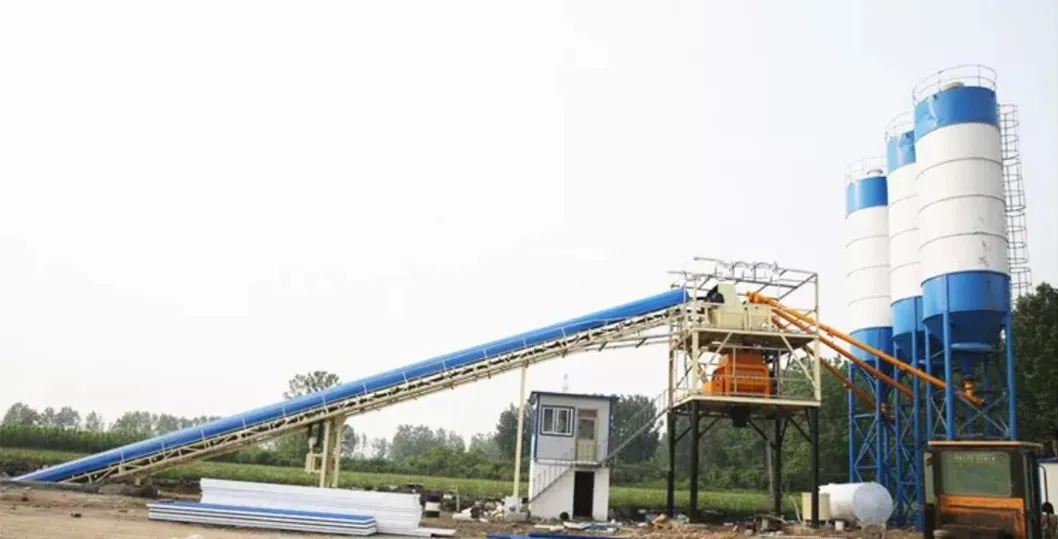

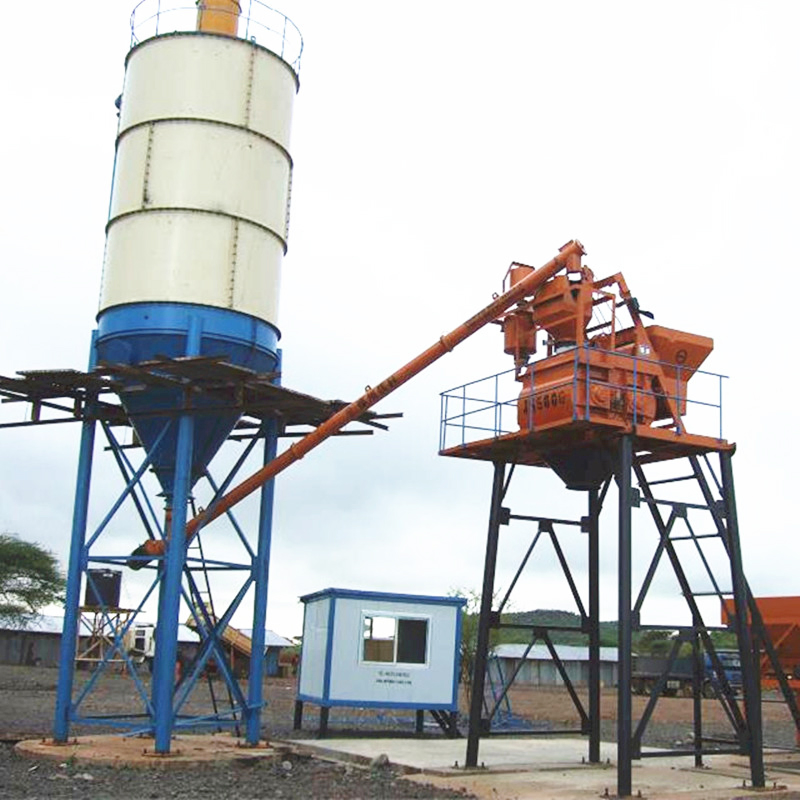

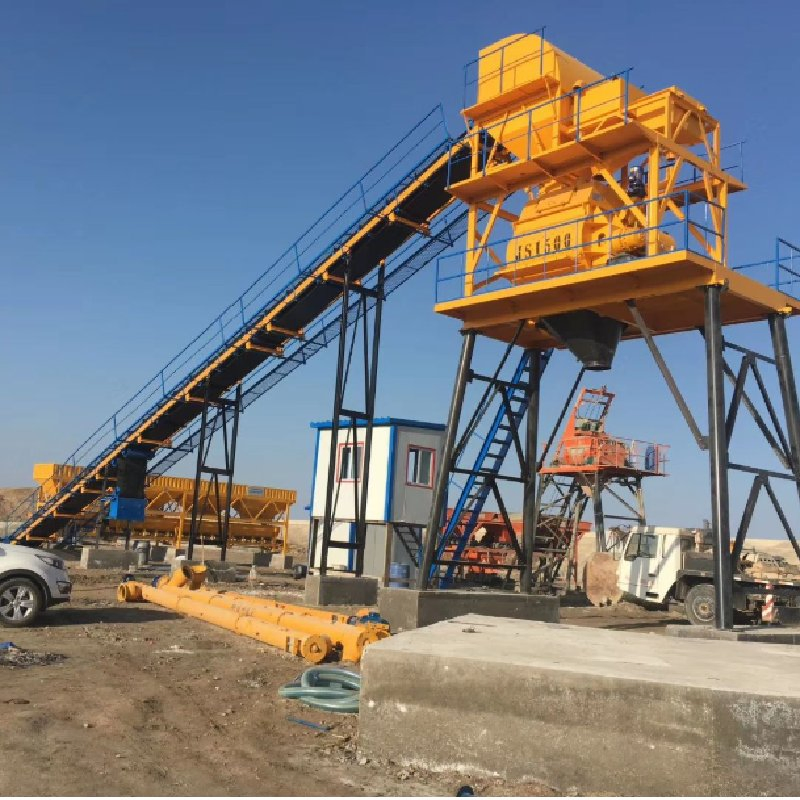

Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.

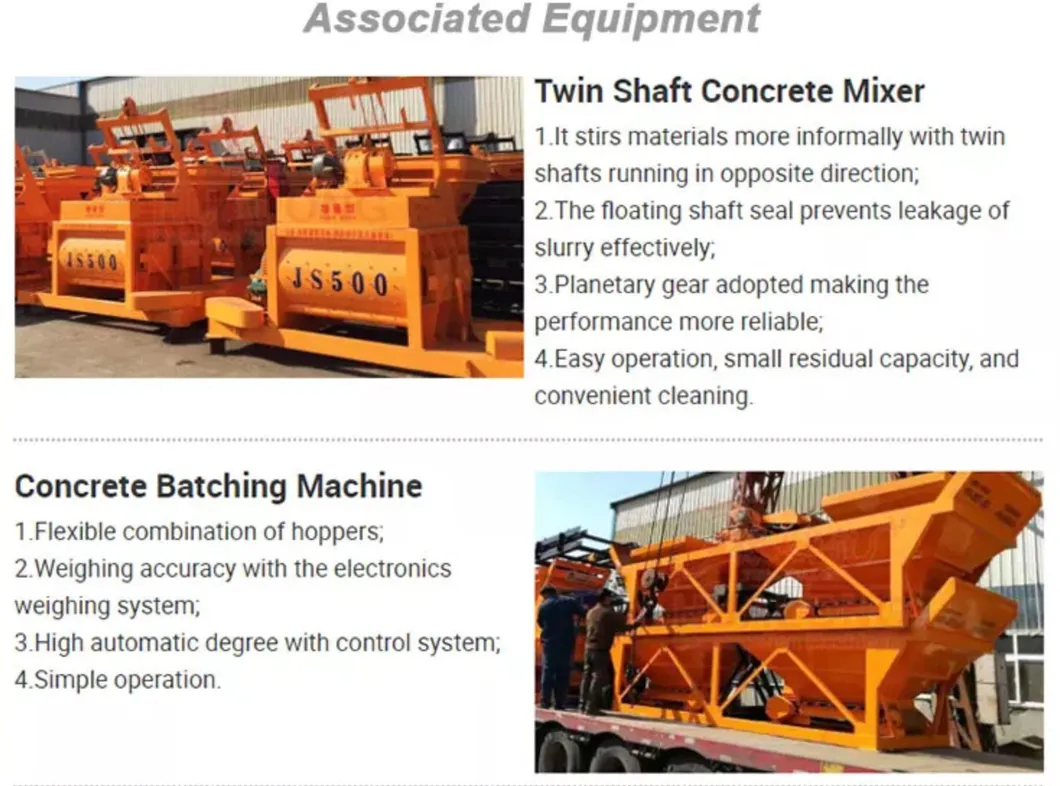

Adopts twin shaft concrete mixer, providing high mixing evenness and high productivity for various projects.
Mixing blades and liners made of high wearing-resistance chromium-manganese alloy for longer service life.
Electronic weighting system with buffer device and automatic volume compensation ensures precise ingredient ratios.

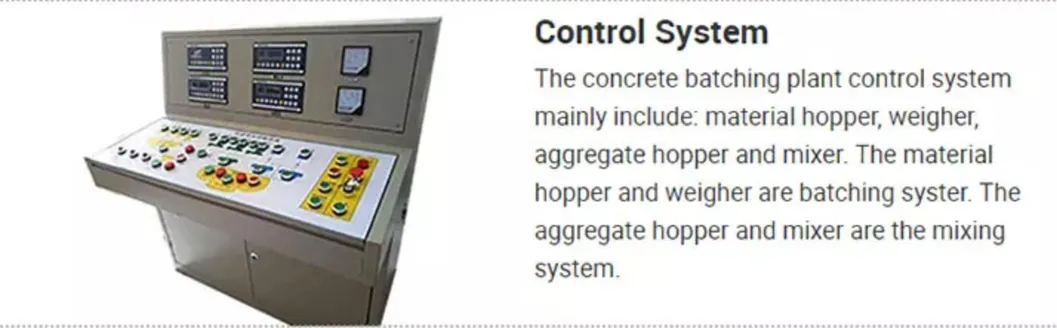

Options for full auto computer models, Siemens PLC+PC, or manual control systems to suit operator needs.

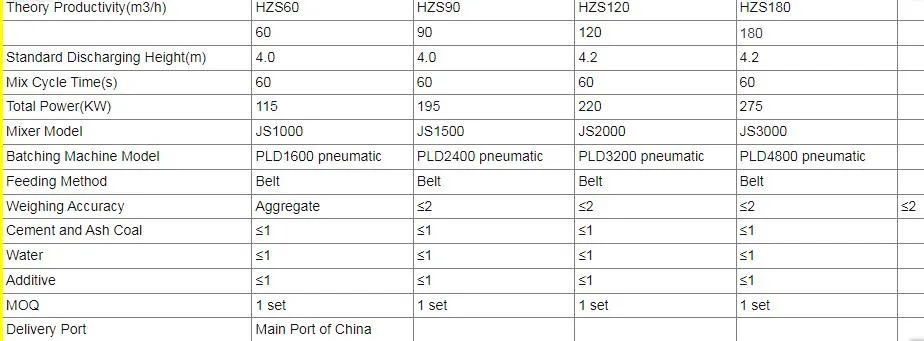

| Model | Capacity (m³/h) | Mixer | Aggregate Bin | Discharge Height (m) |
|---|---|---|---|---|
| HZS25 | 25 | JS500 | PLD800 | 3.8 |
| HZS35 | 35 | JS750 | PLD1200 | 3.8 |
| HZS50 | 50 | JS1000 | PLD1600 | 3.8 |
| HZS75 | 75 | JS1500 | PLD2400 | 3.8 |
