| Volume | Diameter | Silo body height | Discharge height | Pieces ech layer | Weight |
| 50t | 3160mm | 4260mm | Customization | 4 | 4.5t |
| 100t | 3160mm | 8700mm | Customization | 4 | 6t |
| 150t | 3600mm | 13000mm | Customization | 4 | 9t |
| 200t | 4000mm | 11360mm | Customization | 5 | 12t |
| 300t | 5300mm | 8700mm | Customization | 8 | 17t |
| 500t | 6800mm | 7300mm | Customization | 8 | 21t |
| 1000t | 8000mm | 13200mm | Customization | 10 | 56t |
| 2000t | 10000mm | 18000mm | Customization | 12 | 150t |
Customized Cement Silo Solutions

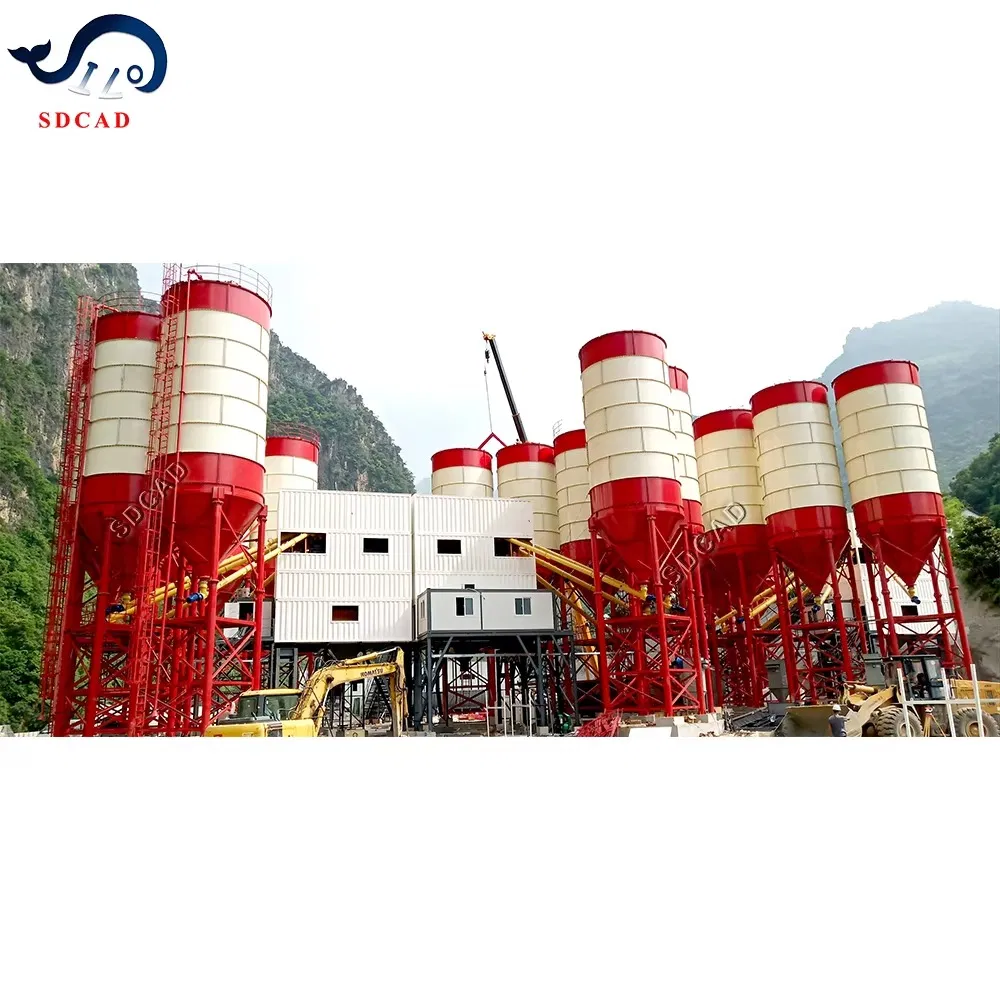

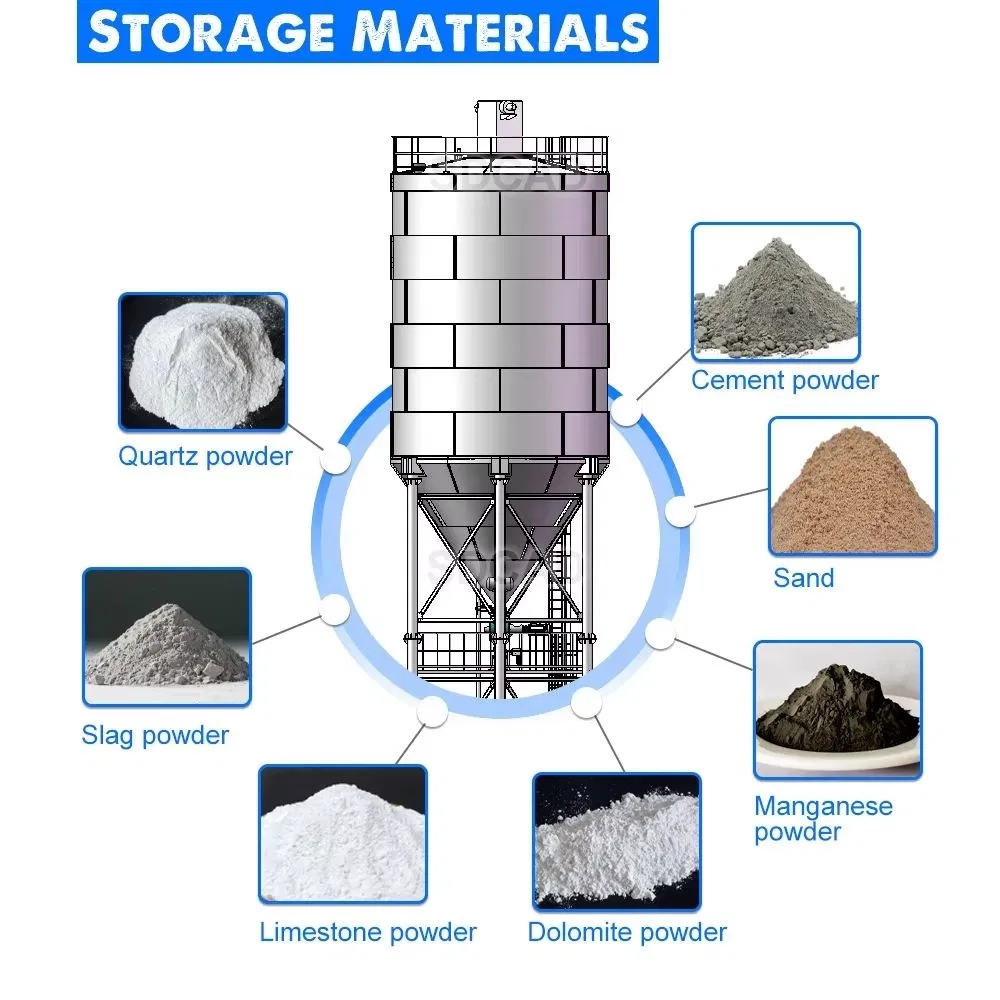

Our steel silos are commonly used to store bulk cement, fly ash, mortar, and powder for concrete batching/mixing plants and brick-making machines in mining and chemical industries. They are also suitable for agricultural use like grain storage. These silos are highly regarded for their easy transportation, installation, and dismantlement.

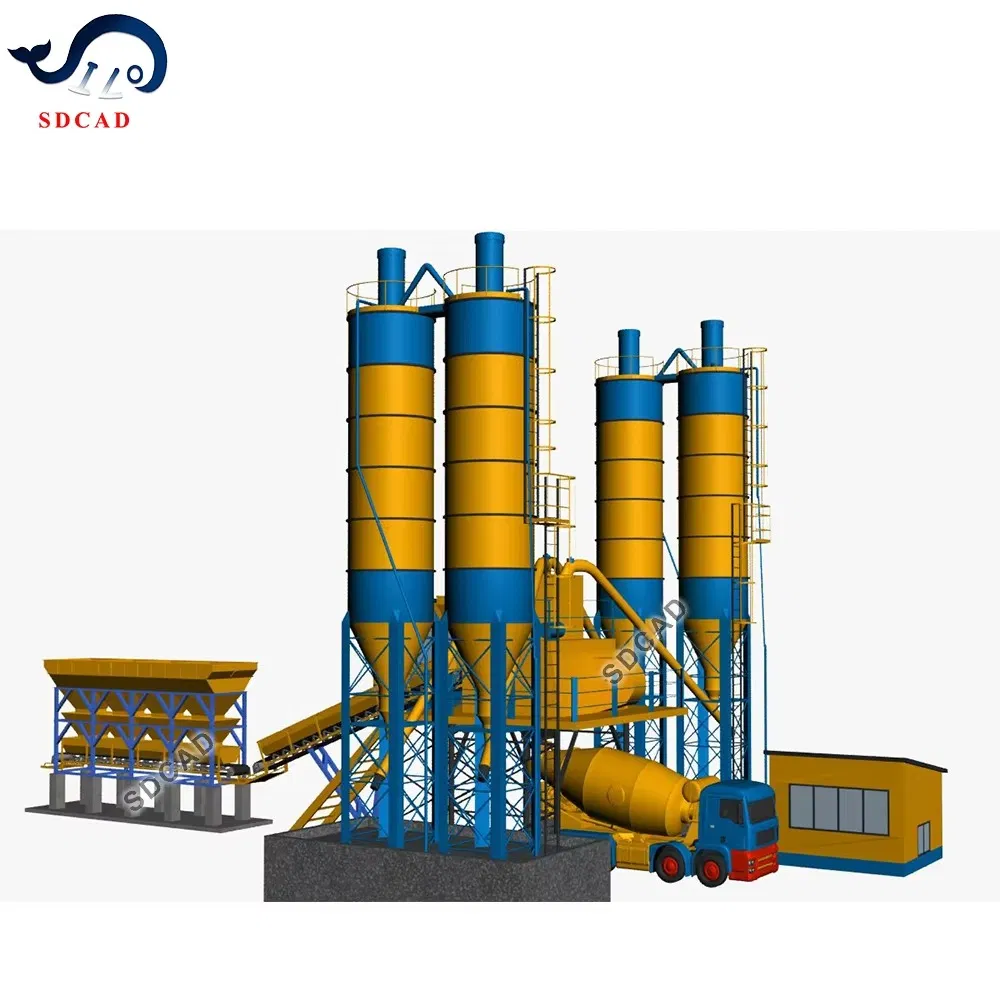

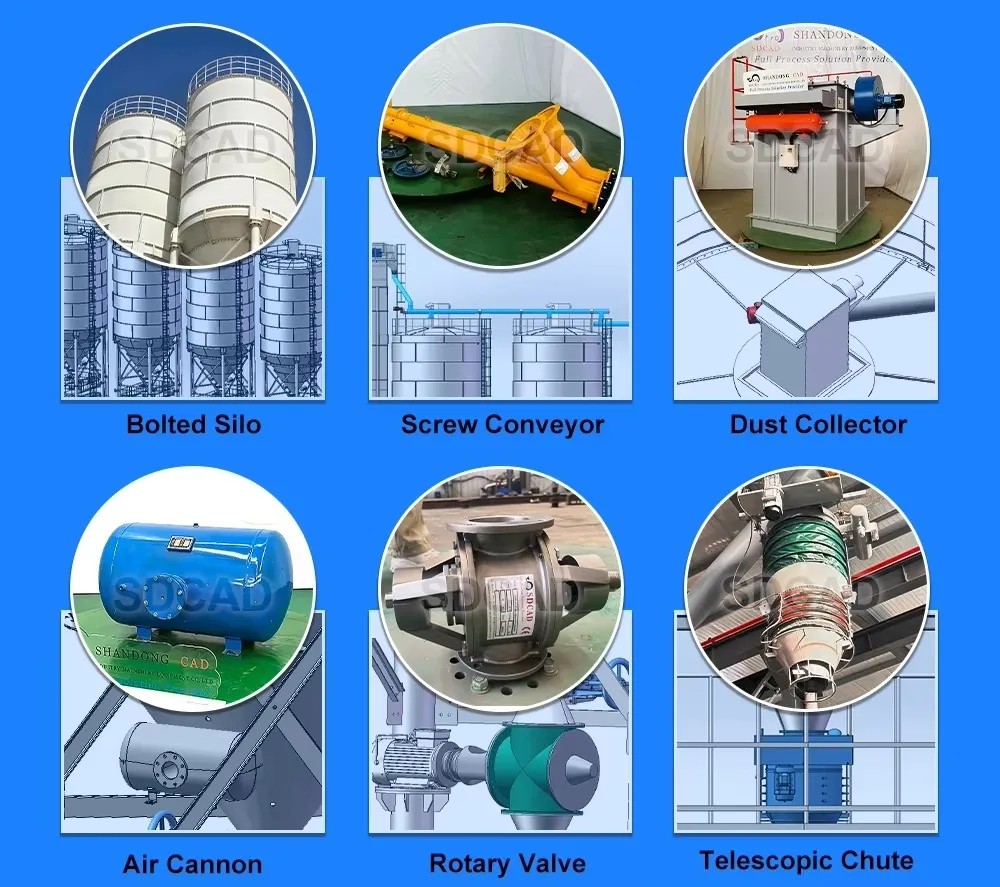

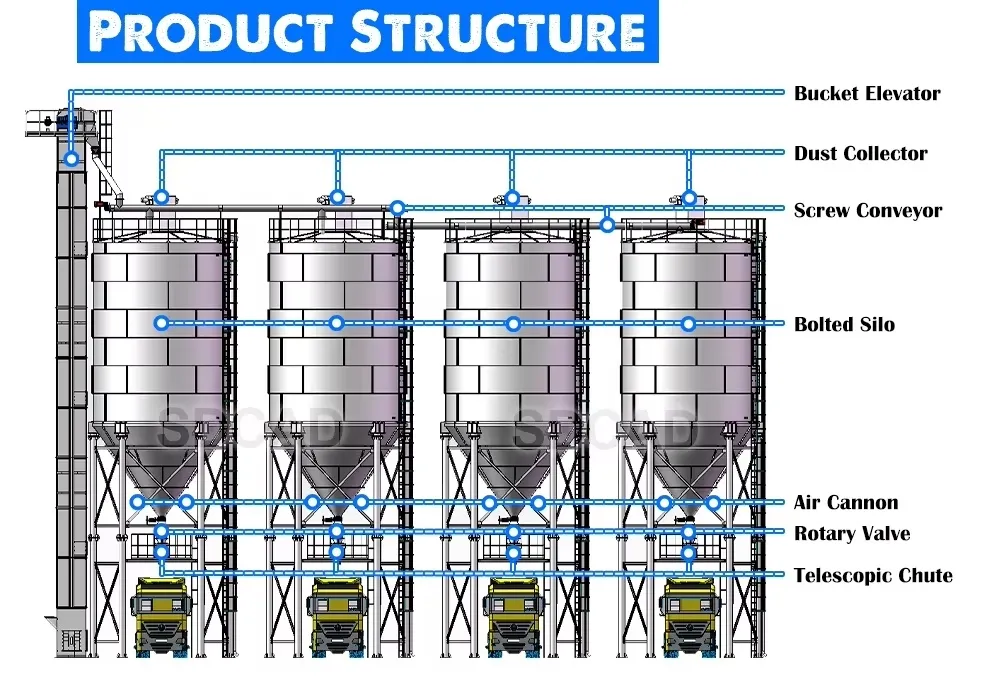

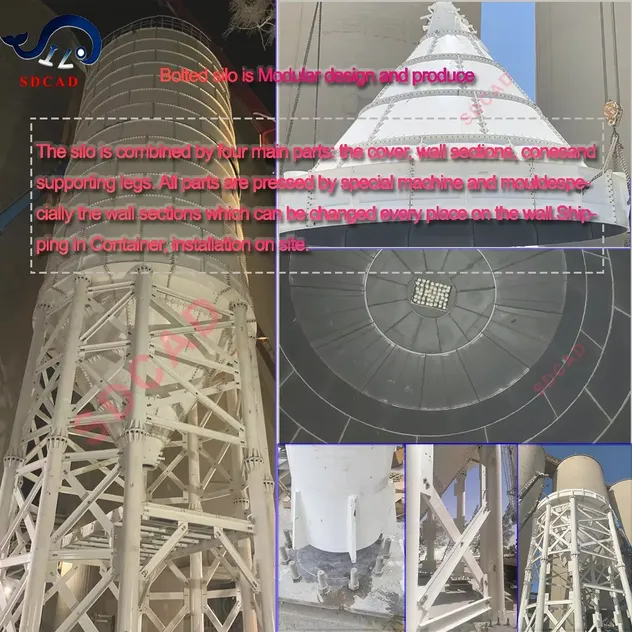

A cement silo is a closed storage system for bulk materials. It consists of a cylinder, lid, bottom, and supporting legs. The cylinder is designed with excellent sealing properties to prevent moisture. The top is equipped with a dust collector to reduce emissions and a pressure relief valve to ensure safety during operation. Cement is typically fed via bucket elevators or pneumatic systems, with various unloading methods available including pneumatic or electric control.

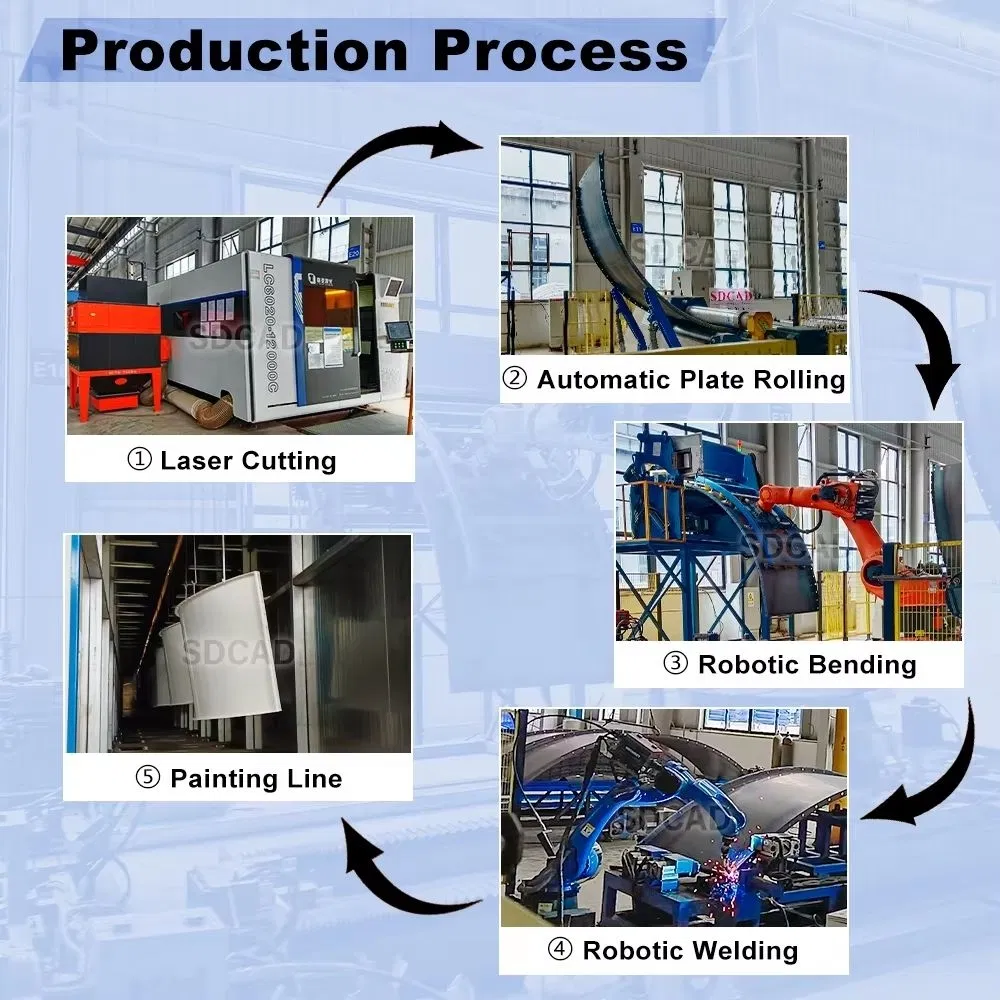

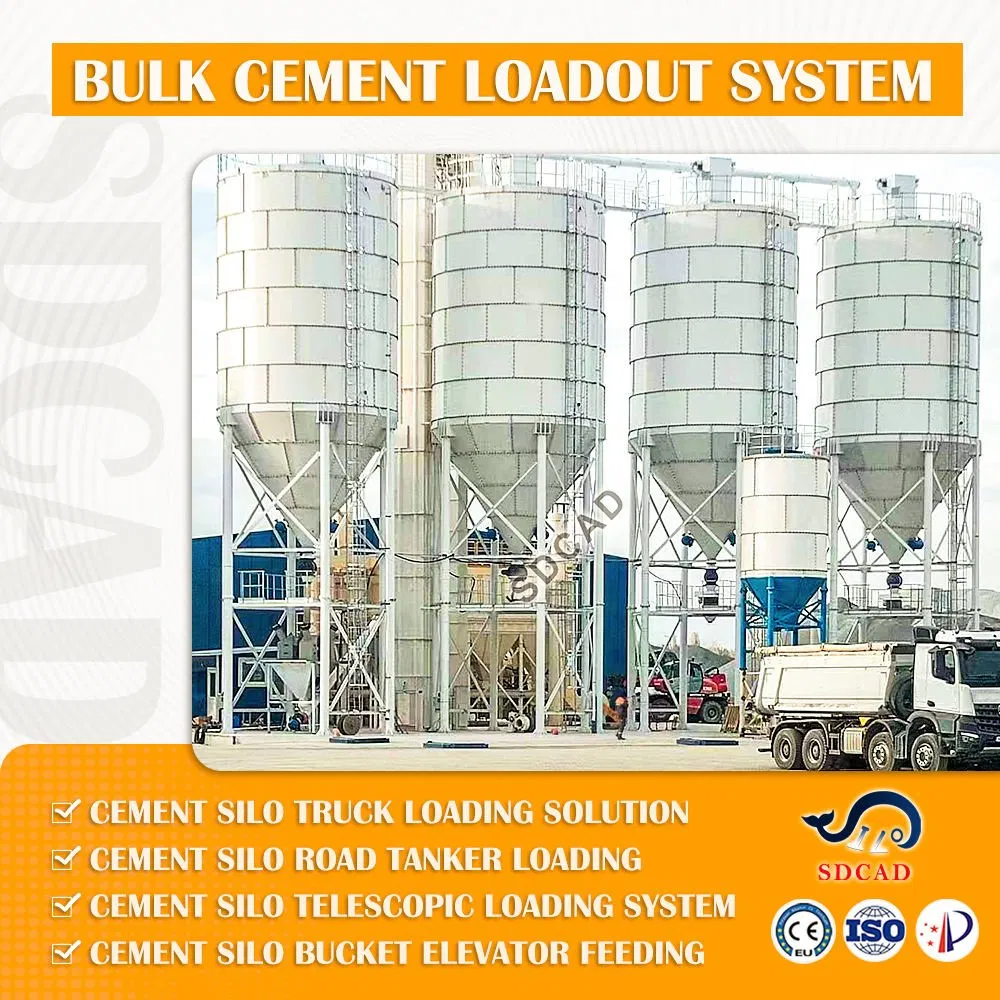

The 2000-ton cement silo dispatch system is designed for high-capacity storage and efficient bulk delivery. Every silo is manufactured with precision—from steel plate cutting and welding to corrosion protection—ensuring heavy-duty operation.

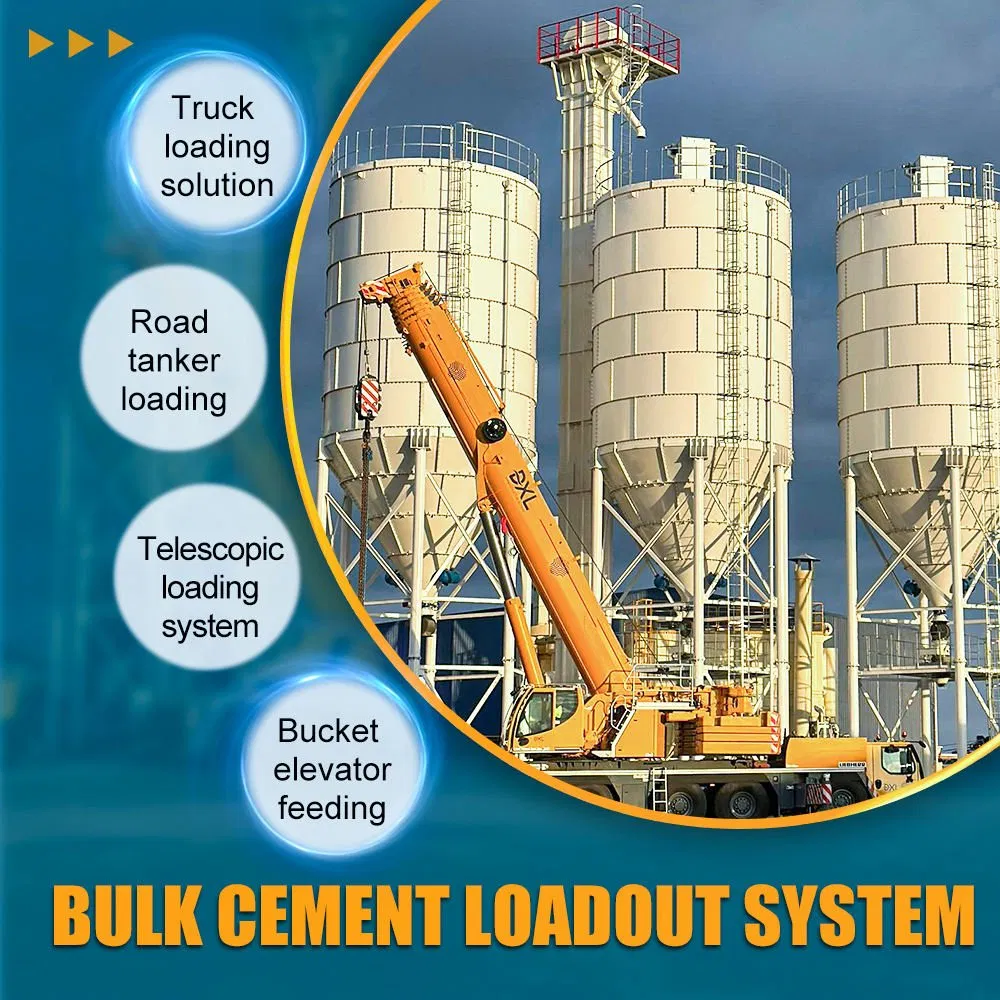

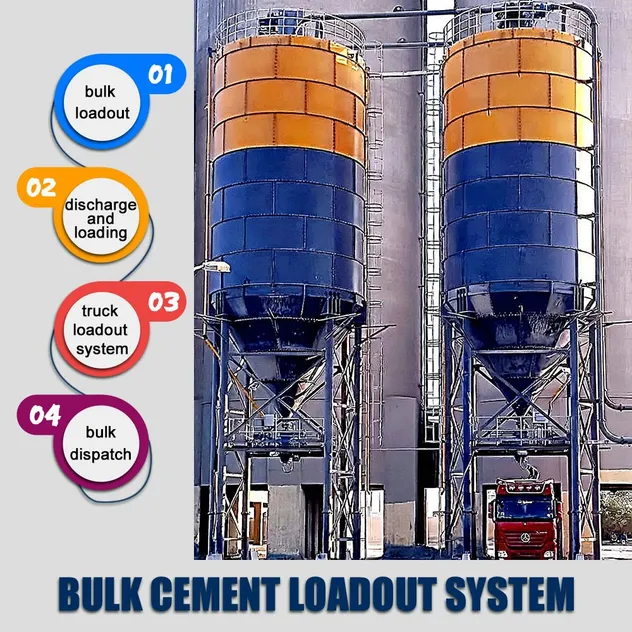

Integrated with telescopic bulk loading spouts and truck weighbridge systems, it enables dust-free, accurate, and continuous dispatch. The system supports PLC automatic control and project-based customization, providing a turnkey solution for modern operations.
Selection of high-quality materials with solid discharge technology for long service life and cost savings.

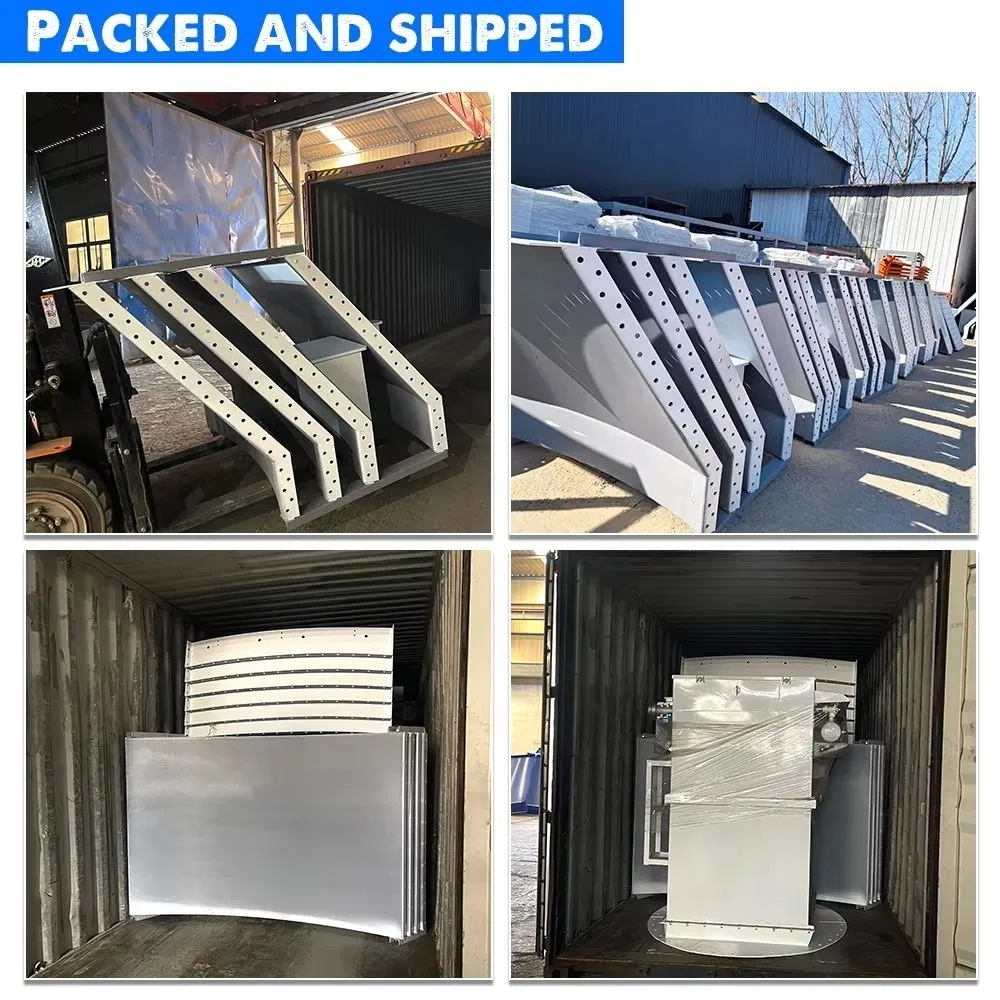

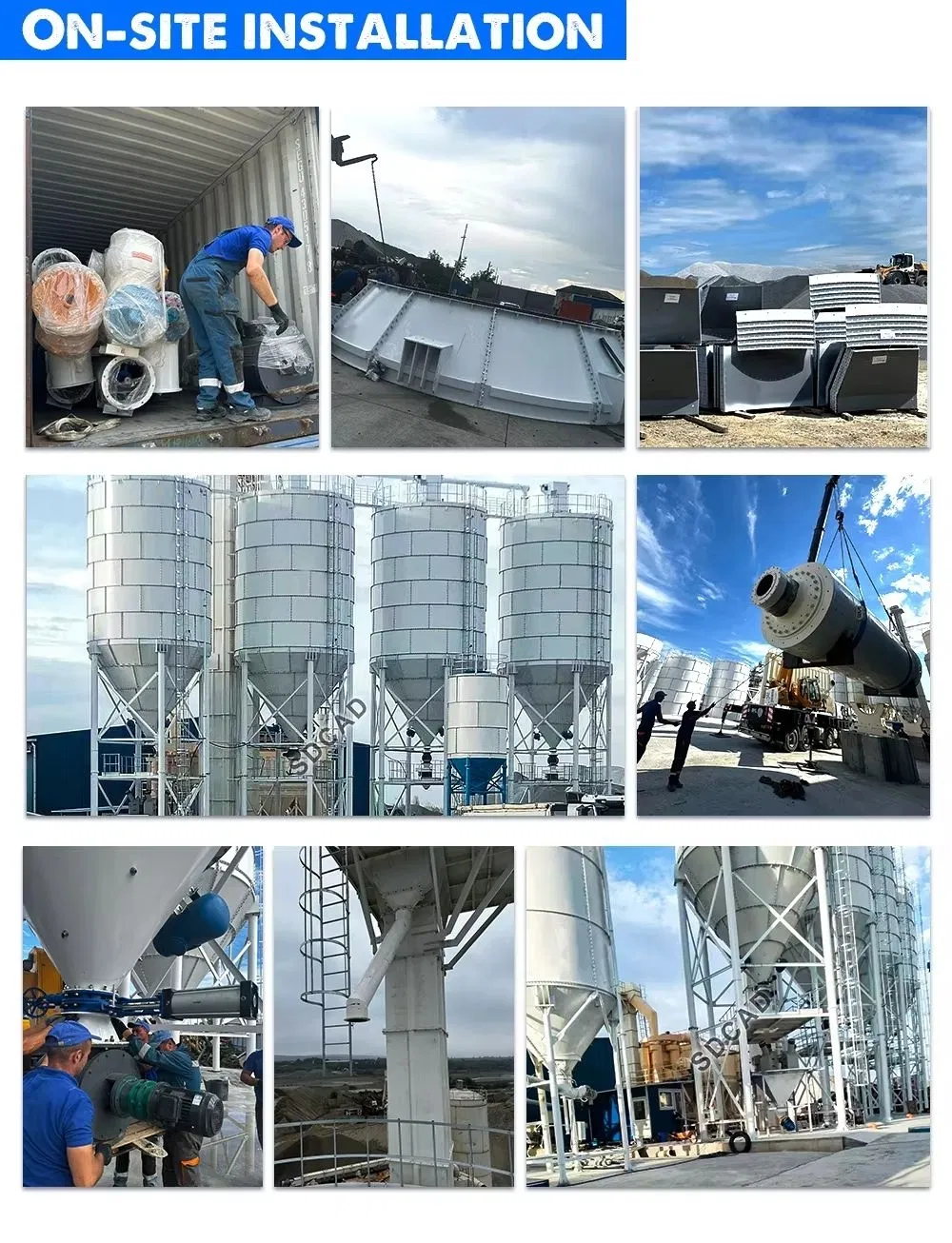

Removable transport and reasonable structure make installation and maintenance convenient for various terrains.
Acid and alkali corrosion resistance, rain-proof, and moisture-proof design for reliable use in all conditions.
