Concrete Batching Plant For Sale
A concrete batching plant is a complete production line designed to produce ready-mixed concrete. The aggregates, sand, cement, fly ash, additive, and water-reducing admixtures are accurately weighed by a precision weighing system and then fed into the concrete mixer to be processed. The entire procedure is controlled by sophisticated computer software. Once mixed, the concrete is typically transported to work sites by transit mixer trucks or discharged directly into concrete pumps for building construction.

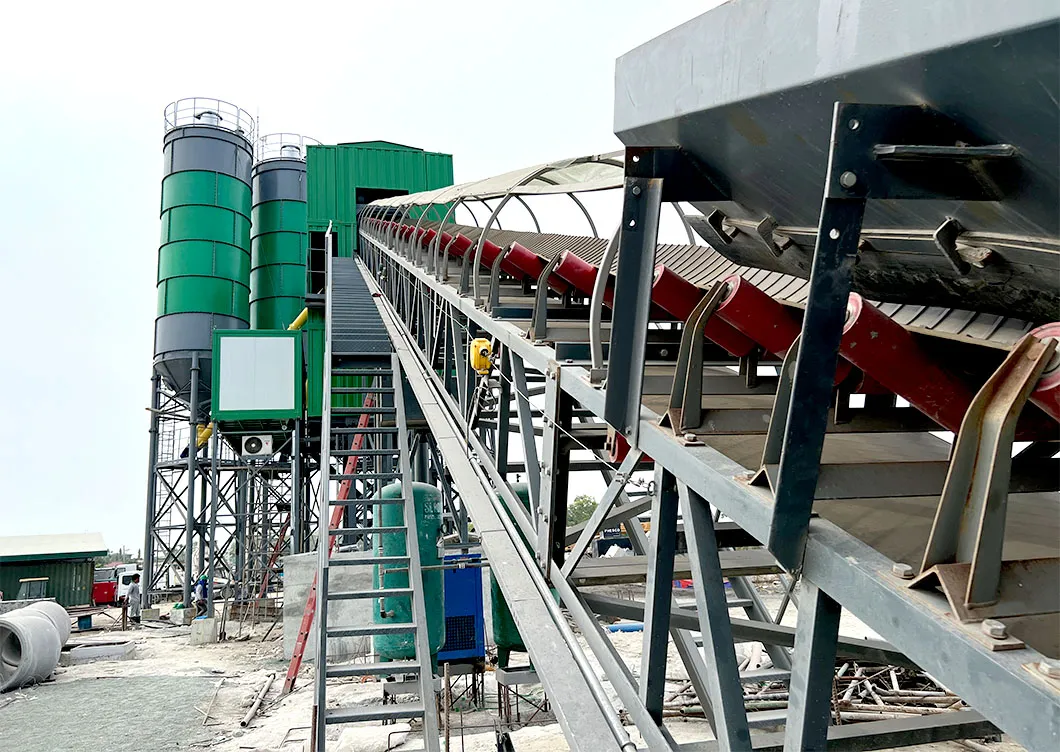

Belt Conveyor Type

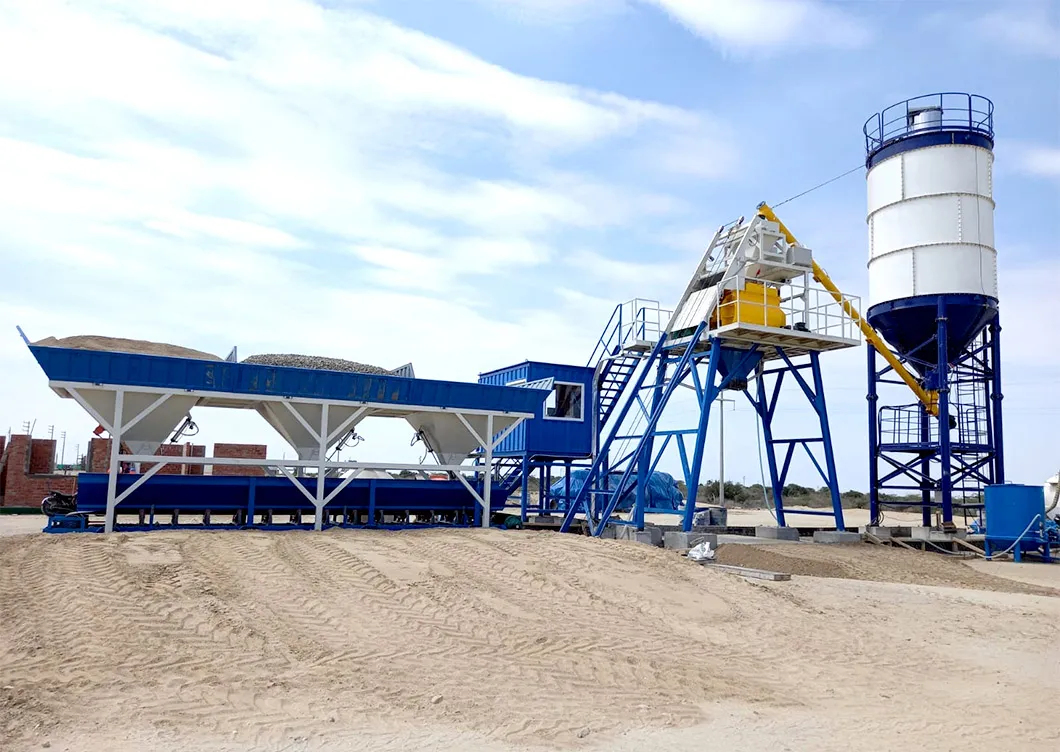

Skip Hoist Type

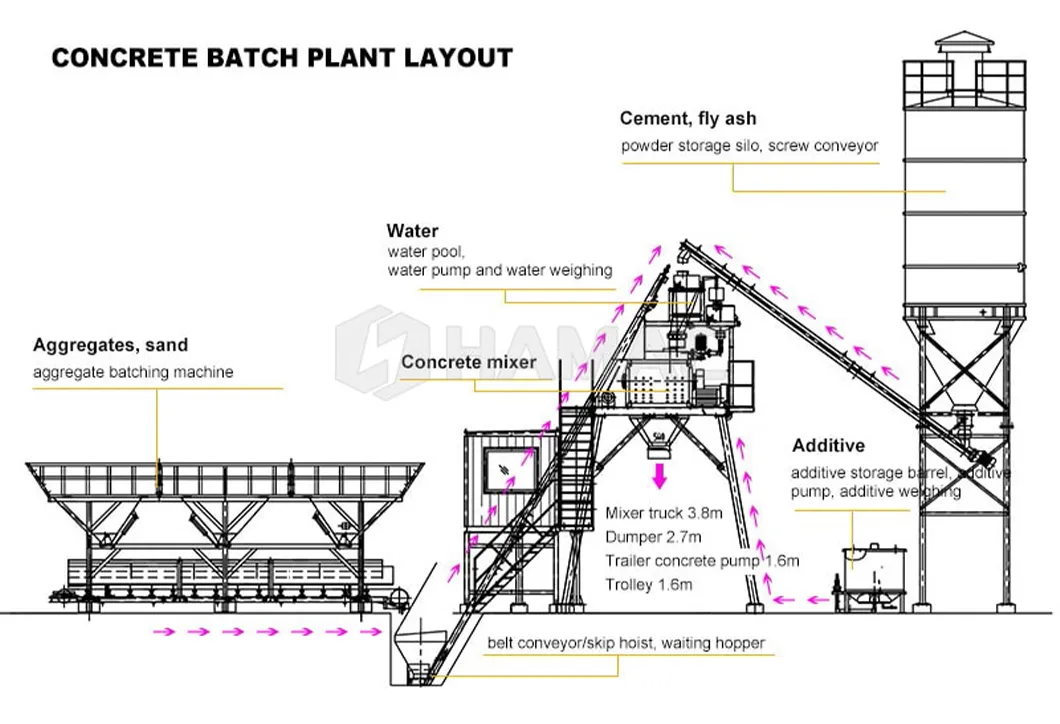

How the Plant Works:
| Technical Data | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
|---|---|---|---|---|---|---|---|---|
| Capacity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer Model | 0.5m3 | 0.75m3 | 1.0m3 | 1.0m3 | 1.5m3 | 1.5m3 | 2.0m3 | 3.0m3 |
| Batching System | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 |
| Discharge Height | 4100mm | 4100mm | 4100mm | 4100mm | 4100mm | 4100mm | 4100mm | 4100mm |
| Cycle Time (s) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 |
