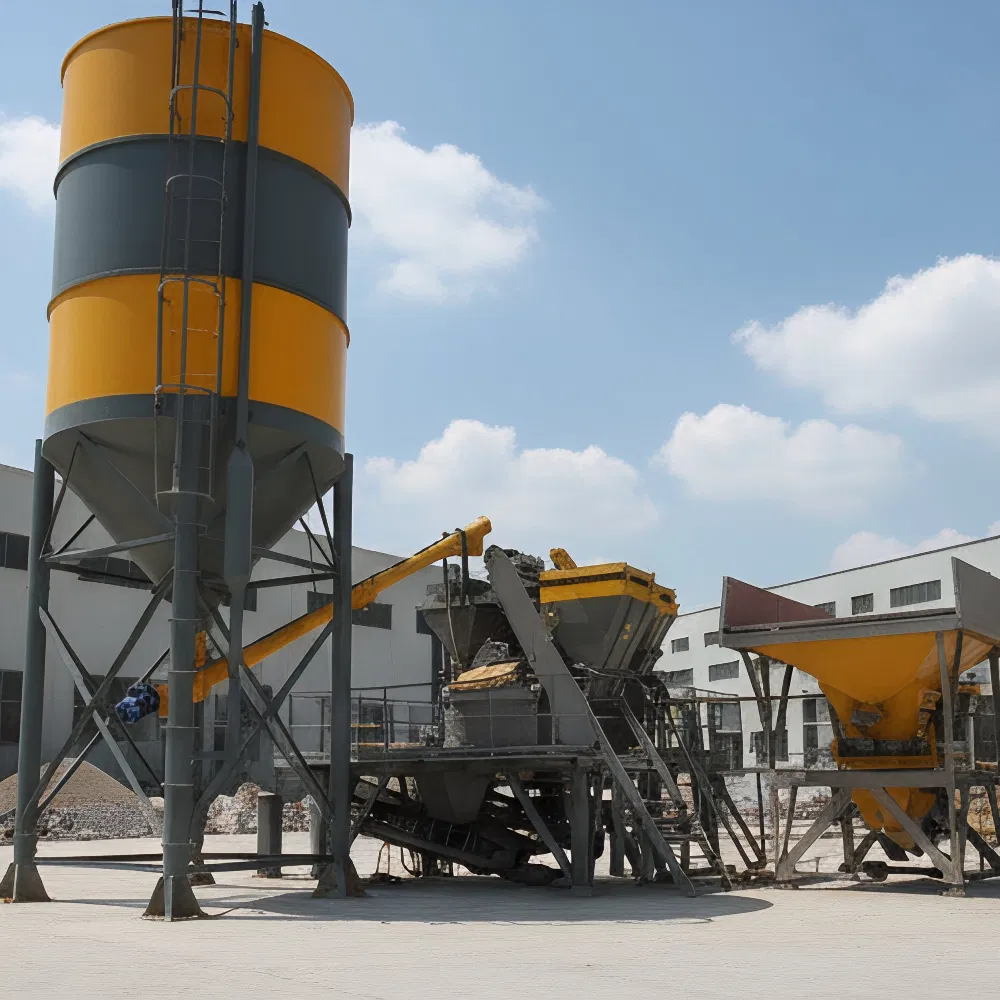

Mixing Plant CE Approved Stand Seaworthy Packing Planetary Concrete Mixer Batching Machine

1 / 4

Mixing Plant CE Approved Stand Seaworthy Packing Planetary Concrete Mixer Batching Machine

Customization:	Available
Type:	Concrete Mixing Plant
Machining Process:	Construction Machinery

Send Inquiry

Product Description

📊Basic Information

Model NO.

QMP250

Certification

Condition

New

Color

White

Filling Volume (L)

375

Feeding Capacity (Kg)

600

Compacted Concrete (L)

250

Mixing Power (Kw)

Discharging Power (Kw)

Pneumatic Discharging

Weight (Kg)

1800

Transport Package

Stand Seaworthy Packing

Specification

CE, ISO, SGS

Origin

China

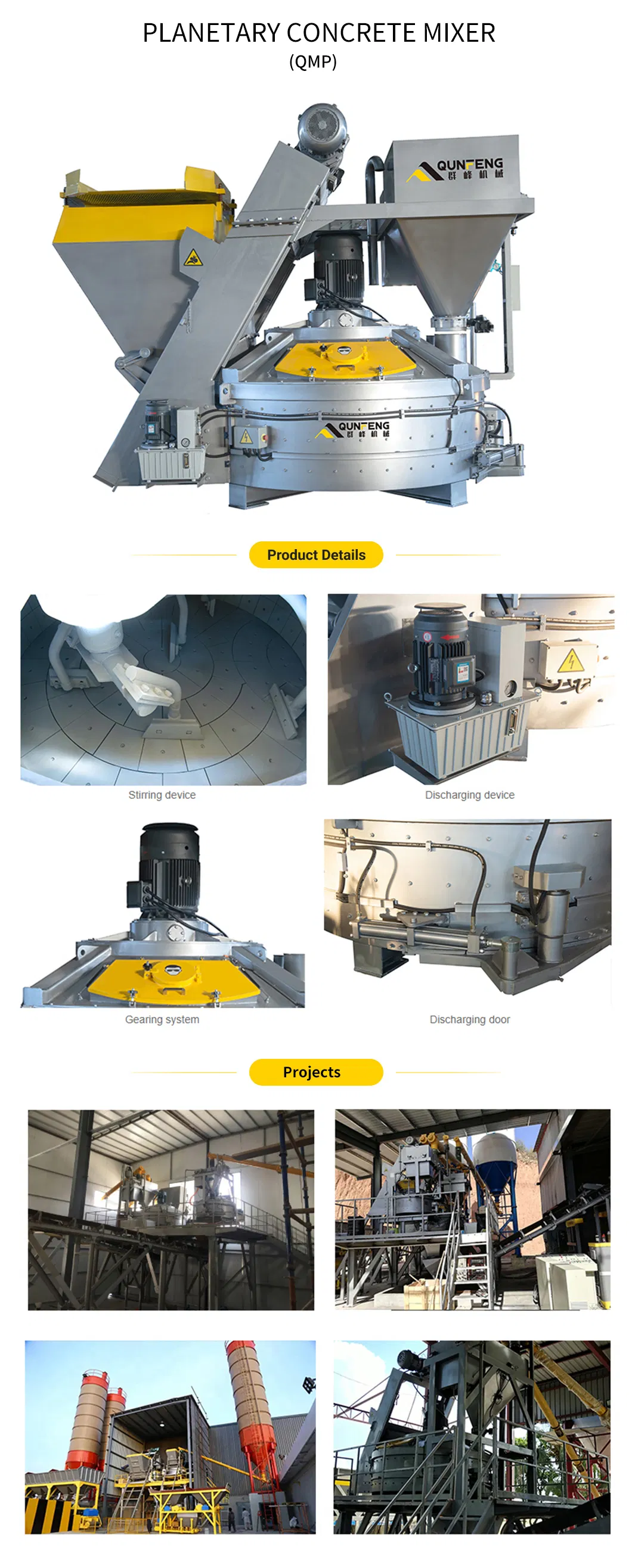

⚙️Product Description

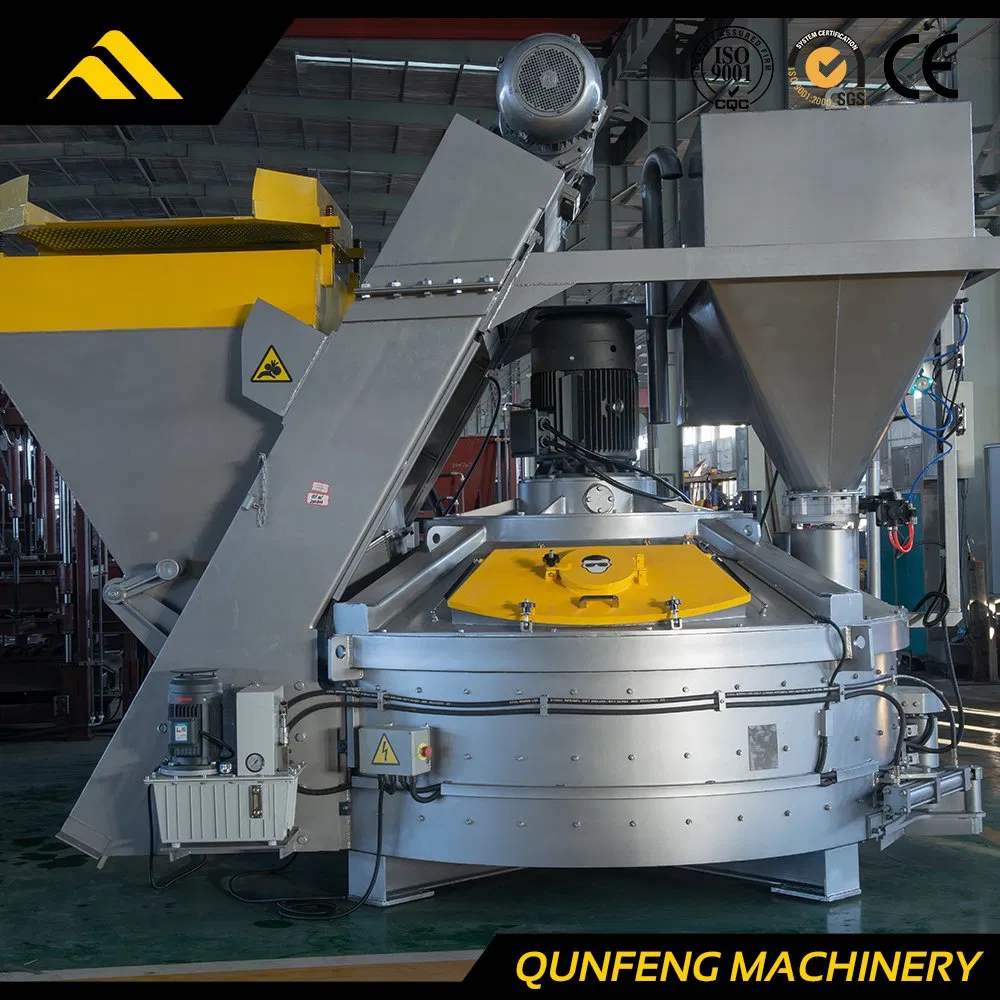

QMP Series Planetary Concrete Mixer is suitable for all high quality concrete with high speed (hard, semi-hard and plastic concrete). It can be used not only for concrete mixing, but also to mix glass, ceramic, refractory materials and other products.

✔

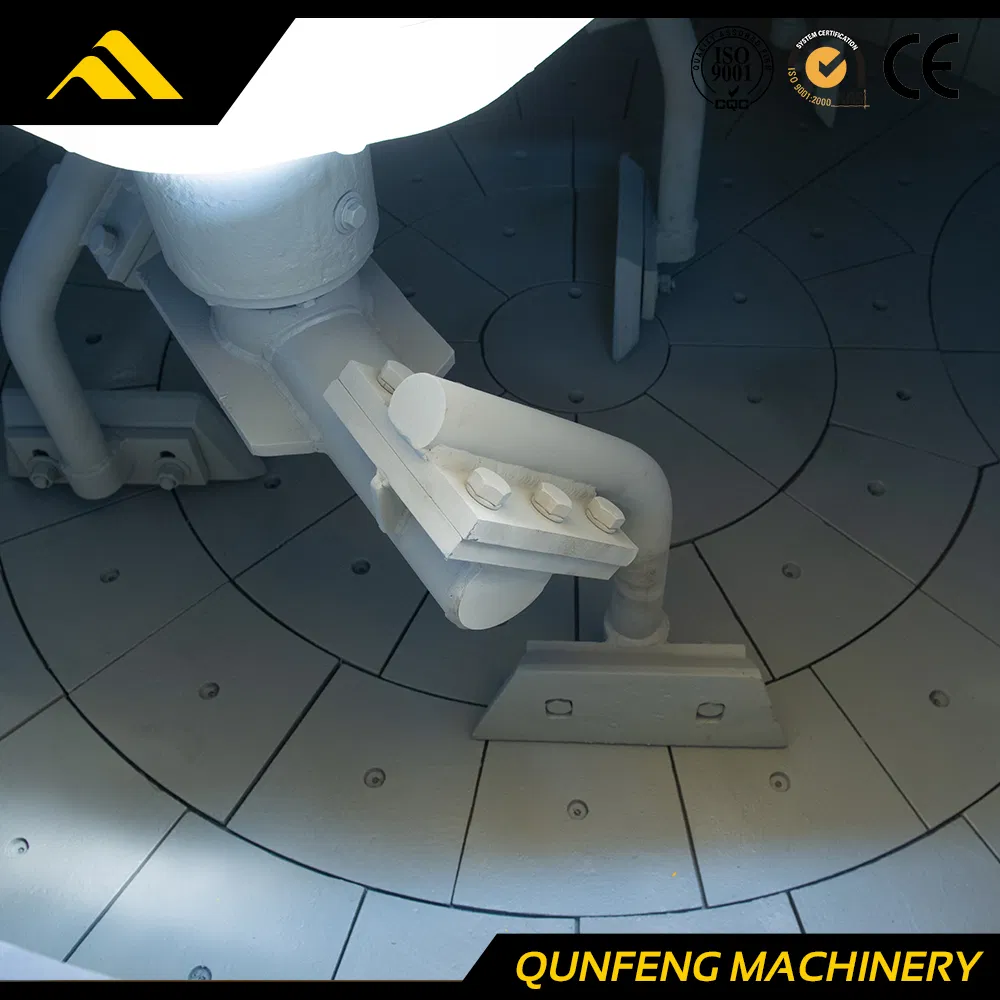

The specially designed mixing device makes the mixing speed faster and more even; the mixing blade is highly wear-resistant.

✔

Flexible couplings and fluid coupler (optional) protect the drive system from overload shocks.

✔

Special gearbox distributes power effectively, ensuring high efficiency and low noise even under harsh conditions.

✔

Large-size access door facilitates easy maintenance and thorough cleaning.

✔

Optional high-pressure cleaning device and water content tester are available.

✔

Full range of technical support and assurance from selection to customized applications.

Items	QMP250	QMP330	QMP500	QMP750	1000	1500	2000	2500	3000
Filling Volume (L)	375	500	750	1125	1500	2250	3000	3750	4500
Feeding Capacity (Kg)	600	790	1200	1800	2400	3600	4800	6000	7200
Compacted Concrete (L)	250	330	500	750	1000	1500	2000	2500	3000
Mixing Power (kW)	11	15	18.5	30	37	55	75	90	110
Mixing Star/Blade (Qty)	1×2	1×2	1×2	1×3	2×2	2×2	3×2	3×3	3×3
Scraper (Qty)	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharging Power (kW)	Pneumatic	2.2	2.2	2.2	3	3	4	4	4
Weight (Kg)	1500	2000	2500	3500	5500	6500	8500	10500	11000

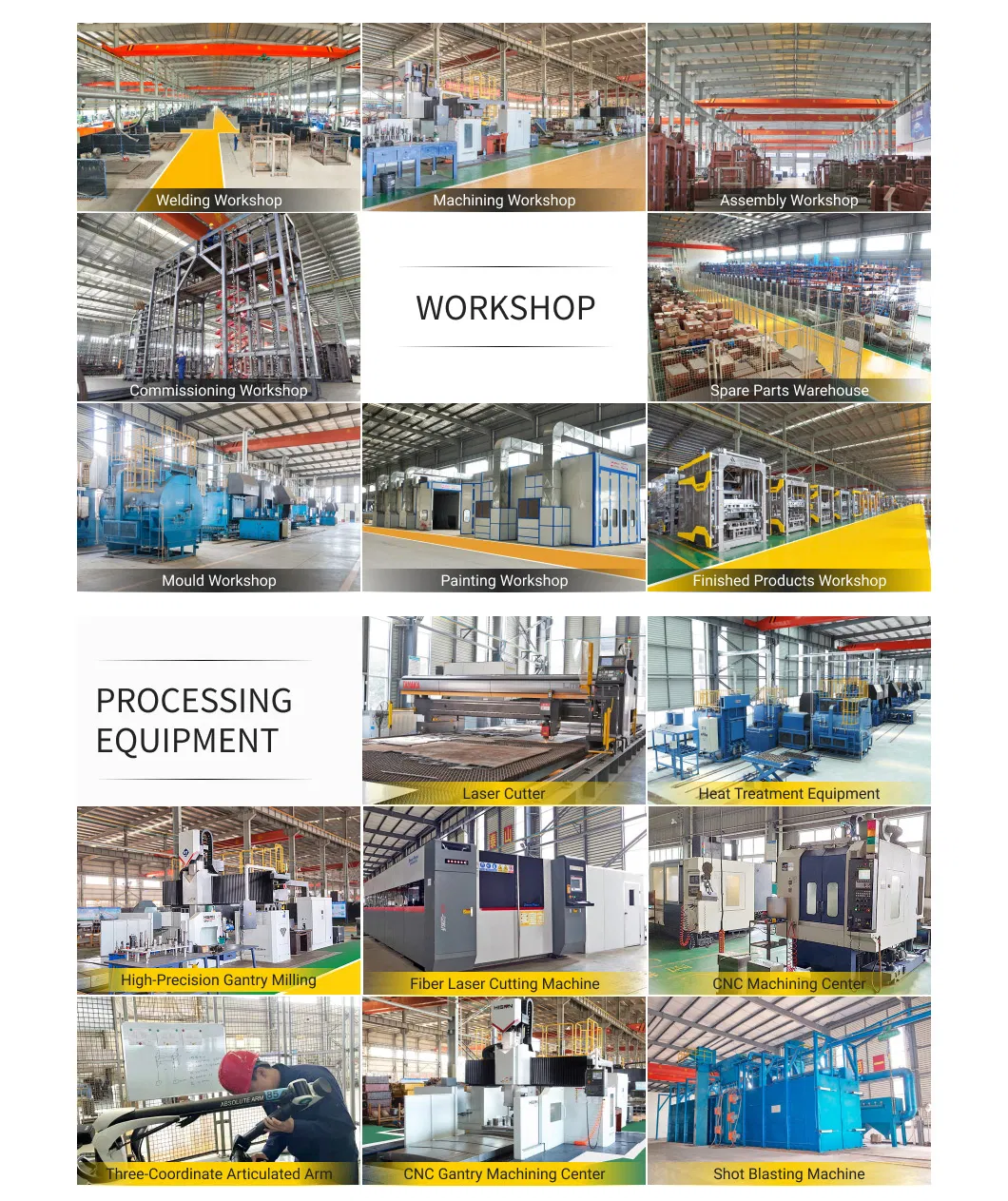

🏢About Our Facility

👥Sales & Support Team

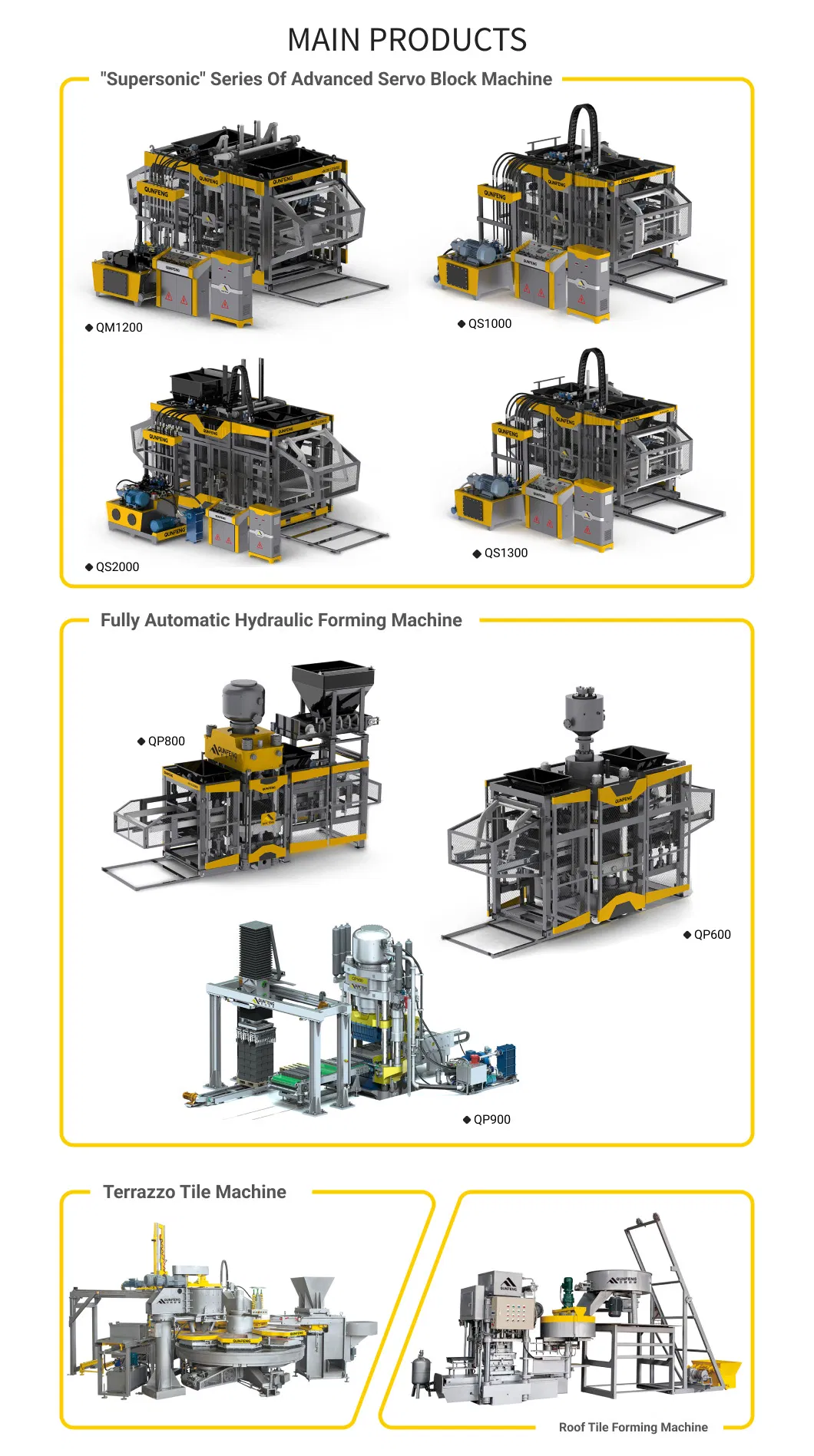

🏗️Main Products Range

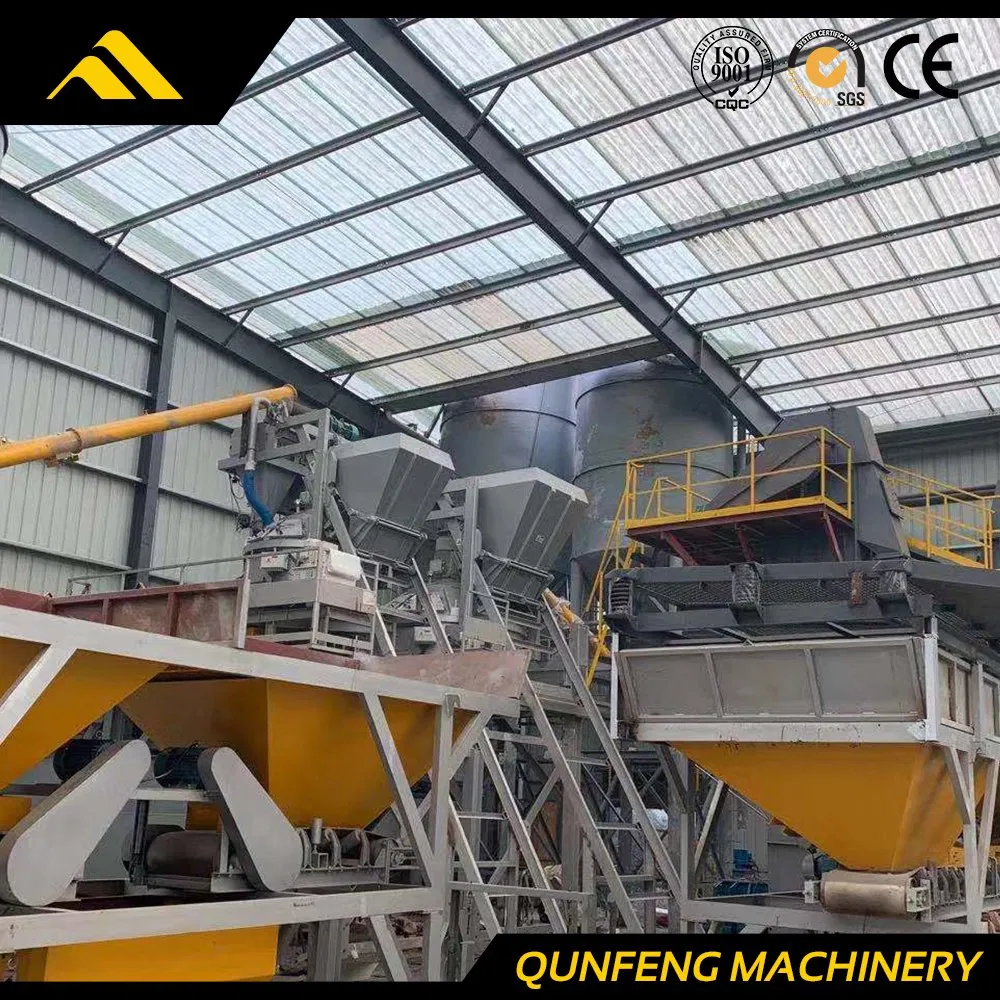

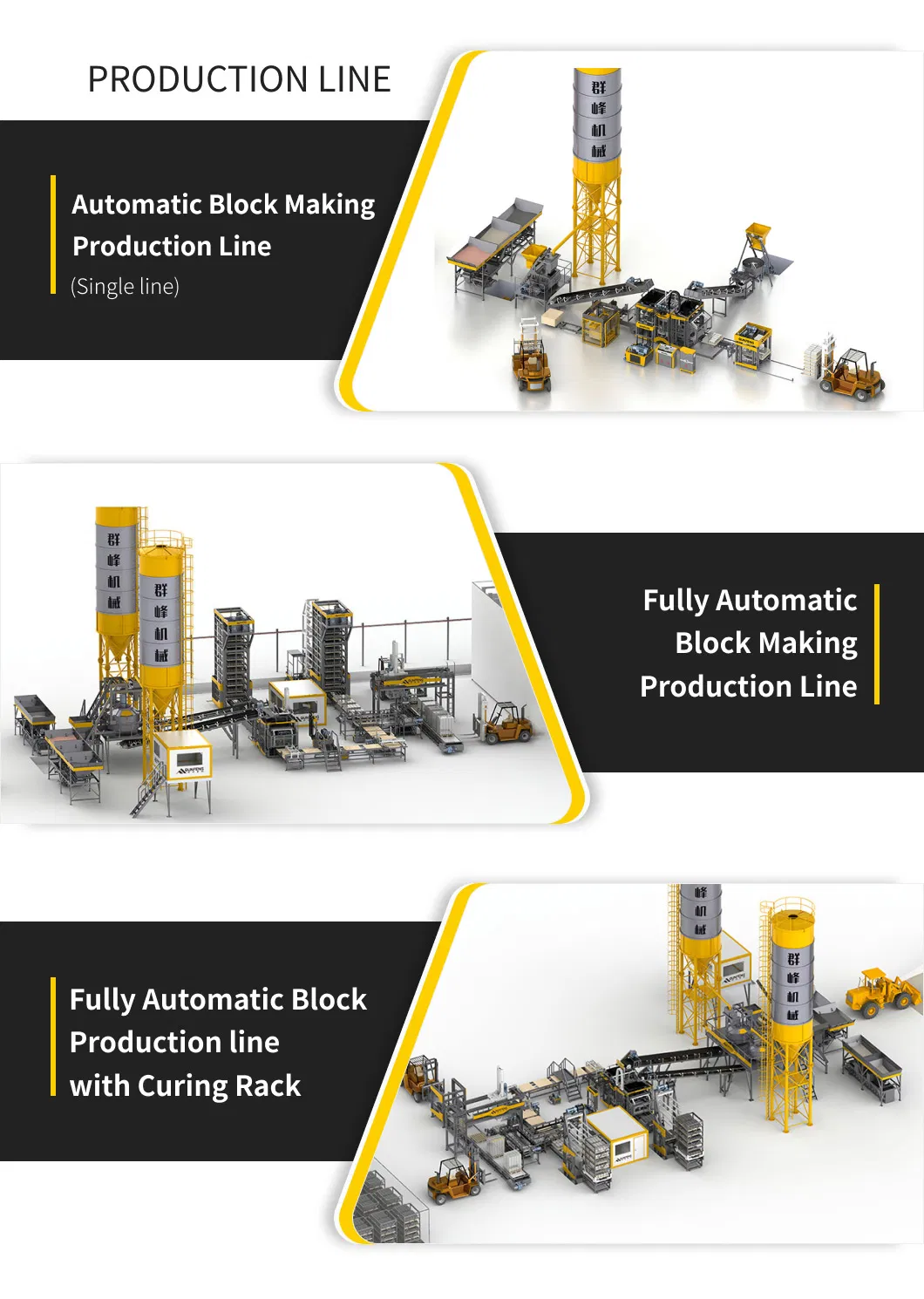

🌟Application Cases

📜Certifications

📦Packaging & Transportation

❓Frequently Asked Questions

What materials can the QMP series planetary mixer handle?

The QMP series is versatile and suitable for high-quality concrete (hard, semi-hard, and plastic), as well as glass, ceramics, and refractory materials.

How does the mixer ensure uniform mixing?

It utilizes a specially designed mixing star and blade arrangement that moves in a planetary motion, ensuring faster and more even distribution of materials.

Is the drive system protected against mechanical shocks?

Yes, the mixer features flexible couplings and an optional fluid coupler to protect the gearbox and motor from overload shocks during operation.

What are the options for discharge power?

The QMP250 model typically uses pneumatic discharging, while larger models feature motor-driven discharging ranging from 2.2kW to 4kW depending on the capacity.

Is maintenance difficult for these large mixers?

Not at all. The mixers are designed with large-size access doors to make routine maintenance, inspection, and cleaning simple and efficient.

Can I get technical support for customized applications?

Yes, we provide a full range of technical support, from selecting the most suitable model to customizing equipment for specialized industrial applications.
