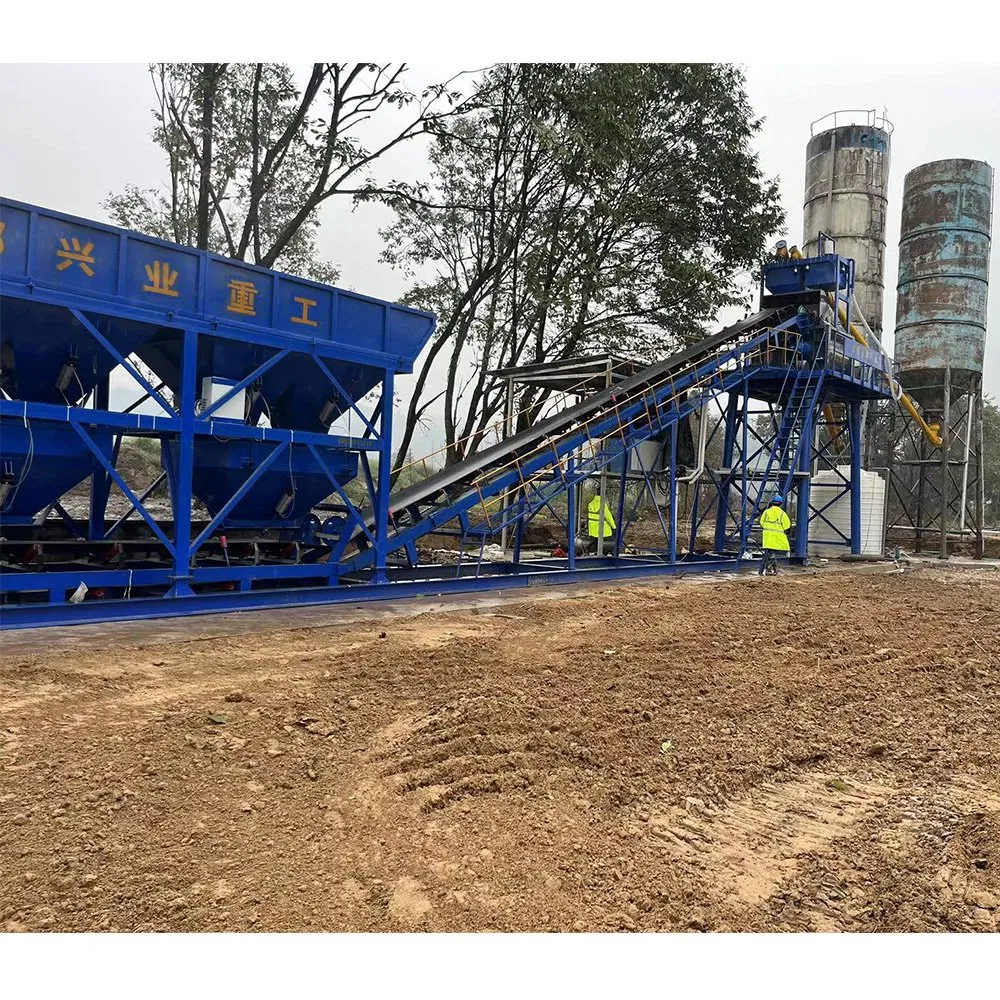

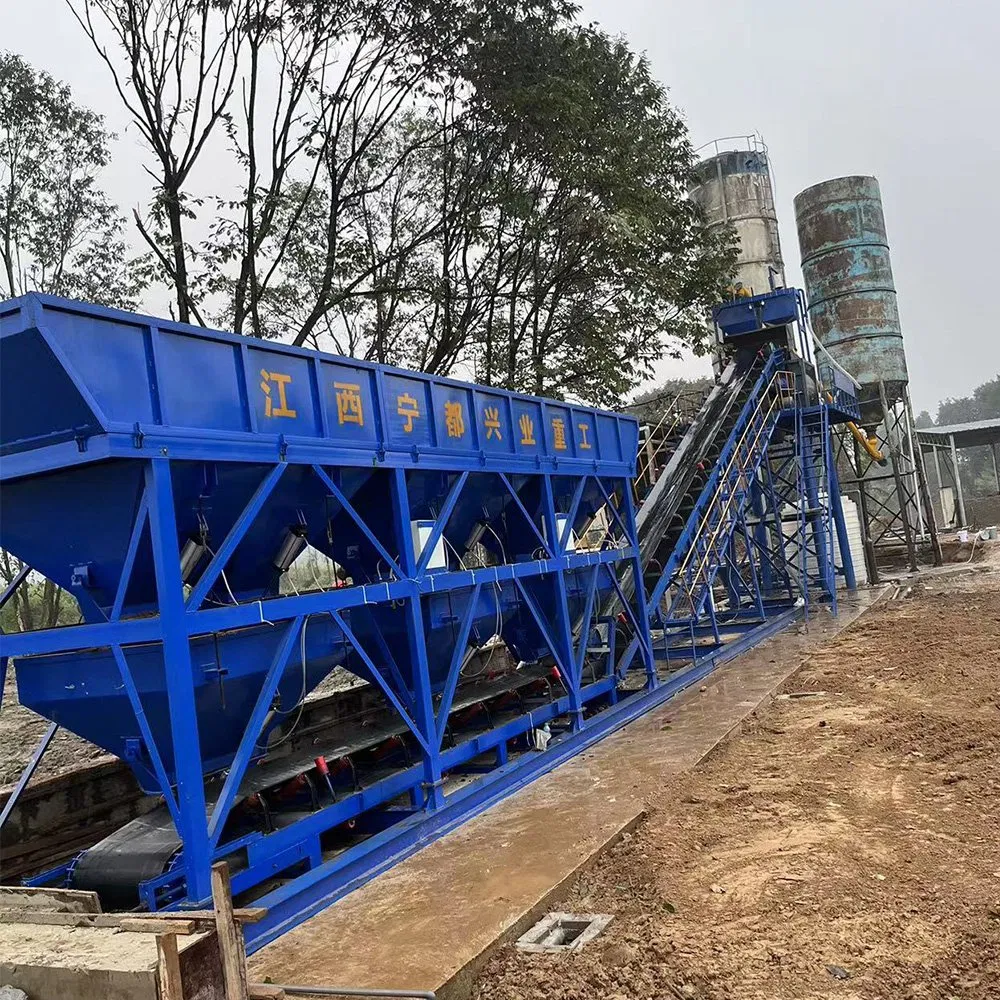

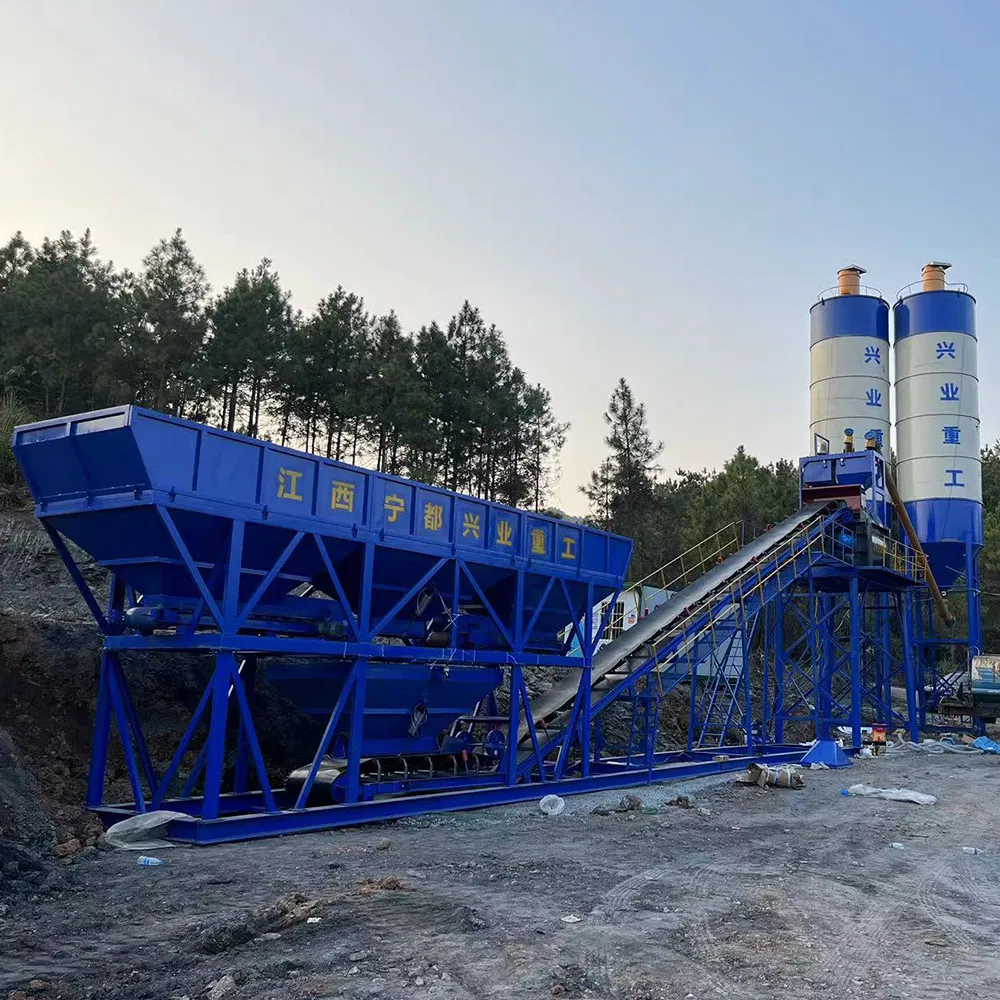

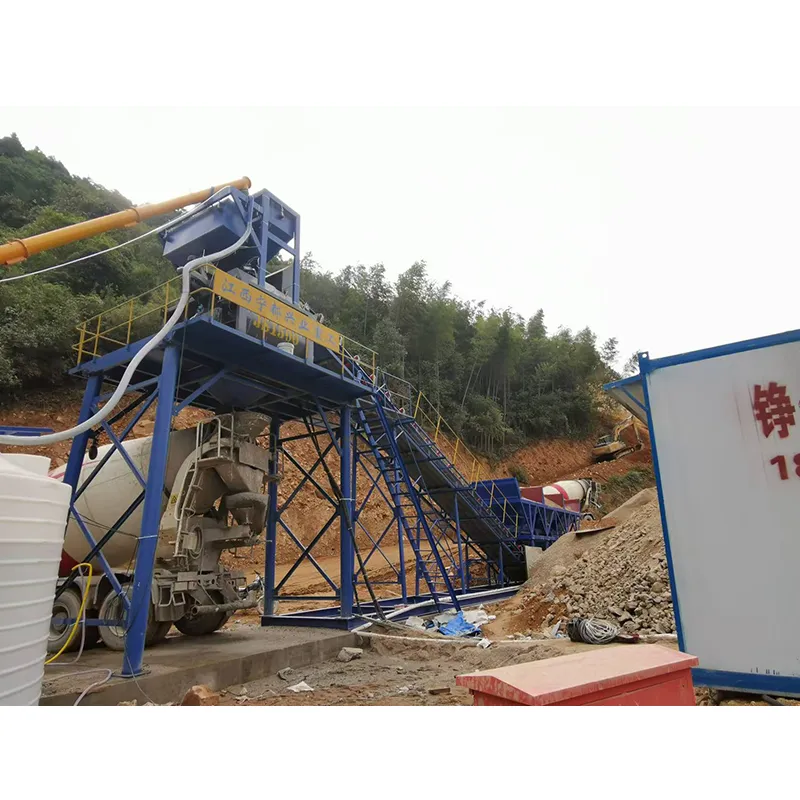

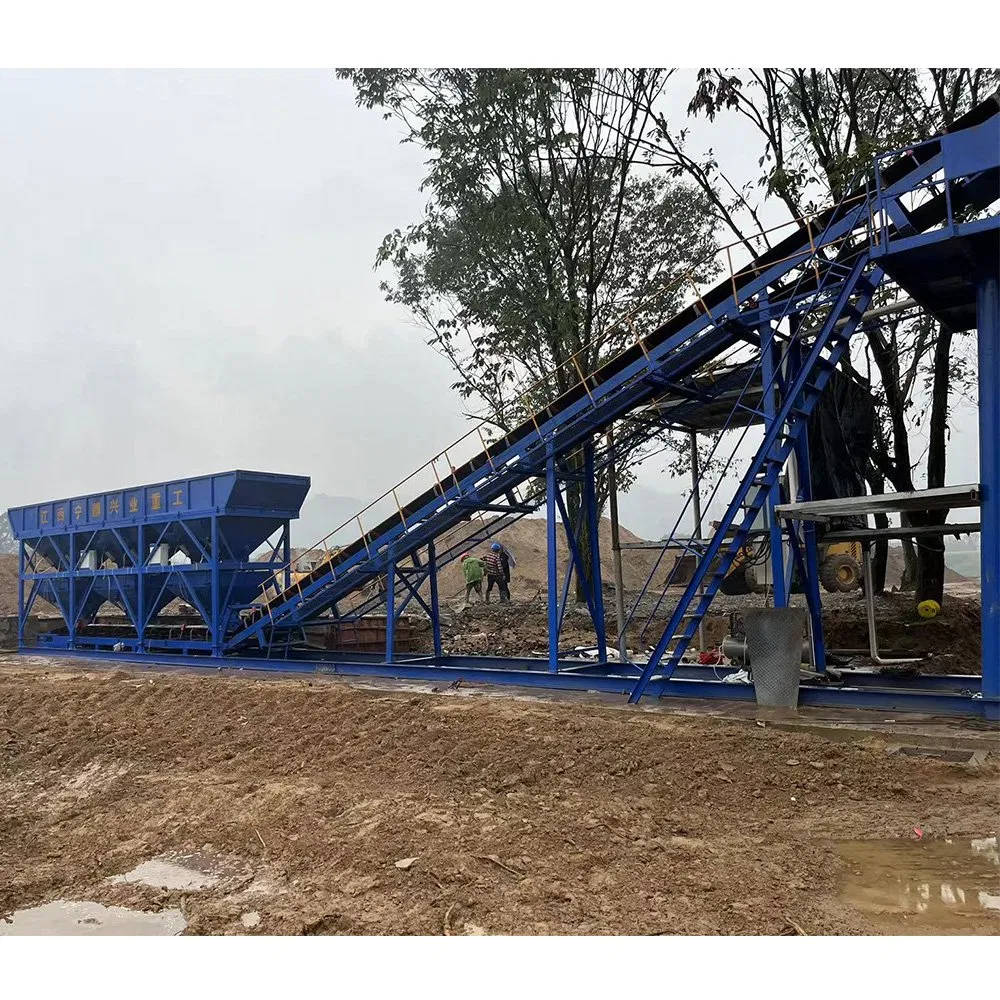

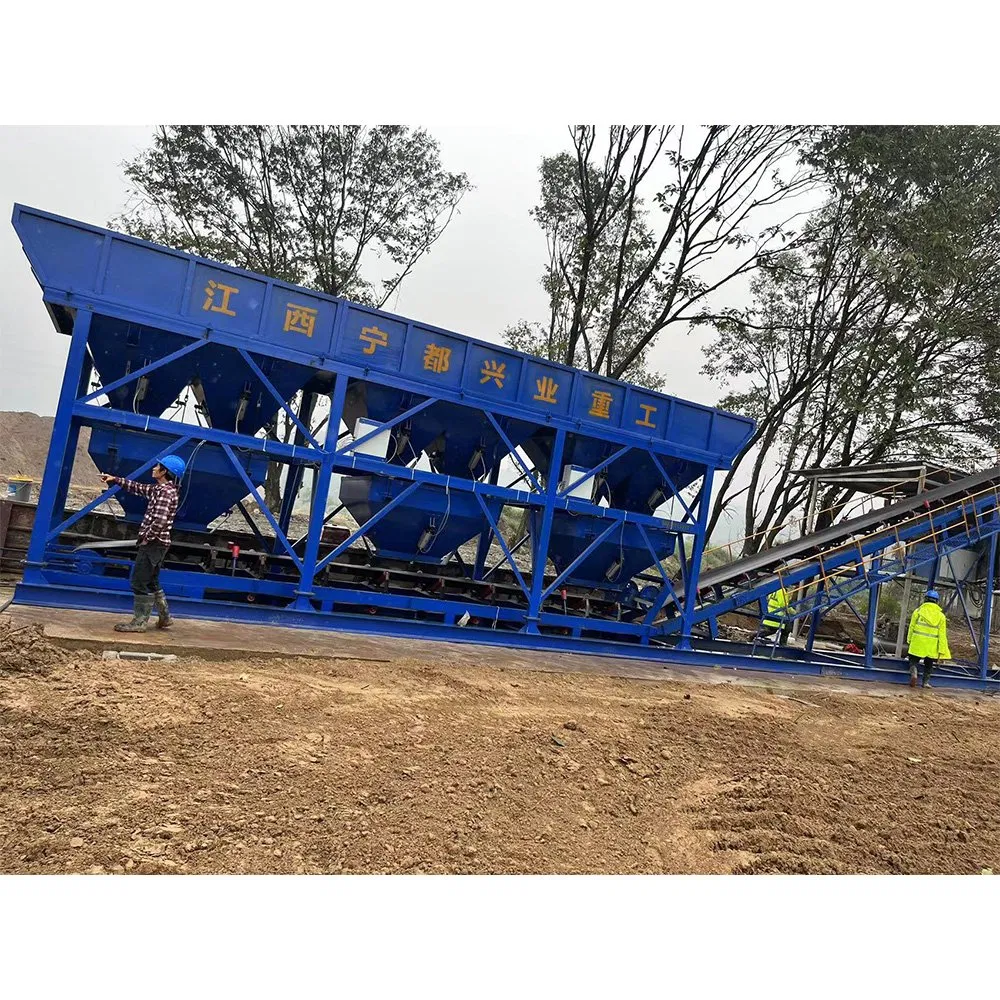

Brick Making Machinery Precast Concrete Mixer Machines HZS90 Concrete Batching Plant

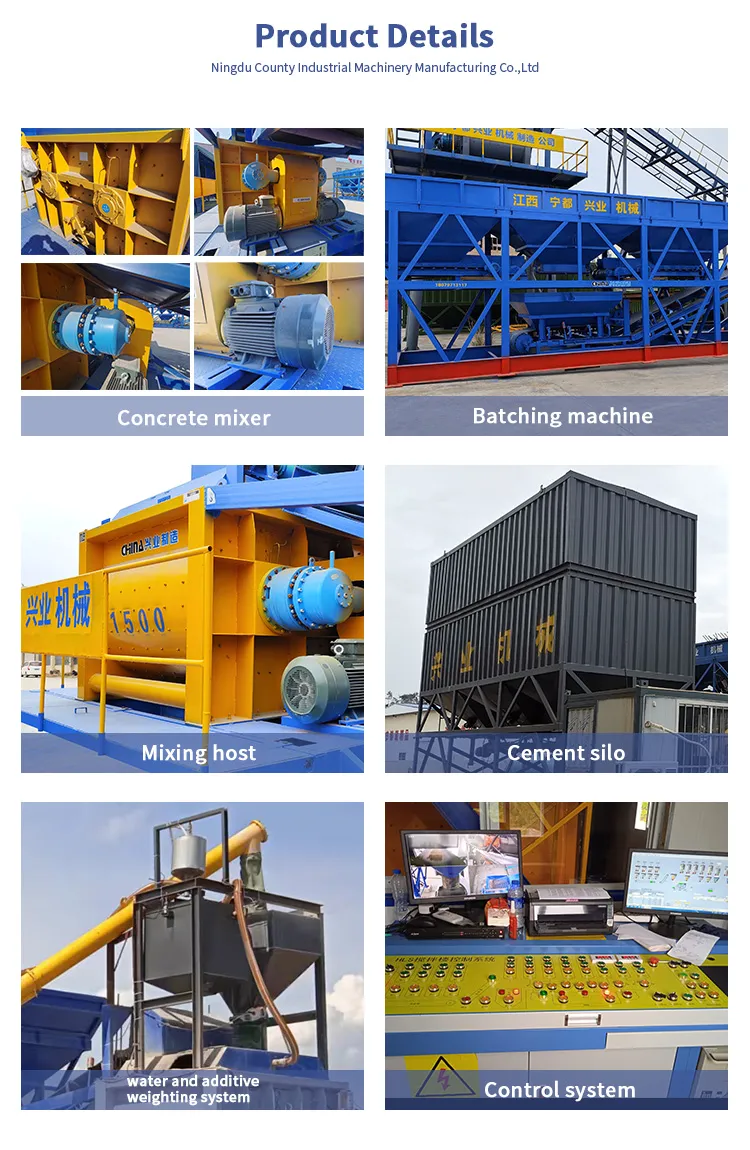

The HZS series is a new kind of compulsory volumetric concrete batching plant. It includes JS concrete mixer, PLD concrete matching machine, cement silo, conveying system, control system, accumulative system, and weighing system. It offers efficient mixing with high productivity options ranging from 25m³/h to 180m³/h based on your requirements.
System Components:

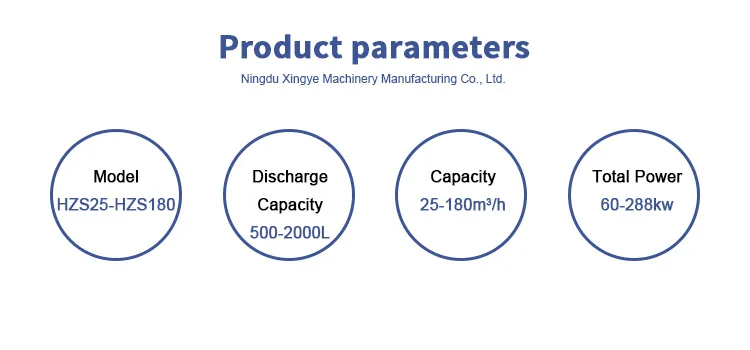

| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 |
|---|---|---|---|---|---|---|---|---|
| Discharging Cap. (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 |
| Max Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 |
| Charging Model | Hopper | Hopper | Hopper | Belt | Hopper | Belt | Belt | Belt |
| Discharging Height (m) | 1.5-3.8 | 2-4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8-4.5 | 4.5 |
| Total Power (kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 |

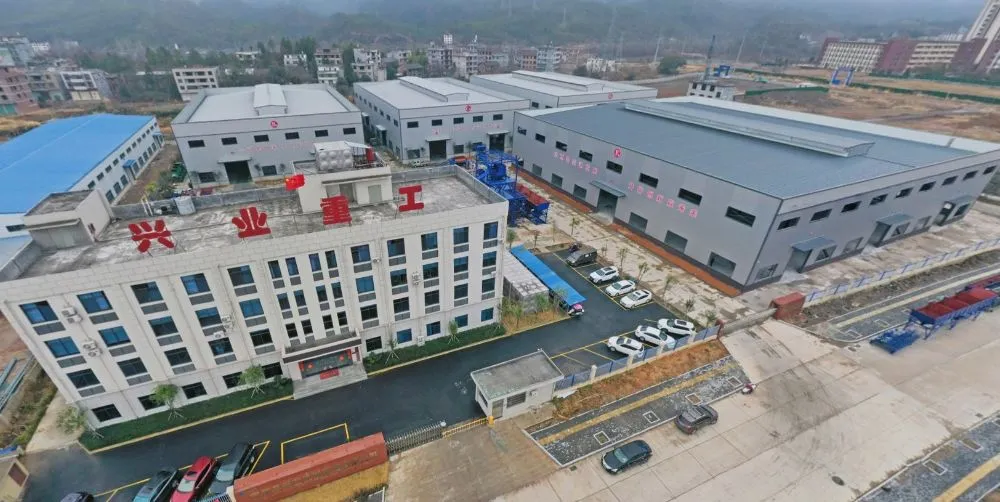

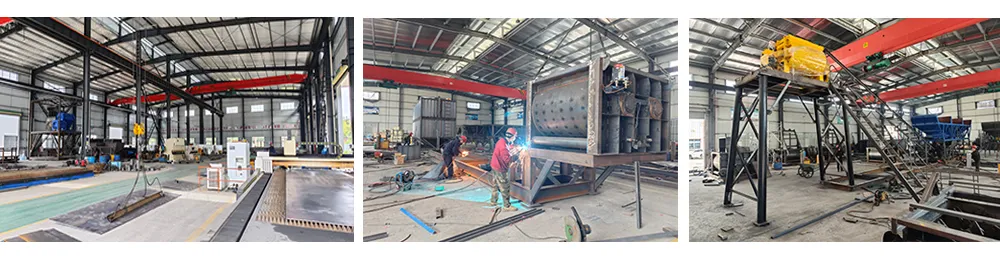

We are a leading concrete batching plant manufacturer with 15 years of professional production experience. As one of the largest manufacturers in China, our facility spans 20,000 square meters and was recently upgraded in 2023.
Our professional design team creates customized equipment for various client needs, supported by a strict quality inspection department and an expert after-sales installation team serving global markets.
