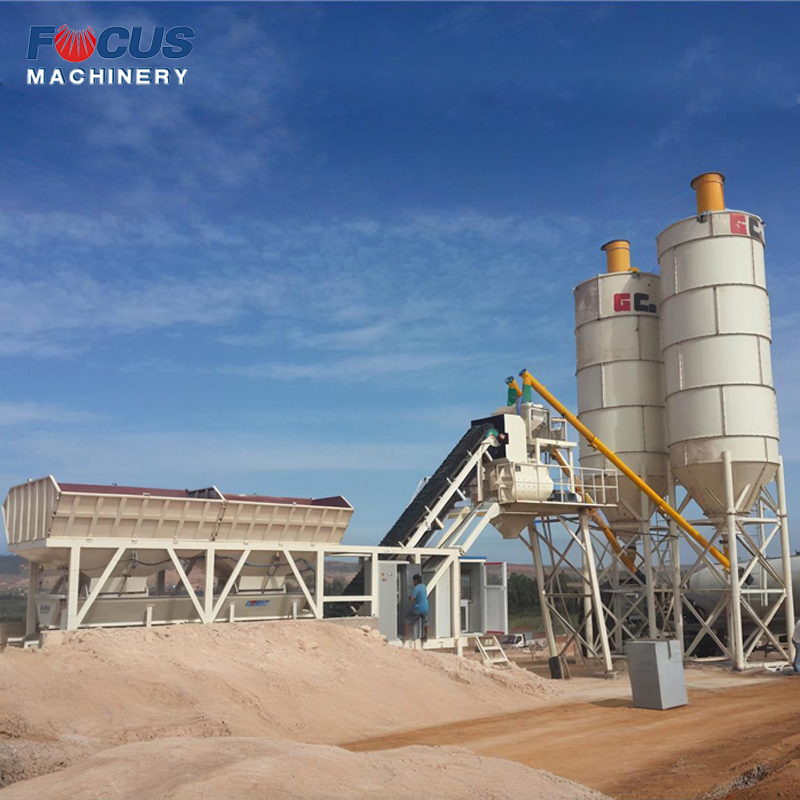

Full Automatic Movable & Portable Mobile Mix Cement Plant Ready Mixed Station Concrete Batching/Mixing Plant Factory Price

1 / 5

Full Automatic Movable & Portable Mobile Mix Cement Plant Ready Mixed Station Concrete Batching/Mixing Plant Factory Price

Customization:	Available
Warranty:	1 Year
Type:	Concrete Mixing Plant

Send Inquiry

Product Description

Basic Specifications

Model NO.

YHZS35 Mobile Concrete Batching Plant

Shotcrete Type

Dry, Semi-Dry and Plastic

Machining Process

PLC Control

Structure

Spiral Type

Productivity

35m³/h

Feeding Height

3800mm

Certification

ISO9001: 2000, CE

Condition

New

Control System

Full Automatic Computer Control

Electrical System

Schneider Brand

PLC

Omron or Siemens

Mixer Volume

500/750/1000/1500

Aggregate Batcher

PLD800-PLD4800

Weighing Accuracy

±2%

Aggregate Conveyor

Belt Type

Guarantee

12 Months

Production Capacity

25 sets Per Month

HS Code

8705400000

★

Product Description

Full Automatic Movable & Portable Mobile Mix Cement Plant Ready Mixed Station

Our mobile concrete batching plant product range offers capacities from 25cbm to 75cbm hourly. This series adopts a semi-pulling structure with a running system and is equipped with a standard coupling pin, allowing it to be dragged by a tractor at a maximum speed of 40km/h.

Complete Mobile Unit: Easily transported on-site. On-board hydraulic system changes plant from travel mode to full operational within 2-3 hours.

Reliability of Mix Consistency: Computer and manual dual control modes. Auto control system stores up to 20 recipes. Twin-shaft mixer ensures high-grade homogeneous mixing.

High Precision Dosing: Meting of water, cement, fly-ash, and additives is realized by three-point suspension sensors, metered separately.

Modular Design: Convenient for container transport or towing vehicles.

⚙

Technical Parameters

Model	YHZS25	YHZS35	YHZS50/60	YHZS75
Output Capacity	25m³/h	35m³/h	50-60m³/h	75m³/h
Overall Power	40kw	60kw	85kw	105kw
Discharge Height	3800mm
Max. Hauling Speed	40km/h
Concrete Mixer	JS500	JS750	JS1000	JS1500
Motor Power	18.5kw	30kw	18.5x2kw	30x2kw
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Weighing Precision	Aggregate ±2%, Cement/Water/Additive ±1%
Control System	Auto computer control, 1 set

📷

Global Applications

Frequently Asked Questions

What is the maximum productivity of these mobile plants?

The productivity ranges from 25m³/h to 75m³/h depending on the specific model selected (YHZS25 to YHZS75).

How fast can the mobile concrete plant be moved?

The plant is designed with a semi-pulling structure and can be towed by a tractor at a maximum speed of 40km/h.

How long does it take to set up the plant on a new site?

Thanks to the on-board hydraulic system, the plant can be converted from travel mode to full operational status within 2 to 3 hours.

What kind of control system is used?

It features a full automatic computer control system with a manual override option, capable of storing up to 20 different material recipes.

What is the weighing accuracy for the materials?

The aggregate weighing precision is ±2%, while cement, water, and additives have a higher precision of ±1%.

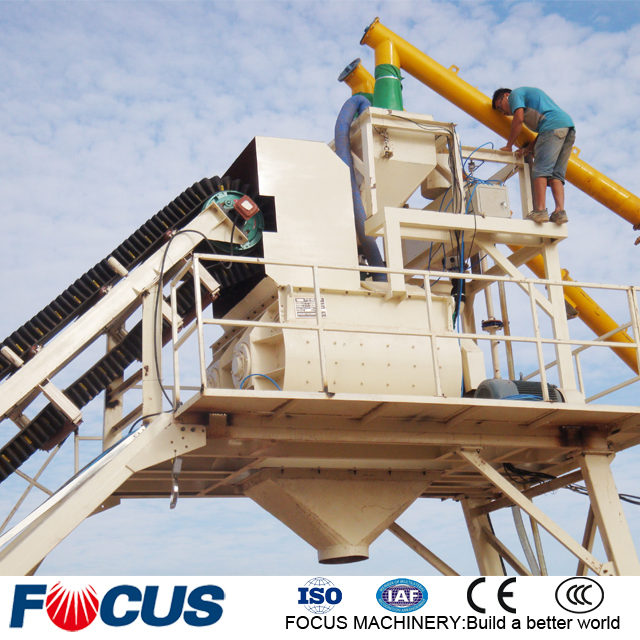

What type of mixer is integrated into the mobile plant?

The plants utilize high-efficiency twin-shaft mixers (JS series) to ensure consistent and homogeneous concrete mixing.
