Automatic Jet Grouting Machines / Units & Mixers

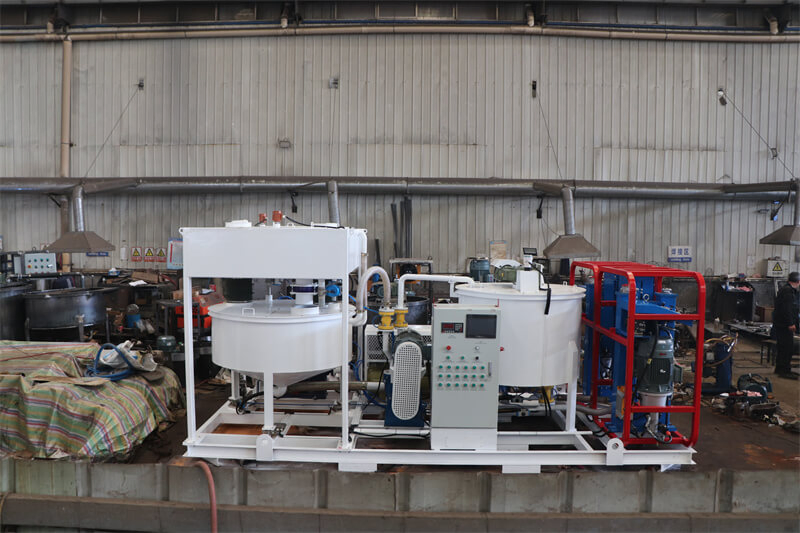

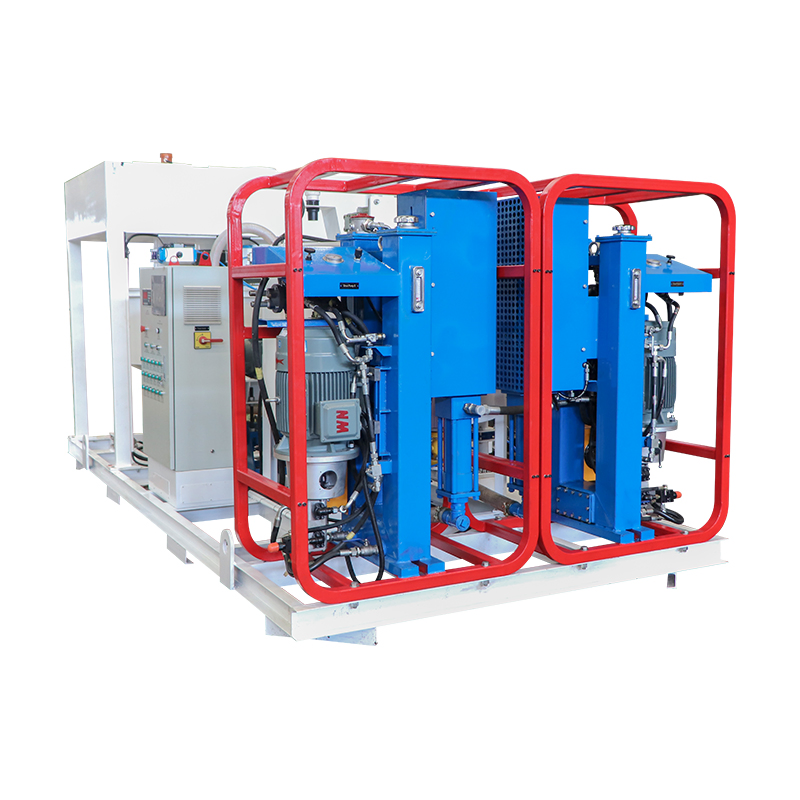

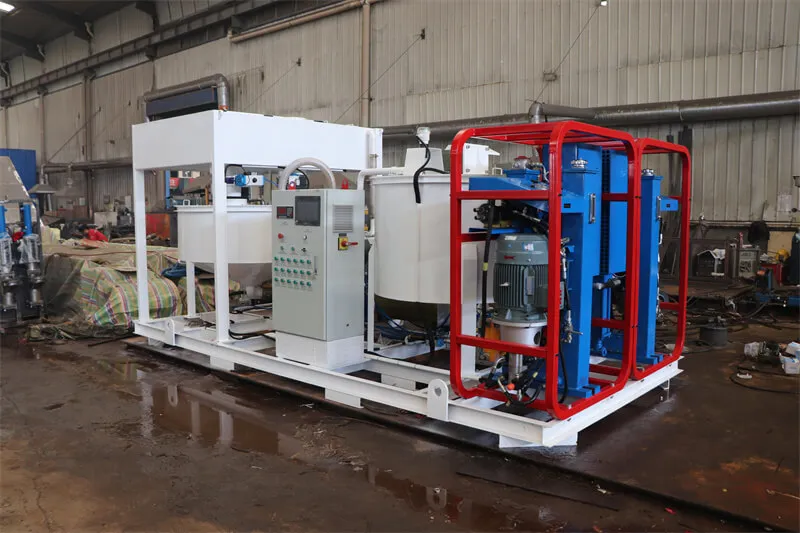

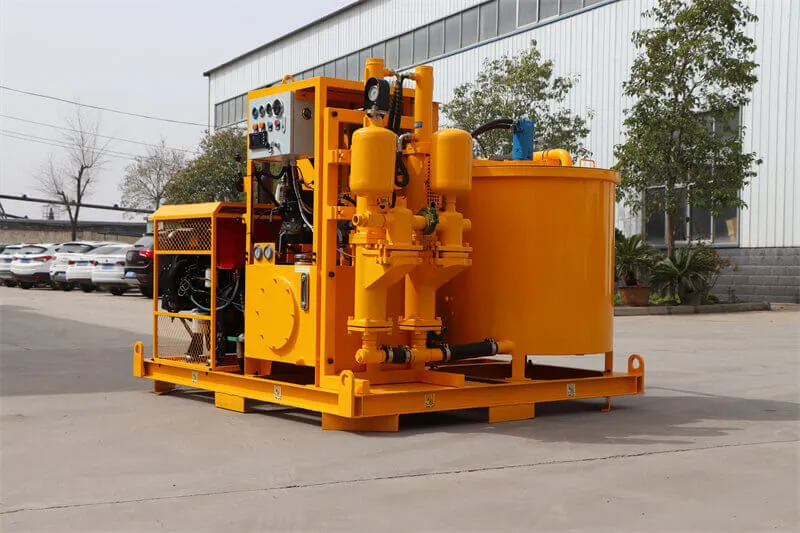

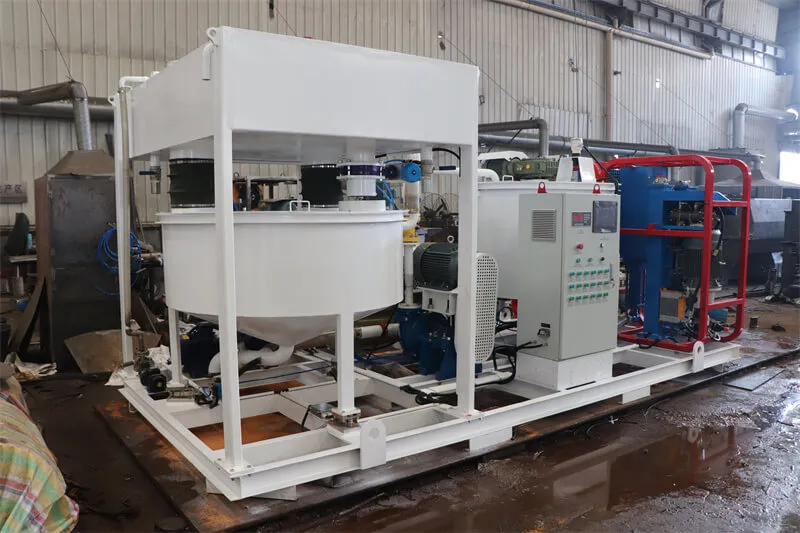

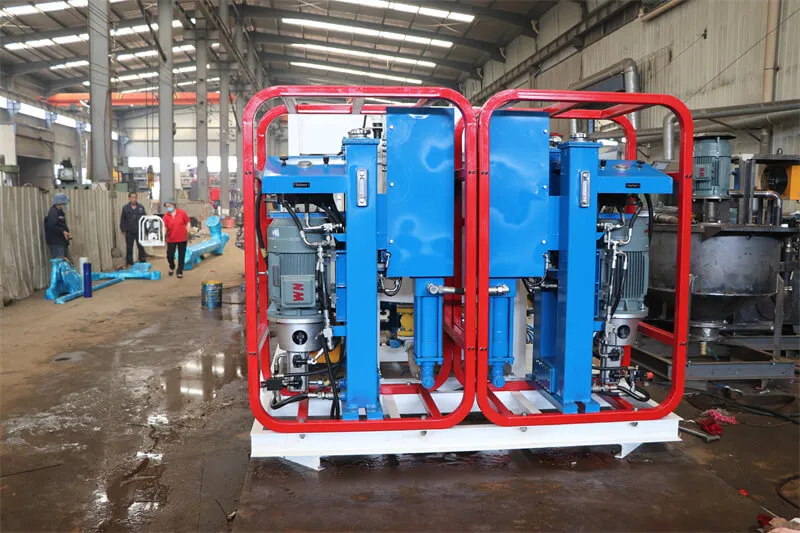

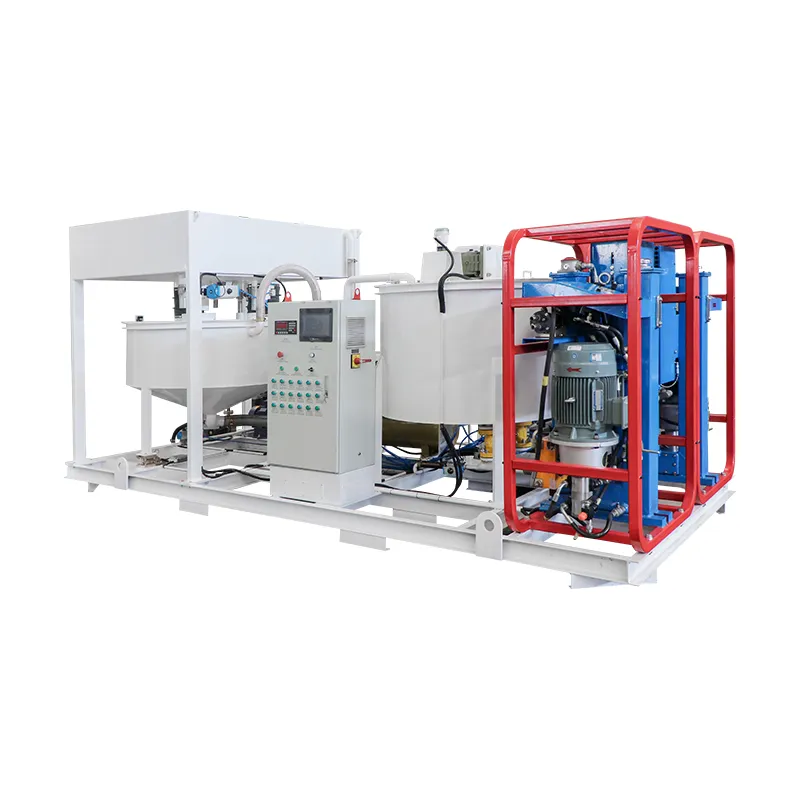

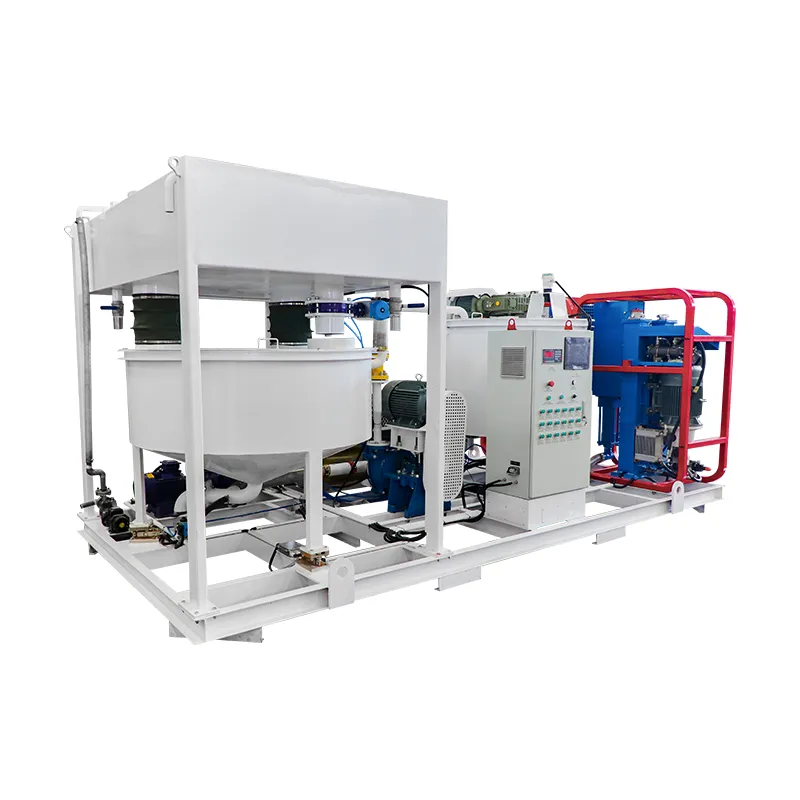

The LGP1200/1200/2X75/100PI-E automatic grouting station is a high-performance combination of a mixer, circulation pump, and grouting pump. It is engineered specifically for creating high-quality cement slurry used in diverse surface and underground construction projects, including highways, railways, hydropower facilities, and mining operations.

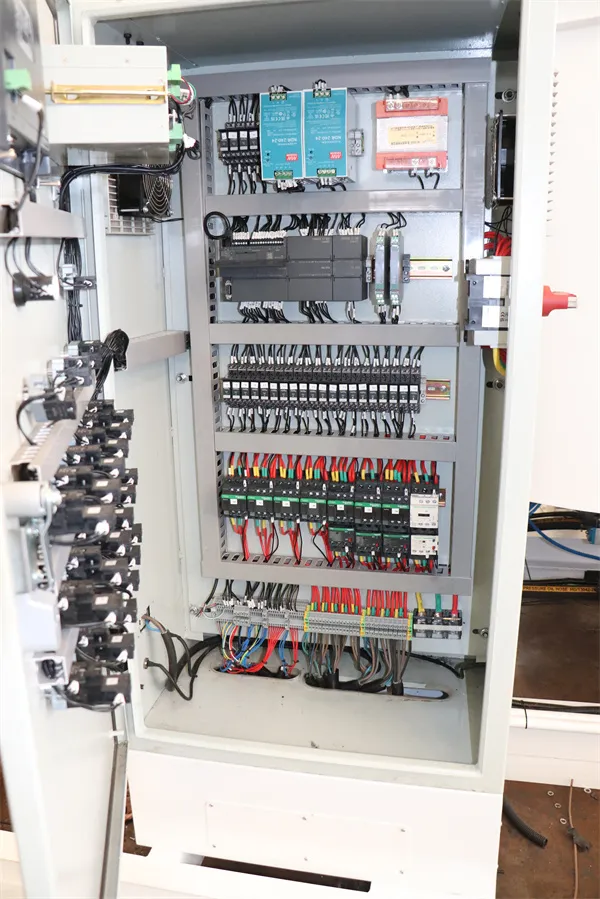

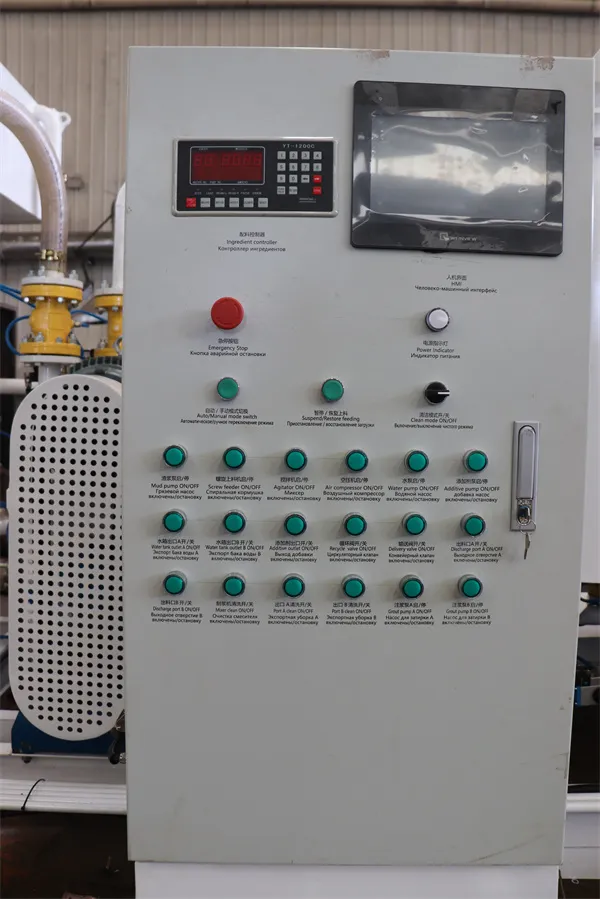

Equipped with a high-speed eddy current mixer, the unit ensures rapid and uniform mixing of water and cement. The integrated PLC system and distributor allow for precise adjustment of material ratios. Users can set specific formulas for automatic material configuration, significantly enhancing operational efficiency and consistency.
| Category | Parameter | Data |
|---|---|---|
| Mixer | Capacity | 1200L |
| W/C ratio | 0.5~1 | |
| Agitator | Capacity | 1200L |
| Power | 3.0Kw | |
| Circulation Pump | Power | 15KW |
| Rate Rev. | 1800r/min | |
| Flow | 850L/min | |
| Screw Feeder | Power | 7.5KW |
| Delivery volume | 40t/h | |
| Water Supply | Tank capacity | 950L |
| Water pump | 50ZX20-30 (4.0KW) | |
| Flow@head | 20m3/h@30m | |

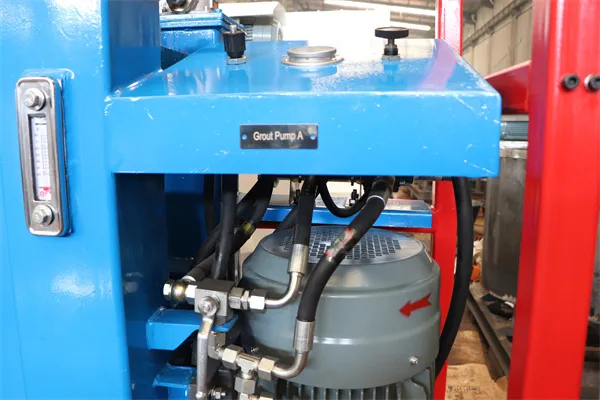

| Grouting Pump | Piston diameter | 100mm |
| Low pressure@Flow | 0-50bar@0-75L/min | |
| High pressure@Flow | 0-100bar@0-40L/min | |
| Dimensions | Overall Size | 4770×2250×2370mm |
| Weight | Total Weight | 3880Kg |
Note: Customization is available based on specific project requirements.
