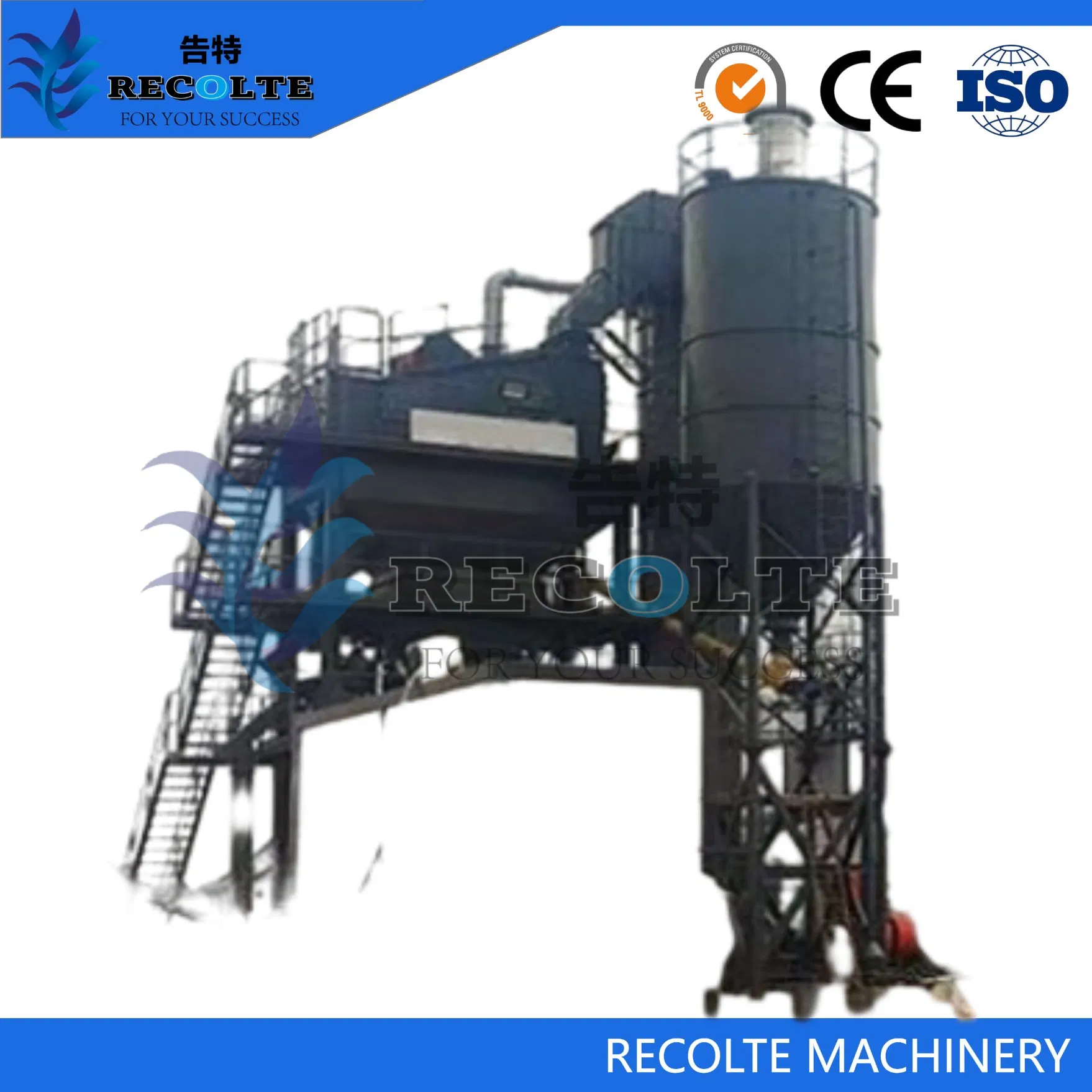

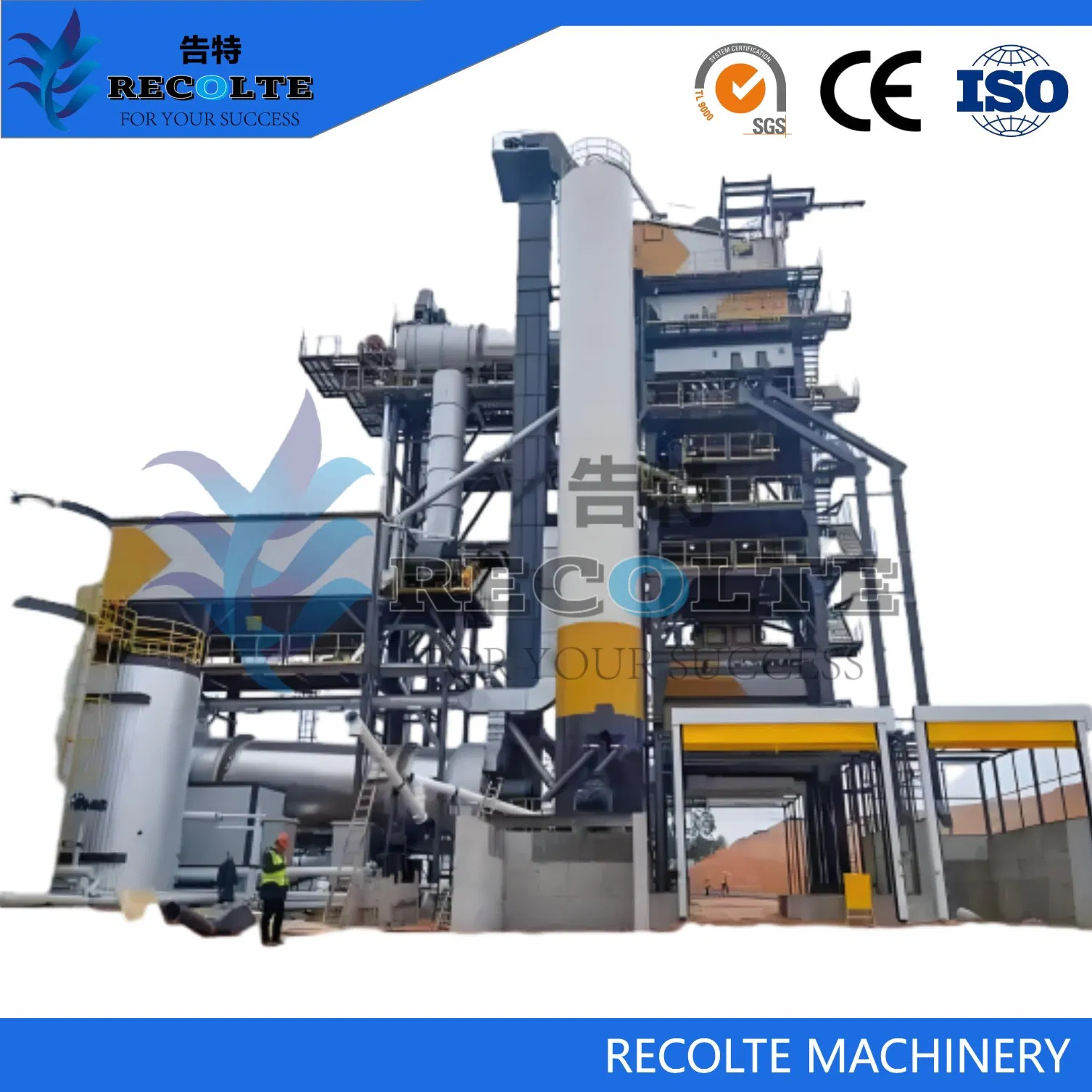

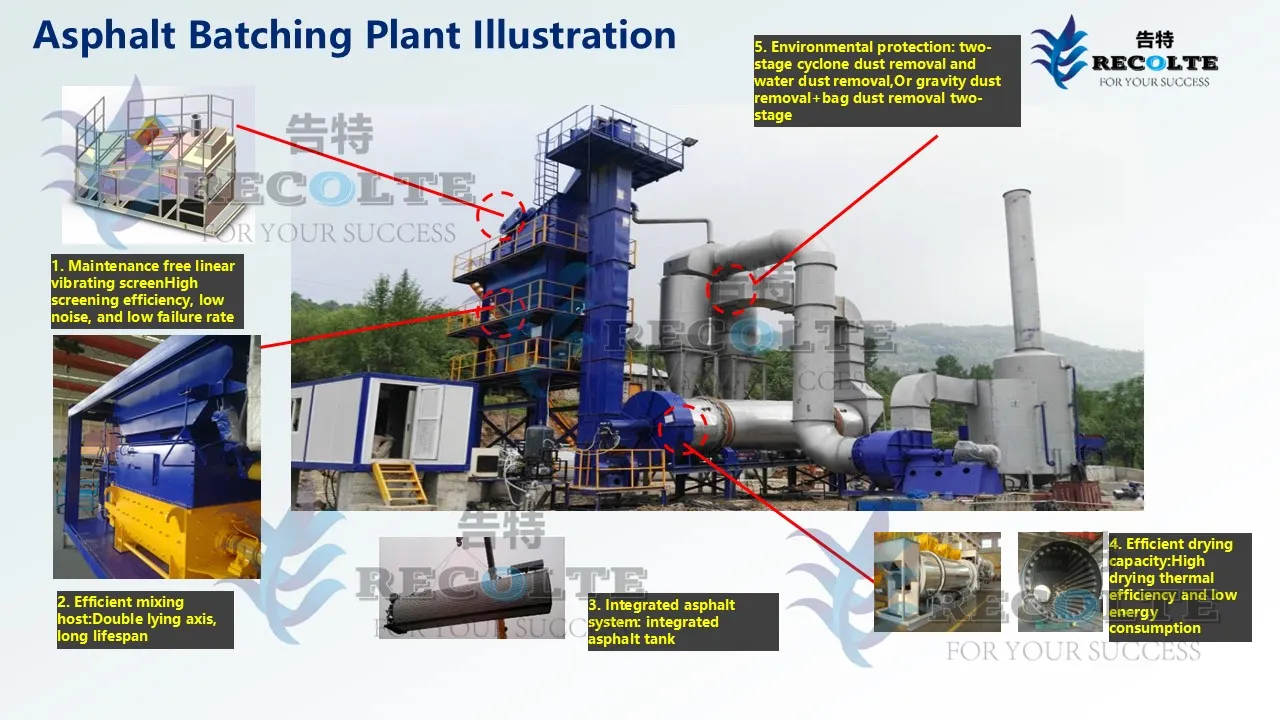

Engineered for reliability, efficiency, and precision, our asphalt mixing plant ensures consistent mix quality, high output, and energy savings. With advanced controls and durable components, it delivers stable performance across diverse environments and reduces maintenance downtime. Ideal for highways, large-scale paving, and municipal projects, it meets the demands of modern infrastructure with robust production capabilities.
| Model | RLB-80 | RLB-120 | RLB-160 | RLB-240 |
|---|---|---|---|---|
| Dimensions (L×W×H)(m) | 32*32*16 | 36*33*16 | 34*30*19 | 45*35*28 |
| Aggregate Accuracy | 1000kg±0.5% | 1500kg±0.5% | 2000kg±0.5% | 3000kg±0.5% |
| Cement Accuracy | 150kg±0.3% | 225kg±0.3% | 300kg±0.3% | 450kg±0.3% |
| Asphalt Accuracy | 100kg±0.2% | 150kg±0.2% | 200kg±0.2% | 300kg±0.2% |
| Volume (m³) | 4×8m³ | 4×10m³ | 5×10m³ | 5×15m³ |
| Drum size (m) | Ø1.7×6.3 | Ø1.92×8 | Ø1.98×9.8 | Ø2.5×9 |
| Mixer capacity (kg) | 1000 | 1500 | 2000 | 3000 |
| Total power (kw) | 240 | 370 | 420 | 548 |
| Rated output (t/h) | 80 | 120 | 160 | 180-240 |
| Transport | Containers | Containers | Containers | Bulk carriers |

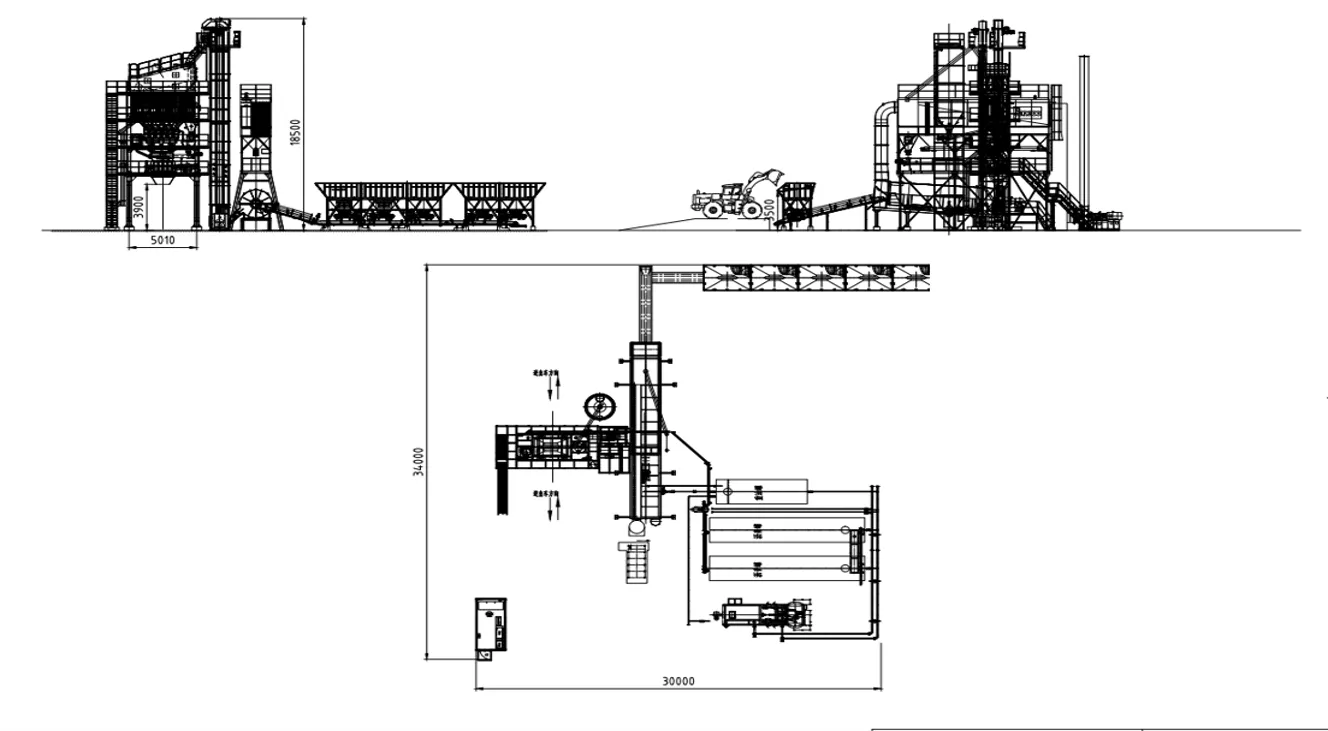

Our asphalt batching plants are rigorously tested to meet international standards. CE Certification ensures compliance with European safety regulations, while ISO Certification guarantees consistent quality management. Detailed CAD drawings and dimensional diagrams are available upon inquiry to meet specific project requirements.

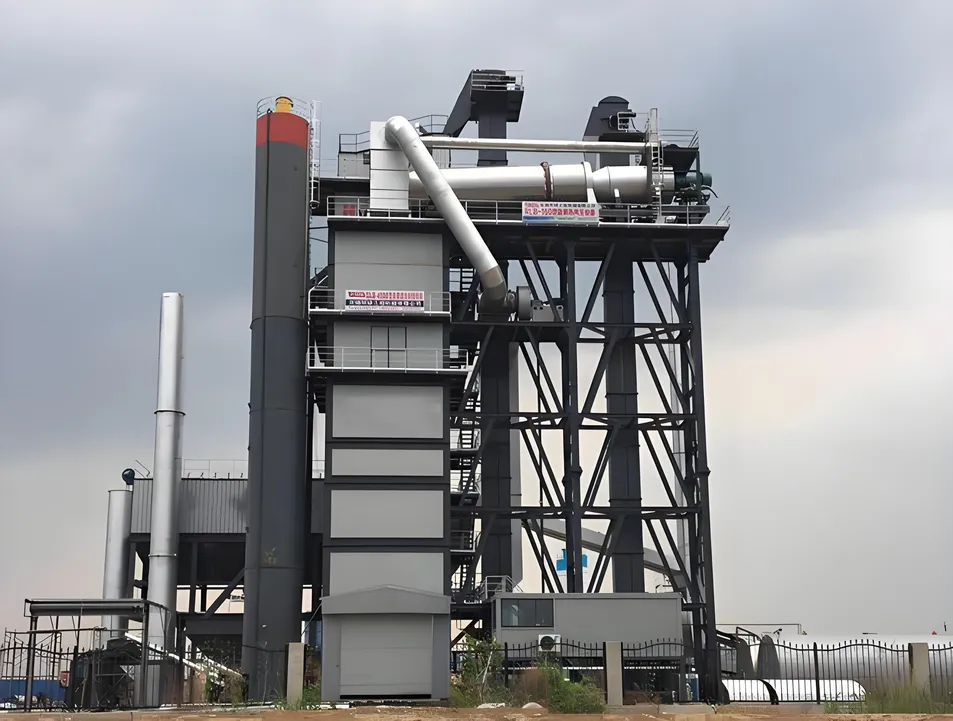

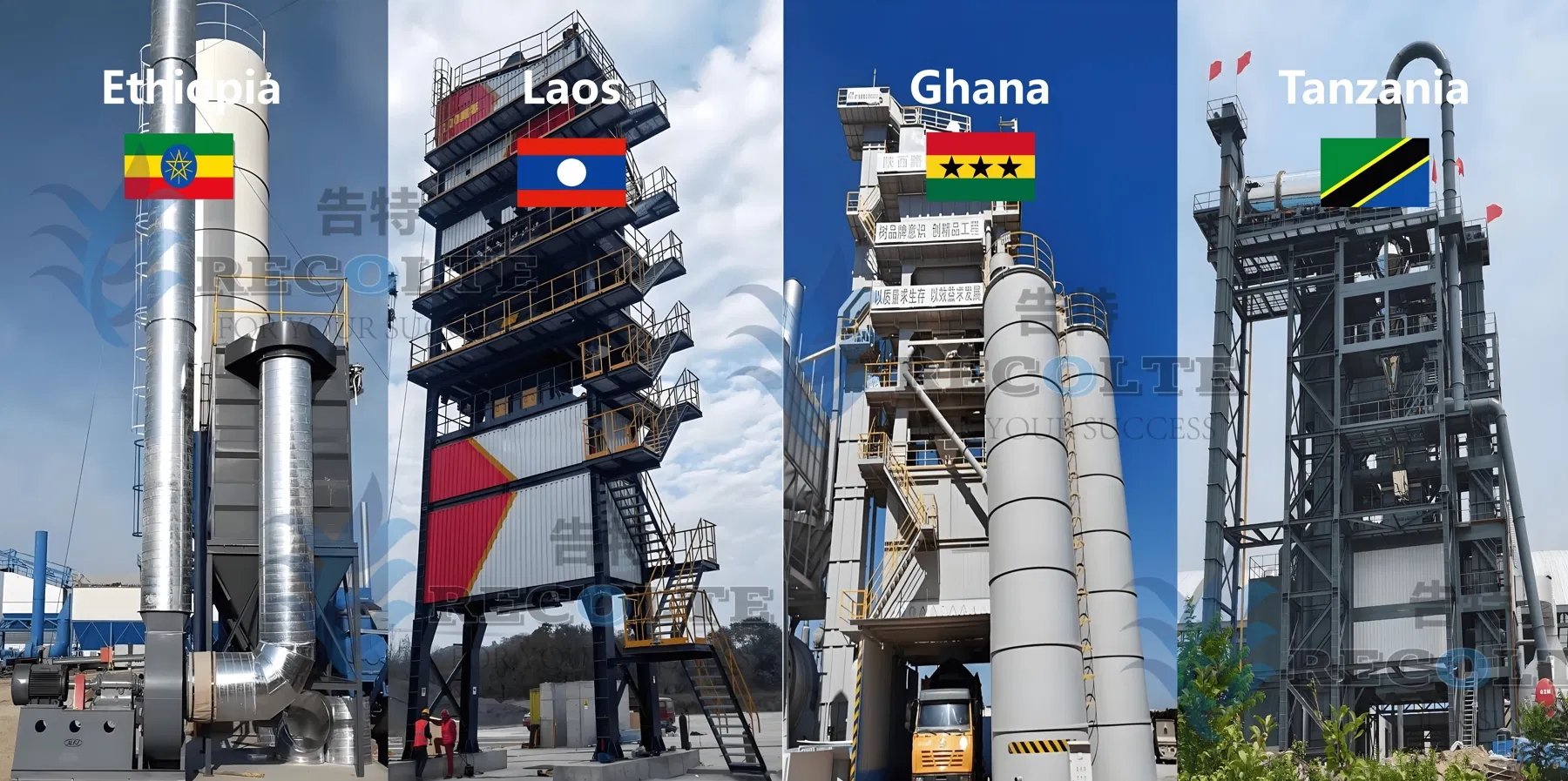

The RLB series asphalt batching plants are delivering exceptional performance worldwide. From the RLB-160 models in Laos and Ethiopia to the high-capacity RLB-240 plants in Ghana and Tanzania, our equipment supports critical infrastructure development with reliable, high-quality asphalt production.
