Factory Direct Automated Combination Slurry Grout Batching Plant with Big Pump From China (NJ50)

After-sales Service:	Online Service
Warranty:	12 Months
Type:	Compacting Equipment

Send Inquiry

Product Description

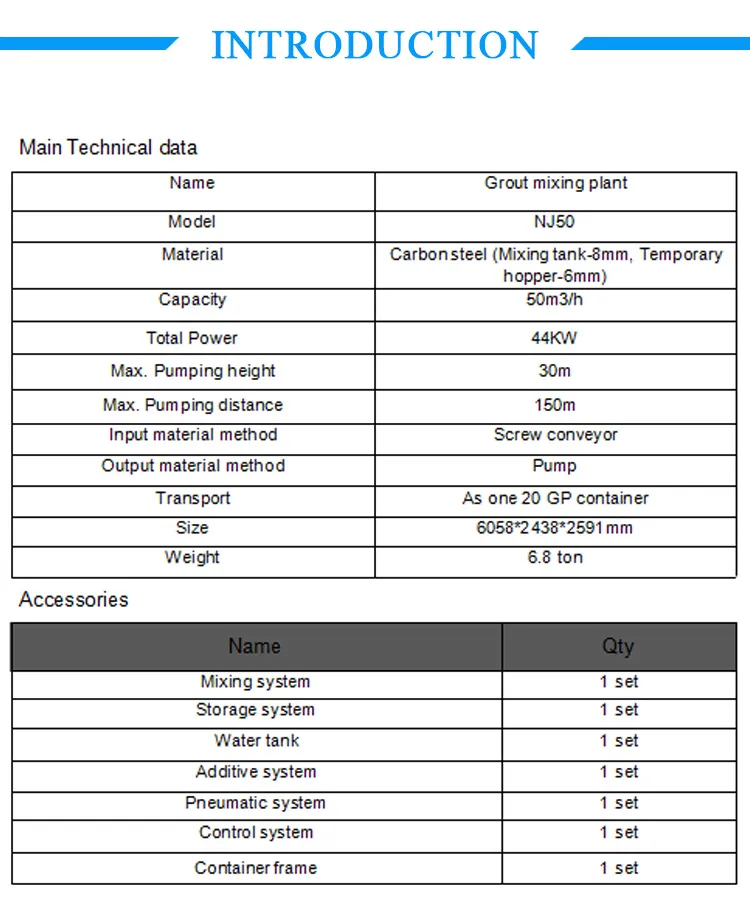

⚙️ Basic Specifications

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Cylinder Type

Productivity

60m³/h

Feeding Height

1400mm

Vibrating Amplitude

2.6mm

Certification

ISO9001: 2000, CE

Condition

New

Color

Orange

Power

Electricity

Total Power

44kw

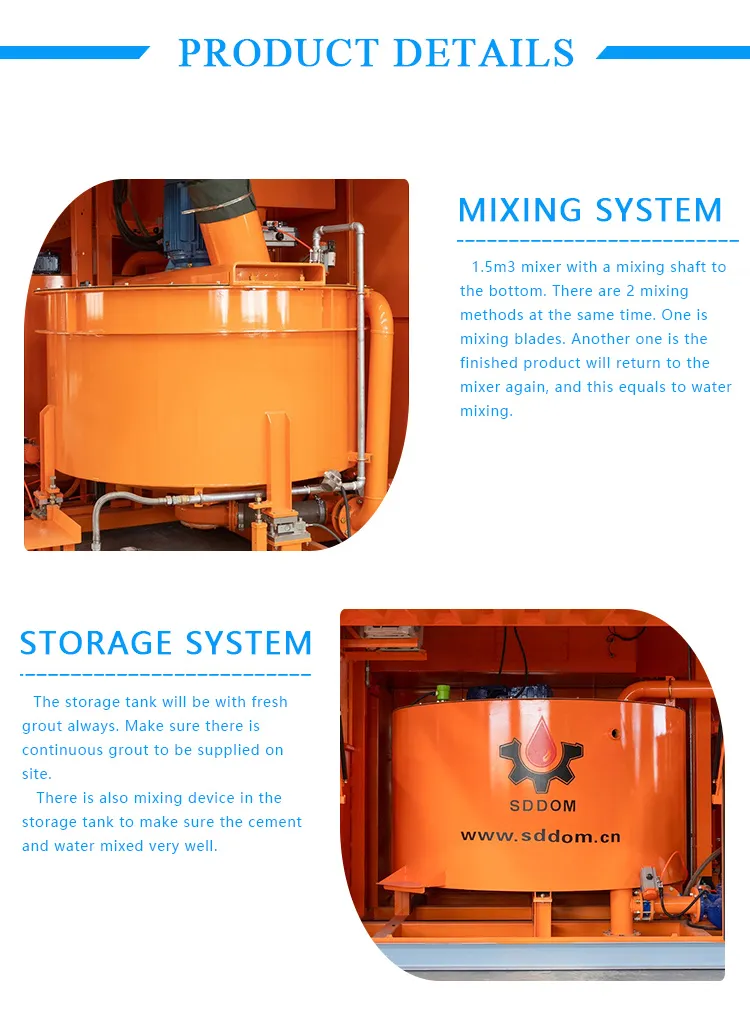

Mixer

Mixing Tank

Agitator

Agitator Tank

Grout Discharge

Grout Pump

Cement Feed

Screw Conveyor

Max Pump Height

30m

Max Pump Horizontal Distance

150m

Dimension

6058*2438*2591mm

Weight

6800kg

Control System

Automatic

Air Conditioner

Provided

Cement Silo

Horizontal Container Cement Silo

Customization

Accepted

Production Capacity

100sets/Month

📝 Product Description

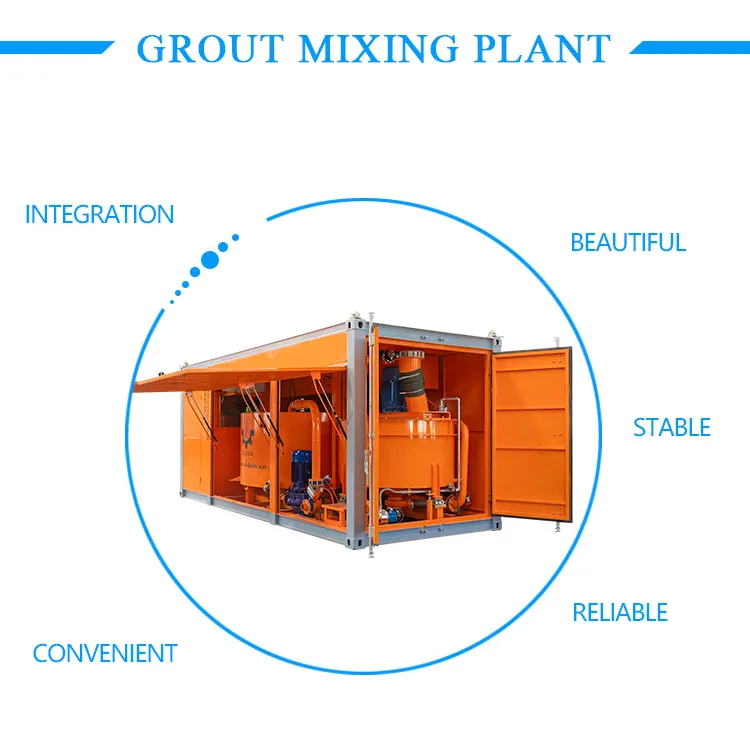

Brief Introduction

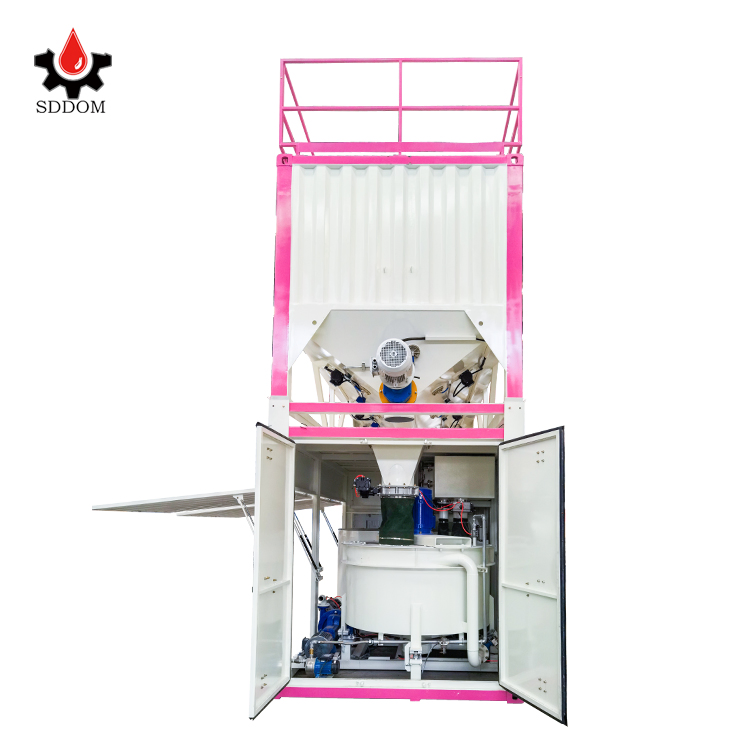

Grout mixing plant is a combination of mixer, agitator and pump. It comes with an electronic load cell weighing system for cement, water and other components. The electronic control panel allows the selection of up to 10 components and 20 mixing formulas for optimum grout quality at any possible grouting or jet grouting project.

🚀 Key Features

Continuous Mixing: Specially designed for cement and water mixed projects with high efficiency.
Advanced Control: Full auto control system with SIEMENS PLC; main electrical parts utilize SIEMENS/Schneider brands.

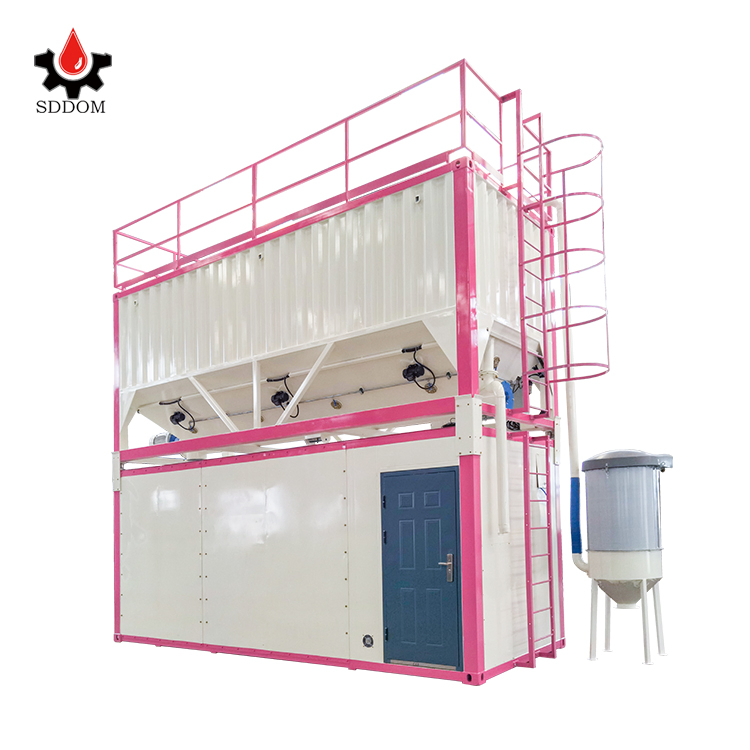

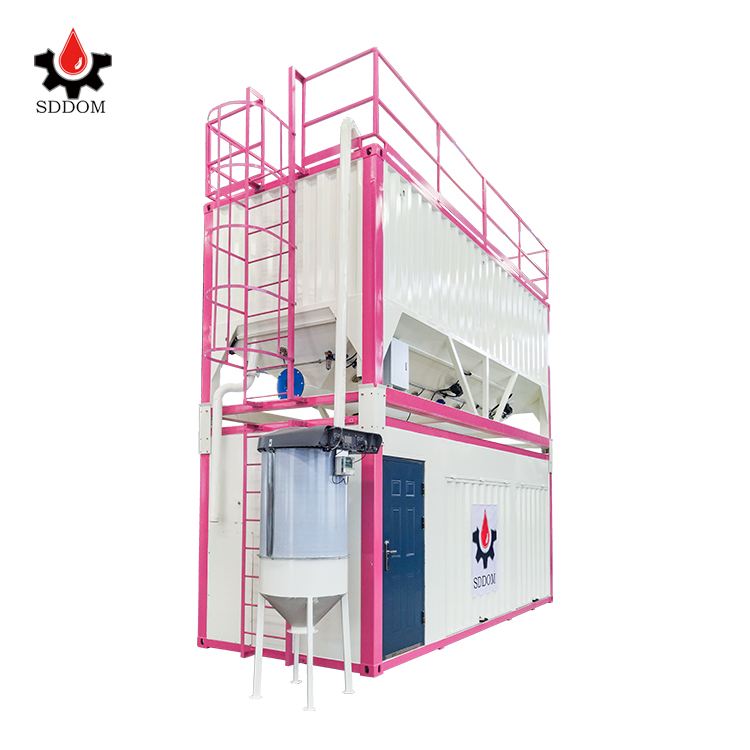

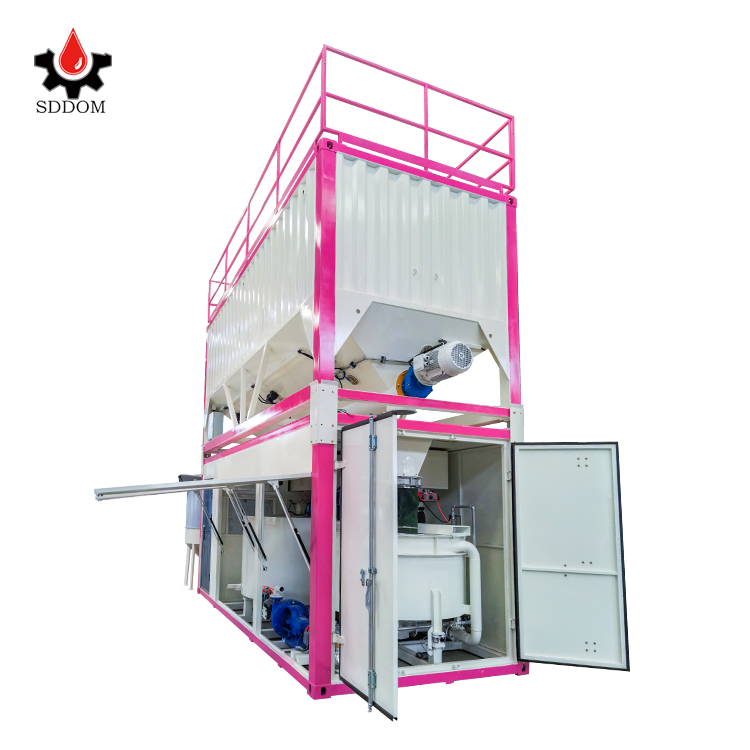

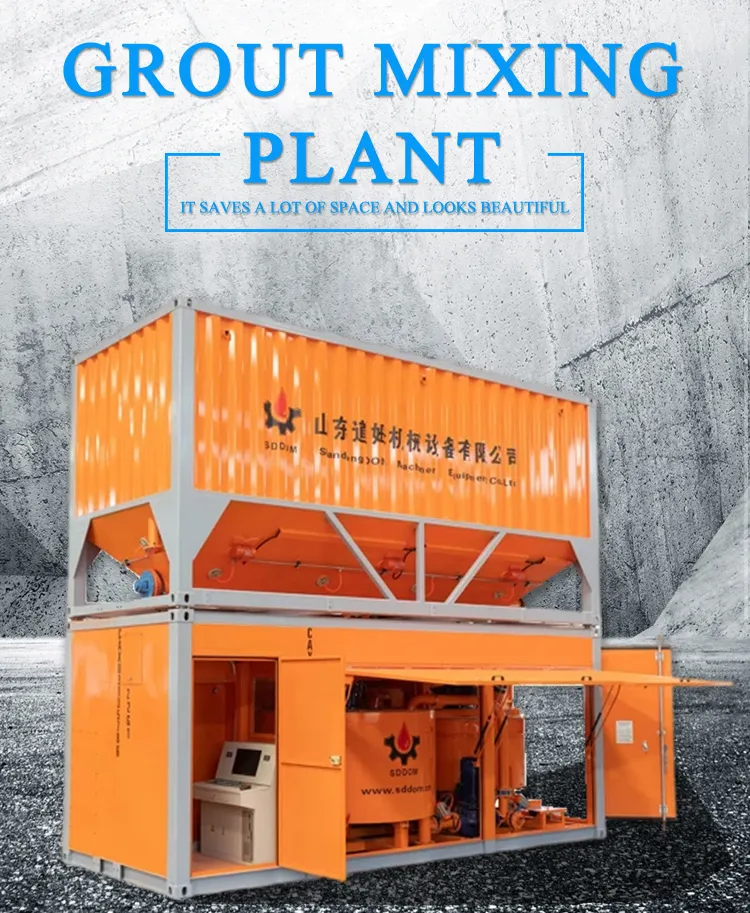

Space Saving: Containerized design allows for economical shipping and can support a container cement silo on top.

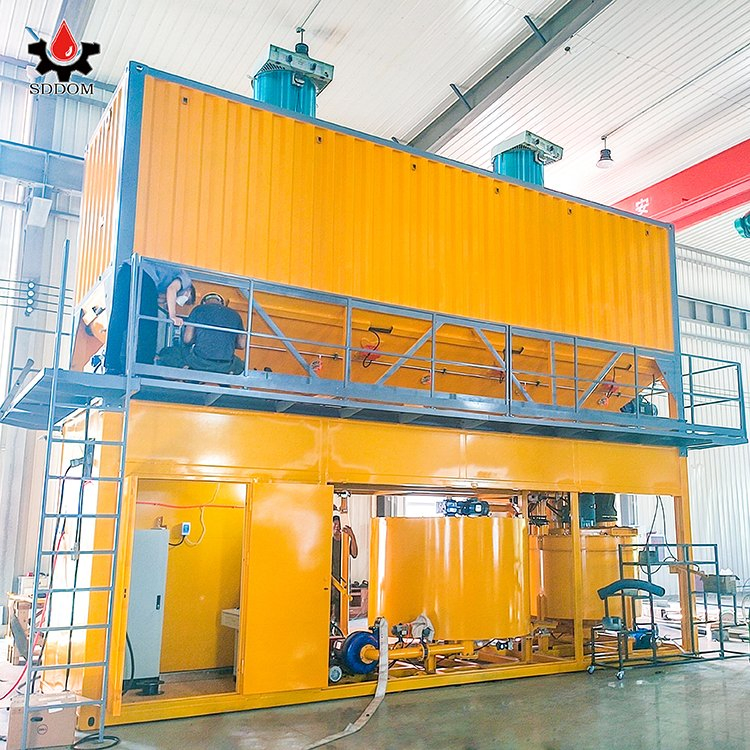

🖼️ Product Gallery

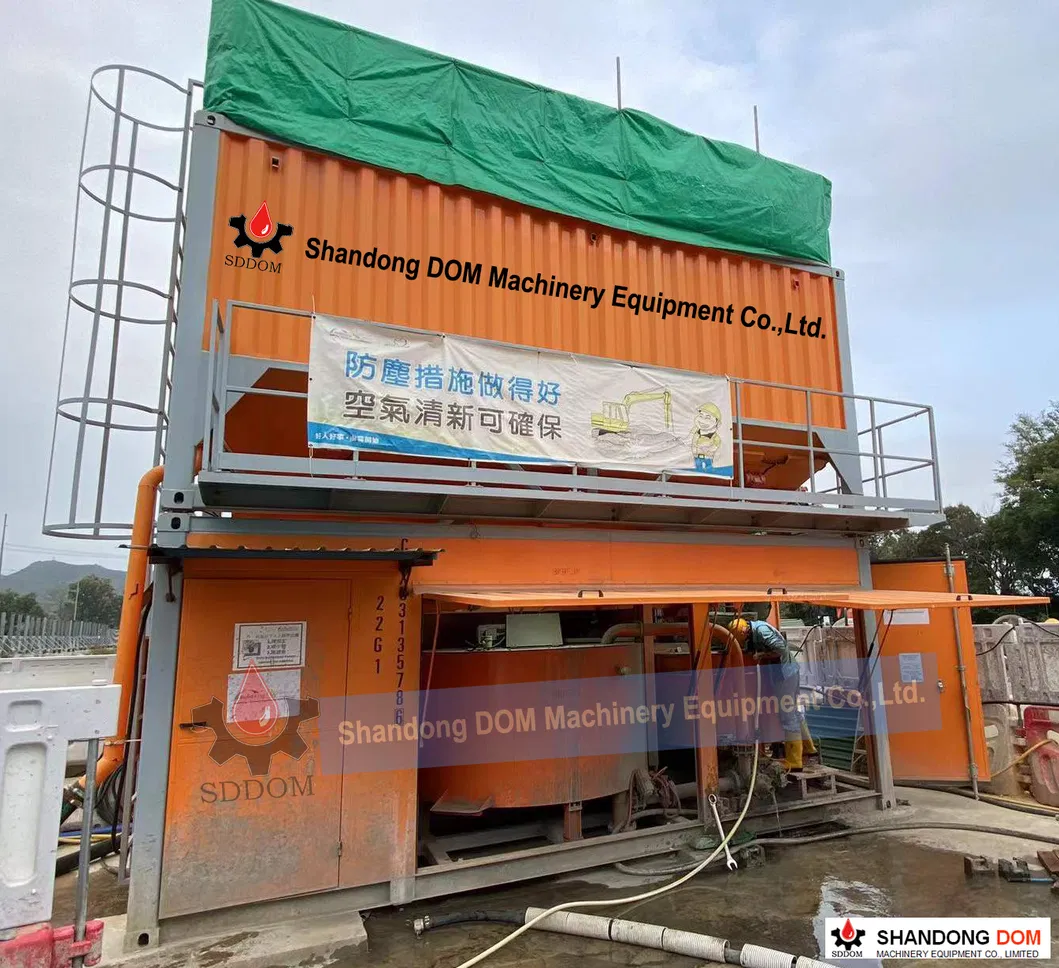

🏗️ Application in Working Site

❓ Frequently Asked Questions

What is the primary function of this grout mixing plant?

The grout mixing plant is an integrated system combining a mixer, agitator, and pump. It is designed for continuous mixing and pumping of cement and water slurry for various grouting or jet grouting projects.

How does the automatic control system work?

The plant features a full automatic control system powered by SIEMENS PLC. It includes an electronic load cell weighing system that allows users to select up to 10 different components and store 20 mixing formulas.

What are the transportation advantages of the container design?

The equipment is designed within a standard container dimension (6058*2438*2591mm), which significantly reduces shipping fees and allows for a horizontal container cement silo to be placed directly on top.

What is the productivity and pumping capacity?

The plant has a productivity rate of 60m³/h, with a maximum pumping height of 30 meters and a horizontal pumping distance of up to 150 meters.

Can the equipment be customized for specific project needs?

Yes, customization is accepted. The system can be adjusted to meet specific technical requirements, including colors, dimensions, and component selections.
