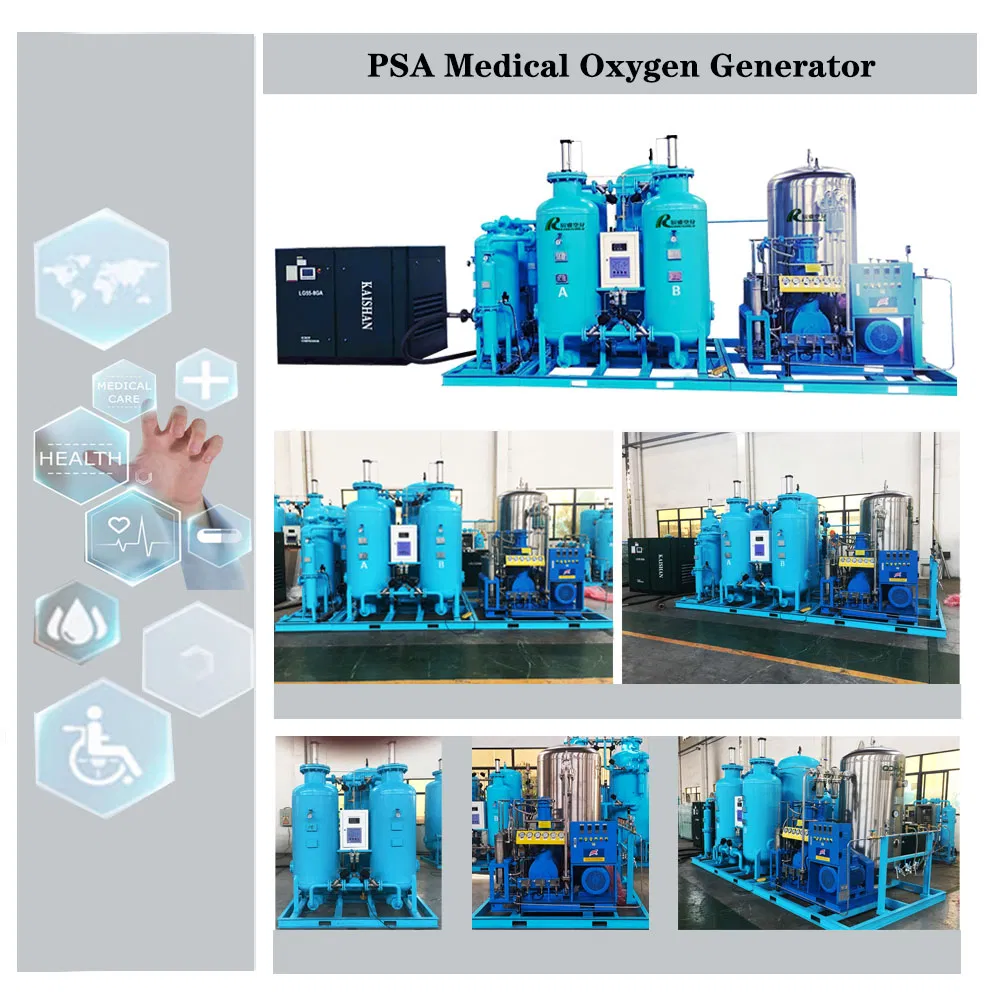

PSA Medical Oxygen Generator Principle

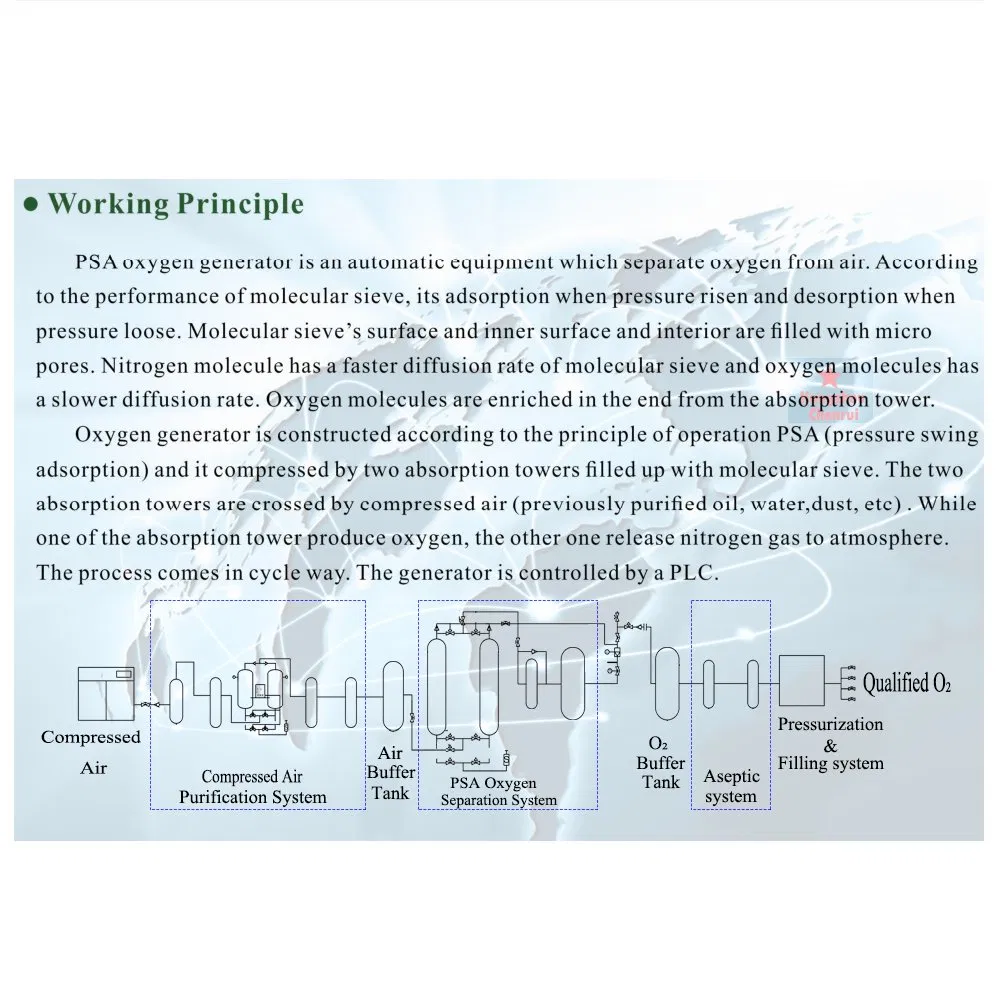

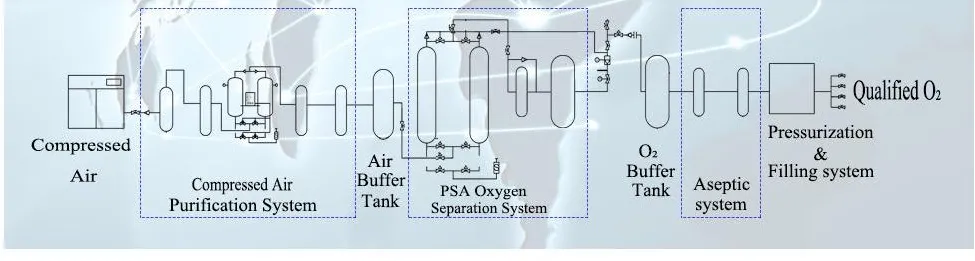

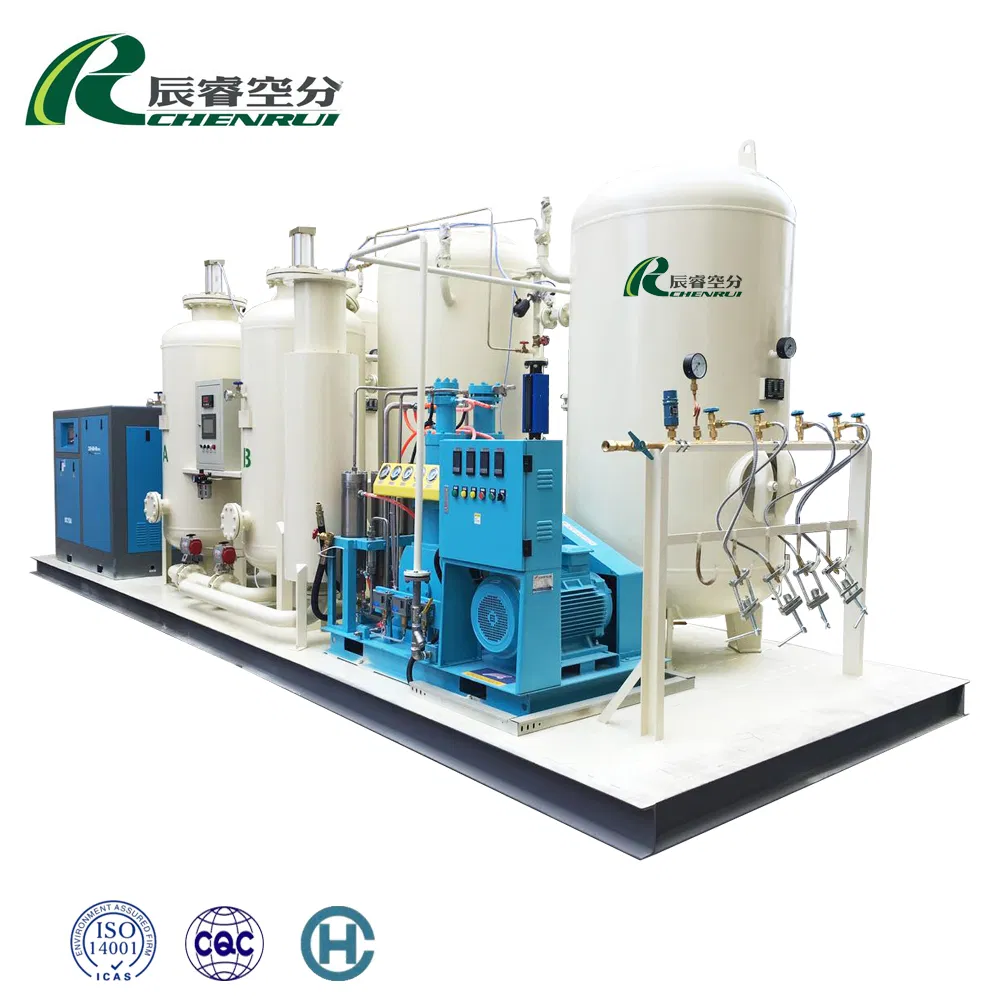

FBO series PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve's surface and inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecular sieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower.

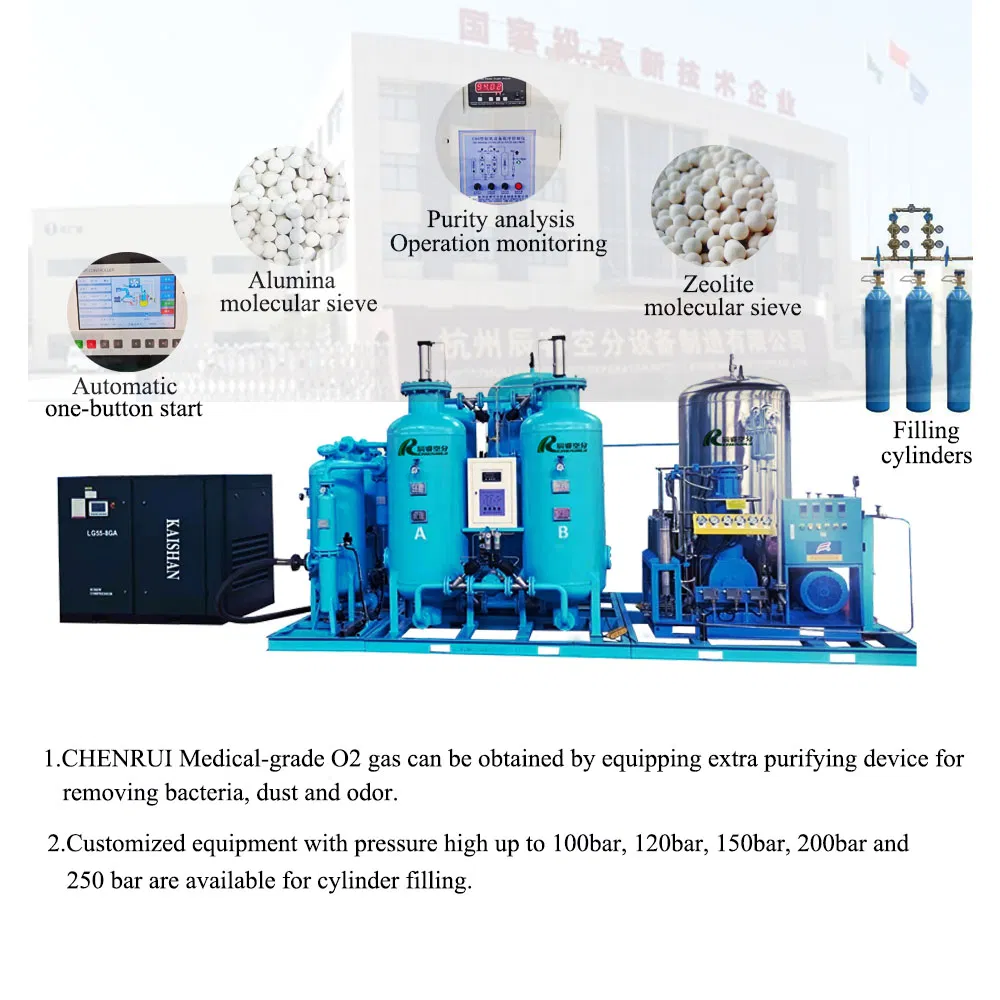

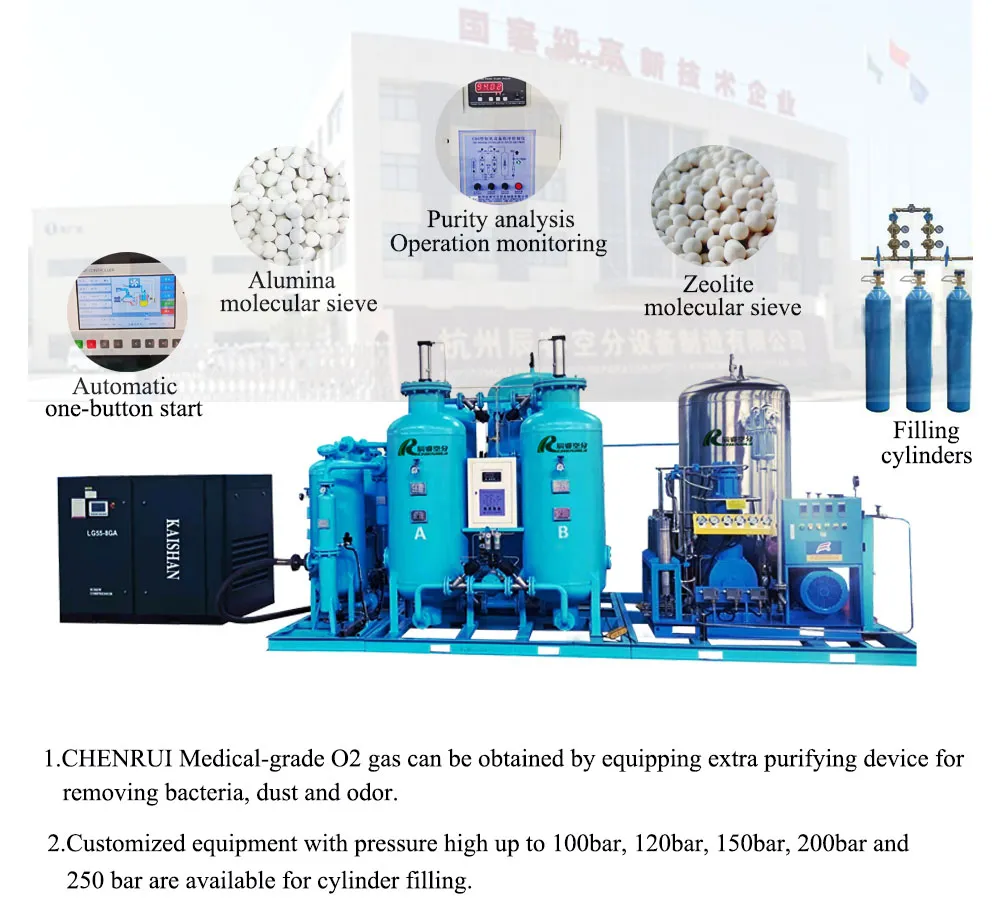

1. Advancement: Raw material is air; oxygen is produced on-site. Features advanced PLC touch screen control for fully automatic, unmanned operation.
2. Economical: Uses physical principles with air as the raw material, ensuring low costs and environmental friendliness.
3. Safety: PSA technology produces oxygen at normal temperatures and low pressure, reducing potential safety hazards associated with transportation.

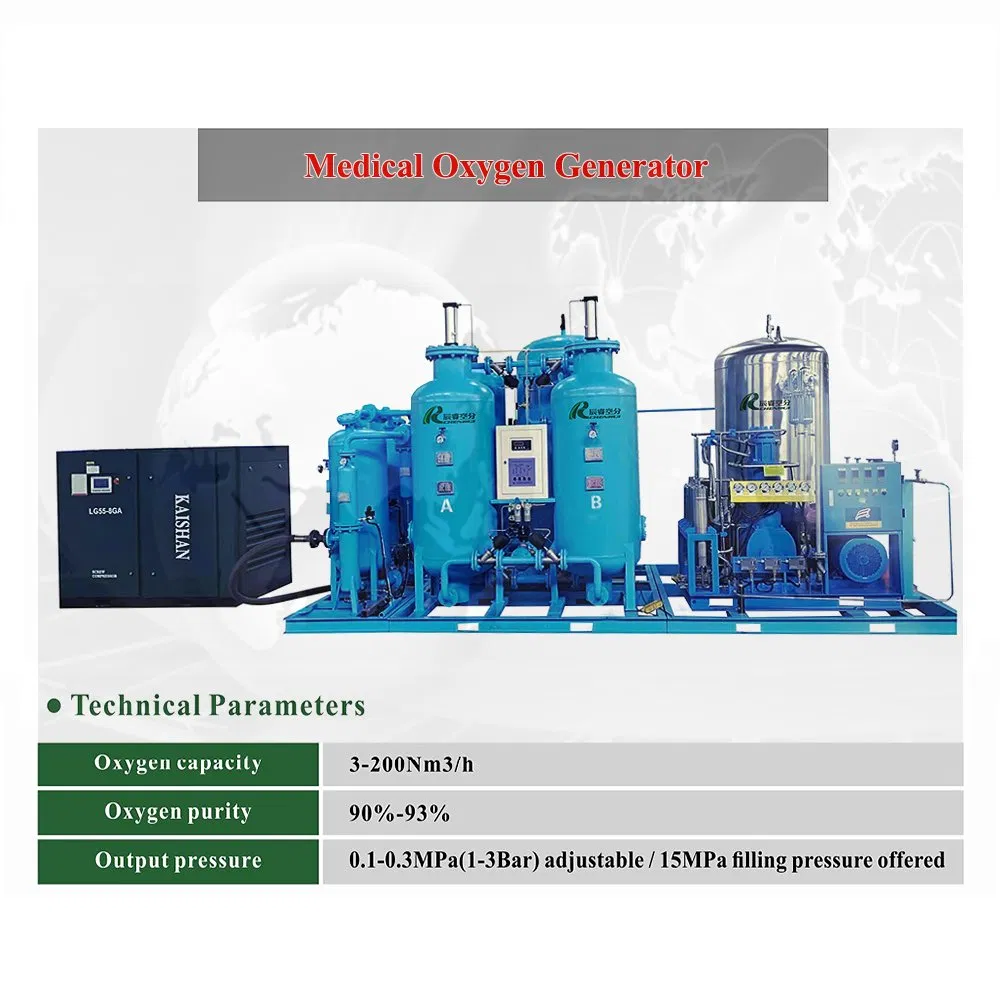

| No | Model | Capacity | Purity | Pressure |
|---|---|---|---|---|
| 1 | FBO-3 | 3Nm3/h | 93%+/-2 | 0.1-0.3Mpa (15/20Mpa for filling) |
| 2 | FBO-5 | 5Nm3/h | ||
| 3 | FBO-10 | 10Nm3/h | ||
| 4 | FBO-15 | 15Nm3/h | ||
| 5 | FBO-20 | 20Nm3/h | ||
| 6 | FBO-25 | 25Nm3/h | ||
| 7 | FBO-30 | 30Nm3/h | ||
| 8 | FBO-40 | 40Nm3/h | ||
| 9 | FBO-50 | 50Nm3/h | ||
| 10 | FBO-60 | 60Nm3/h | ||
| 11 | FBO-70 | 70Nm3/h | ||
| 12 | FBO-80 | 80Nm3/h | ||
| 13 | FBO-100 | 100Nm3/h | ||
| 14 | FBO-150 | 150Nm3/h | ||
| 15 | FBO-200 | 200Nm3/h |
