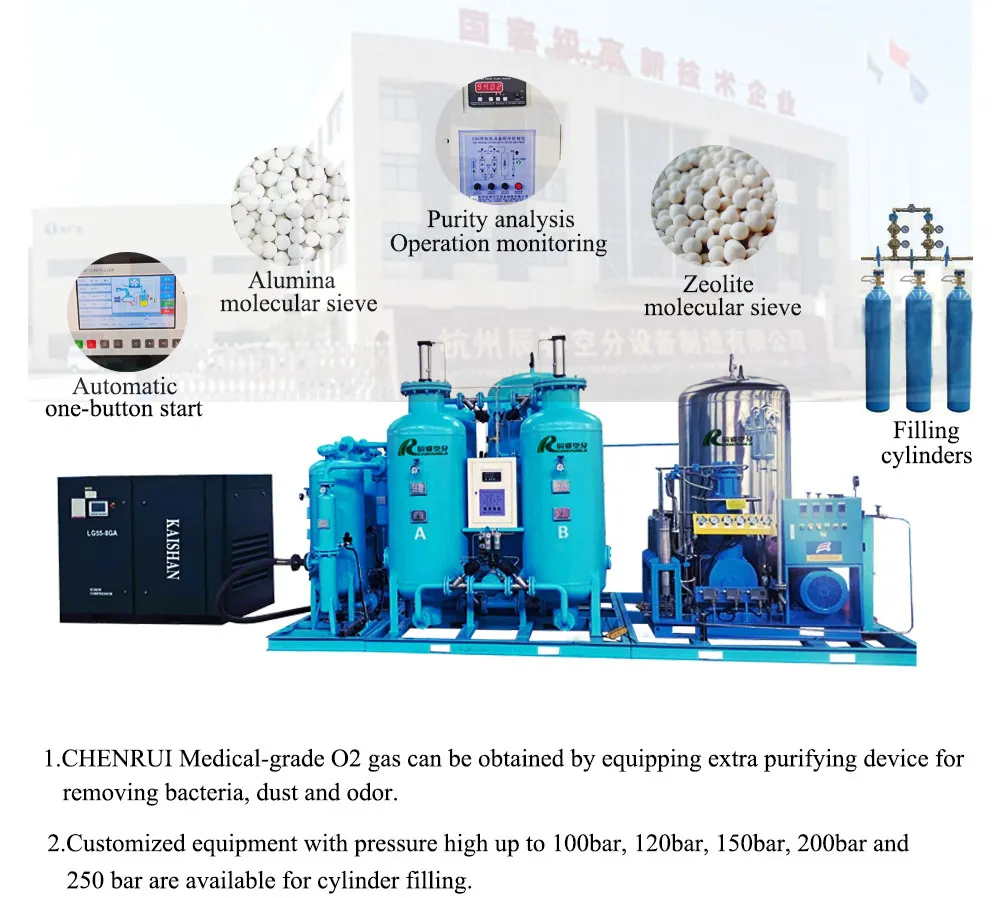

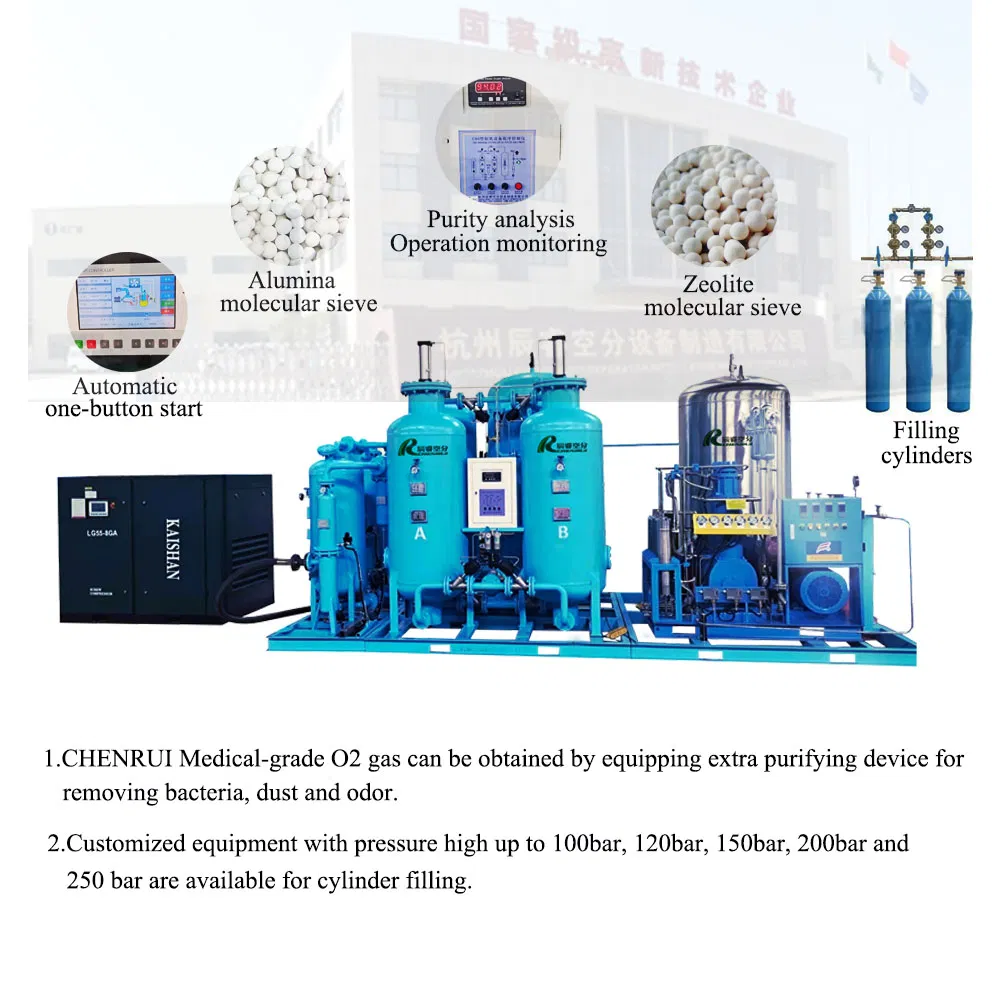

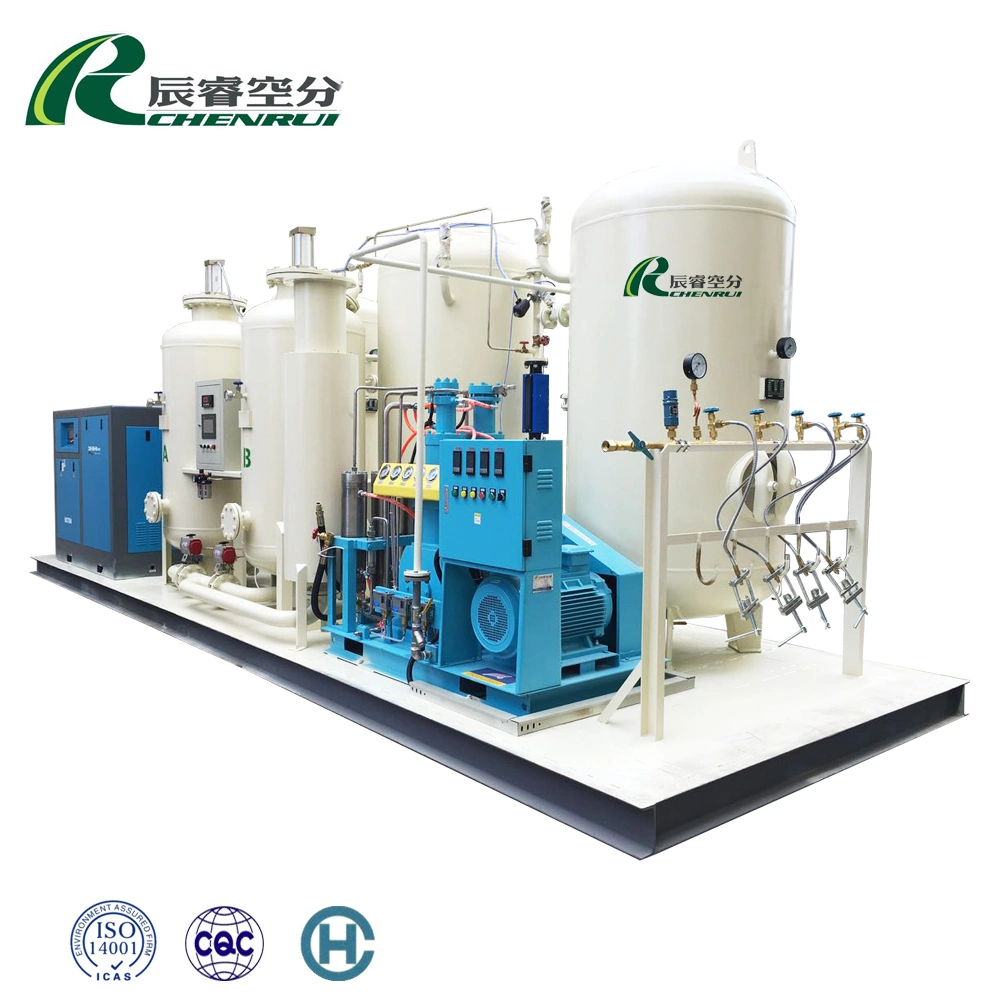

Small Medical Oxygen Generation Plant

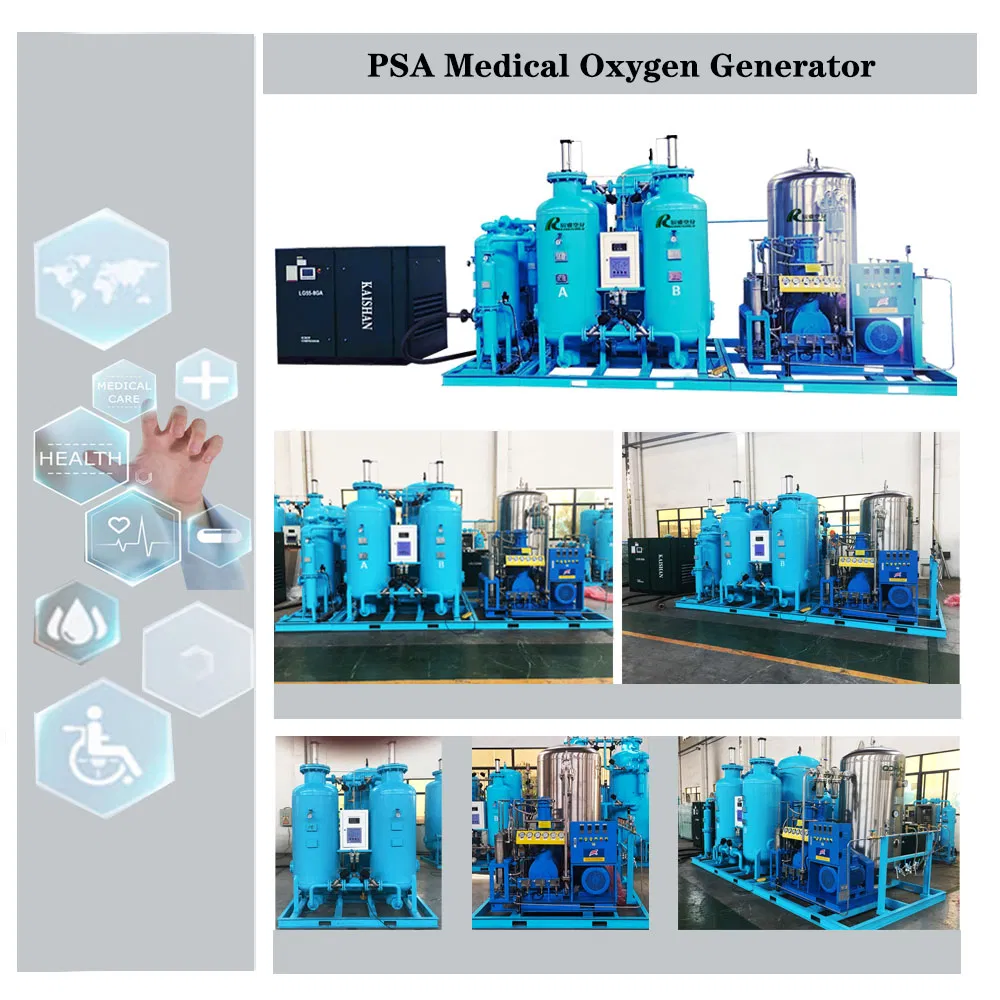

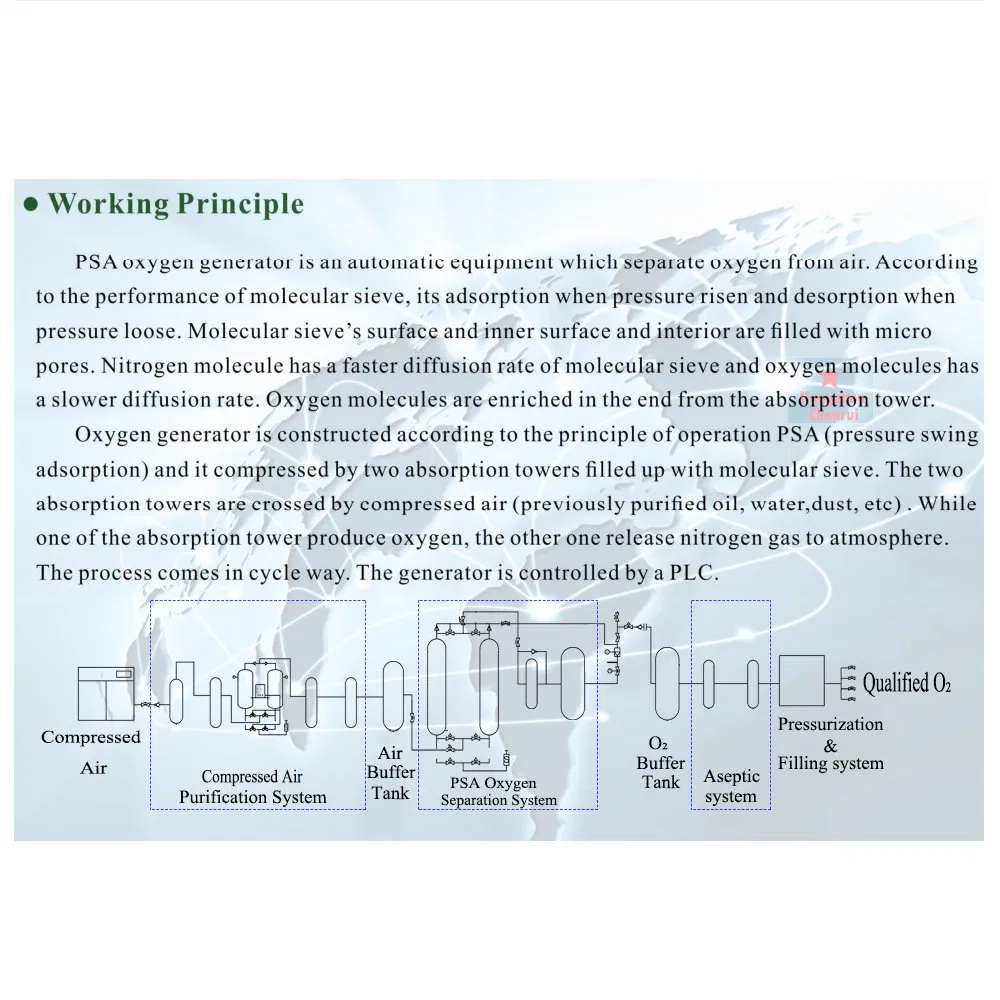

PSA Medical Oxygen Generator Principle
The FBO series PSA oxygen generator is automatic equipment that separates oxygen from air based on the performance of molecular sieves. It utilizes adsorption when pressure rises and desorption when pressure is reduced. Nitrogen molecules have a faster diffusion rate through the molecular sieve, while oxygen molecules are enriched at the end of the absorption tower. The system consists of two towers filled with molecular sieves controlled by a Siemens PLC. While one tower produces oxygen, the other releases nitrogen into the atmosphere in a continuous cycle.

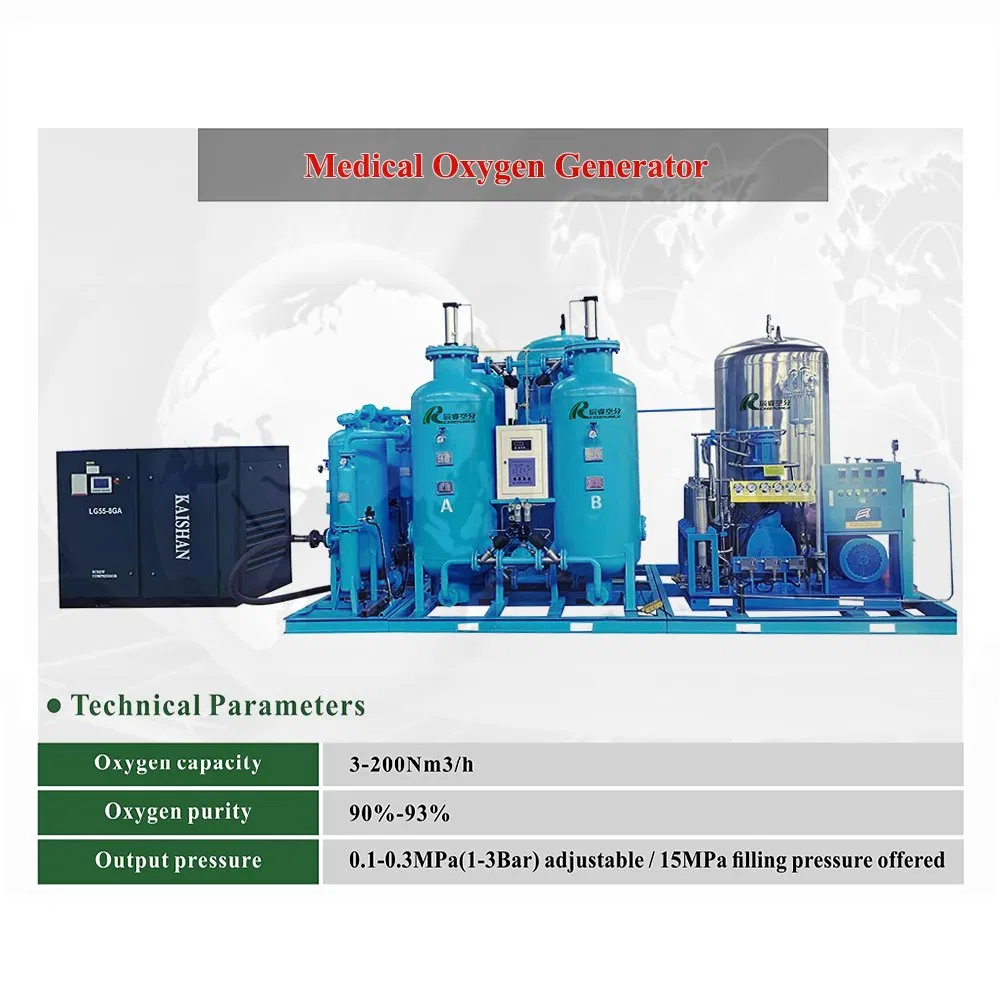

1. Specifications

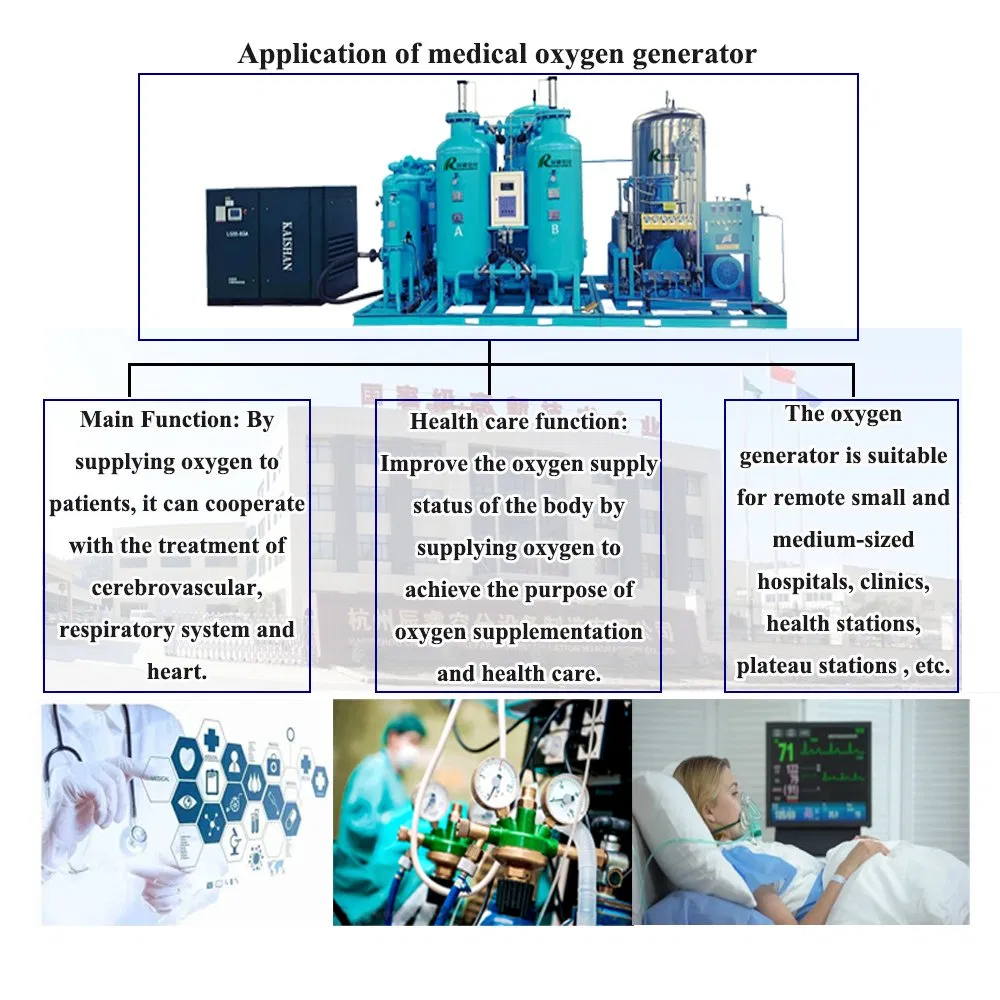

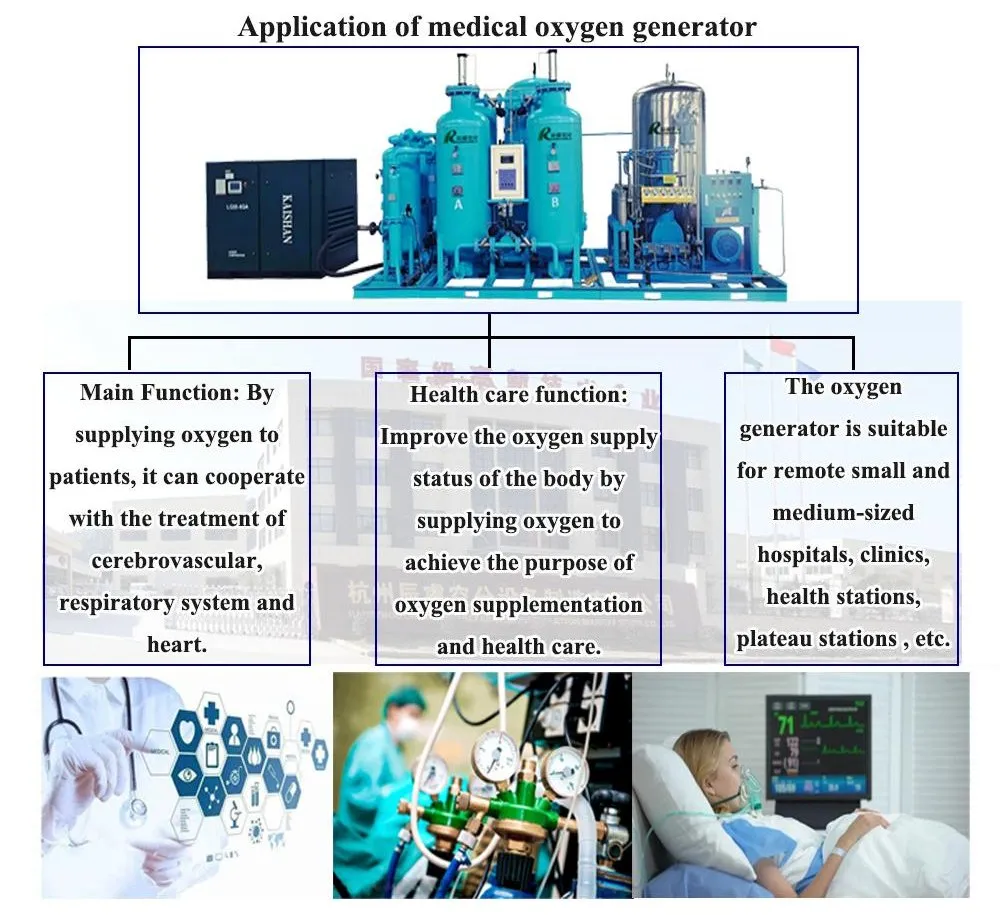

2. Applications
1. Advancement: Raw material is air; oxygen is produced on-site. Advanced PLC touch screen control for fully automatic, unmanned operation.
2. Economical: Low operating cost using physical principles and air as raw material, making it environmentally friendly.
3. Safety: PSA technology operates at normal temperatures and low pressure, reducing transportation-related hazards.
| No | Model | Capacity | Purity | Pressure |
|---|---|---|---|---|
| 1 | FBO-3 | 3Nm3/h | 93%+/-2 | 0.1-0.3Mpa (15/20Mpa for filling system) |
| 2 | FBO-5 | 5Nm3/h | ||
| 3 | FBO-10 | 10Nm3/h | ||
| 4 | FBO-15 | 15Nm3/h | ||
| 5 | FBO-20 | 20Nm3/h | ||
| 6 | FBO-25 | 25Nm3/h | ||
| 7 | FBO-30 | 30Nm3/h | ||
| 8 | FBO-40 | 40Nm3/h | ||
| 9 | FBO-50 | 50Nm3/h | ||
| 10 | FBO-60 | 60Nm3/h | ||
| 11 | FBO-70 | 70Nm3/h | ||
| 12 | FBO-80 | 80Nm3/h | ||
| 13 | FBO-100 | 100Nm3/h | ||
| 14 | FBO-150 | 150Nm3/h | ||
| 15 | FBO-200 | 200Nm3/h |
