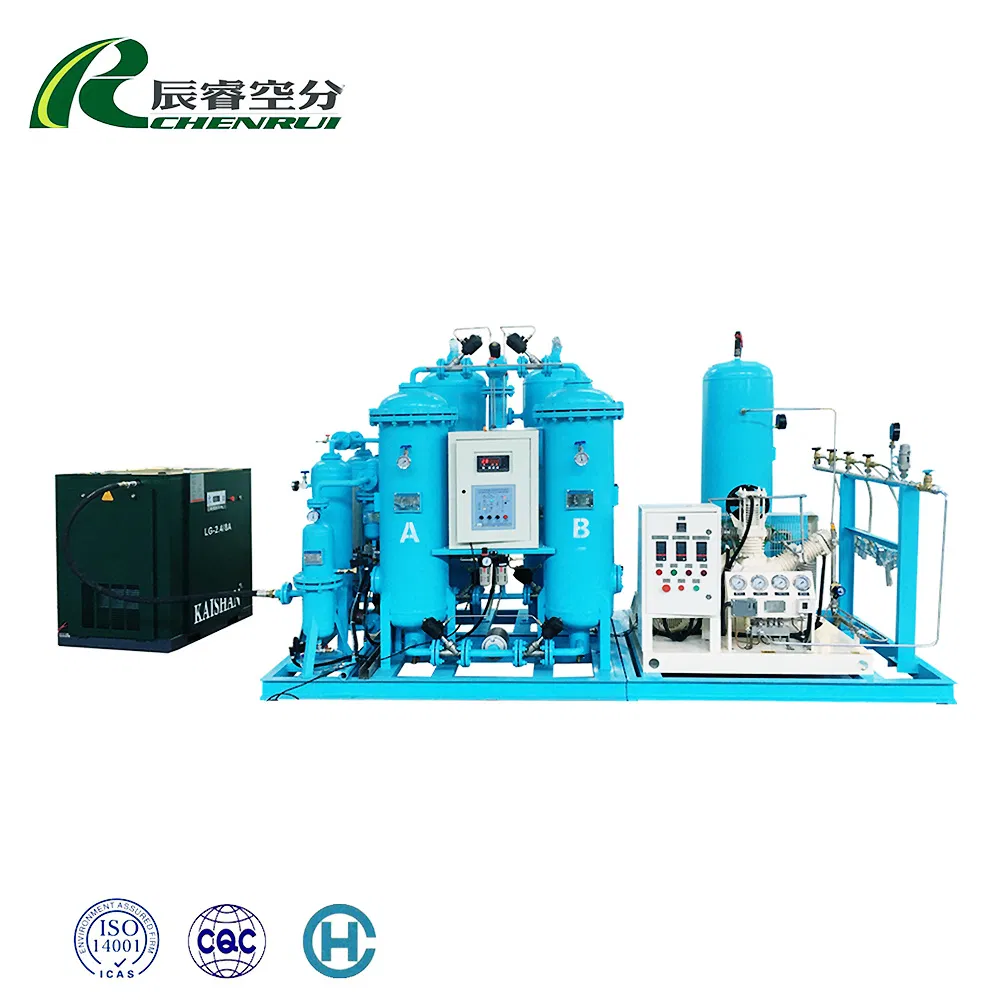

Advanced APP Monitoring Oxygen Plant for Efficient Cylinder Filling

APP Monitoring PSA Oxygen Plant for Oxygen Cylinder Filling

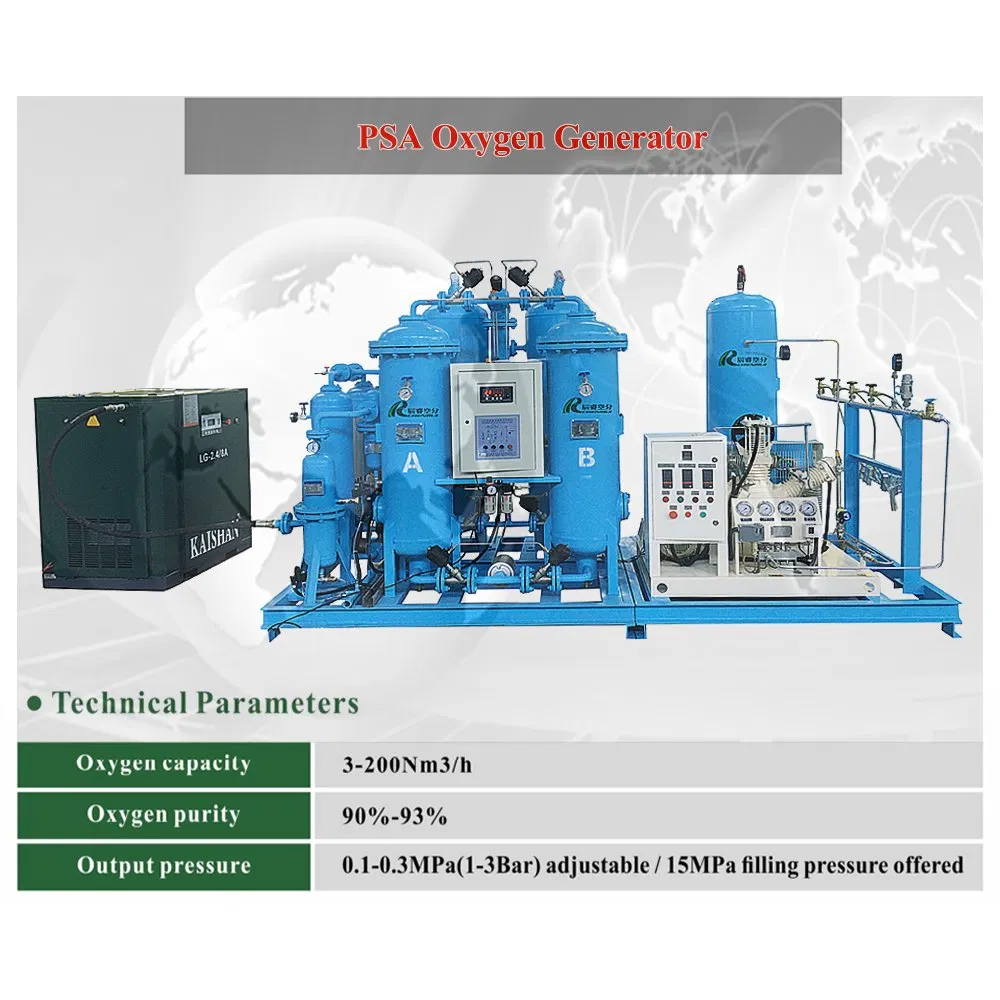

PSA Oxygen Generator Principle

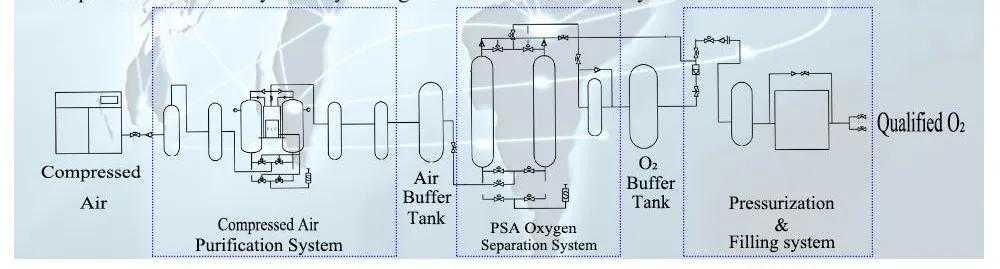

The PSA oxygen generator is an automatic equipment which separates oxygen from air based on the performance of molecular sieves. Nitrogen molecules have a faster diffusion rate in the molecular sieve while oxygen molecules have a slower rate. Oxygen molecules are enriched from the absorption tower. The system operates on the Pressure Swing Adsorption (PSA) principle, utilizing two towers crossed by purified compressed air. While one tower produces oxygen, the other releases nitrogen to the atmosphere, controlled by a Siemens PLC.

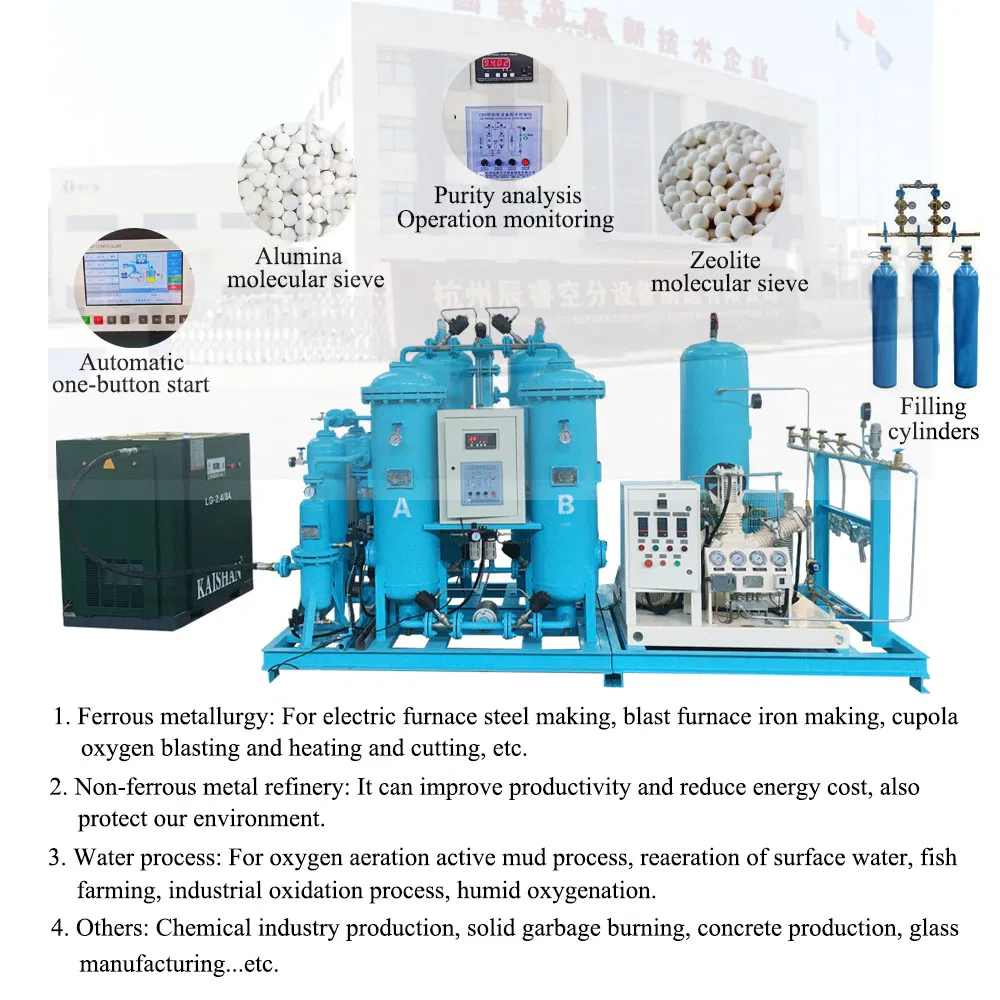

Applications

• Ferrous metallurgy: Electric furnace steel making, blast furnace iron making.
• Non-ferrous metal refinery: Improving productivity and reducing energy costs.
• Water process: Oxygen aeration for active mud processes and aquaculture.
• Chemical Industry: Solid garbage burning, concrete production, and glass manufacturing.

• Full Automation: Designed for unattended operation and automatic demand adjustment.
• Lower Space Requirement: Compact skid-mounted design for easy factory-prefabricated installation.
• Fast Start-up: Only 30 minutes to achieve desired oxygen purity.
• High Reliability: Constant purity and continuous operation with over 93% availability.
• Long Sieve Life: Zeolite Molecular Sieves expected life is more than 10 years.
