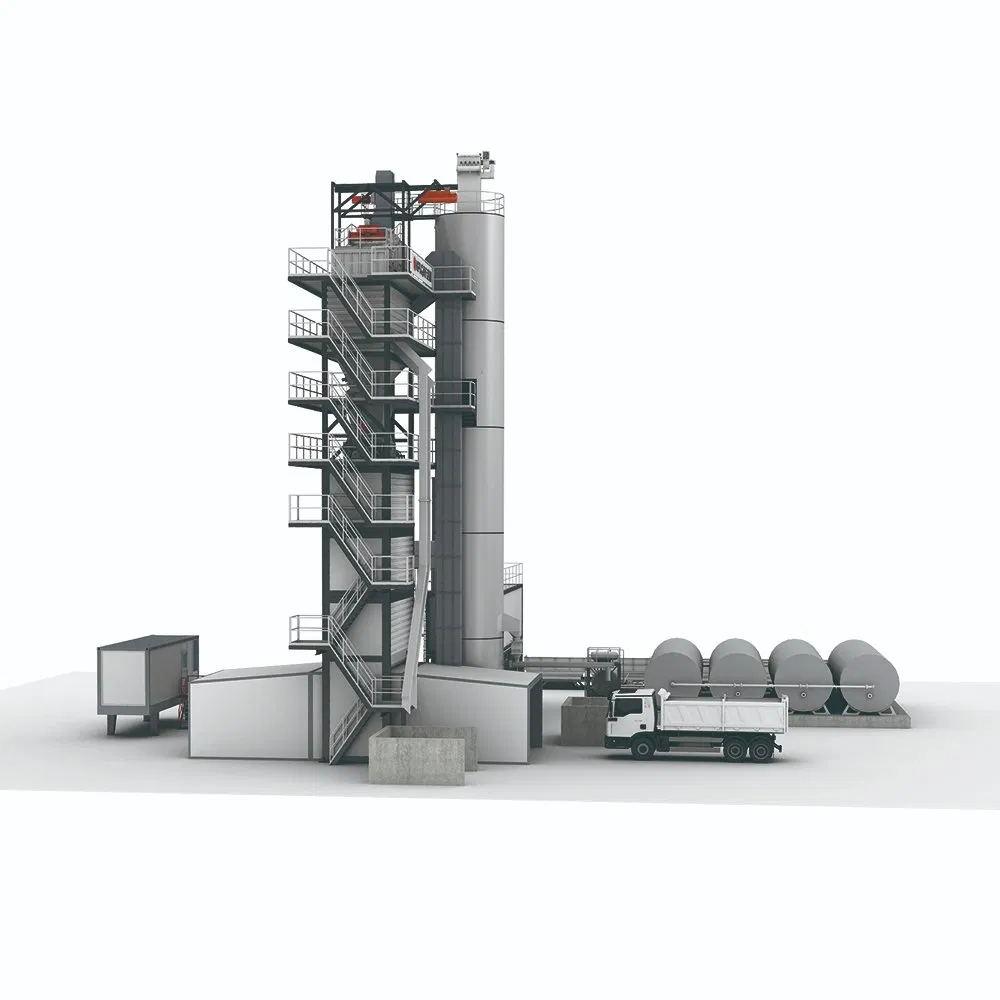

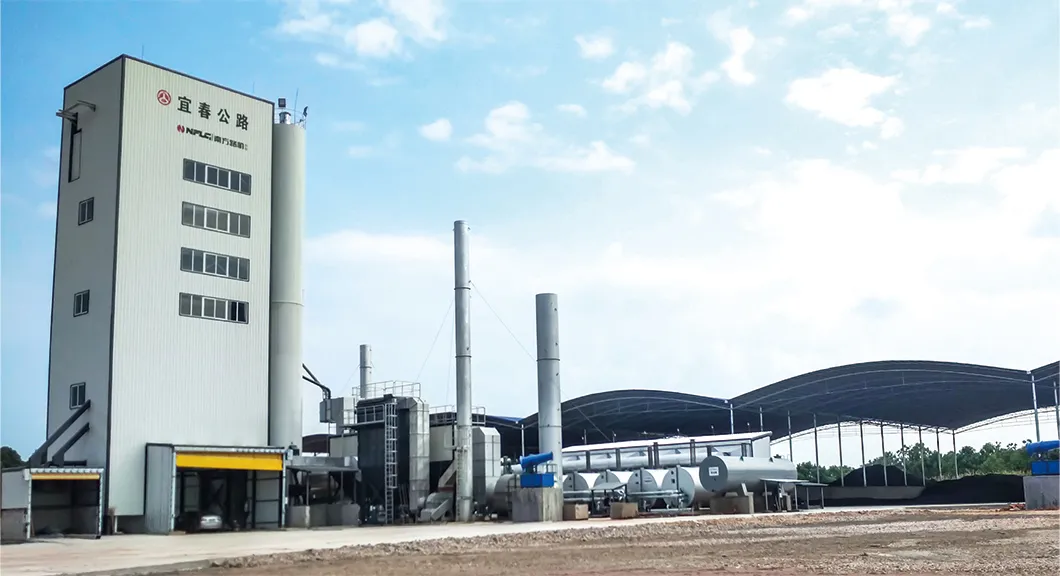

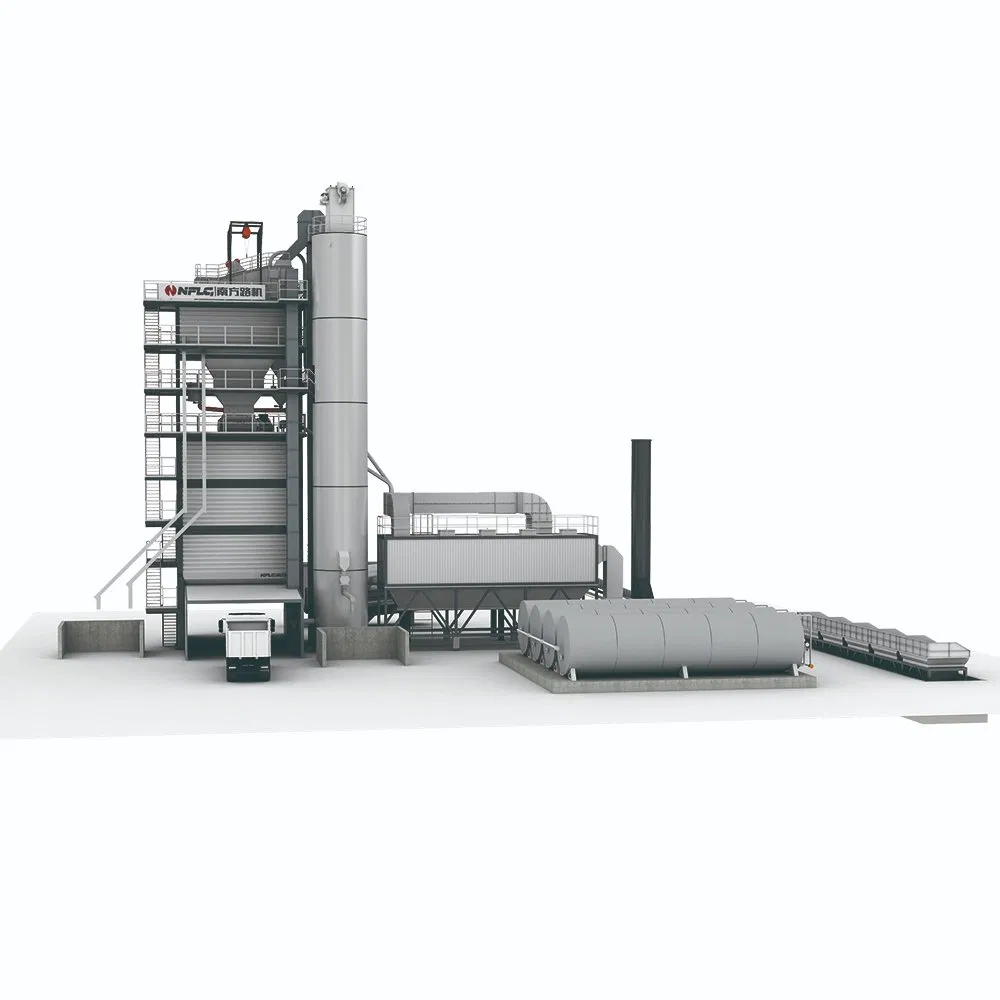

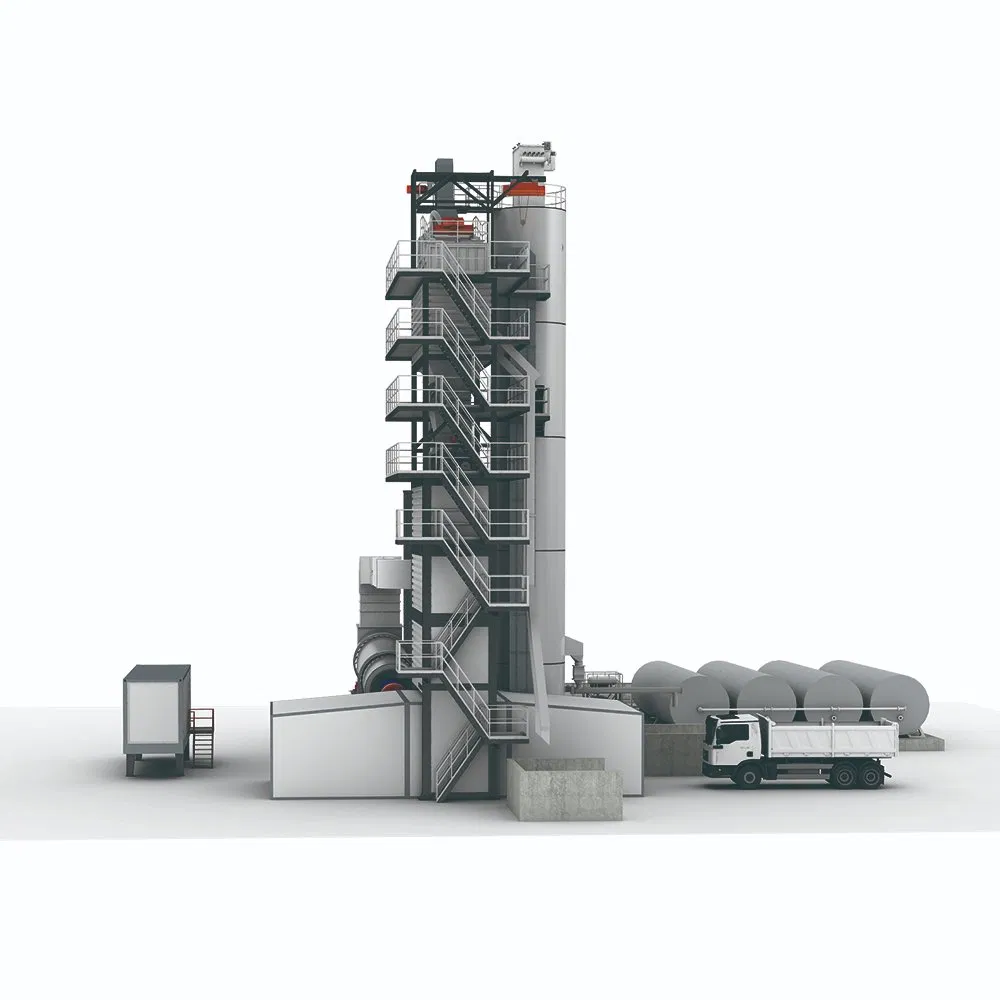

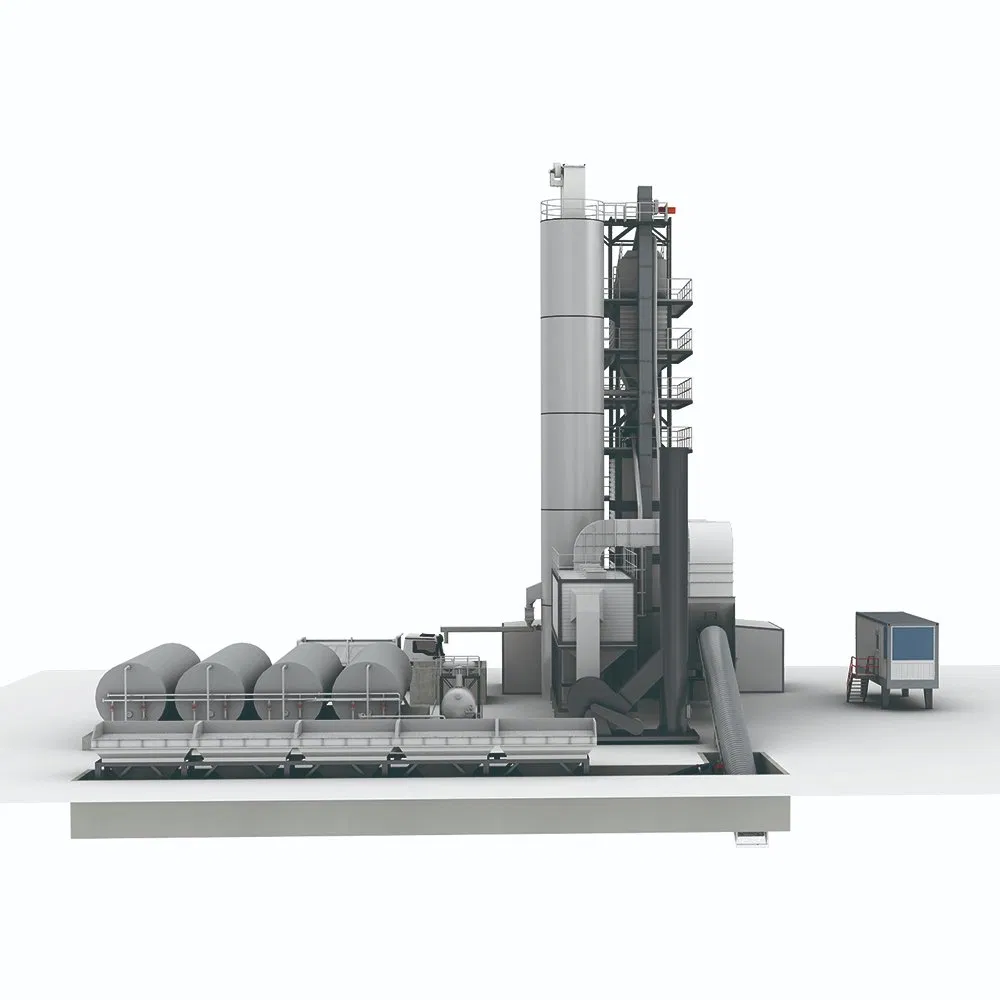

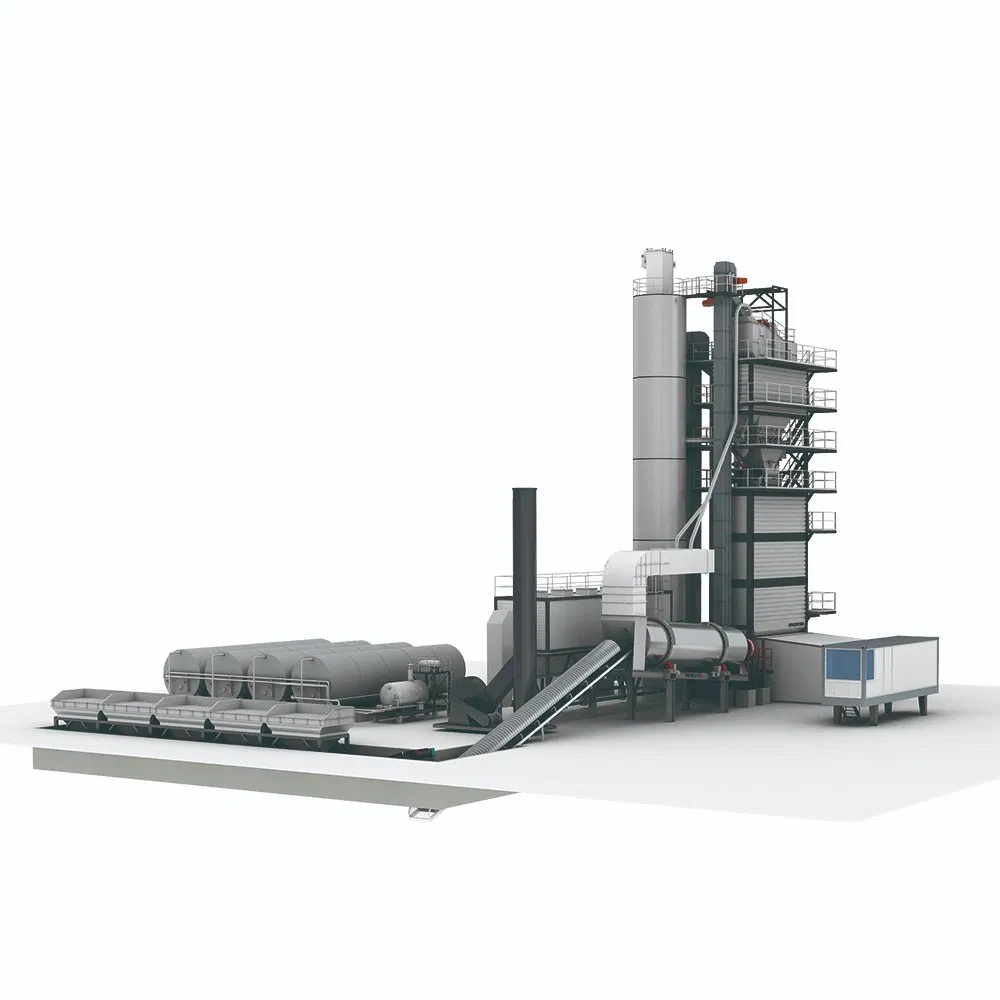

LBG Series Asphalt Mixing Plant with Built-in Storage Bin
Experience unmatched convenience with our Asphalt Batching Plant, showcasing a modular design that ensures effortless installation and relocation. Each component is thoughtfully crafted for seamless assembly, making transitions between sites smoother and more efficient. Engineered with superior sealing technology, our equipment guarantees excellent environmental protection and minimal emissions.
| Model | LBG1500 | LBG2000 | LBG3000 | LBG4000 | LBG5000 |
|---|---|---|---|---|---|
| Cold Bin (Qty x Vol) | 4 * 10m³ | 5 * 15m³ | 5 * 20m³ | 6 * 20m³ | 6 * 20m³ |
| Dryer (D x L) | 1.8m * 7.5m | 2.25m * 9m | 2.5m * 10m | 2.8m * 11m | 2.9m * 12.5m |
| Dryer Capacity | 120t/h | 160t/h | 240t/h | 320t/h | 400t/h |
| Mixer Capacity | 1.5t | 2t | 3t | 4t | 5t |
| Rated Capacity | 120t/h | 160t/h | 240t/h | 320t/h | 400t/h |
| Standard Area | 35m * 35m | 40m * 40m | 40m * 45m | 43m * 47m | 50m * 50m |

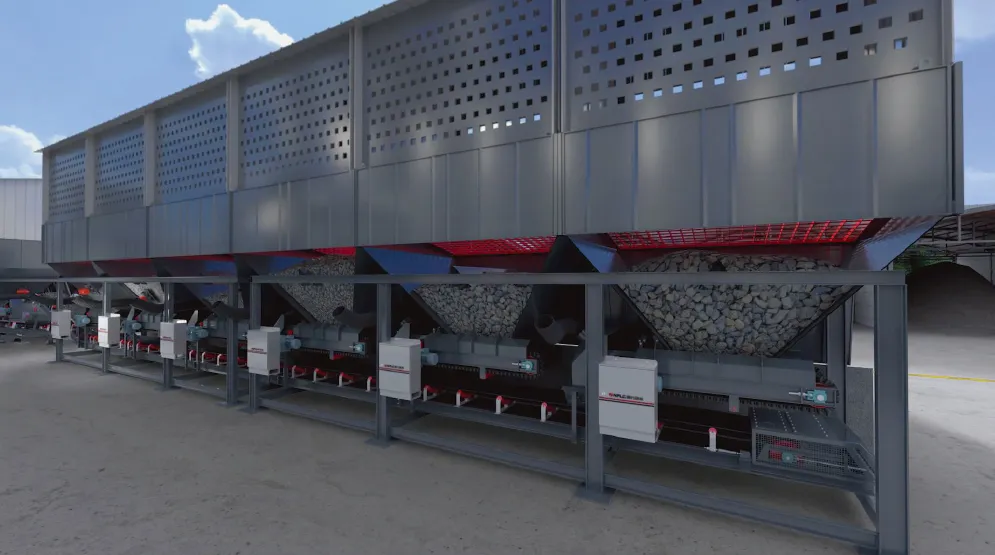

1. Advanced frequency conversion control for seamless speed regulation.
2. Sand bin fitted with vibration arch-breaking and gas cannon devices.
3. Sound and light alarm for material shortage detection.
4. Protective grid atop the bin to filter debris.

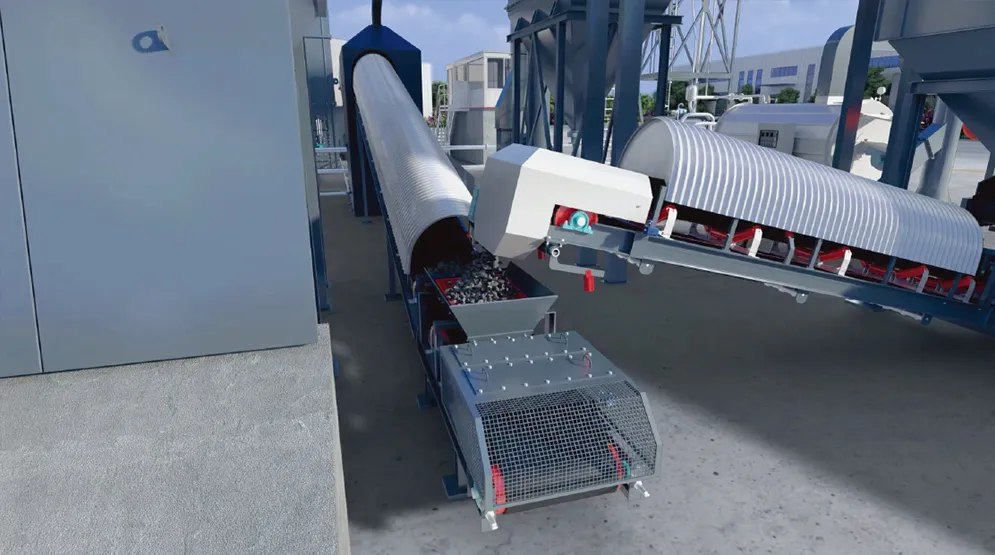

1. Patented friction plate rubber-coated drum for quick replacement.
2. Polyurethane wear-resistant belt cleaner protects the system.
3. Integrated manual emergency pull switch for operator safety.
4. Inclined conveyor includes screening to prevent large material intrusion.

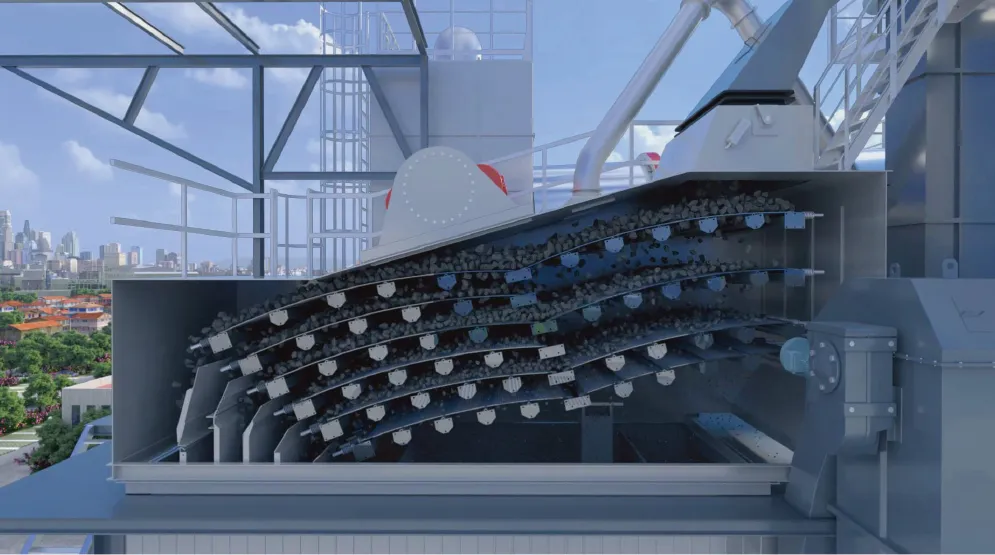

1. Thermal insulation rock wool for noise and thermal regulation.
2. Direct drive vibration motor for high transmission efficiency.
3. Over 95% screening efficiency with easy-to-operate tension identification.

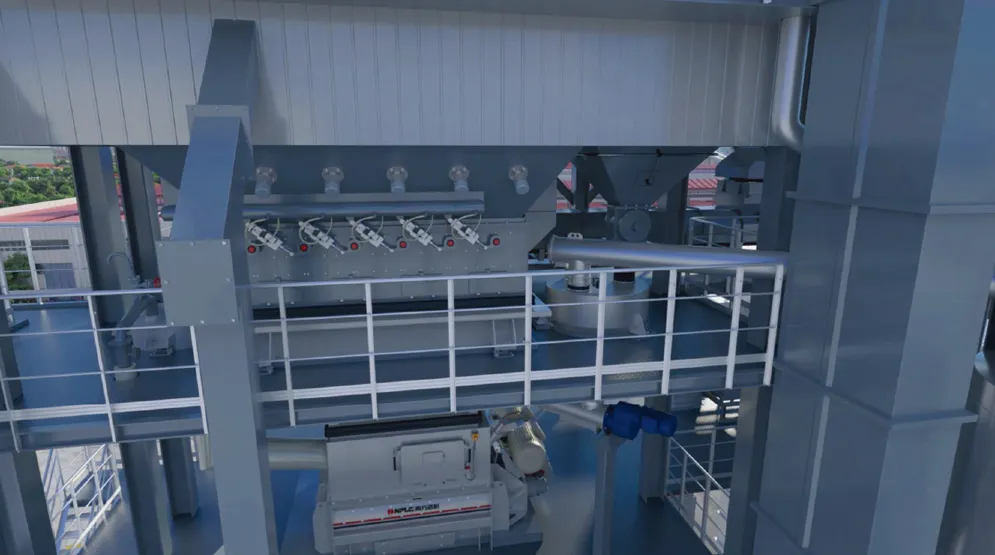

1. Anti-wear structure for extended component life.
2. Continuous level meters and temperature sensors for precision tracking.
3. Dual discharge door system for coarse and fine aggregate control.
4. Real-time sampling port for easy material inspection.

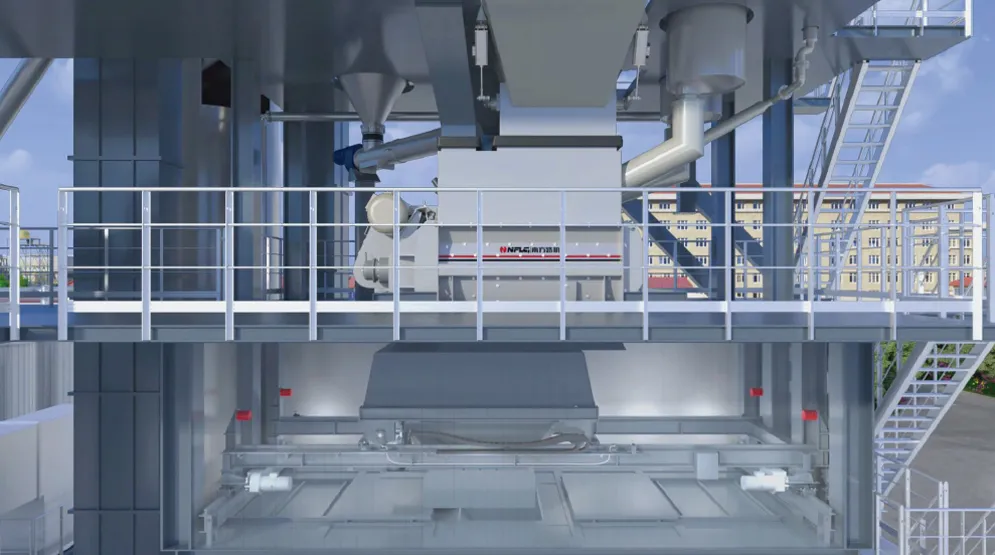

1. High-speed flexible synchronous drive.
2. Intermittent screw arrangement for 3D mixing efficiency.
3. Wear-resistant paddles and liners for unparalleled durability.
4. Versatile ports for RAP, wood fiber, and foamed bitumen.

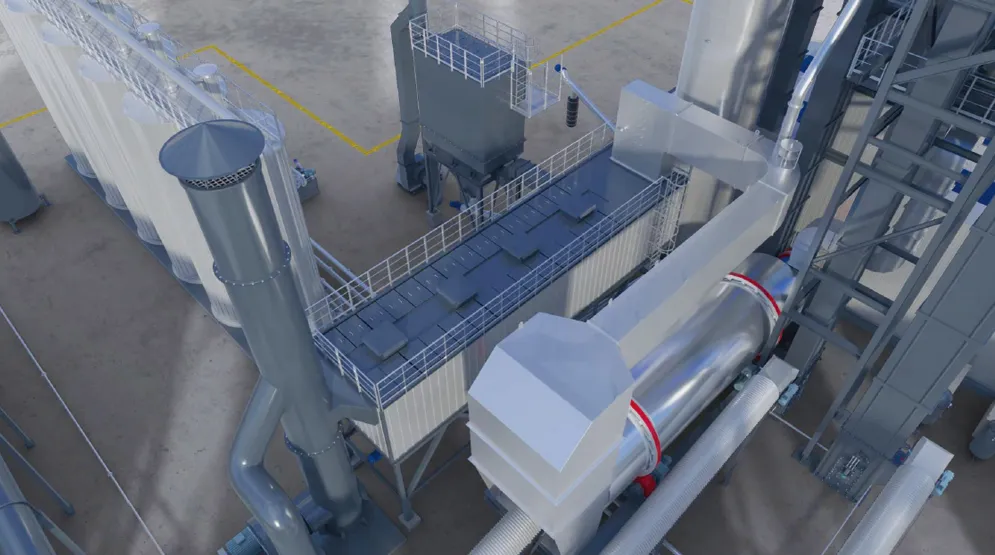

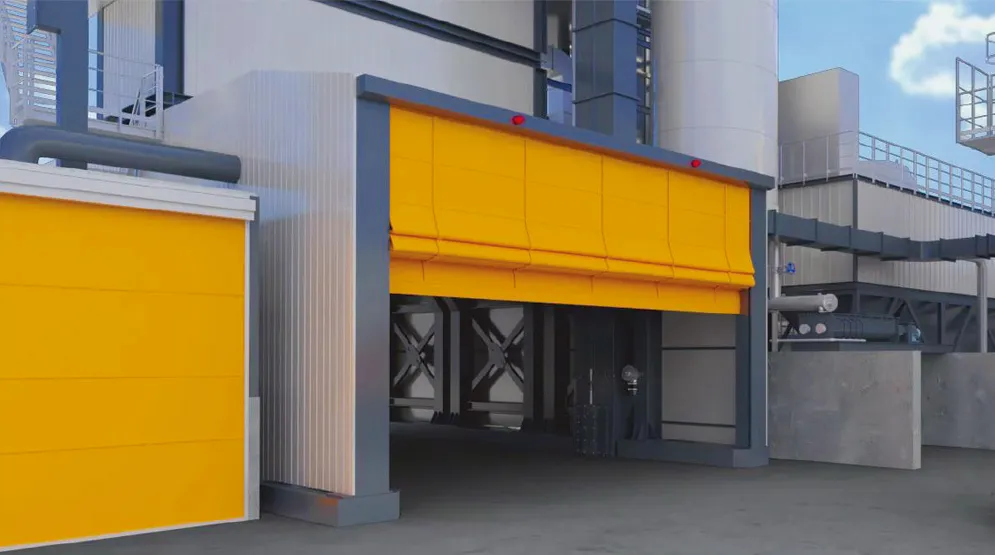

1. Fully sealed design with dust collection to cut emissions.
2. Electrically heated discharge doors prevent material sticking.
3. Bottom-mounted or side-mounted configurations available.
4. Integrated truck alignment indicator lights.

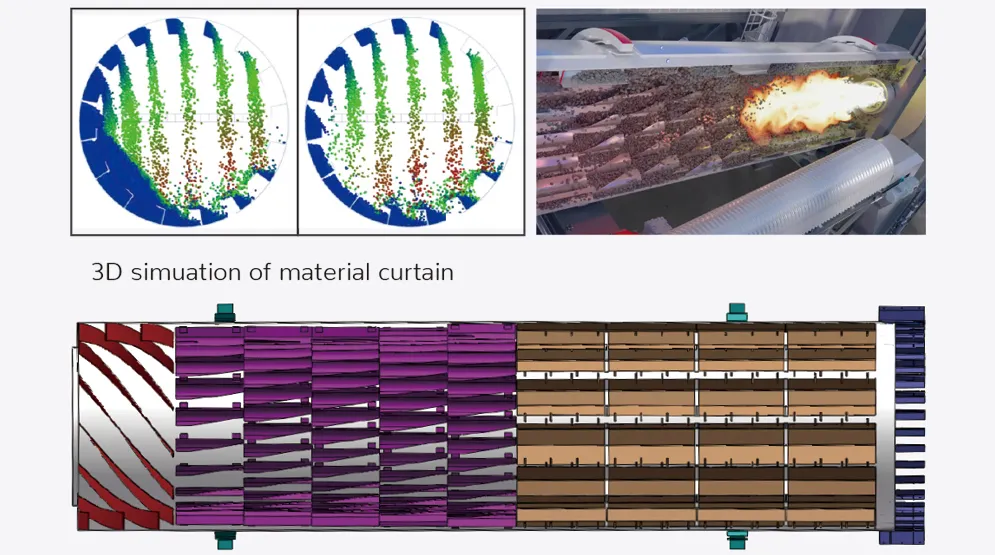

1. Shaft-mounted motor reducers for effortless operation.
2. Optimized lifting blades ensure uniform heating and energy use.
3. Stainless steel cladding and thermal insulation for heat retention.
4. 10% energy efficiency enhancement over previous generations.
