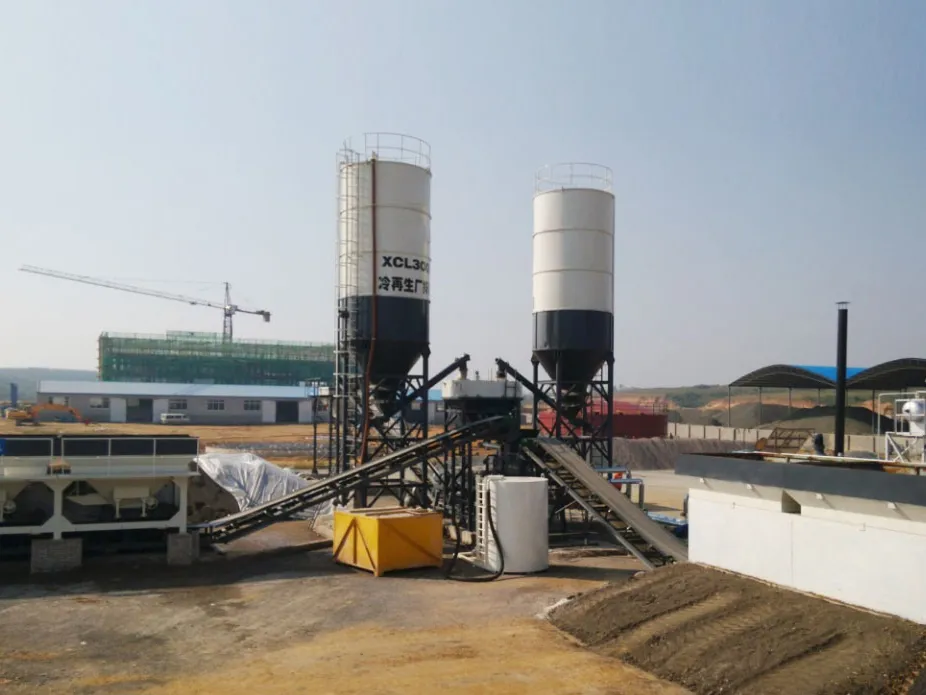

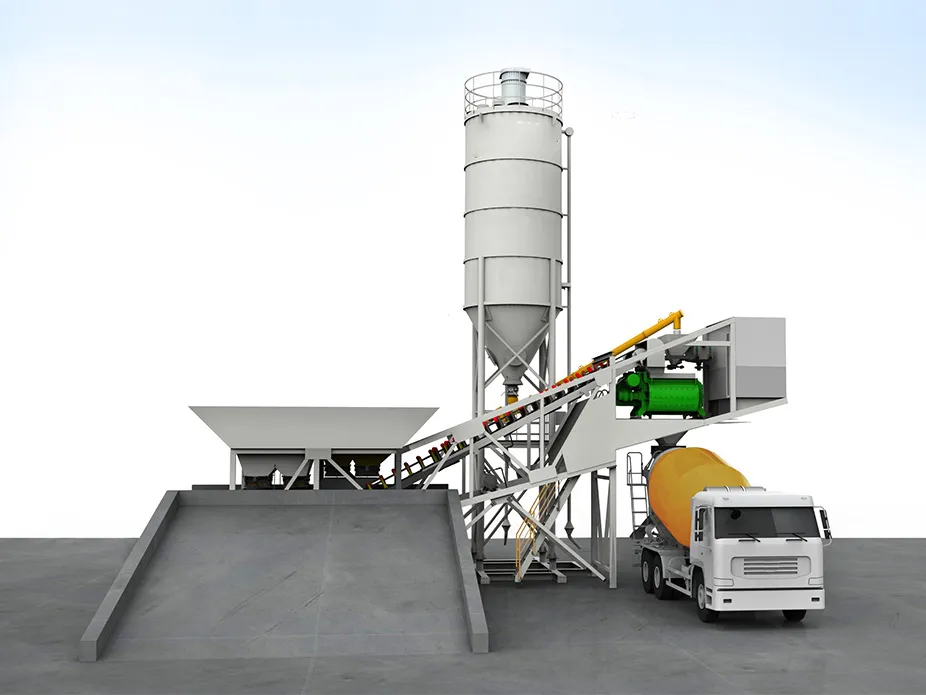

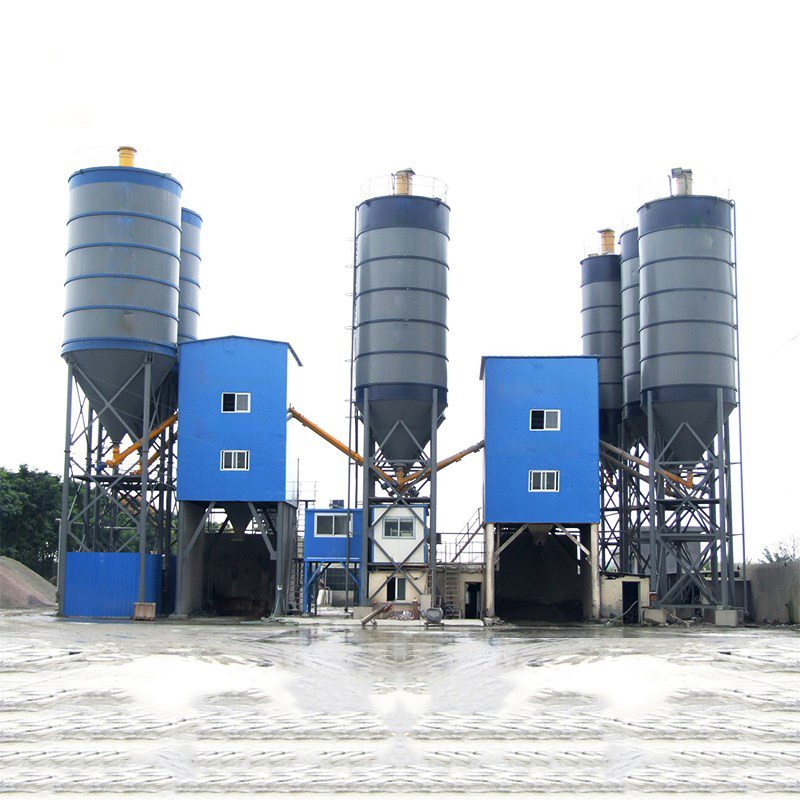

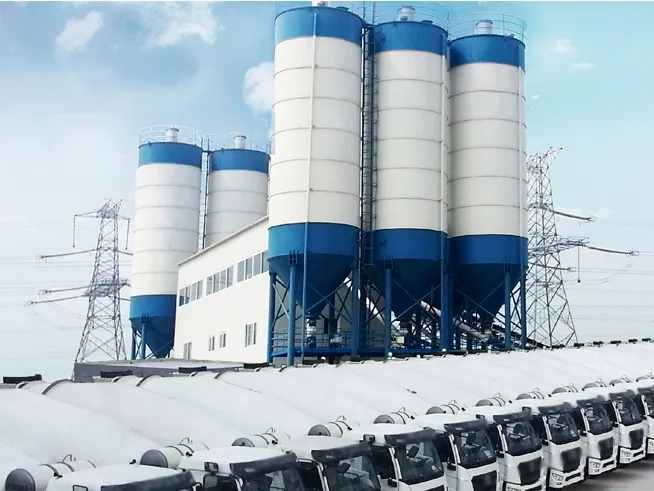

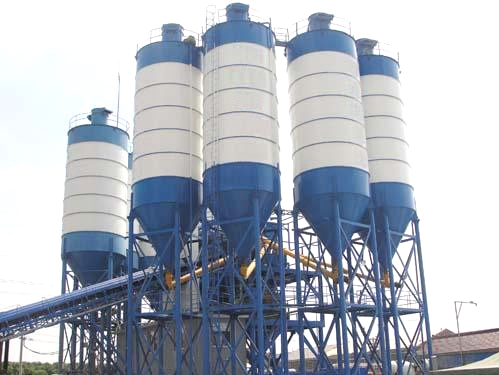

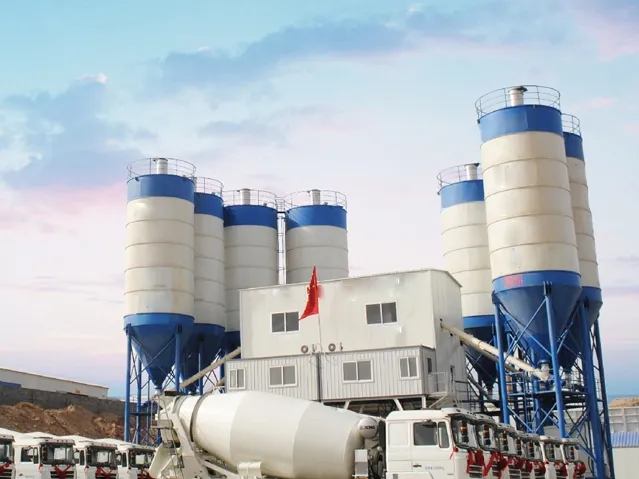

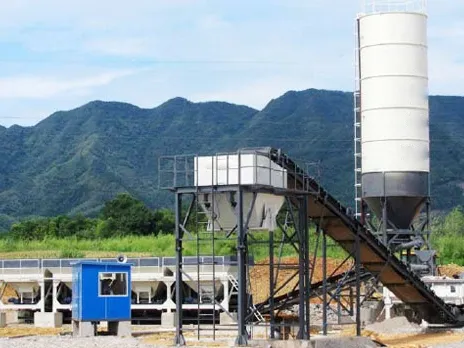

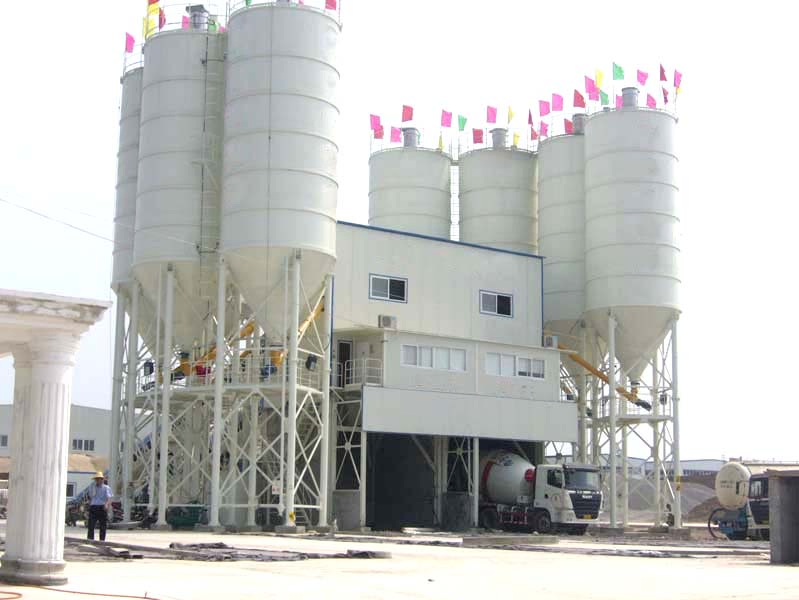

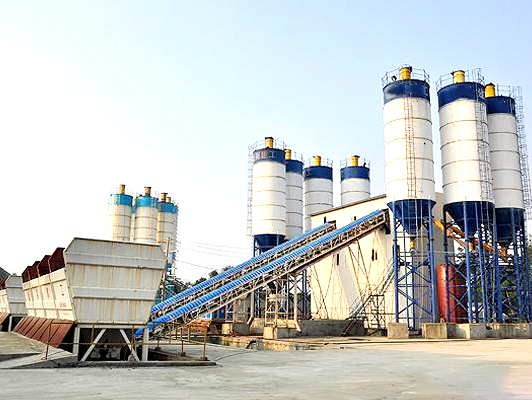

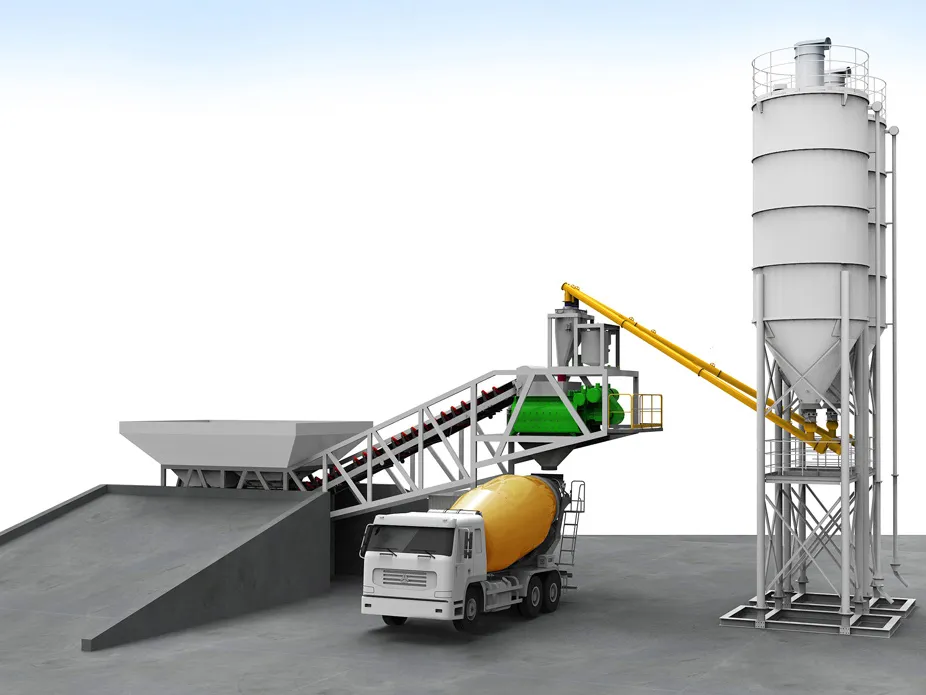

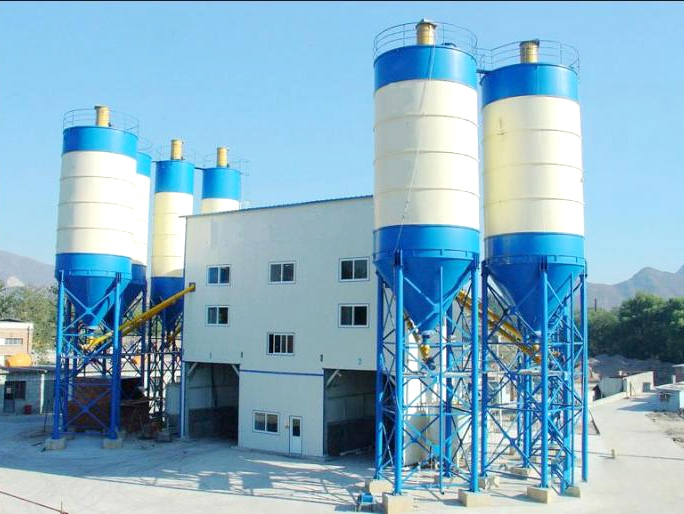

The Ready Mixed Concrete Batching Plant is a comprehensive system designed for high-efficiency concrete production. It features a modular design to ensure quick installation and relocation.
System Components:
The fully automatic control system ensures easy operation and reduces manual labor requirements. The external packing of the mixing tower and main conveyor effectively reduces dust and noise pollution.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity (L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Max Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | Belt Conveyor | Skip Hopper | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor |
| Discharging Height (m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Aggregate Species | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Max Aggregate Size (mm) | ≤60 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤120 | ≤150 | ≤180 |
| Cement Silo Capacity | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T | 4×200T | 4×200T |
| Mixing Cycle Time (s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Power (kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
