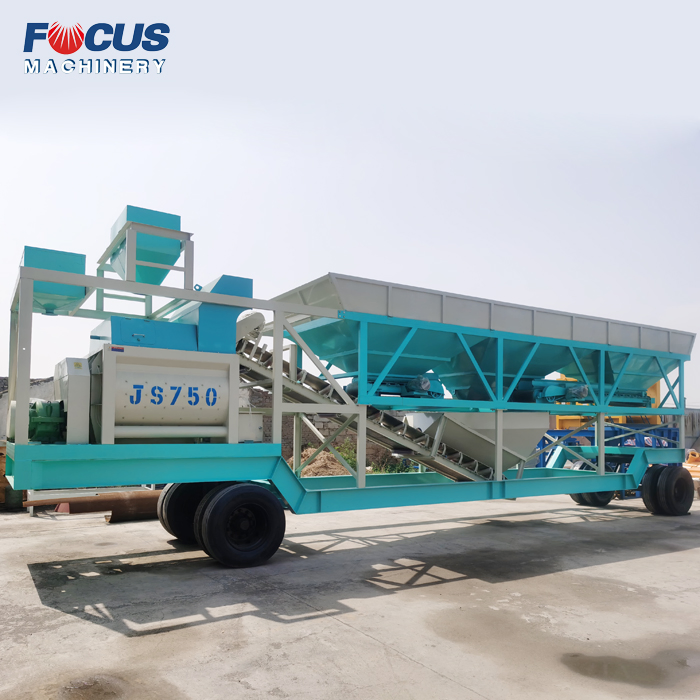

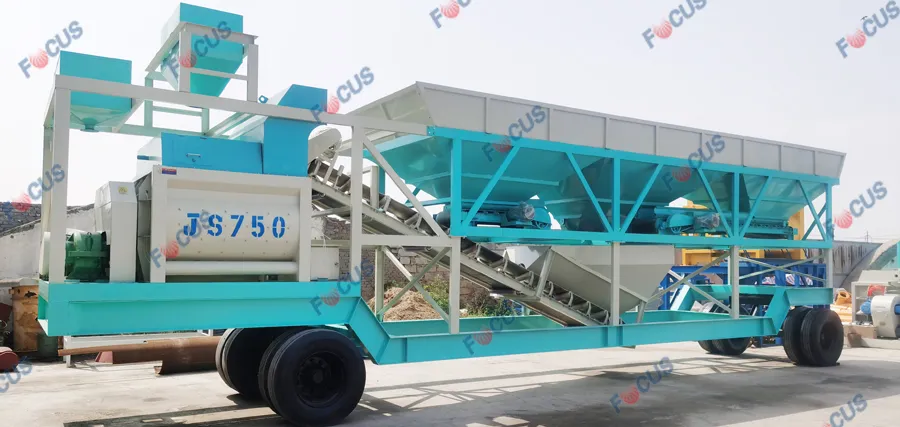

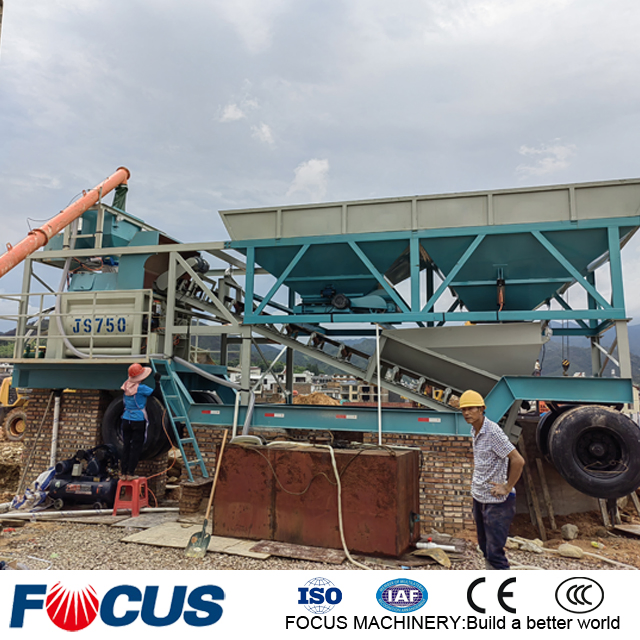

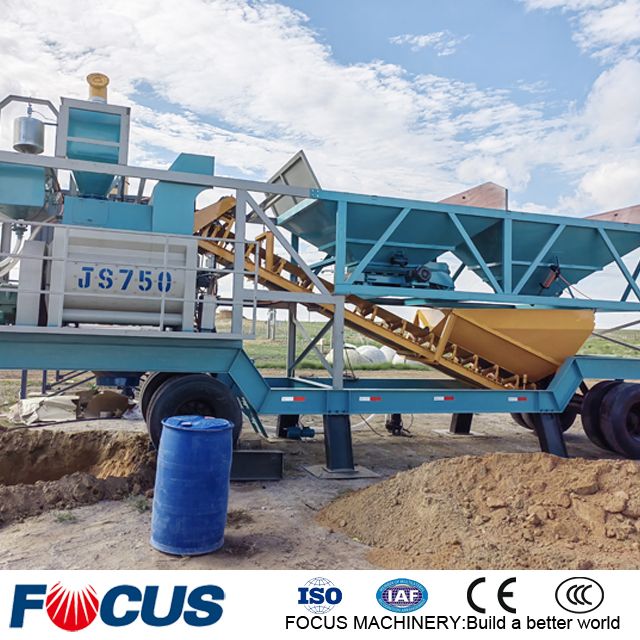

Portable Concrete Batching Plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.

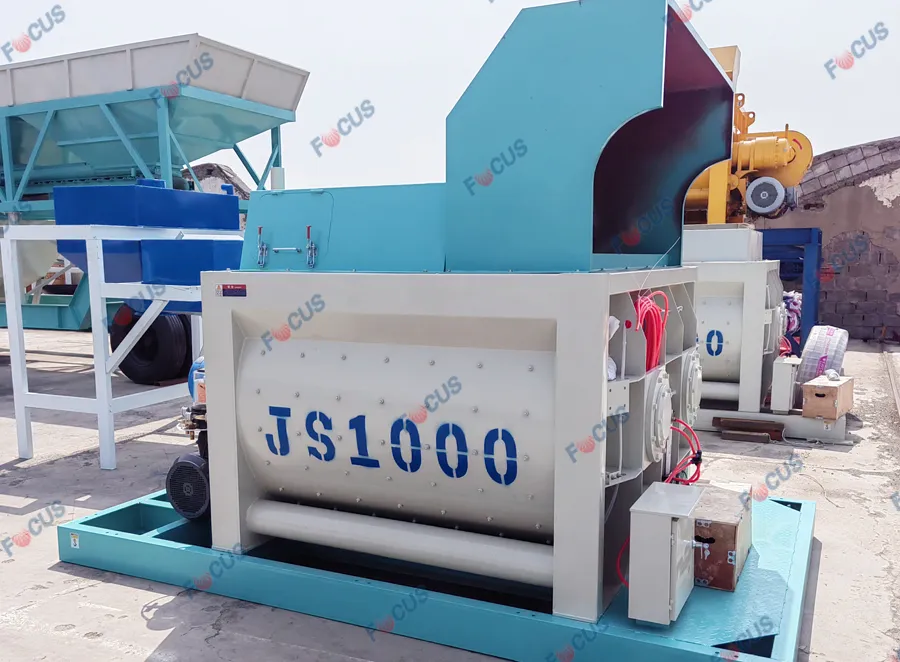

Mixing System: Adopt double shaft concrete mixer, the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.

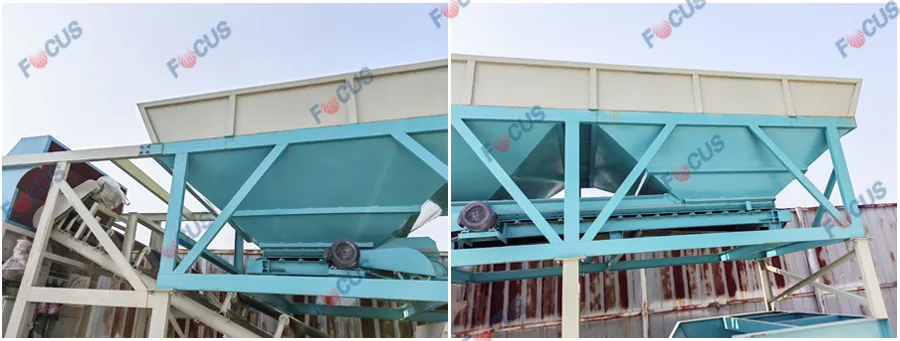

Dosing System: Adopt PLD series dosing machine, 2-4 bins are optional, and automatic unloading. Electronic weighing with an accuracy of 2%.

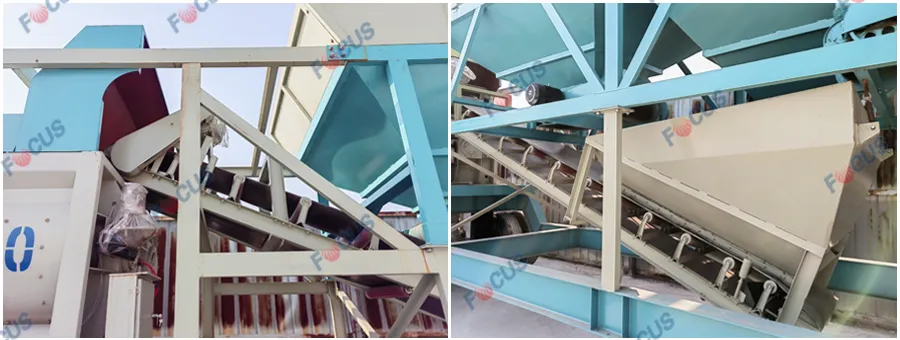

Conveying System: Smooth operation, automation, centralized control, continuous transportation and other advantages. Excellent material selection, using double-layer structure bucket belt and herringbone belt.

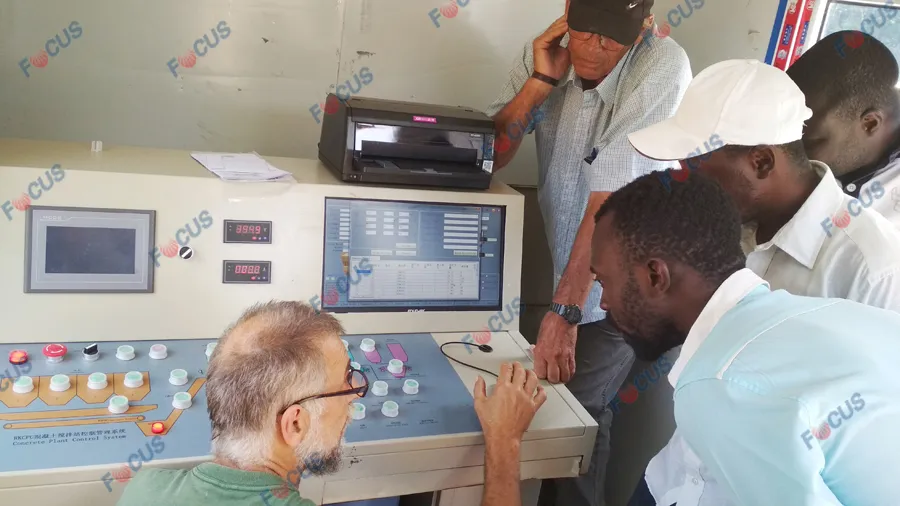

Control System: Remote management, intelligent control, equipment with alarm correction, operation monitoring and other functions.

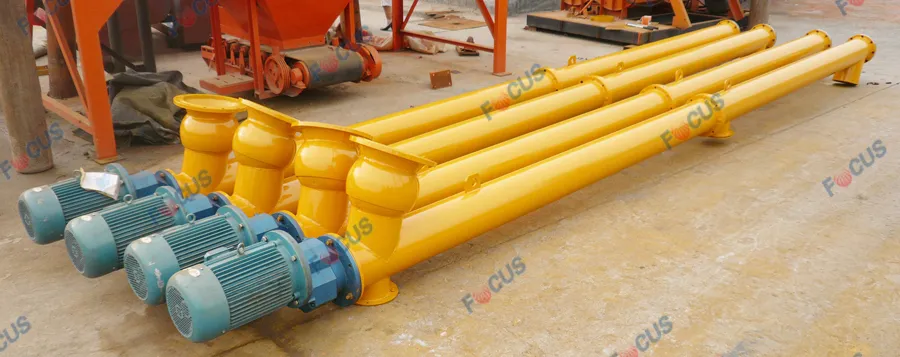

Screw Conveyor & Structure: LSY series screw conveyors can be made according to the needs of the site. The main structure is made of Q235 high-quality carbon steel with strong bearing capacity.
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
|---|---|---|---|---|
| Capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h |
| Mixer Model | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Power | 18.5Kw | 30Kw | 37Kw | 2*30Kw |
| Discharge Height | 1500-3800mm | |||
| Mixing Cycle | 60S | |||
| Loading Way | Belt conveyor | |||
| Control System | Fully automatic/Manual | |||
| Total Power | 51KW | 75KW | 105KW | 145KW |
| Total Weight | 22t | 28t | 32t | 35t |
