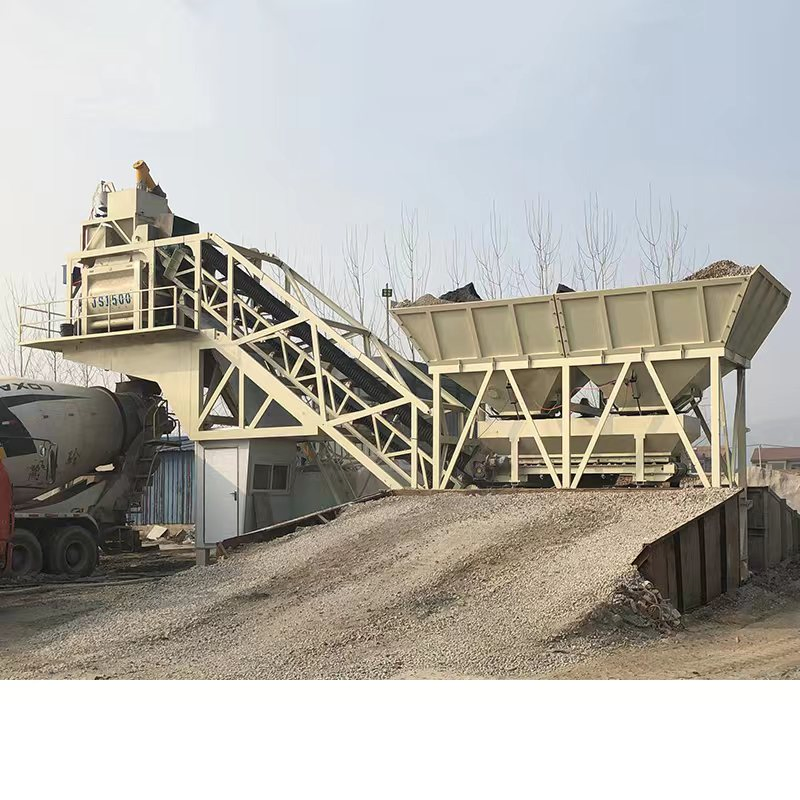

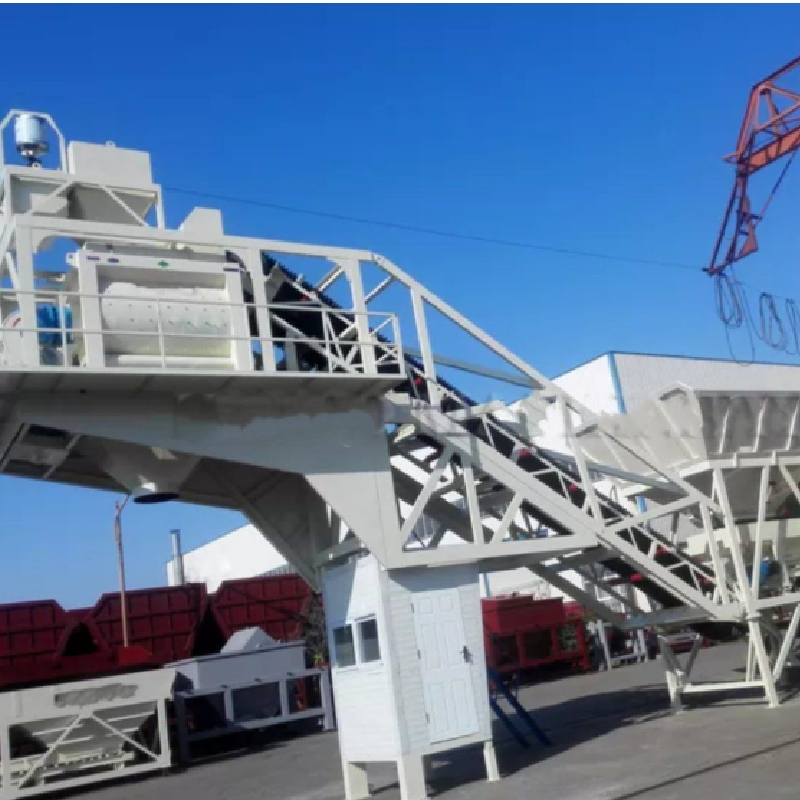

New Type 25-100m3/H Mobile Ready Mix Concrete Batch Plant Ready Mix

1 / 5

New Type 25-100m3/H Mobile Ready Mix Concrete Batch Plant Ready Mix

Customization:	Available
After-sales Service:	15 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model

Mobile Concrete Mixing Plant

Type

Concrete Mixer

Shotcrete Type

Wet

Machining

Hydraulic

Structure

Cylinder Type

Productivity

25m3-240m3

Vibrating Amp

1.6mm

Certification

ISO9001: 2000, CE

Condition

New

Discharge Height

3.8m

Main Mixer

Js500 -- Js2000

Batching Machine

PLD800-3200

Product Description

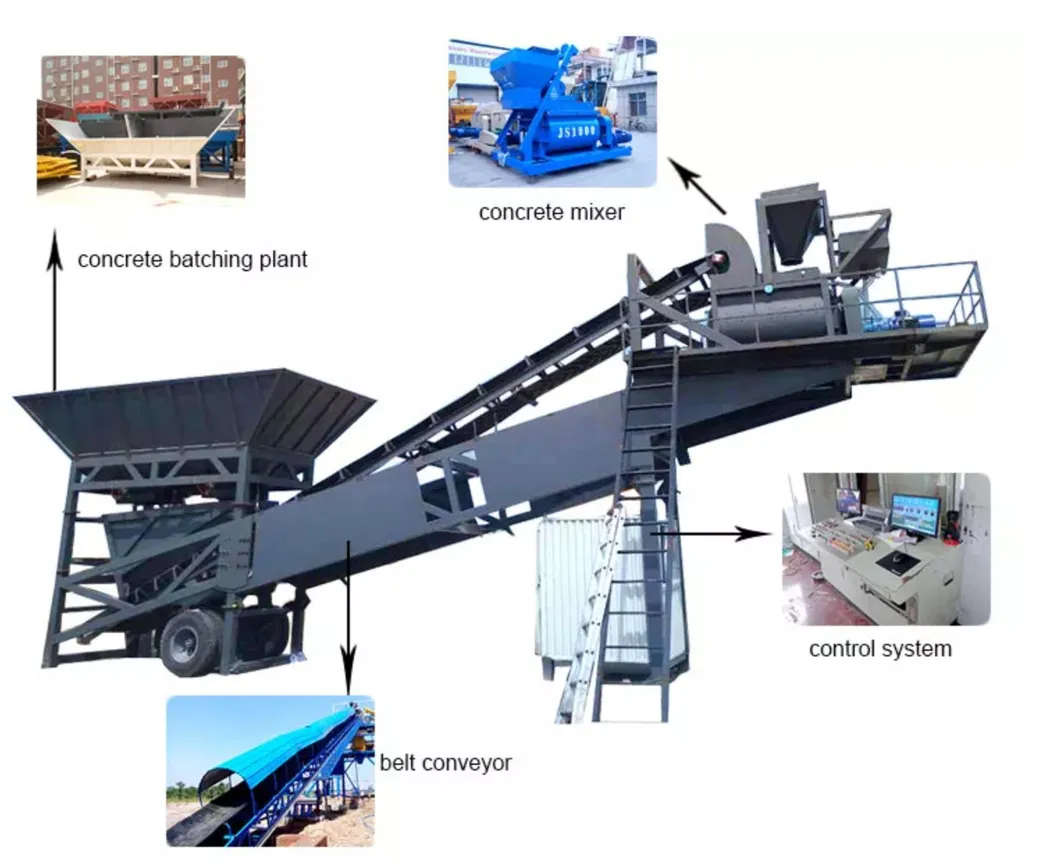

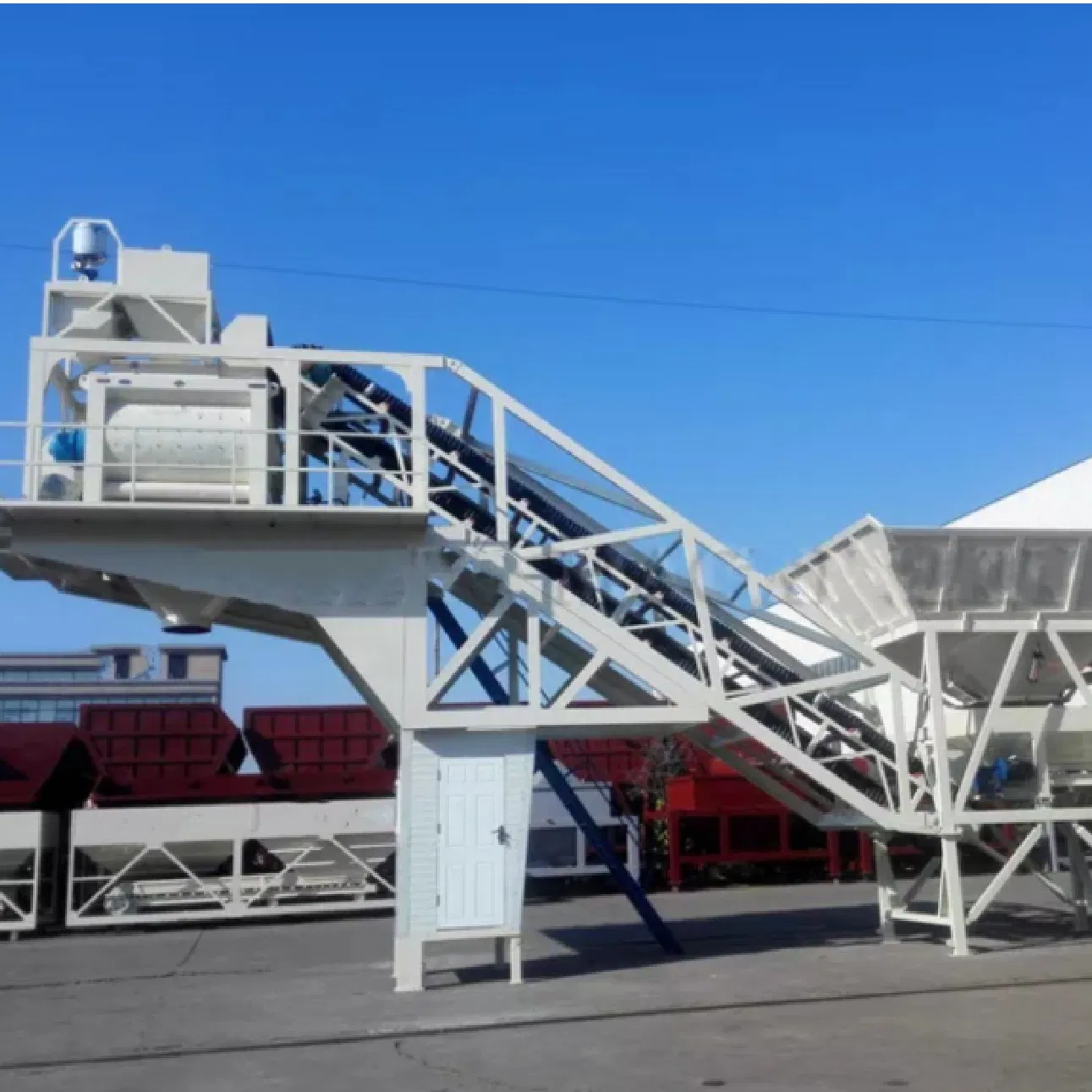

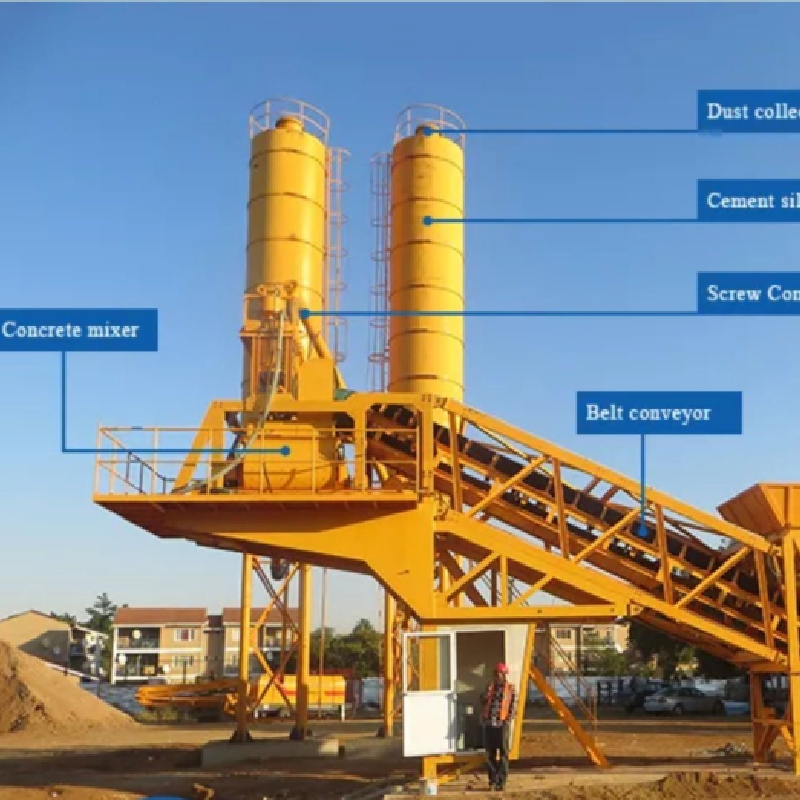

Mobile concrete batching plant is composed of concrete mixer, aggregate storage and weighing system, aggregate batching system, control system etc. It offers advantages of easy installation, simple foundation requirements, and high flexibility for site-to-site transportation.

01. Semi-Pulling Structure Adopts semi-pulling structure with coupling pin included. It can be conveniently dragged by a trailer.

02. Low Foundation Cost No need for special or complex foundations, significantly reducing setup time and costs.

03. Highly Portable Flexible transport allows for easy relocation from one project to another as construction demands change.

04. Rapid Assembly Divided into standard modules for quick installation and disassembly, easily packed into containers.

Model	YHZS25	YHZS35	YHZS50	YHZS75	YHZS90
Capacity	25m3/h	35m3/h	50m3/h	75m3/h	90m3/h
Mixing system	Twin shaft concrete mixer

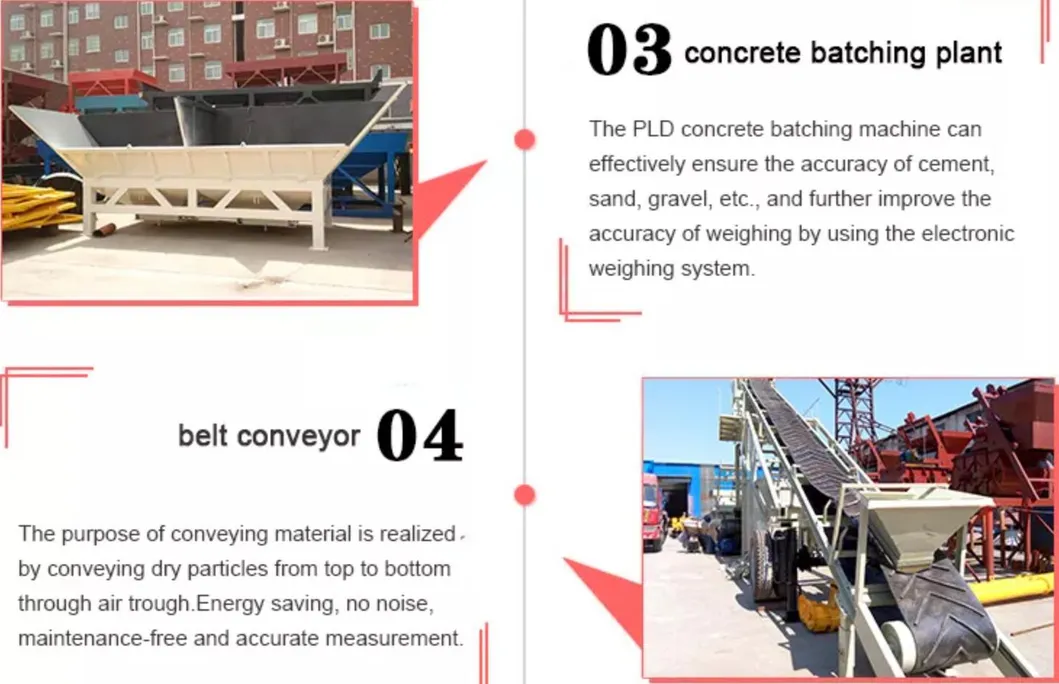

Aggregate feeder	Belt conveyor

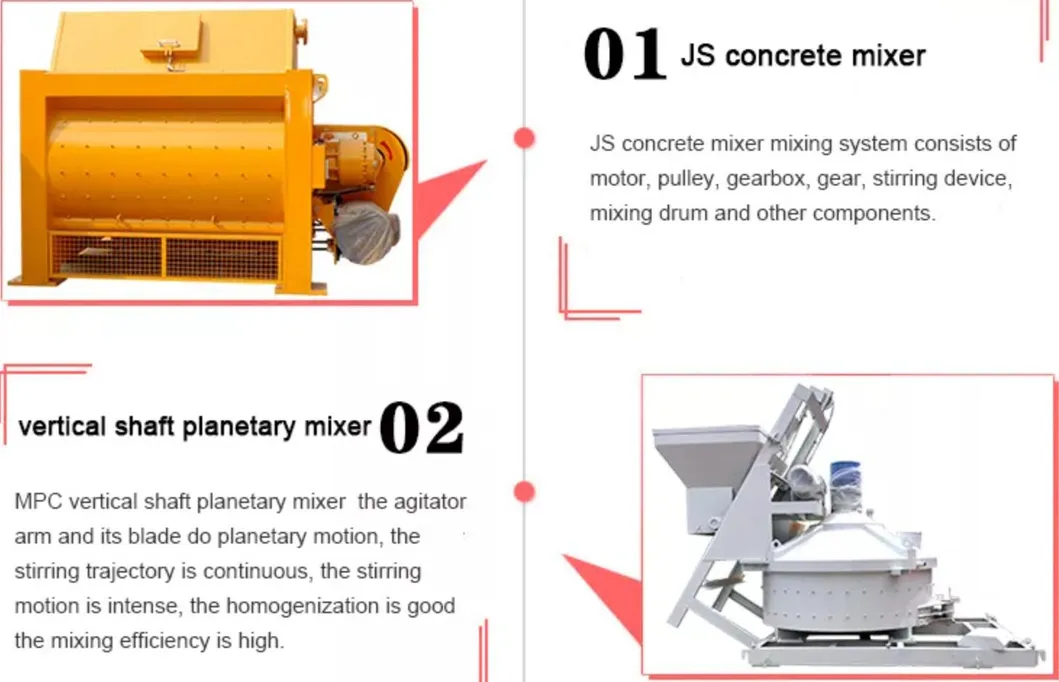

Concrete mixer	JS500	JS750	JS1000	JS1500	JS2000
Discharging volume	500L	750L	1000L	1500L	2000L
Mixing circle	72s
Aggregate Bins	4x4m3	4x5m3	4x6m3	4x7m3	4x8m3
Control System	SIEMNS PLC+PC
Weighing precision	±1%
Warranty	1 year (12 months after test running)

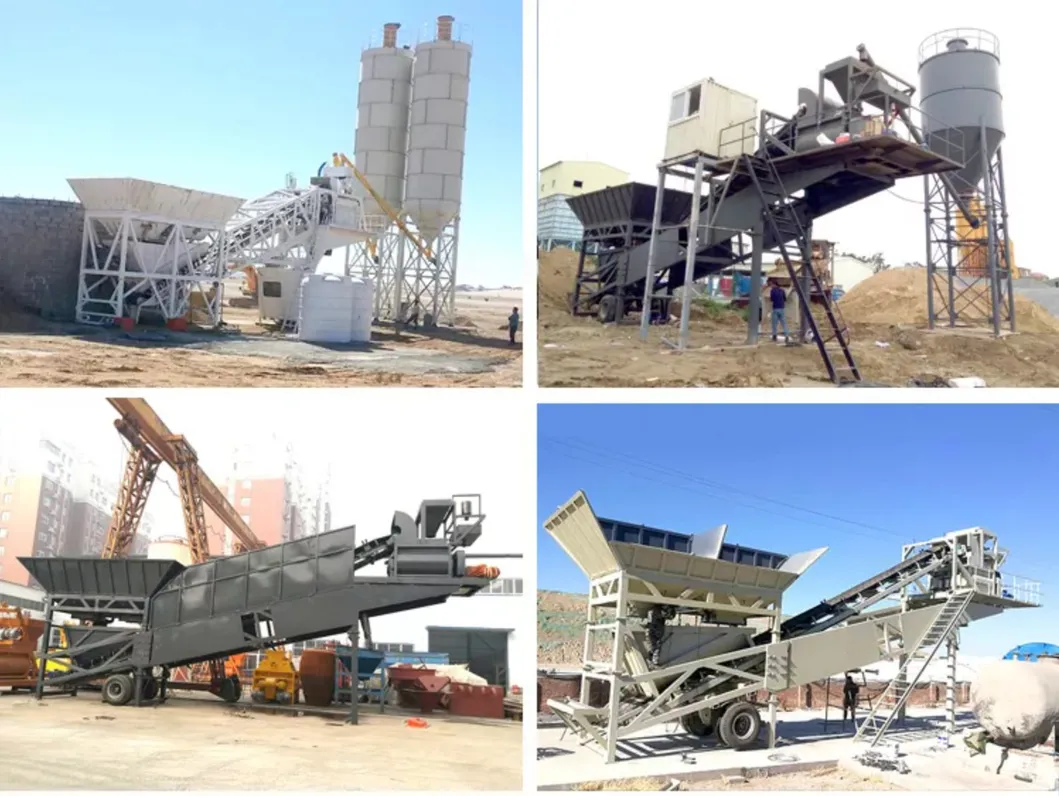

Detailed Photos

Frequently Asked Questions

What are the main advantages of a mobile concrete batching plant?

The main advantages include rapid installation, ease of transportation between sites, and minimal foundation requirements, making it ideal for temporary or remote projects.

How is the mobile plant transported?

The plant is designed with a semi-pulling structure and a coupling pin, allowing it to be easily towed by a trailer unit.

What is the productivity range available?

Our mobile concrete mixing plants offer a wide productivity range, typically from 25m³ per hour up to 240m³ per hour, depending on the model chosen.

Does the system use a digital control interface?

Yes, the plants are equipped with a SIEMENS PLC and PC-based computer auto-control module for high precision and ease of operation.

What kind of after-sale support is provided?

We provide full installation and commissioning services, operator training, maintenance, spare parts supply, and ongoing technical support.

What is the standard warranty period?

The equipment comes with a 1-year warranty, which covers 12 months starting after the successful test running of the plant.
