Cloverdyn Plant
1 / 5
| Model NO. | LBY1500 |
| Object | Asphalt Concrete Pavement |
| Moving Type | Fixed |
| Mixing Method | Continuous Drum |
| Automatic Grade | Automatic |
| Product Capacity | 120t/H |
| Certification | ISO9001: 2000, CE |
| Condition | New |
| Unique Selling Point | Energy Saving |
| Warranty of Core Components | 1 Year |
| Name | Mobile Asphalt Mixing Plant |
| Video Outgoing-Inspection | Provided |
| Dust Remover | Gravity Dust Removal + Bag Filter Dust Removal |
| Fuel | Light Oil/ Heave Oil Gas(Optional) |
| Mixer Capacity | 1.5t |
| Trailer Speed | 40km/H |
| Package Size | 1900.00cm * 2100.00cm * 2500.00cm |
| Package Gross Weight | 50000.000kg |

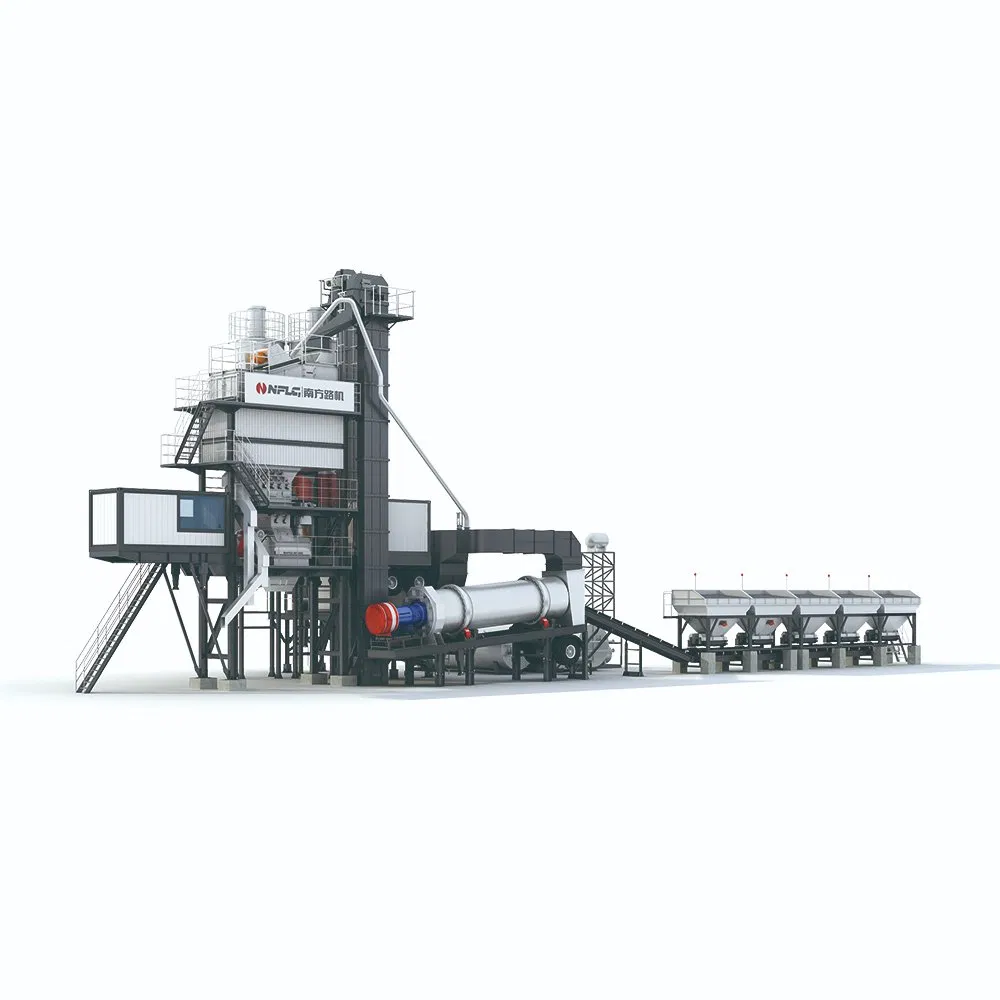

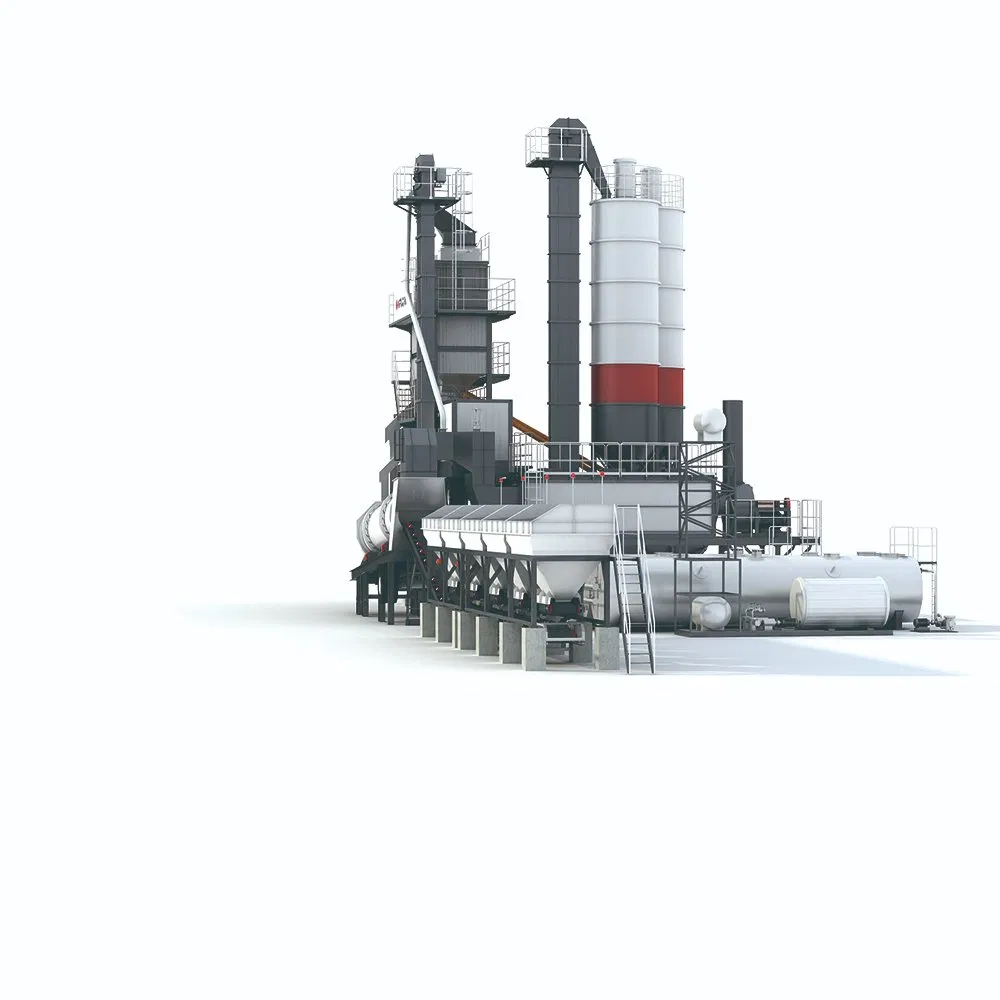

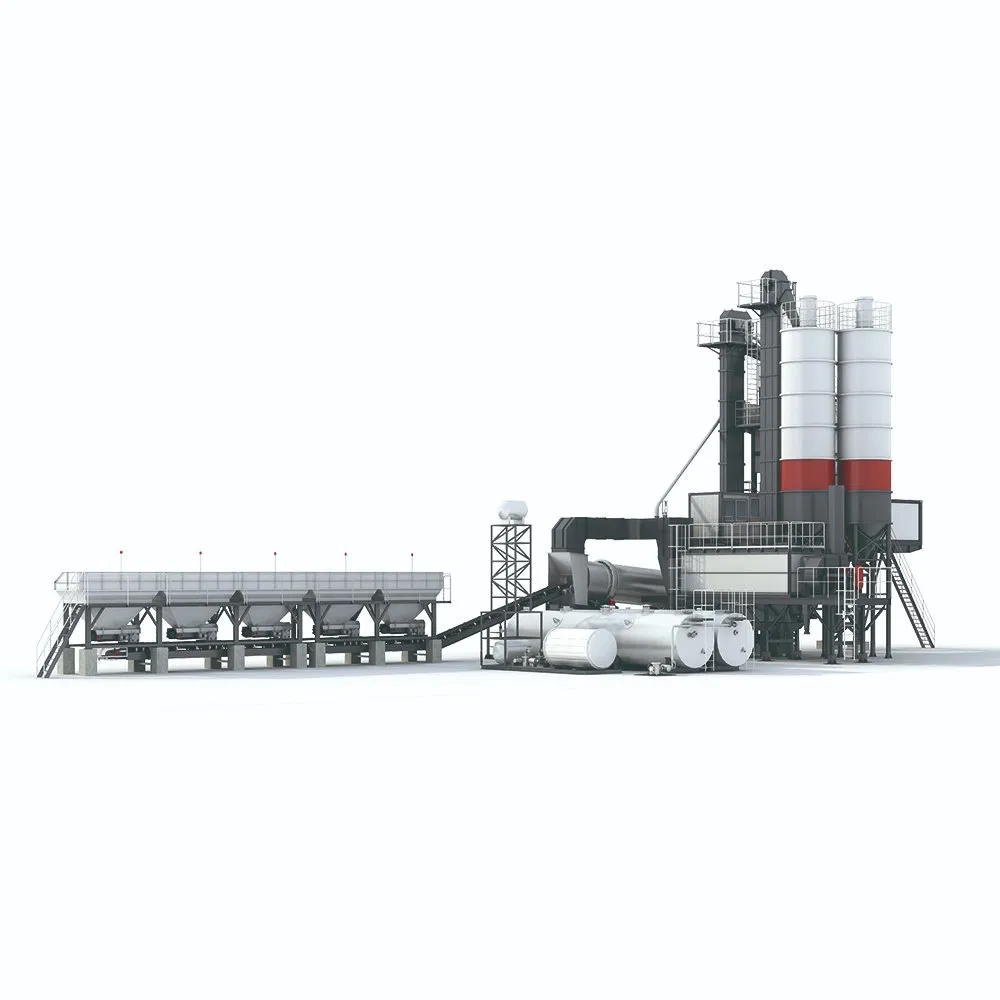

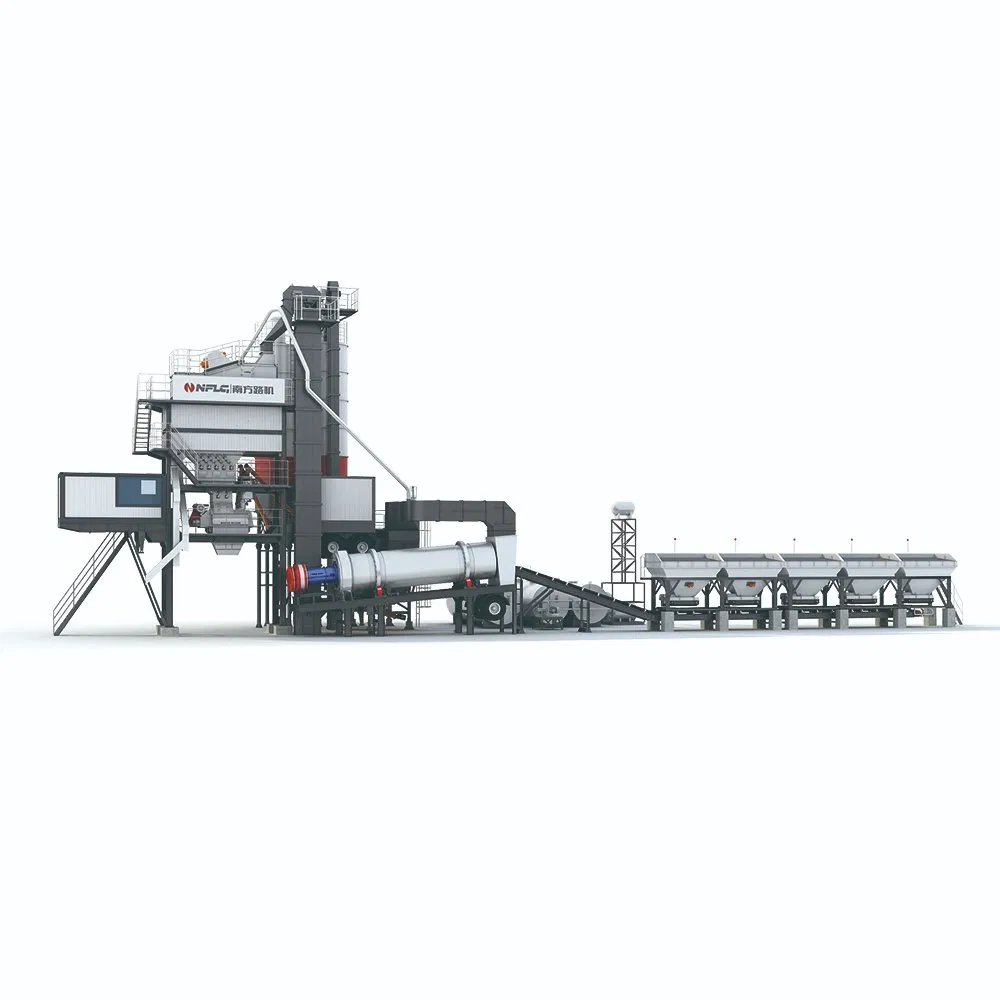

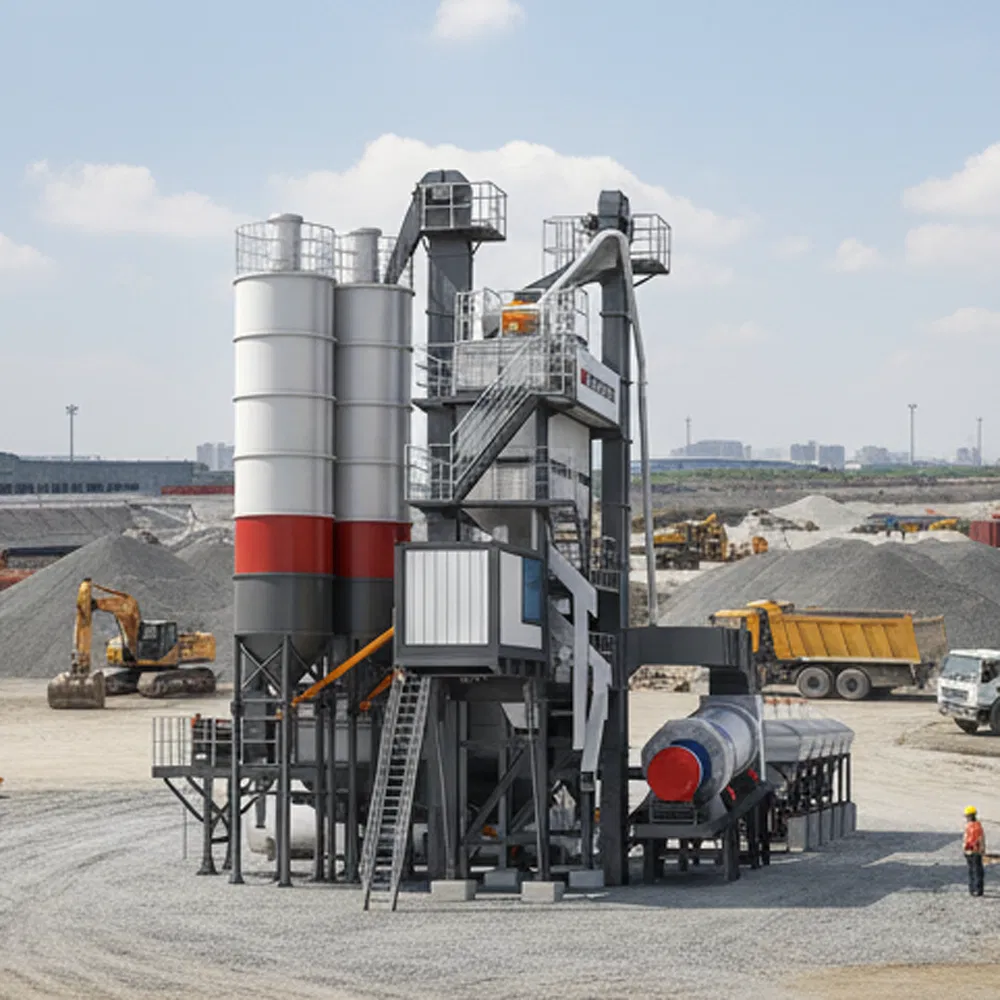

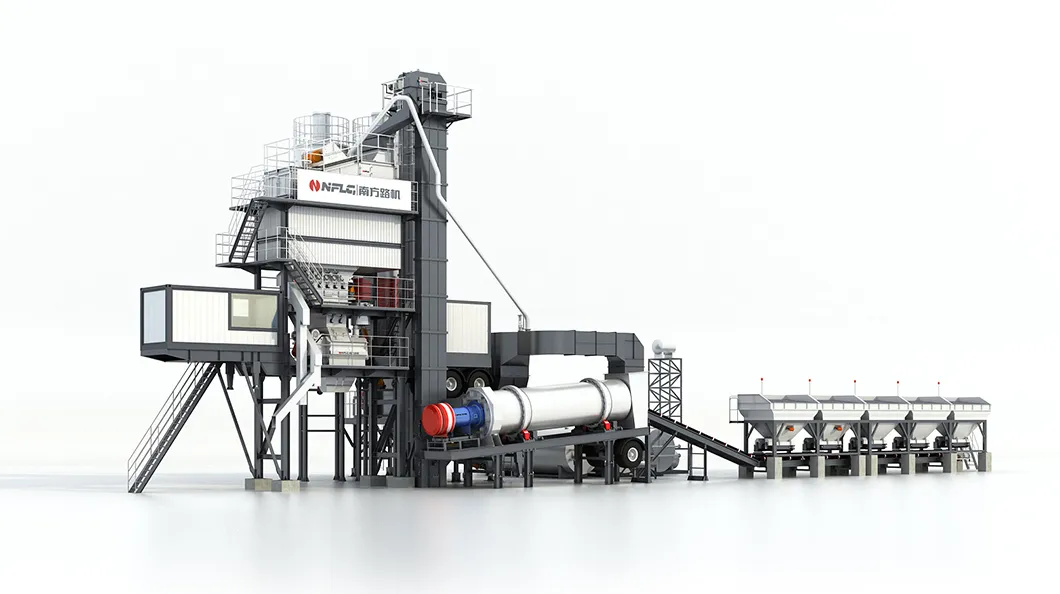

LBY Mobile Asphalt Mixing Plant
| Model | LBY1500 |
| Rated capacity | 120t/h |
| Cold material bin | 4 * 9/5 * 9 (Quantity x Capacity) |
| Fuel Type | Light oil/ heave oil gas (optional) |
| Dust remover system | Gravity + Bag filter dust removal |
| Mixer capacity | 1.5t |
| Trailer speed | 40km/h |

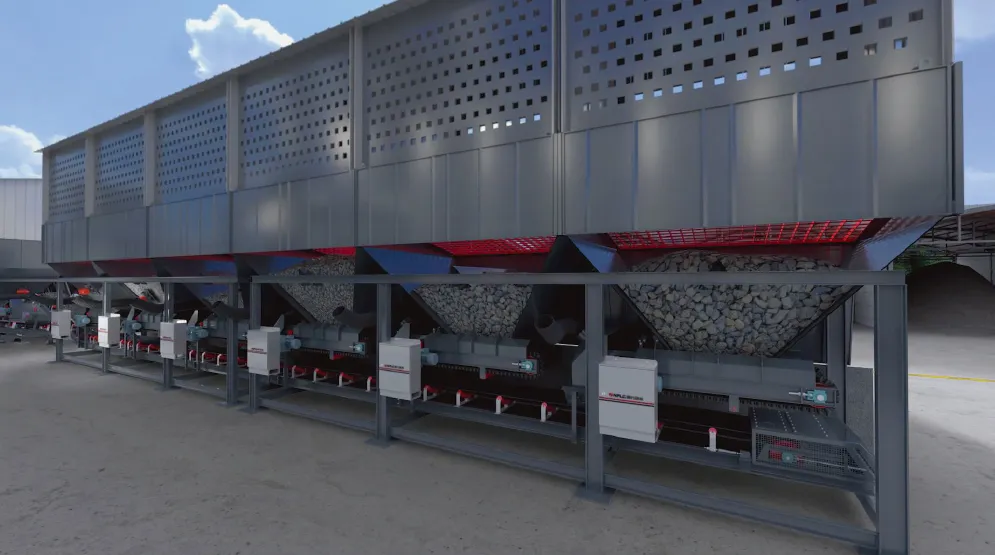

Frequency conversion control, internal vibration type arch breaking device, and light alarm function for material shortage.

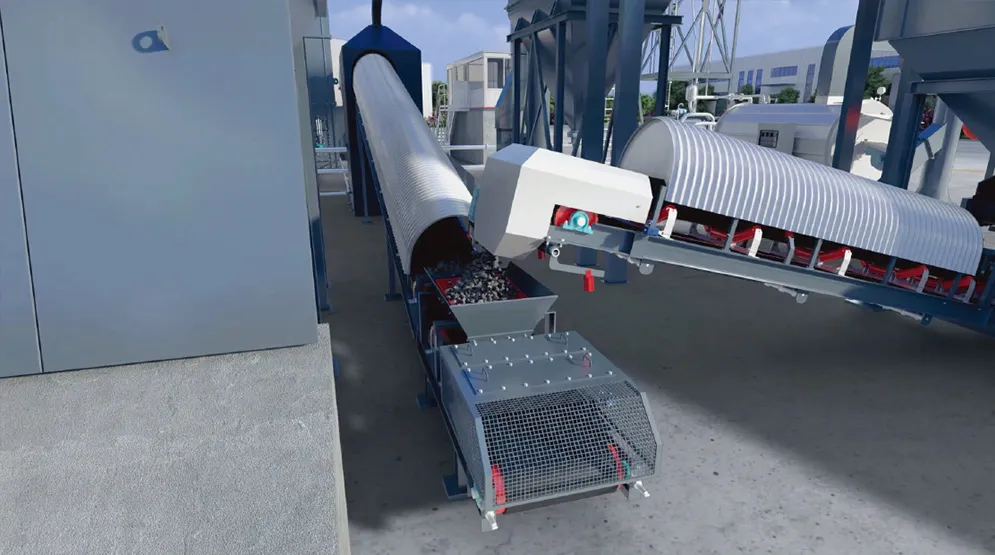

Interchangeable friction plate rubber-coated drum, Polyurethane wear-resistant belt cleaner, and emergency pull switch.

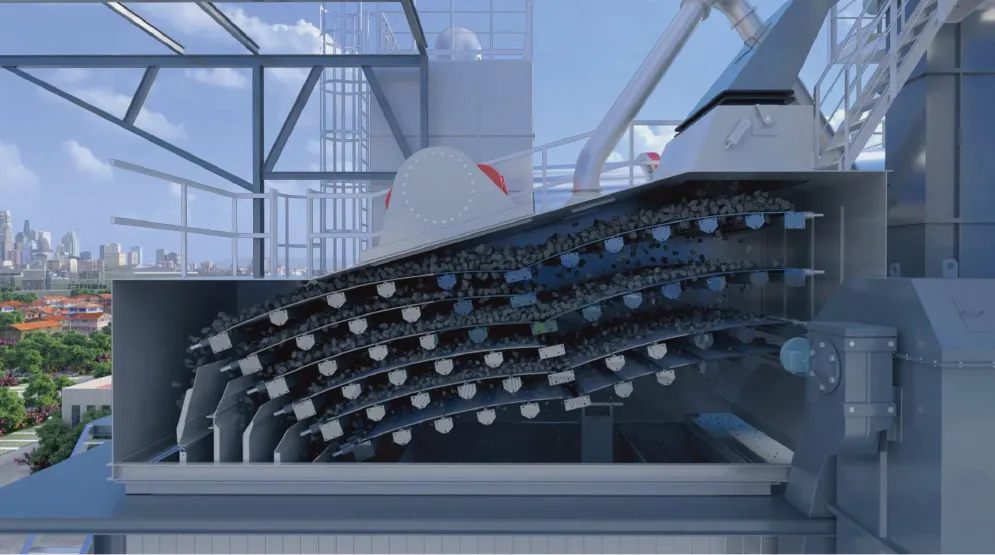

Thermal insulation rock wool for noise reduction. Screening efficiency ≥95% with maintenance-free drive motor.

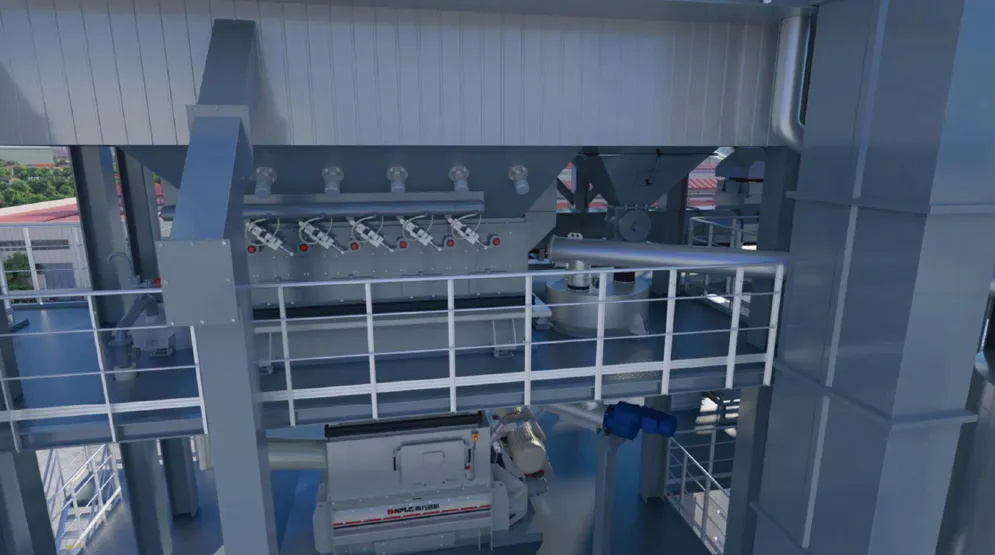

Continuous material level meter, temperature sensors, and long/short double doors for accurate aggregate feeding.

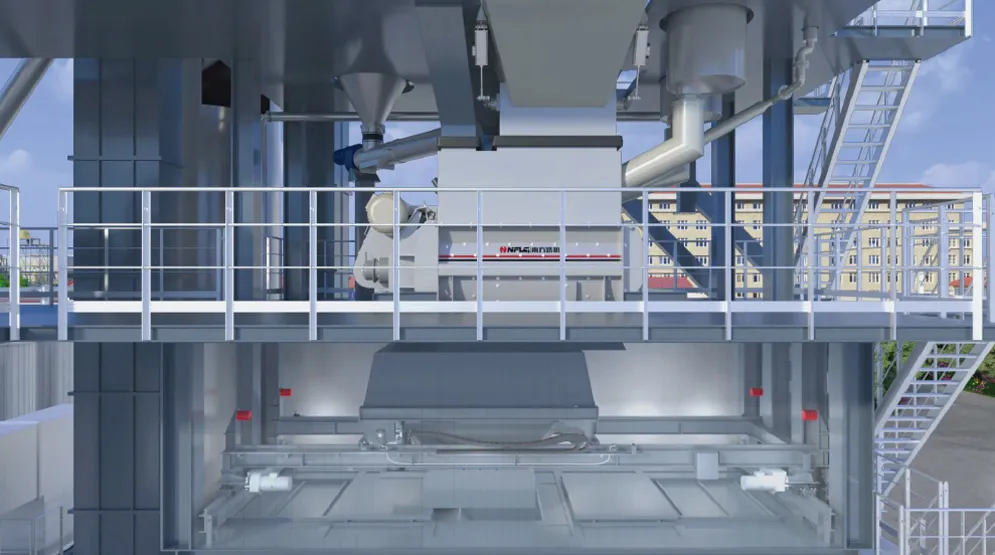

High-speed flexible synchronous drive. Strong three-dimensional mixing with Swedish wear-resistant paddles.

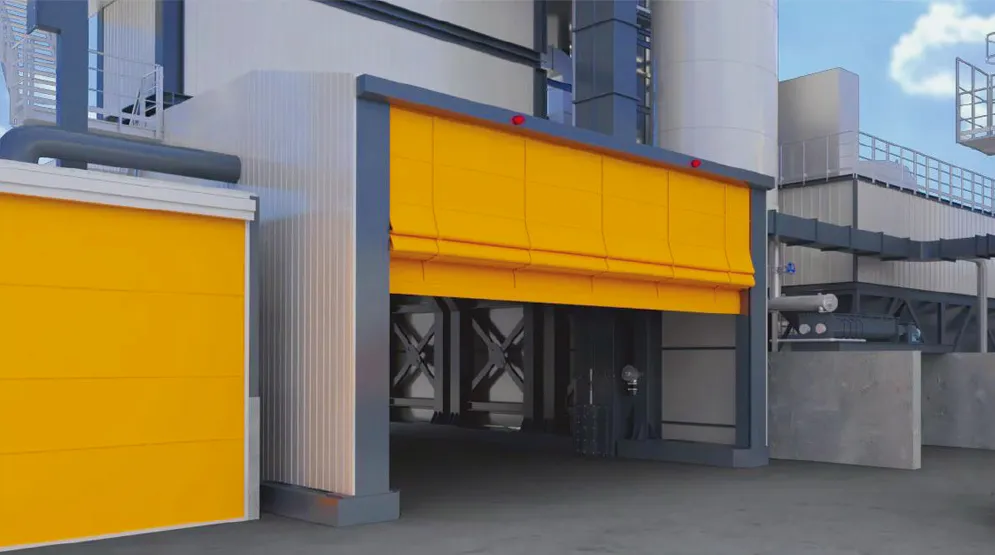

Fully sealed design with electric heating discharge door to prevent sticking and reduce dust emission.

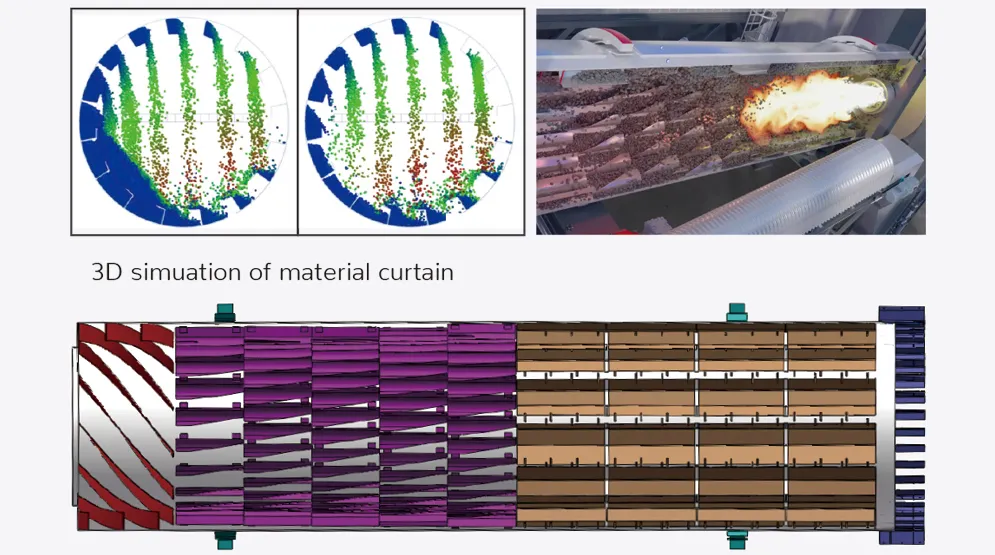

Optimized lifting blade design and stainless steel cladding. Energy saving by 10% compared to original models.

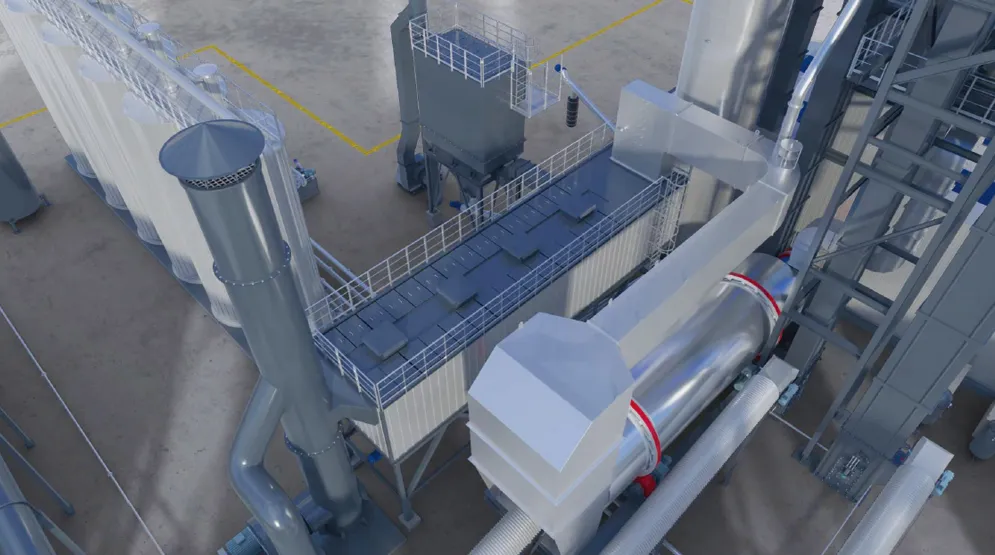

Two-stage dust removal meeting European standard emissions. Rotary air blowing for high efficiency.

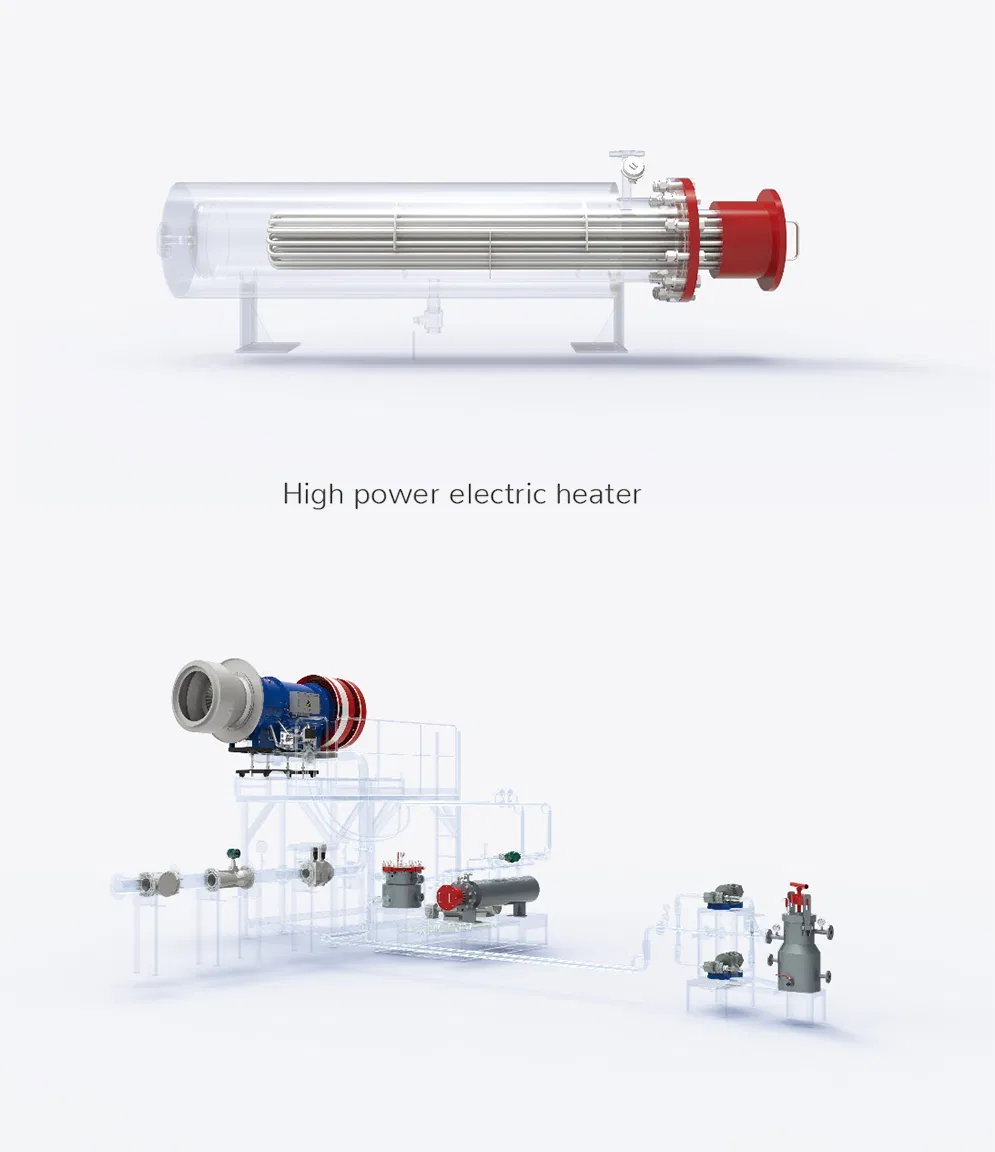

Intelligent Adjustment: Adapts to different combustion modes and oil products based on extensive application data.
Temperature Control: Patented aggregate temperature measurement technology with one-button operation.
Energy Saving: Multi-closed-loop intelligent control ensures accurate temperature and low emissions.
Safety Monitoring: Equipped with intelligent detection and safety interlocking mechanisms for worry-free production.
