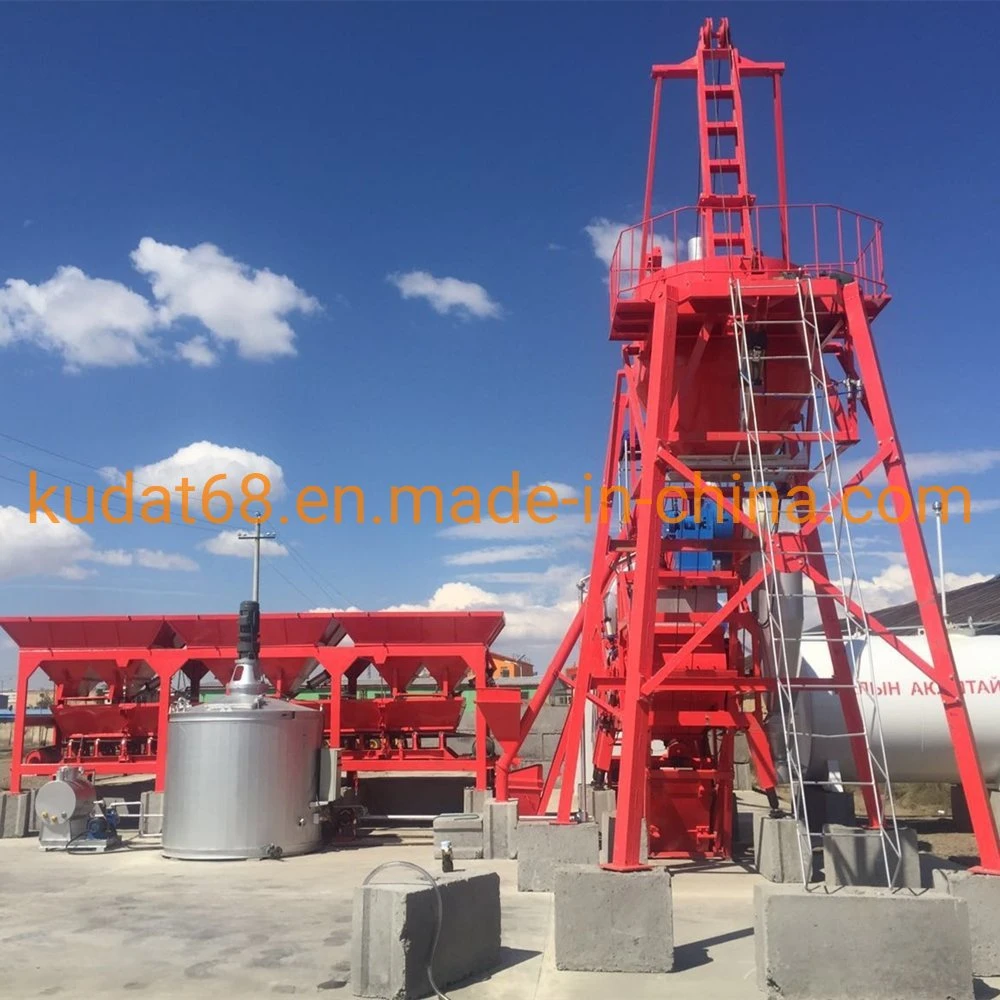

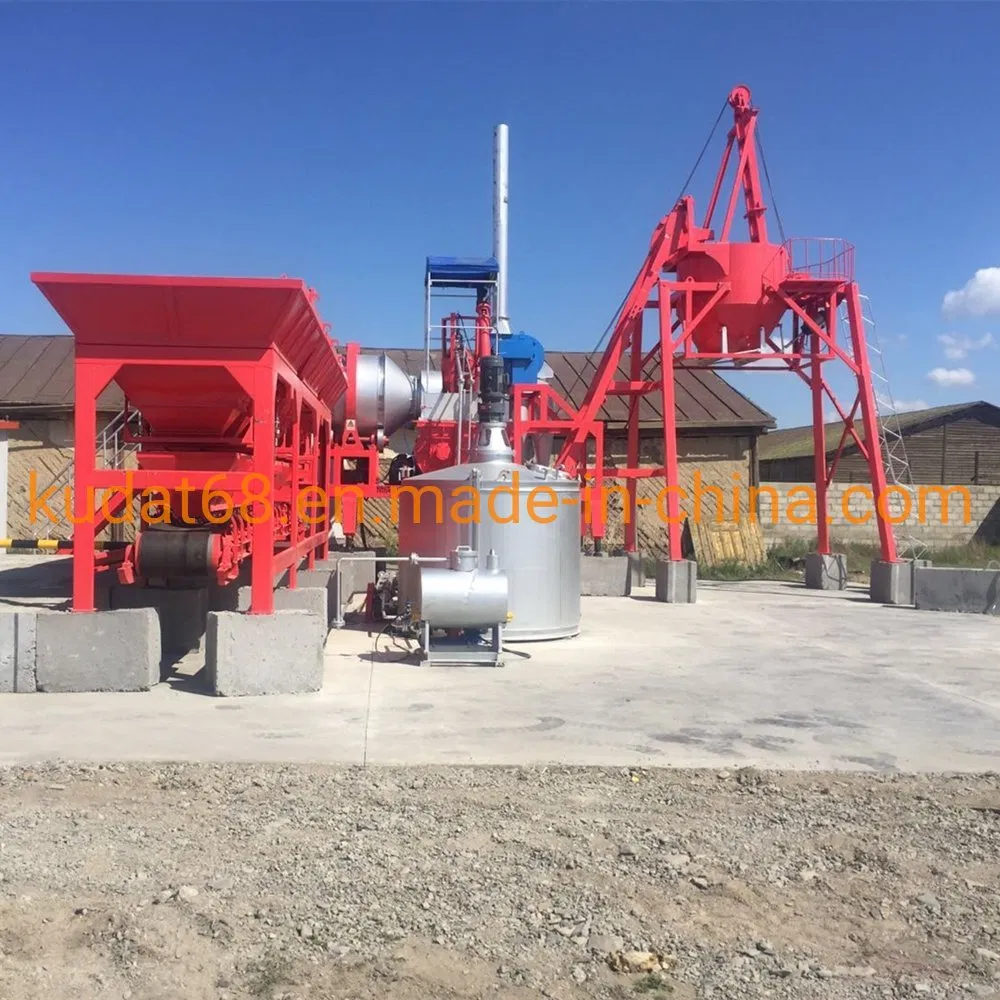

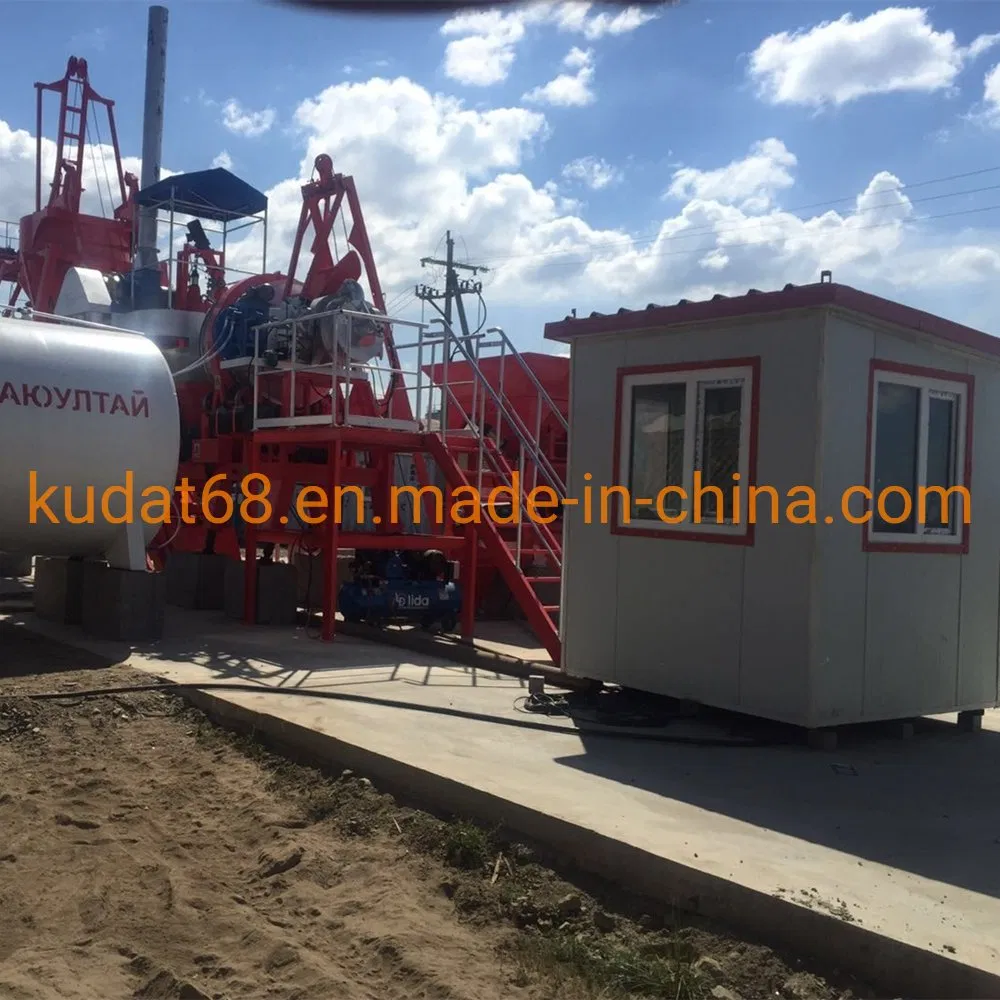

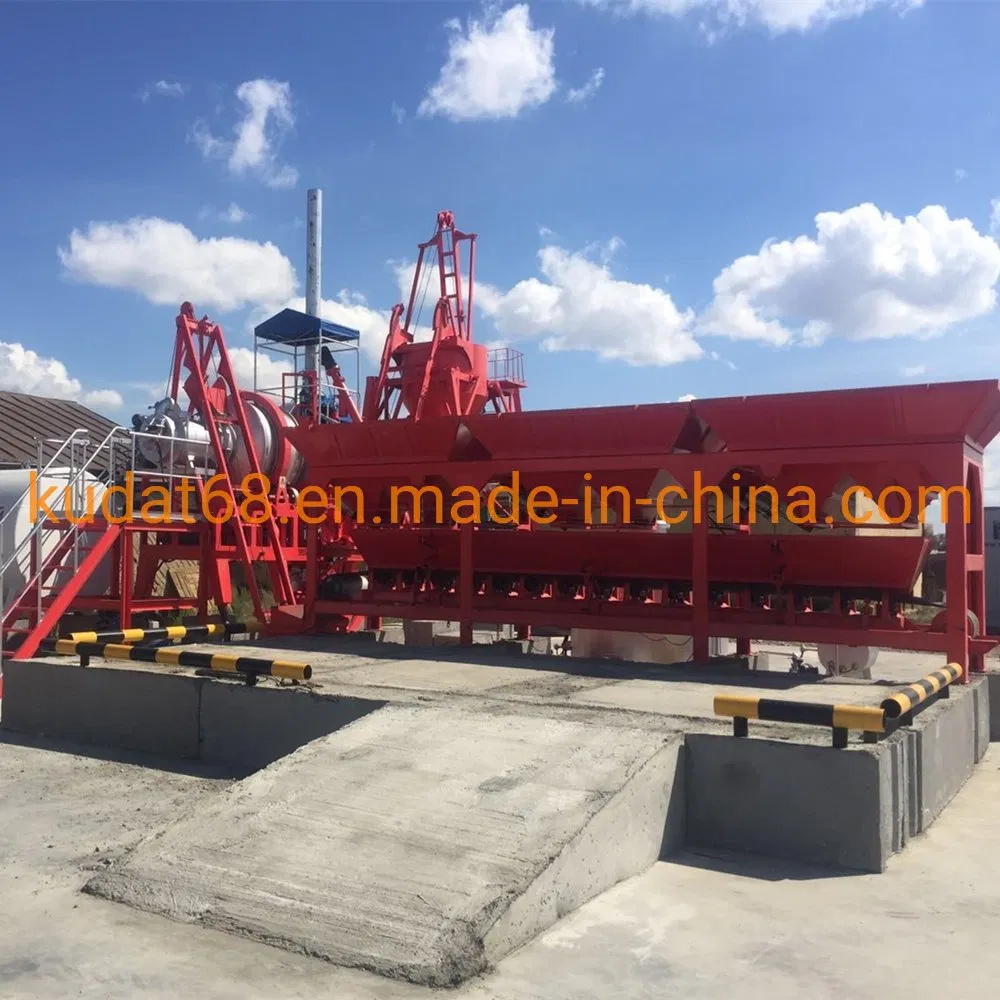

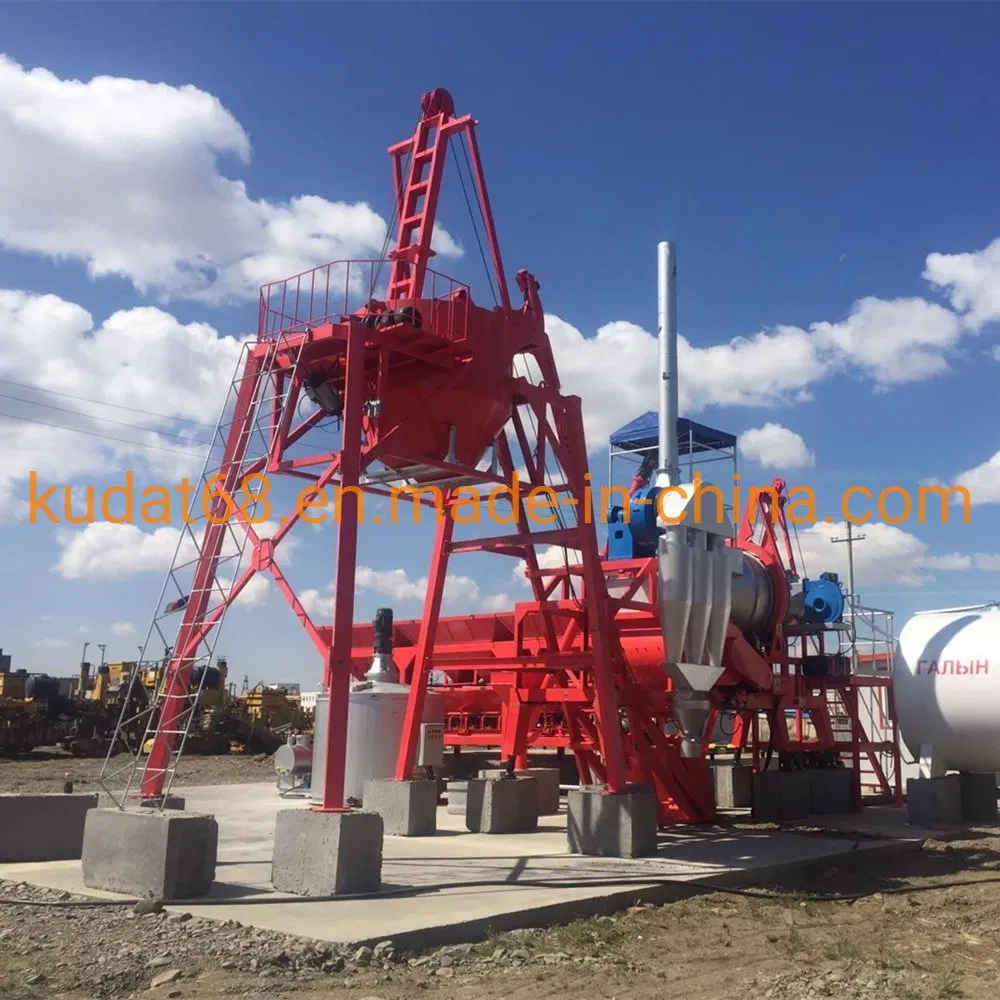

10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
1 / 5
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10
10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10

10tons Per Hour Capacity Mobile Asphalt Mixer Plant Qcq10

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

i
Basic Information
Model NO.
QCQ10
Type
Asphalt Mixing Plant
Object
Asphalt Concrete Pavement
Moving Type
Mobile
Mixing Method
Continuous Drum
Automatic Grade
Automatic
Product Capacity
40～400t/h
Certification
ISO9001: 2000, CE
Condition
New
Rated Productivity
10tph
Feeder Hopper Capacity
500kgs
Suitable Material
Bitumen and Aggregate
Oil Burner
42kw
Coal Burner
58kw
Working Voltage
380V50Hz
Product Temperature
120-165c
Fuel Consumption
Oil:5-7.5kg/T Coal:13-15kg/T
Origin
China
★
Main Features
  • ✔ Integrated design of drying and batching drum, reducing initial costs for customers.
  • ✔ Simple structure and easy operation; features counter-clockwise drum rotation for drying and clockwise rotation for discharging.
  • ✔ Advanced PLC control with touch screen interface; supports both auto and manual modes.
  • ✔ Equipped with a towing chassis for easy transport and rapid onsite installation.
  • ✔ Versatile burner options available for coal, oil, or both based on customer requirements.
  • ✔ Twin-horizontal shafts force mixer saves stirring time and ensures high-degree bitumen wrapping.
📋
Technical Specifications
Type QLB-10 QLB-15 QLB-20 QLB-30 QLB-40 QLB-60 QLB-80
Capacity 10t/h 15t/h 20t/h 30t/h 40t/h 60t/h 80t/h
Power Oil 41.5kw 54kw 63.5kw 104.5kw 125kw 157.5kw 200kw
Coal 57.5kw 75kw 86.5kw 127.5kw 169kw 205kw 276kw
Product Temperature 120~180ºC, Adjustable
Fuel Consumption Oil: 5~7.5kg/t | Coal: 13~15kg/t
Optional Items Coal miller, Wet filter, Control room, Bitumen heating tank
📷
Product Showcase

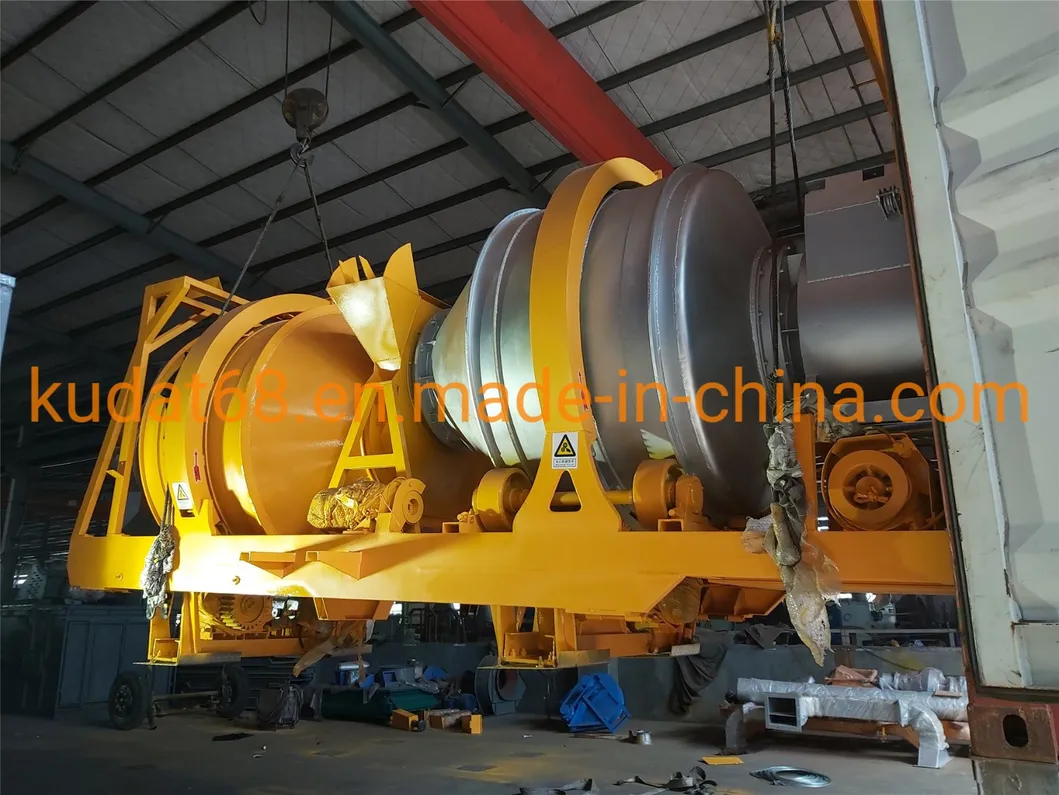

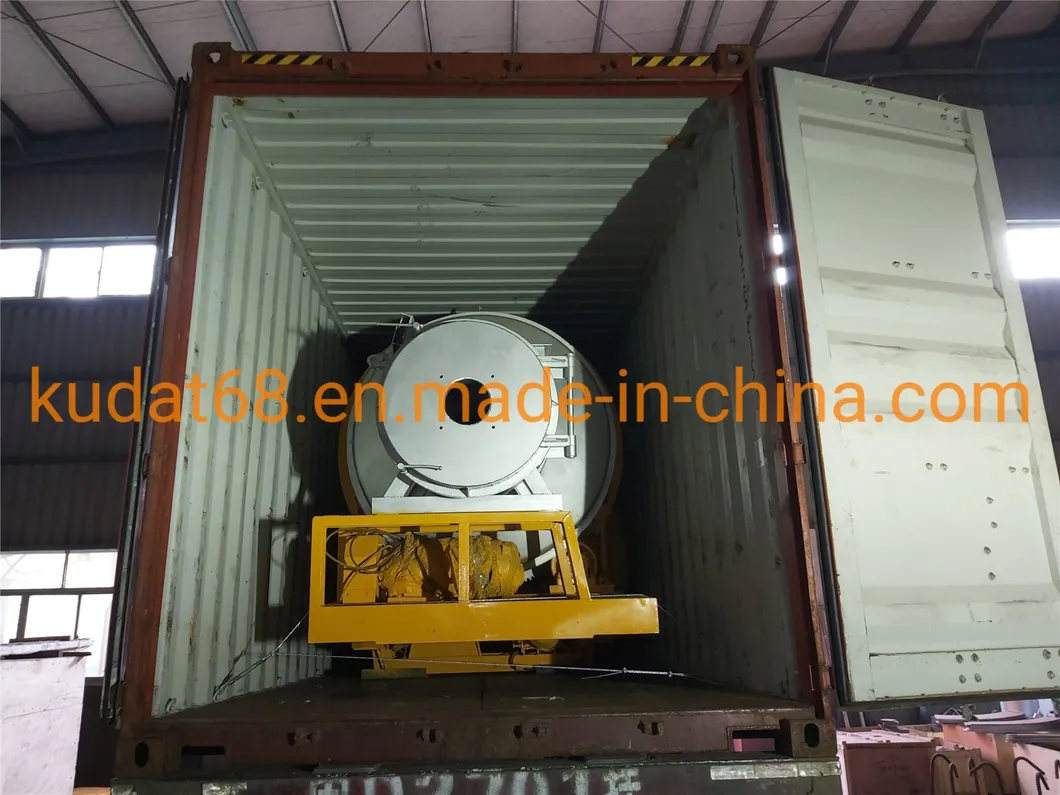

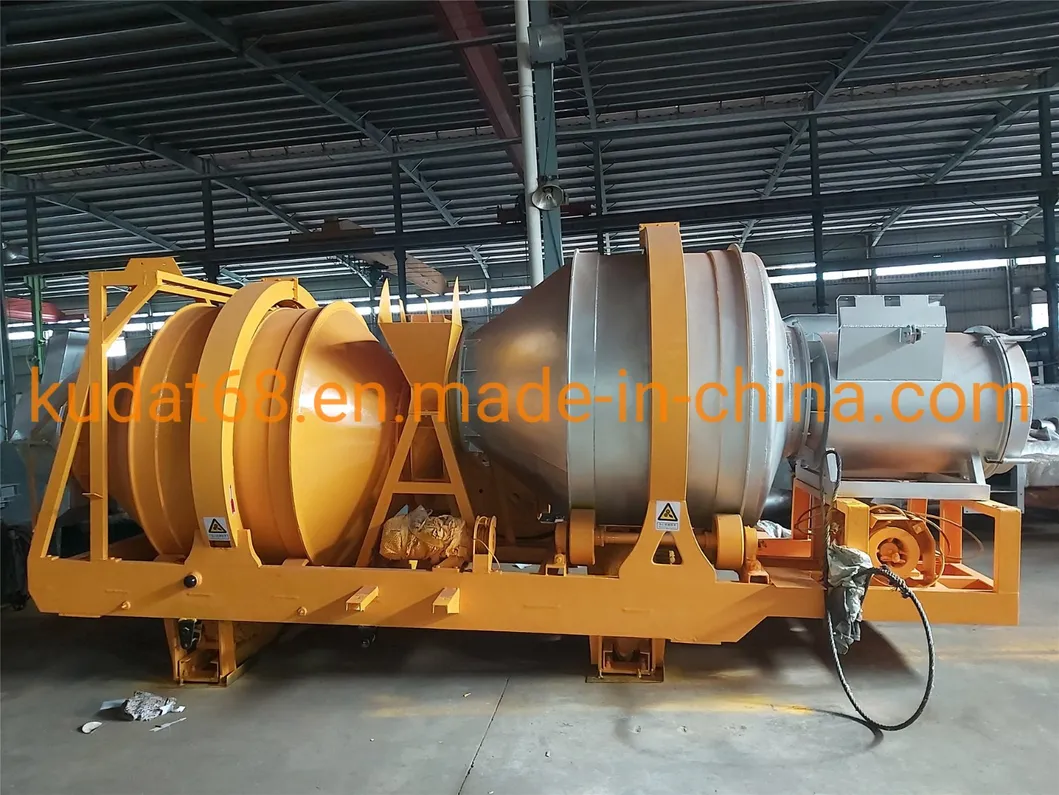

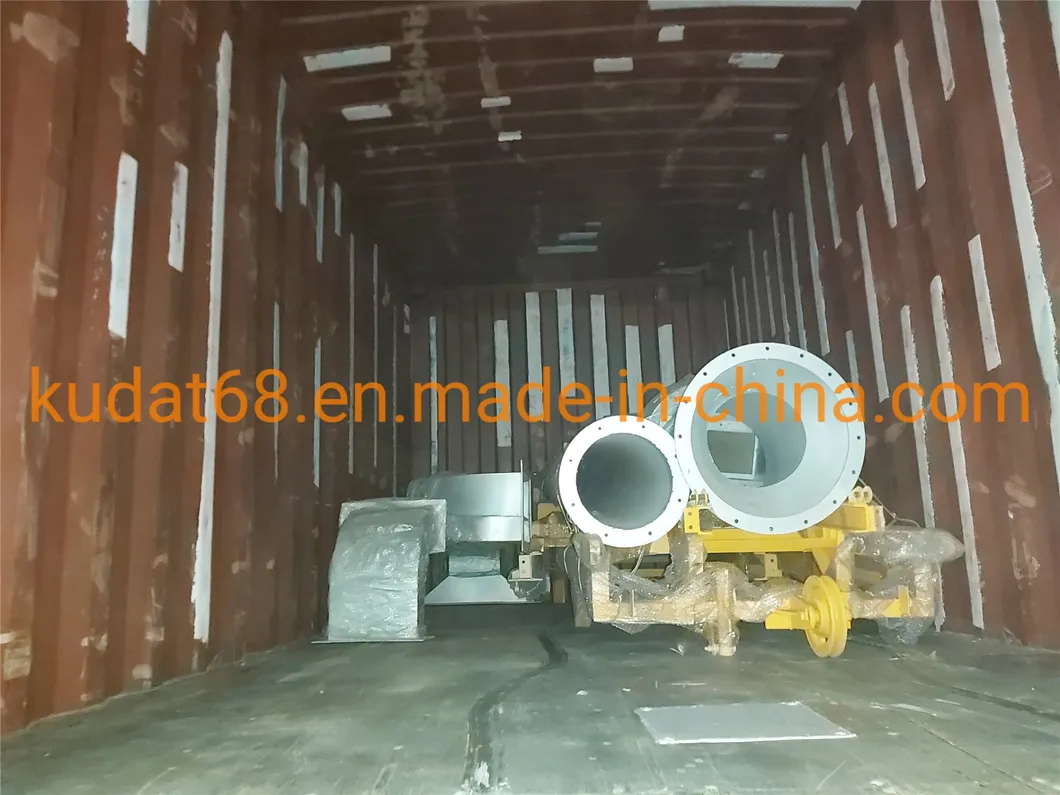

Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant
Mobile Asphalt Mixer Plant Detail
Mobile Asphalt Mixer Plant Detail
Mobile Asphalt Mixer Plant Detail
Mobile Asphalt Mixer Plant Detail
Mobile Asphalt Mixer Plant Detail
?
Frequently Asked Questions
What is the production capacity of the QCQ10 mobile asphalt plant?
The rated productivity for the QCQ10 model is 10 tons per hour (tph), while the series can accommodate capacities ranging from 40 to 400t/h depending on the configuration.
What types of fuel can be used for the burner?
The burner is highly versatile and can be configured to use either oil or coal, depending on the customer's preference and resource availability.
Is this asphalt plant easy to transport between job sites?
Yes, it features a towing chassis design specifically for easy transport and rapid installation, making it ideal for mobile projects.
What is the temperature range for the finished asphalt?
The product temperature typically ranges between 120°C and 165°C, and it is fully adjustable to meet specific project requirements.
Does the system support automatic operation?
Yes, the plant is equipped with a PLC control system and a touch screen interface, supporting both automatic and manual switching for precise operation.
What mixing method does this plant use?
The QCQ10 uses a continuous drum mixing method, while the QLB series utilizes twin-horizontal shafts force mixing to ensure thorough bitumen wrapping.
